AutomationDirect.com    Cumming, GA 30040-9905

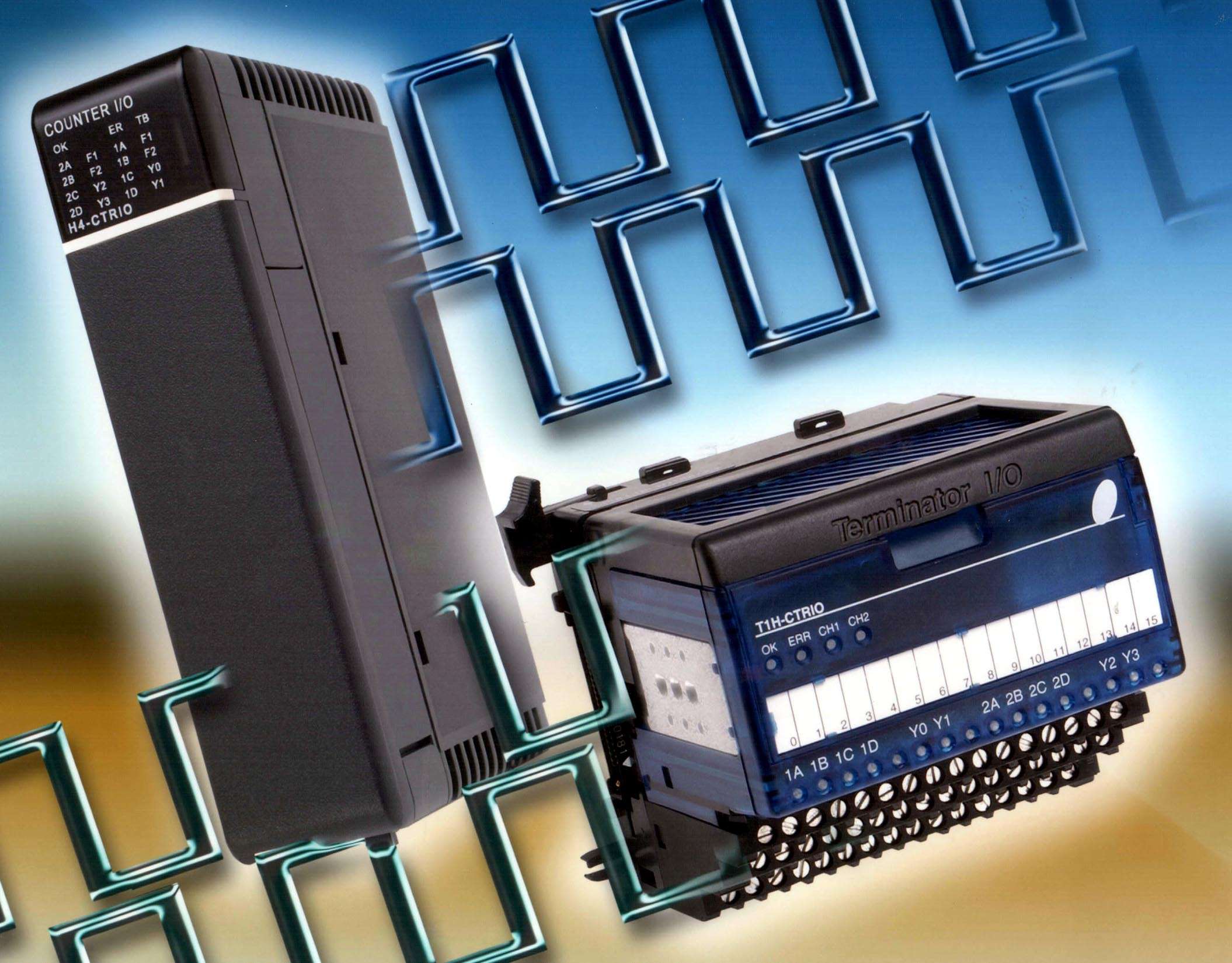

Apr 21, 2003 Counter/Pulse Output Modules accept high-speed pulse-type input signals and provide discrete outputs or pulse output for position control, speed referencing, or other motion control functions. They feature 8 DC sink/source inputs at 9-30 Vdc, and 4 isolated sink/source DC outputs at 5-30 Vdc. Input configurations supported include 2 quadrature encoder counters up to 100 kHz, or 4 single channel counters up to 100 kHz, and 4 high-speed discrete inputs for reset, inhibit, or capture.

Snap-on Industrial    Kenosha, WI 53141 1410
Apr 21, 2003 Model MLT3400 Belt and Disc Sanding Machine Tool roughens and fine finishes while sharpening and shaping various materials. Unit is equipped with belt that adjusts horizontally and vertically, allowing for finish into sharp corners. Adjustable, detachable miter table provides precise measurements. Sanding is accomplished through rubber contact wheel, free 100-grit belt, or free 80-grit disc. Offerings include ¾ hp brushless motor and 120 V cooling fan.

Schroff, Inc.    Warwick, RI 02886

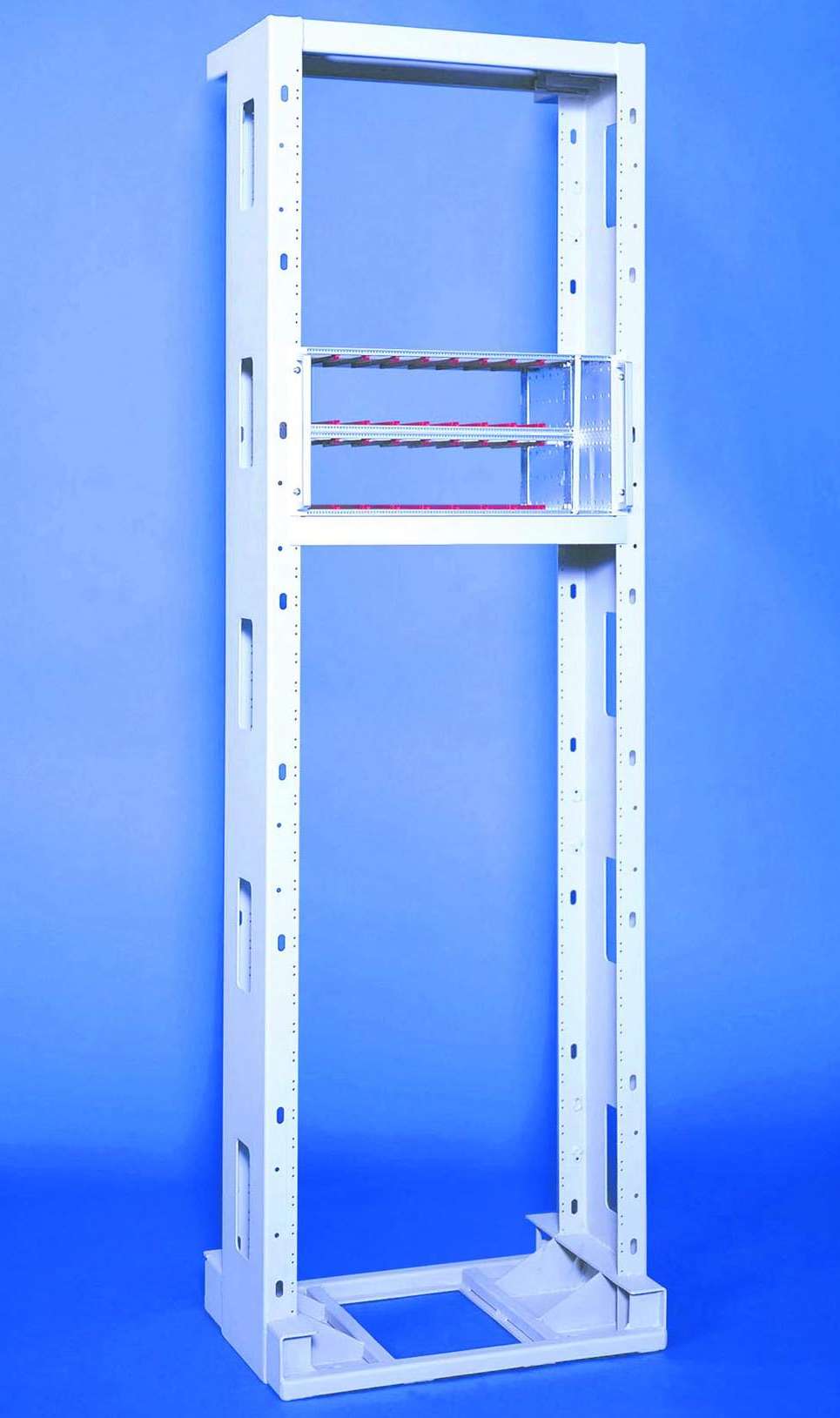

Apr 21, 2003 Seismic Open Frame Rack, available in 19 and 23 in. widths, is suitable for data communication centers and telecommunication equipment central offices situated in earthquake-prone regions. It meets requirements of Telcordia GR-63-CORE Zone 4, using test load of 1,000 lb. Base is manufactured using 0.180 in. thick cold rolled steel, while rest of rack uses 0.125 in. thick cold rolled steel. Multiple frames may be bayed by using four splice plates.

Payson Casters, Inc.    Gurnee, IL 60031 1212

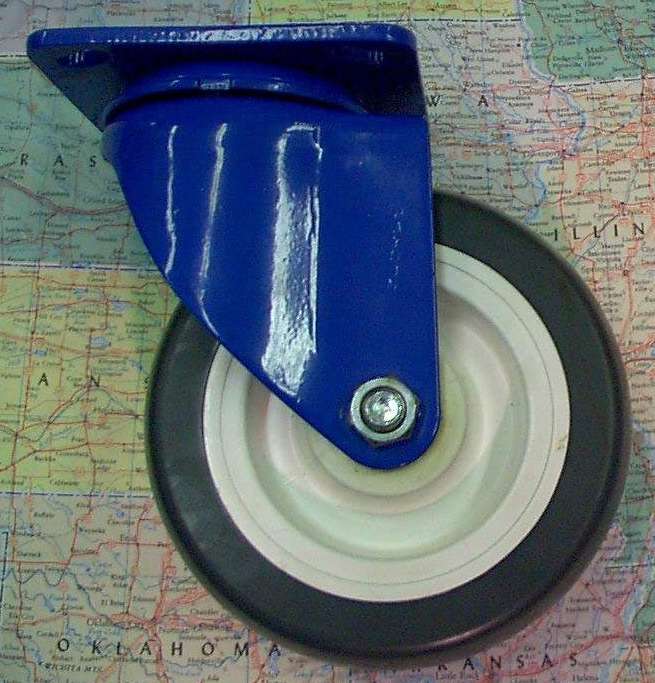

Apr 21, 2003 Model No. 200-6DK-PC rust resistant, cold formed caster has 2 precision aligned swivel raceways and is powder coated to resist salt spray and harsh liquids used in wash down applications. Medium heavy precision built swivel caster utilizes cold formed parts made to exact tolerances from heavy gauge steel and hardened for severe service. Suited for food service, hospitals, and processing industry applications, product is offered with various wheel types.

Southco Inc.    Concordville, PA 19331 0116

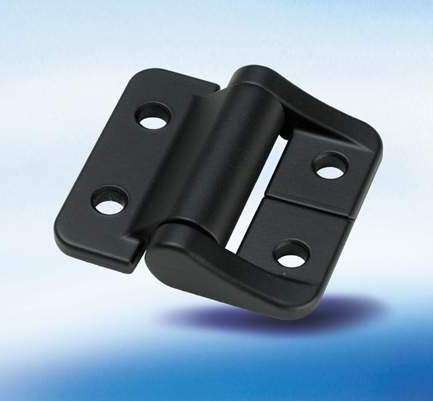

Apr 21, 2003 Friction Hinge eliminates need for secondary mechanical support such as door stay or gas spring. It provides constant torque throughout 270° range of motion, allowing user to position doors and panels for hands-free access into entire interior of cabinet or enclosure. Two sizes are available, each with four constant-torque options for different application needs.

Cooper Crouse-Hinds    Syracuse, NY 13221

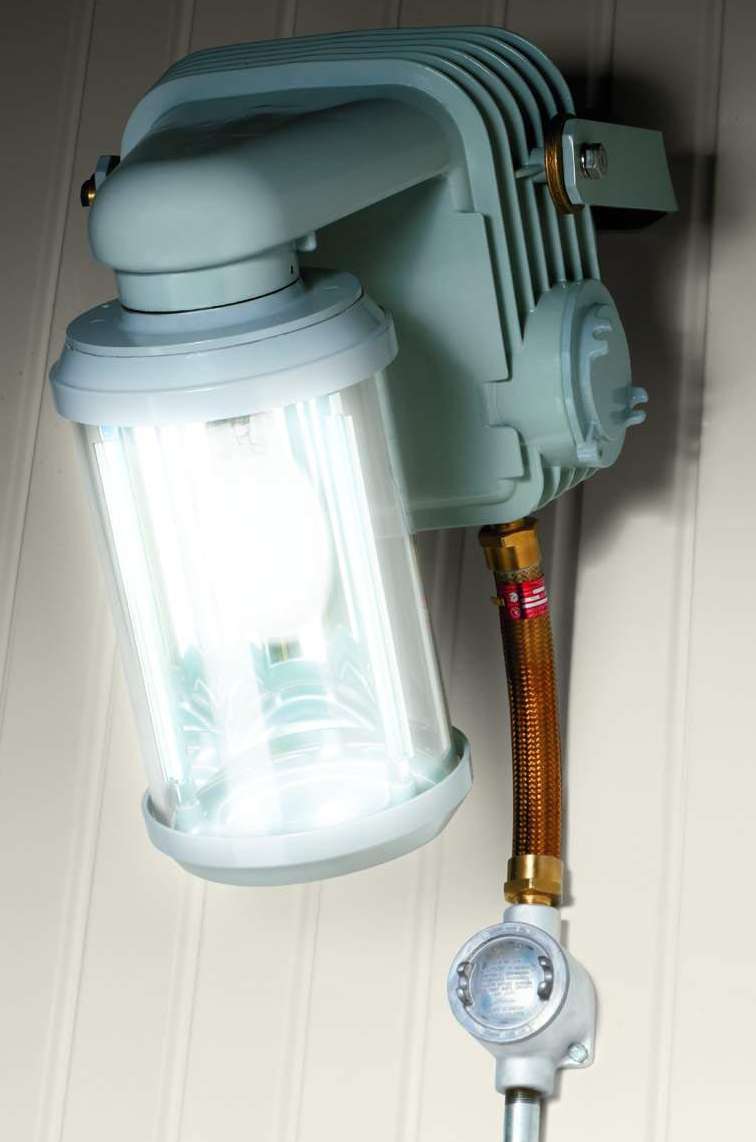

Apr 21, 2003 Available with High Pressure Sodium and Metal Halide lamp sources ranging from 150–400 W, FZD Series™ deliver NEMA 7 x 6 floodlight distribution patterns for Class I, Division 1, and Zone 1 environments. Internal reflector, available in wide- and narrow-beam options, is enclosed in glass tube, and explosionproof threaded construction does not require bolted covers. Heavy-duty, cast copper-free aluminum construction has epoxy powder-coat finish.

Videojet Technologies, Inc.    Wood Dale, IL 60191-1073

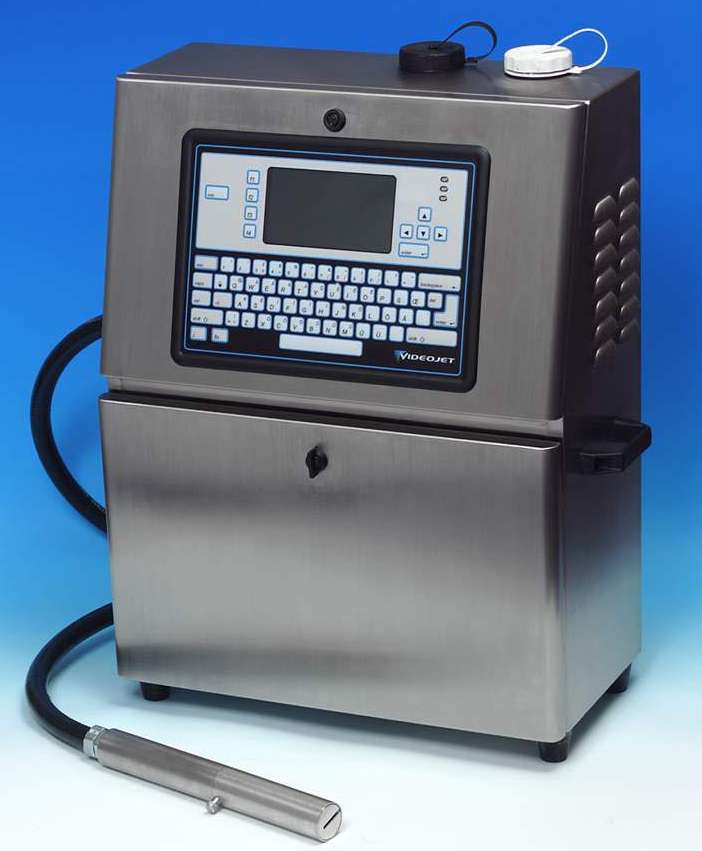

Apr 21, 2003 Videojet® 43S incorporates automatic printhead cleaning at start up and shut down, internal pump, and drop-down menu operator interface that allows for WYSIWYG message creating and editing. Product prints up to 3 lines of text, bar codes, and logos at speeds up to 800 fpm and includes lit display and membrane touch keypad. Logo editor, capability to print linear bar codes, 25 message storage capacity, and time, date, shift, and expiration date inserts are included.

KSR Kuebler Of America, Inc.    Raleigh, NC 27613
Apr 21, 2003 Model TM Magnetic Sight Glass level indicators are top-mounted on underground tanks and other tanks with top entry. Standard unit fits tanks with depths of 1–10 ft. Built from 316L or 1.4571 stainless steel, unit chambers handle temperatures from -22 to +840°F and operate with continuous outputs from 4–20 mA. Roller type magnetic indicator provides consistent performance in extreme conditions. Display indicators detect incremental changes in process fluid levels.

Dimas North America    Olathe, KS 66061

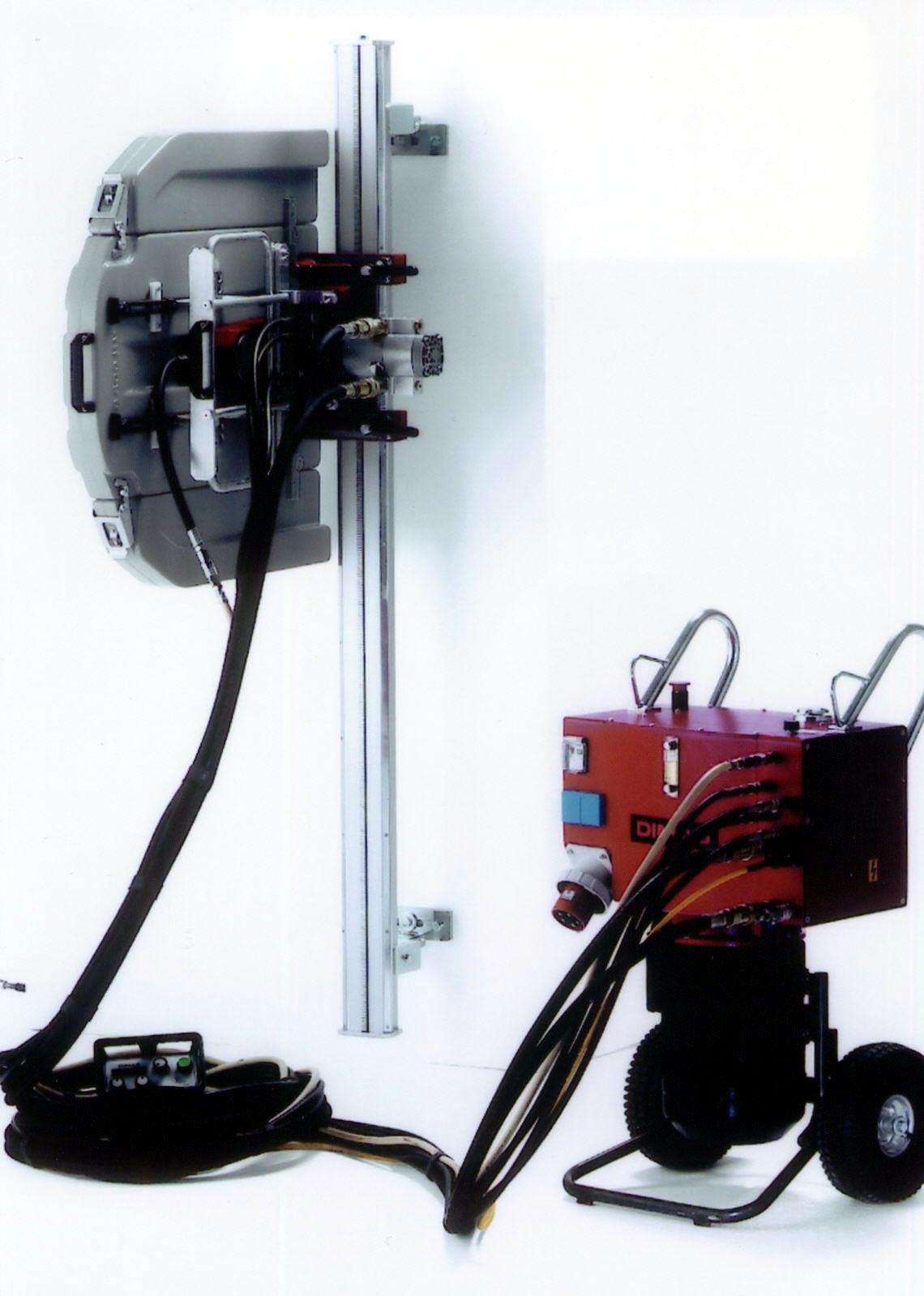

Apr 21, 2003 With components constructed of heavy-duty magnesium and titanium, WS 355 weighs 64 lb and provides up to 33.5 hp at bladeshaft. Unit comes with electronic remote control for control and monitoring of all sawing functions. Additional offerings include load-sensing travel motor, blade rpm control valve, and 3 spindle speeds: 630, 1,000, and 1,400 rpm. Wall-saw blades are available in 18–60 in. dia with different performance configurations.

Toro Co., The    Bloomington, MN 55420 1136

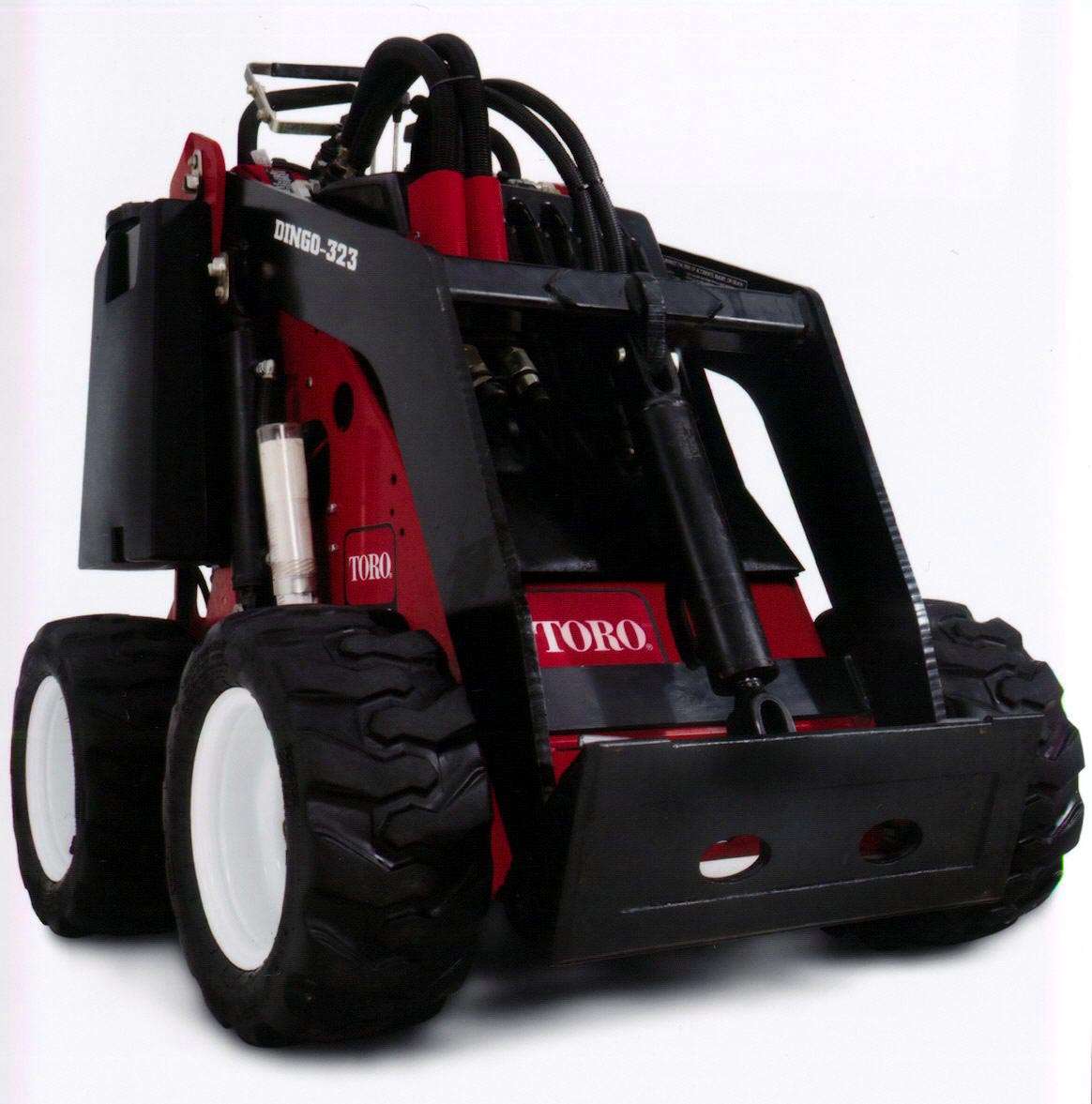

Apr 21, 2003 Dingo 323 is powered by 23 hp air-cooled Kohler engine. It includes 4-Pawâ„¢ system, which constantly directs hydraulic flow and pressure to all four wheels. Attachments are powered by hydraulic system that produces 12 gpm of flow at 3,000 psi of hydraulic pressure. Flow divider permits operator to direct power to loader arms, wheels, and attachment hydraulic circuit. Loader features skid-steer style zero turn capability and 40.5 in. operating width.

C & H Distributors, Inc.    Milwaukee, WI 53214

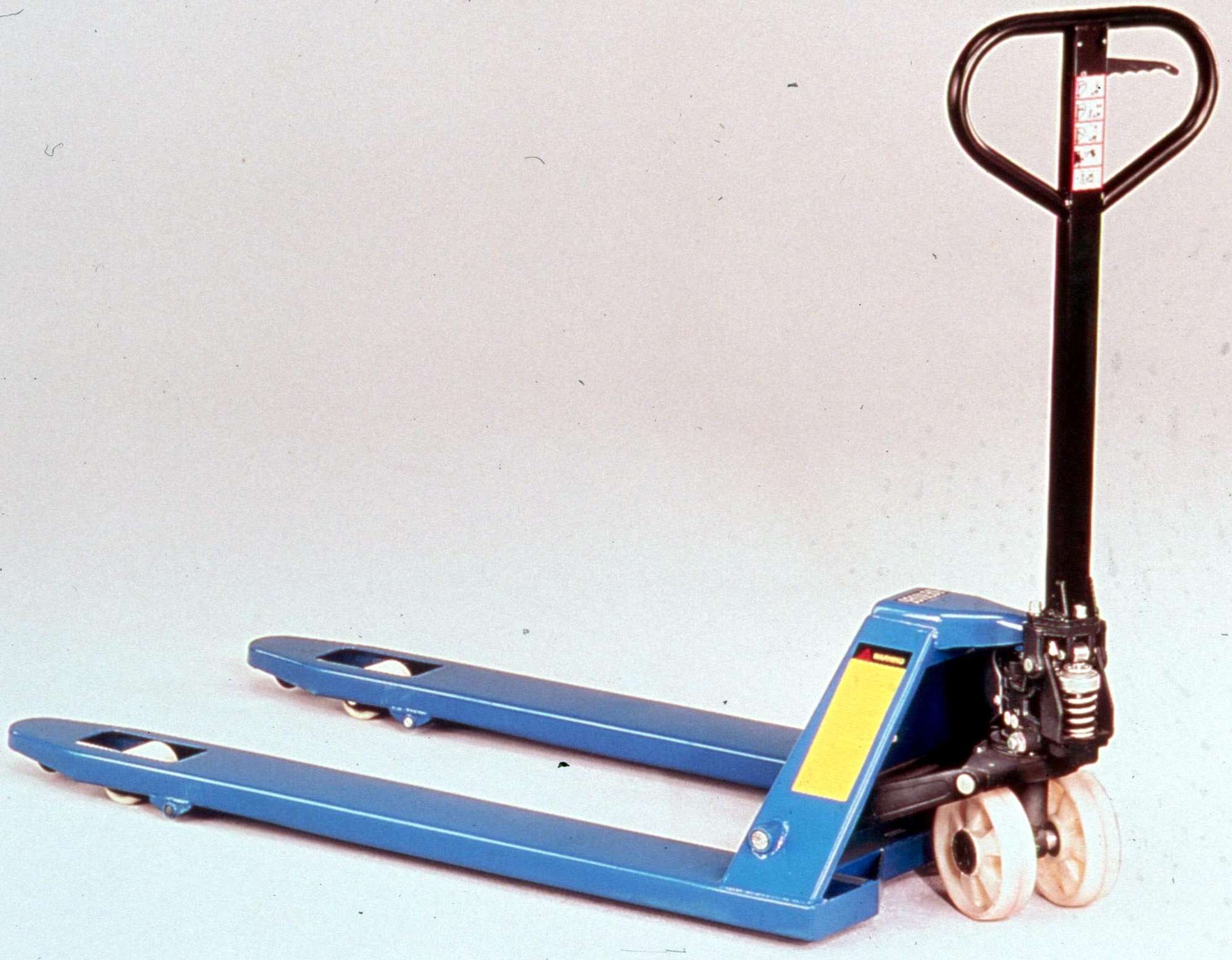

Apr 21, 2003 Constructed from steel with reinforced fork bracing, product incorporates pivot points with bushings. Offerings include 6 in. wide forks that raise from 2.9-7.8 in., nylon entry/exit rollers, 7 in. nylon steering wheels, and 2.8 in. nylon load wheels with 210° steering arc. Spring-loaded handle has 3-position raise, lower, and neutral fingertip control. With blue powder coat finish and 5,500 lb capacity, overall fork dimensions are 27 x 48 in.

Lumex Inc.    Carol Stream, IL 60188
Apr 21, 2003 Series LPI-C011701S passive light guide carries light from LED source to front panel, display, or switch. Made of UL 94V-O clear polycarbonate, one end includes 0.28 in. round lens which mounts through any front panel of 0.071-0.189 in. Other end fits over LED and snaps into PCB. Flexible light transporter in middle accommodates any bend or curve allowing plane of front panel to be at any angle or offset, relative to plane of PCB containing LED.

FlatPlate, Inc.    York, PA 17404
Apr 21, 2003 DW Series double-wall, vented brazed plate heat exchanger incorporates double wall plates and double seal fluid ports that provide positive leak detection with overall capacity from ½â€“150 gpm. UL listed with optional ASME code, product is suitable as alternative to shell and tube heat exchangers involved in projects where double separation of potable water from boiler water and non-potable fluids is required.

Northfield Precision Instrument Corp.    Island Park, NY 11558
Apr 21, 2003 Ten inch face clamping chuck has adjustable orienting pins and center mounted 3 in. diaphragm plate. Plate centers work piece before two contoured fingers swing into position to face clamp aluminum pump housings for distortion free boring at 4000 rpm.

Blackhawk Environmental Co.    Glen Ellyn, IL 60137
Apr 21, 2003 Electric Parallel Mount Anchor Pump® is an electrically driven, positive displacement piston jack pump with top head drive motor. Heavy-duty parallel mounted driver makes pump compact enough to fit into enclosed vaults. Controlled pumping matches pumping rate to yield of product in sump. Unit can pump against high head pressure and at great depths. UL listed explosion proof or non-explosion proof motor is available.

Comtrol Corp.    Maple Grove, MN 55311
Apr 21, 2003 By allowing substitution of Ethernet for serial cabling, DeviceMaster network serial port servers can connect remotely located serial devices to application software programs with which they interoperate. They provide 5.91 msec elapsed time when using Rapid Transport Service(TM) communication protocol. DeviceMaster serial port servers use hardware and software to provide serial data communications over network.

Sloan Valve Co.    Franklin Park, IL 60131
Apr 21, 2003 FLUSHMATE IV, with quiet operation, 4.0 liter, pressure-assist operating system, is suited for tank-type toilets and generates almost 3x pressure of gravity units at 70 gpm. Product provides push instead of pull, keeping pressure behind waste and forcing it through trapway in 1 flush. Bowl design contributes to low level of sound during flush. Features include 10 x 10 in. water surface and vigorous flushing action.

Quest Controls, Inc.    Palmetto, FL 34221-4802
Apr 21, 2003 Rack or door mountable TELSEC® 800 performs environmental monitoring, intrusion alarming and door access control, power plant, battery, and telephony equipment monitoring in remote site cabinets. Built-in battery monitoring algorithm predicts batteries capacity and time remaining until low voltage disconnect during power failures. Use of modem, 2-way RS232, or TCP/IP Ethernet connection unit can accomplish 2-way communications with remote cabinet.

Xycom Automation Inc.    Saline, MI 48176
Apr 21, 2003 Model 3612KPM industrial computer includes Celeron® 850 MHz CPU, CD-ROM, floppy, and optional touchscreen. Offered with 12.1 in. SVGA flat panel LCD, product has front panel with reprogrammable alphanumeric keypad and integrated industrial NEMA sealed mouse. Unit also includes 256 MB RAM and 20 GB hard drive, with options for Intel® Pentium® III 1.0 and 1.26 GHz processors and DRAM up to 512 MB. Unit provides onboard 10/100 Base-T Ethernet, USB port, parallel port, and 2 serial ports.

Balzers, Inc.    Elgin, IL 60123
Apr 21, 2003 Suited for use in molding and stamping/forming applications, BALINIT® LUMENA nano-layered coating exhibits hardness of 3400 HV 0.05 and thickness from 8-15 µm. In molding, wear-resistant product offers optimized ratio between hardness and internal stress as well as protection against heat penetration into tool. For stamping and forming, coating absorbs shear stress and reduces heat transfer into tool. Product may be applied at lower temperatures than CVD and TD treatments.
