Parker Hannifin Corp., Instrumentation Valve Div.    Jacksonville, AL 36265-9681
Apr 01, 2003 Series B12 bi-directional, high-flow valve has spring-loaded ball seats and blowout-resistant stem. It is pressure rated at 4000 psig CWP. Micro-finished ball provides positive seal. Stainless steel valve offers 2-way inline body configuration and .50 in. orifice. Manual, pneumatic, and electric actuation is available. Port connections are FNPT, CPIâ„¢ single-ferrule, and A-LOK® double-ferrule systems. Operating temperature is -65 to +350°F.

Danfoss VLT Drives    Loves Park, IL 61111
Apr 01, 2003 FIAstar System performs automatic, wet chemical analysis of nutrients and other parameters in groundwater, wastewater, soils, plants, fertilizers, wine, and food. Flow injection technology performs analysis in less than 1 min, and Digital Dual Wavelength detector cancels effects of air bubbles and background changes in carrier solution. Up to 3 analyses can be performed simultaneously, and optional auto-sampler allows up to 120 samples to be preprogrammed for analysis.

NIKA-USA LLC    San Francisco, CA 94105
Apr 01, 2003 EFD.Lab v3.1 stand-alone fluid flow and heat transfer simulation program includes gas flow solver, geometry optimization tool, and floating license support. System simulates gas flows ranging from low-Reynolds incompressible flows up to compressible supersonic flows. Program includes preprocessor with parametric solid modeling of geometry, and postprocessor for processing and visualization of results using CAD files.

RS Technologies, Ltd.    Farmington Hills, MI 48335
Apr 01, 2003 Data Acquisition System combines wheel force sensing with software, rack-mounted hardware, and notebook computer. It includes on-board signal conditioning, shunt calibration, angular position resolution, and signal transmission. Unified system features rapid calibration and alignment of wheel sensor with vehicle data acqusition system. Wireless telemetry data and power transfer function is friction-free with absolute data security.

Pechiney Plastic Packaging    Chicago, IL 60631

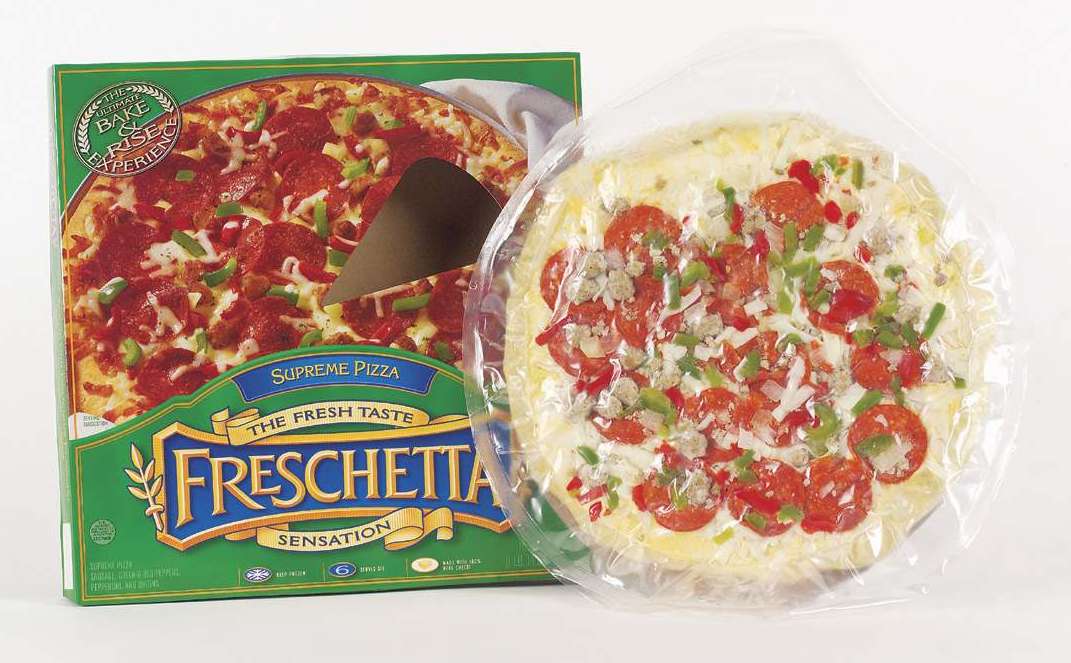

Apr 01, 2003 With approximate 10% top web reduction and 20% bottom reduction, formable flexible packaging offers thermoforming and resistance to flex cracking, while maintaining clarity and peelability for opening. Coextruded top web keeps ingredients in place and is suited for packaging meats, boil-in-bag soups, rising-crust pizza, and other frozen food applications.

Cummins Engine Co., Inc.    Columbus, IN 47202 3005

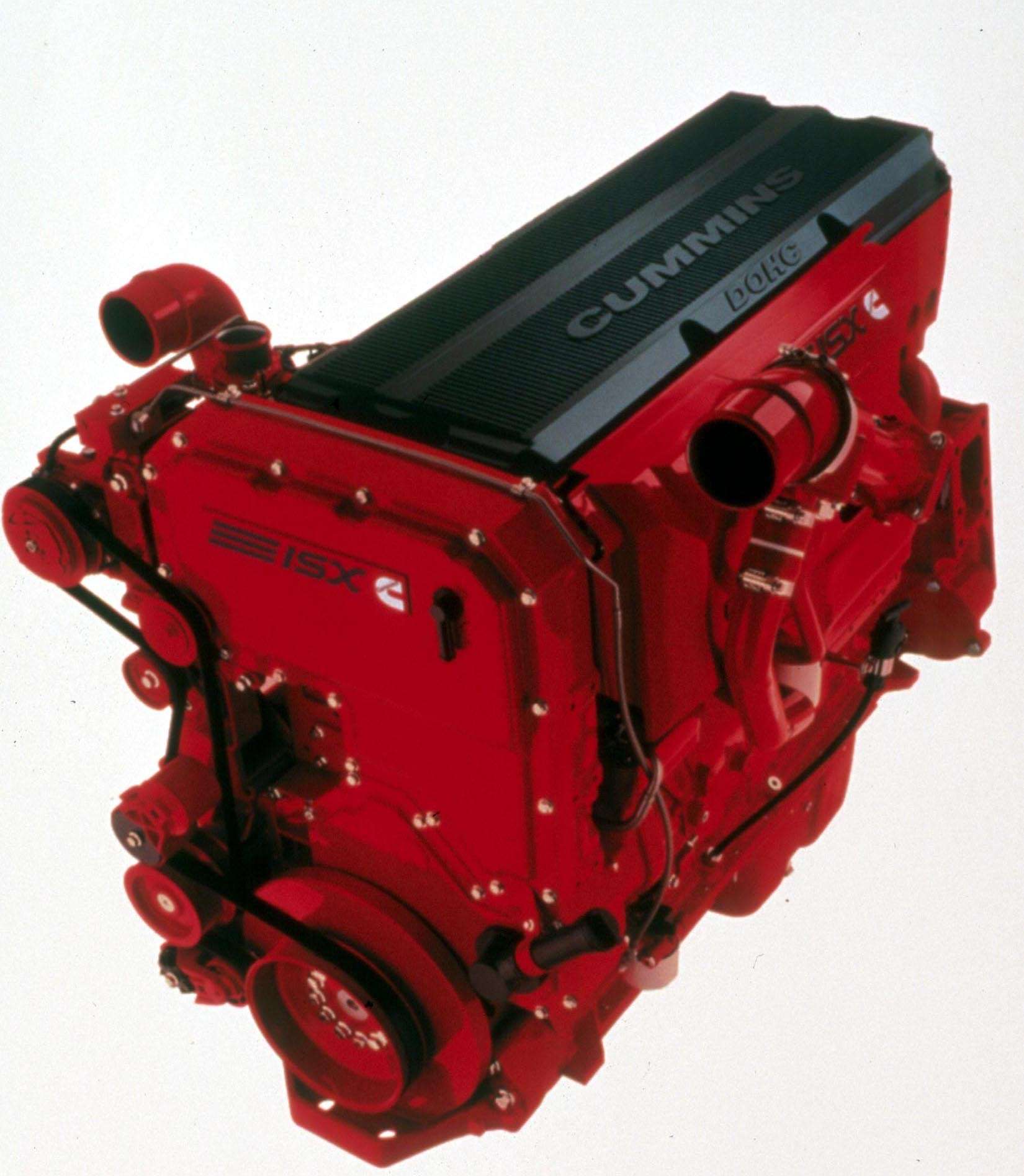

Apr 01, 2003 Model ISX 385 ST, with 1,450/1,550 lb-ft of torque, is equipped with SmartTorque and offers proprietary torque-management rating that delivers additional 100 lb-ft of torque in top two gears of transmission automatically. Engine minimizes downshifts on open road, delivering optimum performance under any circumstance. Suited for applications that don't require engine brakes, product is certified to October EPA emissions regulations.

RIDGID    Elyria, OH 44035
Apr 01, 2003 RIDGID® 320-E crimp tool runs on one 14.4 V nickel-metal hydride battery and incorporates tool head that swivels 90° to allow users access to tight positions. Unit uses interchangeable jaws of ProPress® System, which includes nine interchangeable jaws for crimping ½-4 in. fittings as well as more than 240 SKUs of specially designed fittings in ½-4 in. sizes. Diagnostics indicate proper jaw closure, low/high pressures and temperatures, and battery charge.

Solvent Kleene, Inc.    Peabody, MA 01960-5146
Apr 01, 2003 D-Greeze AC 2603 targets greases, lubricating oils, waxy films, honing oils, bending oils, and drawing compounds. It reduces surface tension, so that bond between soil and metal surface is easily broken. Emulsified oils do not surface during cleaning operation and cleaned parts can be removed without being recontaminated. Cleaner is non-toxic, non-corrosive, non-reactive, non-flammable, biodegradable and non-hazardous. It has no air pollution potential and contains no VOCs.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Apr 01, 2003 Model P-2000 electrical resistance type, digital moisture meter features three scales for testing paper stock, cores and corrugated; baled scrap; and 0-100 arbitrary scale. Contact pins mounted on top of meter are used for making direct contact with material. Setpoint with buzzer alerts user when pre-selected percent moisture content has been reached. Moisture Range is 4.3-18% paper; 0-100% arbitrary, and 5-40% baled scrap paper.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Apr 01, 2003 Handheld Model DR-35-Brix LCD Digital Refractometer provides measurements of brix, solids, and concentrations in range of 0–35% with readability of 0.1%. It requires only 0.4 mL sample and automatically measures with optical sensor. Unit features corrosion-resistant stainless steel sample stage, 0.75 in. LCD display, and automatic temperature compensation. It is suitable for brix measurements of fruit juice, soft drinks, and canned syrups.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Apr 01, 2003 Refractometer measures in brix (sugar) and soluble solid concentrations range of 0–5% and scale readings of 0.1%. Requiring one or two drops of test sample, unit indicates percentage of brix or product concentration levels for various products. Adjustment screwdriver allows user to move critical line to calibrate the unit by using distilled water at 65°F. Portable, self-calibrating unit is suited for food industry, canners, and metal working shops.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Apr 01, 2003 Models LPCI-COM485/8 and LPCI-COM422/8 eight-port Low Profile Universal Serial Communications Cards combine high-density and high-speed communications. Cards meet MD2 Low Profile PCI Bus Specification and are for thin-client servers and high-density rack-mount servers. Features include support of RS-485 and RS-422 protocols, Type 16550 UARTs compatibility, baud rates to 460.8 Kbps, connector for 3.3 or 5 V systems, and PCI-X Bus compatibility.

Sun Hydraulics Corporation    Sarasota, FL 34243
Apr 01, 2003 Electro-proportional cartridge valves include direct-acting and pilot-operated versions. Direct-acting models consist of proportional flow controls, pressure reducing and relieving cartridges, and pilot stage relief. Valves are available in 2, 3, and 4 ports, have flow capacities of 0.1–200 gpm, and operating pressures up to 5000 psi. Floating style construction eliminates binding of internal parts.

Ergotron, Inc.    Eagan, MN 55121

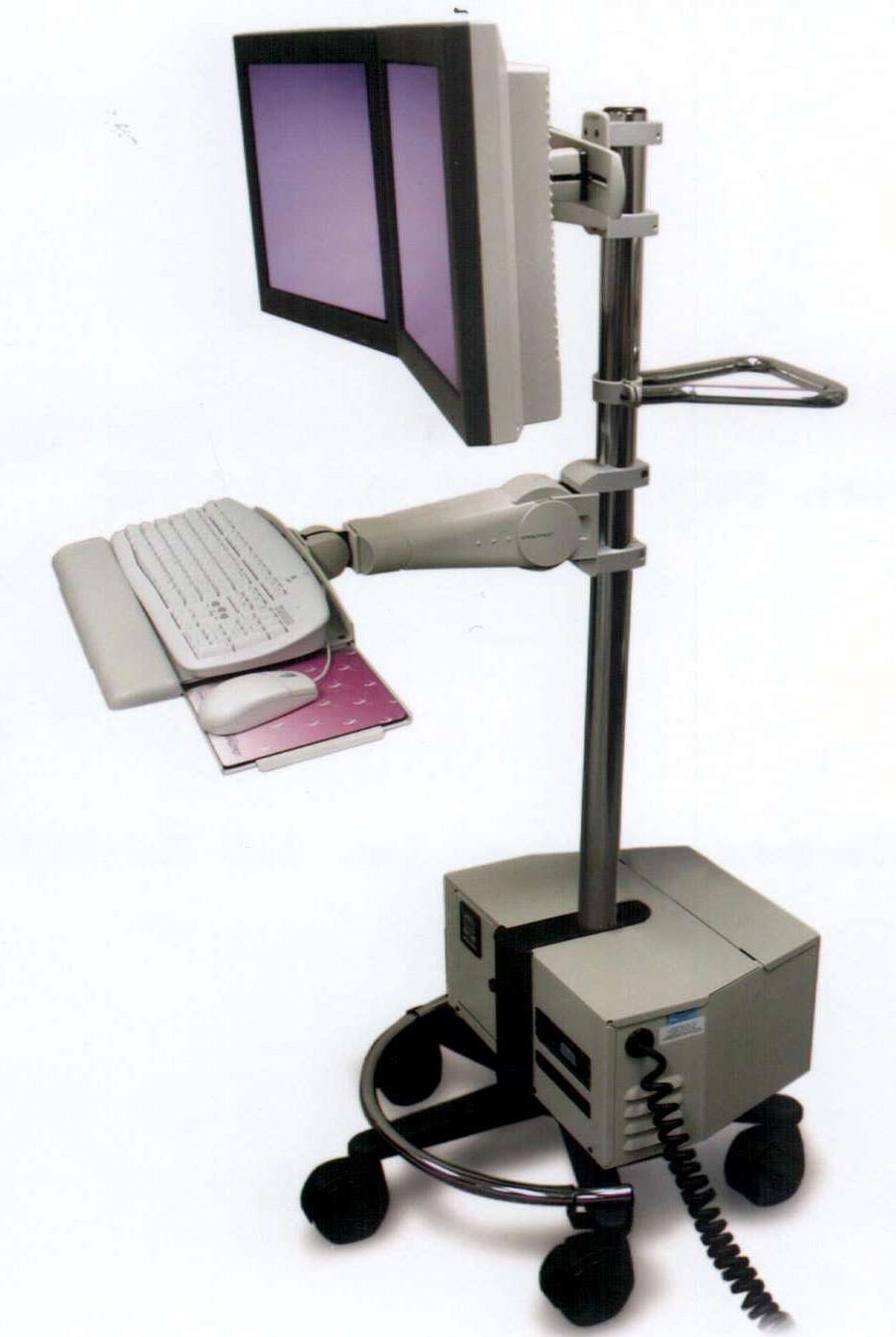

Apr 01, 2003 Designed for continuous duty, Power System model EPS 100 works with company's HD Series Carts and Mobile Workstands. System offers extended run time of 8–20+ hrs, on-the-go recharging, and sturdy construction. System displays digital run-time remaining in hrs/min or percent and is equipped with audible low-battery alarm, spill-proof and leak-proof construction, and useful battery life equal to 700+ complete charge-discharge cycles.

TE Connectivity Ltd.    Berwyn, PA 19312
Apr 01, 2003 Series J1 incorporates single-pole, single-throw switch with half-wave speed control and bypass contact. In-line trigger mechanism provides fine control at lower speeds. Switch carries 8 A/120 Vac/60 Hz electrical rating with cycle life rating exceeding 50,000 operations. Screw clamp terminals are provided for incoming AC connections with spring clamp terminals for internal motor connections. Switch is environmentally sealed for dust and moisture.

ROMI Machine Tools Ltd.    Erlanger, KY 41018

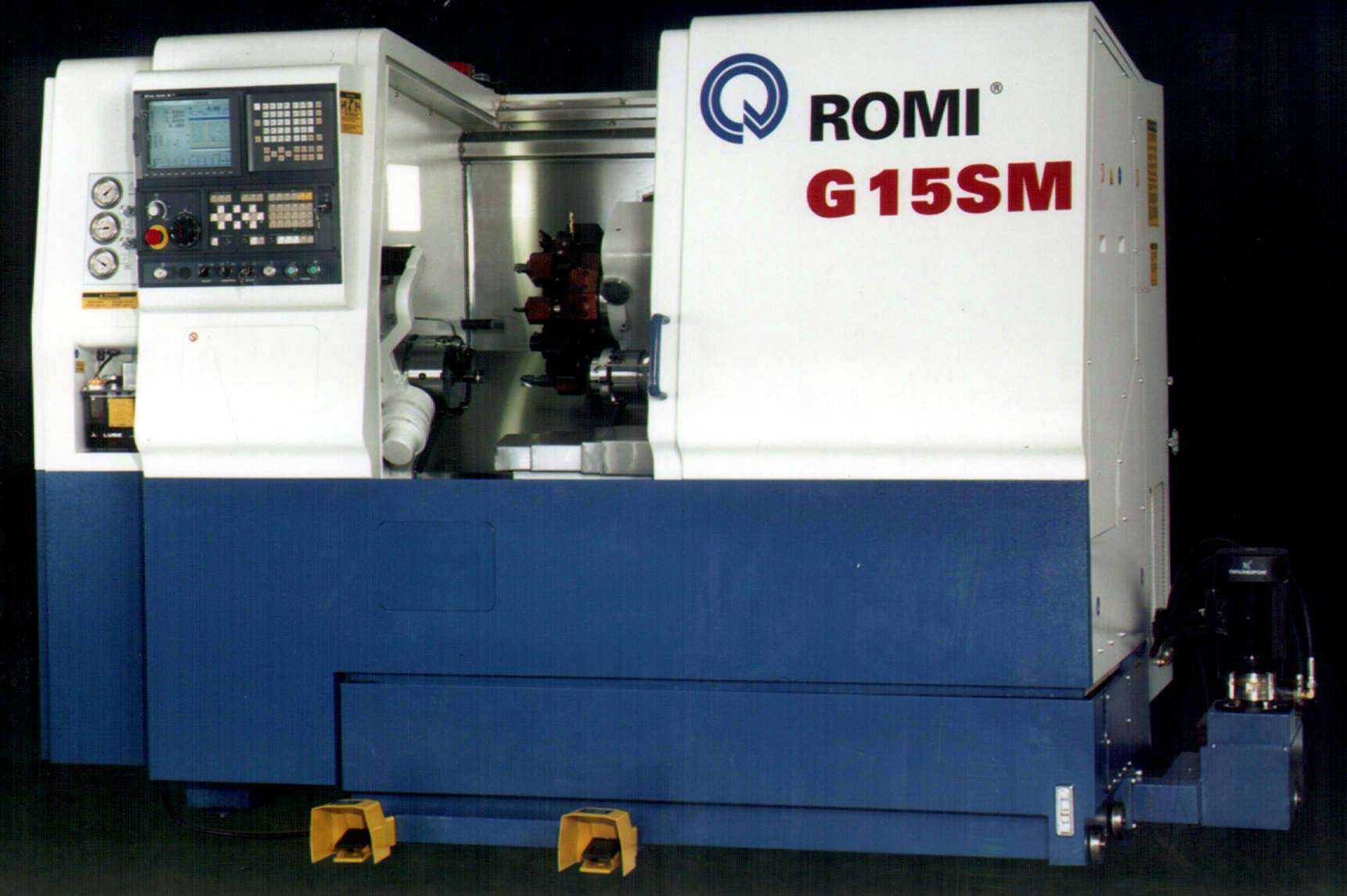

Apr 01, 2003 Series G features maximum swing of 16.54 in., maximum turning diameter of 10.23 in., sub-spindle with live tools, and C axis on main and sub-spindles. Rapid traverse rates are 708 ipm on X axis, 945 ipm on Z axis, and 708 ipm on B axis. Servo controlled, hydraulically clamped, 12-station tool turret offers live tool speed range of 3–3,000 rpm. GE Fanuc 18i-T control has 10.4 in. color LCD and full keyboard. PMCIA card slot is mounted on front of LCD unit.

Waters Equipment Co.    Lansdale, PA 19446 0576

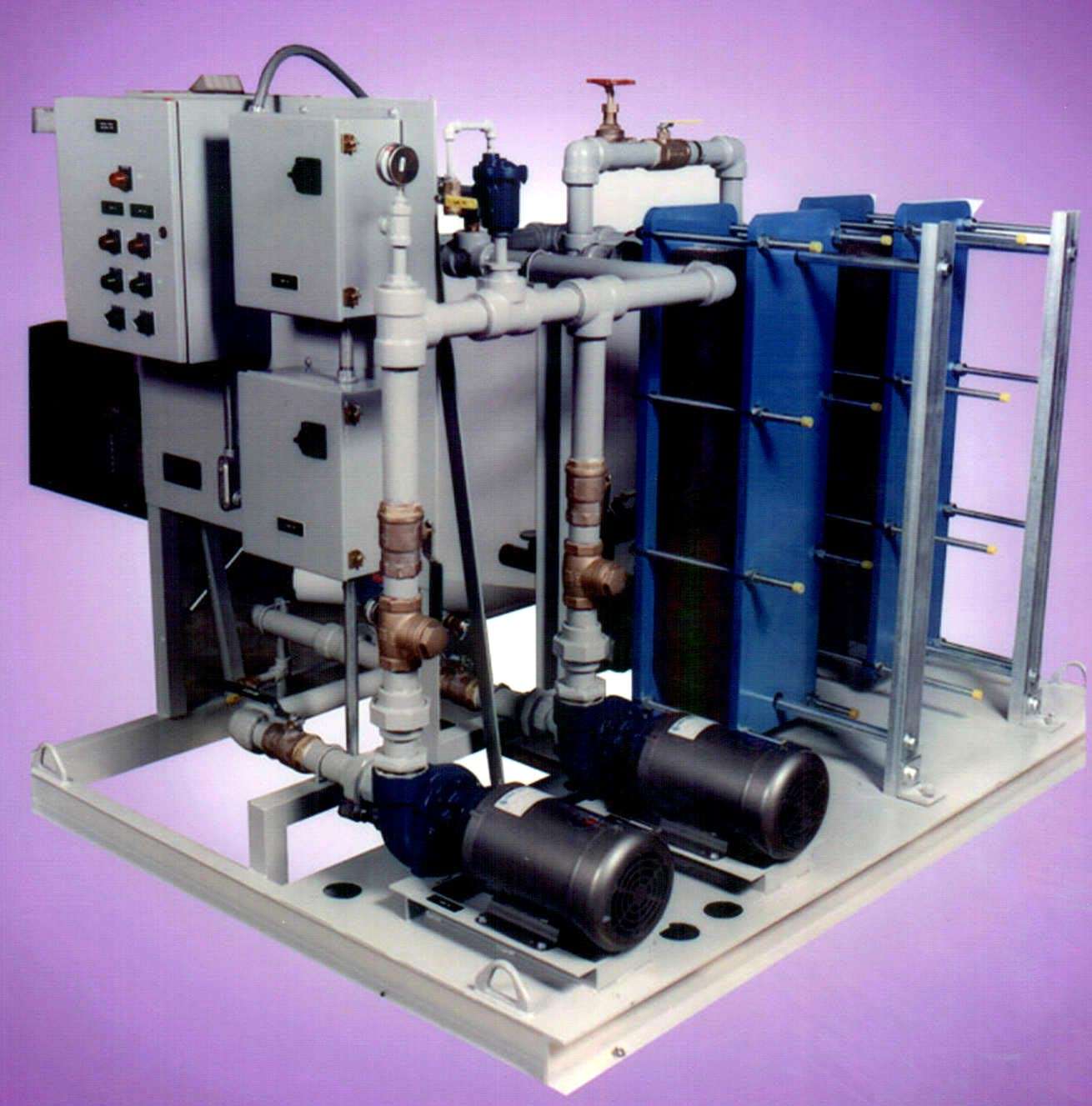

Apr 01, 2003 Cooling Water Isolation Skids allow use of high solids or hard water supplies for cooling process line or battery of sample coolers. They isolate raw water from process or coolers through use of intermediate plate heat exchanger. Units are suitable for industries such as power plants, pulp-and-paper facilities, and others that sample process or cycle frequently, but which are water-intensive and do not have sufficient additional water to be used as coolant.

Neptune Chemical Pump Co., Div. Of R.A. Industries, Inc.    Lansdale, PA 19446 0247
Apr 01, 2003 Nimble Skid is easily customized and accommodates 2, 3, or 4 Series 500 dia-PUMP hydraulic diaphragm metering pumps. Plastic base features 2,000 lb load capacity and comes in 6 sizes including 18 or 24 in. deep x 30/36/46 in. wide. Containment is available for all sizes. Series 500 dia-PUMPs provide leak-free metering of corrosive, flammable or hazardous liquids. With injection rates from .02-80 gph simplex, pumps handle pressures up to 3,000 psi.

C & K Mfg. & Sales Co., LLC    Westlake, OH 44145 1159

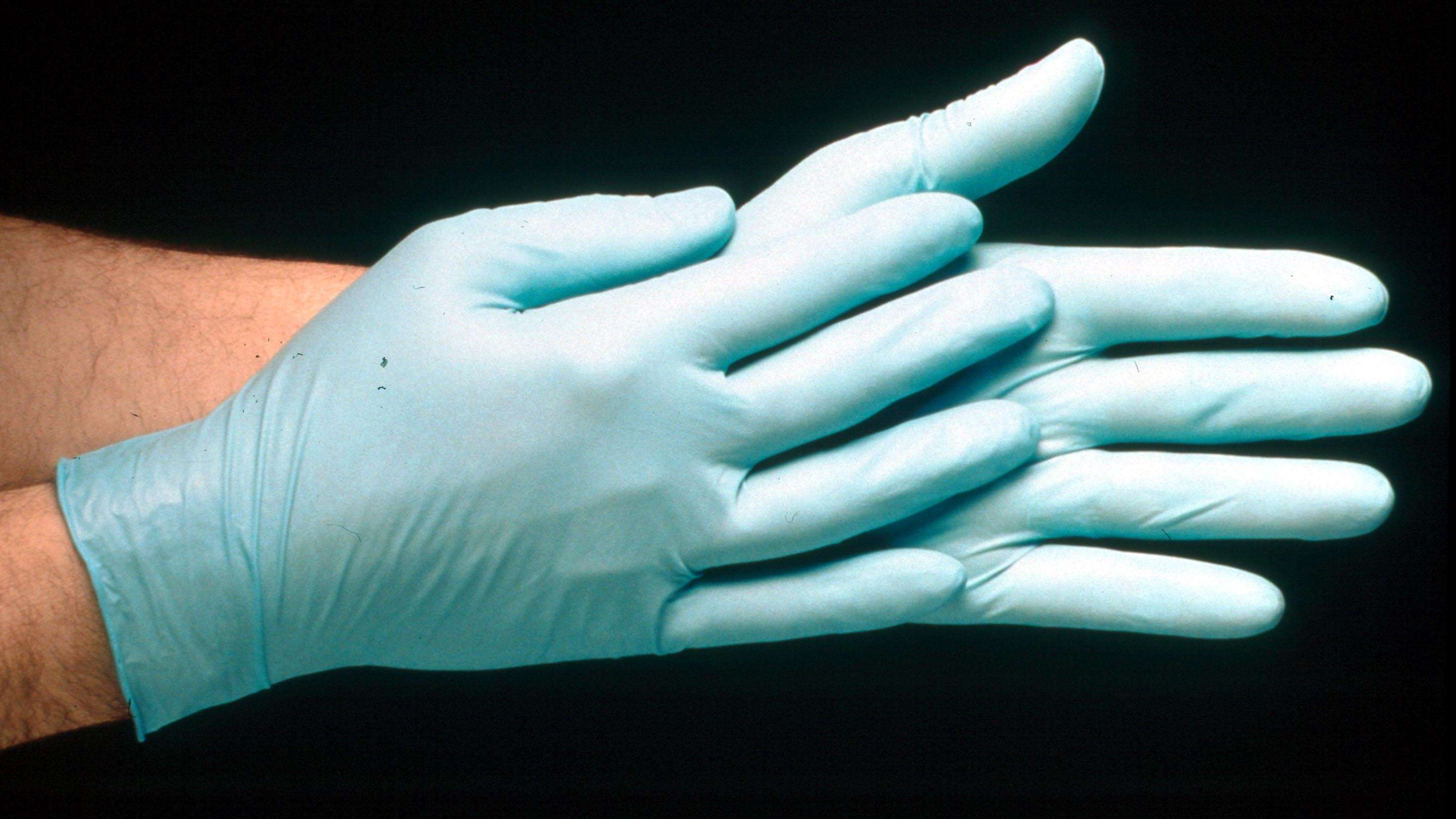

Apr 01, 2003 Blue Nitrile Gloves offer light-duty protection with high resistance to snags, nicks, and abrasion. Single-use, single-wall gloves include textured grip and beaded cuff. Long wearing protection is free of natural rubber latex proteins that may result in allergic reactions. Gloves come lightly powdered and powder-free, and are suitable for labs, foodservice, painting, meat and food processing, and light-maintenance operations.

WEG Electric Corp.    Duluth, GA 30097

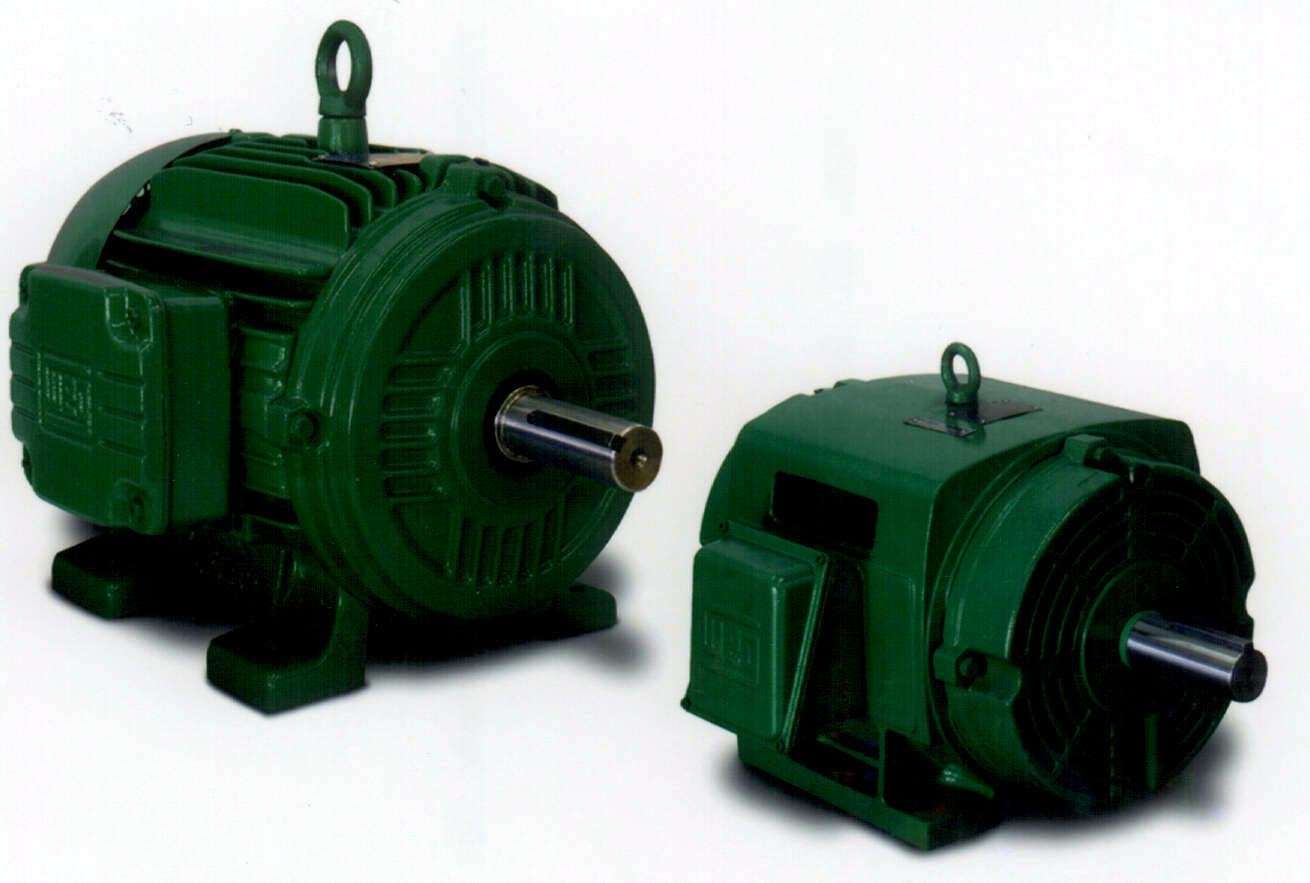

Apr 01, 2003 NEMA Premium Efficiency Motors save energy and extend operating life in industrial applications. Cast-iron frame motors are available from 1-500 hp in totally enclosed fan-cooled or open drip-proof enclosures that meet or exceed CEE efficiency levels. Features include Class F insulation, ball bearings, regreasable bearings, NPT threaded terminal box, and stainless steel nameplate. Motors are UL and CSA recognized and certified.
