Tilt-Lock    St. Michael, MN 55376
Apr 14, 2003 Tip Lift fork truck attachment is suited for operations where rolls need to be transported to machinery where no overhead crane system is available. With 900 lb capacity, product is dependent on face width of roll to be handled. Unit is equipped with 12 V air compressor for operating pneumatic tooth release mechanism and probes of various sizes that accommodate different core sizes. Controls are dashboard-mounted, adjacent to controls for fork truck.

Viewlocity    Atlanta, GA 30305
Apr 14, 2003 Supply Web Application (SWA) v4.2 includes adaptive supply chain execution that streamlines user's ability to address supply chain exceptions by enabling collaboration and resolution exceptions through predefined workflows and business rules. Software also offer two-way, wireless, multi-modal communication, data cleansing, and supplier management capabilities. Additional features include: cross-domain event handlers, forecast alerting, and KPI alerting.

Plastic Safety Systems, Inc.    Cleveland, OH 44120 0140

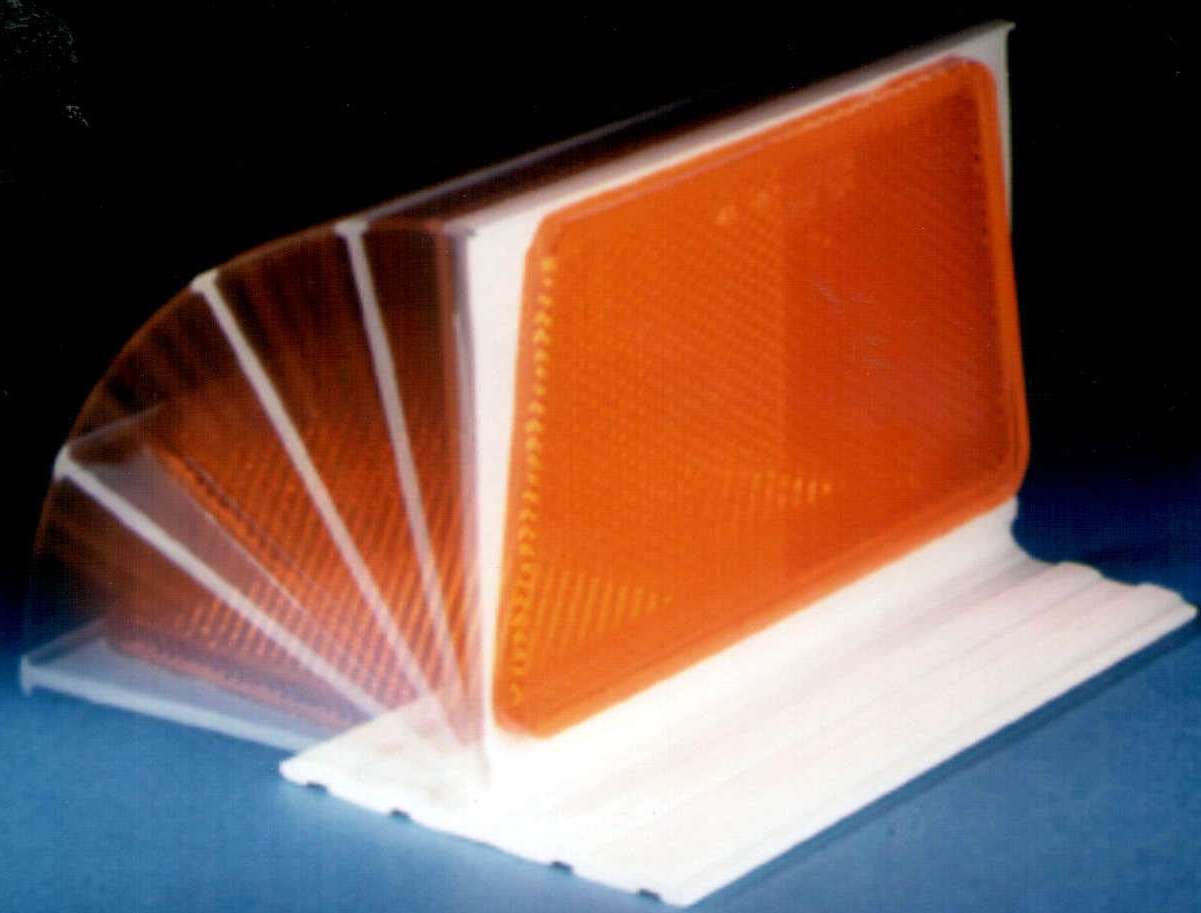

Apr 11, 2003 UV-stabilized, plastic BAMâ„¢ delineator hinge gives 90° when impacted. Features include reflective properties on single side for side mounting on barrier, or both sides for top mounting, 4 dovetail grooves, and acrylic reflective lens or reflective sheeting. Lens provides 8.9 sq in. of reflectivity while sheeting provides up to 11.5 sq in. Color options include amber, red, clear, and blue.

NFM Welding Engineers Inc.    Massillon, OH 44647 7899
Apr 11, 2003 Co-rotating, intermeshing twin-screw Series TEM processes plastic compounds, including wood and plastic composites. End product can be directly extruded or pelletized for direct feed to single-screw system. ARIES Process Control System is object-oriented and uses visibility, animation, and touch to perform processing tasks. Stand-alone unit can be swing-arm mounted near line, or mounted elsewhere in plant. Models range from 26–240 mm.

ERICO    Solon, OH 44139-2631

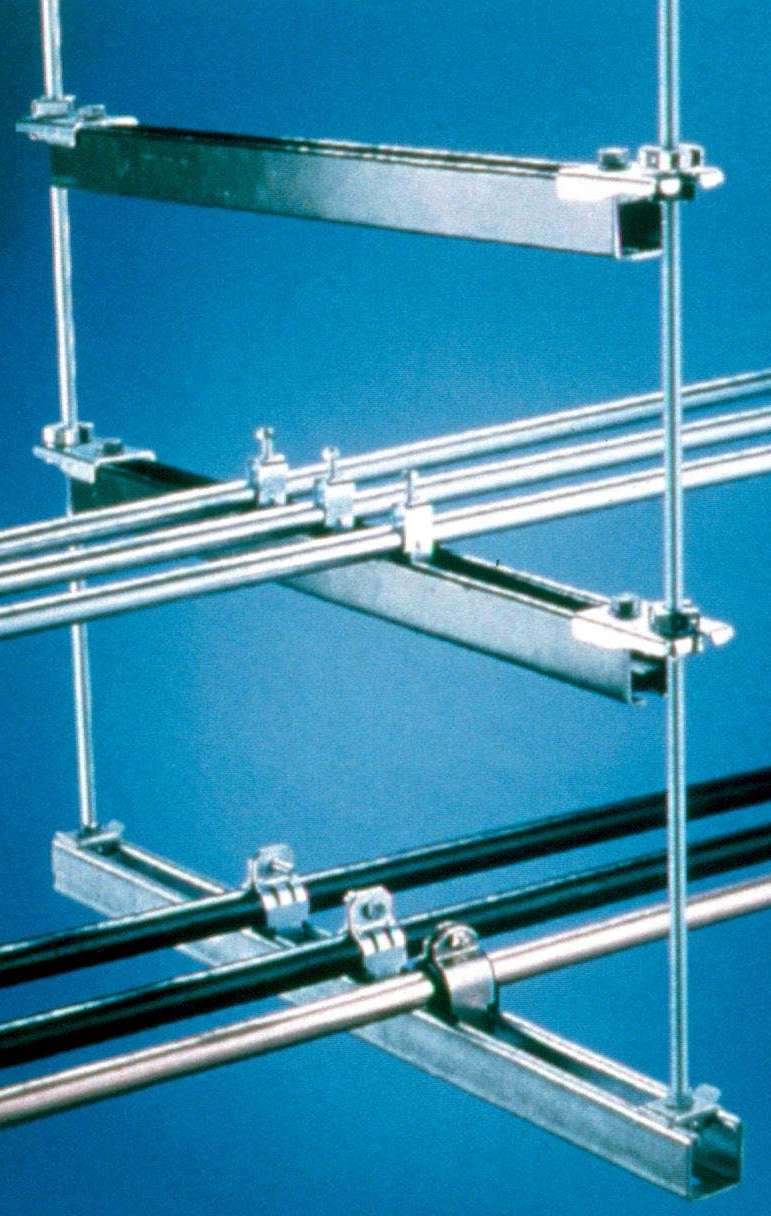

Apr 11, 2003 ISN Smart Nuts and ISSP Strut Plates allow users to create multiple-strut trapeze installations. ISN Smart Nuts snap anywhere on 3/8-16 threaded rod and are adjustable and removable. With 220 lb load rating, products have flat-surface construction that eliminates need for washers. ISSP Strut Plates allow for attachment of struts between existing rods. Bolts have locking design that eliminates loosening due to vibration.

ERICO    Solon, OH 44139-2631

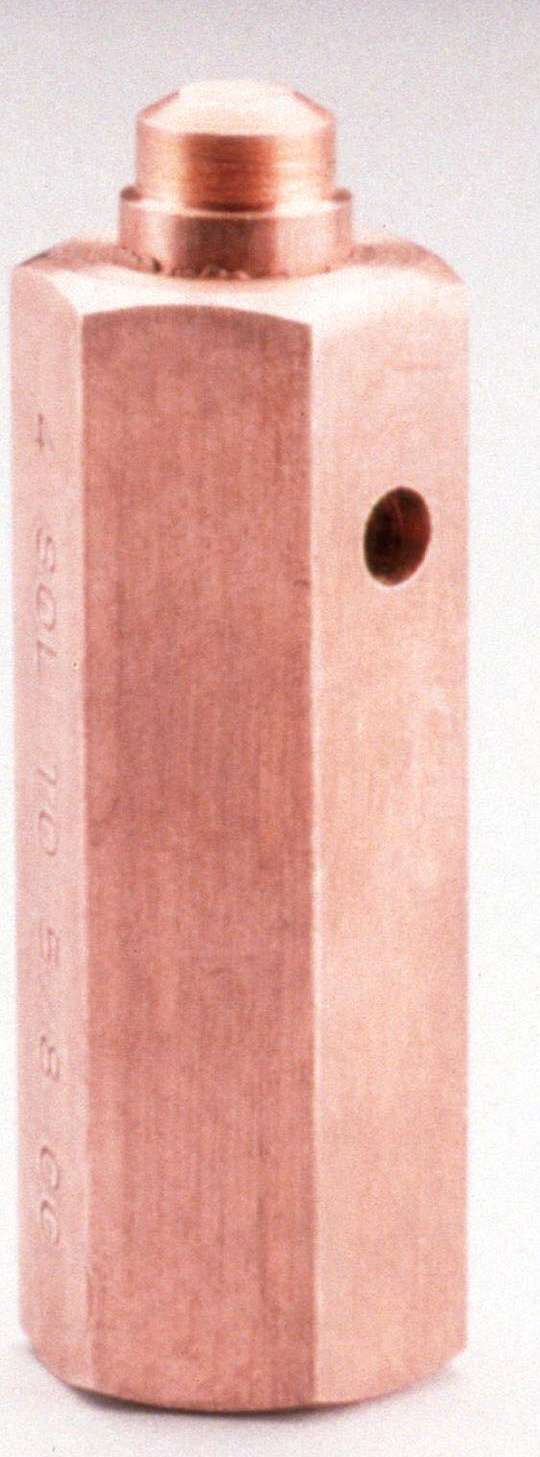

Apr 11, 2003 Machined from electrolytic copper, UL-listed HAMMERLOCK connects grounding conductor to ground rod, providing conductive connection that withstands ground-fault currents and lightning transients. Intuitive design requires no special tools or training for installation, and construction allows for 100% of conductor and ground rod diameter surface areas to be used in connection. HAMMERLOCK installs 3 to 5 times faster than an acorn clamp.

Parker Fluid Control Division    New Britain, CT 06051
Apr 11, 2003 Refrigeration Solenoid Valves meet higher-pressure ratings of up to 450 psi, required by green refrigerants, and application demands from fractional tonnage to 1¼ in. orifice sizes. All include manual bypass with positive locking feature that is operated with single 90° or 180° stem turn, ensuring full-flow capability. Molded coils allow watertight performance in any environment.

Extech Instruments Corp.    Nashua, NH 03063
Apr 11, 2003 Model 380975 measures true power (kW), apparent power (kVA), and phase angle with lead/lag indicator. True RMS capability provides current and voltage measurements along with temperature to 1,000°F, resistance to 100 Megohm, capacitance to 3,500 µF, with 0.001 µF resolution, and frequency. Offerings include 1.6 in. jaw opening, built-in auto detect for ac/dc voltage measurements, max/min recording with elapsed time indication, and CAT III - 600 V safety rating.

JAI, Inc.    San Jose, CA 95134

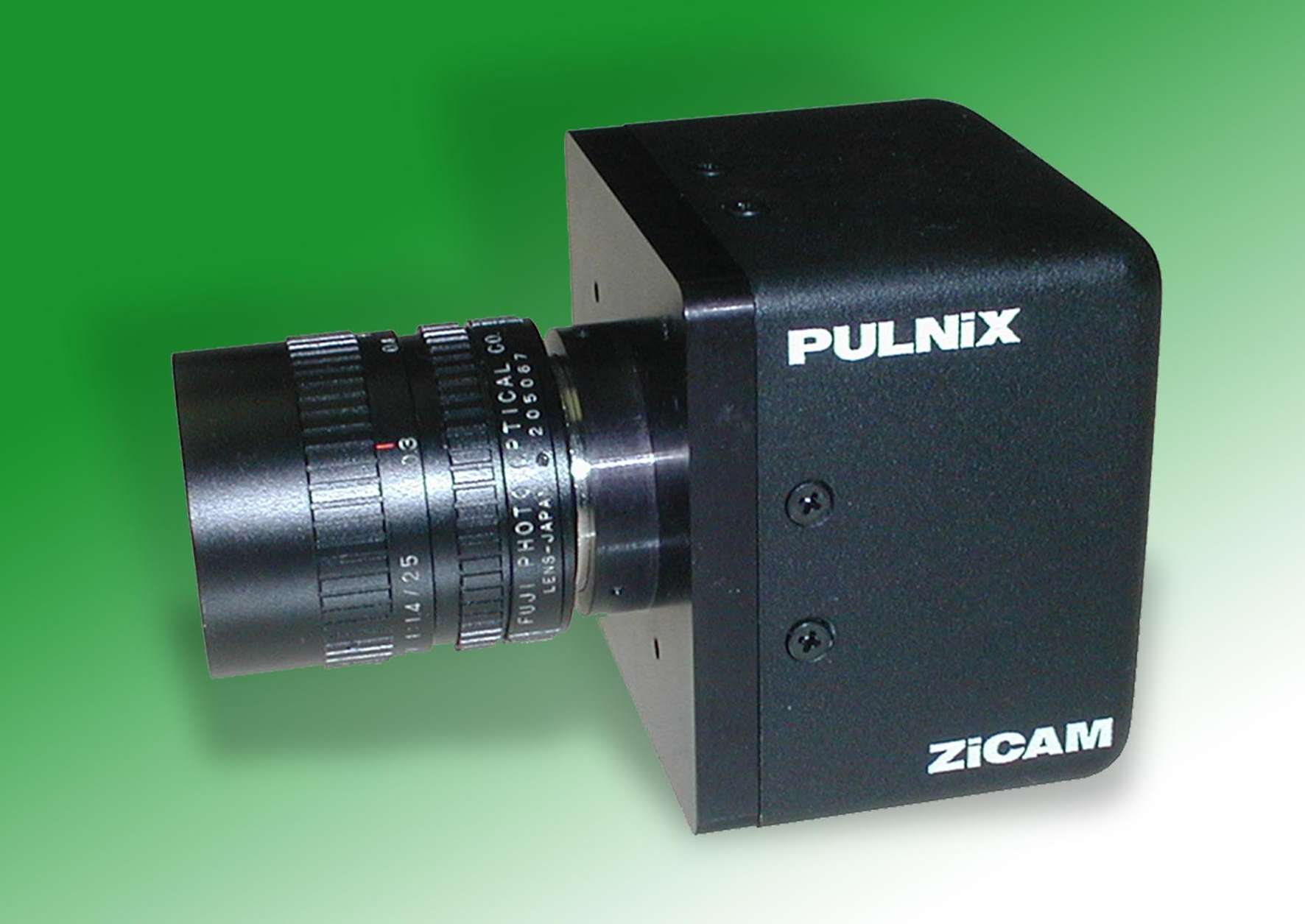

Apr 11, 2003 ZiCAM Zi-640 self-learning, machine-vision system is embedded into 60 fps, 640 x 480 pixel digital video camera. Neural network-based Zero Instruction Set Computer eliminates need for programming to execute image-understanding algorithms. Self-contained unit integrates 8 actuator drivers, communicates via Ethernet, and uses ZiCAM Teacher software to guide human tutor through learning process. It is suitable for inspection, recognition, presence/absence, and positioning applications.

Flexible Arm Co.    Sea Cliff, NY 11579 1639
Apr 11, 2003 Flexible-Arm(TM) Light features fingertip bar that raises, lowers, and pivots lamp where desired. It moves 360° in 3 dimensions and articulates at 3 points. Shade is compact and vented, and has rolled edges and safety-glass cover, with UV filter for eye-protection. Beam closely resembles daylight for correct color detection. UL-listed, 115 Vac unit is supplied with 7 in. diameter metal base, white reflector, and 50 W halogen white light.

Caron Products & Services, Inc.    Marietta, OH 45750 0715
Apr 11, 2003 Photostability chamber offers motorized-turntable accessory, on which samples rotate, to increase light uniformity. Turntable rotates when lights are on and is stationary when lights are off. Chamber meets ICH and FDA requirements for photostability testing.

Busch, Inc.    Virginia Beach, VA 23452
Apr 11, 2003 Designed as compact version of Mink pressure or vacuum pump, MM Series pump provides vacuum via two non-contacting, claw-type rotors in one oil-free chamber. It is single stage and reaches end vacuum of 37.5 torr. Because of non-contacting design, there is no wear in pumping chamber. Product is suited for all applications where dust particles may be present.

Metabo Corp.    West Chester, PA 19380 4243
Apr 11, 2003 Suited for deburring, sharpening, and grinding applications in space-constrained areas, G500 compact straight grinder incorporates ergonomic design aimed at reducing operator fatigue. Unit is equipped with 4.4 A motor that provides 27,000 rpm no-load speeds, hardened and ground ¼ in. collet, and attached tool rest. Additional offerings include die-cast aluminum bearing housing, auto-stop carbon brushes, and double insulation.

Benko Products Inc.    Sheffield Village, OH 44054
Apr 11, 2003 Sahara 5 kw HOT CAN is made of heavy duty steel and provides temperatures up to 250°. It features thermostatic controller and optional voltages. Unit is suitable for dispensing applications.

Specialty Coating Systems    Indianapolis, IN 46278
Apr 11, 2003 Windows®-based PowerView 2003(TM) provides control of Ionograph test equipment operating under PC supervision. Product establishes user-defined test parameters for each product test sequence, calibrates test equipment, and allows reminders to be set for user calibrations. Software has 32-bit user interface and includes graphical and database capabilities, integral profile and test data query system, and database export capabilities.

Advance Lifts, Inc.    St. Charles, IL 60174

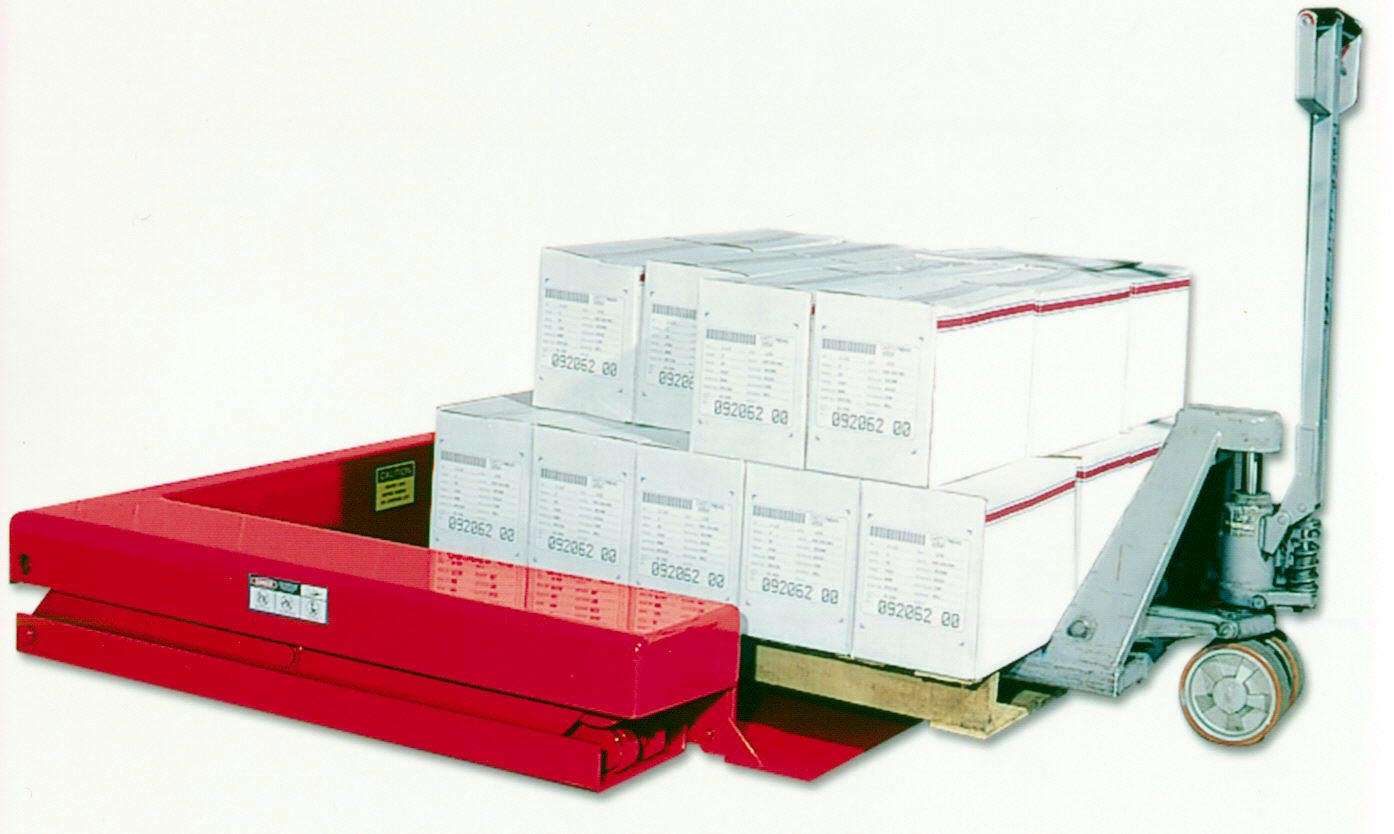

Apr 11, 2003 Offered in 9 models, lift tables have platforms that lie almost flush with floor so loads can be rolled directly onto lifts without need for ramps. Lifts have capacities of 2,000, 4,000, and 6,000 lb, travel of 33 in., and platform sizes of 40 x 48, 46 x 48, and 52 x 48 in. All come equipped with 1 HP, 110 V/60 Hz/1 PH remote power units that provide speeds of 35, 50, and 57 sec. Safety foot guards prevent feet from getting under platform.

PHD, Inc.    Fort Wayne, IN 46899

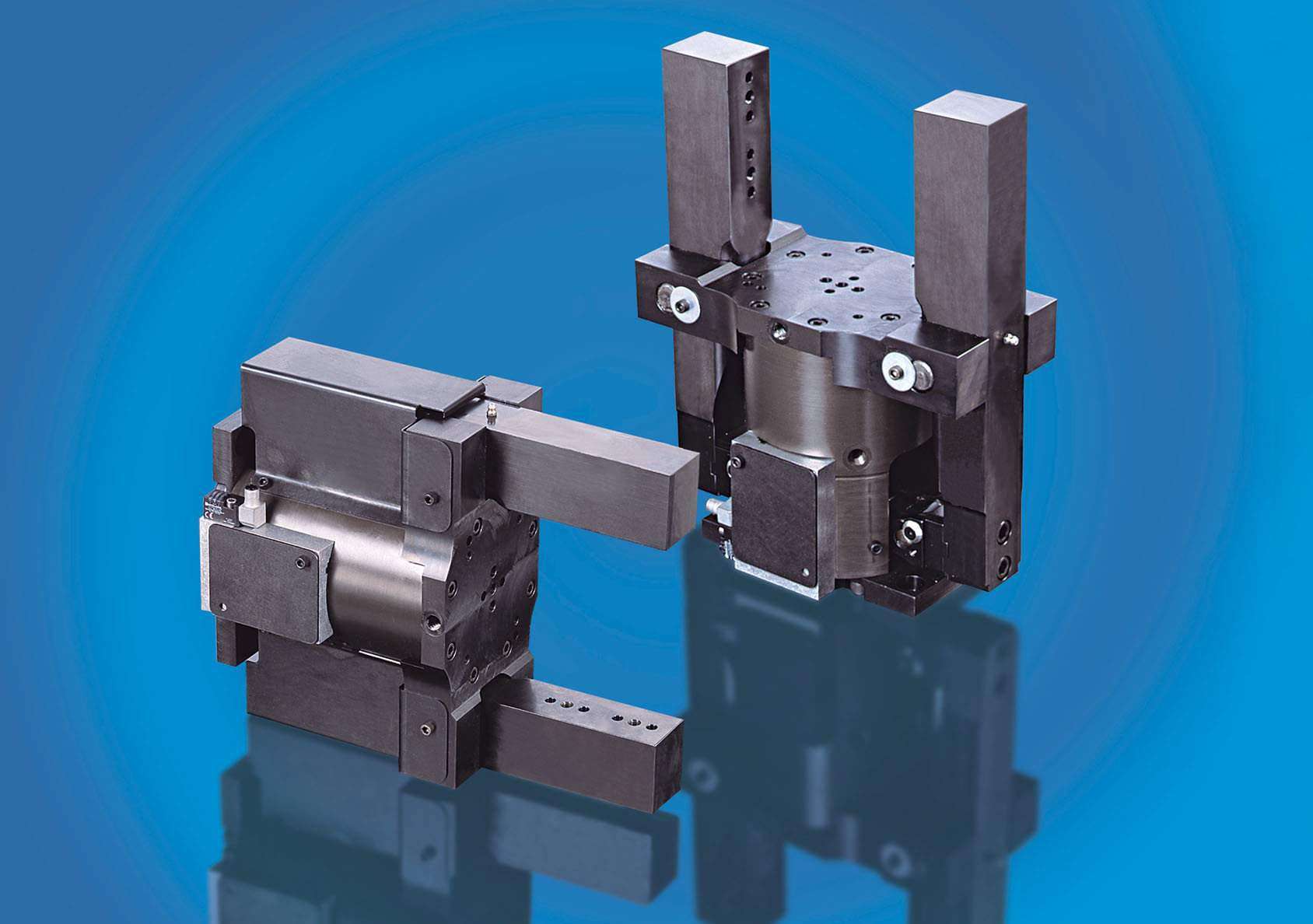

Apr 11, 2003 Series PFC Frame Clamp features wide jaw throat that accommodates large parts with simple tooling. Total clamping force of 11,250 lb is available 3.940 in. above tooling surface. Force is constant as jaws close through last 1°, producing .135 in. wide power window. Modular design allows jaws and bushing block to be removed for modification. Unit operates quietly in less than .6 sec and does not require flow controls.

Algor Inc.    Pittsburgh, PA 15238
Apr 11, 2003 InCAD technology for direct CAD/CAE data exchange includes full associativity with each design change for Autodesk Inventor, Pro/ENGINEER, Solid Edge, and SolidWorks. Full associativity enables any changes to CAD geometry to be reflected in associated FEA model for each design iteration. New mesh is created and any surface-based loads or constraints, element types, material properties and analysis parameters are automatically updated with each change.

WIHA Tools    Monticello, MN 55362

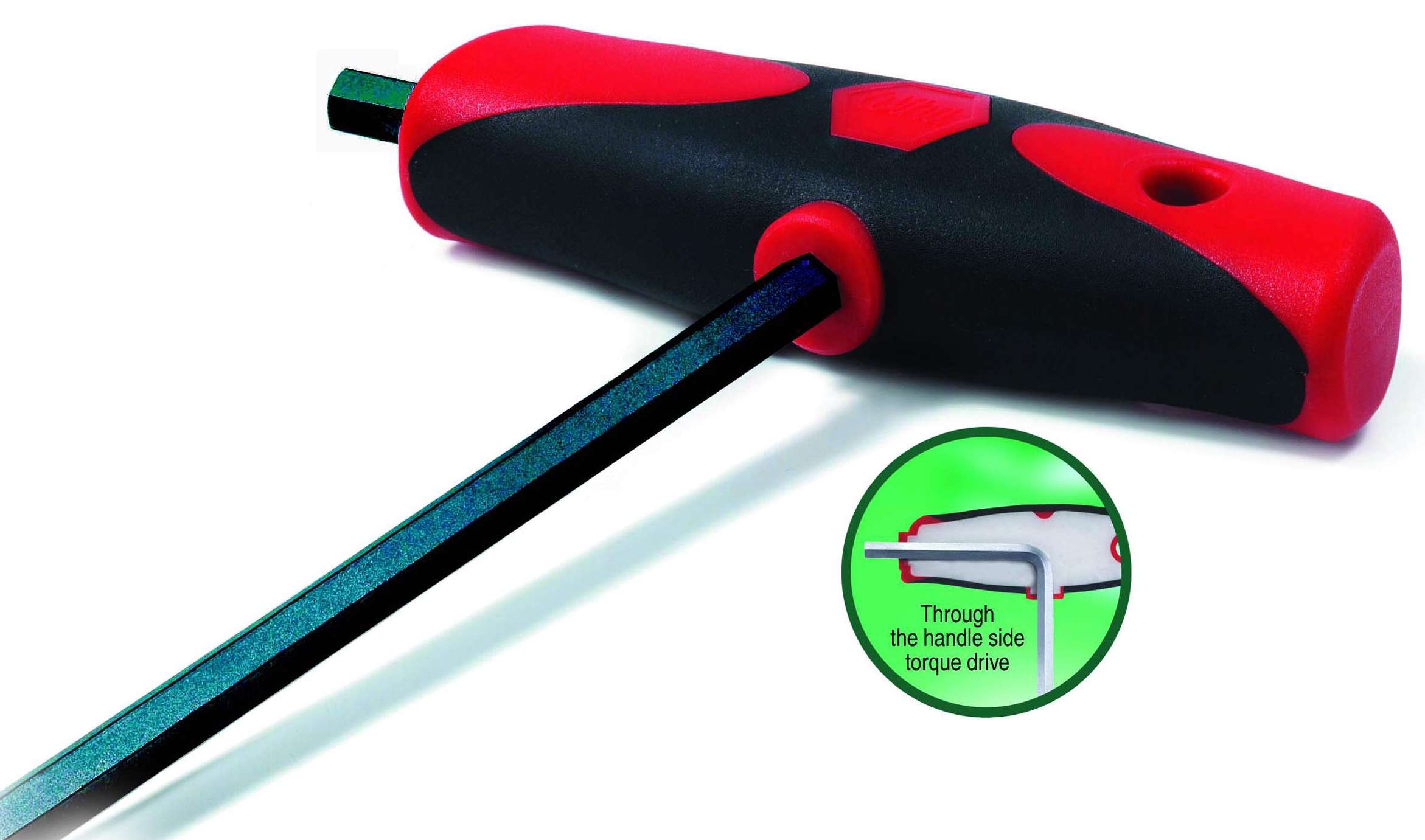

Apr 11, 2003 Available in Ball End Hex Inch/Metric and Torx tip styles, ComfortGrip products incorporate molded-on handles to provide T-handle grip and through-handle, side-torque drive. When using side blade, supporting hand on handle produces additional stability, preventing blade from slipping out of screw head. Integrated side blade loosens/tightens screws that are rusted-in, glued, or hard to move. Torx Chrome-plated blades are corrosion resistant.

Pumpac    Aurora, OH 44202
Apr 11, 2003 Air driven, 3 in. aluminum, double-diaphragm pump features non-stall, lube-free, and freeze-resistant air system. It has a mimimum of components to assemble in less than 30 min. Optional surface treatment, on inside and outside, inhibits corrosive attack from salts. Elastomers are available to match any application.
