Snap-on Industrial    Kenosha, WI 53141 1410
Apr 07, 2003 Blue Point® BOER708 8-piece fractional and BOERM712 12-piece metric wrench sets feature sizes from 5/16–¾ in. and 8–19 mm, respectively. Each wrench has open and box end to accommodate nearly any tightening or loosening job. Box head features 15° offset to provide knuckle clearance and access hard-to-reach areas. Dual pawl ratcheting box end offers smooth operation with Flank Drive® wrenching configuration. All wrenches have nickel-chrome finish.

MTS Sensors Group    Cary, NC 27513

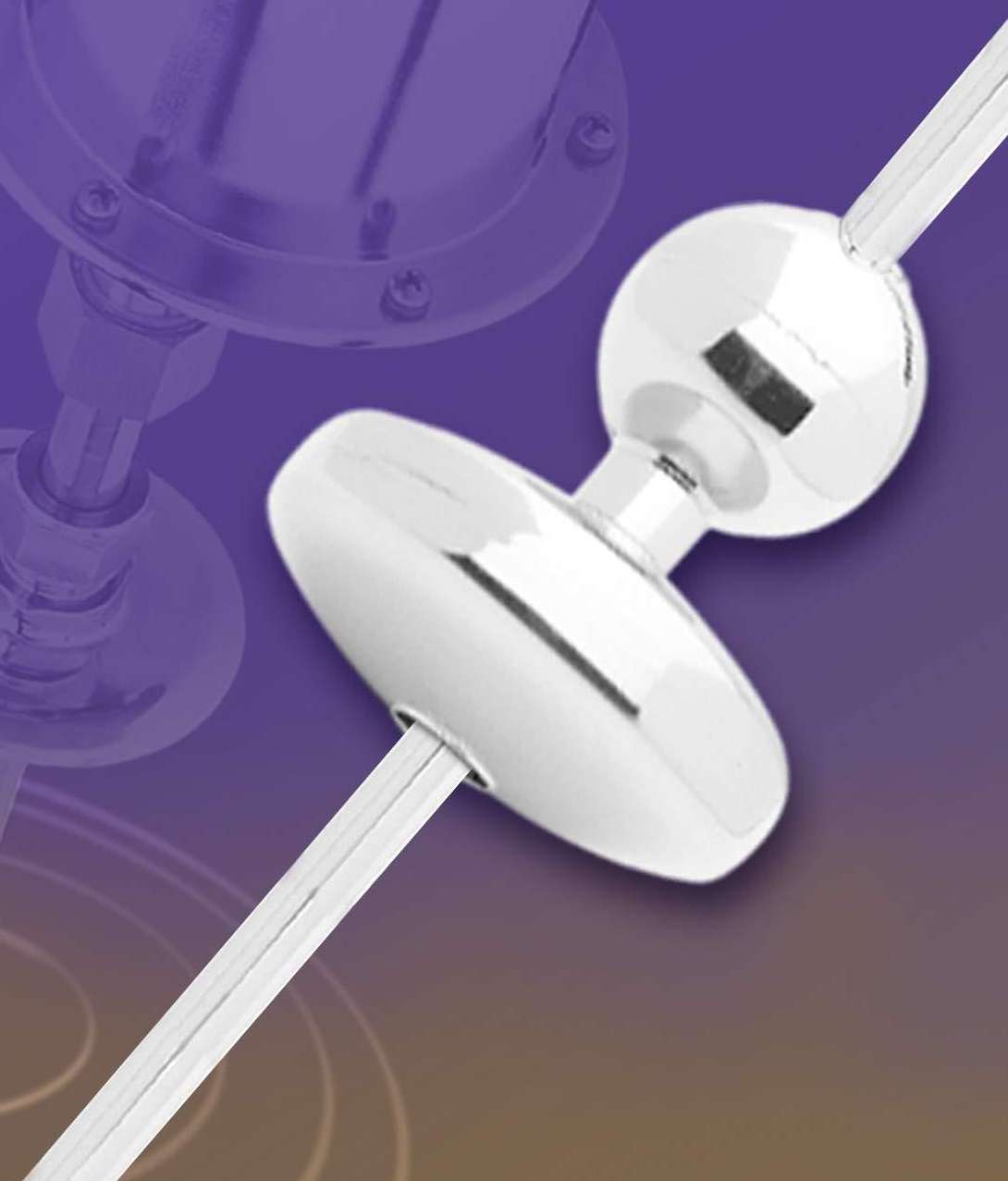

Apr 07, 2003 Stainless steel float, paired with M-Series digital or analog magnetostrictive sensor, provides liquid level measurement with liftoff as low as 0.5 in. Designed to 3A standards, float is manufactured with no ridges or crevices to prevent corrosion and contamination. Float is also available electropolished to RA15 surface finish. Welded joints will not leak or collapse in pressures up to 125 psig.

MTS Sensors Group    Cary, NC 27513

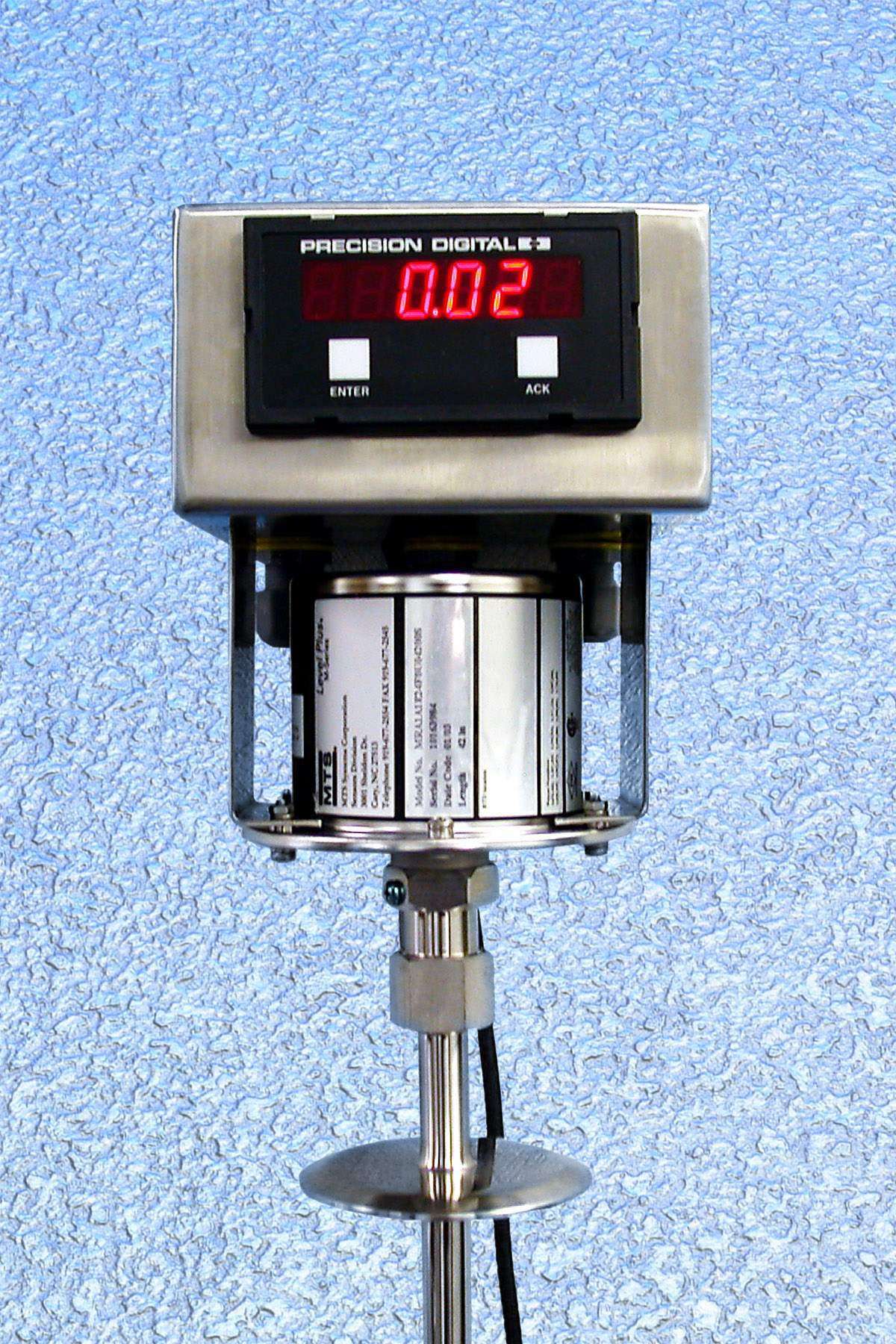

Apr 07, 2003 Transmitter Display comes in kit, which consists of threaded mounting bracket that mates Level Plus® M-Series digital sensor with LCD display for pharmaceutical applications. Unit mounts to top of each sensor for quick in-field readout of level and/or volume measurements. Stainless steel mounting hardware does not effect NEMA 4X rated transmitter housing. Corrosion resistant cable seal fitting ensures clean and safe connection.

Active Power Inc.    Austin, TX 78758

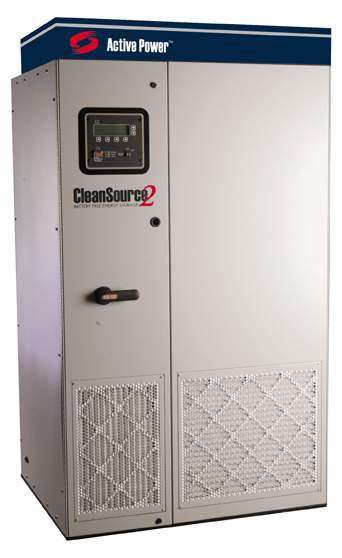

Apr 07, 2003 CleanSource® 65–130 kVA battery-free UPS units incorprate flywheel motor-generator that stores kinetic energy in constantly spinning, low-friction steel disc. Stored energy is converted to electricity that powers critical load during short power fluctuations. During prolonged power outages, UPS transfers to stand-by generator for continuous power. Electronics shield transmitter tubes against faulty power and handle crowbar events.

Brooks, E. J., Co.    Livingston, NJ 07039

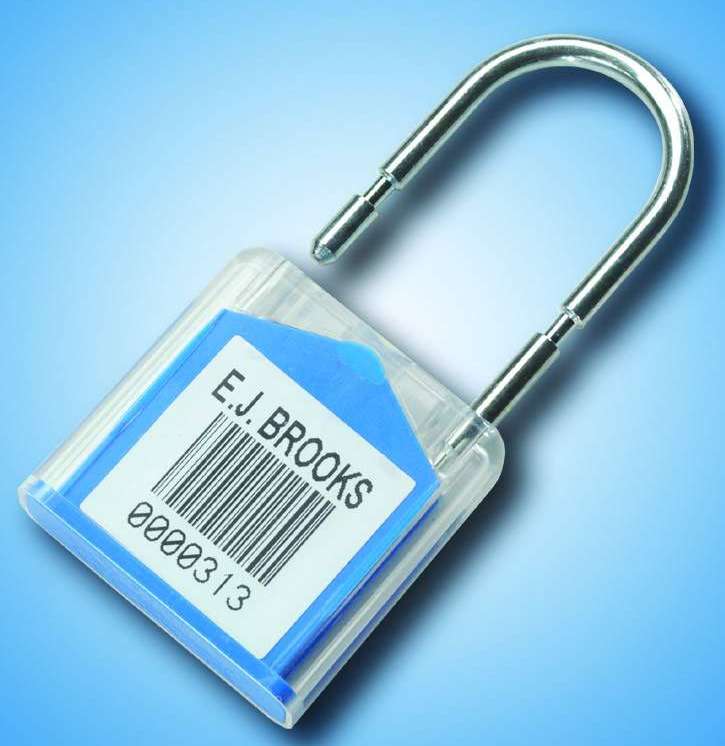

Apr 07, 2003 High Security Padlock Seal offers acrylic body with 1/8 in. dia plated-steel hasp. Company name, bar code, and consecutive numbers printed inside seal body are protected from tampering and weather. Seal is suited for securing ring and ringless style meter sockets and for various other uses. Cutting tool is required to remove seal.

CAT PUMPS    Minneapolis, MN 55449

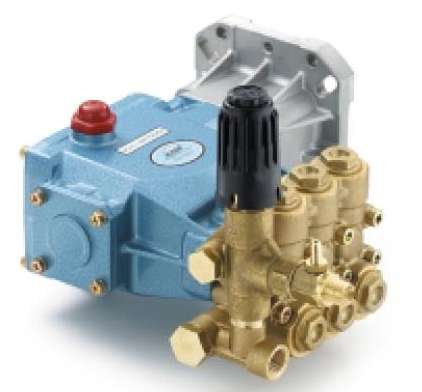

Apr 07, 2003 Direct-drive 66DX models offer eight-bolt forged brass manifold heads; oversized, high-strength connecting rods; concentric, solid ceramic plungers; and forged, hardened crankshafts. Products deliver 4,000 psi and include Hi-Pressure Seals, V-Packings reinforced with male adapters, modular pressure regulating unloader with built-in bypass and fixed chemical injector, and snap-together, interchangeable 304SS inlet and discharge valve assemblies.

CAT PUMPS    Minneapolis, MN 55449

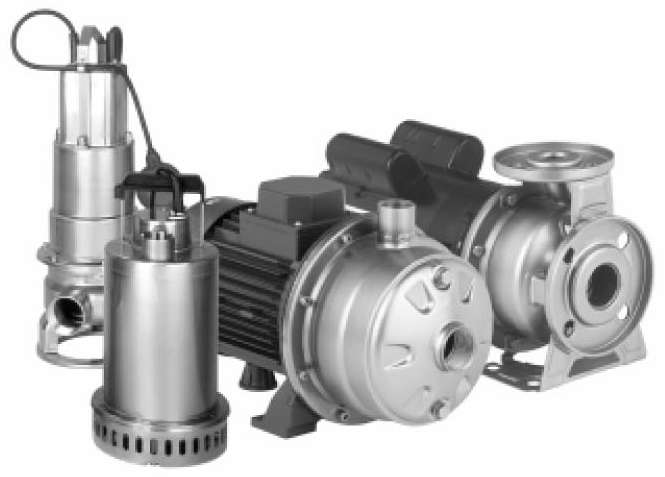

Apr 07, 2003 Series K includes submersible pumps that handle semi-dirty liquids and liquids with suspended solids, and end-suction centrifugal pumps for high-flow, low-pressure booster, spraying, and transfer applications. Bulge-formed, stainless steel components offer uniform thickness with no sharp angles or weak stress points. Applications include booster pumps, soft spray and washing, beverage processing, and fire protection.

Goff's Enterprises Inc    Pewaukee, WI 53072

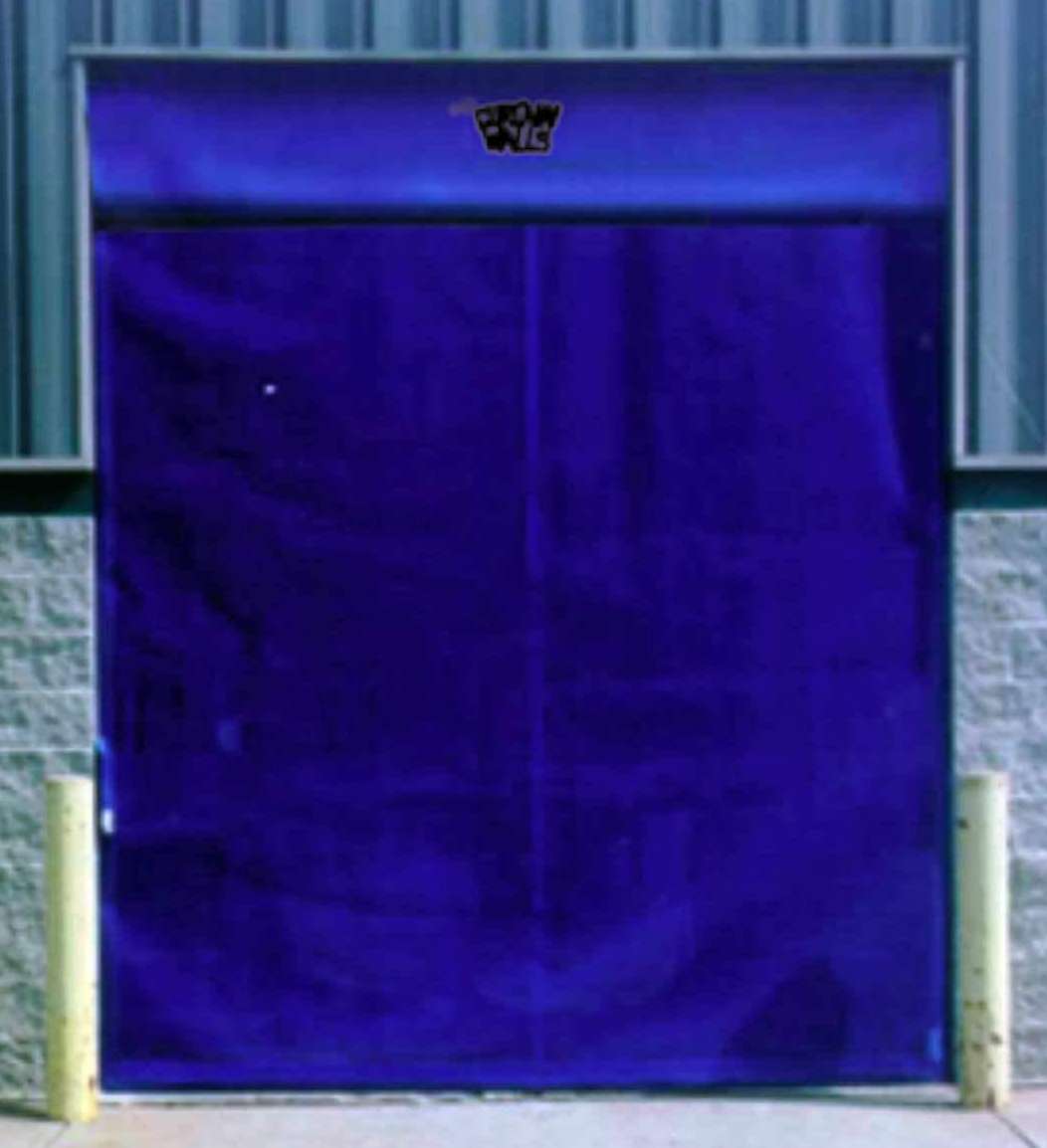

Apr 07, 2003 Bug Blocking Curtain Door permits flow of cool air and sunlight through exterior doors and keeps bugs, birds, and intruders outside. Made of weather-resistant, vinyl-coated mesh, doors will not fade or mildew. Mesh panel draws from one side to the other to manually open and close. Door is held closed by 2 in. Velcro fasteners along moving, vertical edge. Flexible 1 in. PVC-pipe batten reinforces edge for ease in sealing to doorframe. Door is equipped with floor sweeps and upper valances.

EHM Technology, Inc.    Bolingbrook, IL 60440
Apr 07, 2003 Model ER34615-H Lithium Thionyl Chloride battery is an IEC D size cell, suited for replacement applications in water meters and remote reading applications. At 3.6 V, battery offers continuous current rating of 230 mA and pulse-current rate of 500 mA. With shelf life of 10 years, product is useful for applications requiring long service life.

Spiroflow Systems, Inc.    Monroe, NC 28110
Apr 07, 2003 Dust-tight system includes mobile bulk bag discharger with integral aero-mechanical conveyor. Mobile unit eliminates need to build frames or gantries and can be set up by one operator. Bulk bags are lifted into place as needed by forklift. Adjustable conveying angle allows servicing of different size vehicles; throughput is unaffected by angle. Aero-mechanical conveyor is comprised of rope loop traveling through tube with spaced discs secured to it.

PerkinElmer OptoElectronics    Santa Clara, CA 95054
Apr 07, 2003 Photodiode Array features 128 channels and can be used to convert X-rays into visible light, producing accurate images without affecting integrity of object being viewed. Applications include manufacturing process control, archaeology, and product testing and food inspection, in which inner workings of complex objects can be analyzed or defects detected without modification of item being inspected.

Tecnomatix Technologies, North America    Novi, MI 48167
Apr 07, 2003 Integrated eM-Assembly Expert 2.0 allows users to transfer and share jobs between different plants. Software, for electronics assembly and test programming, documentation creation, and parametric optimization, utilizes vendor part library and integrates with other eMPower(TM) solutions. System features process-oriented user interface with Internet-ready workflow navigation.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Apr 07, 2003 PICKitâ„¢ 1 Flash Starter Kit is a programmer, evaluation, and development kit for use with company's 8- and 14-pin Flash-based microcontrollers. Printed circuit board features USB-powered programming tool that runs on PC. Evaluation area features 8 LEDs, potentiometer, switch and sample 8-pin PIC12F675 Flash device. Development area features snap-off prototype board that enables users to connect external circuitry to microcontroller. Programming is provided by standalone GUI.

Intermec Technologies    Everett, WA 98203
Apr 07, 2003 Model CT60 personal computer has aluminum casing, is sealed against dust and moisture, handles freezing temperatures, and moves from docking station to remote use without powering down. Computer, with Windows XP Tablet PC Edition operating system, contains Mobile Intel Pentium III Processor-M. Compatible with other company computers with Windows-based operating systems, PC comes with 256 or 512 Mbyte RAM, 20 or 40 Gbyte hard drive, and built-in wireless connectivity.

Avexus, Inc.    San Diego, CA 92121
Apr 07, 2003 Impresaâ„¢ 7i3 features Advanced Planning and Scheduling Module that facilitates proactive and reactive planning and scheduling of manpower, materials, and capacity. It includes event-driven messaging and alerts and provides functionality for contract management, government reporting, and business intelligence. Impresa architecture is built on Oracle® technology, which enables scalable web-based collaboration among customers, supply-chain partners and multi-site operations.

Acsis, Inc.    Marlton, NJ 08053
Apr 07, 2003 DataPass v4.0 provides foundation for data collection and supply chain execution for SAP systems. Transaction Generator allows rapid integration of existing transactions. It offers support for multiple screen sizes and native Business Application Programming Interfaces and Remote Function Calls. Incorporation of Management Console enables DataPass functions to run as services and allows remote management of multiple DataPass servers from single location.

Ace Industrial Products    St. Louis, MO 63131
Apr 07, 2003 Model 73-923 roll-around, self-contained, air-filtration table eliminates dust and smoke particulate from welding, grinding, and plasma-cutting operations. Clean air is drawn through adjustable top at 1200 cfm. Five-stage process provides air filtration down to 0.3 micron at 99.97% HEPA efficiency. Series of 1/8 in. thick U-channels allow air to be drawn into unit at over 500 fpm. Tabletop measures 24 x 36 in. working top and has 500 lb capacity.

EDAX, Inc.    Mahwah, NJ 07430
Apr 07, 2003 Electron Backscatter Diffraction (EBSD) System models OIM 2000, OIM 4000, and OIM 7000 include EBSD cameras, data collection, and analysis software that provides various tools for characterizing crystalline microstructures. Units also incorporate ChI-Scan, which takes advantage of simultaneously collected EDS and EBSD data to handle multi-phase samples.

MSC.Software Corporation / MSC.Mechanical Solutions    Costa Mesa, CA 92626
Apr 07, 2003 MSC.SDM Framework 2003 streamlines virtual product development by integrating analysis processes and physical test information into VPD environment. Manufacturers can consistently manage all simulated product performance data and simulation models that create data, automate engineering processes, and capture best-practice methods. Engineers can track computer models and VPD testing data, evaluate design changes and generate comparative reports of design changes and virtual tests.

Cimetrix Inc.    Midvale, UT 84047
Apr 07, 2003 CODEâ„¢ Software uses calibration functions to correct for mechanical inaccuracies in robot being used to move components, inaccuracies in camera and nozzle positions, board errors, and errors introduced by conveyor moving board after visioning. Equipment suppliers can write applications as if process and mechanics are perfect, dealing only with ideal recipe coordinates. CODE conforms to IEEE PR-1533 open-architecture controller specification.
