Alias/Wavefront    Toronto, ON M5A 1J7  Canada
May 07, 2003 DesignStudio® Productivity Pack software and learning tools for computer aided industrial design have self-paced learning resources. System is complete solution for digitally sketching, painting, modeling, and visualizing designs. System provides industrial designer with 2D sketching technology, NURBS curve and surface modeling tools, and photorealistic rendering tools.

Hubbell Inc. (Delaware) / Wiring Device-Kellems Division    Milford, CT 06460
May 07, 2003 ScrubShield(TM) gasketing system prevents ingress of scrub water from mops and carpet-shampooing equipment from entering company's floor boxes and fire-rated poke throughs. Product exceeds UL 514A and UL 514C scrub-water testing standards.

Nergeco USA    West Chester, OH 45069

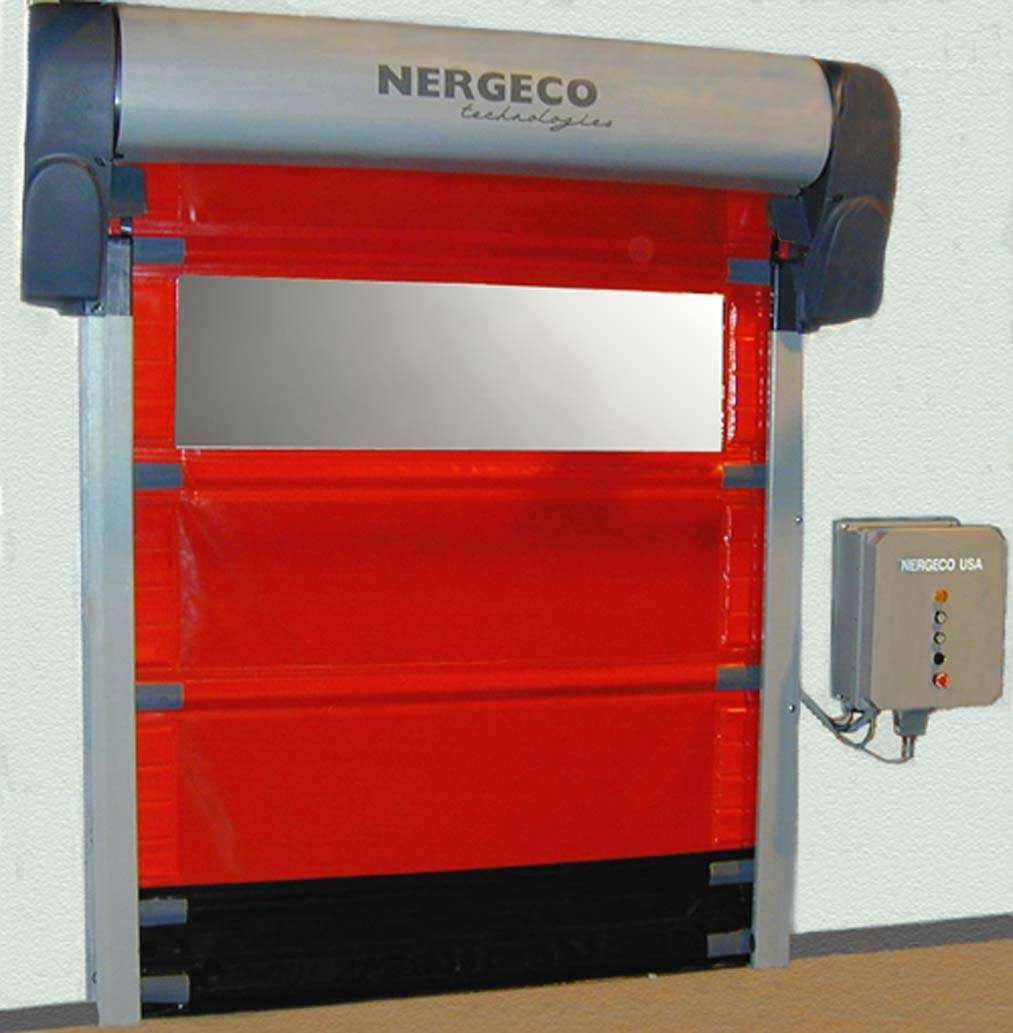

May 07, 2003 Agro 5 Forum and Labo 5 Forum high-speed doors are for clean room applications where sanitary conditions are a must. Washable, ergonomic doorframes are created from composite material and include company's patented re-insertion guides which reinsert curtain into side guides without human intervention. Doors feature soft-bottom edge, two sets of thru beam photo sensors, NEMA 4X watertight control panel, and optional vision panels.

TRUMPF Inc.    Farmington, CT 06032

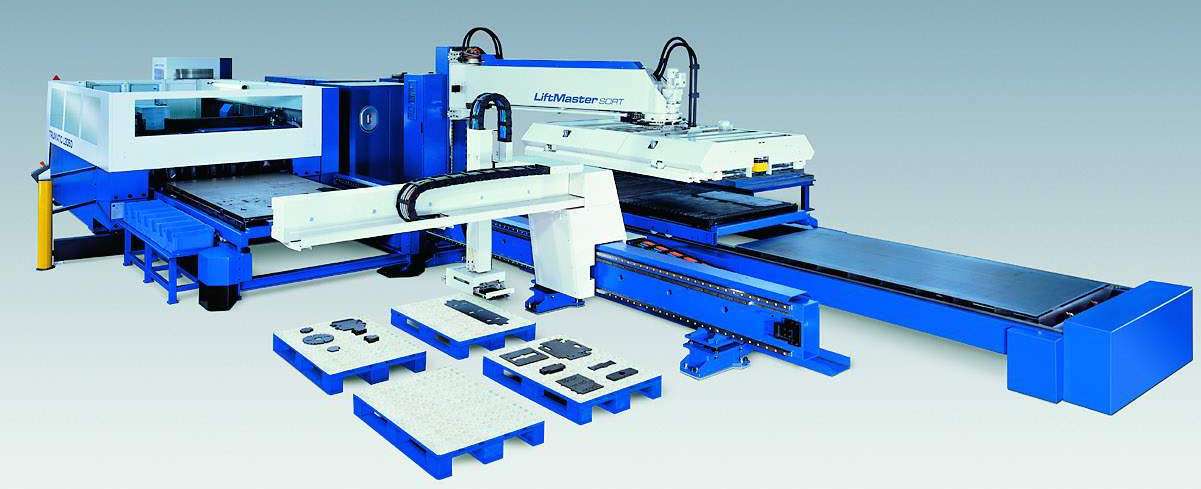

May 07, 2003 TCL 4050 high-speed 5,000 W laser cutting machine for larger sheet sizes has working area of 80 x 160 in. Pierce control system monitors and adjusts pierce parameters to improve hole quality and reduce pierce time. SortMaster modular automation system assists flat sheet laser cutting processes and enables fully automated production including stored raw material, stacked finished parts, and skeleton disposal.

Hydro Electronic Devices, Inc. (HED)    Hartford, WI 53027 0218

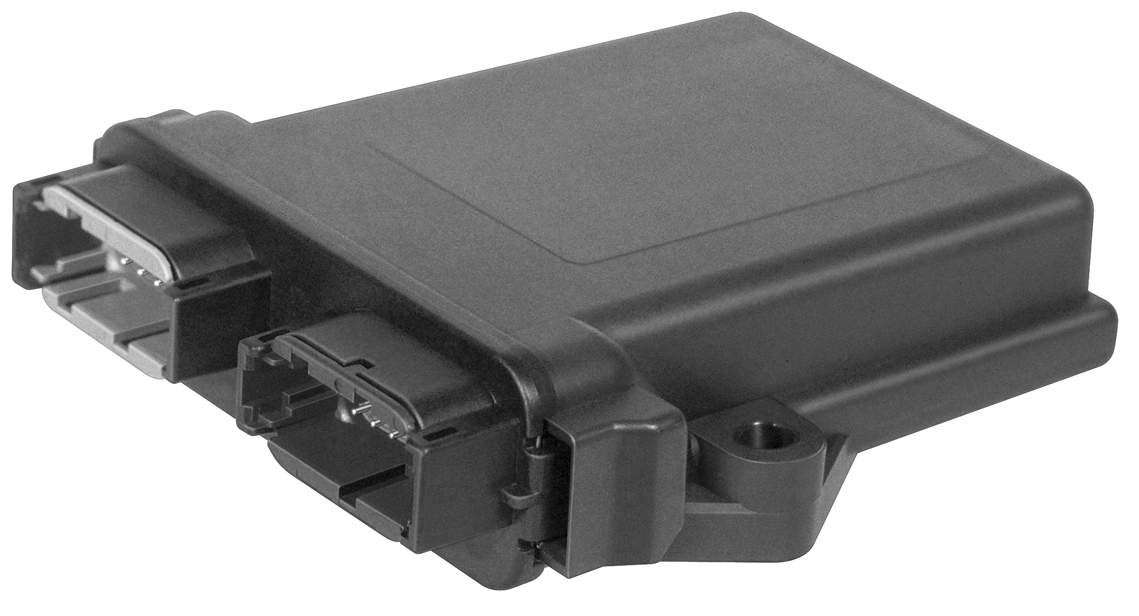

May 07, 2003 HED CL-601 solid-state microprocessor based module communicates information to vehicle components, including analog gauges, indicator lights, and meters. Module provides 8 low-current sinking PWM outputs for driving analog gauges, and 8 sinking On/Off 200 mA outputs for driving indicator lights. Features include NEMA 4 rated enclosures and 4 Harness Code Inputs. Module can be stand-alone gauge driver or “slave� module in multiplexed system.

Allegro MicroSystems Inc.    Worcester, MA 01615

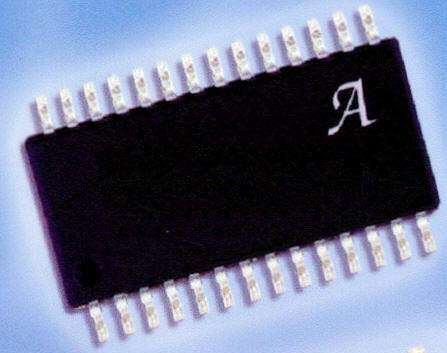

May 07, 2003 Full-bridge, pre-driver Model A3940, suited for large, brush, DC motors, provides 4 gate-drive outputs capable of driving various N-Channel MOSFETs. Bootstrap capacitors provide above-battery supply voltage required for N-Channel FETs, while internal charge pump for high side allows for DC, 100% duty cycle, operation of bridge. PHASE and ENABLE input terminals are provided for controlling speed and direction of DC motor with externally applied PWM control signals.

C & D Technologies    Mansfield, MA 02048-1151
May 07, 2003 Series DCA5-20PC ammeters scale, digitize, and display output of 50 and 100 mV dc shunts. Direct-connect units are fully self-contained and accommodate supply voltages from 5-75 Vdc. They offer 11 current ranges from 0-1 A to 0-2000 A. Power supply options include 5-40 Vdc for 5/12/24/28 V applications, 8-36 Vdc for floating shunts, and -36 to -75 Vdc for -48 V Telco applications. Units are housed in 1.38 x 0.88 in. plastic package with 0.37 in. high LED display. Accuracy is ±0.1%.

ETCO Incorporated    Warwick, RI 02888 1501

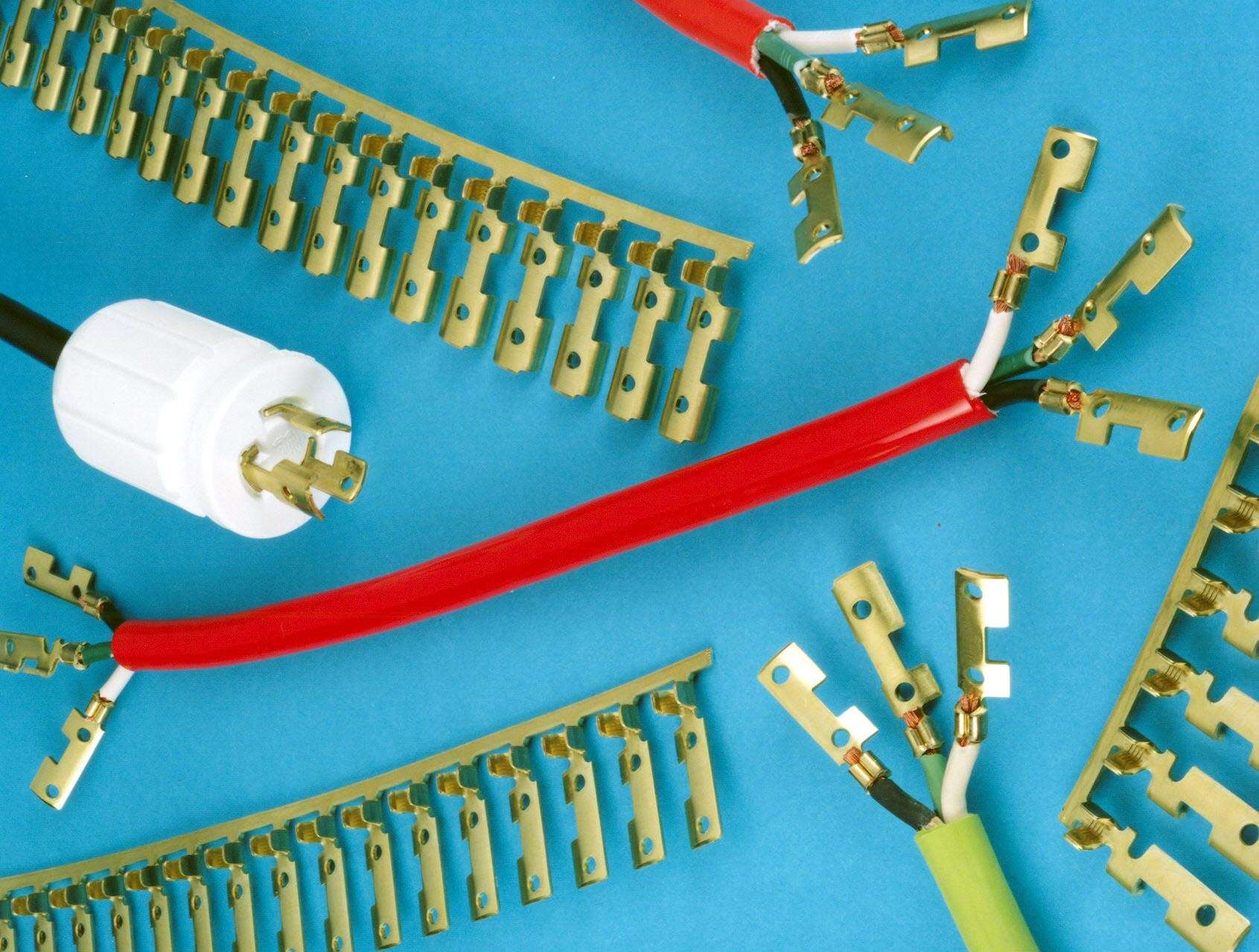

May 07, 2003 Male Twist Lock Terminals, with crimp ear that accommodates 10–16 AWG wire, eliminate need for tooling changes from one wire size to another. Offered in NEMA L5-15P (125 V), NEMA L6-15P (250V), and NEMA L7-15P (277 V) configurations for molded power cords, they are supplied in both strip form and as loose pieces. Products are constructed from 260 cartridge brass and rated 15 A.

Garner Industries    Lincoln, NE 68504
May 07, 2003 Offering abrasion resistance, heat and cold resistance, and low moisture absorption, BinMaster Diaphragm is constructed with Hypalon, Nylon, and Neoprene for use in harsh environments. Unit operates by sensing material pressing against diaphragm, which actuates sensitive micro switch that can be wired to actuate visual or audible alarms or start/stop processes. Product is suited for grain and aggregate storage.

Stride Tool Inc.    Ellicottville, NY 14731 0900
May 07, 2003 Kwik-Charger Service Manifold has built-in, dual-action control valve that operates as conventional manifold for evacuation, vapor charging, and liquid hi-side charging. Engaging refrigerant control valve enables product to accept blended liquid refrigerants, while internal metering element keeps liquid flow to level below capacity of compressor, protecting functionality of compressor and ensuring safe charge. Cylinder pressure remains steady when charging in a liquid state.

Stride Tool Inc.    Ellicottville, NY 14731 0900

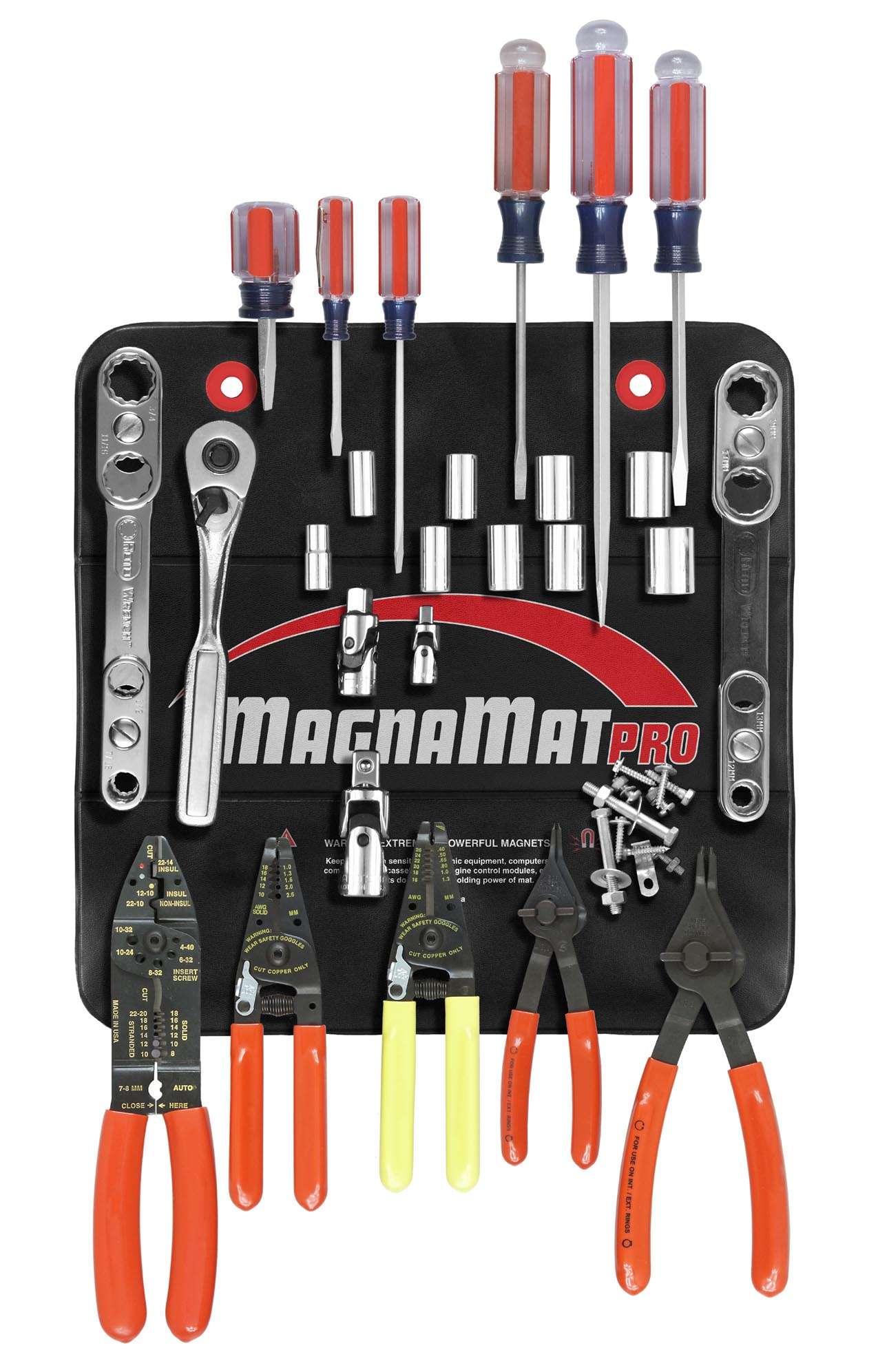

May 07, 2003 Flexible, non-conductive, PVC MagnaMatProâ„¢ measures 12 in. sq x 3/16 in. thick. Neodymium iron-boron magnets hold up to 20 lb of metal tools, fasteners, and other ferrous objects. Mat also serves as magnetic sweep to retrieve objects such as nails, nuts, bolts, and washers that fall onto ground or out of reach. MagnaMatPro adheres to any iron or steel surface, flat or curved, coated or uncoated. It is non-abrasive, chemical-resistant, and easily cleaned.

Upchurch Scientific, Inc.    Oak Harbor, WA 98277
May 07, 2003 Halar® Tubing, offered in 1/8 and 1/16 in. OD, is chemically resistant, yet mechanically stronger than Teflon®, withstanding pressures as high as 6,000 psi. It also withstands radiation and is translucent for flow monitoring.

Hoffman    Anoka, MN 55303 7504
May 07, 2003 Type 1 Screw Cover Wiring Trough provides protection and clear path for power and lighting control cables to locations throughout building. Joining method attaches end sections without fasteners or heat. Unpainted, 16 or 14 ga galvanized-steel trough features mounting holes on back, and flat-cover design, allowing it to be mounted flush with walls and ceilings. Five cross-section sizes are available, ranging from 4 x 4 to 12 x 12 in., with lengths from 1–10 ft.

Labelmaster    Chicago, IL 60646-6797
May 07, 2003 Plastic Screw-Top Pails combine features of tight-head pails with wide-mouth access of open-head pails. They are offered in 1–6 gal sizes and feature tamper-evident capability. Lever latch cover is easy to close, remove, or reseal. Pails are UN approved for shipping dry chemical, pharmaceutical, and medical products in Packing Groups II or III, and are suitable for shipping biohazard materials. No tools are required to seal and reseal repeatedly.

Piller, Inc.    Middletown, NY 10940
May 07, 2003 InSite Plus Monitoring and Management System, through custom detailed graphics and intuitive interface, provides real-time assessment of essential equipment and operations within facility. Used with UPS systems and switchgear, InSite is based on standard PC technology utilizing Microsoft Windows OS and application software. Scalable network architecture supports multiple data collection interfaces. Operational, trending, and alarm event logs are automatically generated for analysis and diagnosis.

National Instruments Corp.    Austin, TX 78759-3504
May 07, 2003 Model TNT5002 Application-Specific Integrated Circuit (ASIC) adds GPIB connectivity to stand-alone instruments based on PCI-bus interface. Chip includes 3.3 V PCI core, supports both 3.3 and 5 V signaling, and is fully compliant with revision 2.2 of PCI local bus specification. Instrument manufacturers can use TNT5002 with NI-Device software to develop GPIB-based instruments and devices.

Snap-on Industrial    Kenosha, WI 53141 1410
May 07, 2003 Offered in royal blue, Furious Lime Green, Ultra-Yellow, Gloss Black, and Eye-Blinding Orange, KRA RAD PAK equipment offers double-wall construction, 2 full-sized layers of Class 1 heavy-duty steel, heavy-duty ball bearing slides, and dual-mount capability. Lock N' Roll® system prevents drawers from drifting open. Each 40 in. wide roll cab contains 7 drawers for 15,000 in.³ of storage space, while top chest provides additional 10,000 in.³ of storage space.

TRANSWORLD SAT    Addison, IL 60101
May 07, 2003 Paqtools© collects and analyzes all quality control measurements and provides users with all tools necessary to perform tests and monitor production lines in real time. Statistical Process Control and reporting tools allow quality trends to be monitored over time and determine causes of non-quality. Fluid© monitors raw material flows and handles inventory management and traceability. When used together, Paqtools and Fluid can be connected to one database.

Drake Mfg. Services    Warren, OH 44485 1147
May 07, 2003 Using Fanuc's i Cell, Smart Access delivers dynamic, real time monitoring of machine operation, even when user is away from machine or plant. Product also provides remote diagnostics, access to machine via internet, and ability to network multiple CNCs. E-mail notifications can be sent in response to machine events. Additional offerings include remote production status and fault monitoring, back-up CNC memory, and ability to upload/download part files.

Elma Electronic Inc.    Fremont, CA 94538
May 07, 2003 Type 4F IPC Industrial PC Enclosure is capable of attenuating up to 30 db. It is 4U high, 445 mm deep, and fits in 19 in. rack. Unit accommodates motherboards up to 14 slots, three 5¼ in. CD-ROMs and 3½ in. FDD cassette mechanism, as well as up to three 3½ in. HDD internally. Enclosure is cooled via positive pressure with ducting to ensure max airflow to cards. PFC and Pentium 4 connectors provide necessary power. Hot-dip galvanized finish prevents corrosion.
