Gateway Safety, Inc.    Cleveland, OH 44131 1045
Apr 09, 2003 Starlite-SMâ„¢ is 10% smaller than original Starlite eyewear, helping to ensure perfect fit, and total wraparound styling for workers with narrower faces. Glasses offer 9.75 base curvature viewing area for wide, unobstructed vision. Deep, universal-fit temples provide side protection. Hardcoated, polycarbonate lenses are scratch-resistant and filter out more than 99.9% of harmful UV-A and UV-B light. Eyewear meets ANSI Z87.1 standards.

Arista Corporation    Tustin, CA 92780-2137

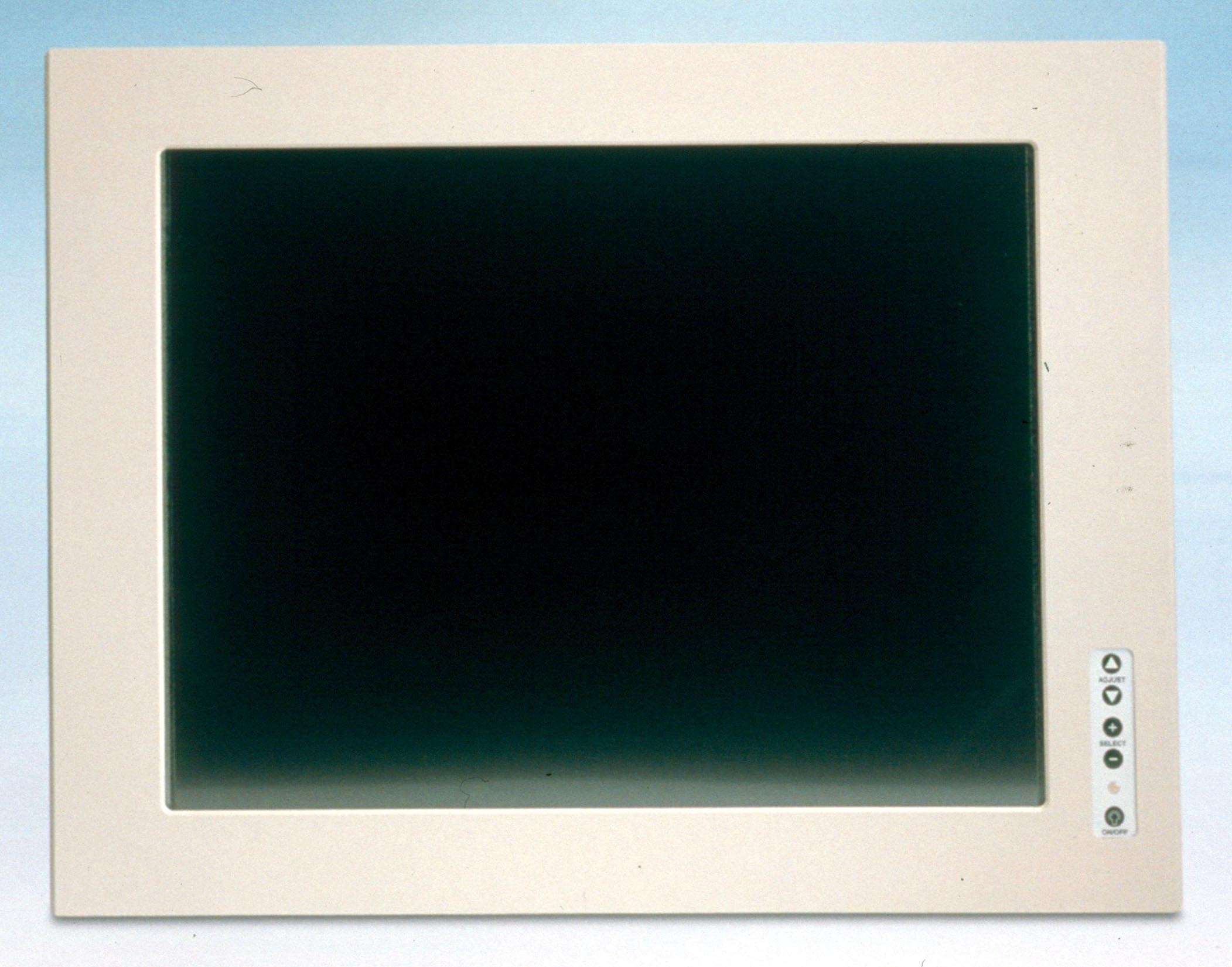

Apr 09, 2003 Capable of displaying 16.77 million colors, ADM-1520, 20.1 in. LCD panel display is suited for applications such as CAD/CAM, medical imaging, and industrial floor automation. NEMA 4 compliant, flat-panel LCD offers Multi-Domain Vertical Alignment active-matrix technology and provides viewing angle up to 170° without grayscale inversion or color distortion. Response time of 25 msec provides for sharp delineation of quick-moving images without latent images or ghosting.

Comet Automation Systems, Inc.    Dayton, OH 45439

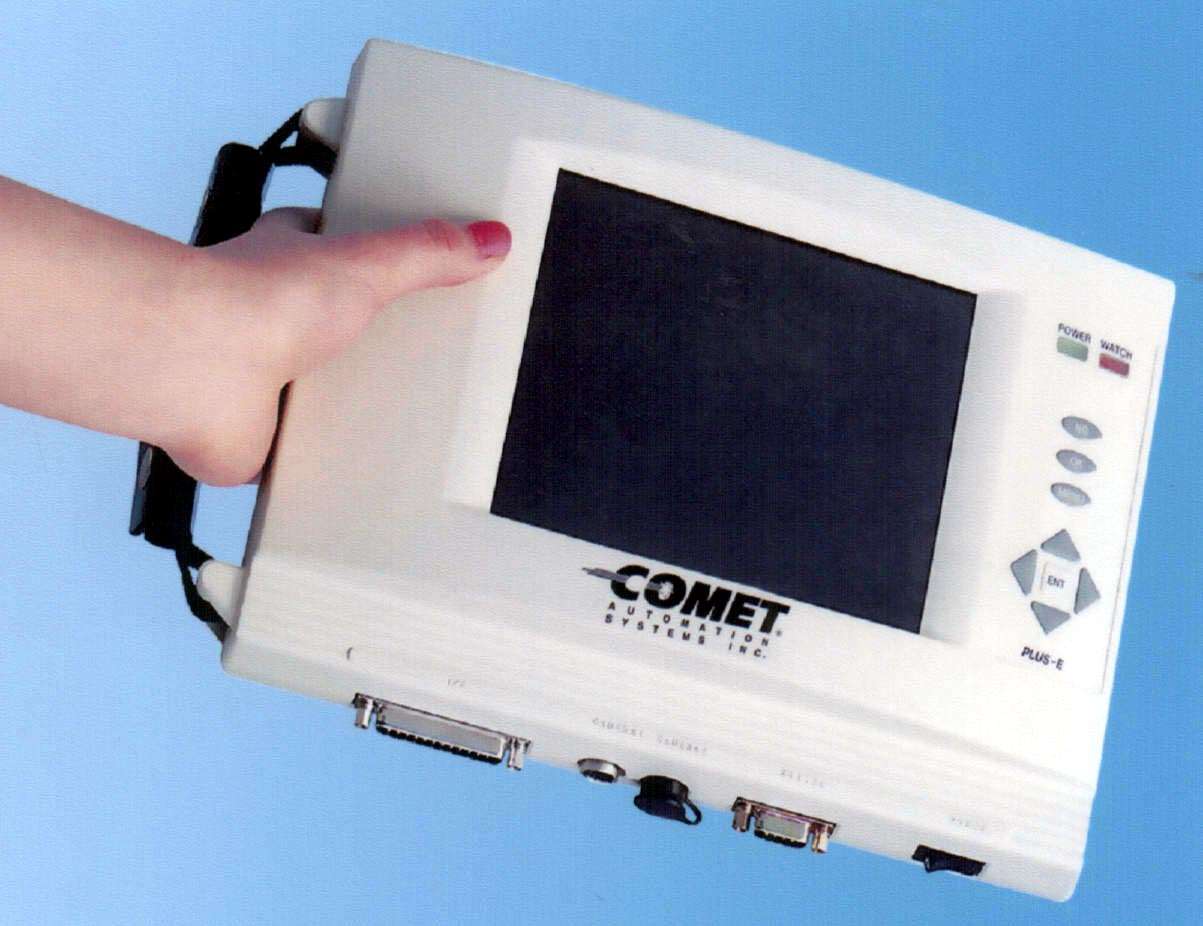

Apr 09, 2003 Model PE-300 hand held mold monitor includes CCD camera and light source. It has 6.5 in. screen and is capable of sensing ultra small parts or small product details in .03 sec scan time. Unit checks for flash, short shots, contamination or changes on molded part or surface of mold to prevent damage to cavities, core pins, and slides. Error Prevention System compensates for inconsistent mold open return, and rapid changes due to vibrations or brightness of mold area.

User Solutions Inc.    South Lyon, MI 48178 9318

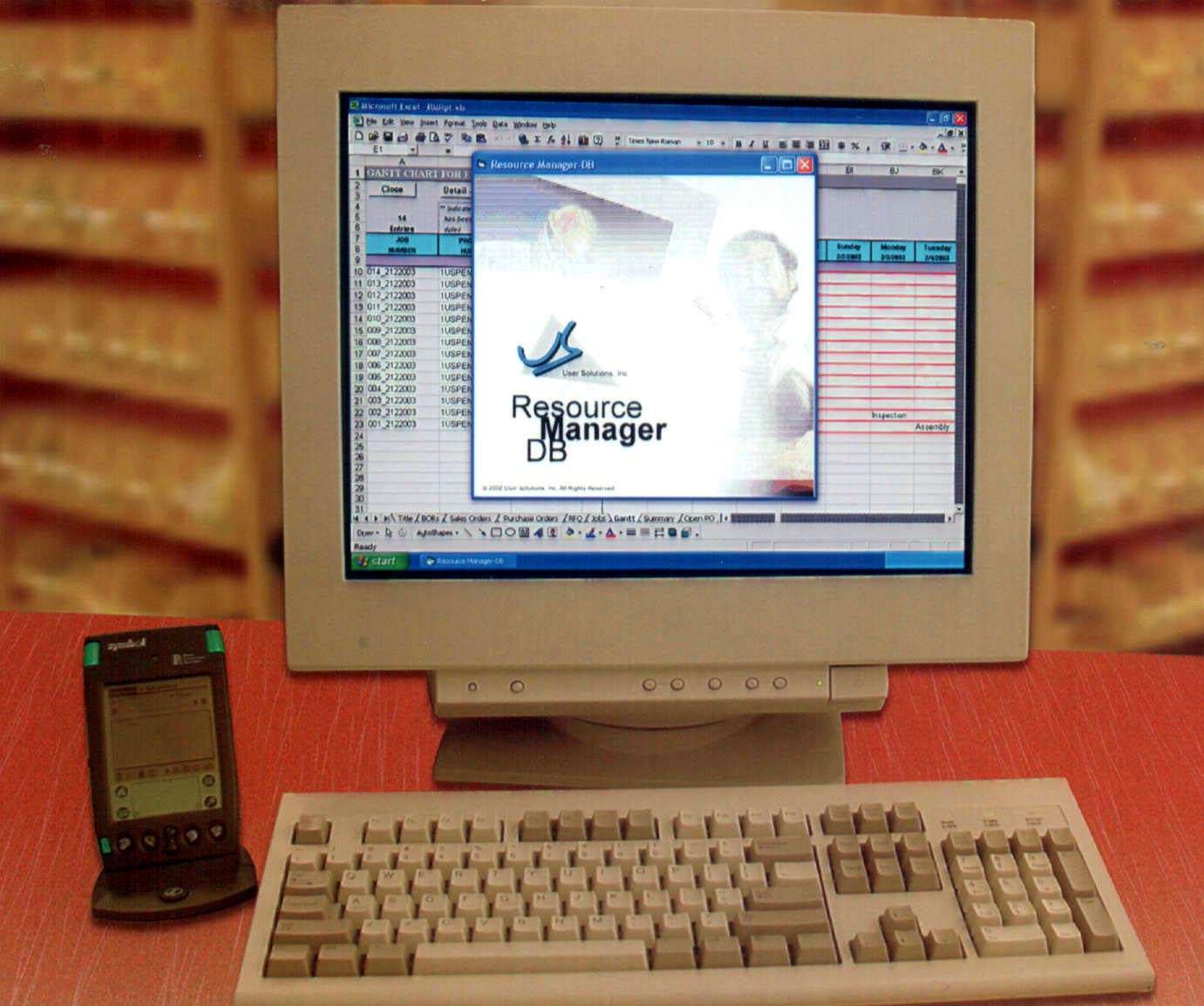

Apr 09, 2003 Resource Manager-DBâ„¢ for Lean Manufacturing utilizes Microsoft Office-centric design to enable flexible manufacturing planning, scheduling, and tracking. No-rules design adapts to how customers are currently working, facilitating implementation and ease of maintenance. In addition to MRP and Shop Management functions, system includes paperless material requisition/procurement system, Bar Coded system, and email Purchase Order.

Boston Centerless Inc    Woburn, MA 01801

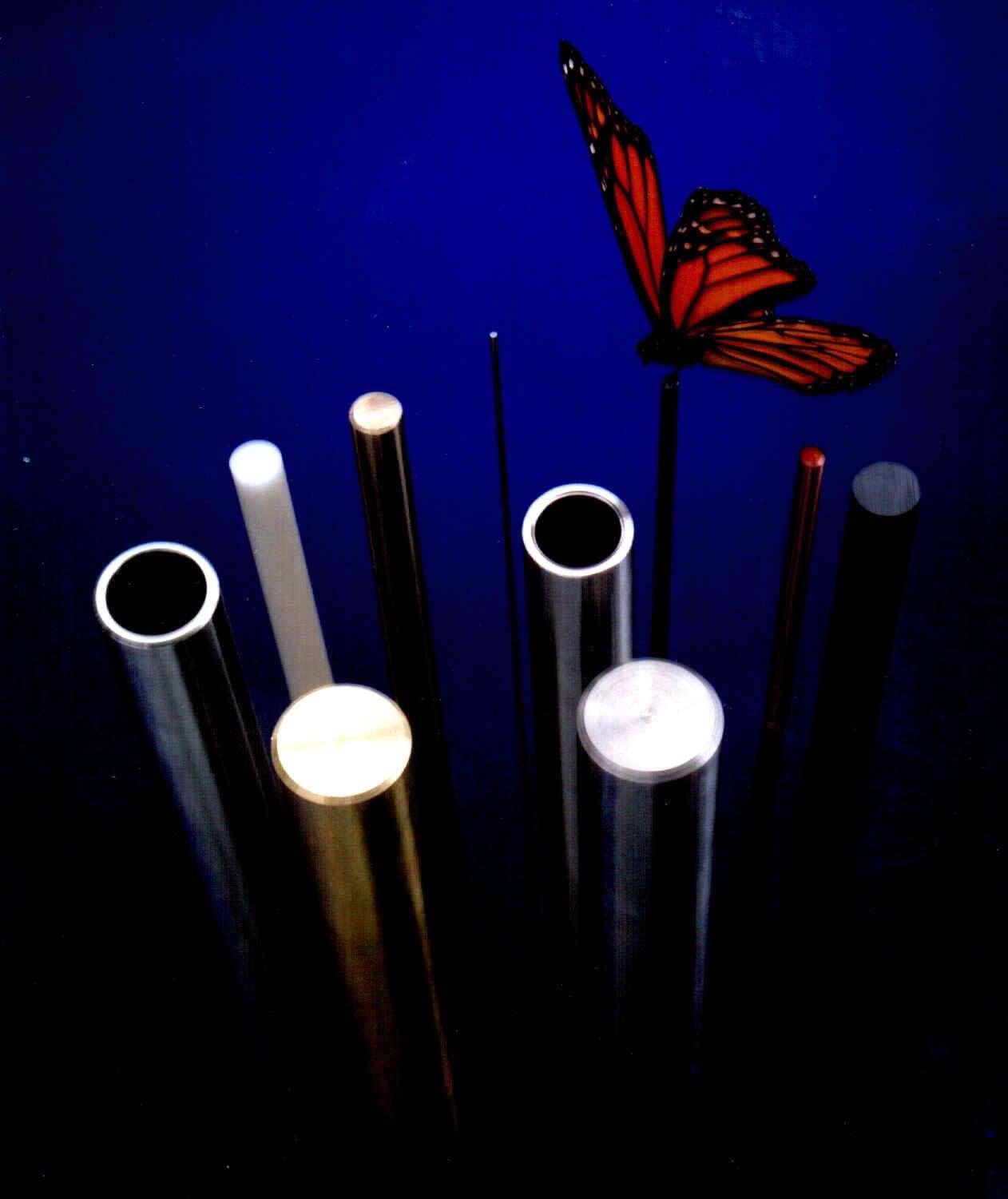

Apr 09, 2003 AccuRod® Precision Ground Bars include medical-grade materials such as BioDur® 316LS stainless and Custom 455®, with tolerances of 0.0001 in. on 12 ft lengths, 0.00005 in. roundness, and 3 Ra surface finish. Available in sizes from 0.008–5 in. dia and lengths to 20 ft, AccuRod pre-machined blanks eliminate chatter and vibration to prevent excessive tool wear and reduce downtime. They are suitable for manufacturing implants and instruments.

John Deere    Research Triangle Park, NC 27709
Apr 09, 2003 Constructed of seven-gauge steel with no welds, 72 in. 7-Ironâ„¢ V-Flex Mower Deck incorporates three-part, hinged deck with vertical belt drive system that allows deck to articulate 20° above and below center. Design decreases chance of scalping turf and allows belts to stay clean. For height-of-cut options, unit can be fit with rear wheel or rear roller kit for respective 1–5 or 1–4 in. heights, adjustable in ¼ in. increments.

Marzolf Co., The    St. Paul, MN 55104
Apr 09, 2003 Marzolfâ„¢ two-piece back-up flanges offer alternative to standard lap joint or Van Stone style flanges. They are made with self-positioning laminae, which interleave when flange halves are brought together to form rigid solid ring. Two-piece concept eliminates problem of cutting off and rewelding stub ends and permits permanent replacement of failed one-piece rings. Various materials are available to fit all types of pipe and fittings.

Sensortechnics Inc.    Dublin, CA 94568

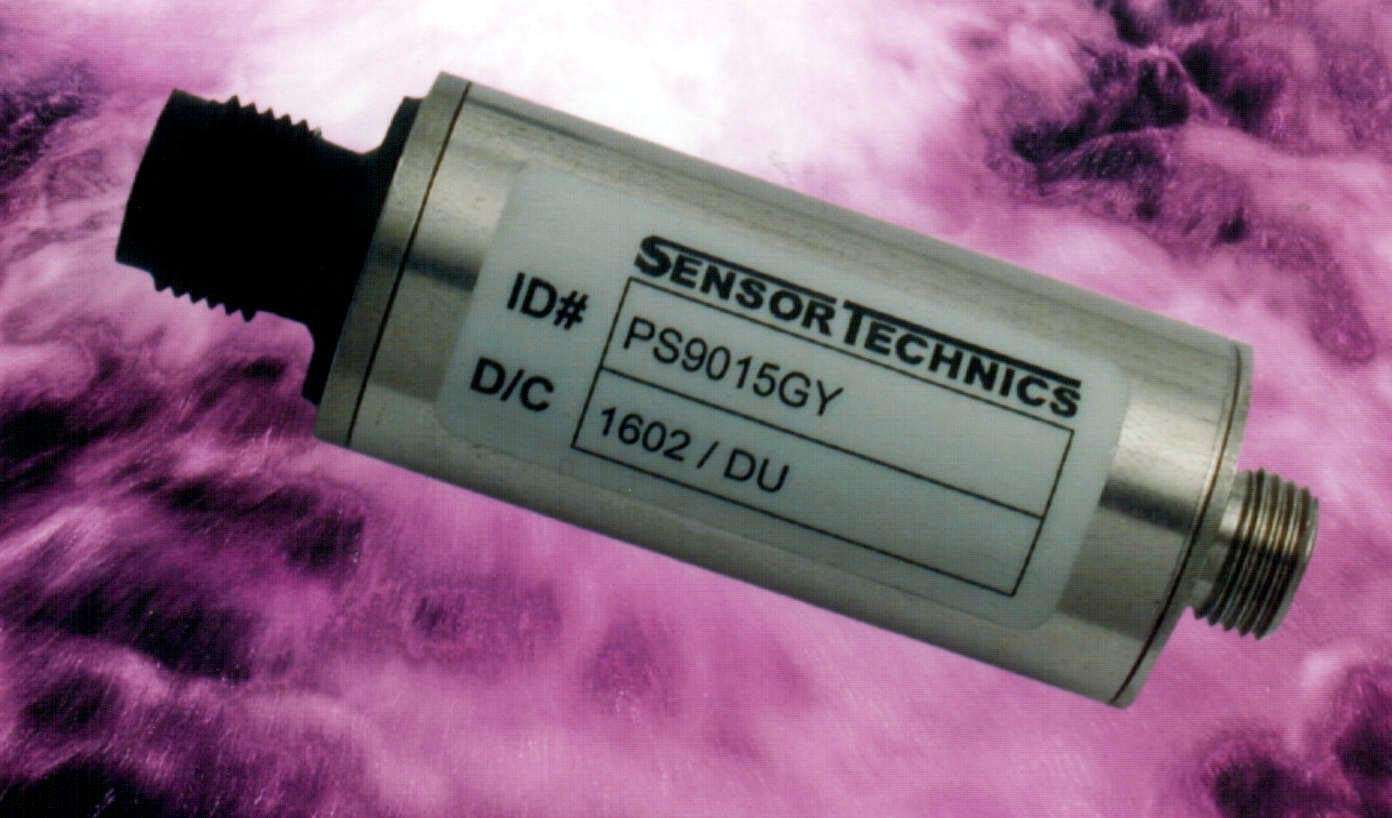

Apr 09, 2003 Series PS9000 offers pressure measurement for aggressive and corrosive liquids and gases from 0–3 psi to 0–500 psi FS. Output signal is 0–100 mV. Stainless steel housing measures 0.86 in. in dia. All-welded stainless steel diaphragm eliminates internal elastomeric seals. Piezoresistive sensor chip is housed in fluid-filled cylindrical cavity, and resistor network is supplied on hybrid ceramic substrate for compensation of temperature effects.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Apr 09, 2003 Model AZ757 pc-mount 16 A power relay features standard pc connections for coil with quick-connects for contacts. Slimpak® Design allows high-density placement. Dielectric rating is 5 kV contact to coil, and surge rating is 10 kV. Coil voltages range from 5–24 Vdc. Class B insulation is standard, with Class F insulation optional. Typical applications include microwave ovens, copiers, stereo equipment, and vending machines.

GOJO Industries, Inc.    Akron, OH 44309 0991
Apr 09, 2003 Ink and Stain Hand Cleaner removes stubborn inks and dyes with various compositions, including solvent, water, and UV-curable bases from hands. Hand cleaner is available in 14 fl. oz. grip bottle with integrated hand and nail brush.

Avalon Vision Solutions, LLC.    Lithia Springs, GA 30122
Apr 09, 2003 QualityStation with PlantVision v7 features event-driven I/O architecture that permits multiple quality assurance inspection events to be executed asynchronously. Variety of parts and assemblies can be inspected in random order and in any lot size. Advanced machine interface (AMI) allows maintenance-level technician to configure digital, serial, or Ethernet control interfaces with virtually any production machinery and does not require ladder-logic, programming, or command language.

Adalet    Cleveland, OH 44135 3301
Apr 09, 2003 Series XIHMK Explosionproof Instrument Housings suit large diameter assemblies, multi-level circuit boards or wide-angle readouts and displays and have 3-9/16 in. ID. Housings are precision machined from sand-cast, copper-free aluminum, or 316 stainless steel and feature 3/4 in. NPT conduit feed-through hubs, 7/16 in. thick base for blind tapped instrument mounting holes, and 2-1/2 in. dia. glass cover. Units meet multiple certification agency requirements.

Saint-Gobain Performance Plastics, Attachment Tapes, Sealants & Gaskets    Granville, NY 12832-1699
Apr 09, 2003 Korel® micro-cellular .3–1.0 mm gauge foams resist compression set even in elevated temperatures. They facilitate assembly of parts with variable dimensions and will absorb thermal expansion and contraction. Foams are offered on PET liner that adds stability and aids in die-cutting. They are suitable for demanding telecommunications gasket and sealing applications.

Retsch, Inc.    Irvine, CA 92614
Apr 09, 2003 Suited for use with sieve stacks from 4–16 in. in diameter, AS 400 employs careful circular motion for use with coarse particles and grains of oblong shape. All parameters are digitally controlled, and users can save up to 9 combinations for routine sieving processes. Unit may be switched to acceleration mode and can be recalibrated. Interface allows for integration of unit in sieving process controlled through EasySieve® software.

Clark Solutions    Clinton, MA 01510
Apr 09, 2003 Compatible with slightly aggressive media, 652 series instruments provide overpressure safety protection and are available for ranges of 0–20 in. w.c., 0–7.0 PSID, and 0–15 PSID with 0–10 V or 4–20 mA outputs. Transmitters have integral stain relief connections and 1/8 in. NPT pressure connections. Constructed with diaphragm materials of NBR, EPDM, and Viton, additional materials that come in contact with media include 430F, 304, and 301 SS; AISI A2 alloy; and polyacetate-c/Polyamide.

American Lewa, Inc.    Holliston, MA 01746 1455
Apr 09, 2003 Available in single- or multiple head configurations, LEWA E Series Hygienic Diaphragm Pumps are suited for CO₂ process metering in water-free systems. They incorporate leak-free, sealless diaphragm technology with smooth internals and no dead spaces. While diaphragm keeps CO₂ in liquid state, pumps handle pressures up to 17,500 psi and are suitable for metering and transfer from 0.1–360 GPH with less than 1% accuracy.

Aved Electronics, Inc.    Lowell, MA 01851-2729
Apr 09, 2003 Aved Military Cable Assemblies are custom engineered and manufactured using all appropriate MIL-Spec wire, cable, boots, transitions, tubing, contacts, terminals, connectors, backshells, and adapters. With hand soldering certified to MIL-S-45743, MIL-STD-1460, and MIL-STD-2000, assemblies integrate RF and DC wiring and are packaged as required by MIL-Specifications. Assemblies are built on custom test fixtures which measure integrity of every contact point.

Nelco Products, Inc.    Pembroke, MA 02359
Apr 09, 2003 Heavy-Wall Polyolefin Heat Shrink Tubing incorporates thermoplastic sealant inside product, which is heat activated and creates environmental seal against moisture, dirt, and corrosives. It has 3:1 shrink ratio to fit over terminals and functions as strain relief. Tubing comes in black and red in 10 expanded sizes from ¼â€“7 in. OD. Self-extinguishing, UV-resistant, product is suited for -55 to +135°C service.

CyberResearch, Inc.    Branford, CT 06405 2932
Apr 09, 2003 USBS 1000 and 2000 series serial communication converters enable communication with serial-port devices using RS-232/422/485/530 serial protocols. Working with systems that support V1.1 USB in hardware and OS, converters are powered from USB cable and are automatically configured by computer. USBS 1000 units support speeds of 461 kbps or less and buffers no larger than 16 bytes. USBS 2000 converters run at 921.6 kbps and provide buffers of 128 bytes (TX) and 384 bytes (RX).

Mack Corp.    Flagstaff, AZ 86004
Apr 09, 2003 Low Profile Air Cylinders have heavy walls and threaded end caps for easy repair and seal replacement. Forty eight configurations are available in 16 mounting styles with 4 bore sizes and choice of stroke to 12 in. Units feature precision machined components, internal lube cavities, oil impregnated rod bearings, density enhanced cylinder bores, and internal shock absorbers. Port relationship is adjustable.
