E Instruments International LLC    Langhorne, PA 19047
Apr 16, 2003 Model PT3 Flow Master measures mass flow, volumetric flow, differential pressure, velocity, and process and ambient temperature. All parameters are automatically logged and downloaded to maximize accuracy, eliminate tedious calculations, and maximize sampling time.

ROMER/CimCore    Farmington Hills, MI 48331
Apr 16, 2003 CimCore System allows real-time inspection of parts against CAD models. It includes choice of 6 or 7-axis 3000i portable coordinate measuring machine, laser scanner, and geometric and surface inspection software package that includes point-cloud functionality. System is capable of collecting and analyzing in excess of 20,000 points/sec. All data collected can be used for detailed off-line analysis and reporting with wide range of editing options.

J. W. Winco, Inc.    New Berlin, WI 53151
Apr 16, 2003 Double Ended Press-Fit Ball Plunger has brass housing and stainless steel ball and spring. It can be used as indexing or positioning element in applications where 2 work pieces need to be held parallel to each other, helping to reduce work piece set up time.

Seco-Larm    Irvine, CA 92606-5012

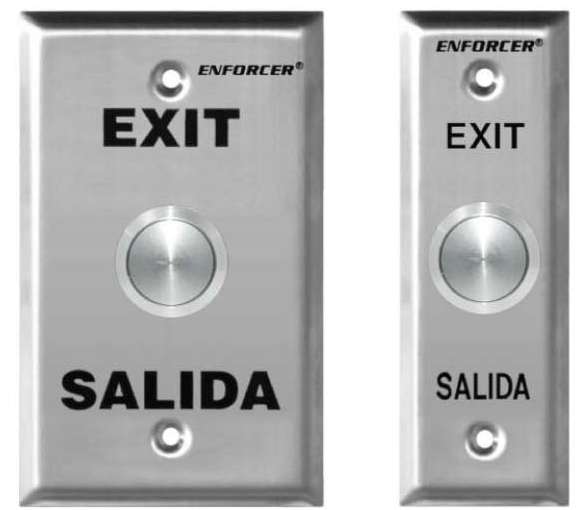

Apr 16, 2003 Model SD-7204SC-PE1 Push-To-Exit plate, for access control, is single-gang, stainless-steel plate with vandal-resistant, 3/4 in. dia, stainless-steel pushbutton which actuates NO/NC contact, rated 5 A @ 250 Vac. Features include waterproof construction with EXIT and SALIDA silk-screened on plate. Model SD-7104SC-PE1 is slimline configuration.

Watson-Marlow Bredel Pumps    Wilmington, MA 01887

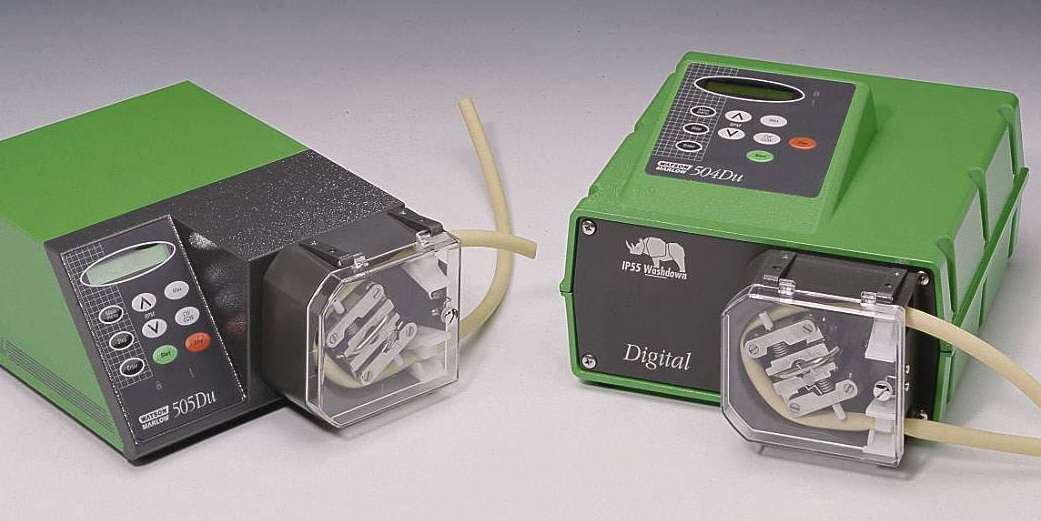

Apr 16, 2003 Series 500 pumps, for contamination-free transfer of abrasive and aggressive fluids, control and monitor dosing with flow rates up to 70 gph and turn down ratio of 27,500:1. Pumps provide repeatable standard of volumetric accuracy of up to ±0.5%. They include Marprene tubing for service life in chemical handling applications and handle harsh fluids, such as acids, paints, inks, dyes, and alcohol.

StockCap    Arnold, MO 63010
Apr 16, 2003 Vented Caps allow air to be released from inside cap, relieving pressure and prohibiting cap from popping off. Design styles feature S-caps (short caps) and EZ Tab caps. Dip-molded process allows for creation of custom designs with choice of colors, materials, diameters, and lengths. Design yields relief from high temperatures. Products are suited for masking applications, automotive and medical industries, and protective applications.

Hypertherm, Inc.    Hanover, NH 03755 0010
Apr 16, 2003 Dual-gas HySpeedâ„¢ HT2000 incorporates Coaxial-assist jet technology, LongLife oxygen technology for control of cutting parameters, and electrode design with silver-fused front end. System boosts cutting speeds on mild steel by as much as 50% over conventional designs. Able to cut most metals from gauge to 2 in. thick, product provides production piercing of 1 in. mild steel and max piercing as thick as 1.5 in. mild steel. Shield technology protects nozzle against double arcing.

Tru-Connector Corporation    Peabody, MA 01960 5099
Apr 16, 2003 With greater than 90 dB shielding, low loss, 50-Ohm cintru™ cable operates over frequency range of dc to 6 GHz, depending on connector type. Broadband cable can be supplied in bulk or as complete cable assemblies with connectors. Product is constructed with copper center conductor, aluminum tape bonded to polyethylene foam dielectric, tinned copper outer braid, and polyethylene outer jacket. Cable comes in 0.195–0.600 in. dia sizes.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Apr 16, 2003 Proform hydraulic press brake features adjustable stroke length and full-tonnage throughout stroke. Precision servo hydraulics allow unit to hold ram repeatability to ±0.001 in. along entire length. Proform comes in 60- to 350-ton versions in overall bed lengths from 4–14 ft. Control has 15.1 in. LCD touch-screen and uses icon-driven Windows® operating system. Software allows 3D rotational viewing of part, detailing part shape and gage fingers.

Sherwin-Williams Co.    Cleveland, OH 44115
Apr 16, 2003 Fast Glo Acrylic Safety Marking Paint is single component acrylic with phosphorescent luminescent pigment that enables paint to glow yellow/green in dark for up to 4 hours. Paint is for marking aisle ways, emergency routes, boundaries, and stairways to identify safe passageways in event of power outage or failure of back-up power systems. It can be applied by brush, roll, or spray and comes in quart and gallon containers.

Fluke Corp.    Everett, WA 98203
Apr 16, 2003 Suited for use in hazardous environments, 707Ex Loop Calibrator is used for calibration, repair, and maintenance of current loops. Offering manual stepping and automatic ramping, unit also offers pushbutton-selectable 25% voltage steps and built-in span check function. Loop current sourcing and simulating are standard, allowing measurement of current while providing 24 V loop power from internal loop supply. Readings are in mA and %, and unit features one-handed operation.

Jensen Fabricating Engineers, Inc./JENFAB    Berlin, CT 06037
Apr 16, 2003 LeanClean Flex Cell Parts Washer features automated and PLC controlled cycle to provide powerful spray wash, immersion wash, submerged and turbulated spray plus blow-off. During cleaning cycle, all solution is continually recirculated, filtered and discharged back onto parts. Cleaning chamber accommodates 9 x 12 x 6 in. baskets. Washer cleans blind holed screw machine parts, small machined parts with intricate cavities, and tubular parts.

CDS Analytical, Inc.    Oxford, PA 19363 0277
Apr 16, 2003 Model 9600 cleans/conditions sorbent tubes off-line. Stand-alone module accommodates tubes with mixed sorbent packings, sizes, and lengths and allows users to individually set flow rates, temperatures, and conditioning times. Standard unit has six heating jackets that accept ¼ in. OD tubes up to 11.5 cm in length. Temperature control zones can be programmed in 1°C increments to 400°C, and conditioning times are programmable in 0.1 min increments to 999.9 min.

EGS Electrical Group    Skokie, IL 60077
Apr 16, 2003 Single and Two Gang Boxes feature continuous and seamless die cast construction to stop entry of damaging dirt, dust, and moisture. Powder coating assures uniform weatherproof durability, while tapered hubs prevent wire abrasion. Boxes are furnished with closure plugs, ground screws, and mounting lugs. They fit weatherproof covers in standard trade sizes and are suitable for interior and exterior applications.

Iconotech    Clinton, CT 06413
Apr 16, 2003 MAXIMIZER prints text, bar codes, and graphics on uncoated multi-wall kraft bags, flat cases, die cuts, and blanks. Unit includes vacuum feeder that allows operators to switch from one type of print job to another as well as lift table magazine that holds up to 100 bags or 60–90 single sheet die cuts. It prints one side at a time in one color. Computer generated printing stencil allows placement of print anywhere within 32 x 11 in. area.

Sullair Corporation    Michigan City, IN 46360
Apr 16, 2003 Model LS-20 utilizes one single-stage, 100 hp rotary screw compressor with tapered roller bearings on discharge end and cylindrical roller bearings on inlet. Fluid-lubricated and cooled, product is offered in four models from 344–490 acfm with pressure ratings of 100–175 psig. Features include multi-stage air/fluid separation, flange-mounted motor and air end, and heavy-duty air inlet filter. Microprocessor control monitors/controls essential functions.

MHI Injection Molding Machinery, Inc.    Addison, IL 60101
Apr 16, 2003 Series em combines electric and hydraulic features for reduced cycle times. Two-platen mechanism provides accurate mold clamping, while linked split nut drive results in simultaneous actuation. Peakless Pressure Control eliminates high-pressure spikes at end of fill during high-speed injection. Long platen supports resist tilting and ensure parallelism of moving platen and mold. MAC-VIII control provides 12 in. LCD touch screen, automatic mold thickness adjustment, and Jet Purge.

TRUMPF Inc.    Farmington, CT 06032
Apr 16, 2003 Model TPC 150-2 cuts sandwich panels up to 6 in. thick in one cut without flipping sheet. Capable of making burr-free, precision cuts, tool does not require users to drill starter holes or refinish completed cut edge. With output of 1,400 W, unit reaches working speeds of up to 98 ipm and is available in 3 and 6 in. lengths. Handles are located in line with cut line for two-handed operation. Guide rail and connection for vacuum cleaner are available.

Dematic Corp.    Grand Rapids, MI 49505
Apr 16, 2003 Cantilevered Gate is a retractable conveyor bed with self-supporting design and spring/shock technology. Gate section is used to temporarily halt conveyor flow and allow people to pass through line. Conveyor retracts into floor support and adjustable bed angle optimizes product flow and fine tunes for different applications. Typical configurations include gravity wheel and powered roller beds with speeds ranging from 90-330 fpm.

Hypac    Kewanee, IL 61443
Apr 16, 2003 Series C810C includes 7,275 lb Model C815C for granular and mixed soil applications, and 7,385 lb Model C812C with 70 contact pads for cohesive and semi-cohesive soils. Dual travel pump system, rear travel axle with no-spin differential, and radial piston drum-drive travel motor allow gradeability of 55%. Both models utilize 50 hp Deutz F3L 2011 air/oil-cooled diesel engines, and include dual amplitudes with operating frequency of 2,460 vpm. Maximum working speed is 5.6 mph.
