Valenite, Inc.    Madison Heights, MI 48071 9636

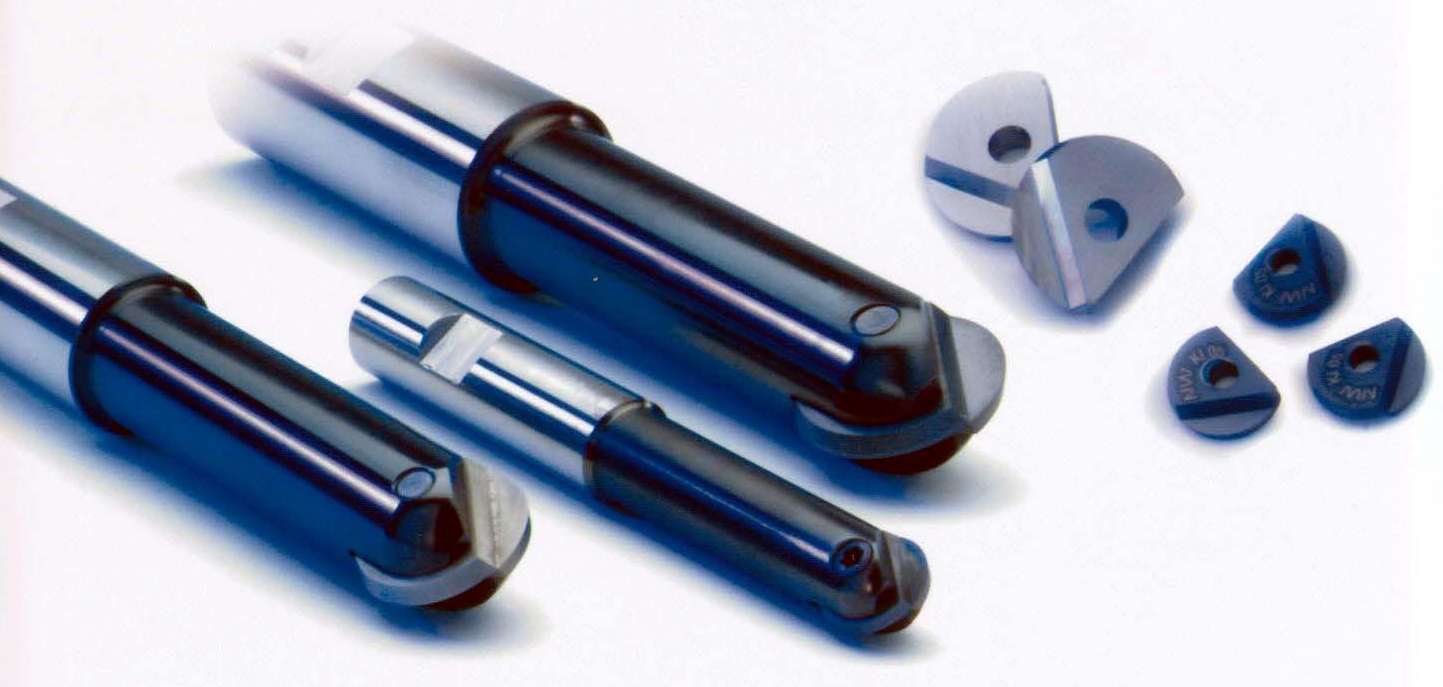

Apr 15, 2003 ValMILLâ„¢ 400 finishing ball nose end mill employs cutter design with TorxPlusâ„¢ insert locking mechanism. End mill cutter bodies are available in 6 cutter diameters from .375–1.25 in., and max recommended speeds range from 32,500–40,000 rpm. Product uses precision ground, VP5007 grade inserts that have 2 effective teeth per insert and provide cutting diameter accuracy of ±.0004 in. Inserts have micrograin substrate and Titanium Aluminum Nitride PVD coating for wear resistance.

Greene, Tweed & Co.    Kulpsville, PA 19443 0305
Apr 15, 2003 Seal-Connect® bulkhead feedthroughs are offered in ST and FC configurations, in permanent and non-permanent versions. Design is based on hermetic joining of internal light conduit to zirconia ferrules. Insertion loss is typically 0.3 dB and maximum light loss is 0.5 dB. Feedthrough bodies are corrosion-resistant, 316 stainless steel and alignment sleeves are precision-machined zirconia. Units fit vessels with wall thicknesses from 1/16–1 in.

Greenerd Press & Machine Co., Inc.    Nashua, NH 03061

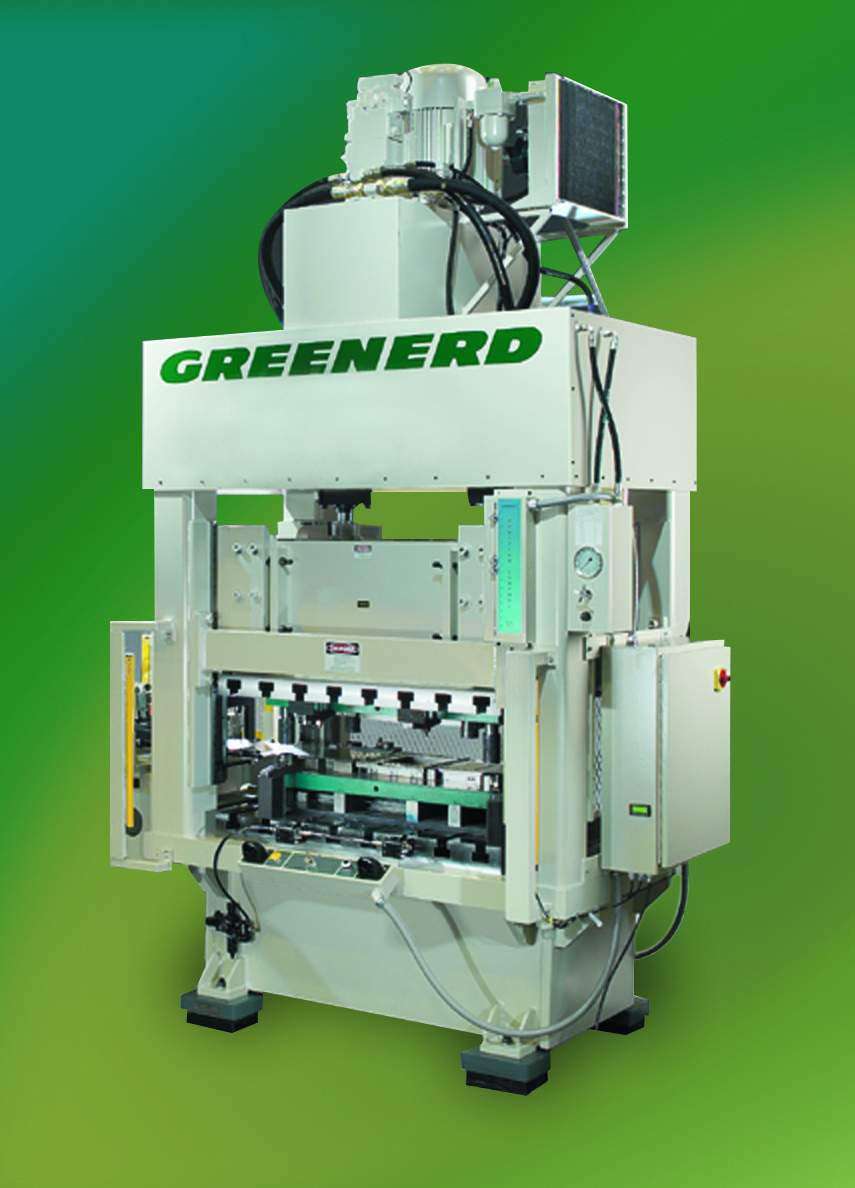

Apr 15, 2003 Model GG Four-Column Hydraulic Presses range from 30–2,000 tons with up to 150 strokes/minute. Eight-point, gib-guided slide withstands demands of high-speed stamping with large dies and progressive dies requiring off-center loading. Hardened-steel gibs offer front-to-rear and side-to-side adjustment to maintain slide parallelism to bed. Presses include T-slotted bed, graphite-impregnated bronze bearing strips, and split-collar ram connection.

Force Control Industries, Inc.    Fairfield, OH 45014
Apr 15, 2003 Posidyne X Class oil-shear clutch/brakes feature torque ratings from 100–1,000 lb-in., cycle rates to 400+ cpm, and 20 msec response. Models fit drives up to 10 hp. Oil-shear provides inherent cushioning, and high thermal capacity eliminates torque fade. Washdown units have USDA-approved STEEL IT epoxy coating, stainless steel fasteners, nickel-plated shafts, stainless steel clamp collar, and non-corrosive sight gauge with plastic windows and plastic breather.

Dynasonics, Div. Of Racine Federated, Inc.    Racine, WI 53404

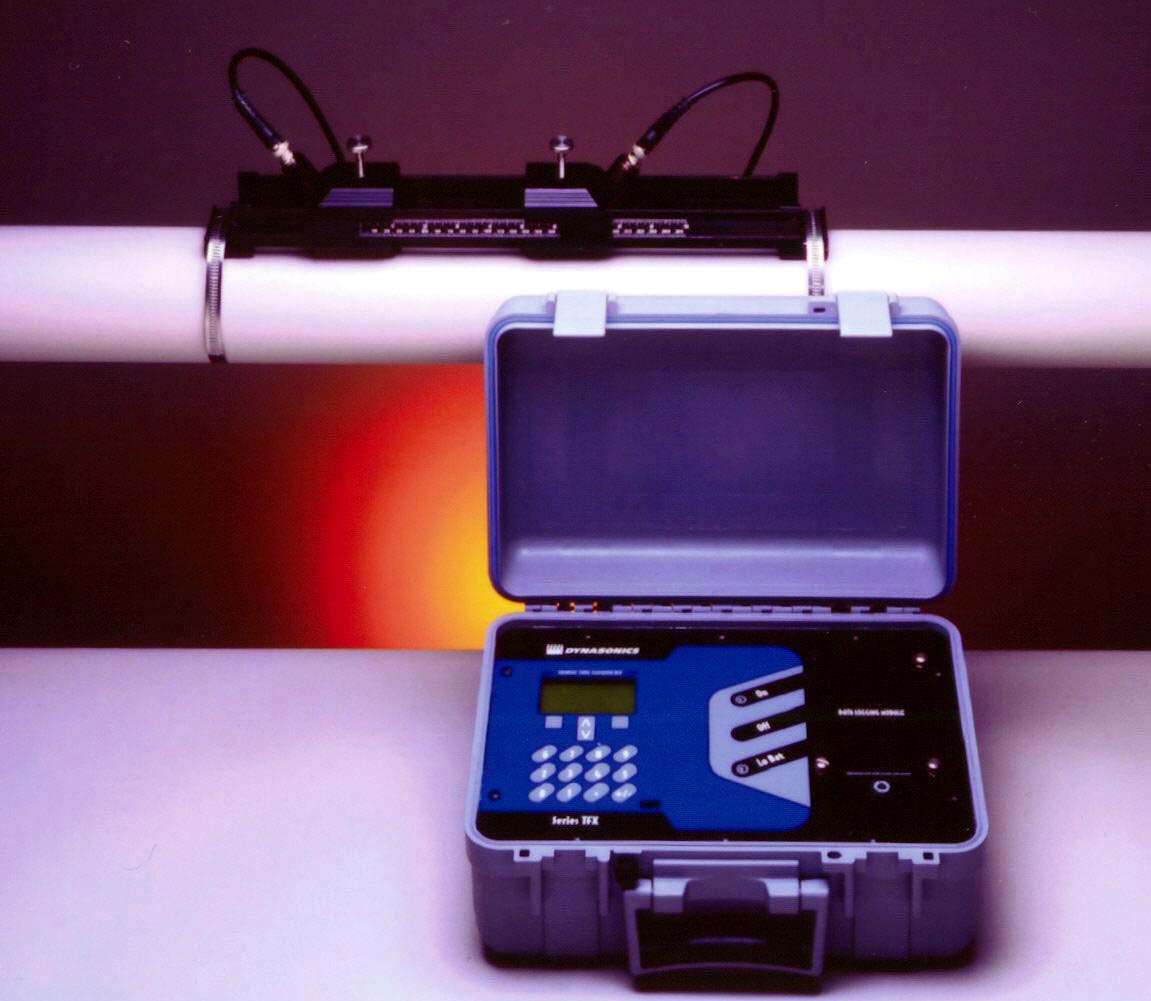

Apr 15, 2003 Model TFXP Portable Transit Time Ultrasonic Flow Meter measures piping systems from 2–100 in. Used primarily for liquids, it can also measure liquids containing moderate amounts of suspended solids or aeration. Clamp-on unit has no moving parts for maintenance-free operation. Optical interface allows operation of Windows® software utility. Model TFXP runs on 24-hr, continuous use rechargeable battery. Optional 200,000 event datalogger module is available.

Guden, H. A., Co., Inc.    Ronkonkoma, NY 11779

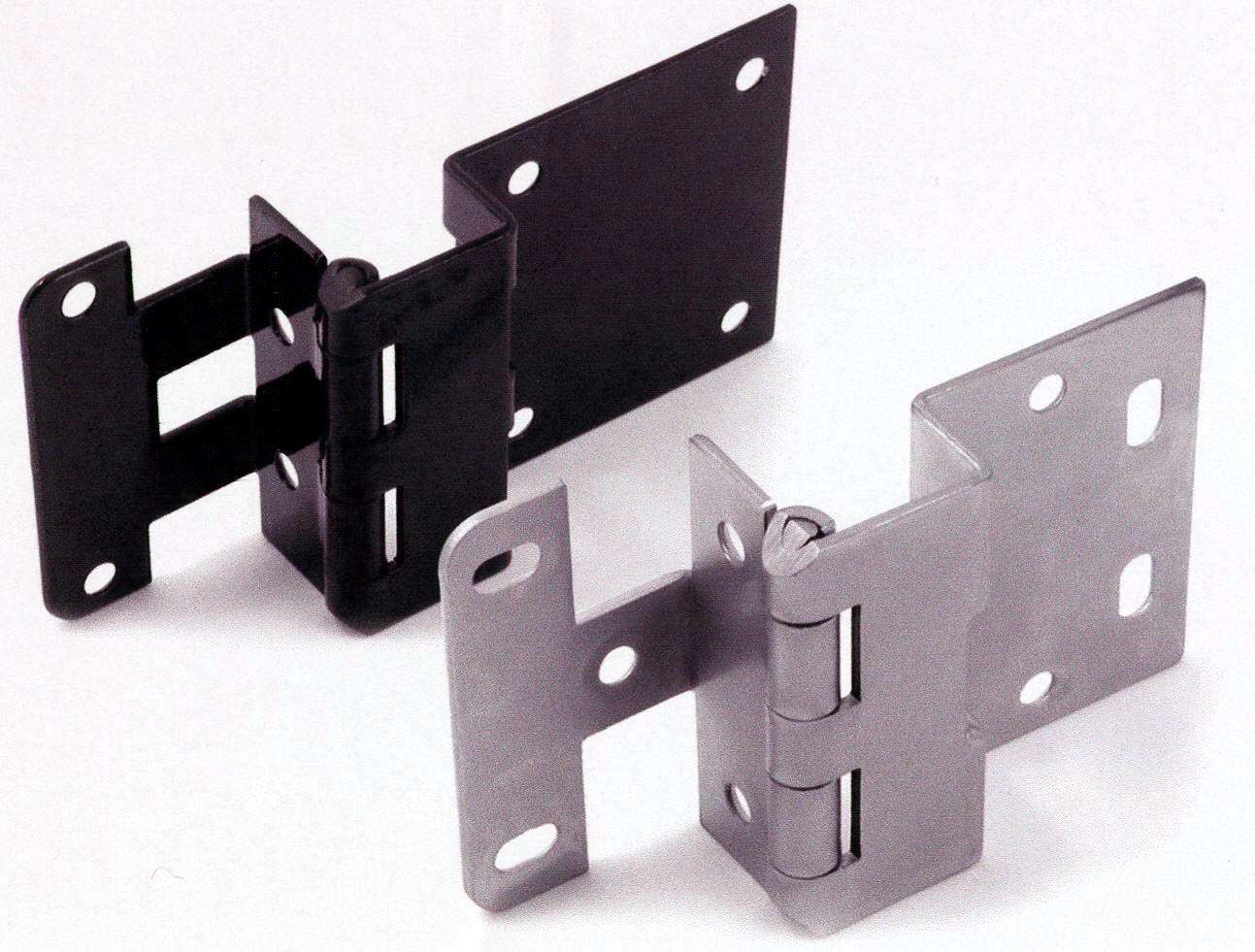

Apr 15, 2003 Institutional Hinges incorporate interleaf design for close fitting doors, elongated screw holes for horizontal and vertical alignment, and hospital tips. They are 2.75 in. in length and fit .75 and .8125 in. door thicknesses and frame offsets. Finishing options include black powder coat or dull chrome. Hinges are suited for electronic enclosures, hospital cabinets, office furniture, decorative doors, and most metal and wood cabinetry.

Trico Mfg. Corp.    Pewaukee, WI 53072 3954
Apr 15, 2003 Opto-Matic Oiler is suited for equipment where constant level in oil sump must be maintained. Closed design prevents contamination and spillage. Adjustable collar allows oil level to be externally adjusted to desired level. A 1/8 NPT port is provided for vent line back to housing to allow pressure balancing between oiler and housing.

Littelfuse, Inc.    Des Plaines, IL 60016

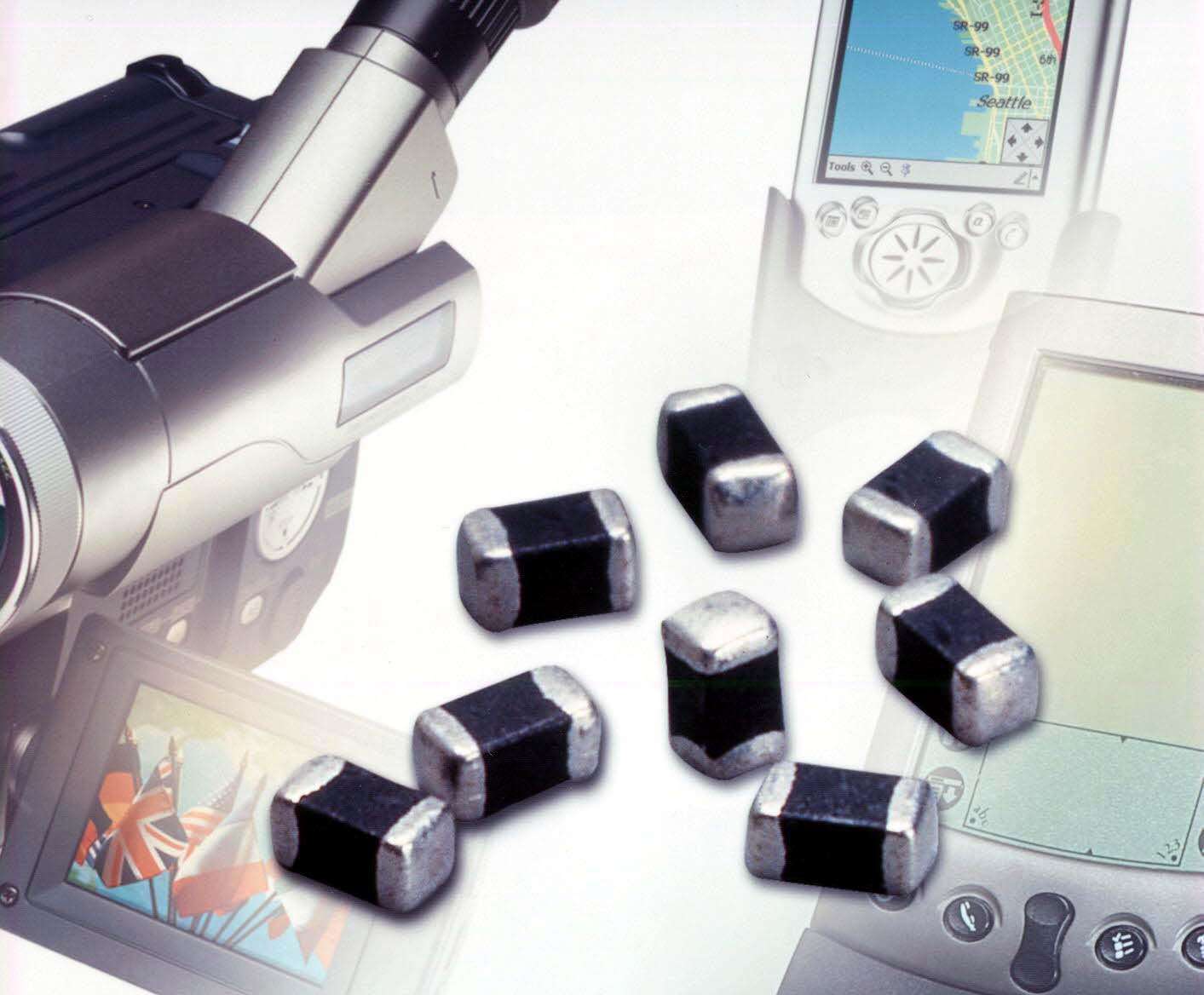

Apr 15, 2003 Multilayer varistor (MLV) products, with nickel-barrier termination, enhance solderability by improving wetting characteristics of termination to resist sliding and tombstoning during board-assembly process. Plated-nickel layer is placed over standard silver termination to ensure that termination is immune to solder leaching. Tin plating, placed over nickel layer, improves solder wetting characteristics. Option suits manufacture of digital consumer technology products.

BYK Gardner USA    Columbia, MD 21046 2729
Apr 15, 2003 Portable micro-TRI-gloss meter has 3 measuring angles and gloss range up 2,000 gloss units for measuring paint, plastic, and highly reflective metals. Features include pass/fail and differences against up to 50 target values, maintained sample storage, auto-diagnosis, and scroll wheel. Software allows direct data transfer to Excel®, and displays results in QC-report with graphs, with or without PC.

Linear Technology Corp.    Milpitas, CA 95035

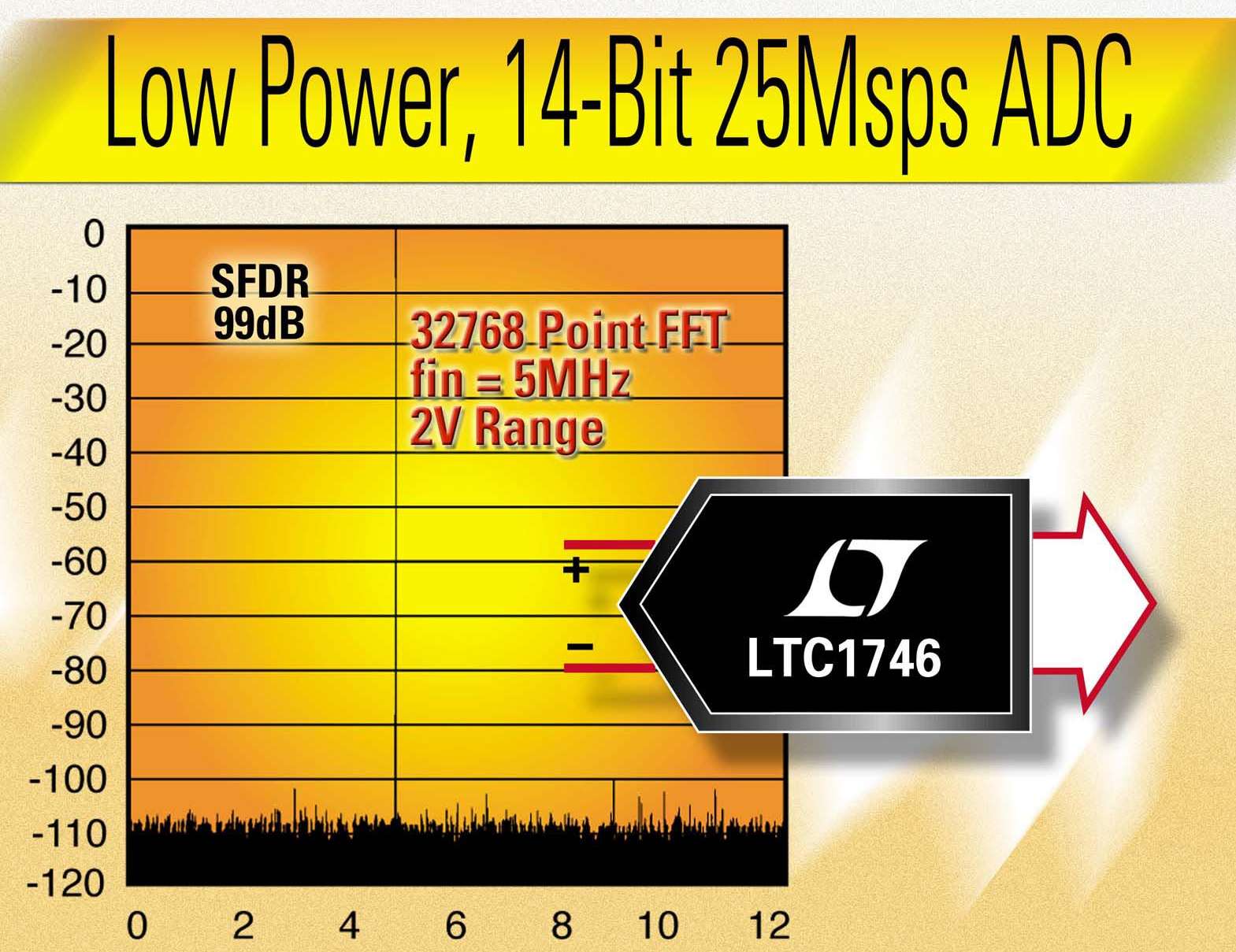

Apr 15, 2003 LTC1746 14-bit, 25 Msps, Analog to Digital Converter conserves power and digitizes high frequency signals. With 77.5 dB SNR and 99 dB SFDR, unit dissipates 390 mW for high-end medical imaging, portable instrumentation, and communications. LTC1745 is pin-compatible, 12-Bit, 25 Msps ADC with low noise of 72.5 dB SNR and 96 dB SFDR. Input range can span ±1 to ±1.6 V. Units come in 48-pin TSSOP package for commercial and industrial temperature ranges.

TTI, Inc.    Williston, VT 05495
Apr 15, 2003 Model 4288 VFDC-17-A variable frequency, self-contained, field-mountable pump and drive controller features fully-scalable speed setpoint and feedback, and fully-scalable control variables in units of psi, %, ft, in., gpm, fps, and Hz. Menu driven setup eliminates need for computer. System includes built-in LCD and 4-button keypad, 4 analog inputs, 2 analog outputs, 8 digital inputs, 8 digital outputs, 7 pump fixed speed controls, and auto/manual fixed speed control.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005 2550
Apr 15, 2003 Work Gloves have padded palm w/memory foam that enhances vibration absorption and minimizes hand fatigue. Reinforced fingertips and silicone finger pads enhance gripping capabilities, while synthetic leather palm promotes wear resistance. Reinforced wrist cuff with hook and loop closure provides tight and secure fit. Two-way Spandex backing optimizes breathability and comfort. Small, medium, large, and x-large sizes are available.

VSK Photonics, Inc.    Lake Forest, CA 92630
Apr 15, 2003 Model VSK10R05 receiver module combines photodetector with integrated pre-amplifier for operation at 9.9, 10.7, and 12.5 Gbps. Providing optical sensitivity of –19 dBm, optical overload of +2 dBm, and bandwidth of 10 GHz, receiver features MSA-compliant 17-pin surface mount small form factor package. In noisy optical environments, optical overload remains greater than 0 dBm at OSNR of 13 dB/0.1 nm. Module is targeted at applications using Electronic Dispersion Compensation.

Excitron Corporation    Superior, CO 80027-6125
Apr 15, 2003 FTFc Miniature Step Motor Driver features high speed motor torque up to 26,000 SPS, current limiting ability up to 48 V, RS232 set motor speed parameters, and ability to connect multiple units for robotic motions. Unit is designed for remote control or stand alone operation, and full step or half step micro stepping in 1.46 x 1.46 x .27 in. package.

DJ Products, Inc.    Little Falls, MN 56345
Apr 15, 2003 Walk-behind, motorized CartCaddy is suited for pushing and pulling carts and wheeled equipment in order to prevent strains and pains on employees caused by manually handling carts. Stainless steel model is offered for food, pharmaceutical, and other sterile environments that prohibit paint and powder coatings. Variable-speed twist grips allow unit to maneuver up to 15,000 lb carts in tight areas. Its 36 V motor is powered by three 12 V batteries.

Rainbow Technologies    Irvine, CA 92618
Apr 15, 2003 iKey authentication tokens and NetSwift iGate IPW security solution is for protection of SCADA and distributed control systems. USB authentication key and NetSwift iGate combines two-factor authentication with "always-on" security via SSL to create IPW for utility customers. iKey and iGate manage remote access needs of field personnel, control center personnel, corporate users, vendors, and business partners.

ICEM Technologies    Waltham, MA 62453
Apr 15, 2003 ICEM Viewer permits users to view 3D surface models and digital mock-up visualizations created with ICEM Surf surface modeling, analysis, and visualization software. Product consists of export module that resides on full ICEM Surf software seat and viewer that can be accessed over Internet or company's internal network. ICEM Viewer supports all visualization facilities provided by ICEM Surf v4.3 as well as real-time, dynamic self-shadowing; lens flares; and camera fly-through.

Nikon, Inc. Instrument Group Div.    Melville, NY 11747
Apr 15, 2003 DXM1200F Digital Camera for fluorescence microscopy features 12-million-output pixel capability, streaming data-transfer of 12 frames per sec at 640 x 512 pixels, live-image display, 1/2 exposure time of previous model, and 800% zoom capability. Camera also features brighter image capture in low-illumination applications such as fluorescence, DIC, and dark-field observations than previous model DXM1200.

Gore, W. L., & Associates, Inc.    Newark, DE 19711
Apr 15, 2003 GOREâ„¢ PRIMEA® Series 57 MEA (Membrane Electrode Assembly), suited for automotive PEM fuel cells, utilizes micro-reinforced membrane technology combined with gas diffusion technologies and material innovations. Components and associated technology enable product to withstand challenges of chemical degradation and voltage decay in harsh environments.

Berk-Tek, A Nexans Co.    New Holland, PA 17557
Apr 15, 2003 Flame-retardant cables are available in two types: Quad Shield, for use in high noise or low emission environments, and Drop Cable, for use in less demanding electrical noise and emission environments. Offered in CMP (plenum) and CM (general-purpose) rated versions, available styles include RG-6, RG-59, and RG-11. Products are manufactured to exacting standards and exceed industry standards for attenuation, Structural Return Loss, and impedance stability.
