Taylor Hobson, Inc.    West Chicago, IL 60185
Apr 18, 2003 Talysurf CCI 3000 scanning broadband interferometer finds coherence peak position of interference pattern produced by selectable bandwidth light source. Surfaces with reflectivity of 0.3-100% can be measured with 0.1 angstrom resolution over 100 µm gauge range. Machine offers 0.03 angstrom rms repeatability and 200 mm height adjustment in work envelope and collects 1,048,576 data points for each measurement. Automatic analysis routines are carried out through Talymap 3D software.

FCI/Burndy Products    Manchester, NH 03108
Apr 18, 2003 SMALL HYDENT® small terminal product line offers ring and fork tongue terminals, flag style and standard quick disconnects, and splices. Product offering also includes installation tools. Customized solutions are available to fit unique customer needs. Most connectors are UL and CSA listed and are available in vinyl, nylon, and polyvinylidene (PVF2) insulated and non-insulated versions. Applications include industrial, OEM, CM&R markets.

Control Central, Inc.    St. Cloud, MN 56303
Apr 18, 2003 Stone Facer 5000 automated pitching/rock facing machine chisels both top and bottom of concrete products at rate of 40-100 linear fpm. System 5400 incorporates two cutters with tip up mechanism for processing all four sides of block into one processing system. Spring-loaded hold-down conveyor accommodates variation in block heights up to 16 in. Pitching hammers and conveyor are variable speed to create hand-hewn appearance.

Precision Airconvey Corp.    Newark, DE 19702
Apr 18, 2003 Granulate Feed System enables plastic film and sheet processors to reclaim and reuse edge trim and roll scrap. Separate chambers feed virgin resins and fluff into extruder to ensure ratio of fluff to virgin is consistently achieved. Variable speed motor-driven auger automatically adjusts feed rate based on speed of extruder. Unit fits in round, square, oval, and rectangular extruder throats ranging from 2½-8 in.

Moeller Electric Corp.    Houston, TX 77032
Apr 18, 2003 Customizable industrial control panels, with electro-mechanical and intelligent controls, are short circuit tested from 1 source to meet user requirements. Panels may include various switches and operator interfaces as well as various types of motor controls, all in appropriate enclosure up to NEMA 4X. Offerings include touch screens that can store process recipe data and passwords, high density packaging, networking capabilities, and Web accessibility.

IFS North America, Inc.    Tucson, AZ 85710
Apr 18, 2003 Packaged for Payback integrates MRO activities with workforce management and corporate performance management, making it easier to track and reduce costs. It optimizes planning and forecasting, ensures regulatory compliance, and offers real-time, online collaboration with customers and suppliers. Software allows rapid implementation, with no disruption to business operations.

Made2Manage Systems Inc.    Indianapolis, IN 46268
Apr 18, 2003 Made2Manage® Field Service Module v5.2 documents, tracks and manages manufacturer's warranty and service efforts. It seamlessly draws from back-office data of Made2Manage Enterprise Business System, allowing manufacturers to maintain full warranty and service history of their products down to part level. Manufacturers can offer customers 24/7 access to real-time Field Service information on machines they own via Made2Manage Enterprise Portal, M2Mâ„¢ VIP.

Envirosight LLC    Flanders, NJ 07836
Apr 17, 2003 RavenEye® self-leveling push camera system for inspection of main lines, laterals, and drain pipes utilizes digital video stored on Sony® Memory Stick® to document pipe conditions. Unit features self-leveling picture, 512 Hz sonde transmitter, 165 ft. fiberglass cable, and 5 in. color LCD with on-screen footage counter. Camera records color video footage and is surrounded by 36 white LEDs that illuminate large diameter lines.

Mitee-Bite Products Inc.    Center Ossipee, NH 03814
Apr 17, 2003 Low profile gripping rails with Pitbull clamps are for grinding and milling non-ferrous materials on magnetic chucks. Rails grind stainless steel, brass, aluminum, and plastic and can be used to improve holding force on ferrous material for more aggressive stock removal. Clamps can be moved along length of rail, into additional holes, for different size work pieces and longer parts can be held by using multiple rails.

Ruland Mfg. Co., Inc.    Watertown, MA 02472-2490
Apr 17, 2003 Discflexâ„¢ miniature disc couplings have speed capabilities up to 10,000 rpm. They consist of two anodized aluminum hubs, and multiple flat stainless steel disc springs. Double disc style also has anodized aluminum or electrically isolating acetal center spacer. Available sizes are .59 to 2.250 in. OD in NOMAR® clamp style and set screw style. Inch and metric bore sizes are available from .125 to 1.250 in.

Dazor Mfg. Corp.    St. Louis, MO 63146
Apr 17, 2003 SpeckFINDER(TM) features 6.4 in. TFT screen to maintain direct line-of-sight viewing. Mouse controls continuous range of magnification from 1-40x without need to change lenses. It also activates auto focus or manual focus option, zoom in/out, on-screen display of magnification power, and other menu driven image control features. Two flexible-arm, 20 W halogen light sources are included. Unit maintains 5 in. working distance across magnification range.

TURCK, Inc.    Plymouth, MN 55441
Apr 17, 2003 Available in 4- and 8-port versions, M12 eurofast Junction Boxes feature integrated home-run cables of PVC or PUR material. Nylon boxes are fully potted and provide IP68 seal that withstands 1,200 psi wash down. Stainless steel inserts connect with eurofast cordsets. Units excel in situations with water, detergents, surfactants, and other caustic chemicals. They are suited for wire consolidation in environments where brass or other metal parts fail.

Weigh-Tronix, Inc.    Fairmont, MN 56031

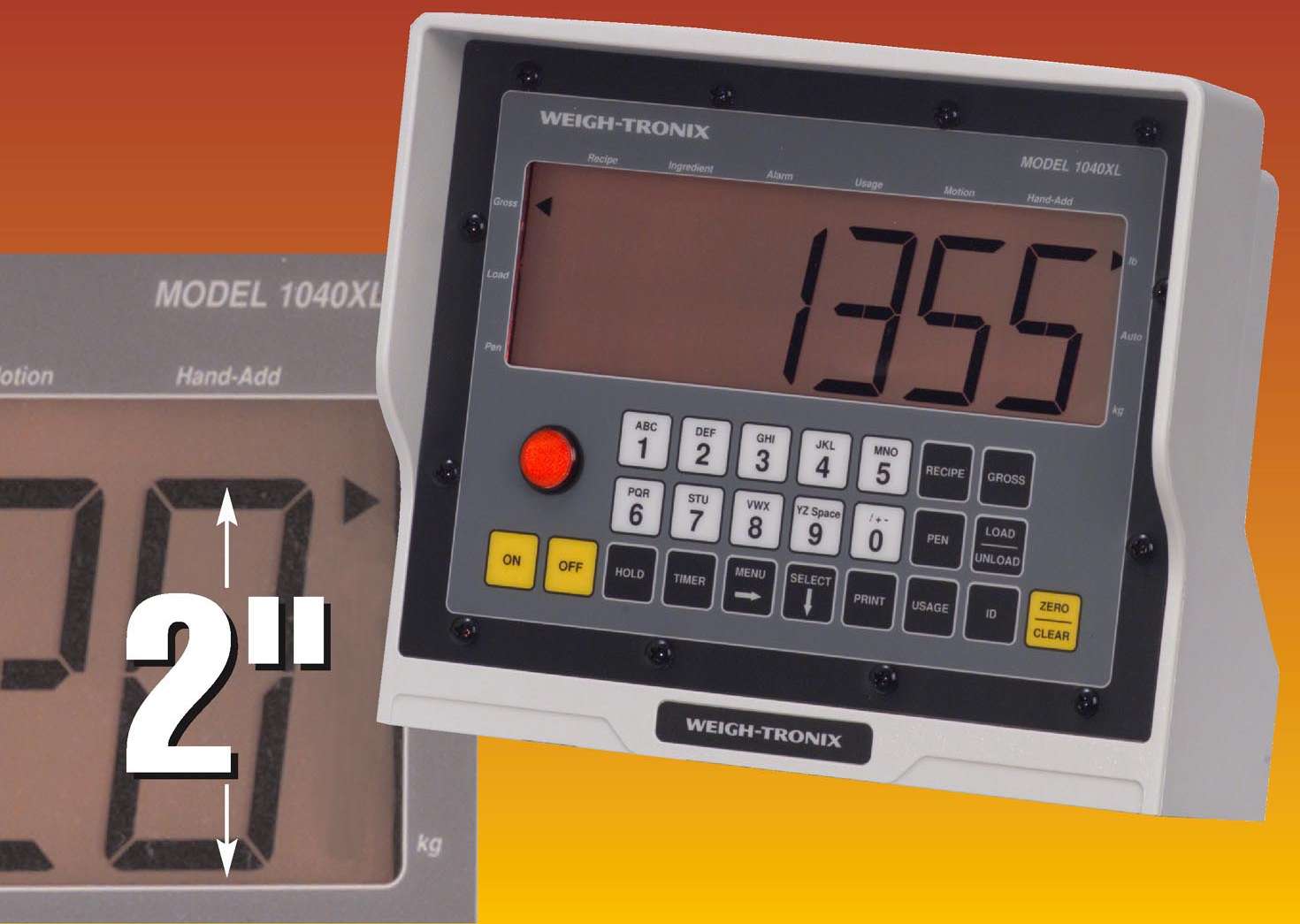

Apr 17, 2003 Offered in IP65 rated, polycarbonate enclosure that seals out dust and moisture, models 1040 and 1040XL offer 1.1 and 2.0 in. digits, respectively. With backlit LCD display, units promote clear viewing, even in light-restricted conditions. Alpha-numeric keypad allows users to spell out names of ingredients, recipes, and pens for identification, while Automatic Ration Adjustment feature provides proper ration balance for remainder of ration.

Balzers, Inc.    Elgin, IL 60123

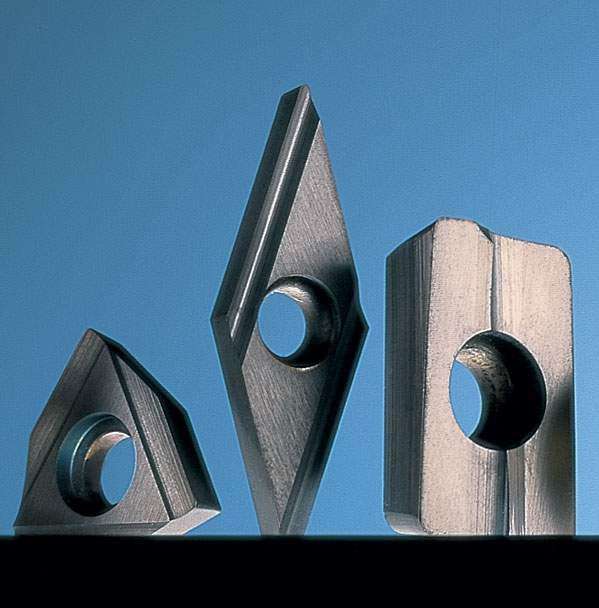

Apr 17, 2003 BALINIT® ENDURA offers optimization potential with turning and milling tools in highly abrasive applications. High metal removal rates can be realized by cutting with high speed and feed rates simultaneously. Coating provides protection against abrasive wear. Ratio of residual compressive stress to hardness stabilizes tool cutting edge under high loads, and increased thickness reduces heat transfer to tool and offers protection against cratering.

Sola/Hevi-Duty    Skokie, IL 60077
Apr 17, 2003 Series SDN-P single-phase, 24 Vdc DIN rail power supplies range from 2.5-20 A with efficiencies up to 90%. They meet SEMI F47 Sag Immunity standards to guard against electrical disturbances of mains, and offer built-in Power Factor Correction. Units provide DC power for industrial process controls, machine tools, or other equipment exposed to harsh factory floor environment. They include auto select 115/230 Vac nominal voltage, 50/60 Hz input, and adjustable output voltage.

Technifor, Inc.    Charlotte, NC 28273
Apr 17, 2003 Mark and Read combines marking of 2-dimensional data-matrix code with reading and verification of that code. Parts can be marked with dot peen or laser, while tracking is handled through use of cameras. System makes it possible to track marked piece throughout manufacturing cycle. Information read from 2D code is transmitted and saved to database in real-time at each step in production process. System can be used with company's Micro-Percussion marking units.

Flomerics Inc.    Marlborough, MA 01752

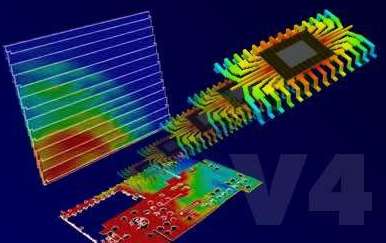

Apr 17, 2003 Flotherm and Flo/EMC v4.1 enables electronic design engineers to collaborate on same virtual model and assess thermal and EM impact of design changes. Software includes automatic sequential optimization, localized grid, and Flo/STRESS thermo-mechanical stress module. Additional offerings include drag-and-drop library manager, intelligent import of pcb data from EDA software, and direct import of native geometry from MCAD software, without loss of model integrity.

Circle Seal Controls, Inc.    Corona, CA 92880
Apr 17, 2003 Series L500 relief valves are accurate to ±5% at crack pressures from 0.2–15 psi. They eliminate sticking and elastomer set common in low-pressure relief valves. Units are available as inline and vent-to-atmosphere with deflector cap.

PAM Fastening Technology    Charlotte, NC 28208
Apr 17, 2003 Collated Composite Deck Screws use dual-thread design, which eliminates mushrooming of composite deck during installation. Five-sided thread displaces less deck material and reduces driving torque by over 23% versus comparable screws. Stainless-steel screws resist corrosion and rust, and come in #10 x 2 in. and #10 x 3 in. sizes. They eliminate pre-drilling in most applications and install with P13 auto-feed screwdriver system.

Amada Cutting Technologies Inc.    La Mirada, CA 90638

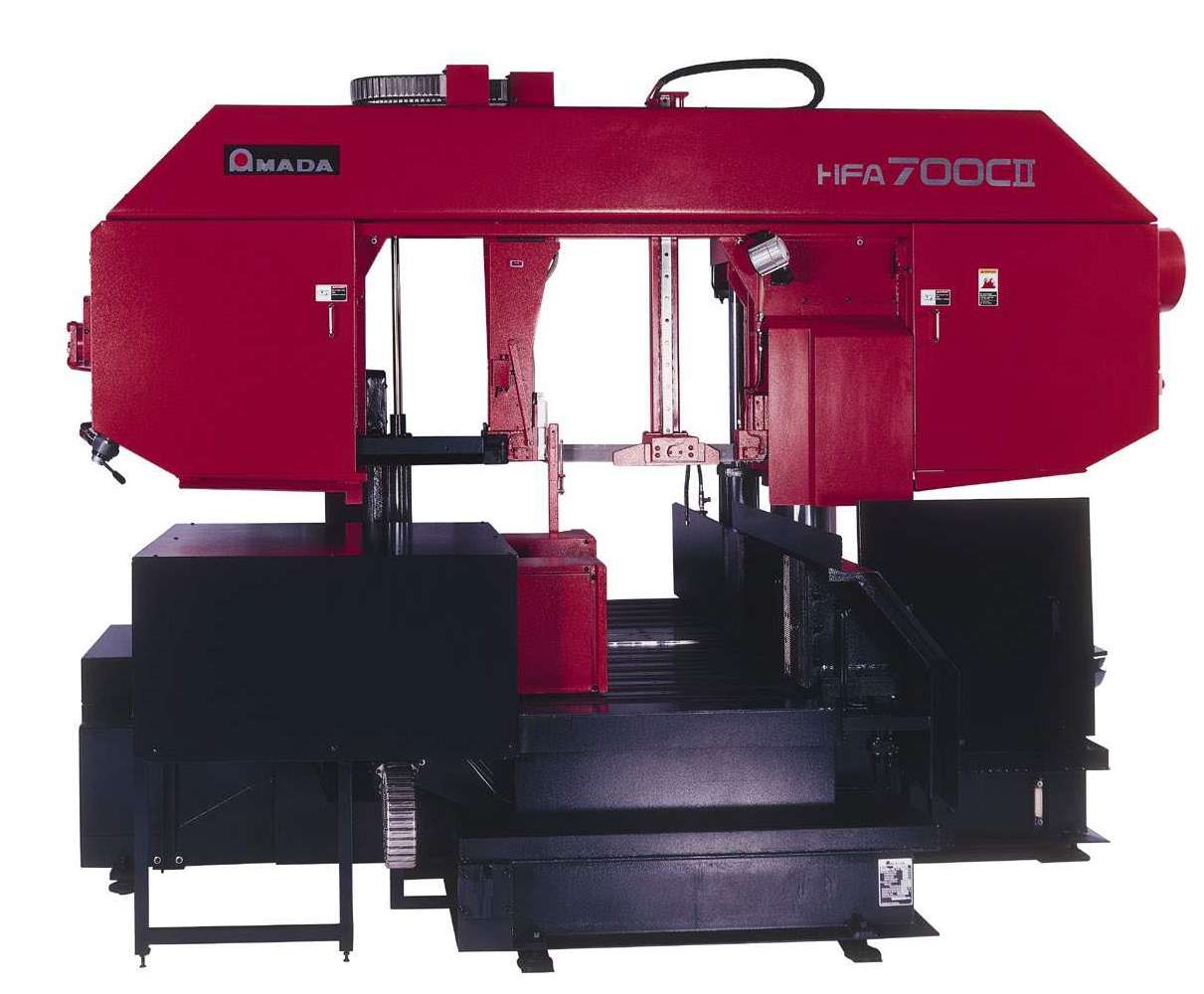

Apr 17, 2003 Suited for cutting various materials, HFA700CII Amada bandsaw incorporates 15 hp motor, 2 5/8 in. wide carbide blade, and automatic self-adjusting wire-brush system. CNC feed control system separates materials into 9 categories, and CNC programming unit has keypad and LED display. Additional offerings include automatic adjusting guide arm, band-deviation monitor, multi-function guide unit, and blade-cover safety switches.
