Hamar Laser Instruments, Inc.    Danbury, CT 06810
May 01, 2003 Models EL-900 and EL-905 offer measuring range of ±1000 arc seconds with 0.5 arc second accuracy and minimal drift. Units are suitable for checking surface plate calibration and leveling machine beds on machining centers, boring mills, and lathes. Model EL-905 includes 360° swiveling display. With optional 6 or 10 in. V-block base, units can measure level of HBM/HMC spindles and paper mill/printing press rolls.

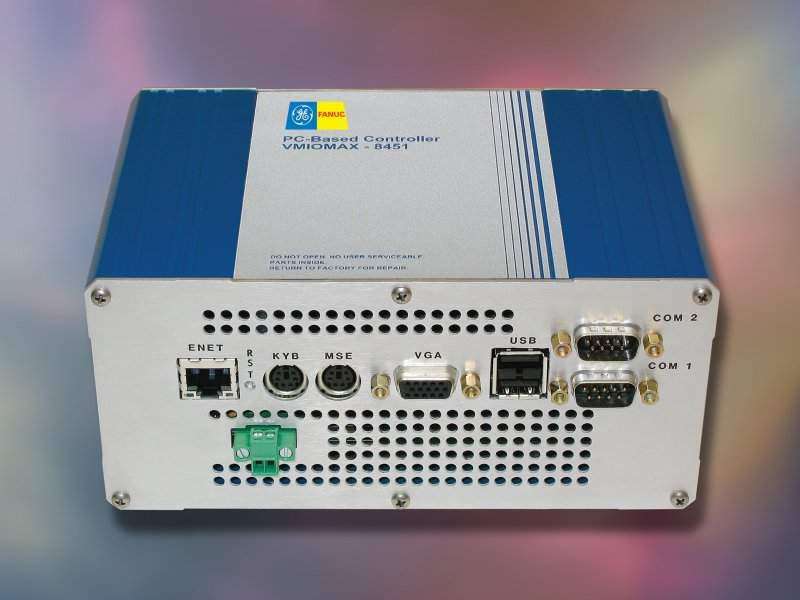

GE Intelligent Platforms    Charlottesville, VA 22911
May 01, 2003 IOMax(TM) packages x86-based PC/104-Plus single board computer with power supply and optional hard drive. With scalable architecture that accommodates additional modules, IOMax PC offers system expansion via PC/104-Plus. It provides NSC Geode GX1 333 MHz integrated x86-compatible processor, 8-28 Vdc operating input range, up to 256 Mbyte of PC133 SDRAM via SODIMM, up to 512 Mbyte of CompactFlash, and up to 60 Gbyte of hard disk storage.

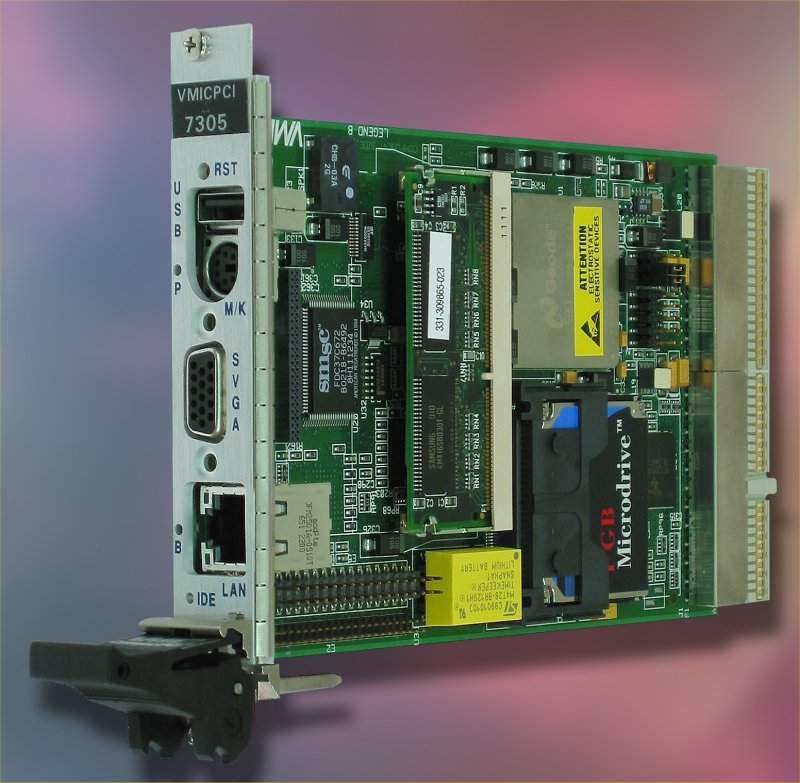

GE Intelligent Platforms    Charlottesville, VA 22911
May 01, 2003 The 3U CompactPCI® single-board computer (SBC) includes 333 MHz Geode GX1 processor, integrated 2D graphics, and Fast Ethernet controller, supporting 10BaseT and 100BaseTX interfaces. It offers up to 256 Mbyte PC133 SDRAM. CompactFlash card socket accommodates types 1 and 2 IDE compatible devices, including flash disk modules, up to 512 Mbyte or IBM Microdrive hard disk, up to 1 Gbyte. SBC suits data acquisition and control, simulation and training, and transportation applications.

Hyson Products, Associated Spring    Brecksville, OH 44141
May 01, 2003 Designed for part-lifting applications, T2SL Stock Lifters replace air cylinders that require shop air and provide 2 million cycles between rebuilds. Products incorporate guidance and lift in one compact, double-tube design that isolates gas spring from side load. With adjustable force range of 100–700 lb, units resist die fluid ingestion and offer controlled return speed option for reduced pad bounce.

Eriez Magnetics    Erie, PA 16506
May 01, 2003 HS (High-Speed) and HD (High Deflection) vibratory cross feeders and conveyors distribute product into vertical, fill, and seal (VFS) or weigh-scale equipment using peripheral discharge trays capable of delivering 100-1,000 ft³/hr of material. They incorporate AC electromagnetic drives, enabling systems to easily cycle up to 100 times/min. VMC Series Electromagnetic Conveyors use 2-mass vibrating system, corrosion-resistant fiberglass springs, and variable-voltage controller.

Amacoil Inc.    Aston, PA 19014
May 01, 2003 Kinemax linear drive, with variable pitch and mechanical reversal mechanism, enables users to spool materials of varying diameters using single winding assembly, without having to change drive system's gear ratio for different gauges. Units provide up to 6.8 lb axial thrust and max pitch of 0.24 in. For heavy-duty winding requirements, RG linear drive offers axial thrust up to 800 lb and max pitch of 3 in.

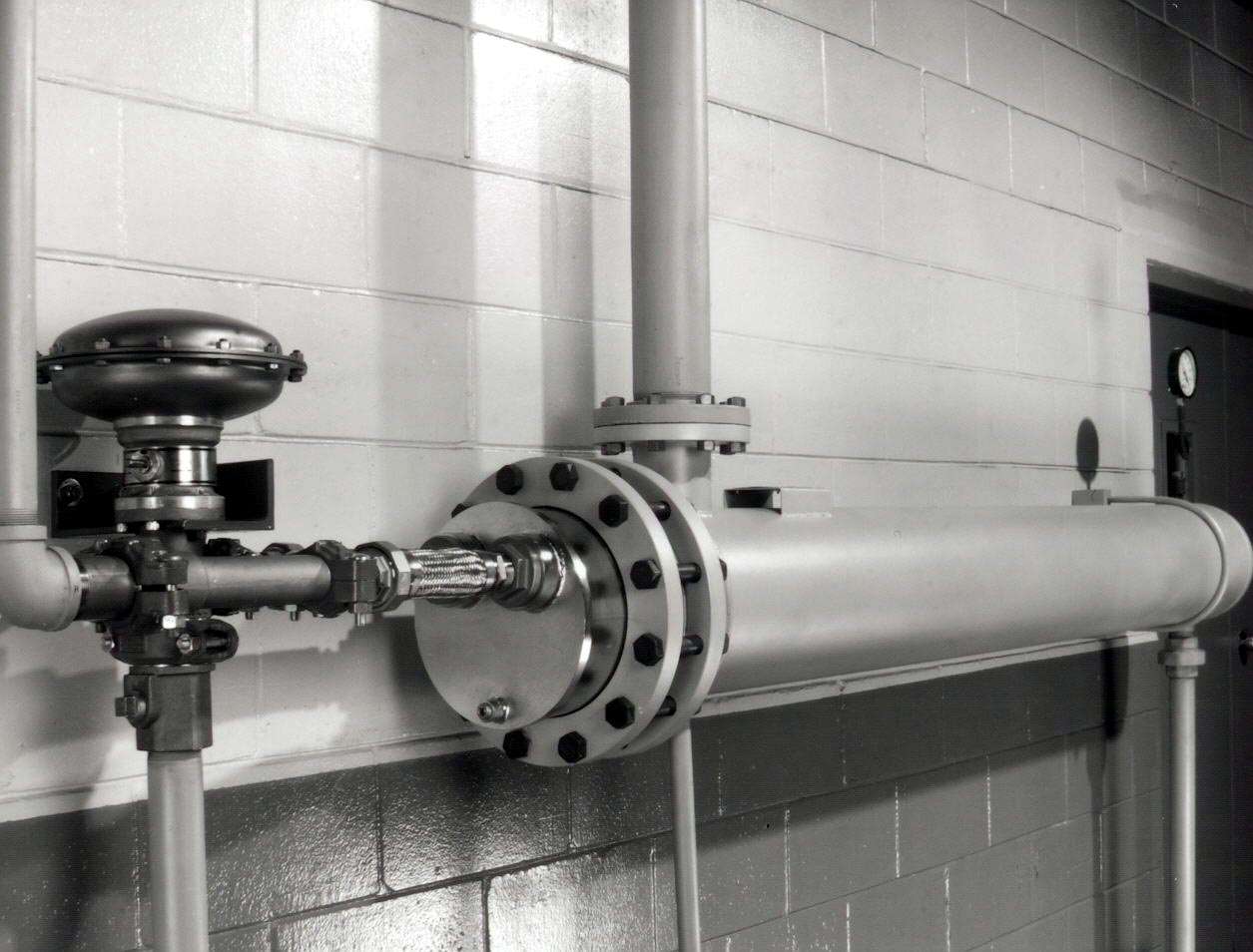

Leslie Controls, Inc.    Tampa, FL 33637
May 01, 2003 Constantemp heater provides instantaneous hot water at desired temperature. Heat exchanger consists of tube within tube, with air space in between to prevent contamination of potable water by toxic heating substance. Feed-forward blending device ensures hot- and cold-water blend ratio is accurately proportioned to maintain set temperature for flow demands up to 7,200 gph. Integrated fail-safe system prevents overheating/scalding.

Reed Manufacturing Co.    Erie, PA 16512
May 01, 2003 Saw It™ provides pneumatic power and reciprocating motion to blades. It cuts 20 in. diameter pipe with single set-up and can cut C-900 PVC pipe with minimal clearance under pipe. Recommended Saw It Vise fits 4–12 in. diameter pipe and provides stability and safety. Blades are available to cut plastic, steel, stainless steel, and ductile-iron pipe.

KCA Electronics    Anaheim, CA 92801
May 01, 2003 Voltage Support Solutionâ„¢ Model VSS-120 provides stable, extended-life DC voltage source to condition or replace batteries in UPS systems. It delivers 2,400 kW-sec of energy, sufficient to support loads ranging from 120 kW for 20 sec to 10 kVA for 5 min. Self-contained unit is housed in cabinet requiring 6 sq ft of floor space and operates over -20 to +80°C. It can be recharged at same rate as it discharges. Once fully charged, unit requires 120 W for standby operation.

Hewlett-Packard Co. (Corporate Headquarters)    Palo Alto, CA 94304-1185
May 01, 2003 Model xw4100 Intel® Pentium® 4-based HP Workstation uses Intel 875P chipset and includes Intel Performance Acceleration Technology. Intel Hyper-Threading Technology allows it to run multiple applications simultaneously and to speed processor-intensive tasks. Mini-tower and tool-less chassis provide mechanical computer-aided engineering, digital content creation, and geographic information systems. Workstation includes front-access input/output panel and 2 USB v2.0 ports.

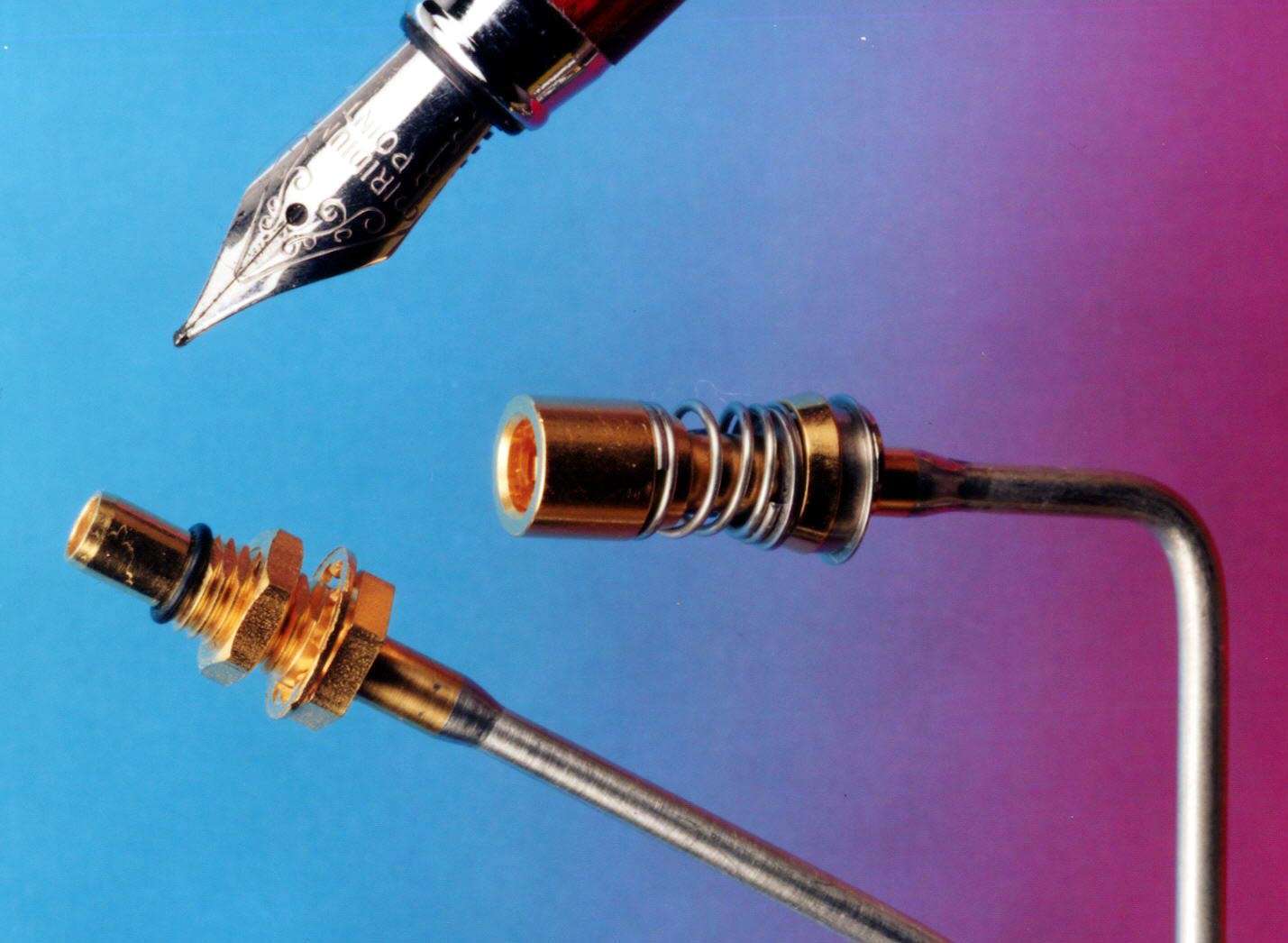

Tru-Connector Corporation    Peabody, MA 01960 5099
May 01, 2003 Series BMMA consists of sub-miniature BMA connectors with push-on blind mate interfaces. Inner conductors and insulators are mechanically captivated to prevent RF leakage. Connectors are suitable for dc to 28 GHz applications, provide 50 Ohm impedance, 675 VRMS dielectric withstanding voltage, 5,000 megohms min insulation resistance, and -90 dB RF leakage. They have 303 SST bodies, beryllium-copper center contacts, PTFE insulators, and operate over -65°C to +125°C range.

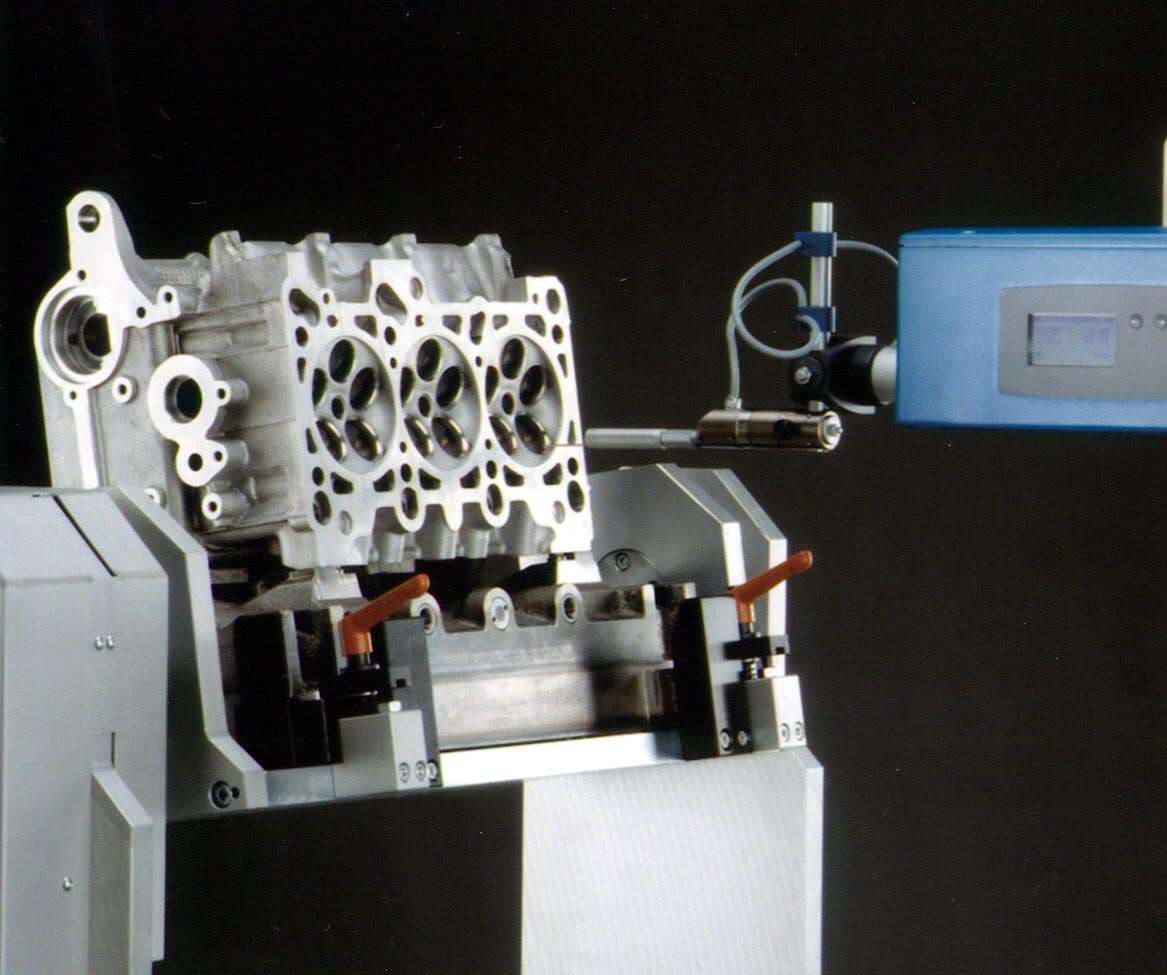

Detroit Precision Hommel    Rochester Hills, MI 48309
May 01, 2003 Automotive Roughness Measuring System consists of part-specific holding fixture mounted to granite plate, and measuring head with user-selectable measuring stylus mounted to traveling vertical column. Totally automated, CNC system checks and verifies surface roughness and contours of internal engine components. It provides detailed measurement reports to document part quality and allow immediate comparison of measured values to database.

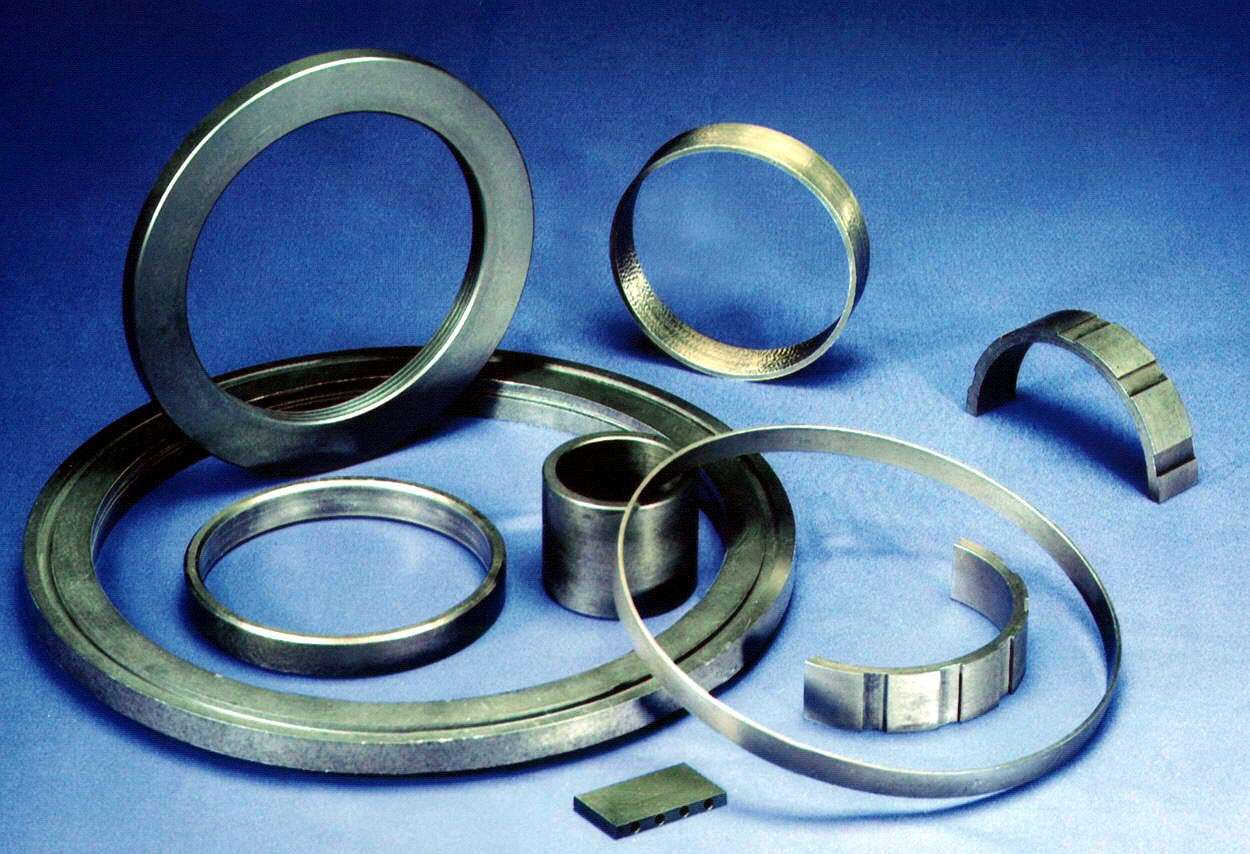

Greene, Tweed & Co.    Kulpsville, PA 19443 0305
May 01, 2003 WRâ„¢ 575 is made from carbon fiber composite material that assures corrosion and heat resistance, and reduces need for maintenance, even in extreme conditions. Material is suitable for sleeves, rings, and thrust pads used in gas turbines, steam turbines, hydroelectric turbines, centrifugal pumps, and gearboxes.

Nexen Group, Inc.    Vadnais Heights, MN 55127
May 01, 2003 Model SC100 provides excitation and signal processing to amplify two low voltage sensor signals to industry standard voltage and current levels for further use in process and monitoring applications. Unit supports differential and single-ended signal sensors. Excitation voltages are adjustable and bipolar. Outputs can be scaled to any engineering unit using onboard zero and span potentiometers. Model SC100 interfaces with PLCs, PCs, indicators and other process controls.

Hendrickson International    Woodridge, IL 60517-4904
May 01, 2003 COMPOSILITE-2â„¢ measures 23.5 in. from front edge of hanger to centerline of axle. It provides 9 in. of lift, total axle travel of 13.5 in. and wheel cut of 28°. Bronze bushings at kingpin connection extend life of knuckle assembly. Stabilizer utilizes cover to protect rod from dirt and debris throughout travel. Zero torsion bushings spin freely to eliminate bushing windup. In-line air springs remove risk of possible driveline interference.

TURCK, Inc.    Plymouth, MN 55441
May 01, 2003 Closure Caps, for minifast products, protect unused ports on junction boxes or cordsets. Available in nickel-plated brass or stainless steel, 7/8–16UN threaded closure caps are offered with or without lanyard for male and female applications. Made of nylon-coated stainless steel cable, lanyard does not provide place for unwanted debris to collect and is finished with eye for receptacle applications or loop for cordsets.

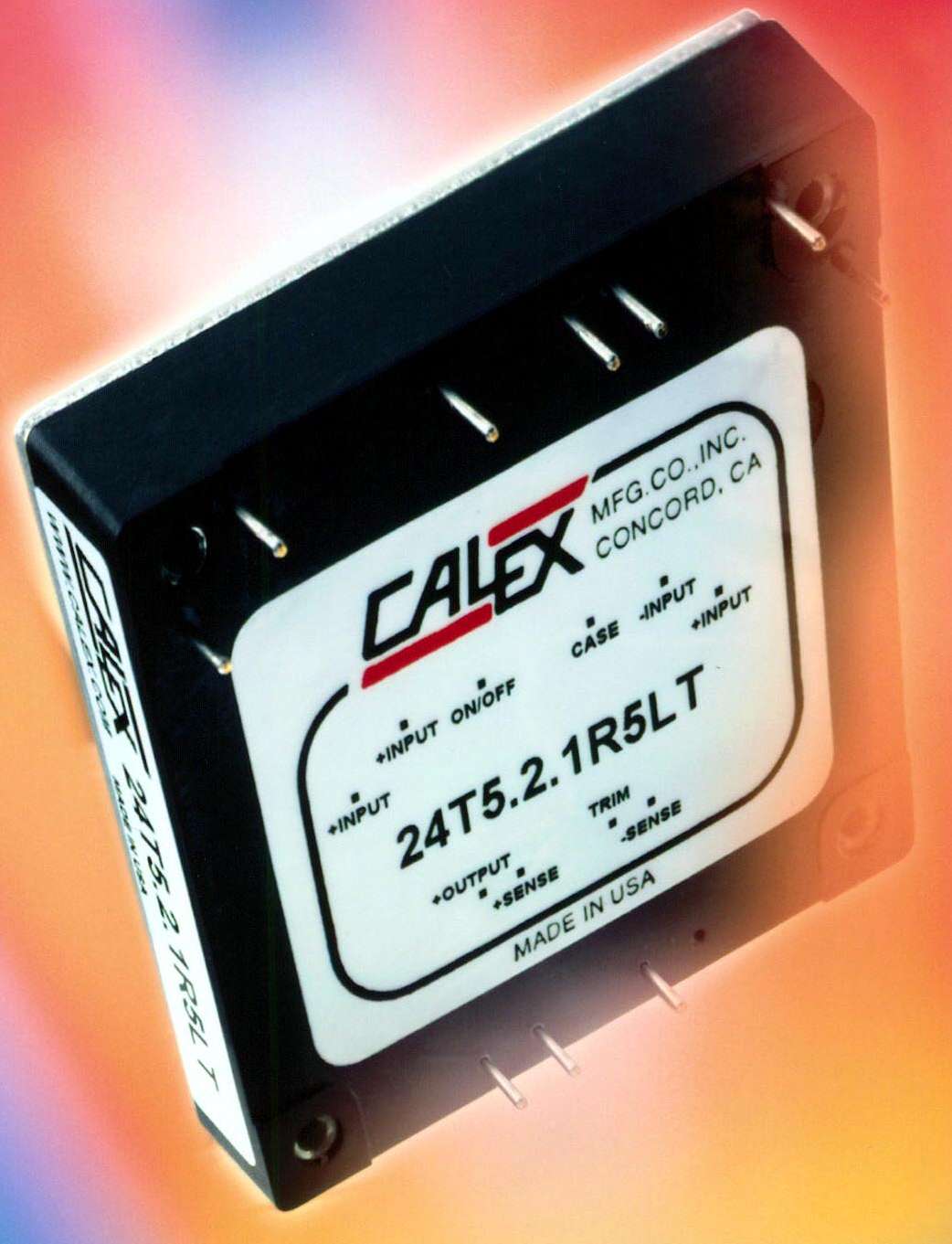

Calex Mfg. Co., Inc.    Concord, CA 94520
May 01, 2003 Consisting of 12 models with input ranges from 18–36 and 36–75 Vdc, LT converter family offers 3 regulated positive output voltages ranging from 5–1.5 V. Each output is rated at 10 A, with up to 75 W max power rating for all 3 outputs combined. Housed in ½ brick case measuring 2.4 x 2.28 x 0.53 in., series has 430 kHz switching frequency and is isolated input to output at 1544 Vdc. Remote ON/OFF is offered for power sensitive applications.

Great Lakes Chemical Corp.    West Lafayette, IN 47906 0200
May 01, 2003 DURAD® 40, DURAD®48, and DURAD® 60 trialkyl phosphate anti-wear and extreme pressure additives provide phenol-free solutions that synergize effectively with sulfur carriers and do not readily hydrolyze or interact with other additives. Suited for oil applications, aqueous applications, and applications where high anti-wear performance is needed, low-viscosity, ashless liquids are compatible with mineral and synthetic oils and do not contain chlorine or sulfur.

ExxonMobil Coal & Minerals Co.    Houston, TX 77063 2005
May 01, 2003 Synessticâ„¢ Alkylated Naphthalene (AN) Blendstocks are class of API Group V category fluids manufactured to deliver hydrolytic, thermal, and oxidative stability. Suited for applications from compressor oils and hydraulic fluids to high-temperature greases, low- and high-viscosity configurations offer additive solubility, compatibility with various elastomers, and non-emulsive properties. Stable products require no special equipment for safe handling/storage.

Ircon Inc.    Niles, IL 60714
May 01, 2003 Torpedo Car Inspection System provides thermal inspection of exterior shell of torpedo cars. Thermal Fingerprinting feature identifies each car and links it with its temperature profile information by capturing raised or painted lettering on shell via thermal imaging cameras. Trend algorithm mathematically factors out external effects, while ability to connect 2 thermal imaging cameras with software enables full inspection of each torpedo car.
