Viscom USA    Atlanta, GA 30092
Apr 28, 2003 EasyPro user interface for circuit board inspection systems provides Inspection mode, Programming mode, and Service mode. All necessary programming tools are available continuously, without having to activate them separately. Interface integrates program optimization with parameter settings and editing of inspection pattern. File import from SPC software into programming software allows control of offline programming based on related evaluations of fault statistics.

Swagelok Company    Solon, OH 44139 2764
Apr 28, 2003 Series 60 process instrumentation ball valves feature spring-loaded valve seat that exerts constant pressure against ball providing reliable seal in low- and high-pressure conditions. Two-piece chevron, live-loaded packing helps prevent inboard and outboard leakage by compensating for changes in pressure and temperature. Sizes range from ¼-2 in. and 6-25 mm with variety of handle and vent port options available.

Uvex Safety Inc., A Bacou USA Co.    Smithfield, RI 02917 1896
Apr 28, 2003 Genesis® features ventilation channel between frame and lens which vents eye socket area, allowing air to circulate, reducing moisture buildup and fogging. Uvextreme® AF anti-fog coating provides hydrophilic properties, which simultaneously absorb moisture from air and release it back into environment. When hydrophilic coating becomes saturated, invisible film absorbs water. Polycarbonate lens tints block >99.9% of UVA and UVB radiation, reduce glare, and block blue light.

Eurotherm Controls    Leesburg, VA 20175
Apr 28, 2003 Action Pak® Model AP4151-2000 RTD temperature input 4-wire transmitter utilizes TouchCALâ„¢ technology for electronic microprocessor stability. Socket-mount, AC-powered device can be configured with on-board DIP switches and accepts 3-wire platinum, copper, and nickel RTDs. Inputs can be set for specific alpha curve, while output can be linear to input temperature signal or set for no linearization. Outputs are configurable for 0–5 or 0–10 Vdc or 0–20 or 4–20 mA.

TAL Technologies, Inc.    Philadelphia, PA 19130 3221
Apr 28, 2003 B-Coder Professional bar code generating/printing software includes RSS-14 bar code symbology, which is suited for applications where space for bar code symbols is limited. RSS bar codes can encode up to 14 numeric digits and can be produced with optional 2D composite component that is capable of encoding up to 2,361 additional bytes of alpha/numeric data. Software generates film-quality bar code graphics and bar code images for use in documents or labels.

Appligent Inc.    Lansdowne, PA 19050
Apr 28, 2003 APSplit extracts pages or sections from PDF files and saves them as new documents, enabling businesses to cut down on download times for large PDF documents that include additional forms and sections not required for every user. APSplit can split files by bookmarks, page ranges, and lists of multiple page ranges. It supports linearization of PDF, so users can view document while it is being downloaded from Internet. Standalone software runs in desktop or server environments.

VersaLogic Corp.    Eugene, OR 97402
Apr 28, 2003 Jaguar and Bobcat PC/104-Plus embedded computers, along with VSBC-8 EBX single board computer, are offered with General Software's Embedded BIOS® 2000. Features utilized in Embedded BIOS® 2000 include ability to boot from CD-ROM, PCI to PCI bridge capabilities, and support for various operating systems. Jaguar and Bobcat BIOS versions can also save custom defaults to EEPROM. Upgrade is capable of supporting remote boot BIOS additions.

Werum America, Inc.    Towaco, NJ 07082-1032
Apr 28, 2003 PAS-X BIOTECH Manufacturing Execution System (MES) meets requirements of fine chemical manufacturing of active pharmaceutical ingredients. Managing electronic equipment usage and performance, monitoring capabilities act as early warning system, making any discrepancies visible before actual occurrence. Package also includes material and batch management, Electronic Batch Recording (EBR) module, and functions for analyzing production, quality, and laboratory data.

Master Bond, Inc.    Hackensack, NJ 07601
Apr 28, 2003 Room temperature curing EP21HT, 2-component epoxy adhesive, has 1:1 mix ratio, weight or volume. It is 100% reactive and contains no solvents or volatiles. With service operating temperature range of -60 to +400°F, product bonds to similar and dissimilar substrates including metals, glass, ceramics, wood, rubbers, and plastics. Characteristics include volume resistivity of >10¹⁴ ohm-cm, Shore D hardness of >70, and tensile strength of >8,000 psi.

MagTek    Carson, CA 90746 3503
Apr 28, 2003 USB-compatible IntelliPIN® encrypting PINpad/swipe reader simplifies, protects, and speeds transactions that require PIN entry and/or card swiping, while enhancing back-office automation and efficiency. Designed for minimal use of space, product allows users who deploy IntelliPIN with USB interface to benefit from port sharing and plug-and-play connectivity.

Rockwell Automation    Milwaukee, WI 53204
Apr 28, 2003 PanelView(TM) Plus enables users to select, change, or upgrade interface components. Four different screen sizes are offered ranging from 7-15 in. with either touch, keypad, or combination touch-keypad display. Unit includes 32 MB of base and flash RAM, field expandable to 256 MB base RAM and 512 MB flash RAM. RSView Machine Edition(TM) offers multi-vendor communications, trending, animation, data logging and expressions all configured with RSView Studio.

Malcom Co., Inc. (Distributor of LEISTER Hot Air Tools)    Tiverton, RI 02878
Apr 28, 2003 Dohle Type 6000 Granulate Extruder produces extrusions from most pelletized thermoplastics in range of shapes and sizes. Featuring variable speed operation, mini-extruder can process up to 13 lb/hr. Unit has 2.3 kW power rating, 1100 psi pressure rating, 22 mm screw dia, and provides continuous operation. Temperature of extruded material and pre-heated air are controlled from separate unit, which incorporates cold-start protection.

Asaclean-Sun Plastech Inc.    Parsippany, NJ 07054
Apr 28, 2003 Asaclean® UP Grade removes tough deposits and prevents screw pulls, helping to ensure complete transitions from one color or resin to another. With operating temperature from 340-570°F, compound can be used to purge to and from PP-based resins, or as shutdown sealant prior to polyolefin processing to help remove contamination.

GE Interlogix, CASI Division    Boca Raton, FL 33487
Apr 26, 2003 With built-in keypad and 85 dB siren, Allegro security system for apartments and condominiums has up to 20 zones of burglary and fire protection. Control panel is physically separated from Dialogâ„¢ Telephone Interface Module. DTIM is battery-operated communication link between control panel and central monitoring station. Unit receives radio signals from panel, then uses phone line to report security events to central monitoring station.

Aremco Products, Inc.    Valley Cottage, NY 10989

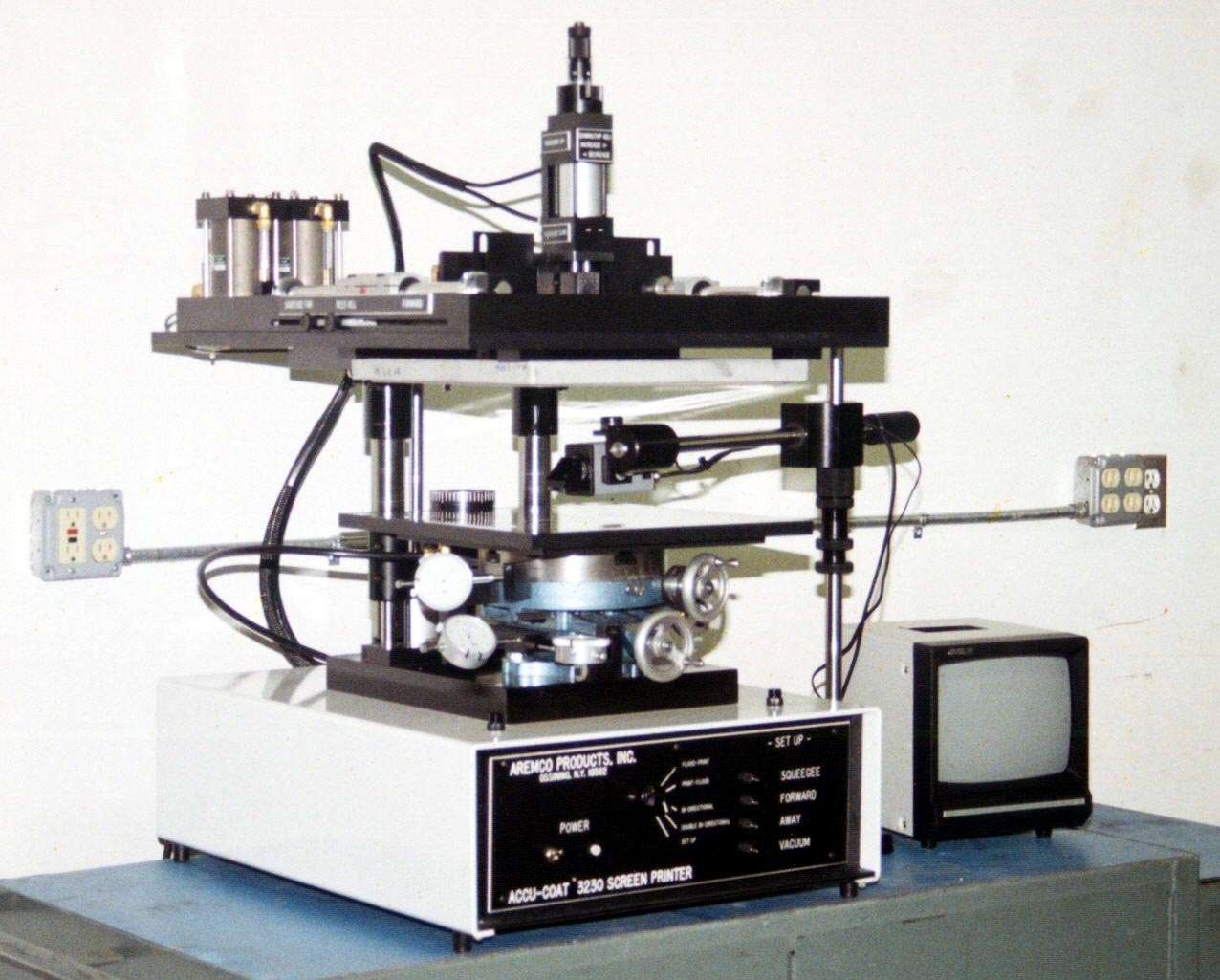

Apr 25, 2003 Accu-Coatâ„¢ Model 3230B provides high precision screening of co-fired ceramic packages, multilayer hybrid circuits, photovoltaic solar cells, LCDs, and other metallizations. Vertical action die set guarantees print repeatability of ±.0003 in. over millions of cycles. Microprocessor-based control system supports all modes of operation including setup, print/flood, flood/print, and single and double print with paste hopover. Print modes are software defined and easily customized.

Fluid Imaging Technologies    Yarmouth, ME 04096

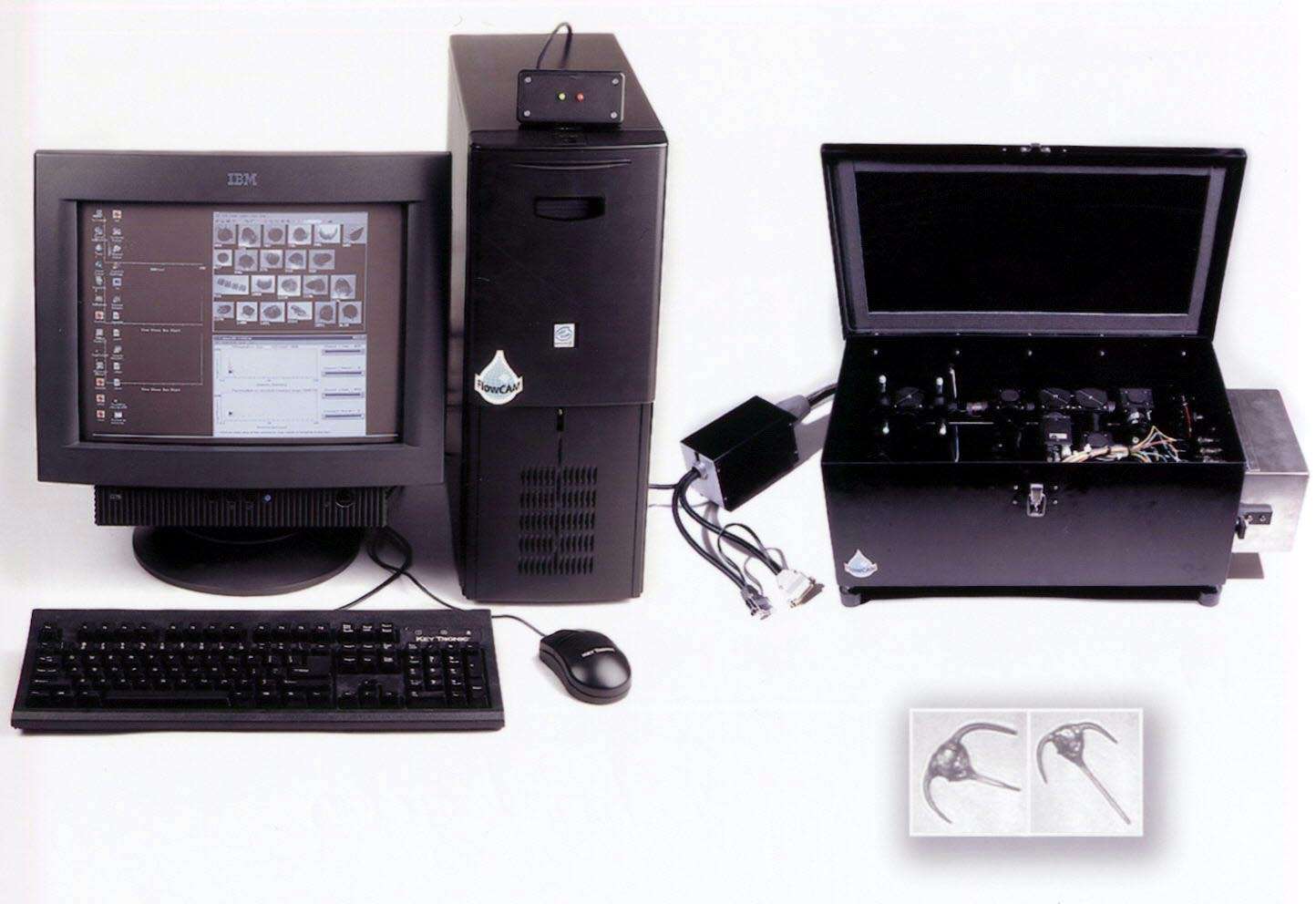

Apr 25, 2003 FlowCAM® counts, images, and analyzes particles and cells in discrete water sample in one minute or in continuous flow in real time and stores pictures and other data in spreadsheet for instant review. It compares images against digital history library of cells and particles, enabling detection of anthrax, giardia, cryptosporidium, and other organic agents, as well as inorganic matter such as metallic impurities. Unit can detect cells/particles ranging from .5 µm to 3 mm in size.

TE Connectivity Ltd.    Berwyn, PA 19312
Apr 25, 2003 Series QFT heat-shrink transitions form watertight seal around cable splices, protecting against rough mechanical conditions and corrosion while maintaining electrical insulation properties. They are made from black polyolefin and can be used in temperatures from -20 to +70°C. Transitions resist exposure to fluids including water, engine oils, hydraulic fluids, gasoline, and cleaning fluids.

UNIVERSAL ELECTRIC CORP    Canonsburg, PA 15317
Apr 25, 2003 TightWire 1-piece insulator with 3 or 4 conductors provides electrification for overhead cranes, hoists, and other moving equipment. Available in rolls cut to application's required length, product snaps into mounting hangers every 10 ft. Power collector is mounted to moving equipment and has spring-loaded collector arms that guarantee positive contact along conductors. Product comes with 3 pole, 50 A or 90 A copper conductor or 4 pole, 50 A or 90 A copper conductor.

Beta Transformer Technology Corp.    Bohemia, NY 11716 2504
Apr 25, 2003 Series TGB Twin Gigabit Transformers meet requirements of ANSI X3T11, Fibre Channel and FC-PH-3 specifications. They are housed in 0.185 in. maximum height, surface mount package, which is suitable for PMC and other low profile configurations. Four different frequencies are available with or without center-tap. Operating temperature is -40 to +85?C.

Minster Machine Co., The    Minster, OH 45865

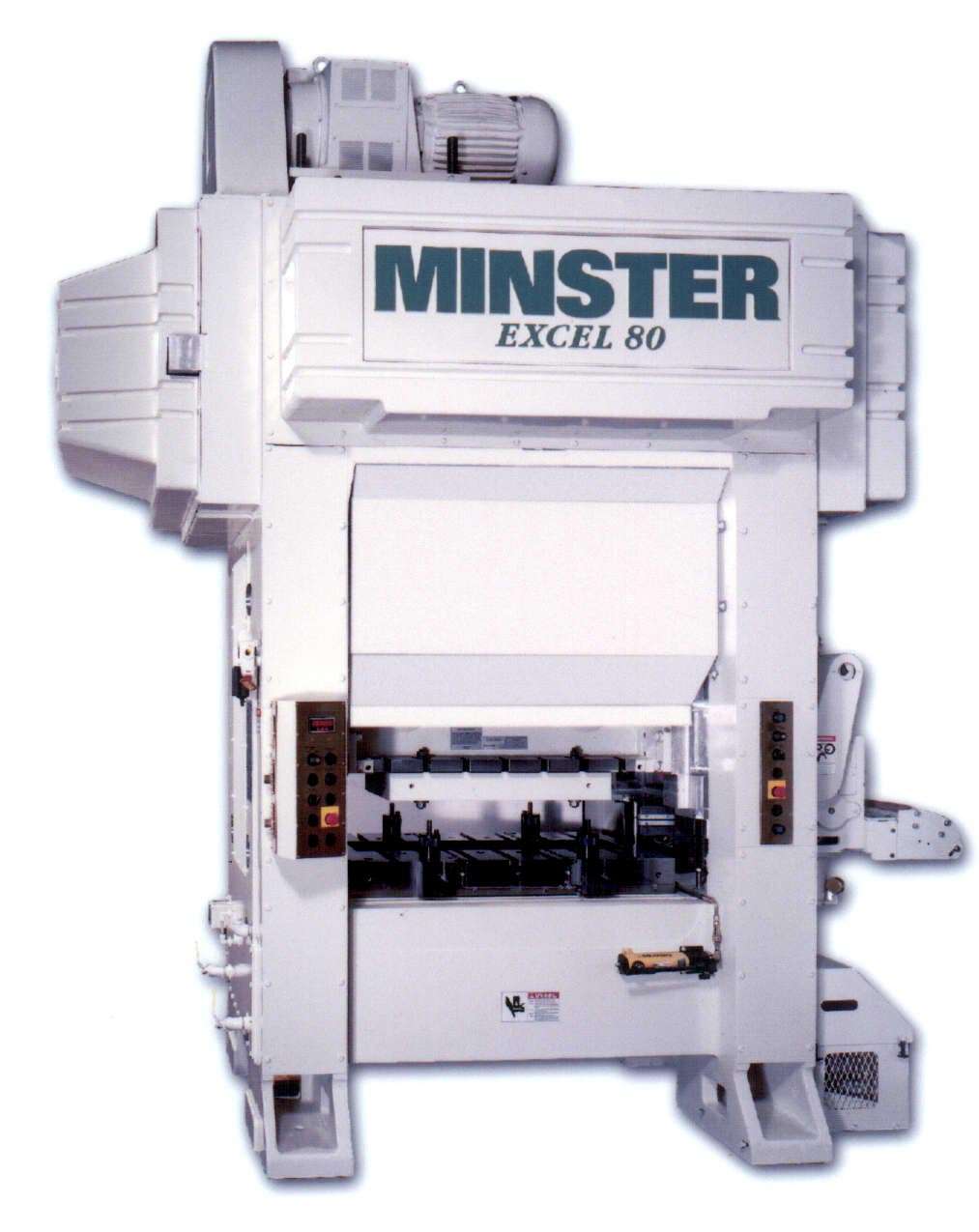

Apr 25, 2003 Presses ranging from 80–600 tons are offered with adjustable stroke feature. Adjustment can be from .5–6 in. for high-speed machines and 4–14 in. for larger machines. Power barring apparatus provides precise positioning of crankshaft during stroke length change, and allows full tonnage micro-inching of press for die set-up and troubleshooting when not being utilized for stroke change.
