Keltron Corp.    Waltham, MA 02154
May 29, 2003 LS 7000 PC-based system, with single-board computer, provides universally compatible life safety event management. It delivers alarm monitoring, response, and dispatch services through Windows-based, secure, flexible alarm-management system that can receive alarms from multiple FACPs as well as from various industry-standard technologies. Rack-mount system includes 8.4 in. diagonal TFT color display, LAN interface, thermal printer, and custom audio/visual indicators.

Dynic USA Corp.    Hillsboro, OR 97124 5799
May 29, 2003 Sirius® HL50 Washable Resin Ribbons withstand washing, dry cleaning, ironing, and steam. They print on woven and non-woven fabrics, films, synthetics, and satins. Ribbons provide water, heat, and halogen-type solvent resistance and are offered in both black and red.

Brady Corp.    Milwaukee, WI 53201 0571
May 29, 2003 National Fire Protection Association Labels identify health, fire, instability, and specific hazards. Rolls of 500 are offered in 2 x 2, 4 x 4, and 6 x 6 in. Labels used in conjunction with chemicals come in 2 types. One includes check off boxes for route of entry, health hazards, physical hazards, and target organs and effects. Second provides check off boxes for necessary protective equipment. Both include space for name of substance, and come in 3 ½ x 5, 5 x 7, 7 x 10, and 10 x 14 in.

Malcom Co., Inc. (Distributor of LEISTER Hot Air Tools)    Tiverton, RI 02878
May 29, 2003 UNIPLAN automatic, hot-air overlap welding machine features steplessly controlled heating and air-flow up to 1150°F and 11 cfm, respectively. It can be set up for ¾ and 1 ¼ in. overlap welds, and incorporates integrated trolley attachment for added speed and accuracy on big jobs. Machine measures 16.5 x 10.6 x 8.5 in. and operates on 120/230 Vac. It is suitable for flexible thermoplastic membranes such as banners, billboards, roofing materials, pool covers, and tents.

ThinGap LLC    Ventura, CA 93003

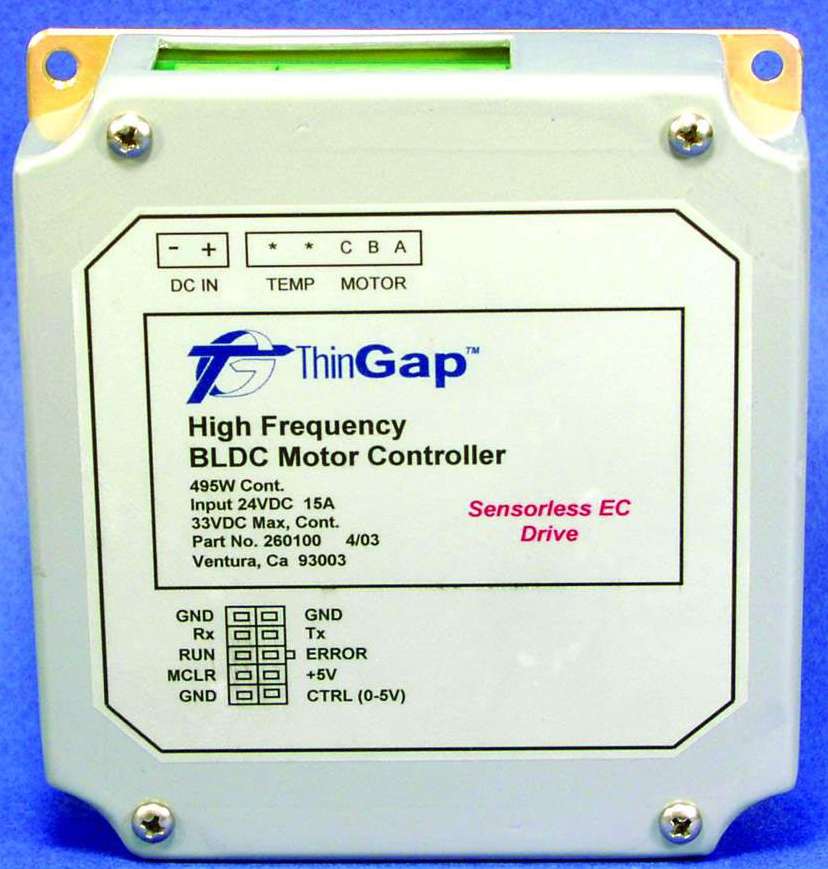

May 29, 2003 Model TG2601 vControl improves open-loop, ironless core, brushless motor system efficiency at all speeds and torque levels via sinusoidal current waveform output that is in phase with sinusoidal back EMF waveform during each commutation cycle. Product minimizes high current ripple and additional losses by operating at PWM frequency of 120 kHz and commutates motor without need for position sensors. Product also utilizes Diagnostic/Mode indicators and thermistors.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 29, 2003 Able to write CD-RW and CD-R media and read CD and DVD media, IBM 48X/24X/48X/16X Max drive offers 7 write speeds of CD-R media from 48x–4x and 4 write speeds for CD-RW media from 24x–4x. Product provides buffer underrun protection, CD recording and DVD playback software, and IDE/ATAPI interface. Vertical- or horizontal-mount unit also includes 2 MB data buffer and conforms to DVD Forum Multi-Player specification.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 29, 2003 IBM 80 and 160 GB Serial ATA HDDs offer 2 and 8 MB adaptive buffers, respectively, as well as 4.17 ms average latency, less than 9 ms typical average read seek time, and sustained data rate of 240 MB/s max. Equipped with 40 GB per disk surface data recording density, drives have serial ATA interface capability that enables instantaneous interface data transfers up to 150 MB/s. Both units feature S.M.A.R.T., which warns of predictable impending hard drive failure.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 29, 2003 Portable USB 2.0 Hard Drive features 40 GB capacity, high-speed USB 2.0 interface, and driverless operation under Microsoft Windows 2000 and XP. Rapid Restoreâ„¢ Software helps protect against data loss in event of software or hardware failure by enabling recovery to previously saved image. Bootable unit is backward compatible with USB 1.1 at USB 1.1 transfer speeds and does not require ac power adapter.

Applied Wave Research, Inc.    El Segundo, CA 90245

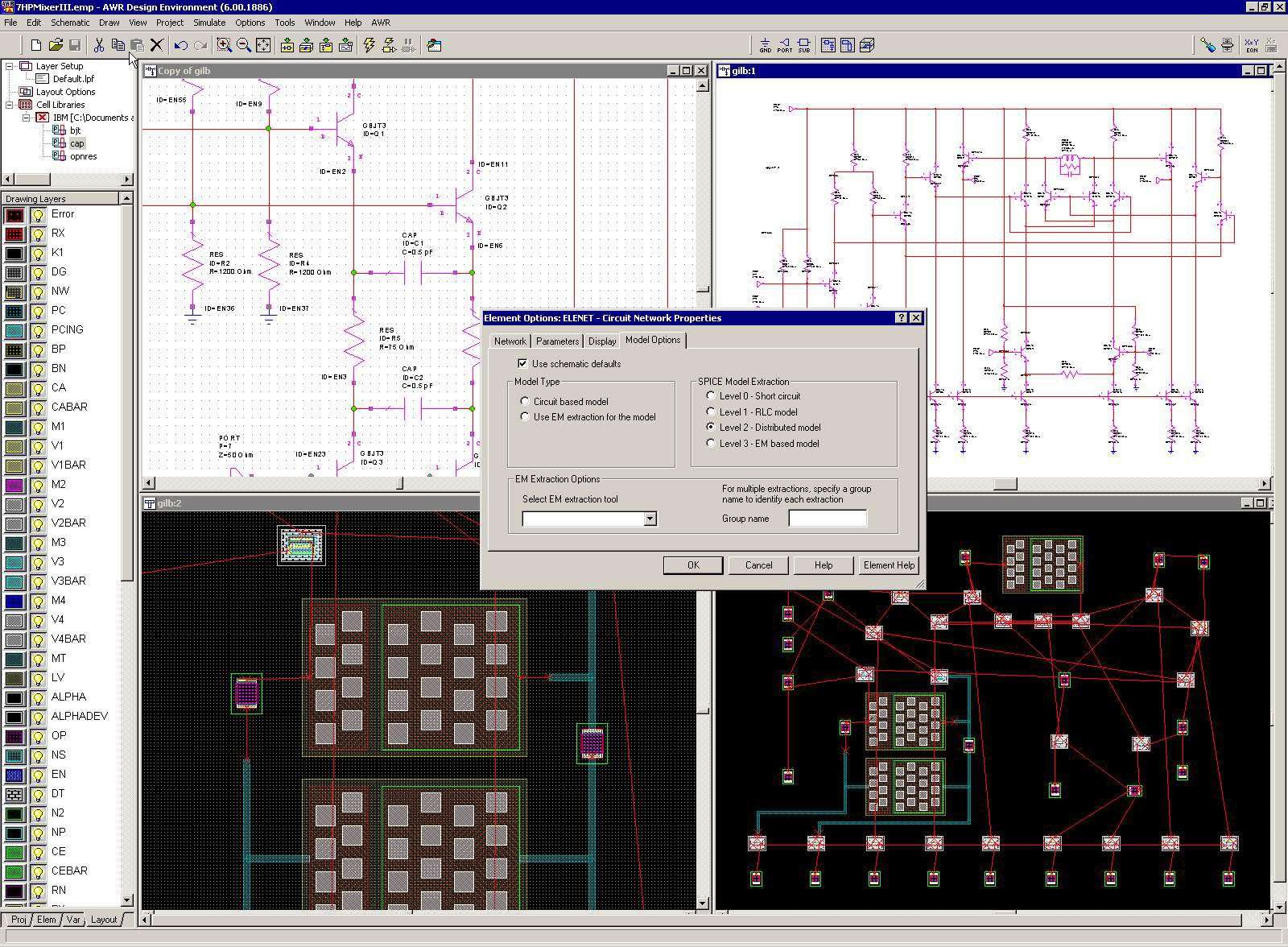

May 28, 2003 Analog Officeâ„¢ utilizes concurrent interconnect-driven and RF-aware design methodology that is built around Intelligent Netâ„¢ technology in unified design environment. Design suite is integrated into existing digital and mixed signal IC design flows and solves gigahertz analog RFIC challenges. Integrated simulation technology allows users to combine simulation techniques while using consistent set of validated models.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089

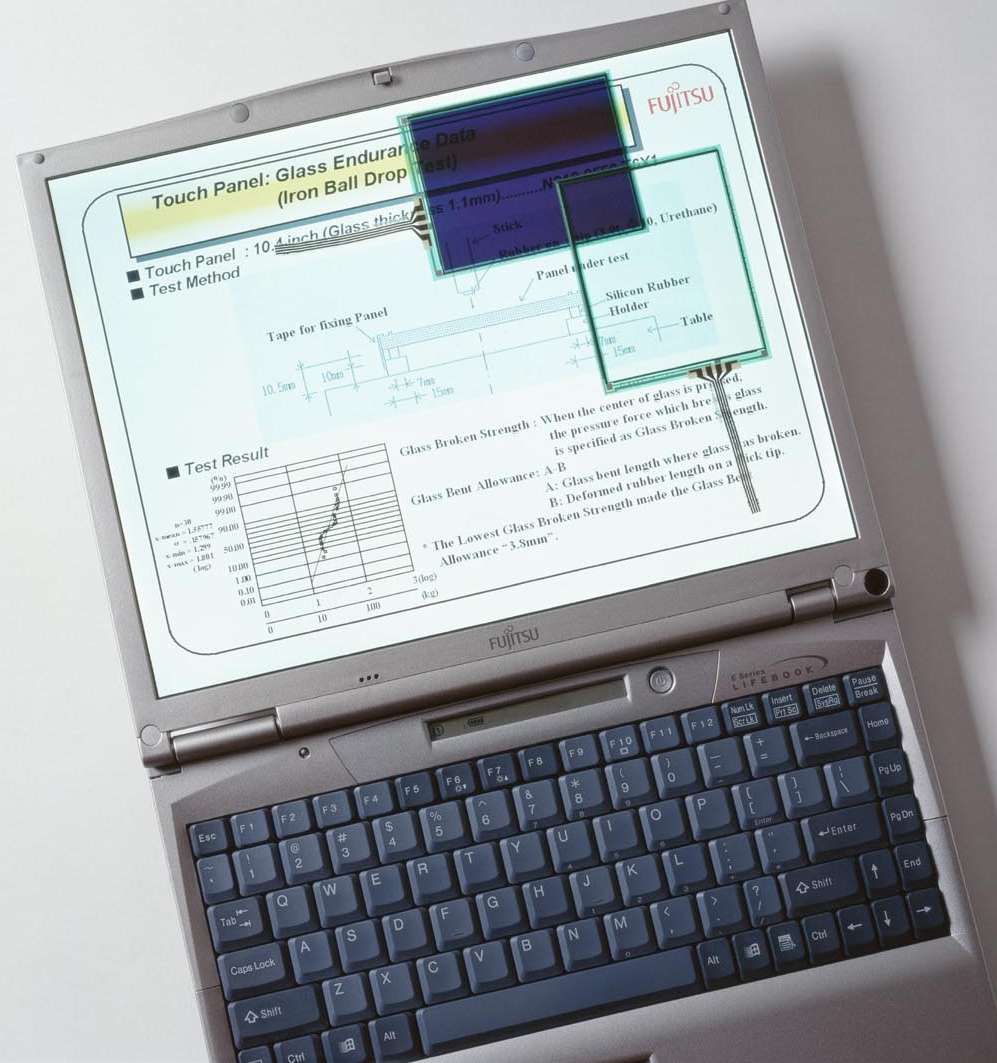

May 28, 2003 Circularly polarized touch panels, Series FID-554, enhance display readability in direct sunlight conditions by eliminating 60% of reflected ambient light and maintaining 79% luminance transmissivity. For use with transmissive LCDs, 4 and 7 wire resistive touch panels are suitable for portable and stationary outdoor use. Touch panels use 1/4 wave retarder and polarizer to prevent light from being reflected. Panels have 3H minimum surface hardness rating.

Kulicke & Soffa Industries, Inc.    Willow Grove, PA 19090

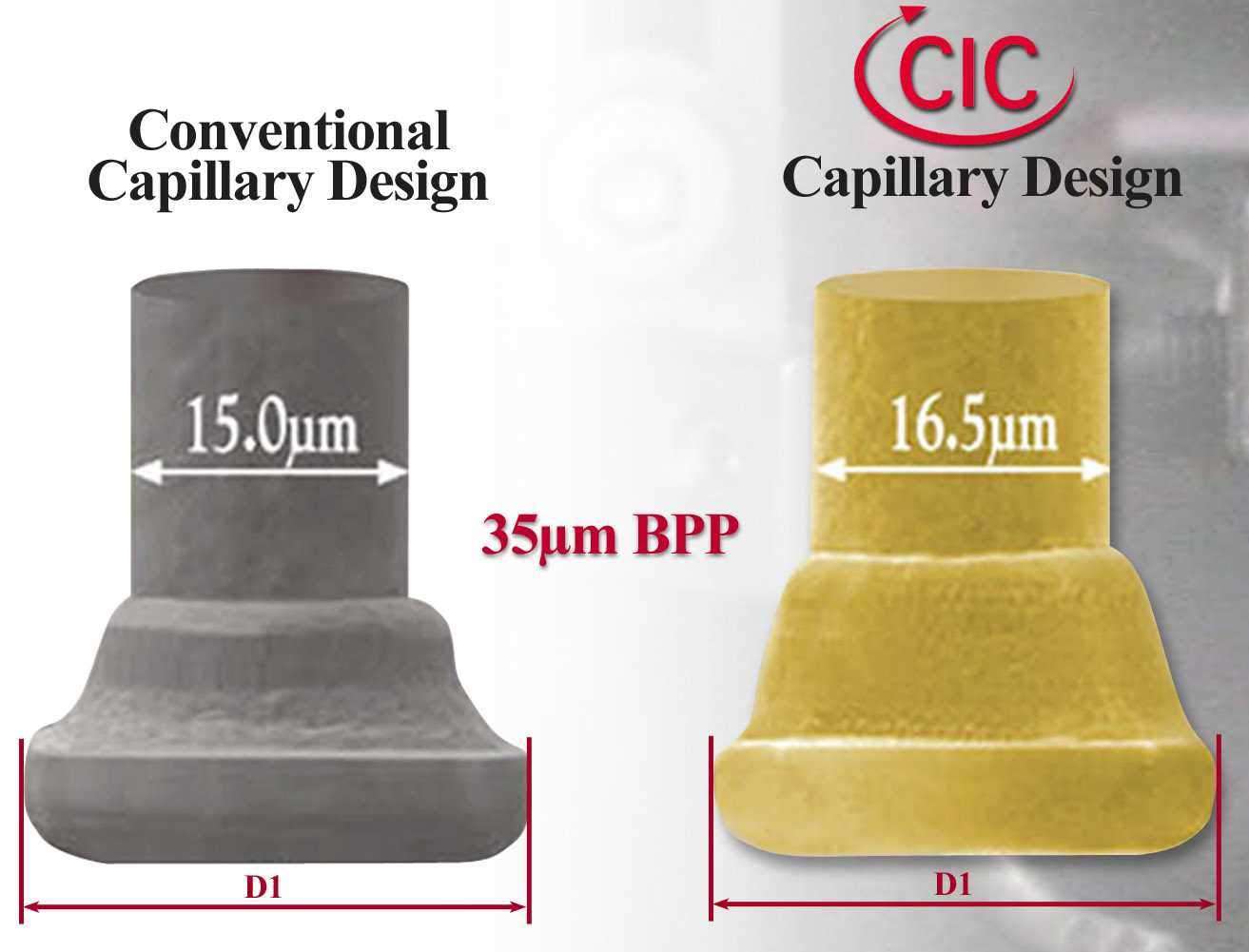

May 28, 2003 CIC (Contained Inner Chamfer) capillary contains additional gold generated from free air ball during bonding in its inner chamfer. Device reduces production of large ball diameters and enables use of thicker wire bonding for UFP applications of 50 µm and below, reducing wire sweeps and short failures. Capillary supports UFP processes with maximized ball-on pad accuracy, higher ball shear, and consistent distribution of inter-metallic coverage.

Seco Tools AB, Carbology, Inc.    Warren, MI 48089

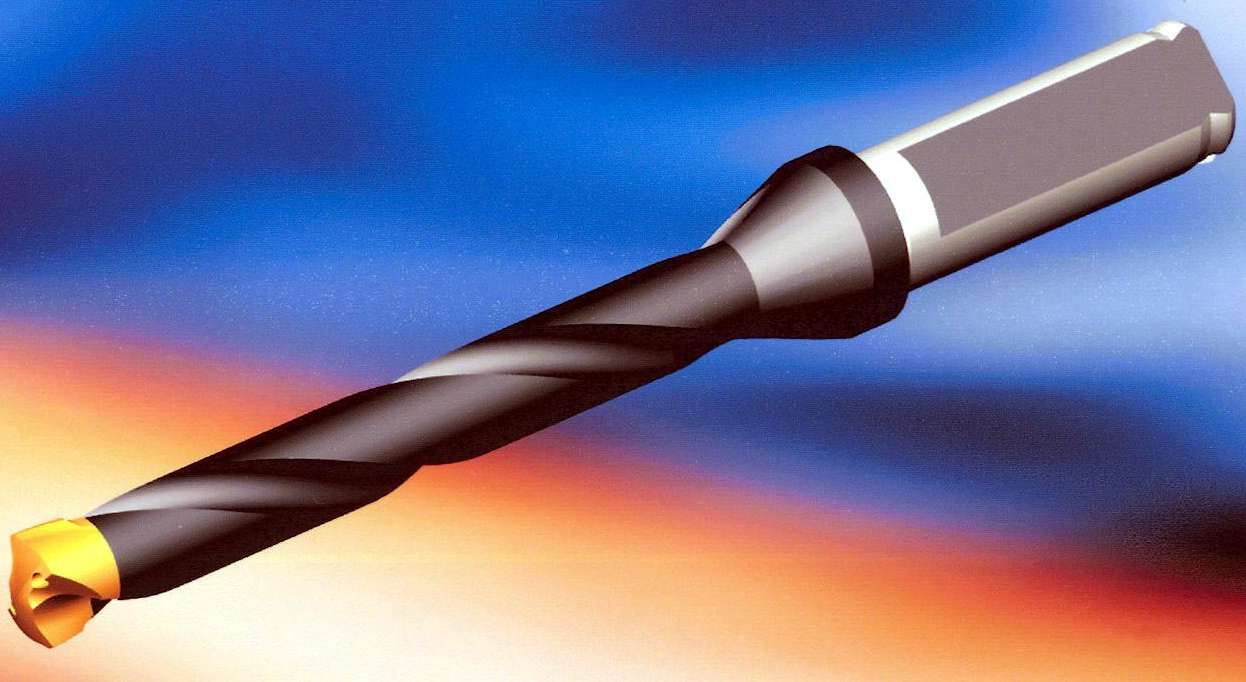

May 28, 2003 With precision of brazed drills, CrownLoc™ 7xD allows users to drill new holes using same drill body by changing solid carbide crown. Based on interface of interlocking V-grooves that ensures exact repeated positioning of each crown, locking pattern allows only one correct fit. Offered in .472–.787 in. diameters, product is available in P-geometry for steel, K for cast iron, and M for stainless steel and high-temperature alloys.

Air Technical Industries    Mentor, OH 44060

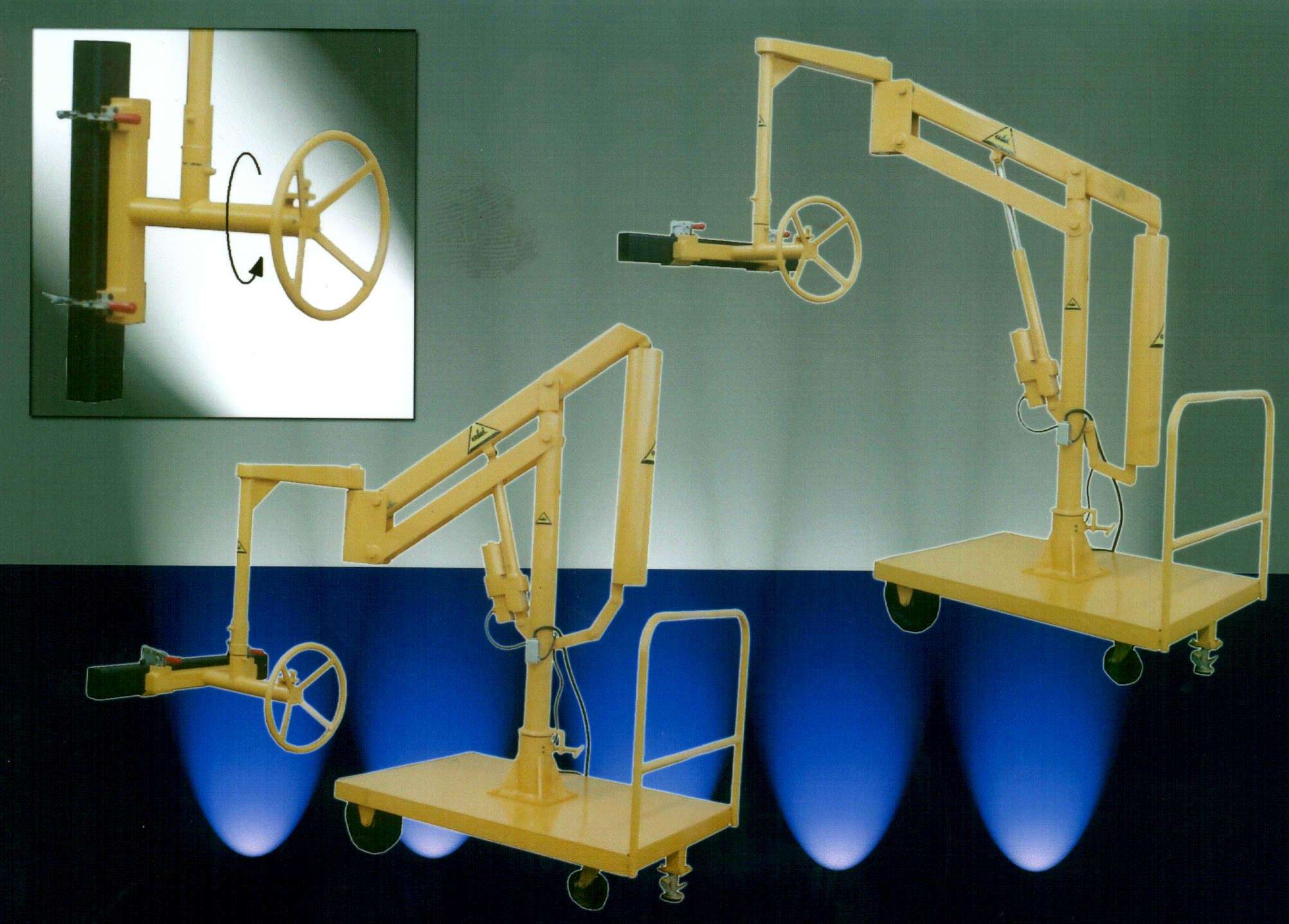

May 28, 2003 Mobile Articularm features attachment that allows gripping and rotating 360° about vertical and horizontal axes. It has 72 in. reach and 72 in. of vertical lift. Mast offers 360° rotation and forearm rotates up to 270°. Counterweight is provided for stability and lifting of loads up to 250 lb. Unit is available 110 Vac electrically operated or 12 Vdc battery powered. Mobility is provided by platform truck 42 in. wide by 72 in. long.

BASCO    University Park, IL 60466
May 28, 2003 Portable, variable-height pail dumper features 24 angle settings for dispensing from 5 gal plastic or steel pails weighing up to 200 lb. Cradle can be raised up to 58 in. and lowered to 3.75 in. by hand crank with positive-lock winch system. Pails can then be rotated 360° by hand-crank brake lever, allowing user to lock in angle setting for dumping or pouring from 52 in. down to 1 in. Dumper is suitable for dispensing liquid or dry material.

Brudi Bolzoni Auramo    Homewood, IL 60430

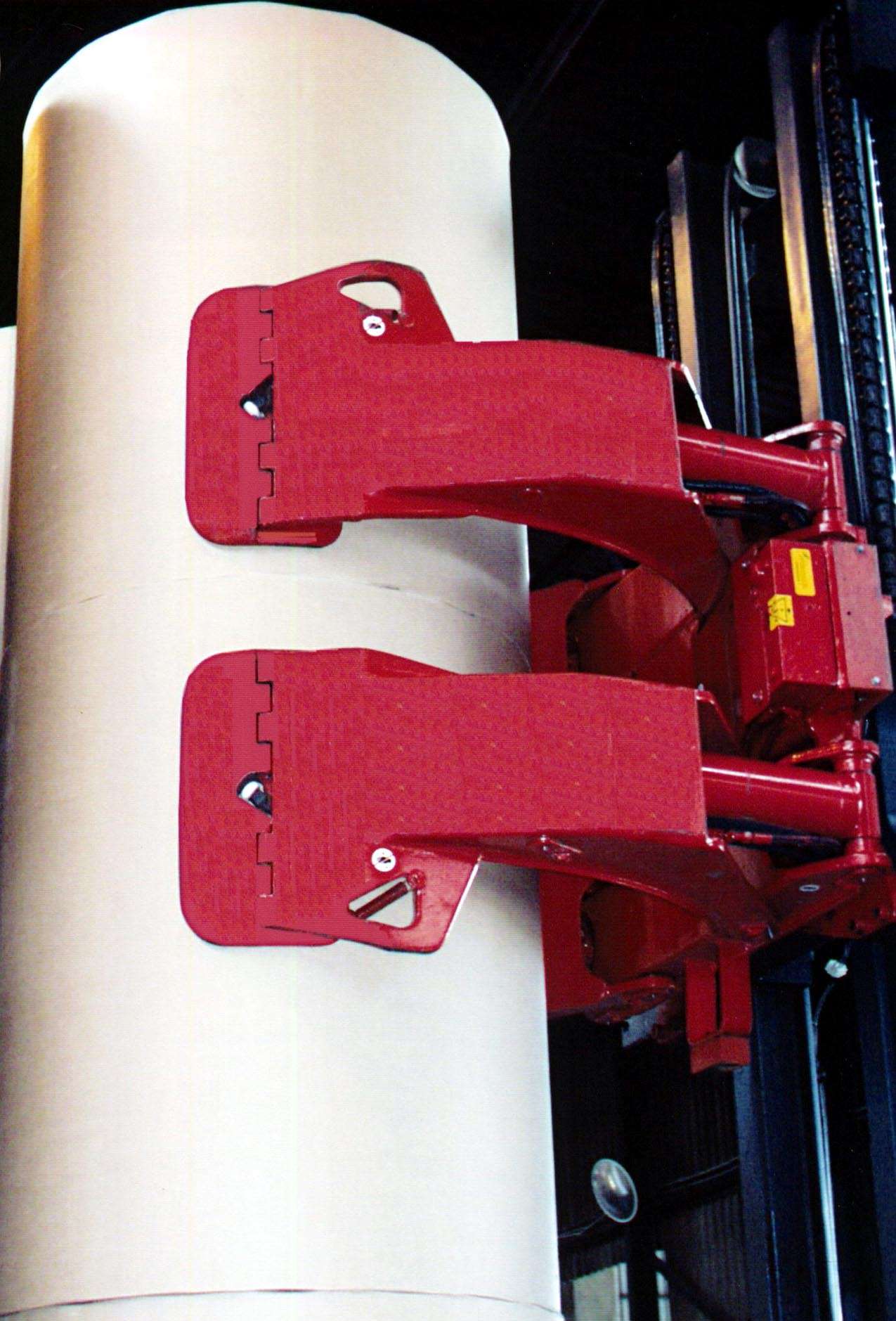

May 28, 2003 Model CTX-G2 features continuous and automatic clamping force adjustment which compensates for paper quality, roll weight, type of wrapping, environmental conditions, and dynamic loads. Microprocessor control is activated by electronic slippage sensors in clamp pads to control clamping force. LCD control display inside driver's compartment shows applied clamping pressure on line, and control software automatically increases and reduces clamping pressure after dynamic loads.

TE Connectivity Ltd.    Berwyn, PA 19312
May 28, 2003 ALCOSWITCH miniature and subminiature switches are rated from 0.1-16 A with solder tab, quick connect tab, or solder tail wire termination. Color coding on exterior identifies current rating. Switches can be lever or roller actuated, or can be direct actuated without lever or roller. Actuation force ranges from 40-350 g. SPDT, SPNC, and SPNO versions are available. Units are suitable for instrumentation, industrial control, medical equipment, and security systems.

Keystone Electronics Corp.    Astoria, NY 11105
May 28, 2003 Spacer and Standoff Kits each carry selection of brass, aluminum, and nylon spacers and standoffs suitable for prototype, production, maintenance, and replacement applications. Standoff kits contain products in 1/4, 1/2, and 1 in. lengths, while spacer kits incorporate 1/4, 3/8, 1/2, 3/4, and 1 in. length units. Each kit is a 15-compartment cabinet with clear plastic drawers labeled for identification. Cabinets are mountable one on another for benchtop or worktable convenience.

PBR Industries    Lindenhurst, NY 11757

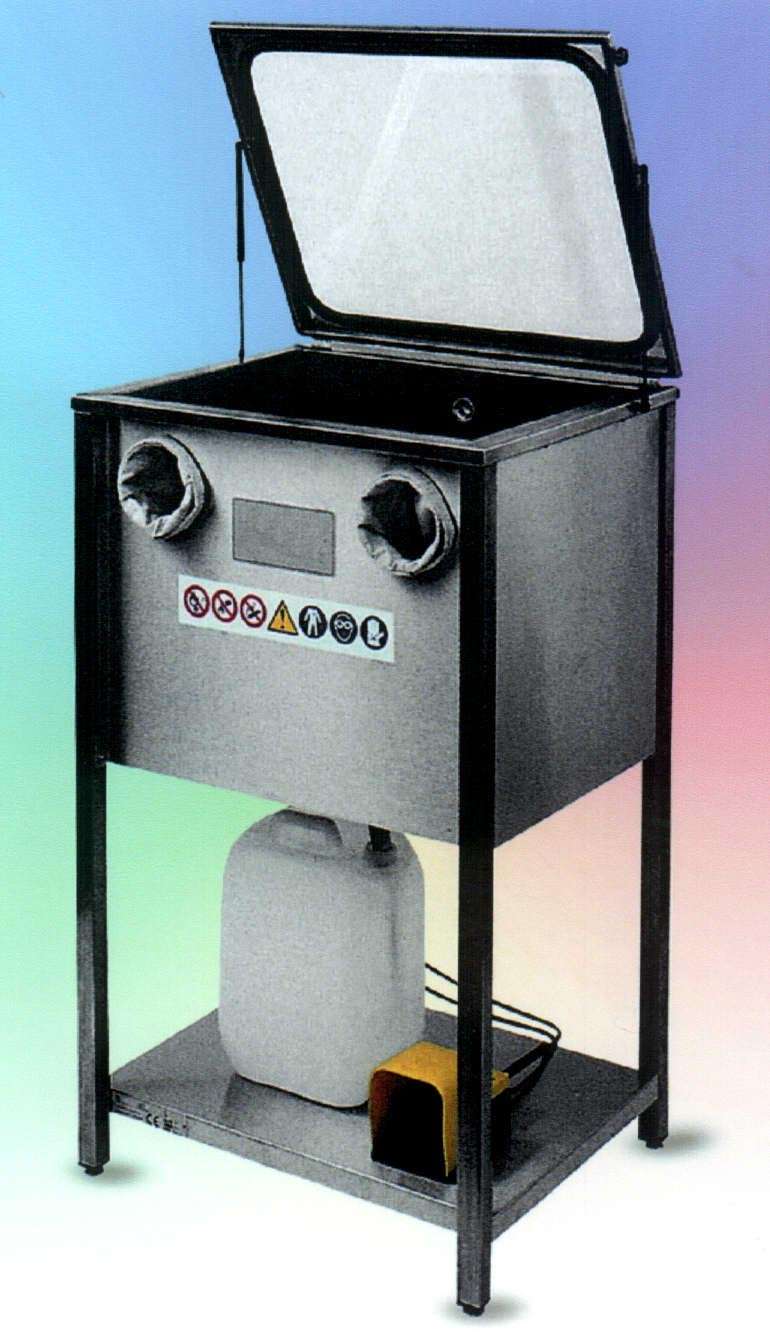

May 28, 2003 EASYWASH Glove Box Parts Washer is made of stainless steel with clear tempered glass cover that offers unrestricted view of cleaning operation. Design protects user and atmosphere from contact with cleaning chemicals. Pneumatic pump is operated by foot pedal. Optional second foot pedal initiates internal venturi function, which completely exhausts washing booth of any free vapor.

RKC Instrument    South Bend, IN 46628

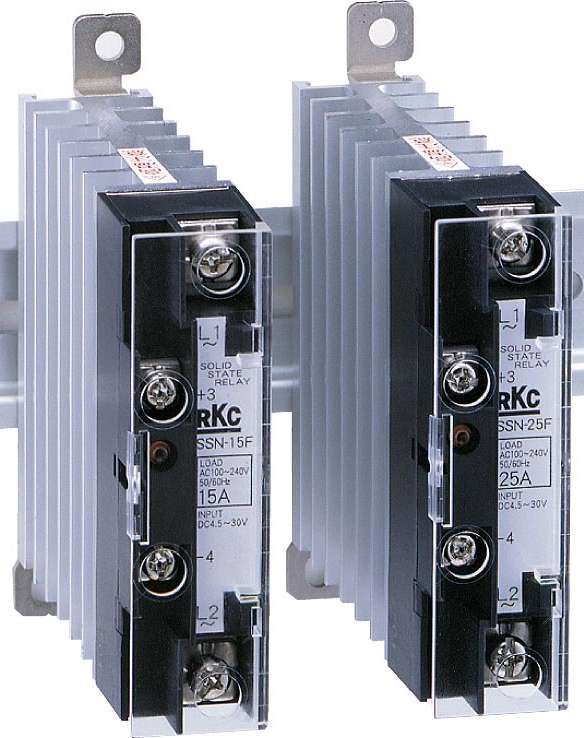

May 28, 2003 DIN rail mounted SSN solid-state relay employs LED to show output status and is supplied with built-in heat sink. Able to be specified for 15 or 25 A max load current, product suits applications where close horizontal mounting is desired. Unit measures 3.9 in. high, has a depth of 3.9 in., and requires .85 in. of DIN rail space. It accepts DC input signals of 4.5–30 Vdc and is UL recognized and CE and CSA certified.

FP International/Free-Flow Packaging International, Inc.    Redwood City, CA 94063-3120

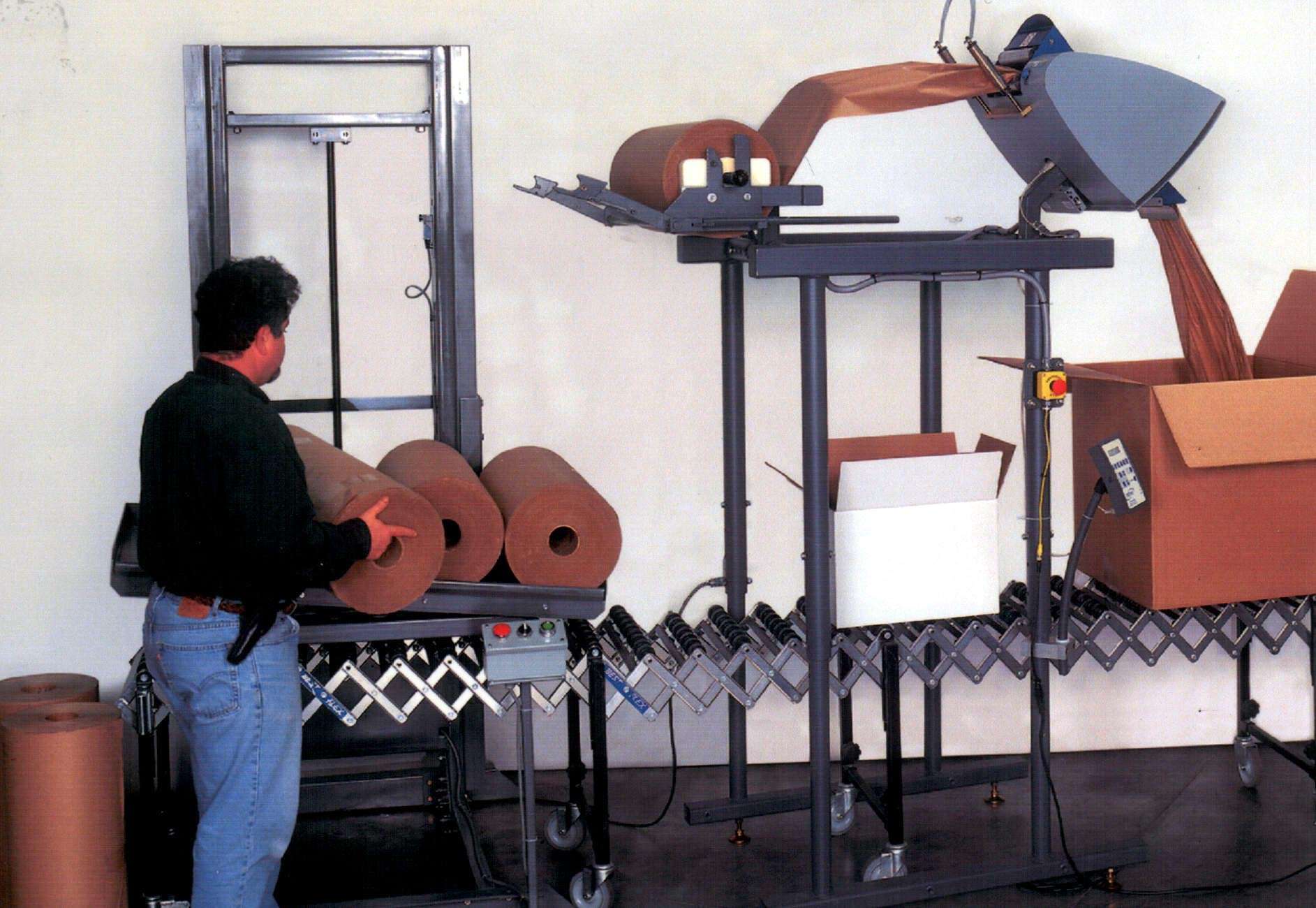

May 28, 2003 FASTTrackâ„¢ is offered with supplementary roll lifter that allows up to 4 rolls of paper to be loaded and positioned overhead behind dispensing machine for ready access. Combined with FASTTrack FS2 straddle system, lifter is positioned over conveyor at pack station, eliminating or reducing paper loading during shift. Lifter supplements paper roll already on machine, providing ~550 ft³ of single ply, 100% recycled kraft cushioning/void fill material.
