Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046
May 08, 2003 Model SIL-5000 LC combines manual and robotic handling systems for high-throughput sample injection. It accommodates 600 2mL vials, up to 24 standard microplates, or 6 deepwell plates. Temperature-controlled sample storage ranges from 4 to 40°C. Graphical LCD display simplifies operation, while remote Windows®-based software enables customized prep and load cycles. System is suitable for pre-clinical research, combinatorial chemistry, and pharmacokinetic studies.

Environetics, Inc.    Lockport, IL 60441

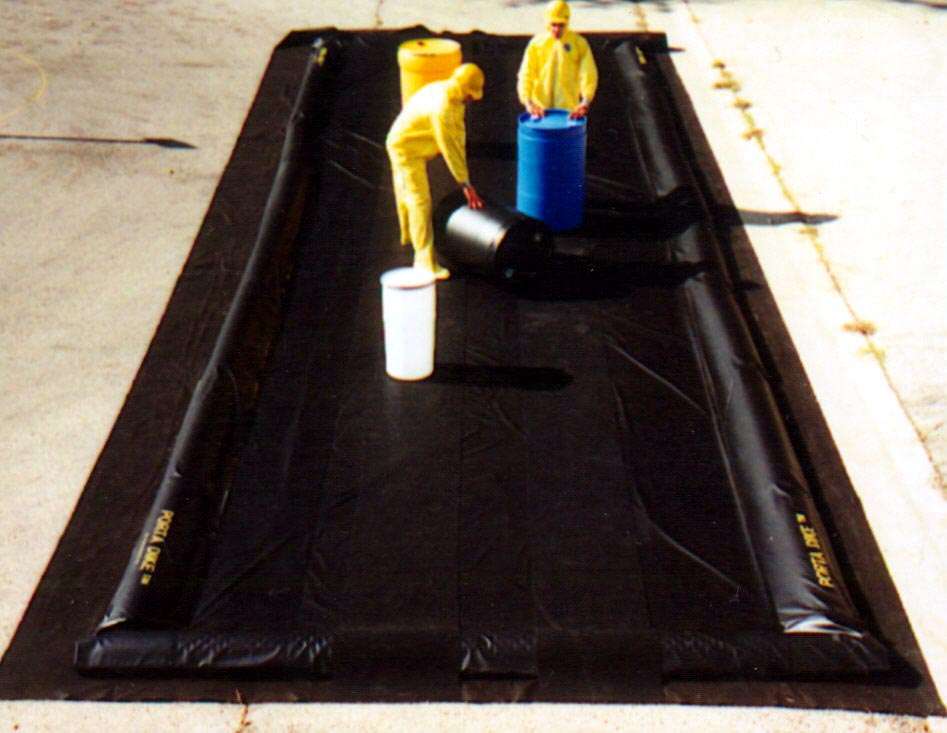

May 08, 2003 E-Berm™ is made from industrial grade flexible membrane, which is impervious to chemicals and hydrocarbon products. It is used for liquid transfer and handling, emergency spill response, and containment for flushing operations. Standard sizes range from 375–3,375 gal, with custom sizes available.

Saelig Co., Inc.    Pittsford, NY 14534
May 08, 2003 Black-anodized, 4U rack-mount IMPACT4020(TM) features Athlon XP1700 processor, 40 Gbyte ATA133 hard disk drive, 128 Mbyte DDR266 RAM, and AGP graphics card with 32 Mbyte RAM. Lockable front doors prevent unwanted tampering or adjustment, and dual-inlet air filters, with front and rear fans provide positive-pressure cooling system. Built-in 400 W Active PFC ATX12V ac power supply auto-ranges from 90-260 Vac input. Unit includes status LEDs and 2 front-panel USB 2.0 connectors.

Biotech Solutions    Mt. Laurel, NJ 08054

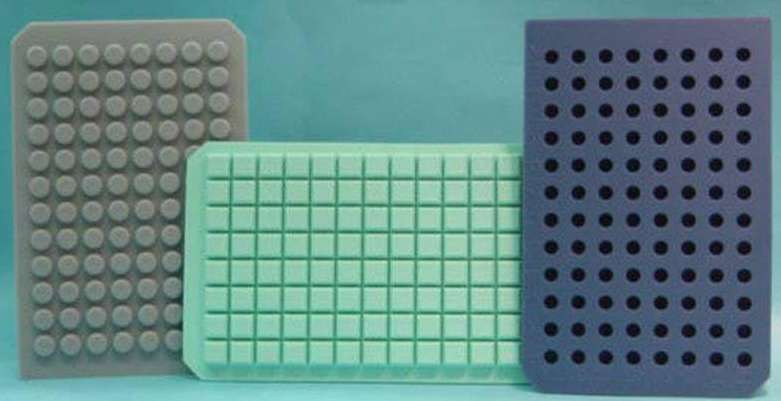

May 08, 2003 Molded PTFE/Silicone and Silicone Only Liners fit round or square 96-well microplates. Liners have 96 plugs that lock into each cylindrical or tapered well. Tight seal eliminates sample cross contamination and reduces chance of sample evaporation. PTFE/Silicone Liners offer chemical compatibility and are made from Teflon-lined, medical-grade silicone. Dark Blue Silicone Liners withstand temperatures of -80°C.

Thermadyne Industries, Inc.    St. Louis, MO 63017
May 08, 2003 Model SL100(TM) 1Torch(TM) Replacement Plasma Torch features Total Gas Management design, which eliminates need for gas distributor or swirl ring. Each tip is tuned to optimize cut performance at its rated cutting current. Equipped with 32-pitch gear rack, phenolic positioning tube adapts to any 1 3/8 in. torch holder. Torch works with high-frequency start systems, CD start systems, touch start systems, and moving-parts start systems.

Contech    Goddard, KS 67052
May 08, 2003 Portable SignMasker II applicator/laminator processes various materials such as plastics, vinyl, paper, and foam. Suitable for sign shops, compact design incorporates guide bar alignment for set up and consistent laminating, independent side-to-side tension control, and manual or power operation. Additional offerings include variable-speed, forward/reverse capability, dual rubber rollers, front and rear tables and adjustable nip roller pressure.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214

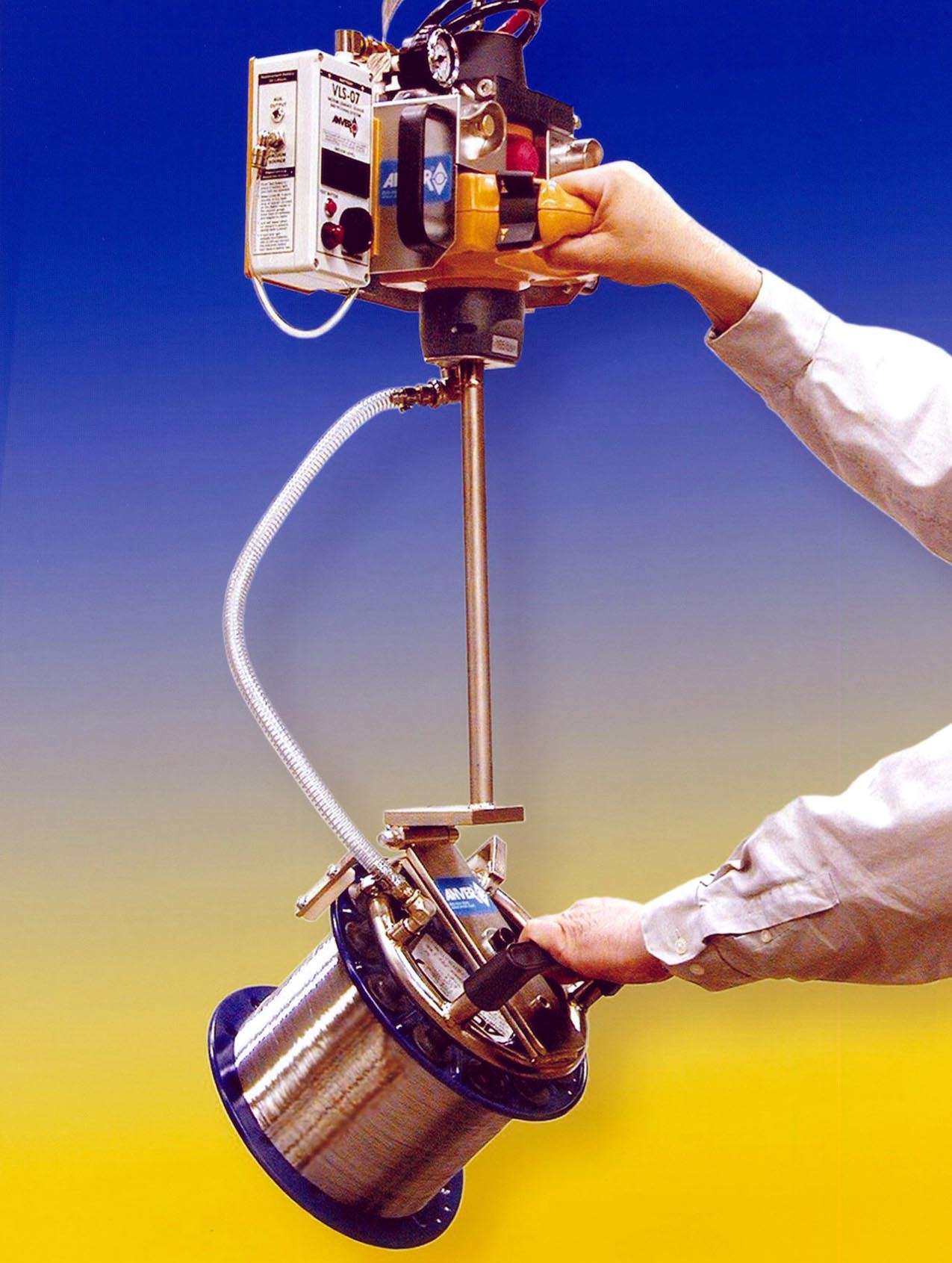

May 08, 2003 Series VM Spool Lifter features pivoting head that rotates 359° to let users pick up small, heavy, steel-wire spools and load them onto winding-machine spindle. When spool is being handled and up/down controls are released, vacuum lifter, fully integrated with hoist, retains its position without drift. Lifter is not weight sensitive, includes battery-operated vacuum alarm for safety, and can be pneumatically or electrically powered.

Igus, Inc.    East Providence, RI 02914 0349
May 08, 2003 Chainflex® CF13 combines communication with control in one twisted-pair, continuous-flex bus cable with 10x diameter flexibility. It meets meets specific requirements of OVDA DeviceNet standards. PUR jacket provides resistance to abrasion, oil, cooling fluids, and other harsh environments. Cable can be used safely without interference near strong electromagnetic DC fields. Data transmission rates are 125, 250, and 500 Kbps.

Mark-10 Corp.    Copiague, NY 11726
May 08, 2003 Model TSTM test stand features rotary table with tapped holes for fixture mounting and dial for angle measurement. It accommodates samples and fixtures up to 8 in. in diameter. Sensor bracket is part of lockable lever-operated slide mechanism for ease of engagement with test sample. Adjustable mechanical stops are provided for repetitive testing. Remote console contains adjustable speed control, operating internal motor from 0.3-9.0 rev/min.

Repeat-O-Type Mfg. Corp.    Wayne, NJ 07470-6892
May 08, 2003 Suited for Hewlett Packard printers that use No. 14 cartridges, Refill Ink Systems make refilling process similar to re-inking rubber stamp pads. Repeat-O-Type No. HP14RBK black kit yields 5x as many prints as HP C5011 black cartridges, while No. HP14RC tri-color kit yields 7x as many prints as HP C5010 color cartridge. Inks, matched in color and physical characteristics to original HP brand inks, are packed in dispenser bottles that refill cartridges.

Bel-Art Products    Wayne, NJ 07470

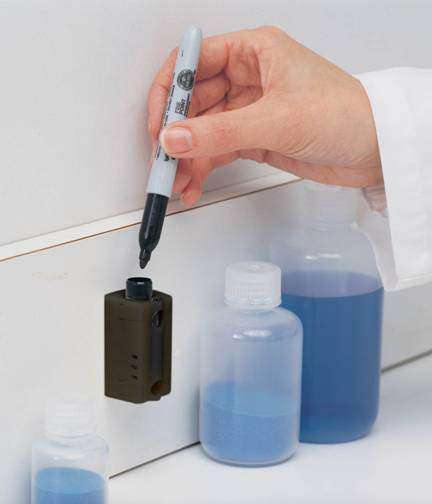

May 08, 2003 Scienceware® Captor® Pen Holder can be used anywhere Sharpie® marking pens, or others of similar design and size, are needed. User can uncap and recap pen with one hand while holding sample or notes with other hand. Holder, provided with adhesive-backed, press-fit, re-closable fastener, can also be mounted permanently with screws. Molded of black polycarbonate, it measures 1 x 1 x 2 in.

Walls & Forms Inc.    Dallas, TX 75374
May 08, 2003 Modular merchandising walls, available in various designs and sizes, allow diversified number of products to be displayed. Standard designs include wood panel with aluminum reinforced edges in slatwall, solid, or Plug + DisPlay, 3, 6, or 12 in. center grooves, and domestic high-pressure and low-pressure plastic laminate surfaces. With plastic slatwall panels, H model contains glass shelves, aluminum glass profiles, and storage cabinets. CornerForms(TM) panel connectors facilitate assembly.

Astro-Med, Inc.    West Warwick, RI 02893
May 08, 2003 Utilizing thermal-transfer technology, digital, tabletop QLS-8100 Xe instantly prints full-color labels, tags, pouches, and signs up to 8.3 in. wide at print speeds of up to 5 ips. Unit prints items up to 60 in. long directly from PC and requires no plates or make-ready materials. All data is processed by embedded microcontroller, allowing printer to print variable information labels in true production speed and volume.

Doosan Machinery USA Inc.    Sterling Heights, MI 48310
May 08, 2003 Model V420 single spindle lathe features 12 in. solid hydraulic chuck with A2-8 spindle nose, and 25/30 hp AC dual winding spindle drive motor that delivers 25-2,500 rpm. Coupling is 10.23 in. diameter with 9,070 lb clamping force. Spindle height from floor is 38.19 in., X axis travel is 13.78 in., and Z axis travel is 16.14 in. Lathe includes V12 HrC 55 hardened and ground turret, and Fanuc 18TC CNC control system.

CyberResearch, Inc.    Branford, CT 06405 2932

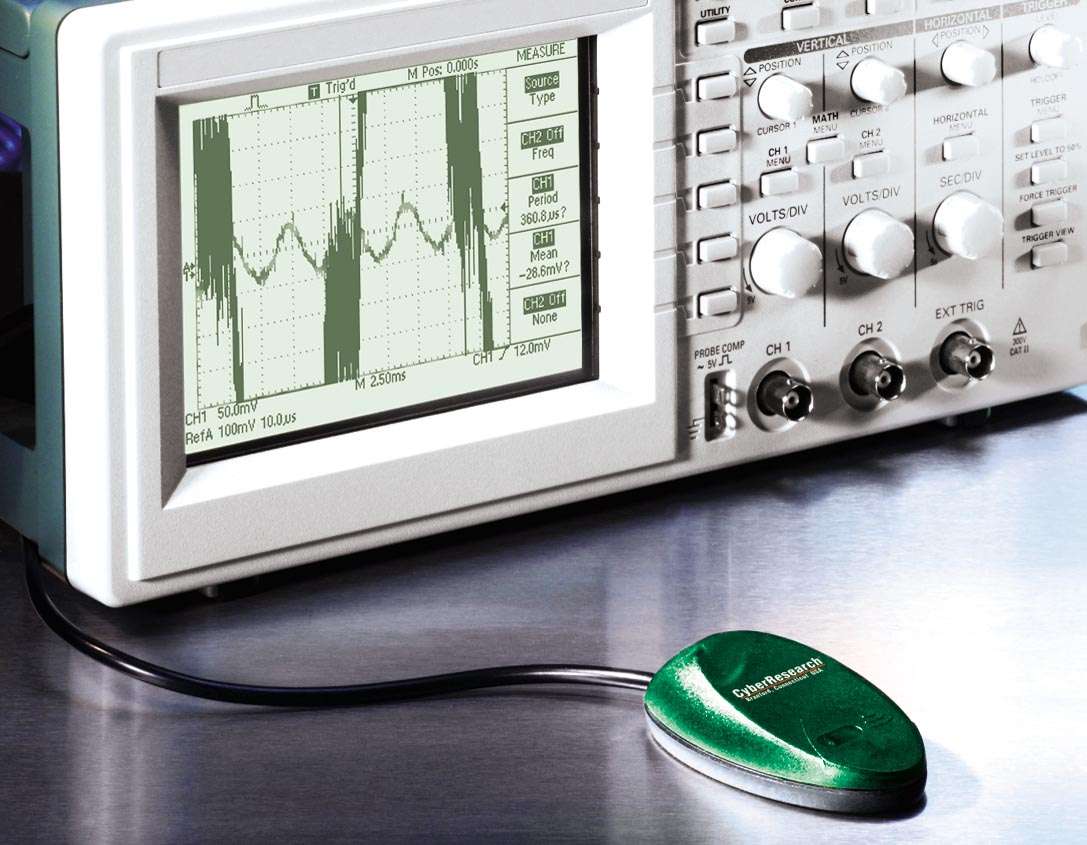

May 08, 2003 Wireless Series CYBT includes converter that attaches to any RS-232 port and needs no operating system, adapter that attaches to PC RS-232 ports, adapter for USB port, card for compact flash ports, and card for PCMCIA ports. Included software automatically authenticates, encrypts, and decrypts data. RS-232 devices communicate at 115.2 kbits/s, while other products provide net speed of 721 kbits/s. USB adapter has open-field range of 150 ft, and others have ranges of 300 ft.

Acme Cryogenics, Inc.    Allentown, PA 18103
May 08, 2003 Available in brass versions to support 5, 8, or 11 cylinders, EZ Block Manifold connects multiple cylinders into one common bank. Compact, modular design aids in set-up, reconfiguration, and expansion. One-piece machined construction maximizes durability. Connections between manifolds are made via flexhose or pipe nipple. Accessories include wall-mount bracket and floor stand.

Linear Technology Corp.    Milpitas, CA 95035

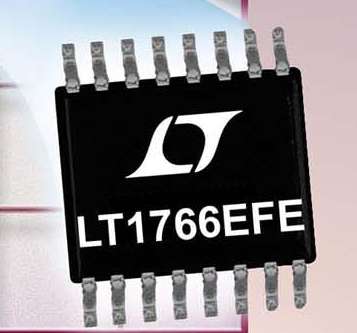

May 08, 2003 Models LT1766EFE and LT1956EFE constant frequency, step-down DC/DC switching regulators include 1.5 A internal switch. Both operate within V_IN range of 5.5-60 V and can deliver up to 1.25 A of continuous output current at voltages as low as 1.25 V. Model LT1766EFE utilizes 200 kHz switching frequency, while Model LT1956EFE switches at 500 kHz. Exposed pad package integrates copper pad at bottom of TSSOP package providing direct thermal path from die to PC board.

Clean Air Products    Minneapolis, MN 55445 1828

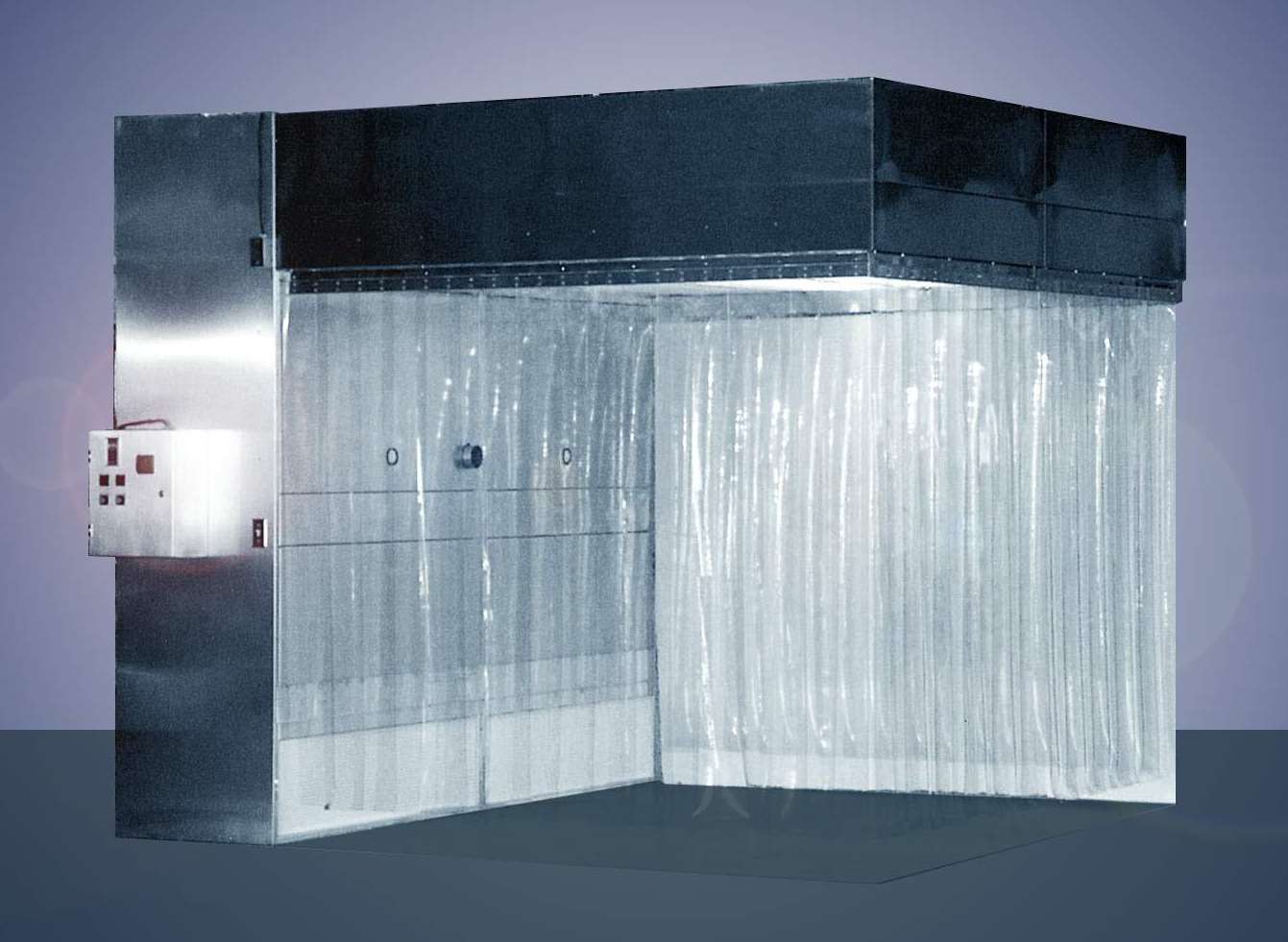

May 08, 2003 Series 550 vertical flow cleanrooms provide energy efficiency and include full-ceiling HEPA filter plenum sections. All metal construction provides durability and ease of maintenance. Various configurations are available to satisfy application requirements.

B.A.G. Corp.    Dallas, TX 75218
May 08, 2003 Super Sack Containers with Remote Open Discharge design improve plant safety. Operator stands aside bulk bag, and using hook, unties bag and discharges product in one movement. Discharge spout opens automatically when outer ties are undone.

Advance Lifts, Inc.    St. Charles, IL 60174
May 08, 2003 Rail Transfer Bridges facilitate traffic between areas or buildings bisected by rail spurs. When trains are not active, bridge remains down for cross traffic. When trains are active, bridge raises to allow rail traffic into and out of building. Capacities range from 10,000–30,000 lb with platform sizes from 6 x 16 ½ ft to 8 x 20 ½ ft. Large box beams provide maximum rigidity. Five horsepower unit drives hydraulic cylinders that raise bridge.
