Combilift Ltd.    Spring, TX 77389

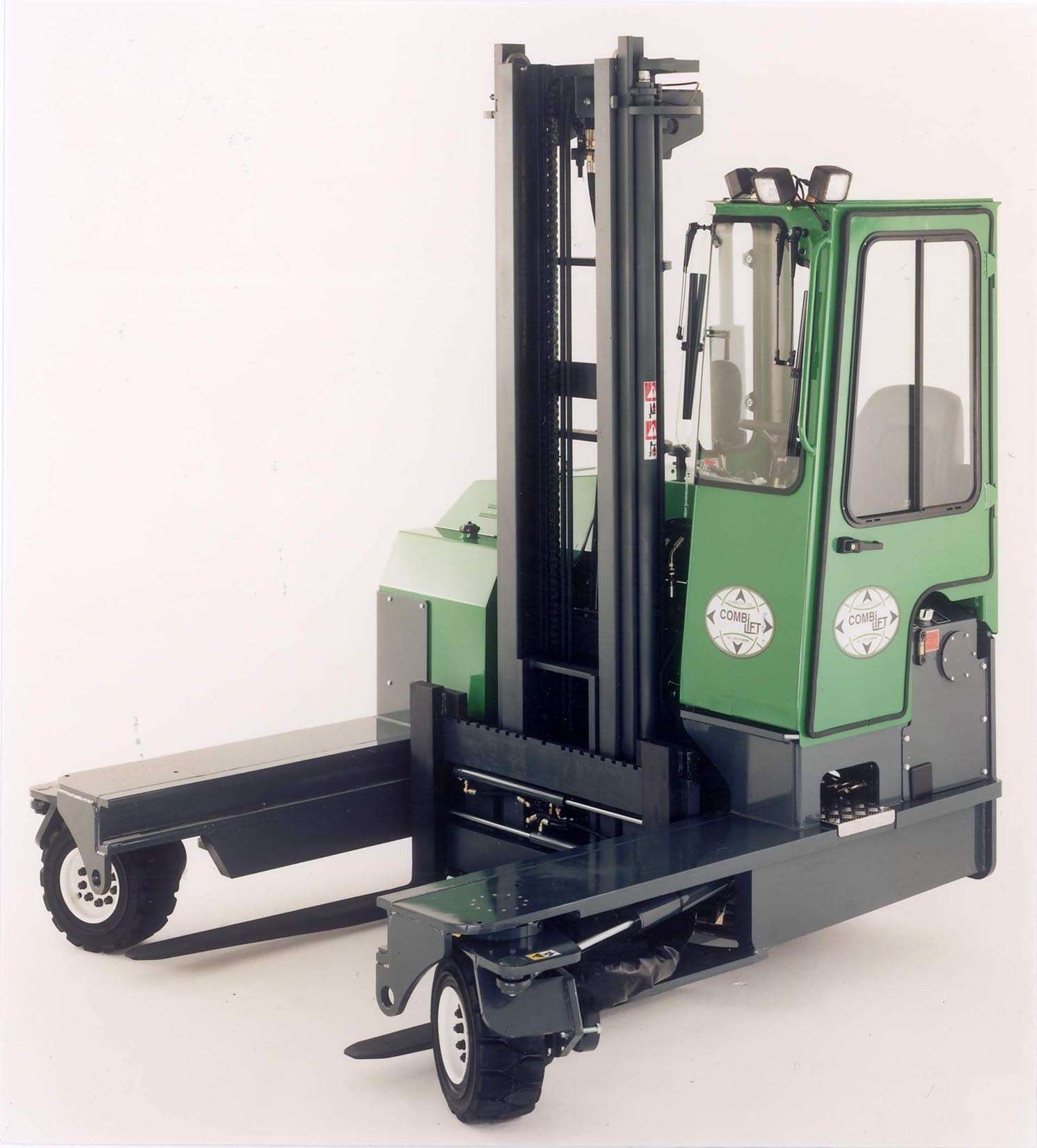

May 12, 2003 Suited for indoor/outdoor operation C8000 model, 4-directional vehicle is powered by LP gas engine and employs hydrostatic brakes. Product handles long loads such as lumber and building supplies, while low-profile load platform provides load stability during travel and increases access to floor-level products and bottom tiers of cantilever racks. Optional guide rollers permit operation in aisles as narrow as 8 ft, and mast options provide lift heights to 26 ft.

Waldmann Lighting Co.    Wheeling, IL 60090
May 12, 2003 Metal STE-155, with built-in aluminum parabolic louver, provides direct light control to work surfaces with head that measures over 25.5 in. long. Lamp may be used for color correction applications when equipped with 5,400 K compact fluorescent lamp, which provides 3,000 lumen output and lighting levels in excess of 100 ftc to work surfaces. Spring-loaded arms can be positioned to meet working requirements. Applications include inspection and assembly.

Sauer-Danfoss    Ames, IA 50010
May 12, 2003 Models CDS 60 and CDS 100 have inlet flows of 60 and 100 lpm, respectively. Control handles mount in various orientations for flexibility. Modular construction allows for control of various work functions from one valve stack. Thicker end sections reduce stack distortion, which nearly eliminates spool bind and external leaks between sections. Numerous spool and control options are available, including on/off electrical control. Applications include construction equipment.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115

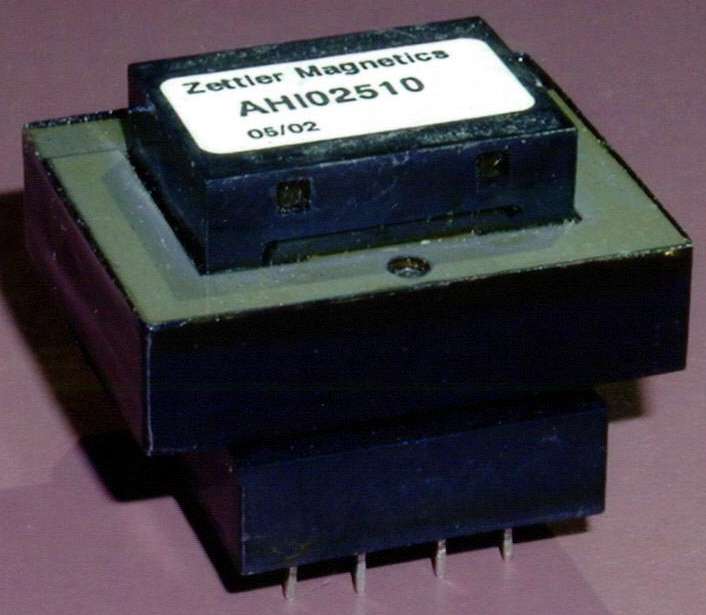

May 12, 2003 AHI series employs dual-bobbin, non-concentric design that reduces capacitance to eliminate shielding. Bobbin wall slots eliminate all wire crossovers, and insulating shroud provides 4200 Vrms dielectric strength. Available in 2.5, 5, and 10 VA output configurations, series has UL class 2 and 3 approval and meets UL 1950 third addition for international standards utilizing UL approved class B insulation systems.

Columbus Instruments    Columbus, OH 43204 2121

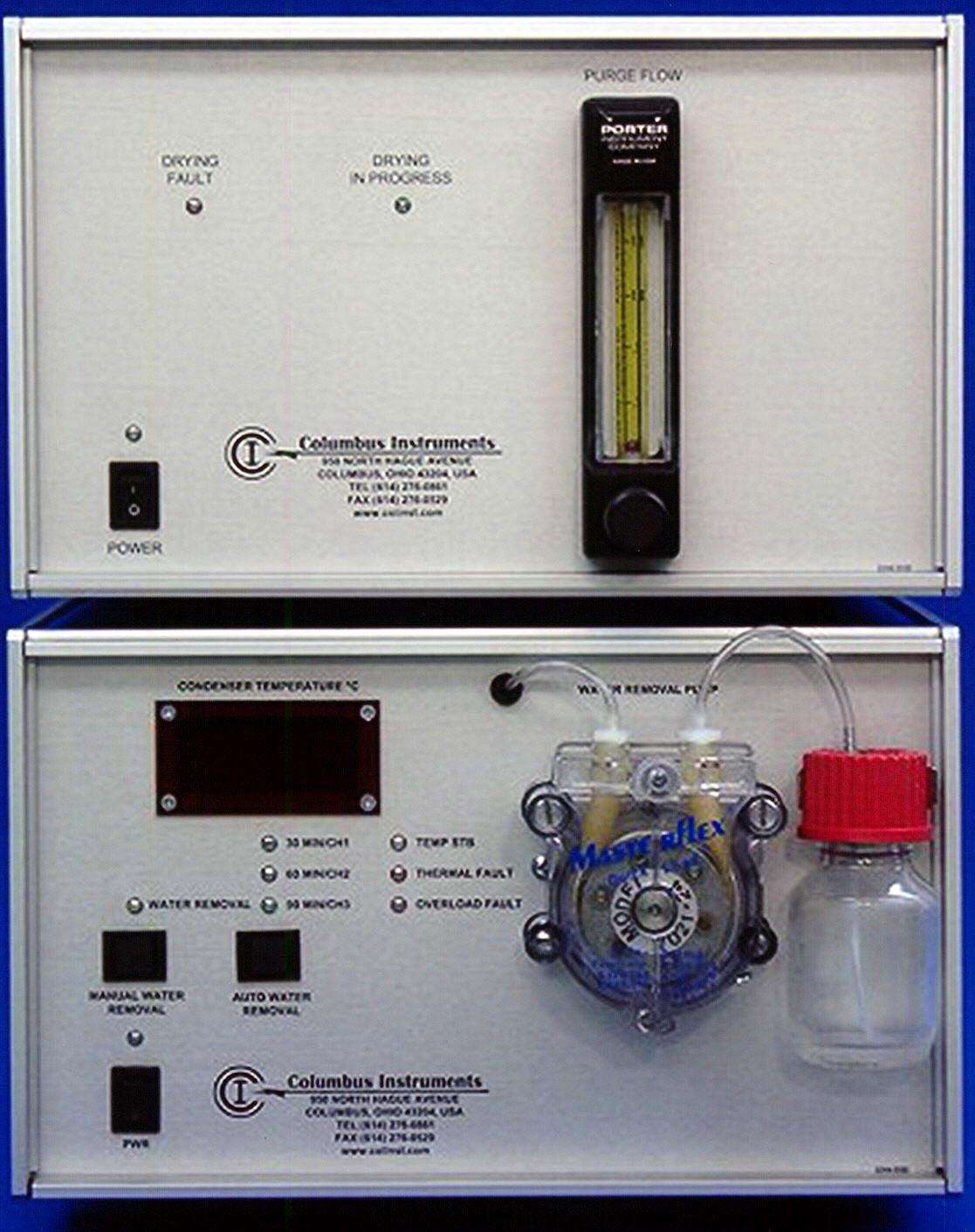

May 12, 2003 Universal Air Dryer contains condenser and dryer. Air enters condenser where dewpoint of sample gas is lowered below ambient, removing most moisture. Once air has passed through condenser, it reaches tube dryer, which consists of one tube inside another. Gas travels through hydrophilic Nafion inner tube into outer tube containing flow of very dry purge air. Gas leaves dryer at dew point temperature of -25°C. Dryer handles max flow rate of 2 lpm and includes digital temperature controller.

Dwyer Instruments, Inc.    Michigan City, IN 46361

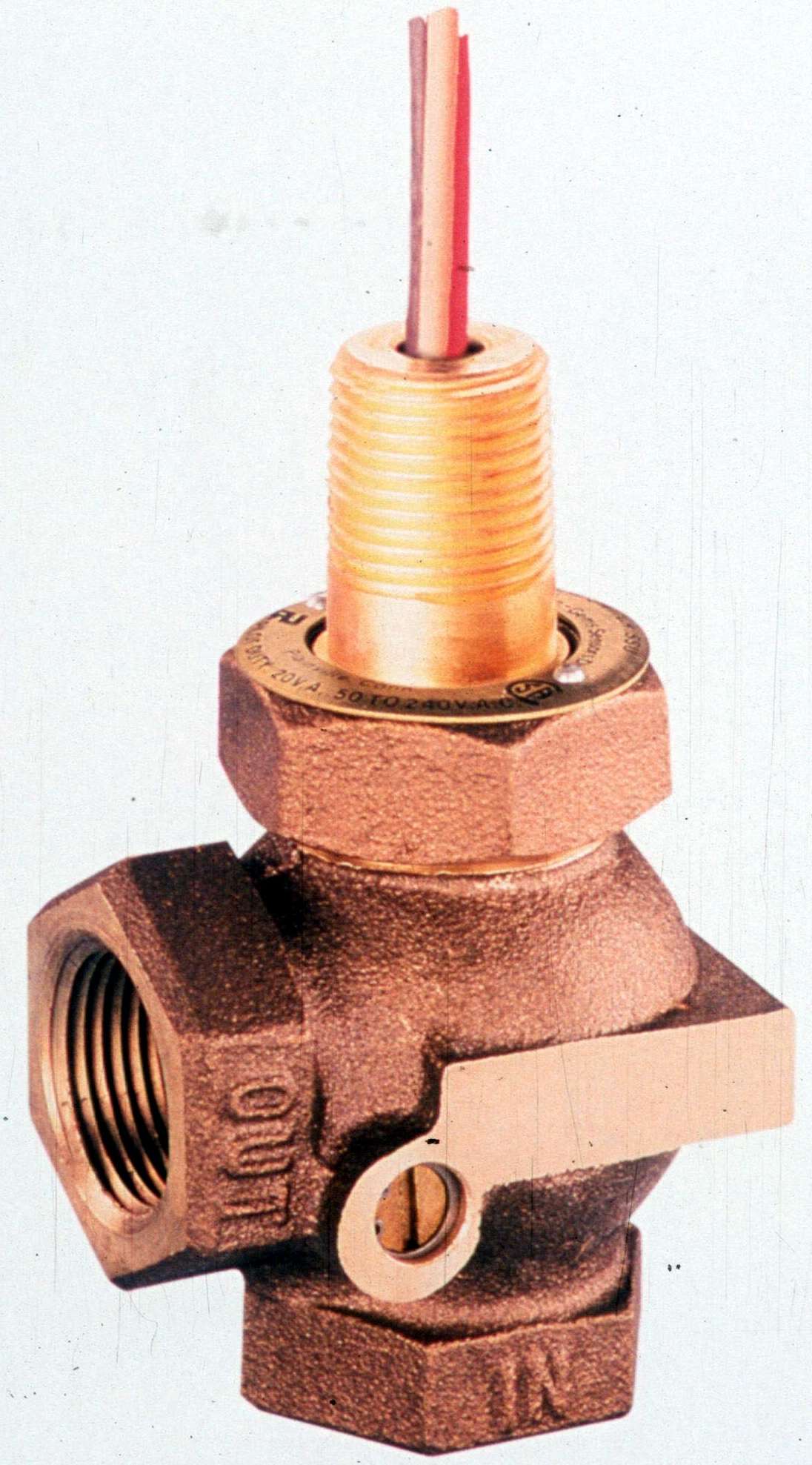

May 12, 2003 Series G9 provides accurate flow detection in oil and water applications with ±1% repeatability. Constructed of non-corrosive materials, series resists shock and vibration and utilizes shuttle by-pass vane inside housing. Flow settings may be changed via flat blade screwdriver, without disassembly. Each switch is composed of bronze housing, Delrin® shuttle, 316SS spring, and Viton® O-ring. Temperature range is -20 to +180°F and pressure limit is 400 psi.

Caterpillar, Inc.    Peoria, IL 61629

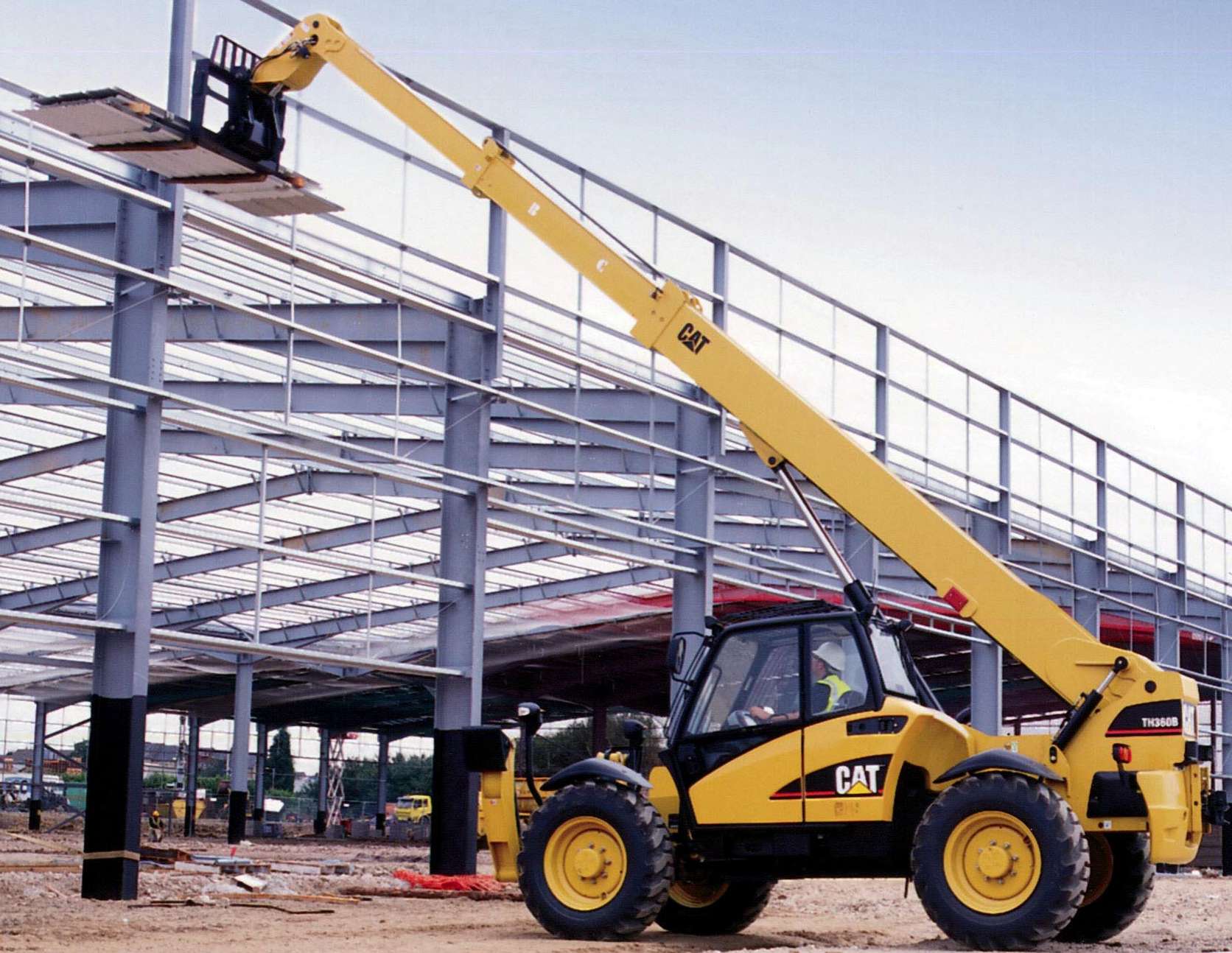

May 12, 2003 Powered by 99 hp Cat 3054T diesel engine, B-Series telehandlers are offered with canopy or enclosed cabs for falling object and rollover protection. Powersyncro transmission has 4 speeds forward and 3 reverse for travel speeds up to 20 mph. Machines offer rated load capacities from 6,600–9,000 lb, max lift heights from 36–44.3 ft, and max forward reach from 24–30 ft. All units offer 48° axle turning with no tail swing and oil-immersed disc brakes.

Dwyer Instruments, Inc.    Michigan City, IN 46361

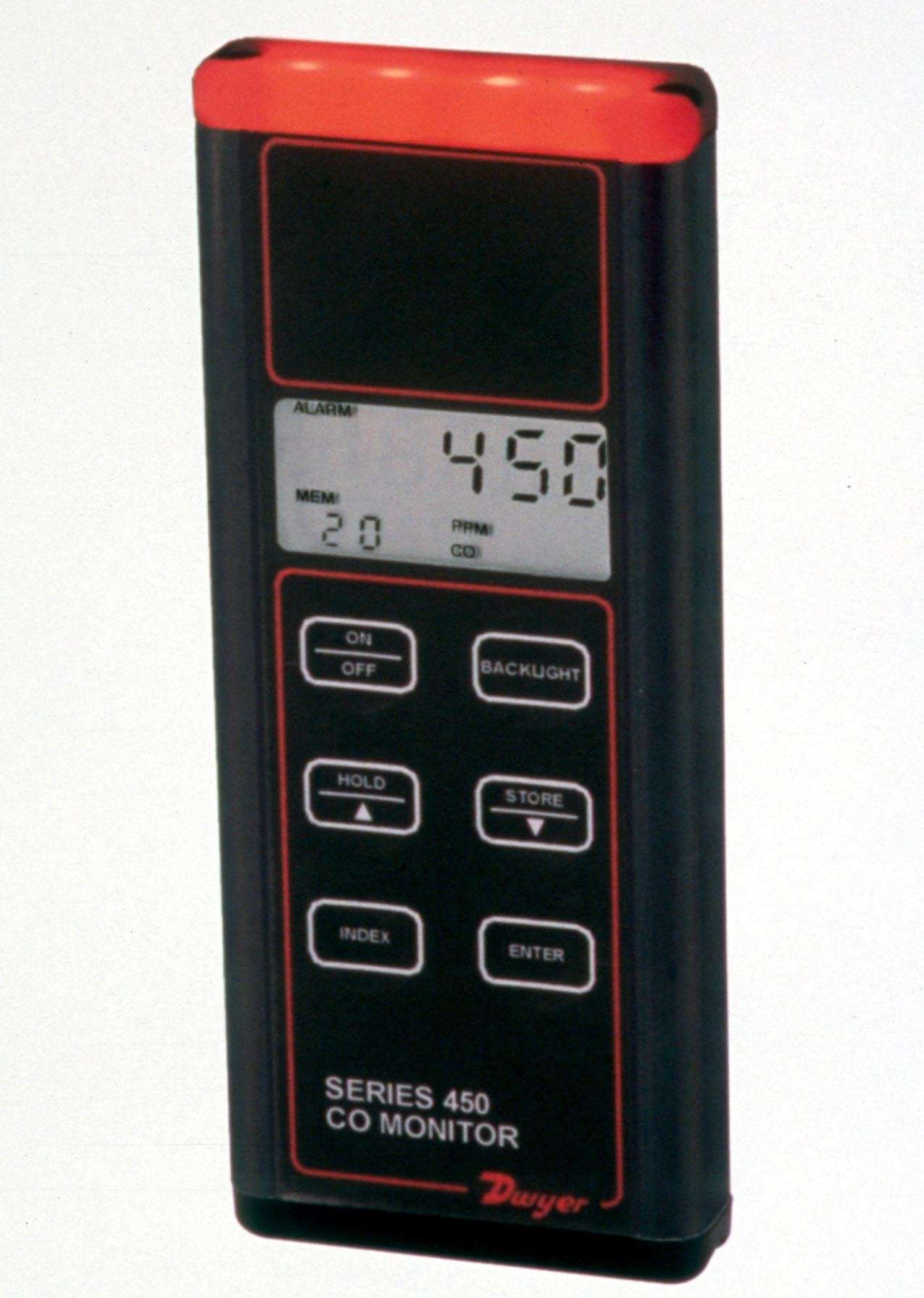

May 12, 2003 Series 450 measures toxic carbon monoxide gas levels from 0-2000 ppm in ambient air. Sensor maintains reading accuracy of 3% with response time of less than 30 sec. Beacon of light flashes in correspondence to level of CO concentration detected, along with audible alarm, instantly alerting user. Raised keypads allow simple access to functions such as zeroing and instrument calibration, peak readings, reading storage, and backlighting for dark locations.

MSC.Software Corporation / MSC.Mechanical Solutions    Costa Mesa, CA 92626
May 12, 2003 MSC.ADAMS/Car Ride is dedicated to multibody-based predictive ride and comfort engineering. Virtual prototypes shared between different departments enable engineers to evaluate design changes based upon handling and NVH requirements. Software includes required elements, models, and event definitions for building, testing, and post processing within ride frequency regime. Full-vehicle assembly runs through ride and comfort simulation scenarios based on extended 4-post test rig.

Rockwell Automation    Milwaukee, WI 53204
May 12, 2003 Model 1762-IR4 4-channel sensor module allows users to directly interface Allen-Bradley® MicroLogix(TM) 1200 controller to platinum, nickel, nickel-iron, and copper RTDs. It provides temperature readings in °C or °F with measurement resolution down to tenths of degrees. Module's sensor temperature range is -200 to 850°C with accuracy of ±.05°C over thermocouples. Over- and under-range alarms are provided with individual bit feedback per channel to controller.

Ultra Motion    Cutchogue, NY 11935
May 12, 2003 Smart M-Digit brushless motor linear actuators feature integral programmable controller with full 32-bit PID motion control system. Stroke lengths include 2, 4, and 8 in. Depending on lead screw selected, actuators can achieve acceleration in excess of 23 m/sec², speed of 1 m/sec, and provide up to 200 lb of force, with repeatability to 1.5 microns. Operating temperature is -40 to 150°F. Totally enclosed units include optically isolated digital I/O and RS232 or RS485 port.

CRC Industries, Inc.    Warminster, PA 18974
May 12, 2003 MinuteMendâ„¢ 2-part epoxy putty bonds to wet and dry surfaces, and once dry, can be tapped, sawed, drilled, machined, stained, or painted. Product mixes in the hand and hardens in minutes. It is USDA approved for use in meat and poultry plants, contains no solvents, and will not shrink. Putty permanently repairs scratches, gouges, and holes and stops leaks. Available in 2 and 4-oz sticks.

CRC Industries, Inc.    Warminster, PA 18974
May 12, 2003 HydroForce® Super Citrus(TM) water-dilutable, d-Limonene based product is completely biodegradable and environmentally safe. Heavy-duty cleaner/degreaser has citrus scent, wipes off easily, and leaves no residue. Suited for difficult cleaning jobs in industrial/commercial environments, non-corrosive, non-abrasive cleaner dissolves and removes grease, oil, ink, grime, and adhesives from various surfaces. Cleaner is NSF Cl registered for use in meat and poultry plants.

Shure Manufacturing Corp.    Washington, MO 63090

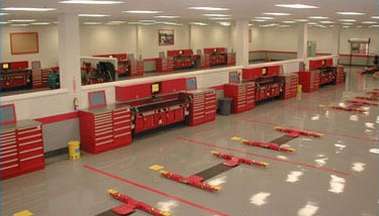

May 09, 2003 Offered in 6 ft, single bay or 10 ft, 2-bay configuration, Technician Customer Care Center (TC3) System integrates all necessary workspace, storage, tools, and equipment that service technicians can use to maximize efficiency and productivity.

Tol-O-Matic, Inc.    Hamel, MN 55340 9499

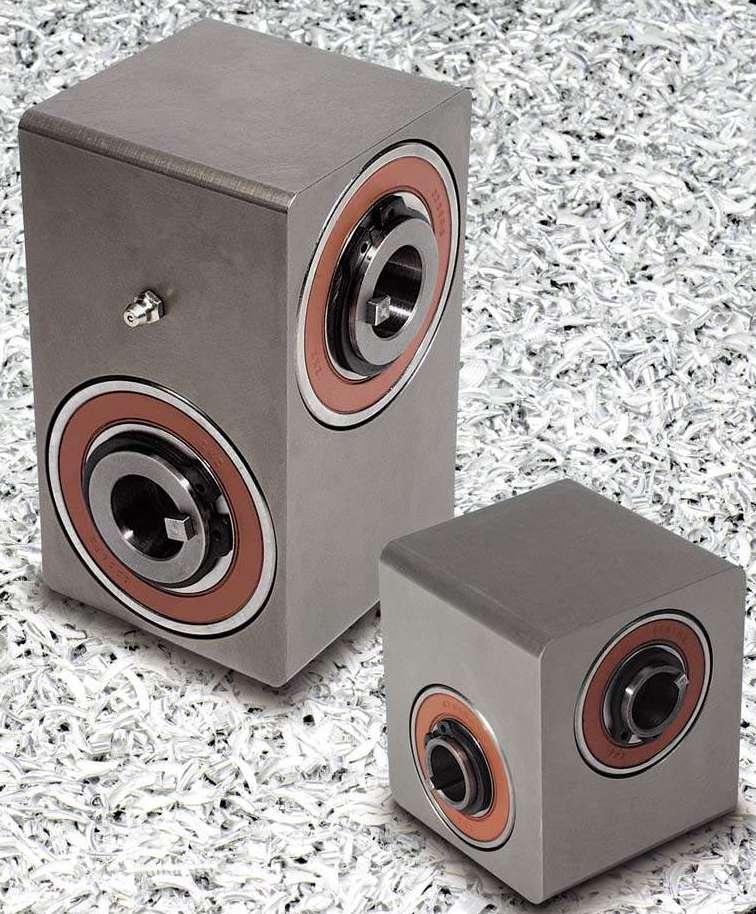

May 09, 2003 Slide-Riteâ„¢ Gearbox turns power around any corner, operates in any direction, and slides axially along drive or driven shaft. It allows only 1° of backlash on reversal of input. Solid, one-piece aluminum housing seals gears from outside contaminants and encloses factory-lubricated and sealed bearings and geared shaft. With shaft speeds to 1,200 rpm, product offers 45° helical gears of hardened alloy steel, mounting holes, and hardened steel bearing races.

Greene, Tweed & Co.    Kulpsville, PA 19443 0305
May 09, 2003 Fiber optic SpliceGuardâ„¢ utilizes proprietary Hermacrimpâ„¢ seal to protect fusion splice from water, humidity, corrosive environments, and particulate contamination. With operating temperature range of -40 to +150°C, product handles pressures to 500 psi. Available in 0.150 and 0.100 in. 0Ds with 1.5 in. lengths, product allows for maximum utilization of space and is color-coded for various types and sizes of fiber.

Caterpillar, Inc.    Peoria, IL 61629

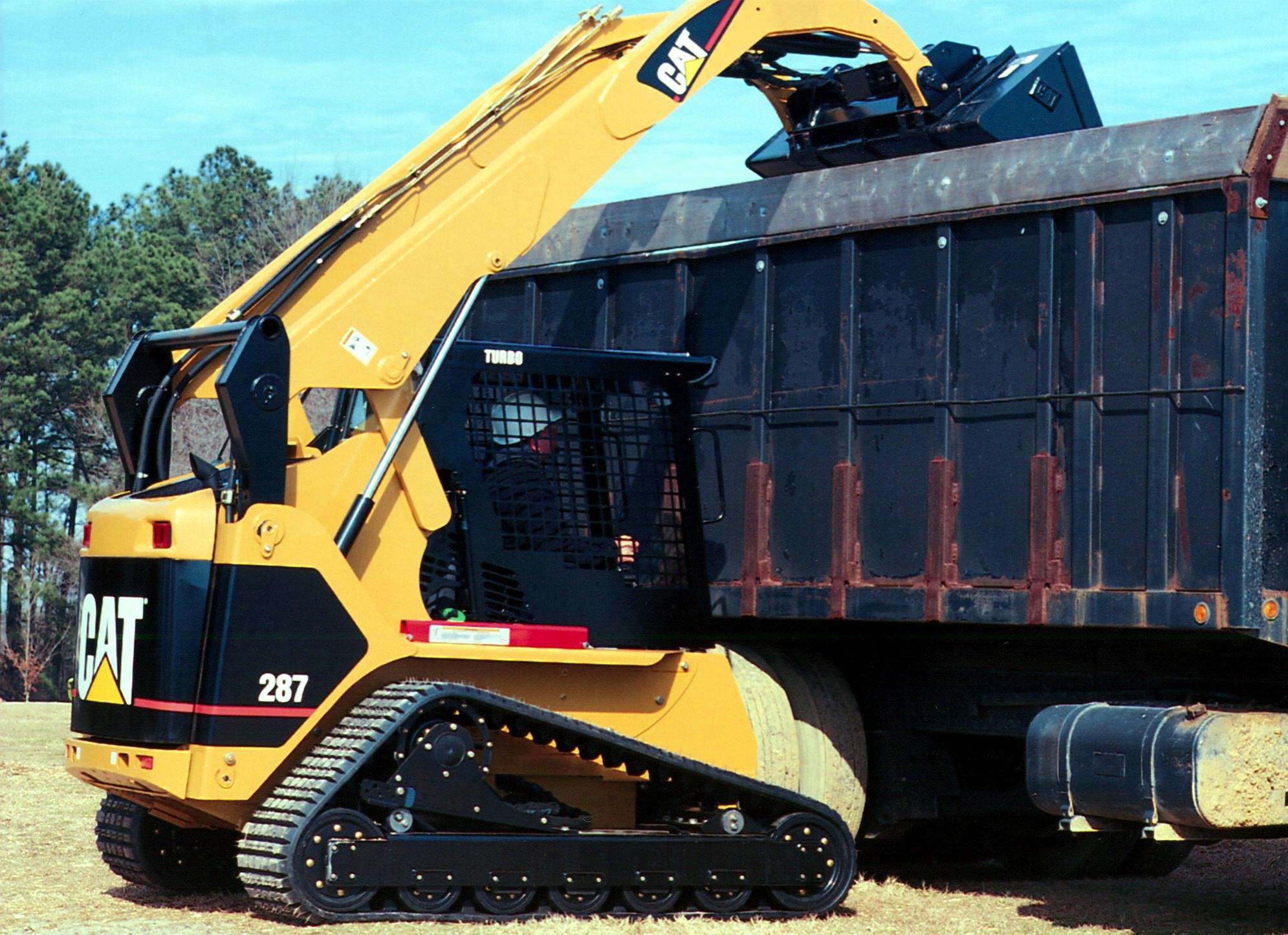

May 09, 2003 Model 287 combines upper portion of Cat 262 Skid Steer Loader with rubber-track undercarriage that transfers weight to ground through 42 wheeled contact points. Operating capacity, as defined by SAE J818 at 35% tipping load is 2,450 lb. Operating weight is 9,860 lb and ground pressure is 3.8 psi. Turbocharged Cat 3034T diesel engine rated at 74 hp provides power. Vertical lift linkage allows loader arms to move forward during lift cycle.

Doosan Machinery USA Inc.    Sterling Heights, MI 48310

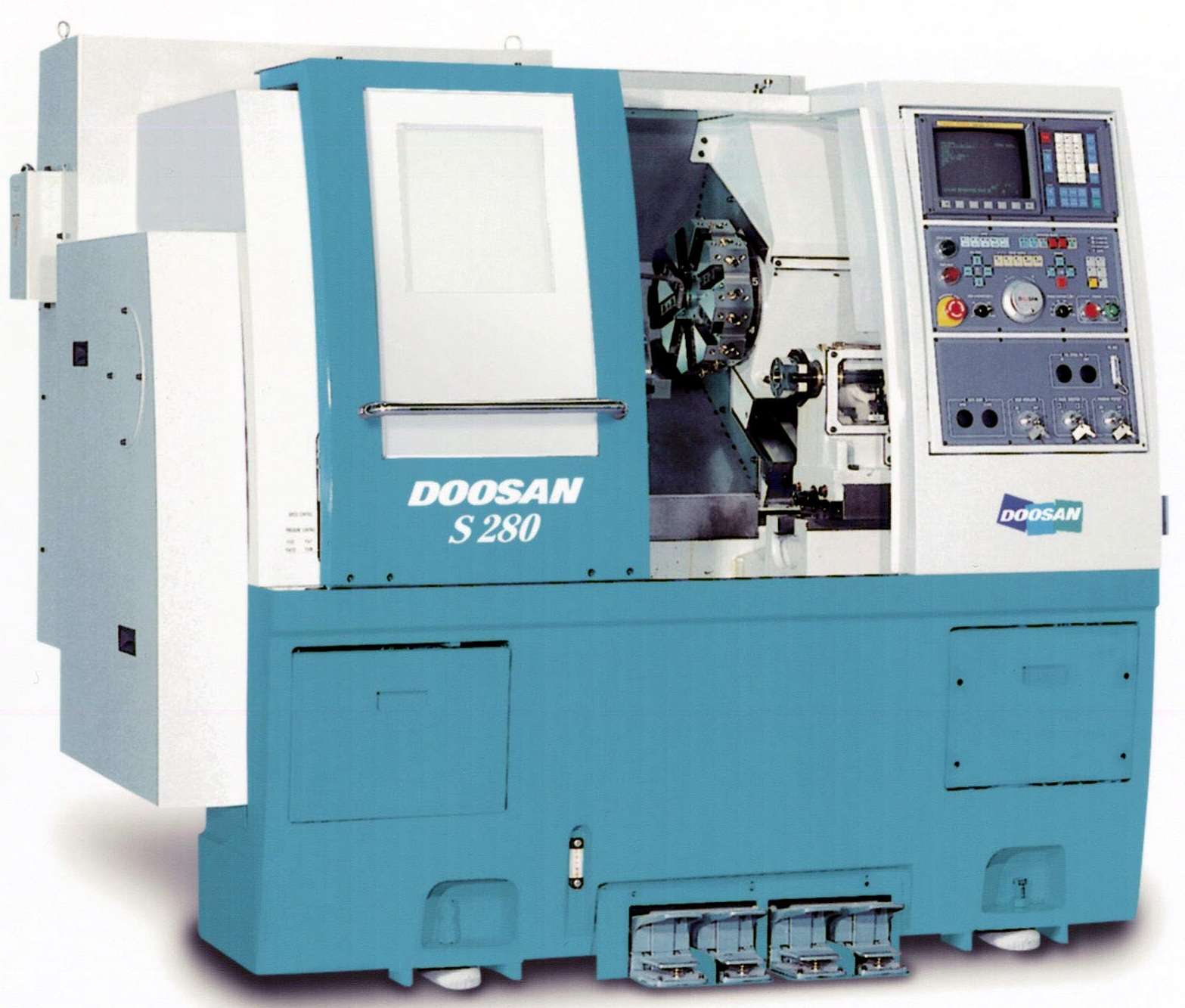

May 09, 2003 Single-spindle Model S280 employs 8 in. hollow hydraulic chuck with 2.01 in. bar capacity and A2-6 spindle nose as well as 10/15 hp ac spindle-drive motor that delivers 4,500 rpm. Features include 10-face, 5 OD turret; 30° slant bed with one-piece, heavy-duty casting; and Fanuc 0iT CNC control system with monochrome CRT. With 11.02 in. max turning dia, 12.60 in. length, and 17.72 in. center distance, unit offers X- and Z-axis travels of 6.10 and 12.99 in. respectively.

Doosan Machinery USA Inc.    Sterling Heights, MI 48310

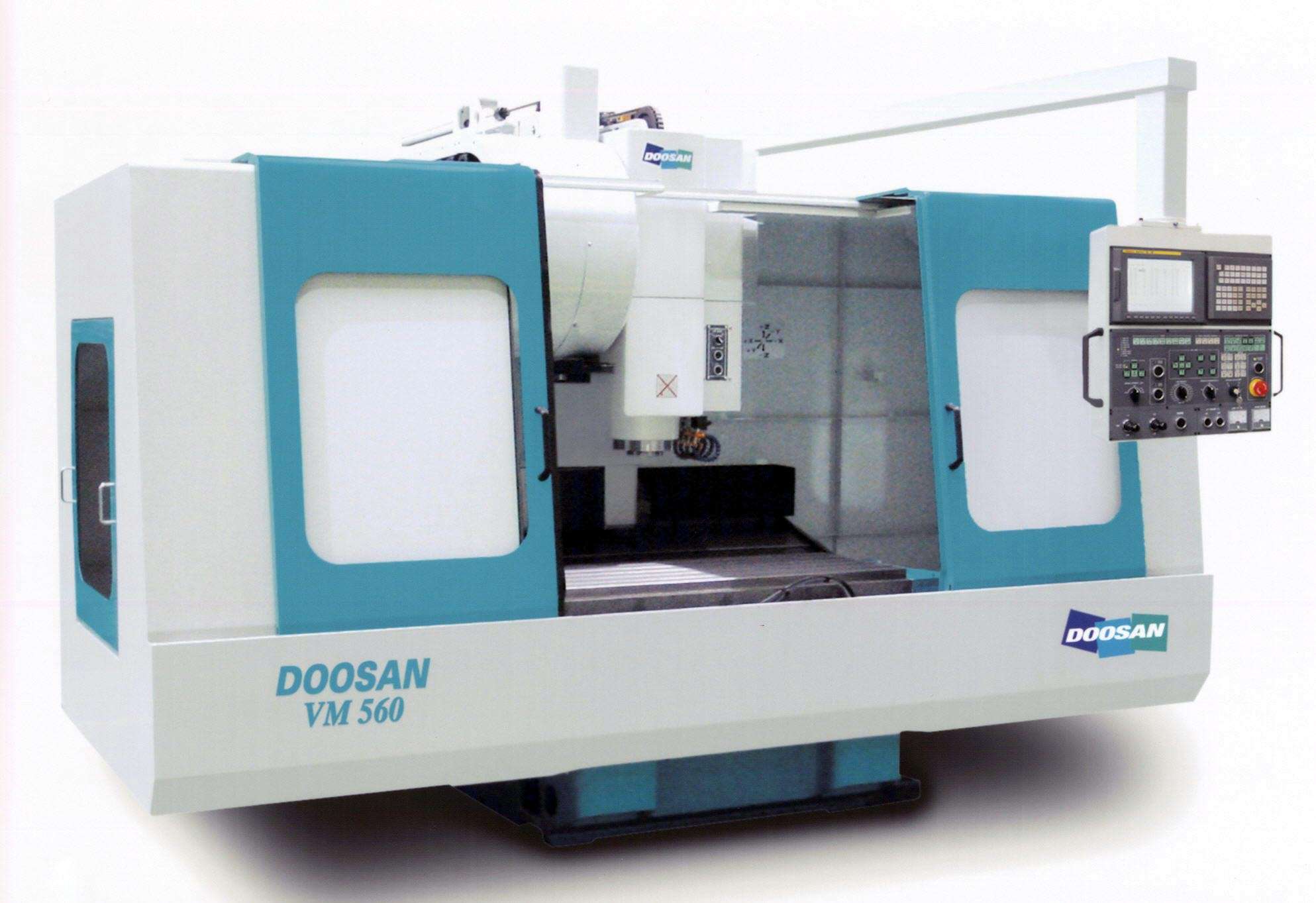

May 09, 2003 Model VM560 features 20/25 hp geared head spindle that delivers 6,000 rpm with 415 lb-ft torque. It includes 1,000 psi spindle thru coolant system, and totally enclosed splash guard. All axes have 3 gibs for long life and easy maintenance. CAT 50/30 tool magazine offers 2.0 sec high speed ATC. Fanuc 18MB control features 160M memory, custom macro B with 600 variables, tool life management, and tool offset memory C with 99 pairs of offsets.

Bell & Gossett    Morton Grove, IL 60053
May 09, 2003 Flange-connection Model SSF-12F/LW employs 115 V motor and consumes only 55 W of power. Suited for domestic hot-water recirculation systems in residential/light-commercial plumbing applications, it has max working pressure of 150 psi and operating temperature of 230°F. DuraGlide® bearing system maintains consistent start-ups, while double-sintered carbon bearings, ceramic shaft, and clearances allow circulator to resist calcium and chloride buildup.
