Qosmedix Div., Qosina Corp.    Edgewood, NY 11717 8329

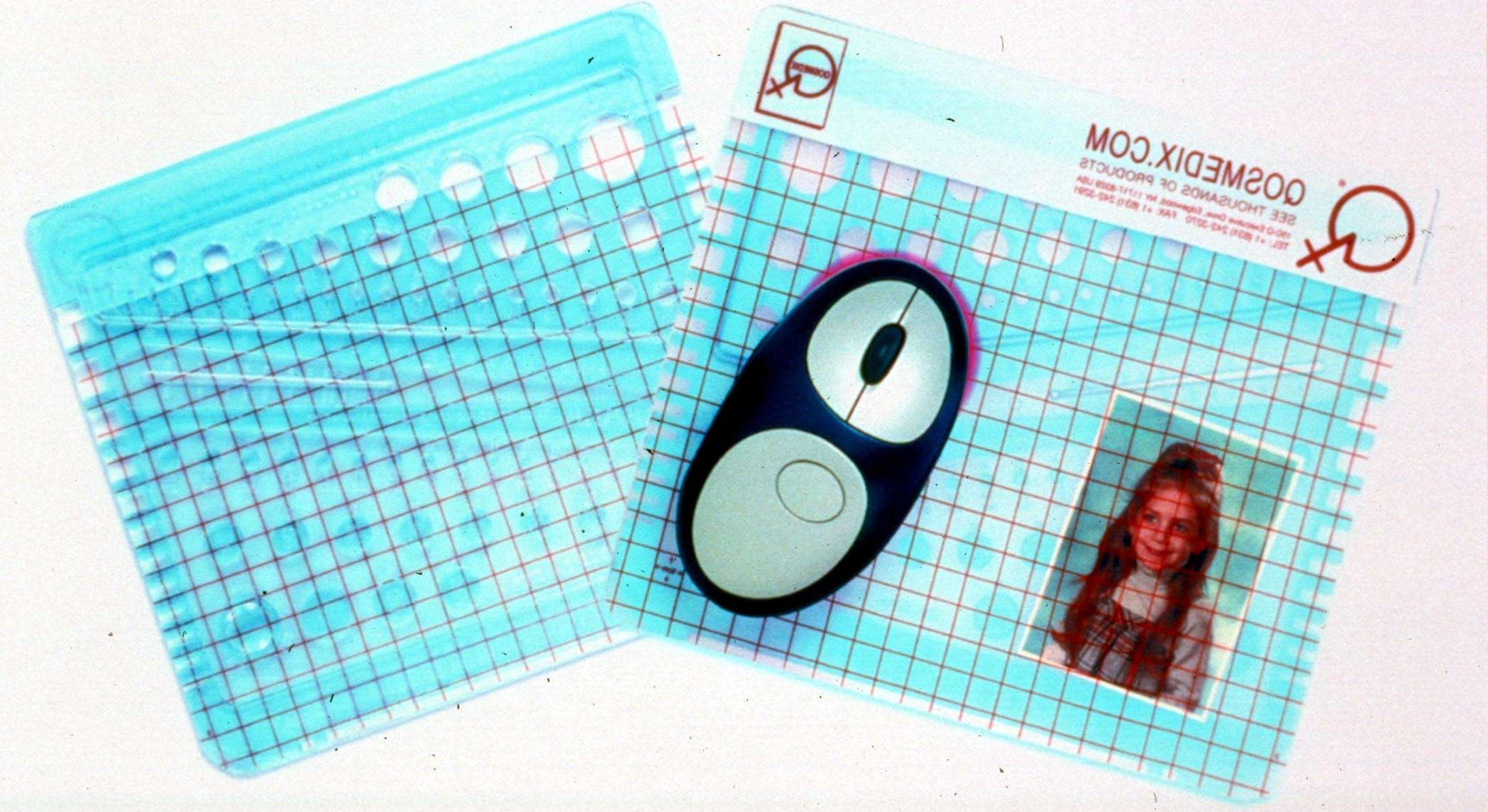

Jun 09, 2003 Part No. 70846 multi-function, crystal styrene mouse pad measures 9 x 8 in. and can be used with mechanical, optical, or wireless mouse. It includes cap gauge, bottleneck gauge, unified and metric diameter thread gauges, OD ring gauges, ID pin gauges, OD tube gauges, needle gauge, magnifying lens, metric and inch ruler, and radius gauge. Translucent, texture Lexan overlay, with 1 cm grid, lifts up so notes or photographs can be placed inside.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988

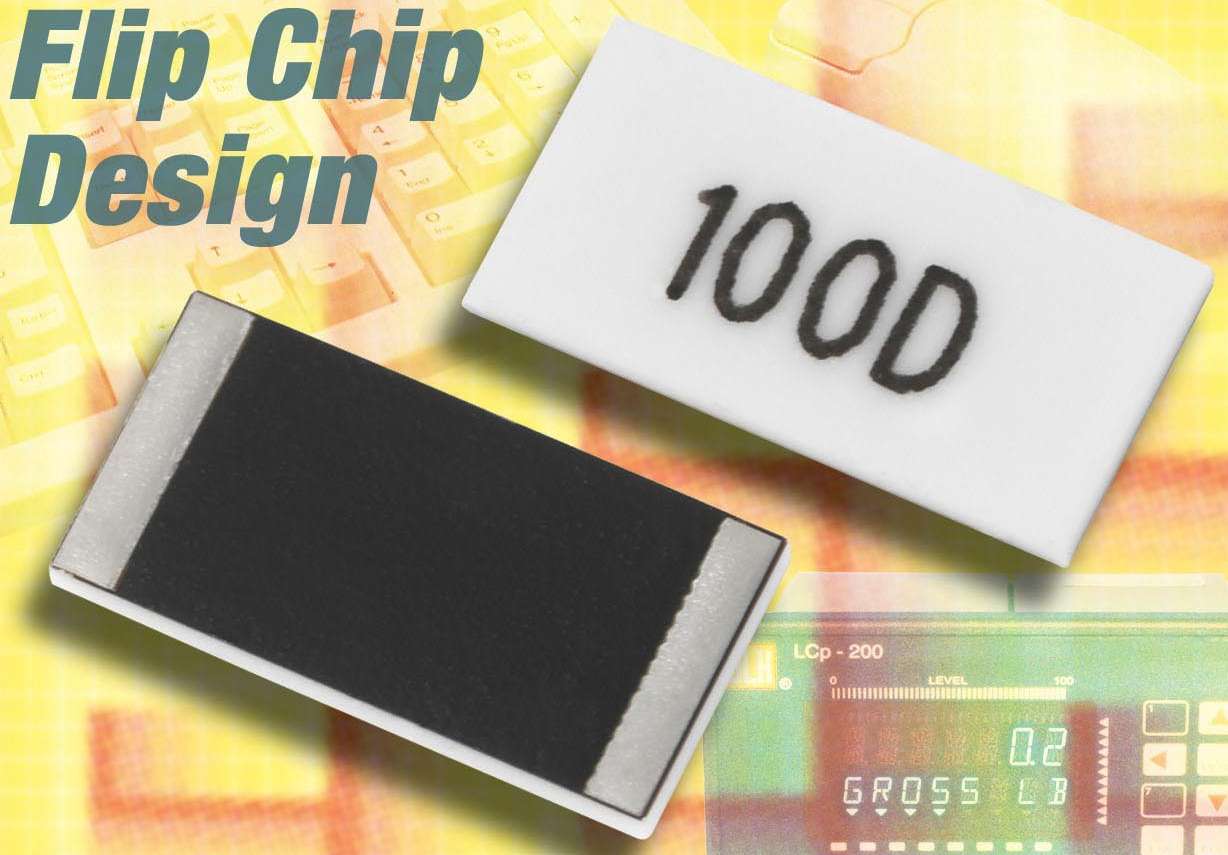

Jun 09, 2003 WSL series surface-mount Power Metal Strip® resistors provide TCR values of 15 ppm/°C and power ratings of 0.25, 0.5, and 1.0 W in respective 1506, 2010, and 2512 case sizes. Extended-range, flip chip resistors use PC board as cooling device and handle various environmental conditions. Series include models WSL1506E, WSL2010E, and WSL2512E, which offer low-noise operation of less than 0.01 mV(rms)/V, voltage coefficient of less than 0.00001%/V, and inductance of less than 0.08 µH.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jun 09, 2003 TotalStorageâ„¢ Ultrium Tape Autoloader 3581 Models L23 and H23 incorporate single Linear Tape-Open (LTO) TotalStorage Ultrium 2 Tape Drive, which offers up to 35 MB/sec native data transfer rate. When used with TotalStorage LTO Ultrium 200 GB Data Cartridge, Ultrium 2 Tape Drive writes data with up to 200 GB native capacity. For connection to various open systems servers, Model L23 comes with LVD Ultra160 SCSI attachment, while Model H23 comes with HVD Ultra SCSI attachment.

Spence Engineering Co., Inc.    Walden, NY 12586-0230
Jun 09, 2003 Figure 860 meets ASME Section VIII for liquid, steam, air, and gas services and is PED compliant. Fixed ring design is constructed of 316 stainless steel (including internals) for corrosion resistance, and soft seat option provides tight shutoff for applications when operating pressure is close to set pressure of valve. Product, available in pressures to 900 psig and temperatures to 422°F, is also suited for cryogenic applications down to -400°F.

CyberResearch, Inc.    Branford, CT 06405 2932
Jun 09, 2003 Series RCP xx14 boards offer 16 or 64 SE channels with 3 counter/timers, 18 DIO lines, deep 4096-sample FIFOs, and independent programmable gain on each channel. Software presents data in scope or chart recorder mode. It acts as waveform-generation tool or digital power supply controller. Package supports FFTs on as many as 64 A/D channels in real-time, while streaming data to disk and Excel® files. It controls DIO port direction and offers event triggering based on analog inputs.

Sprague Products, A Div. Of Curtiss-Wright Flow Control Corp.    Brecksville, OH 44141
Jun 09, 2003 Series SM-3 air-operated mini pumps feature air motor with standard, remote, single cycle, and manual operation. They develop high output pressures by applying principle of differential areas. Large area air piston drives small area fluid piston, that in turn pumps liquids at high pressures. Pumps feature standard mechanical separation, aluminum fluid end for oil service, and stainless steel for water and corrosive service applications.

Ophir Optronics, Inc.    Danvers, MA 01923
Jun 09, 2003 Self-contained BeamStar FX 66 provides measures CW and Pulsed lasers using laptop or desktop personal computer. Connected to PC via one Firewire interface card, product offers software with manual or automatic gain and shutter control adjustments. Laser beam focal point, vertical and horizontal spectral profiles, and beam statistics are displayed on screen. It has aperture of 9.7 x 7.68 nm, 1280 x 1024 pixels, and provides dynamic measurement range of 53 dB.

Kyocera Display America, Inc.    Plymouth, MI 48170

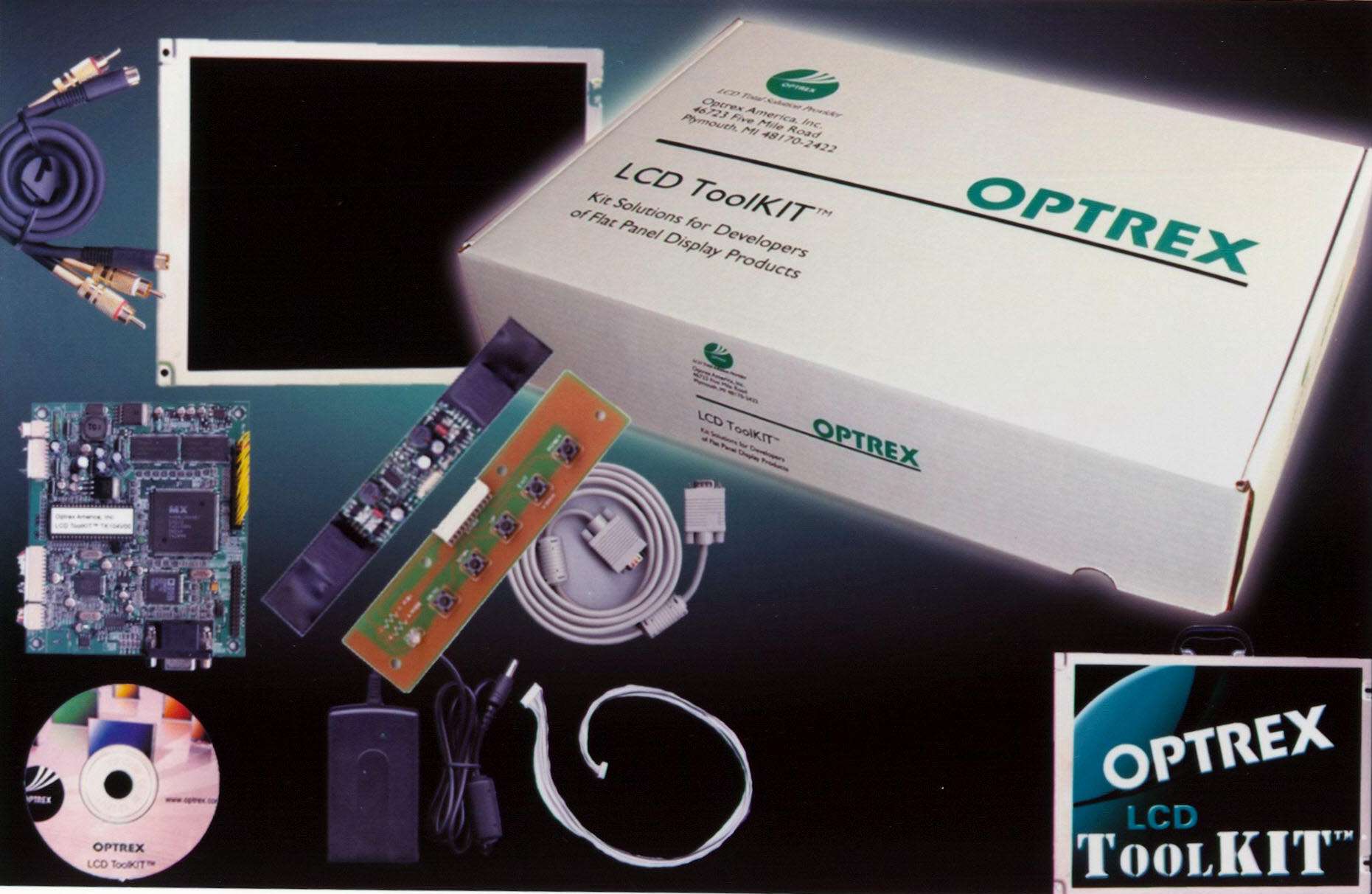

Jun 09, 2003 LCD ToolKIT(TM), suited for developers of products using flat panel displays, contains all components needed to operate display. Offered as 10.4 in. VGA LCD ToolKIT(TM) or 15.0 in. XGA LCD ToolKIT(TM), each kit provides LCD panel, TFT controller board with on-screen display, backlight inverter board and power cable, 12 Vdc power supply and AC line cord, VGA cable, video input cable, and CD-ROM. Supported interfaces include VGA, composite video, and S-video.

Measurement Systems International, Inc. (MSI)    Seattle, WA 98168 4660

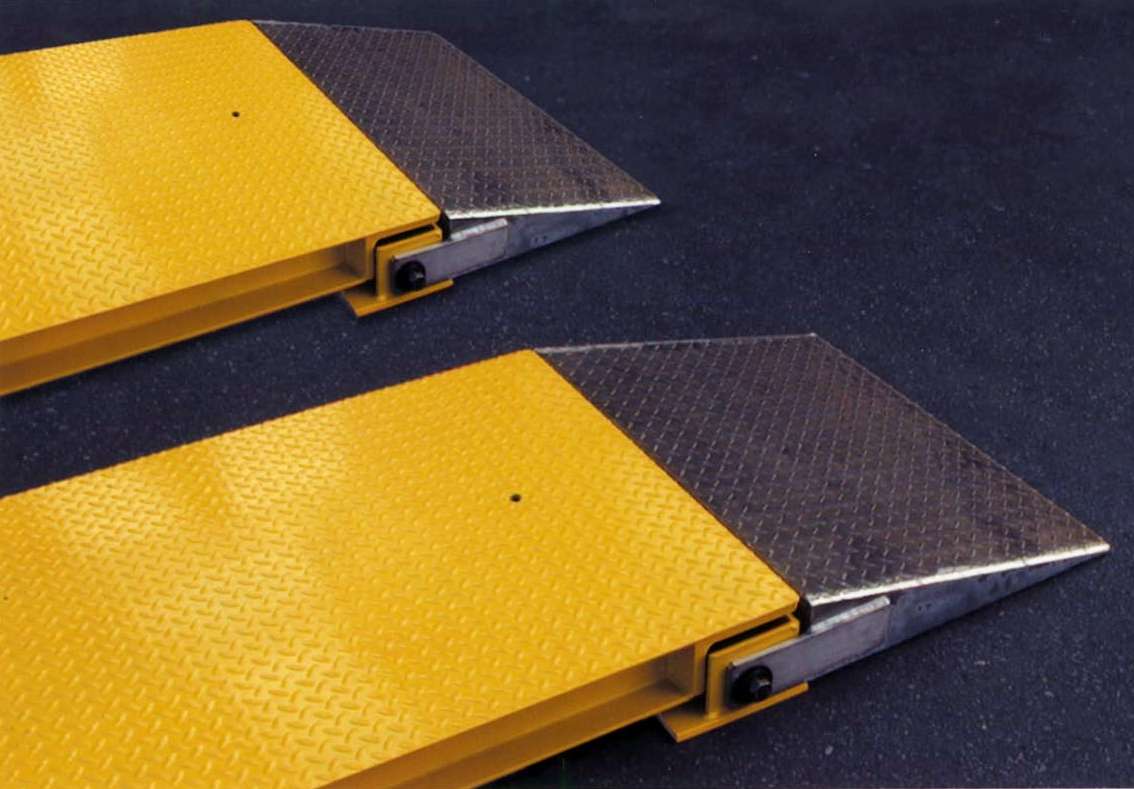

Jun 09, 2003 Use of MSI-5400 AxleMAX enables trucking companies to accurately load vehicles to maximum gross capacity at point of loading and ensure weight is properly dispersed over axle groups. Standard system configuration includes twin weighbridges manufactured from structural steel, each of which contains one pair of sealed load cells. Digital weight indicators, remote scoreboard displays, stop-and-go light sets, and RF wireless systems with CellScale are available.

Aqua Products Co., Inc.    Prosperity, SC 29127

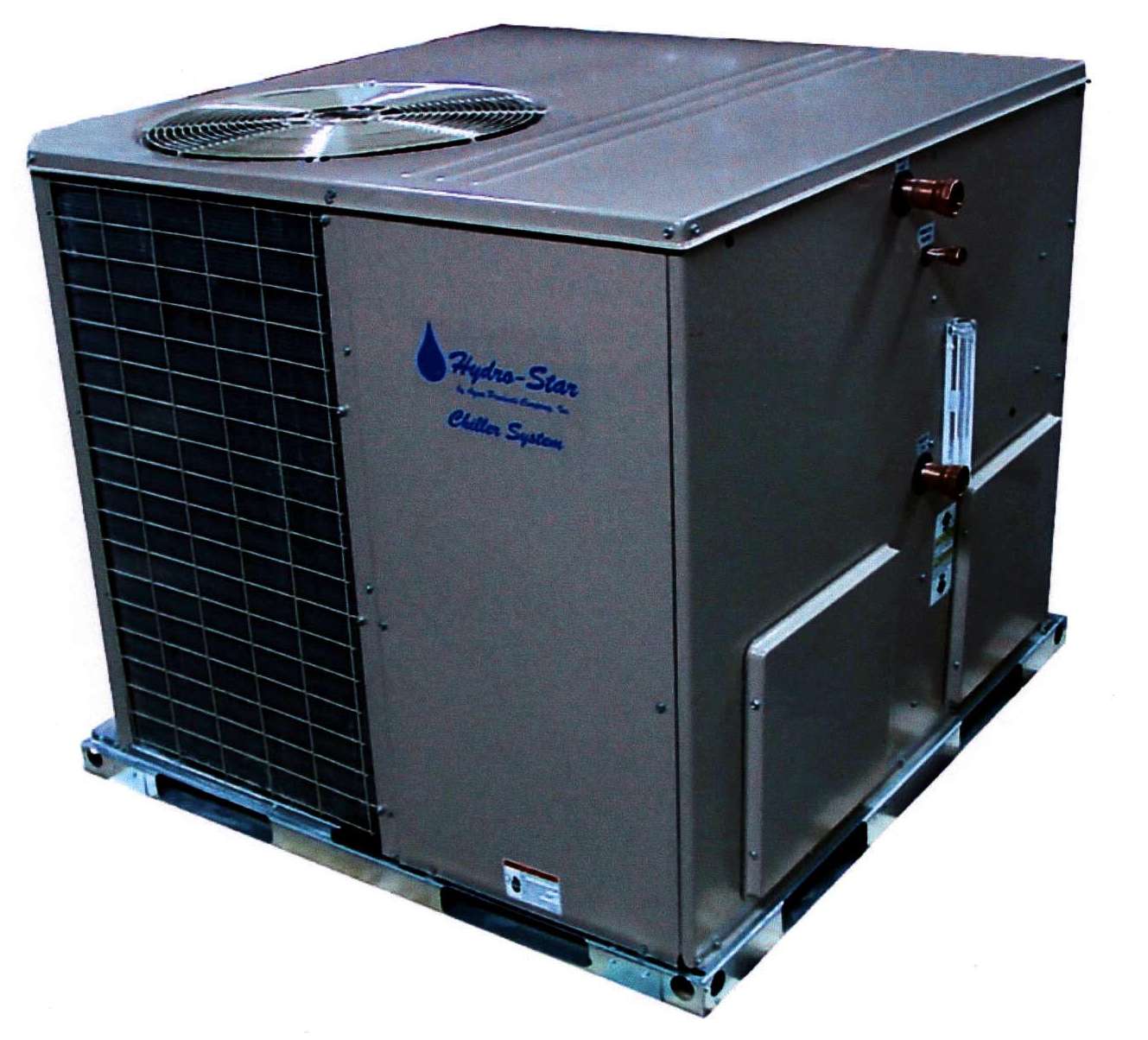

Jun 09, 2003 Aqua RT Chillers, built as straight chillers, can be ordered with optional internal tank and pump built into single horizontal cabinet. With max height of 42 in., products come as 208–230/60/1 or 208–230/60/3 with single point main power. Optional 460/60/3 version is available on some models. Additional offerings include 24 V control system, digital controller, flow switch, and evaporator. Many models are expandable, allowing for staging and redundancy.

Grieve Corporation, The    Round Lake, IL 60073-2898

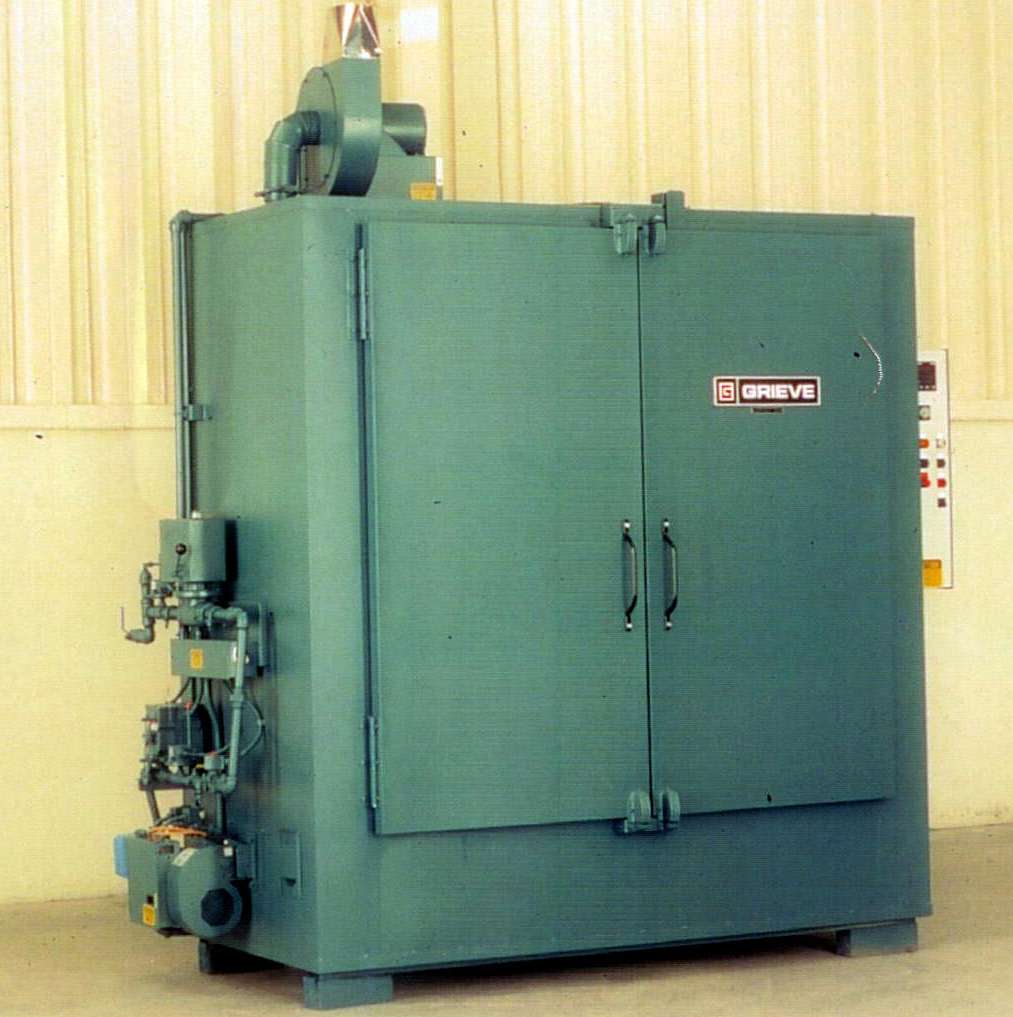

Jun 09, 2003 No. 918 gas-fired, 350°F shelf oven features 1,000 cfm, 1 hp recirculating blower, which provides horizontal airflow to workload. Exterior is aluminized steel and interior is Type 430 stainless steel with 4 in. thick insulated walls, integrally welded construction, and silicone rubber door gasket. Digital indicating temperature controller displays actual and set point values. Two nickel-plated wire shelves are included.

Ansoft Corp.    Pittsburgh, PA 15219
Jun 09, 2003 AnsoftLinksâ„¢ v2.5 interface for Cadence Virtuoso® digital and analog custom IC layout editor is for streamlining design of on-chip passive devices. Interface allows export of circuit layout cells from within Cadence Virtuoso to company's high-frequency and high-speed electromagnetic analysis products. Software also adds support for Mentor Graphics® Board Station® and builds on existing links for Cadence Allegro®, and Cadence Advanced Package Designer.

Multivac, Inc.    Kansas City, MO 64153
Jun 09, 2003 Contoured Packaging Systems can utilize variety of clear, tinted, or opaque films. Using thermoform fill and seal process, packaging is created and filled with products on systems that mold film to fit product, then seal it with top web of film or paperboard. Carded backs and product inserts can be dropped in plastic mold for certain applications. Easy open features can be incorporated, allowing packaging to function as storage and dispensing case.

Aegis Analytical Corporation    Lafayette, CO 80026
Jun 09, 2003 Discoverant GlobalVantage software suite features adaptable architecture to meet biotechnology and pharmaceutical manufacturers' productivity and compliance needs. Discoverant Nexus module allows single-point access to multiple enterprise data sources, as well as manual data records. Discoverant Invision determines optimum performance range, and Discoverant PREP transforms paper-based records into electronic data for analysis.

APCON, Inc.    Wilsonville, OR 97070

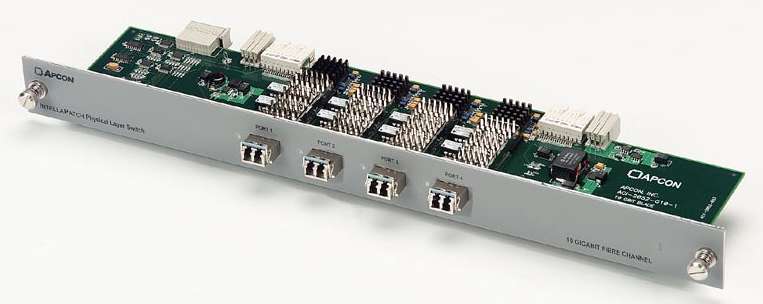

Jun 09, 2003 Enabling users to test gigabit technology, IntellaPatch 144 and IntellaPatch 64 switches incorporate 10-Gigabit blades, which consist of 3 models that support 10 Gb/s Fibre Channel, 10 Gigabit Ethernet, and OC-192. These 4-port blades work with XFP transceivers and single-mode/multi-mode LC fiber optic cables. Switch models offer wire-once solution, eliminating manual patching and re-patching and provide non-blocking, any-to-any connections at wire speed.

LeapPoint Technologies    Ann Arbor, MI 48105
Jun 09, 2003 AiroPoint 3600 v3.0 includes support for Wi-Fi Protected Access (WPA) Specification and includes wireless wizard for installation. Wireless LAN access control and security solution, based on 802.1x security standard, is configured with browser-based interface. List of supported EAP types includes EAP-MD5, EAP-TLS, EAP-LEAP, EAP-TTLS, and EAP-PEAP. With complete AAA, product provides authentication, authorization, and accounting services.

Advanced Power Technology    Bend, OR 97702
Jun 09, 2003 Lateral diffusion metal oxide semiconductor (LDMOS) transistors model 1011LD110 performs at 110 W peak, and model 1011LD200 performs at 200 W peak. Devices are for Avionics pulsed power amplifier market and offer gold metalization and use ceramic flange mount packages. Transistors offer 13 dB and 12 dB of gain respectively over the band 1,030 to 1,090 MHz. They are for operation at 32 V and include internal pre match optimized for operating frequency band.

Advanced Power Technology    Bend, OR 97702
Jun 09, 2003 ARF465A/B and ARF1505 RF power MOSFETs are for high power, RF generator and amplifier applications, below 50 MHz. Devices feature power dissipation of 250 and 1,500 W respectively and withstand operating voltages to 300 V where 1,200 V breakdown rating gives 4x safety factor required for class E or C-E operation. ARF1505 Power MOSFET produces 750 W of 27 MHz RF power with single device in 1 x 1 in. footprint.

Cree, Inc.    Durham, NC 27703
Jun 09, 2003 MegaBright® Plus(TM) and XBright® Plus(TM) blue light emitting diodes are both offered in 460 nm and 470 nm versions. MB Plus products rated 470 nm have minimum radiant flux of 12 mW with typical radiant flux of 13 mW, while 470 nm XB Plus products have minimum radiant flux of 15 mW with typical radiant flux of 17 mW. Products are suited for white LED backlighting of mobile appliance color liquid crystal displays.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jun 09, 2003 Ultrium Tape Cartridge 3589 provides ability to order pre-labeled or bulk-packaged IBM Ultrium 200 GB Tape Cartridges which are based on linear tape-open format. Model 006 is labeled with starting volume serial information and optionally packed in individual jewel cases. Model 007 is packed in individual jewel cases with 2 non-attached blank labels. Cartridge memory stores access history and media performance information for use by tape drive every time cartridge is accessed.
