CRC Industries, Inc.    Warminster, PA 18974
May 16, 2003 Germicidal Foam cleans, disinfects, and deodorizes with aqueous based formula that clings to vertical surfaces without runs or drips. Product controls mold and mildew and is effective against Staph, Salmonella, and other bacteria. Product has low VOC content and is NSF C1 registered for use in meat and poultry plants. Cleaner is biodegradable, non-abrasive, non-flammable, and leaves no sticky residue.

Agere Systems    Allentown, PA 18109-3286
May 16, 2003 Integrated, single-chip, Voice-over-Internet-Protocol Models T8300 and T8303 feature dual and single Ethernet ports, respectively. They support wide-band codecs, 3-way teleconferencing, and full-duplex speakerphone with self-adaptive Acoustic Echo Cancellation. Chips combine DSP 1600 core with ARM940T microcontroller, allowing manufacturers to use same software for range of IP phone designs. They include 96 Kbytes ROM and 56 Kbytes RAM.

Columbia Machine Inc.    Vancouver, WA 98661
May 16, 2003 Product Manager Software provides graphical means to manage product codes, plus database to store patterns for running multiple products on same machine. Modification, adjustment or addition of new configurations is simplified without need to connect PLC to laptop computer. Software allows same pattern configuration to be used for several products. It can be installed on control panel or operator station, and includes data entry screen and help screens.

Klein Tools, Inc.    Lincolnshire, IL 60069

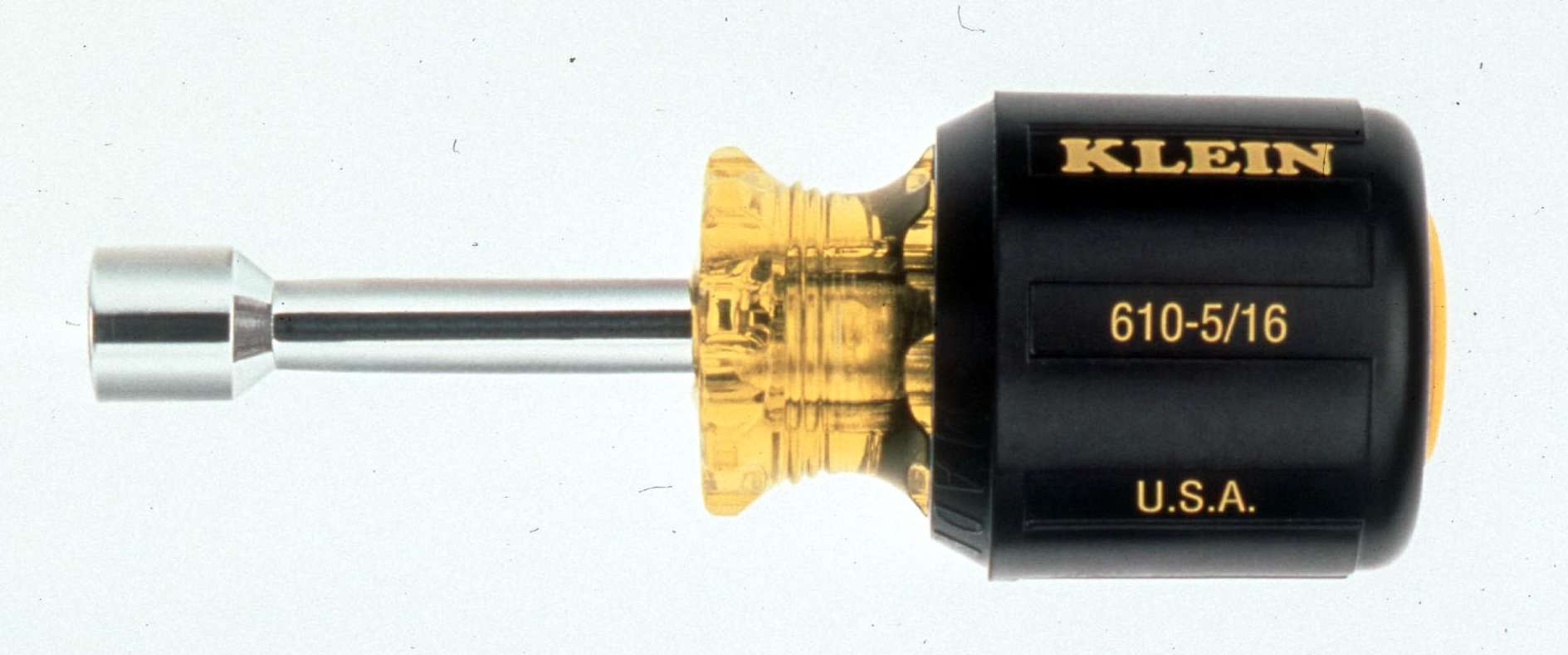

May 16, 2003 Model No. 610-1/4 and 610-5/16 are made for ¼ and 5/16 in. hex sizes, respectively. Tool shafts measure 1 ½ in. long with overall length of 3 ½ in. Internal flanges provide solid, twist-resistant shaft anchor. Corrosion-resistant, chrome plated shafts are hollow to allow work on long bolts or studs. Color-coded Tip-Ident® feature on end of handle identifies nut driver's size and hex orientation. Tools meet or exceed ANSI and MIL specifications.

Shuman Plastics, Inc.    Depew, NY 14043
May 16, 2003 Flame retardant, FR310 Utility Black and FR380 Gray compounds are self-extinguising and chemical resistant. Tested in compliance with ASTM methodology, they have IZOD impact strength of 9 lb-ft/in. ± 1.5 based on notched, 1/8 in. thick trial specimen. Tensile strength is 7,000 psi ± 1,000, flex modulus is 350,000 psi ± 30,000, and flame class rating is V0. Compounds should be processed at 460–530°F with dehumidified drying for 3-4 hr at 175–230°F.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
May 16, 2003 Series LP385x CMOS LDO regulators feature output currents of 1.5 and 3.0 A, logic-controlled on/off, error flag or separate sense pin, over-temperature, and over-current protection. Typical dropout voltage is 240 mV at 1.5 A and 390 mV at 3.0 A load, allowing designers to generate high-eeficiency 2.5 V output from 3.3 V supply up to 2.5 A. Output-voltage accuracy is ±1.5% at room temperature over load and line variations.

Moeller Electric Corp.    Houston, TX 77032

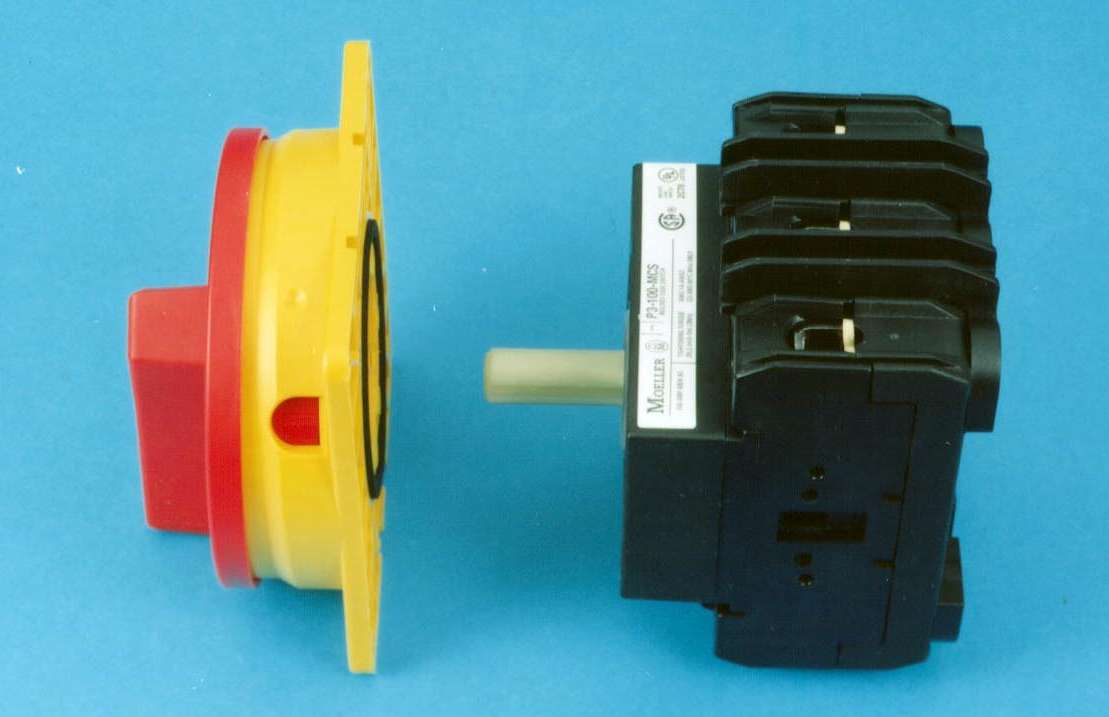

May 16, 2003 Molded Case Switches are European IEC style disconnect switches that meet IEC/EN 60947-3, IEC/EN 60 204, and UL 489 standards for domestic and worldwide applications. Offered in 30, 60, and 100 A sizes, switches can be cover or base mounted and include door interlocking handle for added safety. They are suitable for control panels, as lockout/tagout disconnects, and as emergency off switches.

ATOFINA Chemicals, Inc. (Corporate)    Philadelphia, PA 19103 3222
May 15, 2003 Certincoat® Low E flat glass coatings, for window manufacterers, are pyrolytic hard coatings for cold climates. They carry high solar heat gain coefficient to utilize sun's energy. Solar Selective SunEâ„¢ glass coatings, developed for hot climates, are hard ceramic coatings that cut energy costs by combining solar selectivity with low emissivity. Specialty glass coatings provide transparent conductive surface, improve adhesion, or drain electrostatic charges.

Master Systems    Salt Lake City, VA 84111-3309
May 15, 2003 SMALL PROJECT v2003, for use with AIA Documents A105/A205 and B155, includes library with 195 abbreviated specification sections for projects modest in size, scope, and complexity and/or those brief in duration. Users can license Version 2003 automated construction specification system with up-to-date MASTERSPEC, supporting reference documents and Internet resources for each section. Each section follows CSI guidelines and covers construction topics from Divisions 1–16.

Kerk Motion Products, Inc.    Hollis, NH 03049

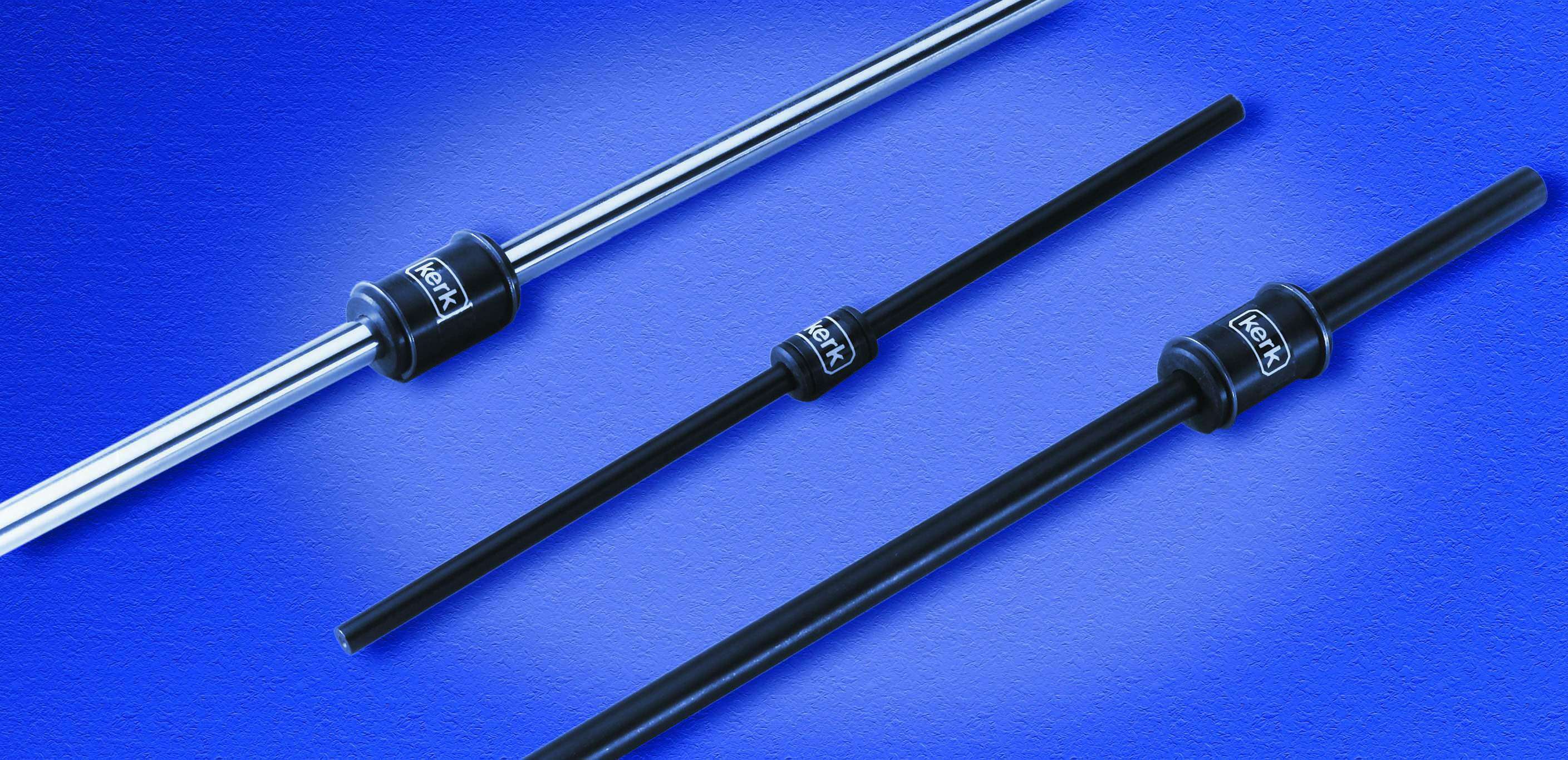

May 15, 2003 Extended-wear Series LR consists of centerless, ground and burnished, stainless steel shaft, mated with graphite- and PTFE-filled thermoplastic bushing, formulated so thermal fluctuations have minimal effect on performance. Standard shaft straightness is .002 in./ft. Typical radial clearance between shaft and bushing is .0005 in. on non-coated assemblies and .001 in. on TFE-coated assemblies. Sizes include ¼, 3/8, ½, and ¾ in. nominal diameters.

Trus Joist, A Weyerhaeuser Business    Boise, ID 83706
May 15, 2003 Manufactured from two 1 ½ in. thick plies of 1.5 E TimberStrand® LSL, TJ9 has rigid foam core and provides insulation value of R15. Suited for 2 x 6 walls in various depths, header allows for one-piece installation and is stocked in lengths of 17 ft to 6 in. Environmentally friendly TimberStrand® LSL is manufactured from aspen and yellow poplar in process that randomizes wood's natural strength-reducing defects, providing consistent, reliable products.

Leutrek Vision, Inc.    Burlington, MA 01803

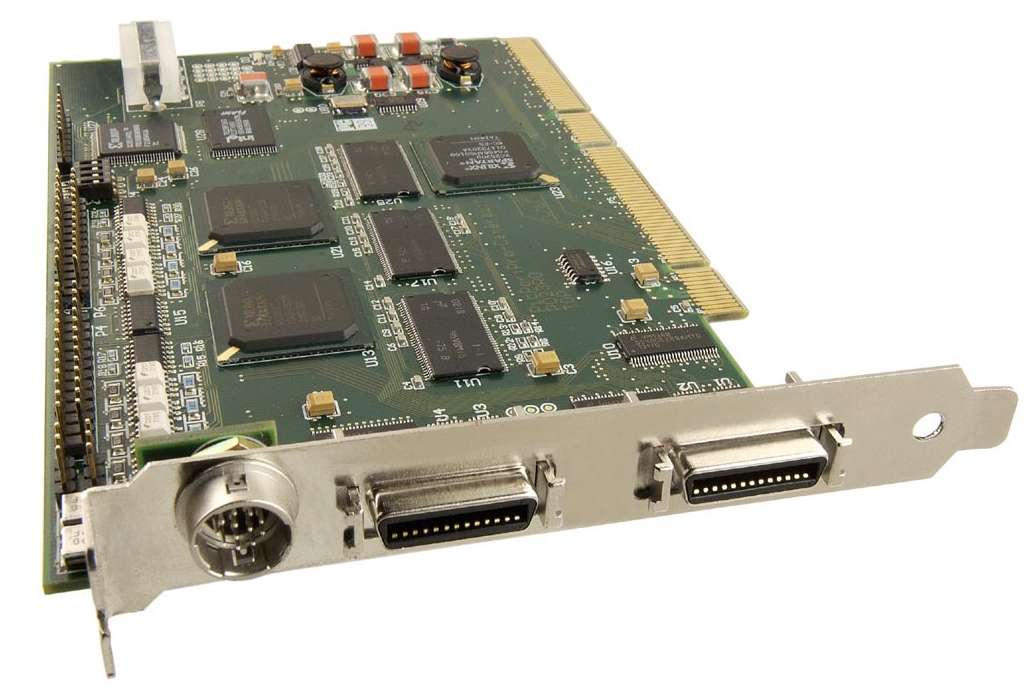

May 15, 2003 PicPort-Pro-CL-Stereo CameraLink digital frame-grabber utilizes architecture based on field-reprogrammable FPGA technology. With support for 64-bit/66 MHz PCI Bus, product acquires images from 2 base or one medium CameraLink cameras. Board also incorporates 32 MB Advanced Frame Buffer (AFB) that delivers 700+ MB/s bandwidth and formats incoming data into processing-ready image. Unit has 8/8 opto-isolated, 4/4 LVDS, and 8/10 TTL Inputs/Outputs.

Archibus Inc.    Boston, MA 02108

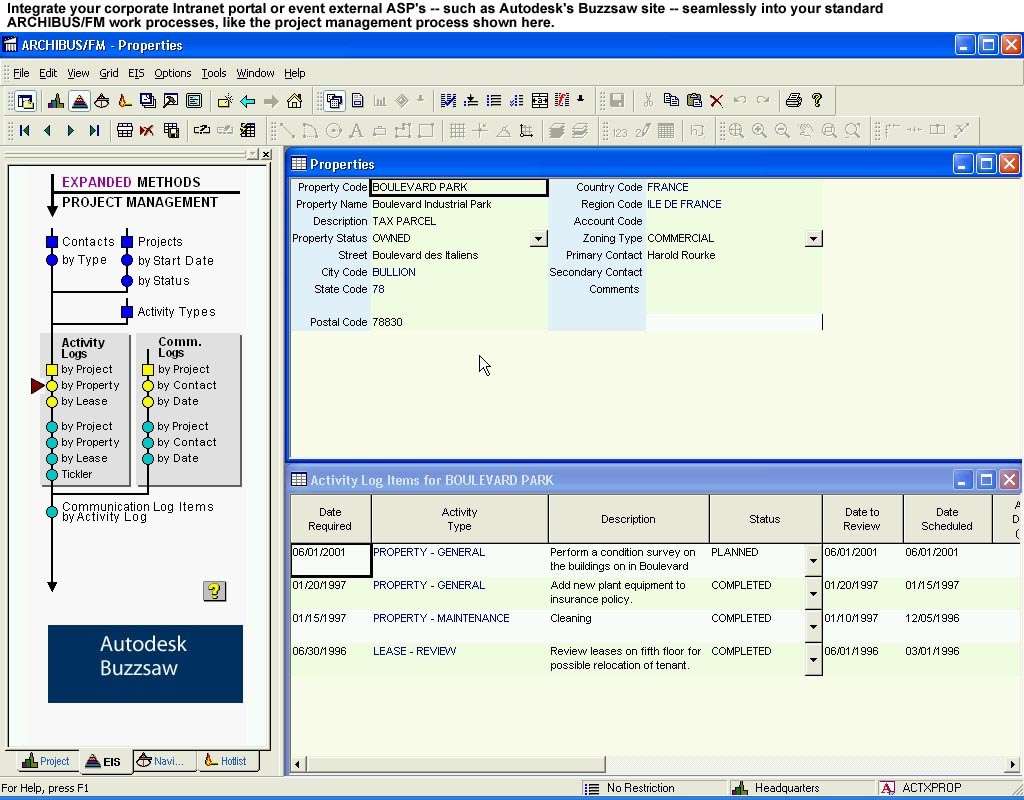

May 15, 2003 ARCHIBUS/FM v14 facilities and infrastructure management software leverages drawing tools from AutoCAD, allowing user to view, update, maintain, and share information. AutoCAD features can be invoked from within ARCHIBUS/FM environment for integrated text and drawing reports. Productivity tools include Multiple Drawing Interface, enhanced drag-and-drop functionality, true color support for graphic data, and text options to help users visualize physical assets.

Trus Joist, A Weyerhaeuser Business    Boise, ID 83706
May 15, 2003 Suited for narrow aspect ratio applications in seismic regions, TJ®-Shear Panel has concentric design that, combined with properties of TimberStrand® LSL, results in consistent, predictable performance. All panel sizes use two 7/8 in. anchor bolts for foundation connection, thereby reducing installation time. Pre-drilled access holes provide room for electrical wiring and fixtures without field modification.

Trus Joist, A Weyerhaeuser Business    Boise, ID 83706
May 15, 2003 TimberStrand® laminated strand lumber (LSL) is treated with StrandGuardâ„¢ process for protection against wood-destroying insects and decay. Zinc-borate used in process is EPA-registered biocide, and is safe for people and environment. Treated sill plates, columns, and studs are straight and true, installing with minimal waste. Product is authorized for applications that fall within American Wood-Preservers' Association Use Categories 1 or 2.

Sub-Zero Freezer Co., Inc.    Madison, WI 53744 4130
May 15, 2003 Stainless steel dual fuel range is offered in 16 different size/feature configurations. Electric oven includes 2 convection fans and 4 heating elements for control over 8 cooking modes. All-glass electronic control panel is hidden to create clean, minimalist look. Oven knobs feature digital temperature readout. Burners deliver up to 15,000 BTUs. Dual-stacked design uses upper-level burner for max heat transfer and lower-level burner for simmering on all burners.

Georgia-Pacific Corp.    Atlanta, GA 30303-1801
May 15, 2003 DensArmorâ„¢ uses proprietary Dens Technology and consists of noncombustible gypsum core with coated glass mat on back and smooth, heavy-duty paper on face. DensArmorâ„¢ Plus interior panel employs noncombustible gypsum core reinforced with inorganic glass fibers and coated glass mat facings on face and back of board. It resists warping, rippling, and buckling and exhibits zero flame spread. Both boards are moisture-resistant and inhibit mold/mildew growth.

Pactiv Corp.    Lake Forest, IL 60045
May 15, 2003 GreenGuard® RainDropâ„¢ utilizes moisture management technology that acts as water barrier: vertical cords every few centimeters along face of housewrap create drainage channels that divert bulk water straight down to base of exterior wall. Channels dry quickly due to facilitated airflow and will not crush, even when hard-backed siding is fastened to wall over product. Material comes in 9 x 100 ft and 9 x 150 ft rolls.

Pactiv Corp.    Lake Forest, IL 60045
May 15, 2003 GreenGuard® BACKER-PROâ„¢ made-to-fit fanfold underlayment aids in installing vinyl siding. Contoured to fill hollow spaces between vinyl siding and exterior wall, product increases impact resistance of siding as well as thermal efficiency of wall. Made from closed cell extruded polystyrene, product is moisture-resistant to help prevent warping and moisture build-up inside walls. It measures ¼ in. thick and is available in 45 in. x 24 ft fanfolds.

Pactiv Corp.    Lake Forest, IL 60045
May 15, 2003 GreenGuard® PLYGOOD®-Ultra rigid sheathing provides insulation R-value of 2.0 in 7/16 in. thickness and 1.5 R-value in 3/8 in. thickness. Featuring extruded polystyrene foam core and reinforcing woven facer, sheathing's moisture absorption is less than ½ %, which means it won't swell or warp. Sheets come in 4 x 8 and 4 x 9 ft sizes. Each 4 x 8 ft sheet weighs 4 lb, cuts with utility knife, and may be installed using pneumatic staple gun.
