Andax Environmental    Rutherford, NJ 07070

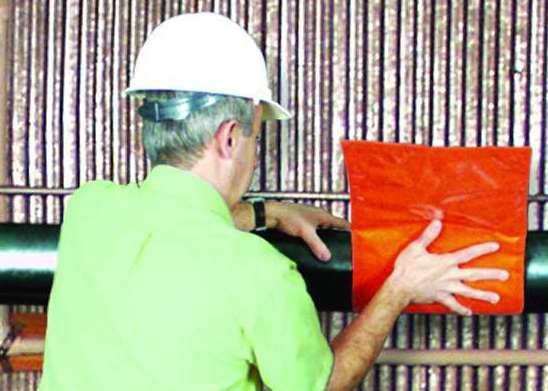

Jun 17, 2003 Wrap-Itâ„¢ has high-visibility orange color scheme and is available in 2 standard sizes for leaking pipes, flanges, and unions. Absorbent product can be made up to 48 in. wide and up to 6 ft long. Lining soaks up drips and leaks, providing short or long-term solution. Velcro® option is offered for nuisance drips and leaks that cannot be fixed right away, while permanent adhesive version provides long-term repair.

ImageVision Inc.    La Grange, TX 78945

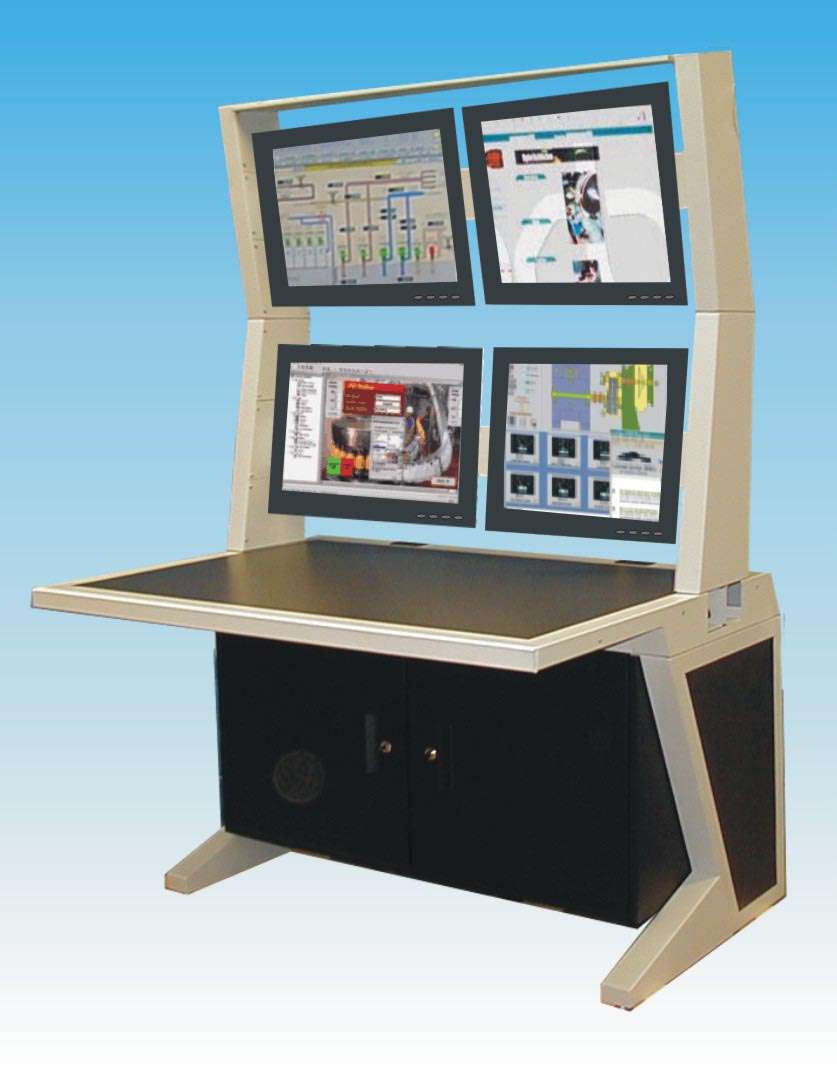

Jun 17, 2003 AgileVIEWâ„¢ supports LCD and gas-plasma flat screens positioned on single- or double-width units, up to 3 tiers high, with adjustable tilt and pivot monitor mounts. Factory-installed power and video cables are provided in integral wireways, which allow for separation of power and control wiring. Lockable cabinets below work surfaces are provided with slide-out style trays. Equipment sub-panels or 19 in. EIA racks are available.

Kinetic Systems, Inc.    Boston, MA 02131

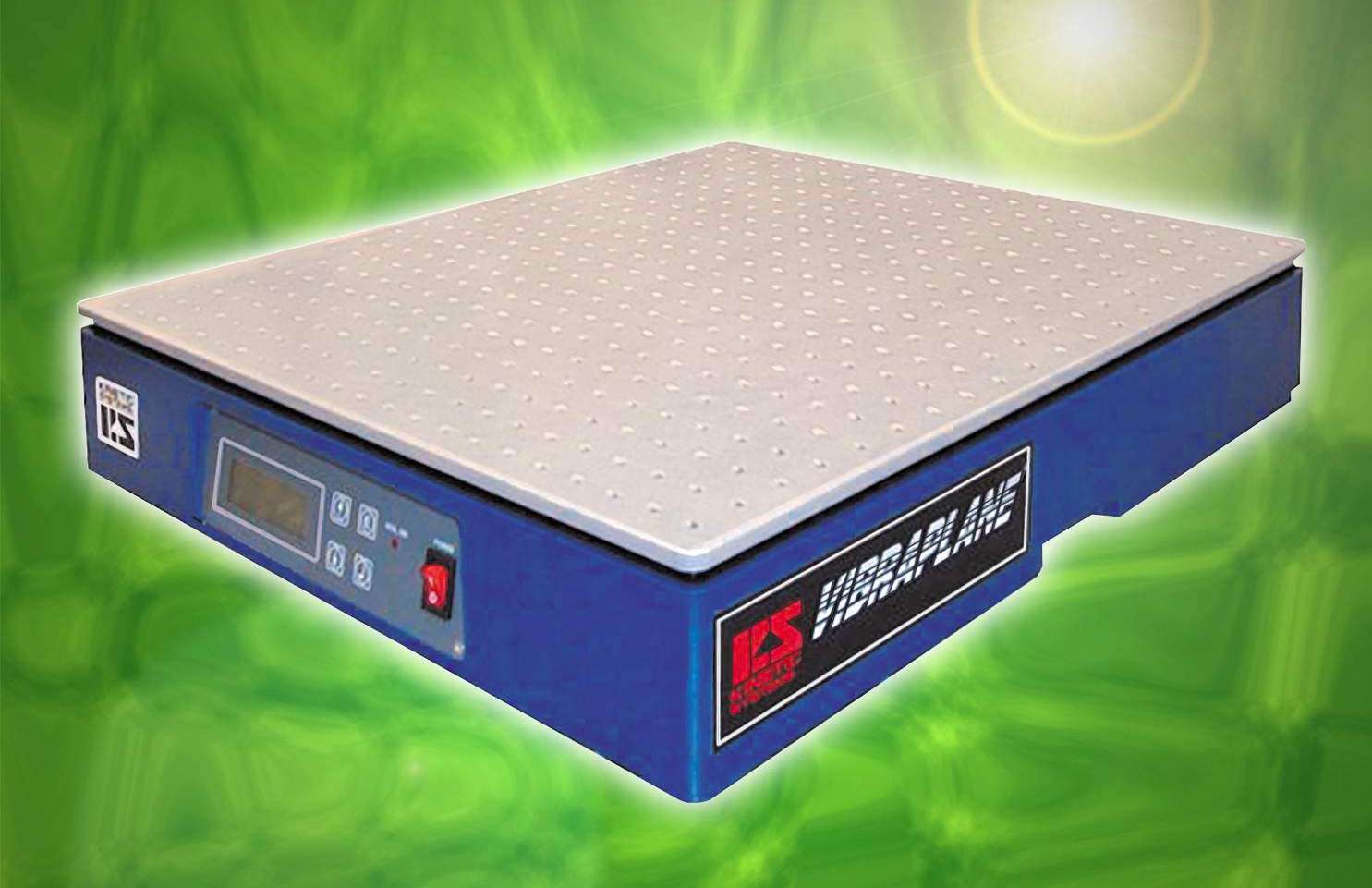

Jun 17, 2003 Portable, tabletop Series 8000 uses active feedback to achieve high levels of vibration isolation for high-resolution instruments. It dynamically isolates all 6 possible translational and rotational modes of vibration with low natural frequency of 0.7 Hz. Microprocessor-controlled, automatic leveling mechanism rapidly adjusts to different loads up to 330 lb without user intervention. Isolation begins at 1.0 Hz and increases rapidly to 40 dB at 10 Hz.

C & D Technologies    Mansfield, MA 02048-1151
Jun 17, 2003 Series ULQ single-output, quarter-brick DC/DC power converters are fully rated for 15, 20, and 25 A output currents and are aimed at 8-15 A applications. They deliver full rated output power/current at 70°C with 200 lfm air flow. Output voltages are 1.2, 1.5, 1.8, 2, 2.5, and 3.3 V. Input voltages are either 24 V or 48 V nom. All models offer 2250 Vdc isolation and line/load regulation of ±0.5%/±0.5% max. They meet UL/EN60950 safety requirements for BASIC insulation.

Post Glover Resistors, Inc.    Erlanger, KY 41018
Jun 17, 2003 PulserPlusâ„¢ utilizes digital display on control panel to provide readouts for neutral-ground voltage and neutral amperage values. Personnel can set limits to exact values. When PulserPlus detects ground fault, control unit activates alarm beeper and LED lights announce fault, as do FORM C dry alarm contacts. Digital data communications capability allows alarms to be sent to one or several remote locations as soon as they are activated. Data Log records date and time of fault.

Fastener Technology Corp.    North Hollywood, CA 91605

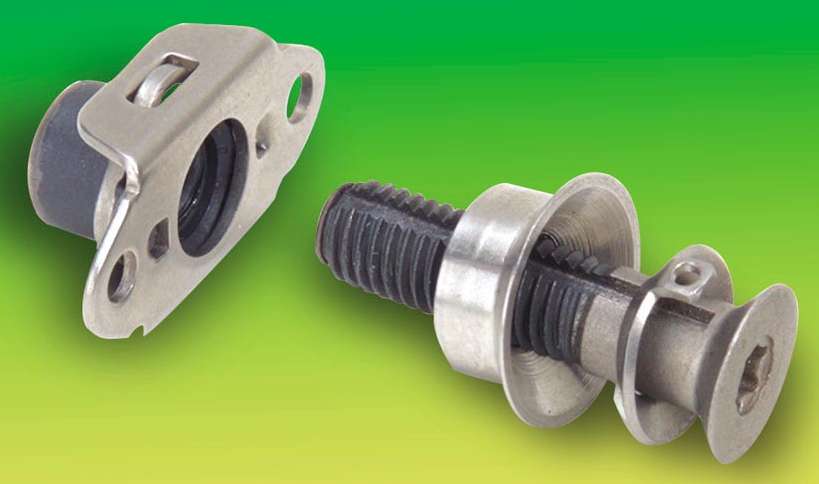

Jun 17, 2003 Designed with screw, bearing washer, retaining ring, grommet, and receptacle, fastening system can be preassembled as one unit per custom specifications. Product has flaring tip shape and hold out feature that aids in installation and removal of fastener. Offered in stainless steel, steel, or titanium, product is available in various sizes with 4 optional recesses: Hex, 6-lobe, offset cross, and cross recess.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988

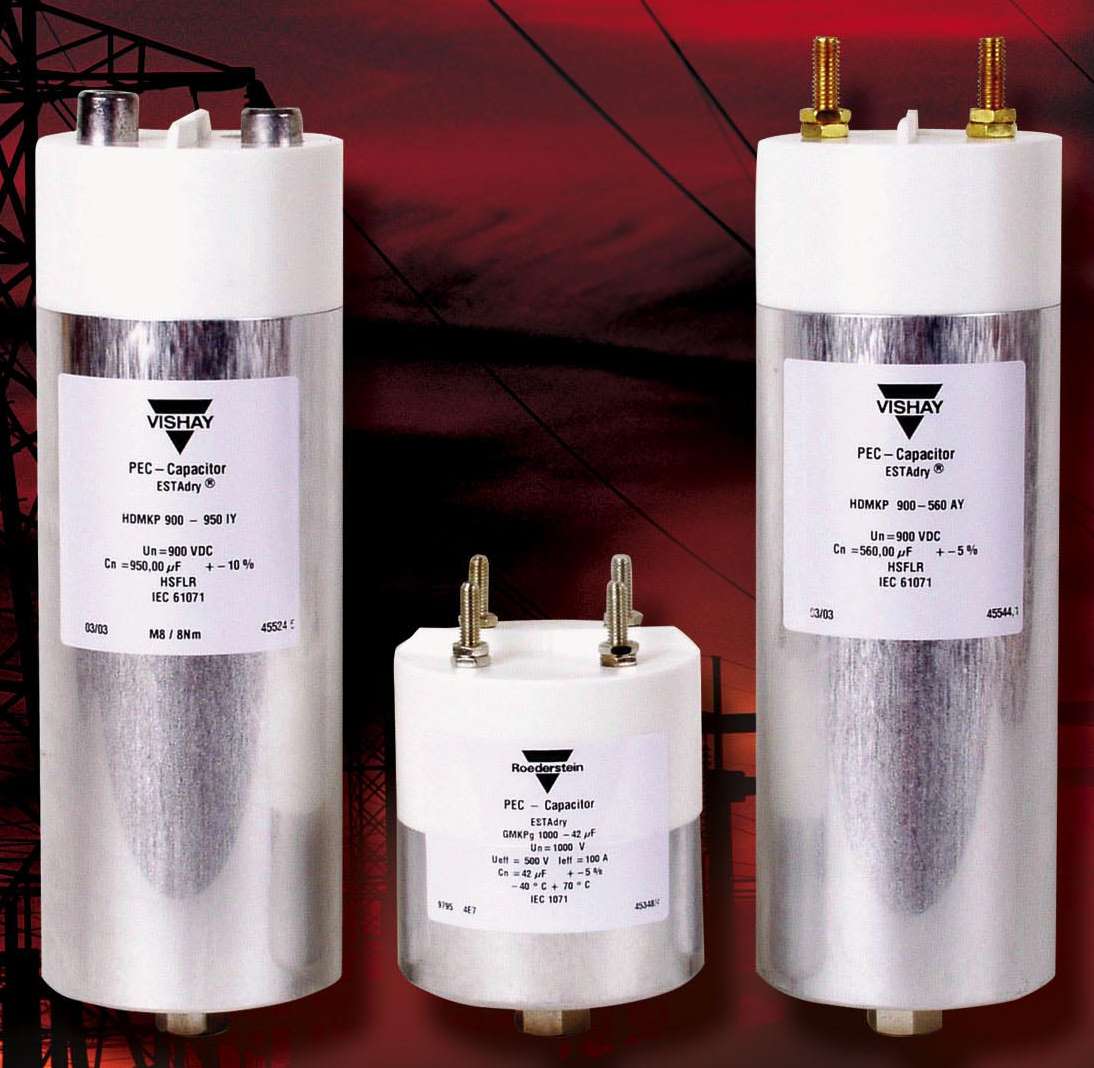

Jun 17, 2003 Heavy-duty ESTA HDMKP power capacitors serve as solutions for dc and ac filtering and for dc linking in UPS and in power converters. Inductance is less than 50 nH, dissipation factor is less than 8 x 10^-4 @ 1 kHz, and resistance is less than 5 milliohms. Offered in 6 voltages from 900–2700 Vdc and 220–660 Vac, devices have capacitance values from 40–1100 µF. Shock- and vibration-resistant units incorporate non-polar dielectric housed in aluminum/lathene casing with dry resin filling.

Extrusion Solutions, LLC    Las Vegas, NV 89120
Jun 17, 2003 VacuWipeâ„¢ features vacuum action from compressed air that removes water droplets without whipping action. Vacuum holds product securely to rollers, preventing drag during operation. Moisture and impurities in air compressor lines are routed to drain, preventing contamination of extruded product.

Synario Design Automation Div., Data I/O Corp.    Redmond, WA 98073 9746
Jun 17, 2003 TaskLink v5.0 integrates programming operation throughout engineering, NPI, and manufacturing processes and includes network communication for Data I/O FlashCOREâ„¢ based programming systems. FlashCORE high-speed programming architecture underlies automated inline programming system ProLINE-RoadRunnerâ„¢, high-speed offline-handler PS300â„¢ FlashCORE, and FlashPAKâ„¢ desktop programming systems.

Snap-on Industrial    Kenosha, WI 53141 1410

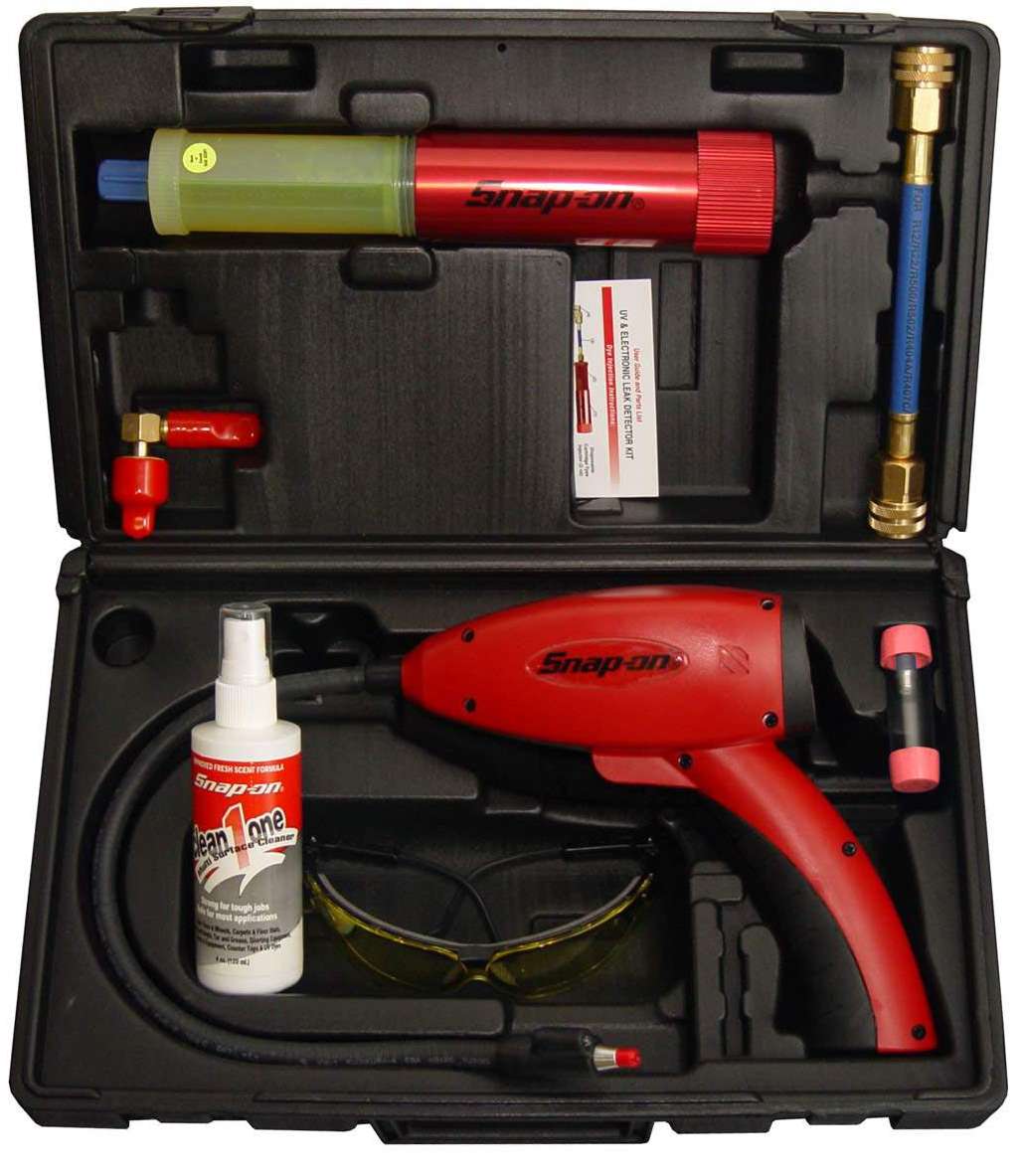

Jun 17, 2003 ACTCOMBO kit offers electronic and ultraviolet leak detection in one set. After injecting dye in A/C system, ACT755 detector senses refrigerant gas leaks as low as 0.1 oz per year, while UV dye-enhancing light visually identifies leaks. ACTUVQUADKT A/C Leak Detection Kit also includes UV enhancing glasses, 10 applications of A/C dye, R134a connection hose, R12 refrigerant adapter, 10 information labels, 1 oz coolant dye, and 1 oz oil/fuel/ATF.

Fluid Metering Inc.    Syosset, NY 11791

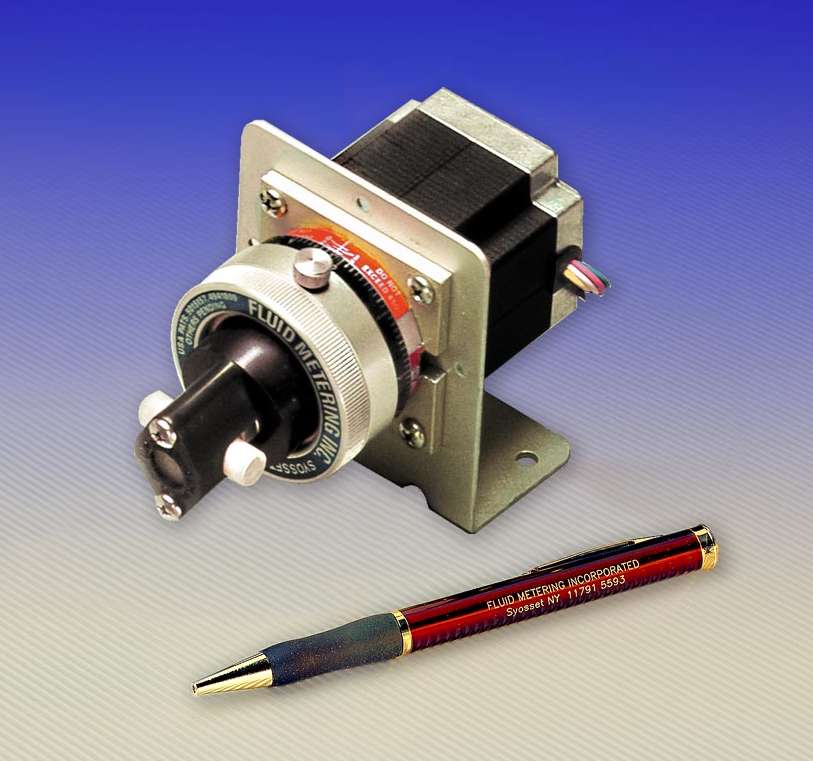

Jun 17, 2003 Model STRH integrates CeramPump® valveless piston pump with stepper control. Piston stroke displacement is adjusted using flow control ring, graduated in 450 divisions, resulting in accuracy of 1% or better. Low dead volume pump head ensures maximum bubble clearing and provides stroke to stroke precision of 0.5% or better. Unit dispenses 0–100 µl/stroke up to 50 ml/min continuous metering at pressures up to 100 psig. It is suitable for analytical and process instrumentation.

Acton Research Corp.    Acton, MA 01720
Jun 17, 2003 SpectraPro® 2000 Series features on-board filter wheel control and optional dual spectrograph ports. Focal lengths include 150, 300, 500, and 750 mm. USB interface is compatible with Roper Scientific CCDs and permits control as either monochromator or spectrograph from laptop computer. Dual spectrograph ports permit user to equip SpectraPro with 2 multi-channel detectors at same time, permitting increased wavelength coverage from single spectrograph.

Master Bond, Inc.    Hackensack, NJ 07601
Jun 17, 2003 Type EP51FL 2-component, epoxy resin features 1:1 mixing ratio and cures rapidly at room temperature with setup time of 30–40 min. Epoxy is 100% reactive and no solvents or volatiles are emitted during cure. It can withstand thermal and mechanical shocks. Cured compound exhibits peel strength of more than 25 pli, elongation of >125%, and tensile strength of 1,150 psi. Mixed viscosity is 70,000–80,000 cps and operating temperature is 4°K to 250°F.

Micrel Semiconductor Inc.    San Jose, CA 95131
Jun 17, 2003 Models MIC2213 and MIC2214 each consist of 2 low-dropout regulators, power-on reset supervisor, and open-drain driver with adjustable delay time. First regulator can source 150 mA of current, while second regulator can source 300 mA. Total current consumption is 48 µA. Suitable for portable applications, units are housed in 3 x 3 mm MicroLead Frameâ„¢ leadless package. They feature low dropout voltage of 120 mV at 150 mA and transient response of less than 10 µs.

Controlotron Corp.    Hauppauge, NY 11788

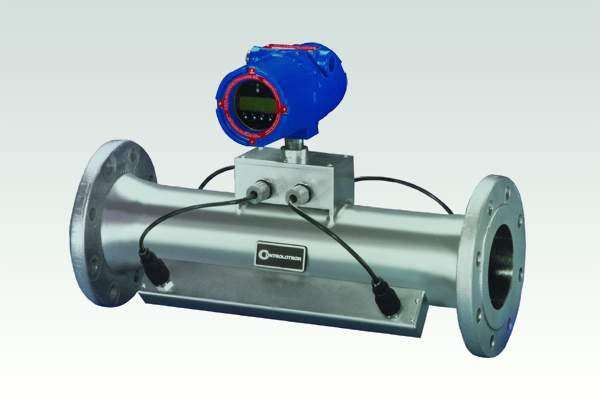

Jun 17, 2003 SonicGas(TM) ultrasonic flowmeters, for 1½-48 in. diameter line sizes, provide certified flow rate accuracy of 0.5% or better in accordance with AGA-9 requirements. Diametric, Reflect mode cancels out errors due to crossflow and is highly tolerant of swirl conditions and wet gas conditions. Zero point can be set without shutting flow or blocking in meter using Zeromatic Path(TM) technology.

Aaeon Electronics, Inc.    Hazlet, NJ 07730
Jun 17, 2003 Model SBC-660E Half-Size CPU Board targets automation controllers and legacy ISA-bus devices that require Intel Tualatin P-III processors up to 1.4 GHz. ZIF Socket 370 accepts Intel P-III Tualatin processors and VIA CIII processors through VIA Apollo Pro 133A chipset. Single onboard 168-pin DIMM socket supports up to 512 MB SDRAM memory modules. Board uses SMI Lynx3DM SM 721 chip for graphics with 4 MB of SGRAM. It supports 10/100Mbps and allows remote booting from LAN.

Comtrol Corp.    Maple Grove, MN 55311

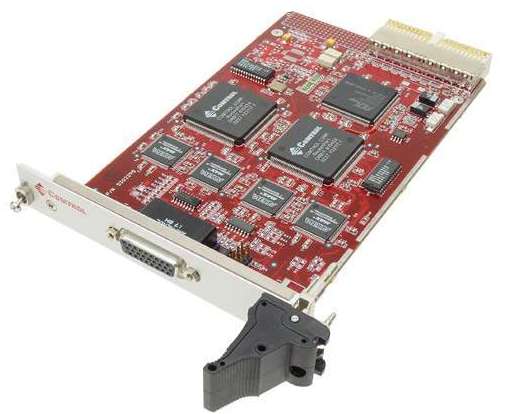

Jun 17, 2003 With 3U height, RocketPort cPCI serial card provides up to 16 RS-232 or RS-422 connections from one compact PCI expansion slot within industrial computers. Card conforms to PICMG 2.0 Revision 3.0 specification for CompactPCI expansion cards within PCI industrial computers.

Connor-Winfield Corp., The    Aurora, IL 60505

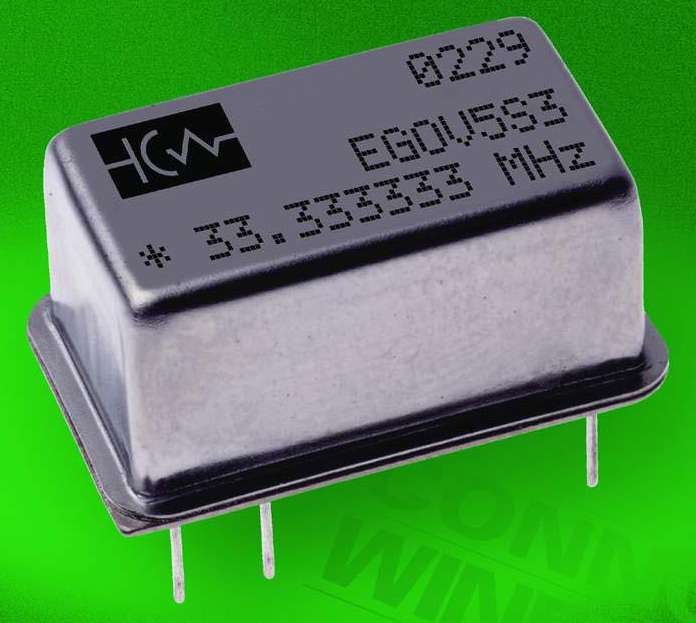

Jun 17, 2003 Housed in 14-pin DIP package, EGOV5S3, 62 MHz OCXO Oscillator incorporates one dedicated logic pin that notifies system once device reaches operating temperature. Offerings include 1–80 MHz frequency range options, ±.25 ppm stability, and ±4.6 ppm frequency tolerance. With less than 3 ps RMS jitter from 10 Hz to 20 MHz, product provides enable/disable control and ±45 ppm minimum pullability.

RIDGID    Elyria, OH 44035

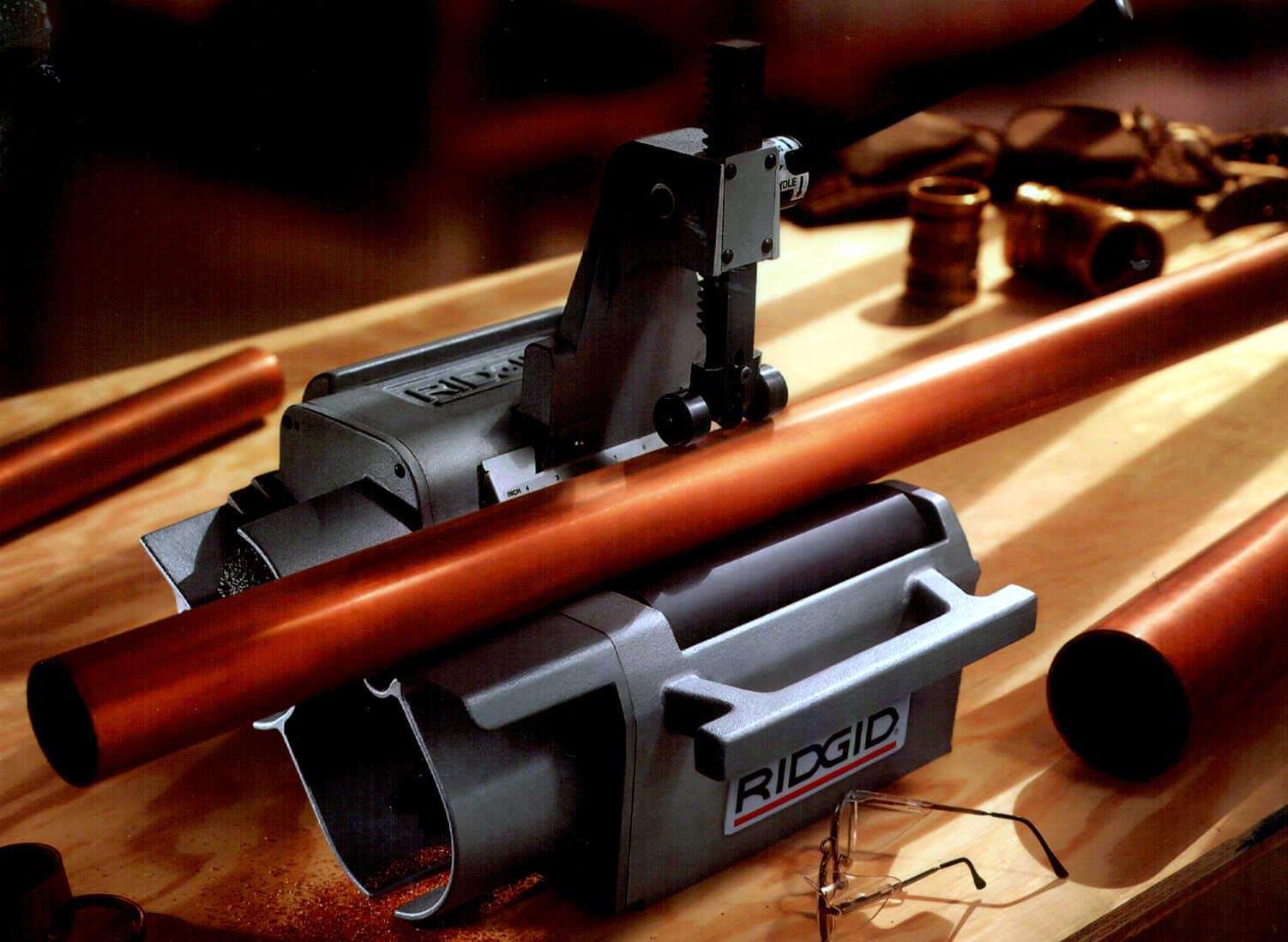

Jun 17, 2003 RIDGID® 122XL reams ½-2 in. tubing and, with optional quick-change fitting brush system and storage rack, prepares ½-4 in. copper fittings for soldering. Product eliminates need to manually revolve cutter around tube and reduces number of tools needed on job site. Components include O.D. cleaning brush and deburring disk, heavy-duty cutter wheel, and cone reamer. Machine is powered by 1/3 hp, 115 V, 60 Hz induction motor, which drives rollers at speeds to 300 rpm.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866

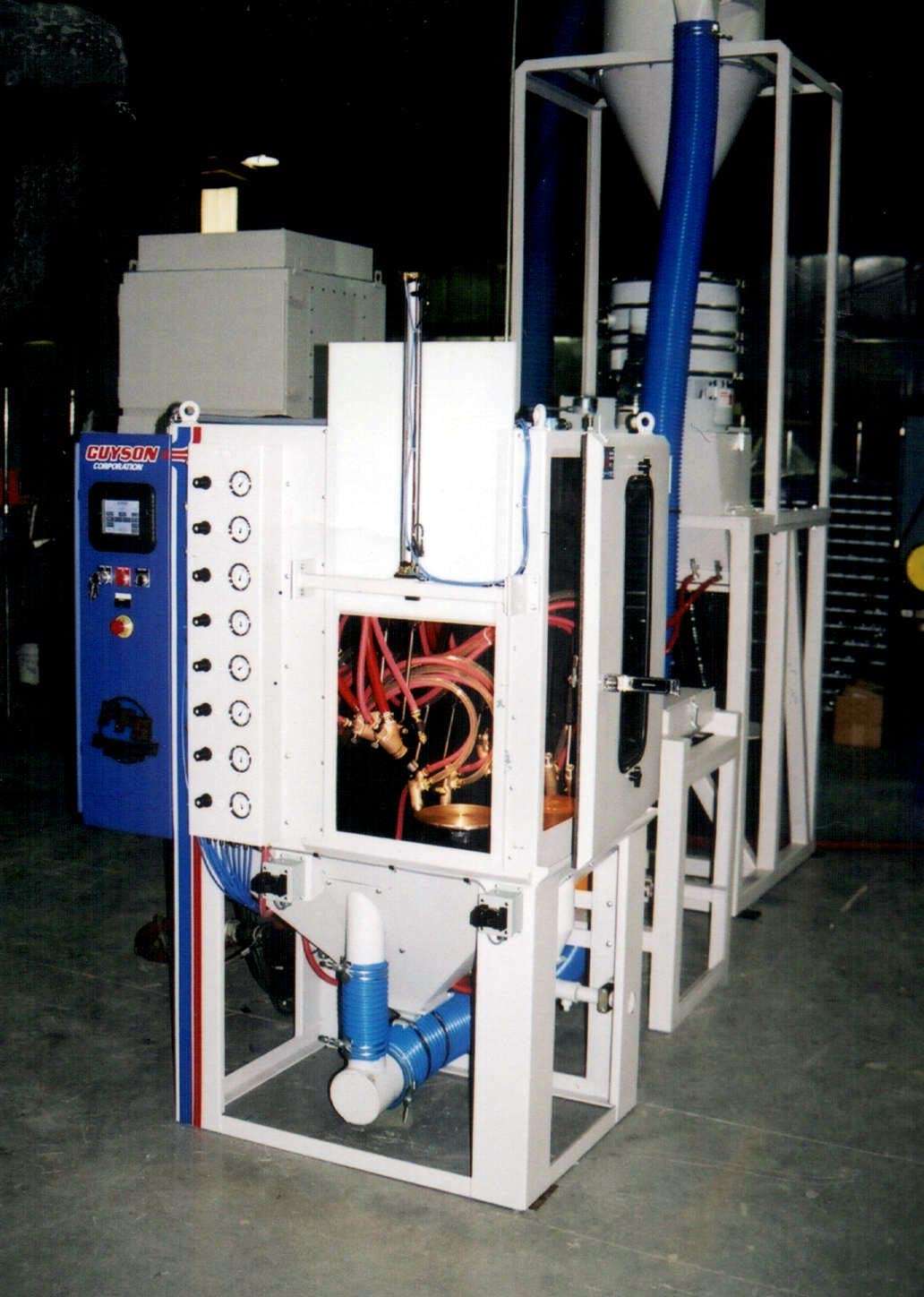

Jun 17, 2003 Semi-Automatic Model RSSA-6T performs blast cleaning, surface preparation, shot peening, and impact finishing. Components are fixtured on rotary table with adjustable speed. Digital readout of rpm is displayed at control panel. Finishing enclosure has 8 individually regulated, suction-blast guns mounted on multi-adjustable brackets. HMI provides multiple levels of touch-and-select displays, while PLC monitors operation and detects out-of-limit conditions.
