Namco Controls Corp.    Mayfield Village, OH 44143

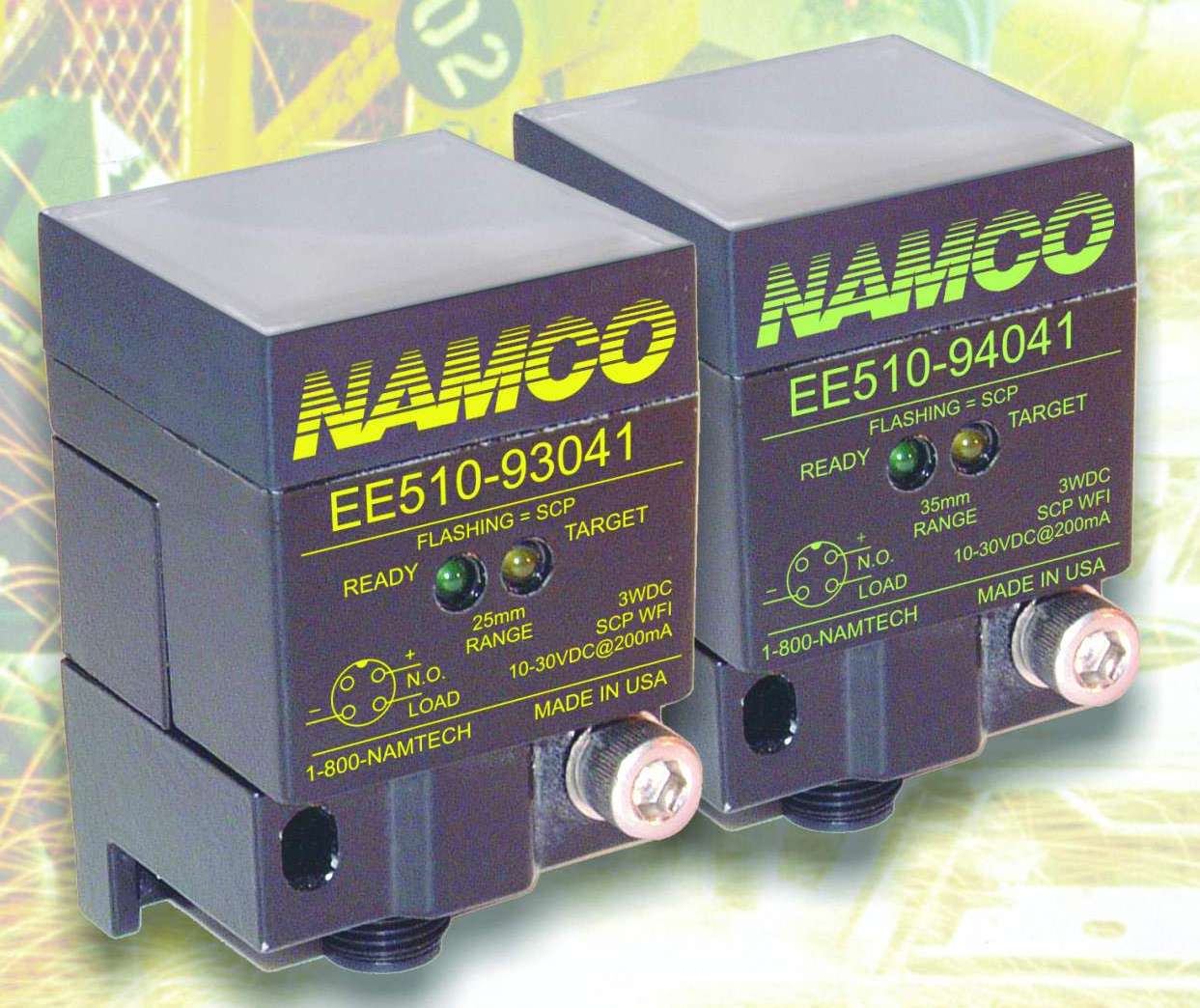

May 30, 2003 DuraProx sensors, available in 25 mm shielded range and 35 mm unshielded range models, employ all-metal design suited for welding environments. Weld field immune circuitry enables products to operate within 1 in. of resistance welding electrode without changing state. Products include short circuit protection and are immune to false turn-ons. Cube design replaces up to 5 rectangular sensors and is field-adaptable to positions for top, front, left, or right sensing.

Great Lakes Fluid/Air Systems    Clawson, MI 48017
May 30, 2003 Self-contained RoboVentâ„¢ captures contaminated air, including fumes and microscopic metals, as they are produced in robotic welding cells. It cleans and recycles contaminated air, returning clean air into plant and helping to maintain healthy working environment. RoboVent captures 100% of weld smoke, allowing nothing to escape into plant. Pleated filtering system is treated with oil-absorbing filter element. Reverse-pulse technology self-cleans filters automatically.

Servo Magnetics Inc.    Canoga Park, CA 91303
May 30, 2003 Brushless DC kit motor, 000-0317, has operating voltage of 12 V, and delivers 75 oz-in of torque. Motor is 0.51 in. thick with 3.77 in. dia. Large inner-rotor dimension accommodates multiple mounting configurations, including light beam passage or wire/cable channeling. Stator, constructed of molded, high-temperature plastic, includes 4 screw-mount tabs. Commutation feedback uses Hall-Effect sensors, with variety of electrical and mechanical options available.

Tru-Connector Corporation    Peabody, MA 01960 5099
May 30, 2003 TRU Precision Adapters feature 7 mm interface on one end and SMA, Type N, TNC, HN, and SC on other. These 50 ohm RF coaxial adapters operate from dc to 18 GHz with VSWR of 1.10 max, in -55 to +85°C temperature range. Features include 6-slot center contact on 7 mm end, gold-plated stainless steel body, passivated, stainless steel coupling nut, gold-plated brass center contact, and Noryl insulator.

Kee Safety, Inc. (formerly Kee Industrial Products, Inc.)    Buffalo, NY 14206-2665

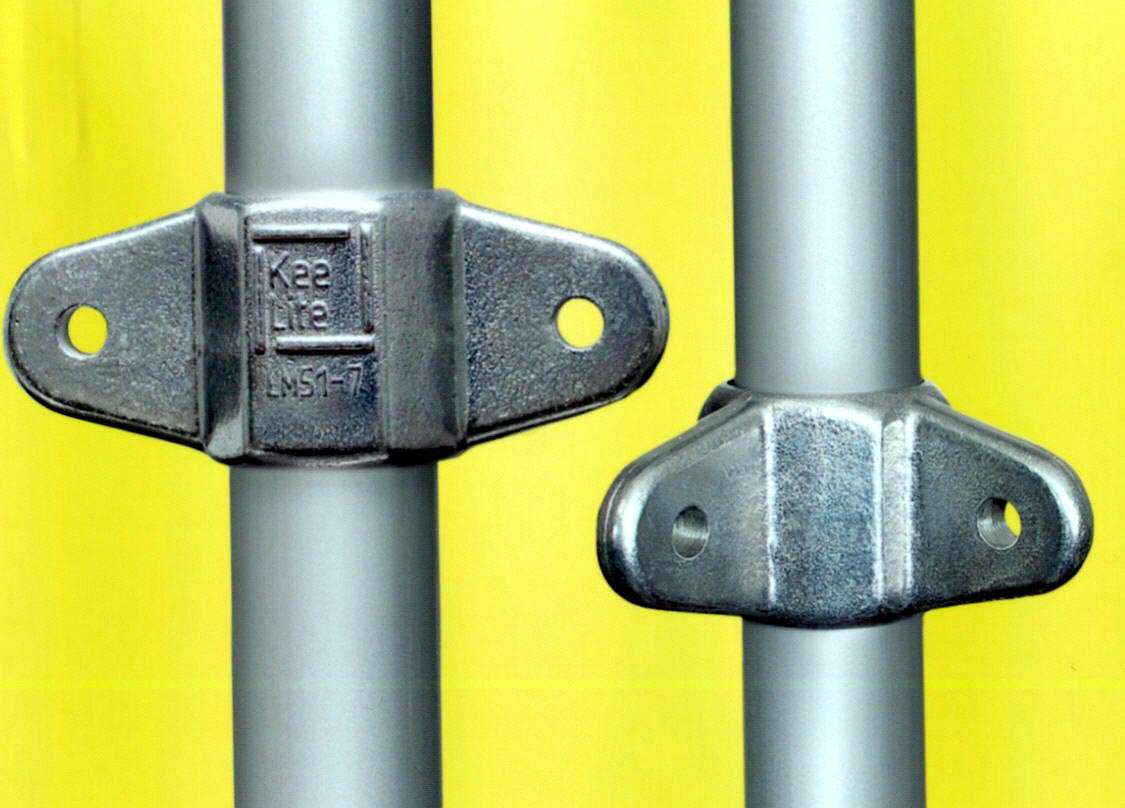

May 30, 2003 Constructed of Aluminum Silicon Magnesium, corrosion-resistant Kee Lite® slip-on structural pipe fittings allow flat panels to be connected to tubular pipe structures. Fittings are available in sizes to fit 1 ¼ and 1 ½ in. standard pipe. Both LM51, male double swivel socket member, and LM52, male corner swivel socket member, require no welding, threading, or drilling to install. Pipe fittings feature contoured design with hidden set screws.

Astec America Inc.    Carlsbad, CA 92008
May 30, 2003 Power-factor-corrected Model LPQ142-CF provides forced air required for continuous operation at 145 W output power rating. With user-adjustability on 3 of 4 output voltages, one with range of 3.3-25 V, power supply is suitable for any application that requires tightly regulated and low-output ripple on 4 DC outputs. Frequency range is 47-63 Hz, and universal input range is 85-264 Vac and 120-300 Vdc. Unit offers 75% efficiency at full load.

Ideal Industries, Inc.    Sycamore, IL 60178
May 30, 2003 Vol-Test XL enables user to immediately detect presence or absence of voltage before working on circuit. Indicating arm provides visual indication of voltage level from 80–600 Vac/dc. Large voltage indicator scale offers redundancy and enables user to determine if voltage is AC or DC. Solenoid vibrates for additional warning to presence of voltage. Case is ultrasonically welded and O-ring sealed to keep out dirt and moisture.

Andax Environmental    Rutherford, NJ 07070
May 30, 2003 Form-fitting, flexible liners hug walls of drums without creases or folds that can trap product. Available with antistatic additives, all liners have true round bottoms and come in 40 or 56 in. heights and 8 or 10 mil. thicknesses. Heat-sealed liners are made of chemical-resistant polyethylene and FDA approved resin and are designed to fit in 55-gal drums. Products are suited for dry and liquid bulk shipping and storage.

Cedes Corp. Of America    Hickory, NC 28601
May 30, 2003 Safe400 type 4 safety light curtain has slim profile with 15 x 20 mm cross section. Resolutions of 14 mm for finger protection and 30 mm for hand protection are available. SafeC 400 multifunctional safety relay contains up to 8 relay outputs with switching capacity of 2000 VA per output. Product allows for simultaneous connection of multiple light curtains, scanners, and through-beam sensors as well as a variety of other switches, buttons, and controls.

NewAge Industries Inc.    Southampton, PA 18966
May 30, 2003 AdvantaLABEL cleanly and clearly identifies silicone hoses by using permanently vulcanized silicone to encase labels on hoses. Label can then be steam sterilized or chemically cleaned without adverse affects. Exterior-mounted system never comes in contact with materials flowing within hose, while smooth, beveled edges prevent particle entrapment on outside of silicone hose. Optional color striping allows processing lines to be quickly identified.

Tidal Engineering Corporation    Randolph, NJ 07869
May 30, 2003 The eChamber Gateway combines 3 communication capabilities and thermocouple monitoring system into one instrument. Product connects environmental chamber temperature controllers to LAN or Internet via on-board 10BASE-T Ethernet interface, or optional external/internal modem. Each module incorporates 16-channel thermocouple monitoring system which, when joined in 16-unit master/slave RS-485 daisy chain arrangement, enables monitoring and data logging of 256 sensors on one Web server.

Sanborn Technologies    Medway, MA 02053

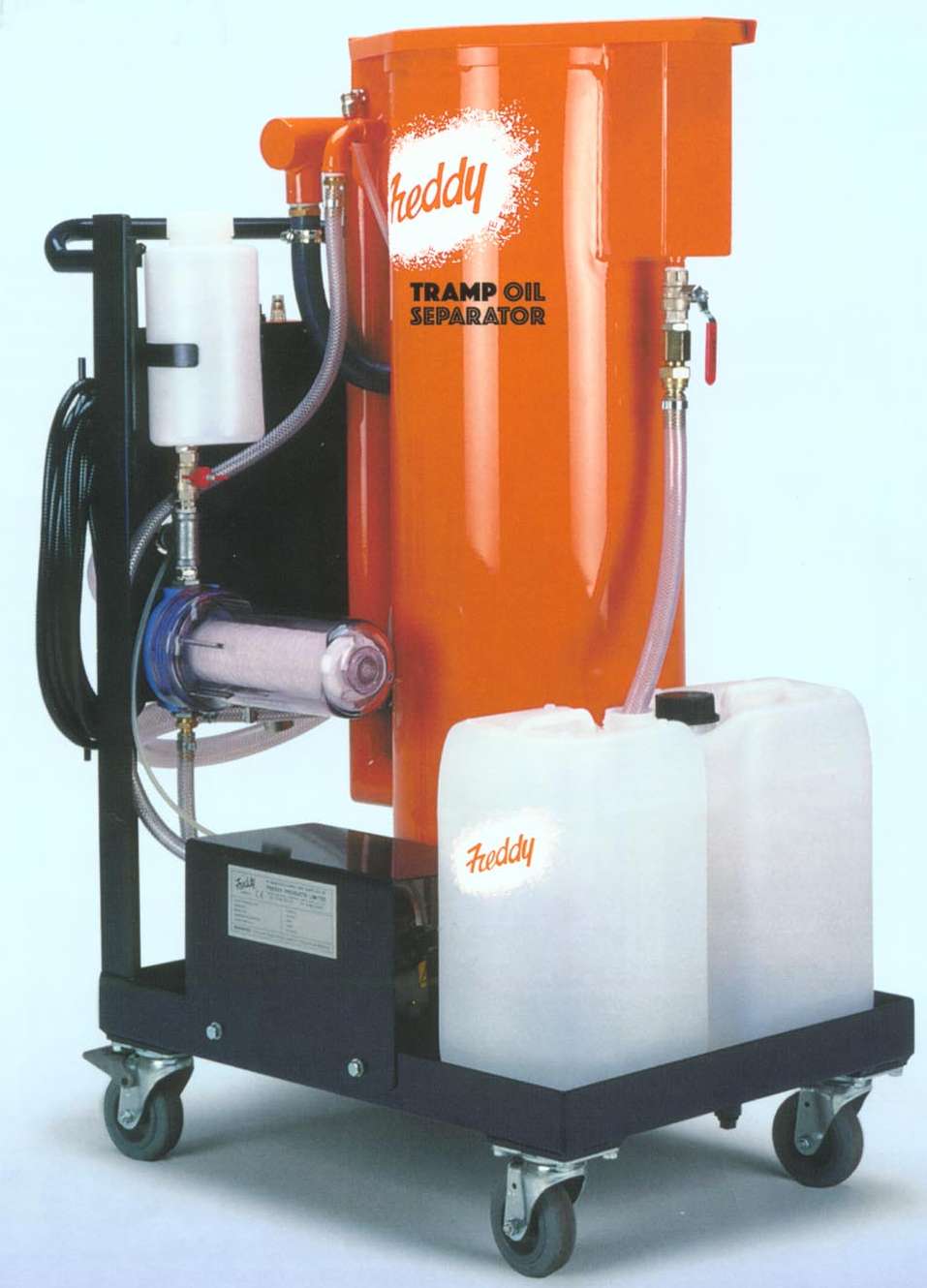

May 30, 2003 Freddy TOS removes oil from water in applications ranging from machine tool sumps to parts washing systems to wastewater. Running continuously while equipment is in operation, portable unit can be moved from one location to another. Filter cartridge can be removed and cleaned, and diaphragm pump provides low shear on oil for separation at flow rates up to 1.5 gpm. Available in 2 models, unit may be electronically driven or air operated.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988

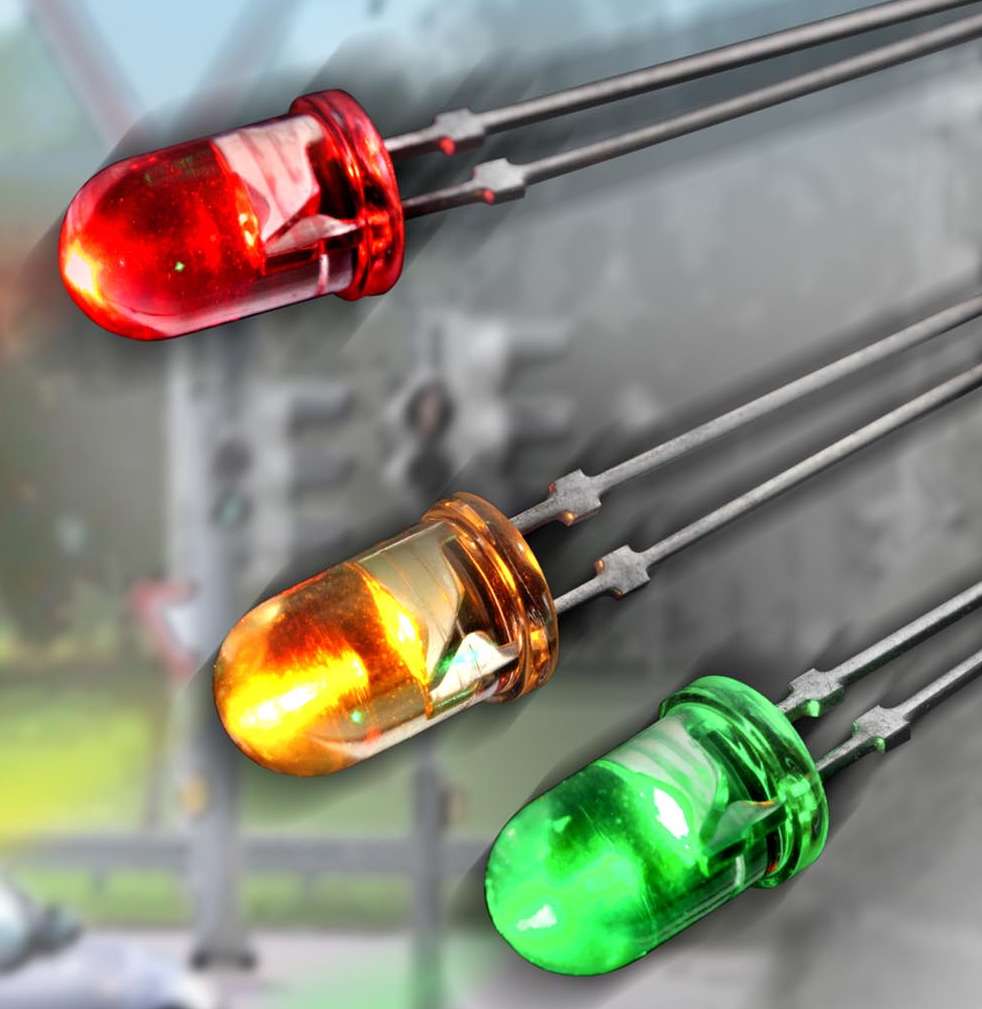

May 30, 2003 Built on ultra-bright AllnGaP and InGaN technologies, TLCx52xx series high-intensity, 30° LED devices are clear, non-diffused, 5 mm LEDs with untinted plastic case. Constructed with lens and viewing angle optimized to provide greatest light output and visibility, products offer luminous intensity as great as 4,000 mcd in red and yellow and 2,000 and 700 mcd in true green and blue, respectively. All 4 LEDs feature ±15° angle of half intensity.

Exact Software North America    Andover, MA 01810
May 30, 2003 Macola Event Manager combines workflow automation, alert messaging, report distribution, and incoming e-mail processing. It runs on organization's database file server and monitors database for situations and events that organization has defined. When defined exception occurs, program can simultaneously update database records, generate and distribute related reports, and notify key employees, partners and/or customers.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 30, 2003 USB Optical Wheel Mouse incorporates integrated wheel scrolling device that acts as programmable third button. There is no mechanical ball to get dusty or dirty and product may be used on various surfaces without mousepad. Full-size shape fits in either hand. Requirements include IBM or IBM-compatible PC with USB-enabled port and operating system that works with standard USB port, including Windows® 98, 2000, Me, and XP.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 30, 2003 PC2700 CL2.5 Non-Parity DDR SDRAM UDIMM memory upgrades are available in 128, 256, and 512 MB and 1 GB. They feature maximum data transfer rate up to 2,700 Mbps, 184-pin unbuffered DIMM with gold-plated leads, and serial presence detect/decode functions. Upgrades are 100% compatible with IBM systems and non-IBM systems that support industry-standard DDR SDRAM to PC2700 CL2.5 NP UDIMM specification.

Create!form International (CFI)    Canoga Park, CA 91303
May 30, 2003 Create!form® for J.D. Edwards® v2.1 consists of suite of output management products to improve speed and file size. Promoting efficiency and usability for J.D. Edwards ERP v8.0 and OneWorld users, product provides direct-to-PostScript® option for printed output. Printer pre-load function allows first print job in production run to contain all resources necessary for remainder of job. Software includes Forms Library with customizable, pre-designed forms.

IXYS Corp.    Santa Clara, CA 95054 2704
May 30, 2003 Model XBD4400 Half-Bridge Driver Chipset, consisting of 2 ICs and packaged miniature transformer, offers modular solution for MOSFET or IGBT-based power topologies. The 2 A peak current and heatsinkable, 16-pin SOIC-CT package allow operating temperature to 125°C. Unit features -5 V gate drive supply, 50 V/ns noise immunity, and latch-proof architecture. Interface Transformer provides 2500 V isolation. User can implement choice of protection algorithms.

Macro Sensors, Div. of Howard A. Schaevitz Technologies, Inc.    Pennsauken, NJ 08110 1334
May 29, 2003 Spring-loaded GHSDR 750 LVDT uses built-in electronics for dc input/output operation. Electronics and coil windings are hermetically sealed to IEC standard IP-68. Features include through-bore design, radially mounted, sealed electrical connector, and detachable mating connector. Units operate from ±15 Vdc input and provide pre-calibrated output from 0 to ±10 Vdc. Standard measurement ranges are from +0.050 to +2.00 in.

Scapa North America    Windsor, CT 06095
May 29, 2003 Unifilm® U650A acrylic-adhesive transfer film adheres to foams, plastics, metals, and fabrics. It can be laminated to variety of substrates, including foam materials for gasketing and NVH applications. Film is suitable for applying nameplates and decorative parts, bonding interior trim and instrument-panel components, and assembling leather-covered seats and steering wheels.
