Mitsubishi Heavy Industries America - Machine Tool Div.    Addison, IL 60101-1065
May 28, 2003 Table of M-V50-FM vertical machining center moves in Y-axis only, to minimize required floor space. Headstock construction and ballscrew with 50 mm dia and 12 mm lead increases machine's rigidity. Travels are X-31.5, Y-20.1, and Z-17.7 in., with 15-position ATC. Features include low vibration 30 hp integral spindle, and spindle speed of 14,000 rpm, with 30,000 rpm option.

Dynatrol Div., Automation Products, Inc.    Houston, TX 77008

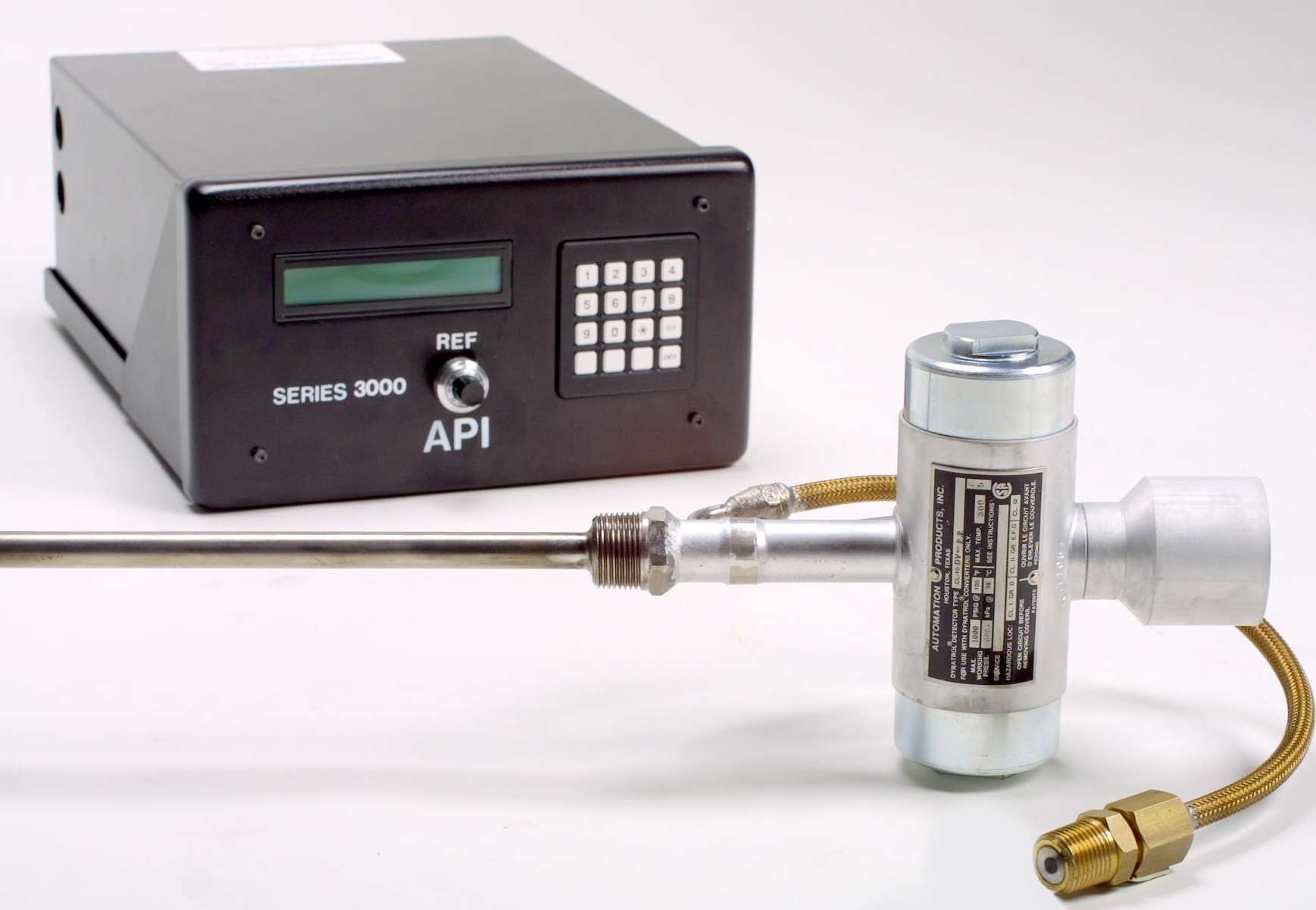

May 28, 2003 Viscosity System uses vibratory principles to provide measurement at on-line process conditions for plastics, chemicals, inks, paper, foods, etc. System consists of in-line or stand-alone viscosity probe and analog converter that converts signal into 4-2O mA output. Stainless steel probe uses vibrating rod immersed in process media and operates in ranges to 100,000 cp. Features include pressure rating of 1000 psi and temperature range to 300°F.

HBControls, Inc.    Fall River, MA 02720

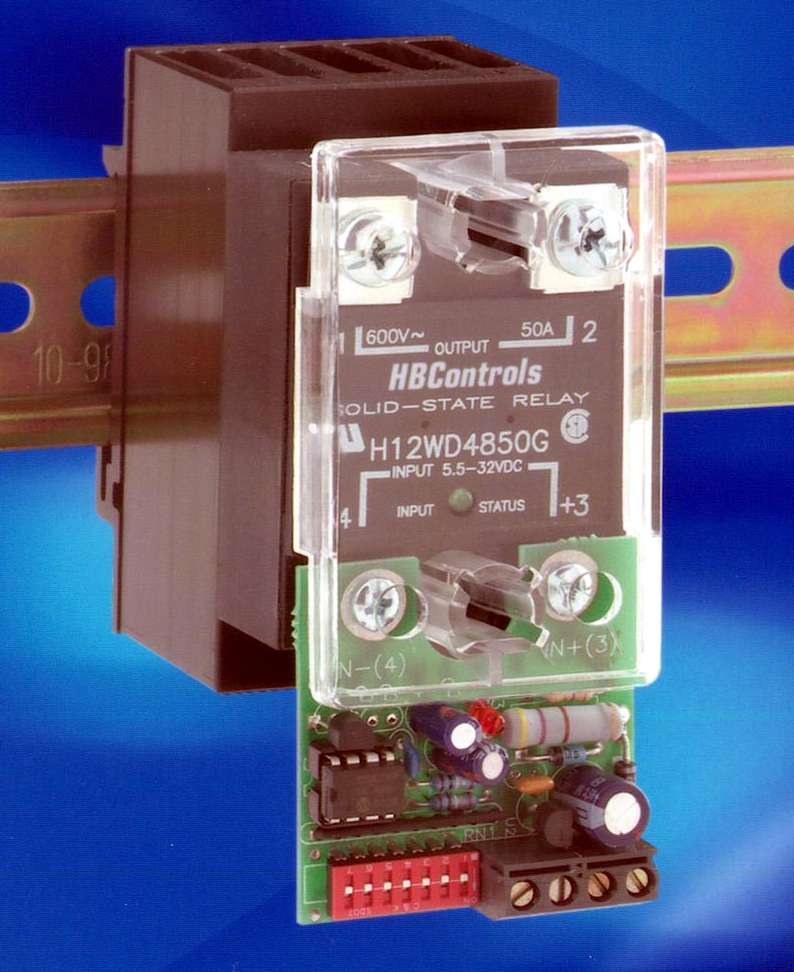

May 28, 2003 Intelligent Control Solid State Relay Assemblies are rated for loads up to 100 A at 40°C. Assemblies consist of Solid State Relays attached to anodized aluminum heat sinks. DIP switch on each unit allows selection of control inputs. Cycle times of 200 msec, 1, 10, and 100 sec are available. Line voltage options include 24–280 Vdc, 48–530 Vac, and 48–530 Vdc. Units have transient overvoltage protection at 600 or 1,200 Vpk.

Lumileds Lighting LLC    San Jose, CA 95131
May 28, 2003 Suited for indoor lighting applications, warm white Luxeon LEDs offer correlated color temperature (CCT) of 3200 K, typical color rendering index (CRI) of 85+, and average light output of 22 lumens. Solid-state light source replicates glow of incandescent bulbs and retains 70% of its initial power through 50,000 hr of operation under typical conditions. Product also provides beam that is cool to touch and contains no UV.

Interpolymer Corp.    Canton, MA 02021
May 28, 2003 Megatran® 233 features high gloss characteristics with scuff and scratch resistance. Due to high solids content, formulations based on Megatran 233 polymer require fewer coats than are needed with conventional lower-solids formulations. Use of sulfate and sulfonate groups attached to polymer backbone stabilize polymer emulsion particles during drying process. Finishes respond well to low-speed spray buffing and occasional ultra-high-speed maintenance.

Gateway Safety, Inc.    Cleveland, OH 44131 1045
May 28, 2003 Able to be worn with or without head protection, SoundSeriesâ„¢ Earmuffs consist of 3 styles of fully adjustable sound protection devices with rotating headband that lets products be worn in 3 positions. SoundOut products offer attenuation at 28 NRR and feature di-electric protection, and soft foam cushions. SoundDecision units include 25 NRR attenuation, padded headband, and soft foam cushions. SoundChoice, rated at 22 NRR, offers fully adjustable, padded headband.

Spence Engineering Co., Inc.    Walden, NY 12586-0230

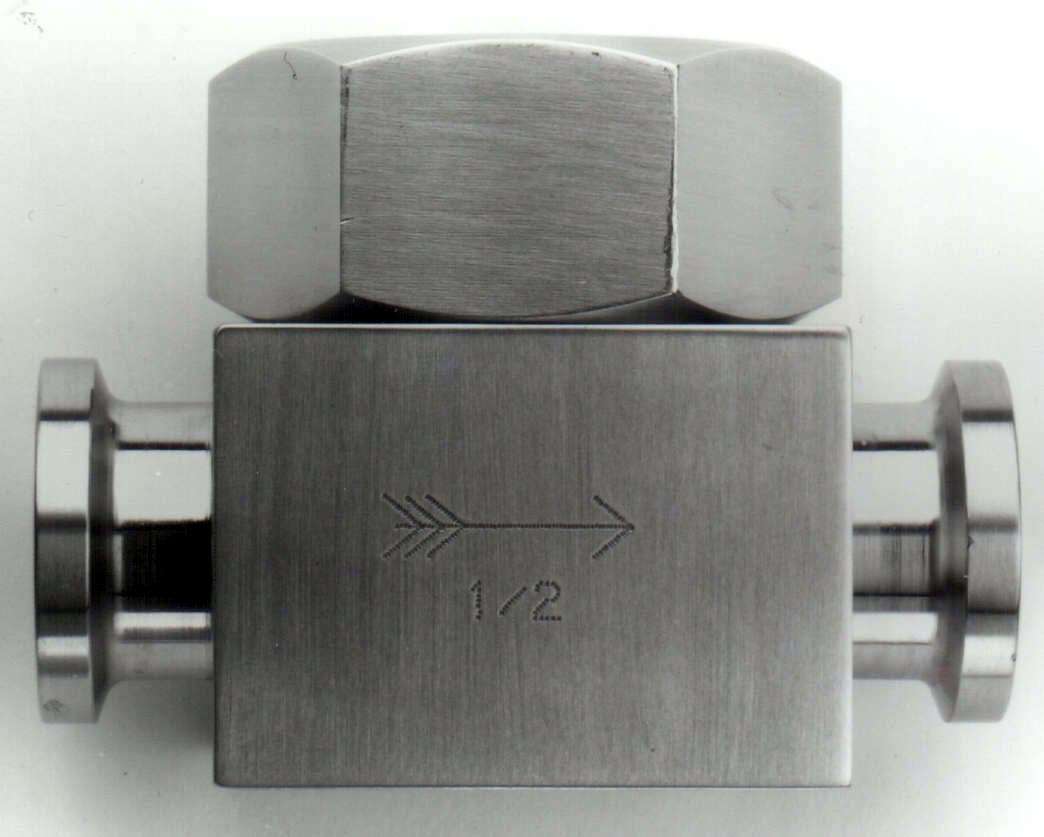

May 28, 2003 Sanitizer NTD230L Sanitary Thermodynamic Steam Trap offers 316L stainless steel construction and internal/external surface finishes of 32 Ra or better. Built with one moving part, product features heat numbers permanently stamped into its body. Self-draining unit resists freezing, puddling, and bacteria growth, while audible discharge simplifies testing. Product fits ½ and ¾ in. sanitary clamps and is rated to 150 psig at 850°F.

Spectronics Corp.    Westbury, NY 11590

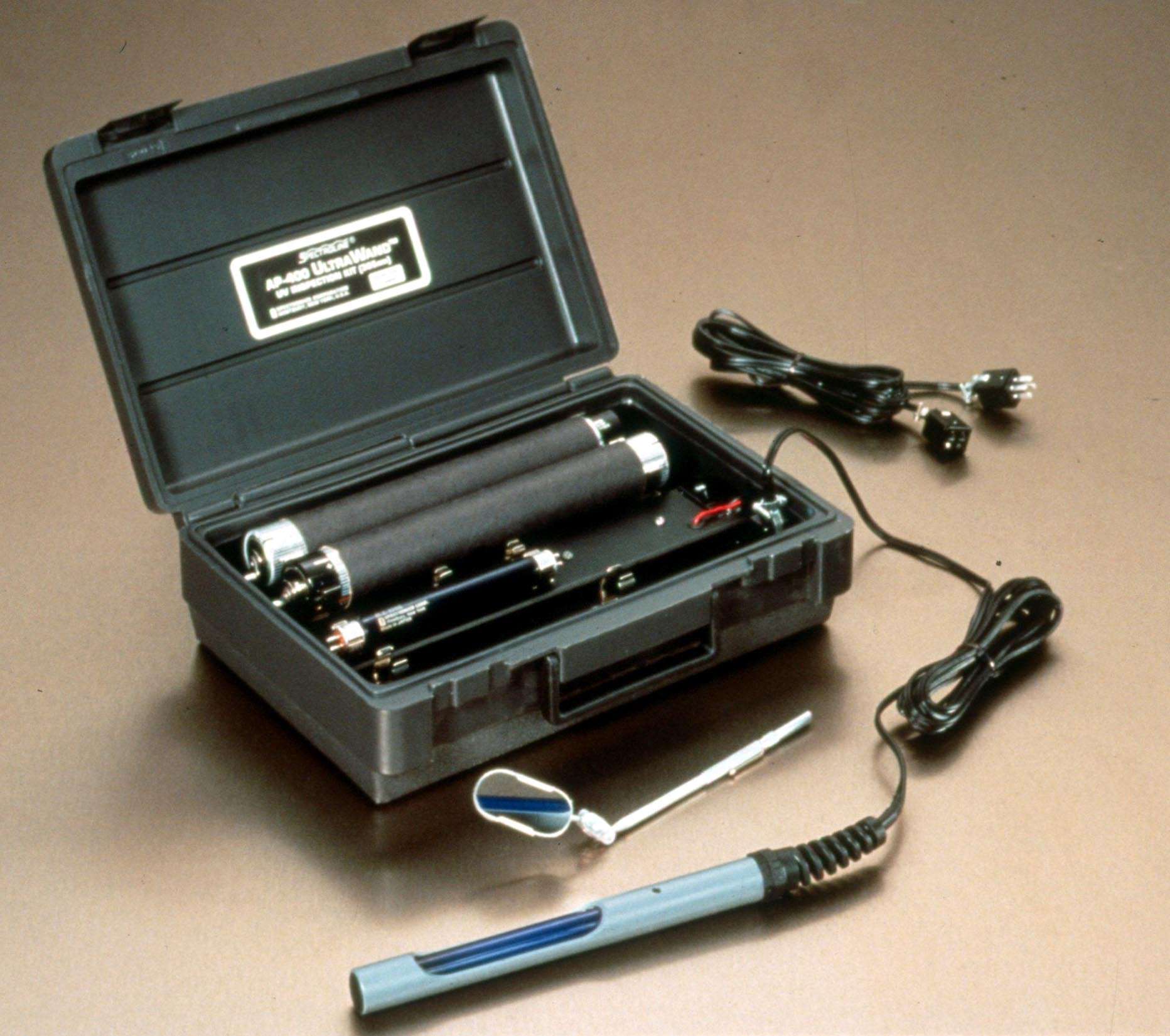

May 28, 2003 Spectroline® AP-400 UltraWandâ„¢ features 4 W UV probe measuring 1 in. in diameter and 6 in. long. It delivers typical peak 365 nm UV intensity of 5,500 µW/cm² at light source and over 1,500 µW/cm² at 1 in. Probe is useful in tight places, such as small-diameter pipes and turbine engines. It provides more than 40 hours of inspection time on 8 D-cell alkaline batteries. Kit includes 10 ft power cord, 10 ft extension cord, adjustable mirror, and spare 4 W tube.

Baumer Ltd.    Southington, CT 06489 1534

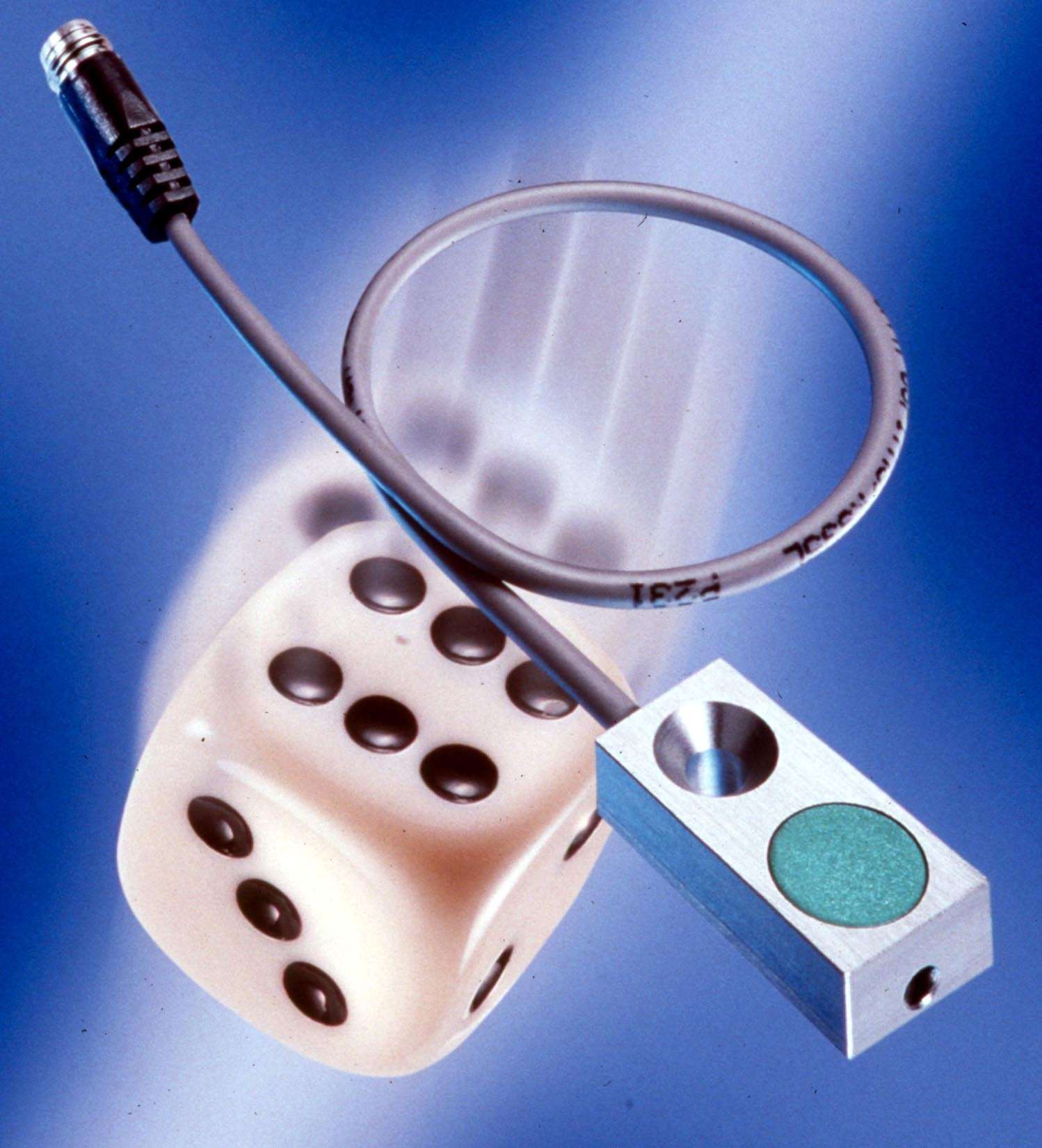

May 28, 2003 Flat-Pack 8 mm Inductive Sensor mounts using single, front-accessible, through-bore screw, and requires only 4 mm of mounting depth. Using ASIC technology, it features anodized-aluminum, IP67-protected housing, measuring 8 x 16 x 4.7 mm. Sensor offers 10-30 Vdc voltage supply range, integrated reverse-polarity and short-circuit protection, and sensing distances up to 2 mm. M8x1 pigtail connector is available.

ADMET    Norwood, MA 02062

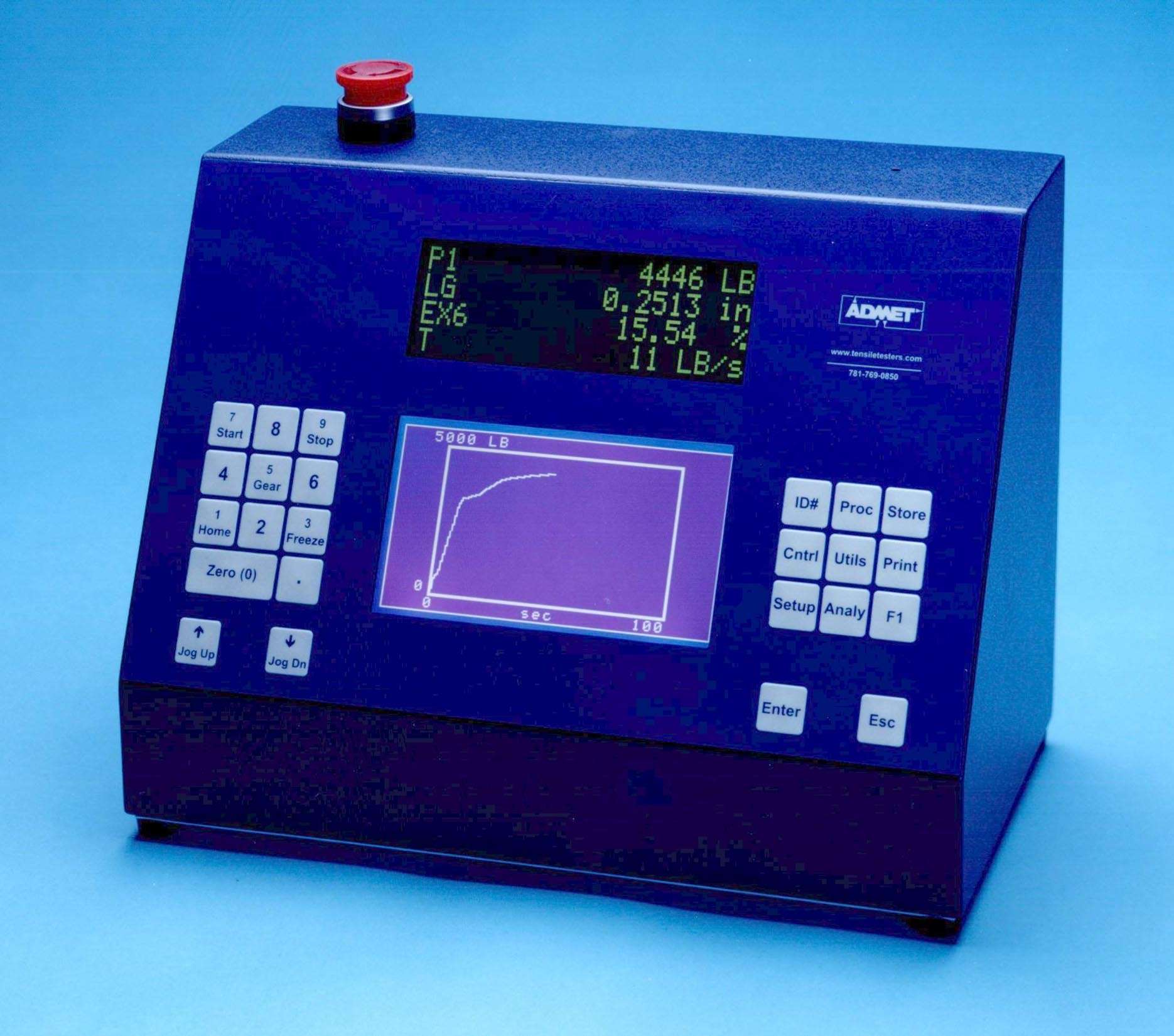

May 28, 2003 Precise Digital Controller measures load, load rate, crosshead position, position rate, strain, and strain rate. It stores 3 test procedures and up to 350 test results per procedure. Closed loop servo capabilities facilitate repeatable testing. Unit uses WinCom Plus data communications program to share XY data and results with Windows-based spreadsheet and database programs. It is suitable for manually operated and servo-equipped, electromechanical and hydraulic testing machines.

Emerson Process Management, Intellution Division    St. Louis, MO 63136 8506
May 28, 2003 Portable, intrinsically safe 375 Field Communicator supports devices using HART® or FOUNDATIONâ„¢ fieldbus digital communication protocols, enabling users to configure and maintain all instruments and valves with one ATEX-compliant tool. Product offers fieldbus segment diagnostics and Easy Upgrade feature, which lets users update communicator on-site as new HART and FOUNDATION fieldbus devices become available.

Devcon    Danvers, MA 01923

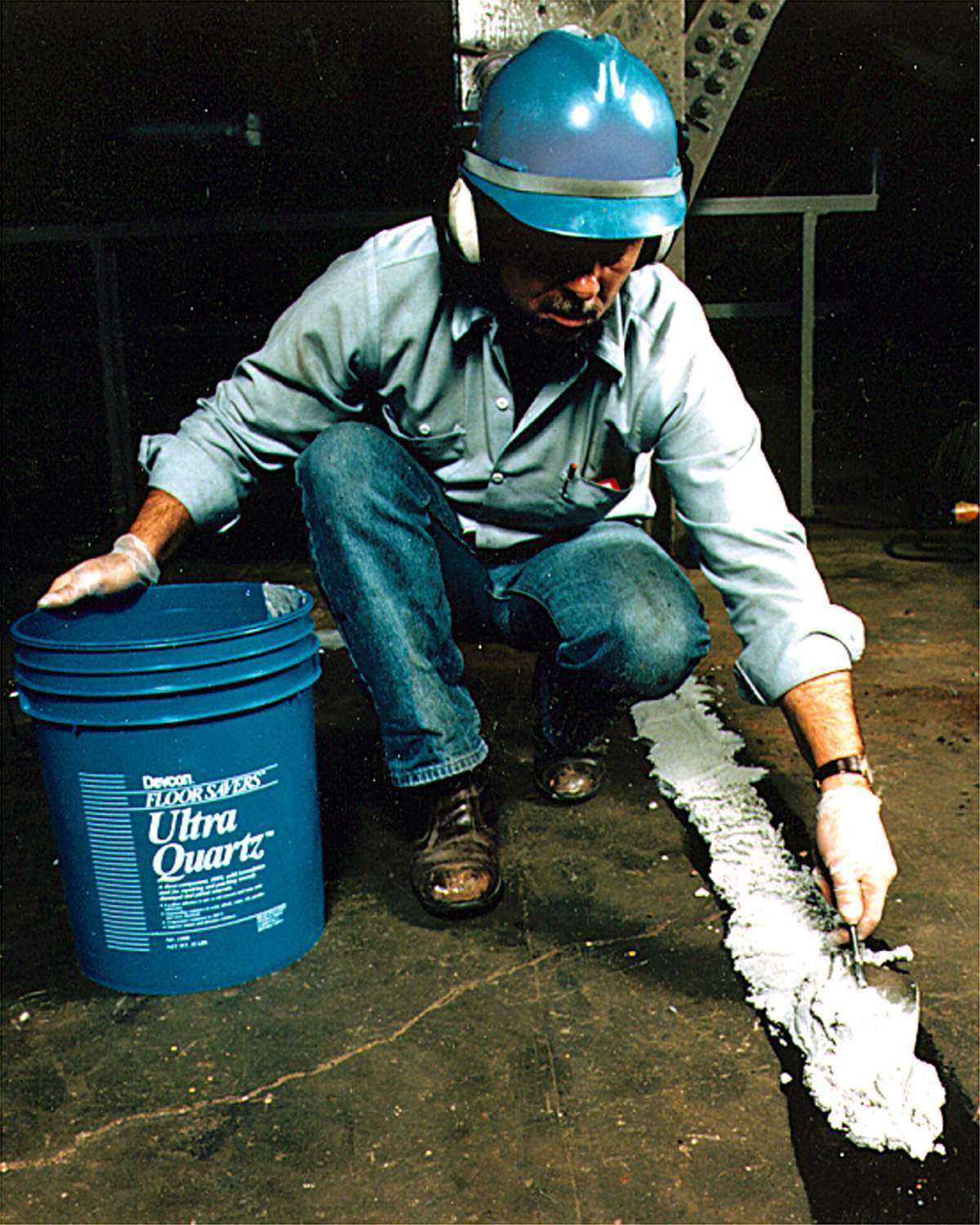

May 28, 2003 Ultra Quartzâ„¢ 100% solids, silica-filled epoxy putty offers resistance to chemicals and abrasion. Trowelable to smooth, nonporous finish, it attains compression strength of 9,000 psi. Compound can be built up to 1 in. thick on damaged or pitted concrete floors. Because Ultra Quartz will not sag, drip, or run, it can be used to repair vertical and overhead surfaces. With pot life of 60 min, it achieves full cure within 16 hr and withstands temperatures up to 120°F wet or 200°F dry.

SKF USA, Inc.    Lansdale, PA 19446
May 28, 2003 CX/ACX Series high-precision, angular contact ball bearings allow rotational speeds up to 1.8 Mndm and are available in various contact angles to satisfy required axial stiffness and load requirement ranges. With optimized internal geometry, products are suited for high-speed metal-cutting, woodworking, milling, and other precision machine-tool applications.

Brady Corp.    Milwaukee, WI 53201

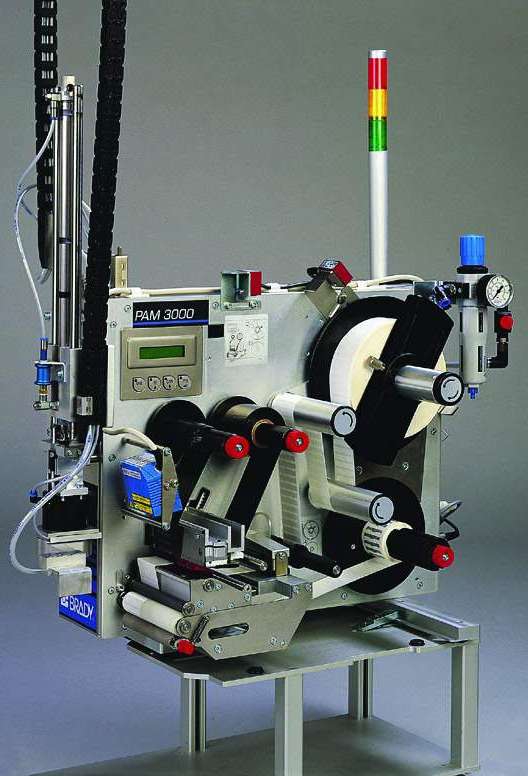

May 28, 2003 Suited for production line applications, PAM 3000 includes zero queue print/apply function for real-time product identification, integrated bar code scanner, and ability to print and apply various label sizes. Peel-off shuttle system eliminates need for airflow support to label prior to placement, while flexible applicator arm allows 0° and 90° placement of labels ranging from 0.200–4.567 in. wide and 0.138–3.150 in. high.

Emerson Process Management, Intellution Division    St. Louis, MO 63136 8506

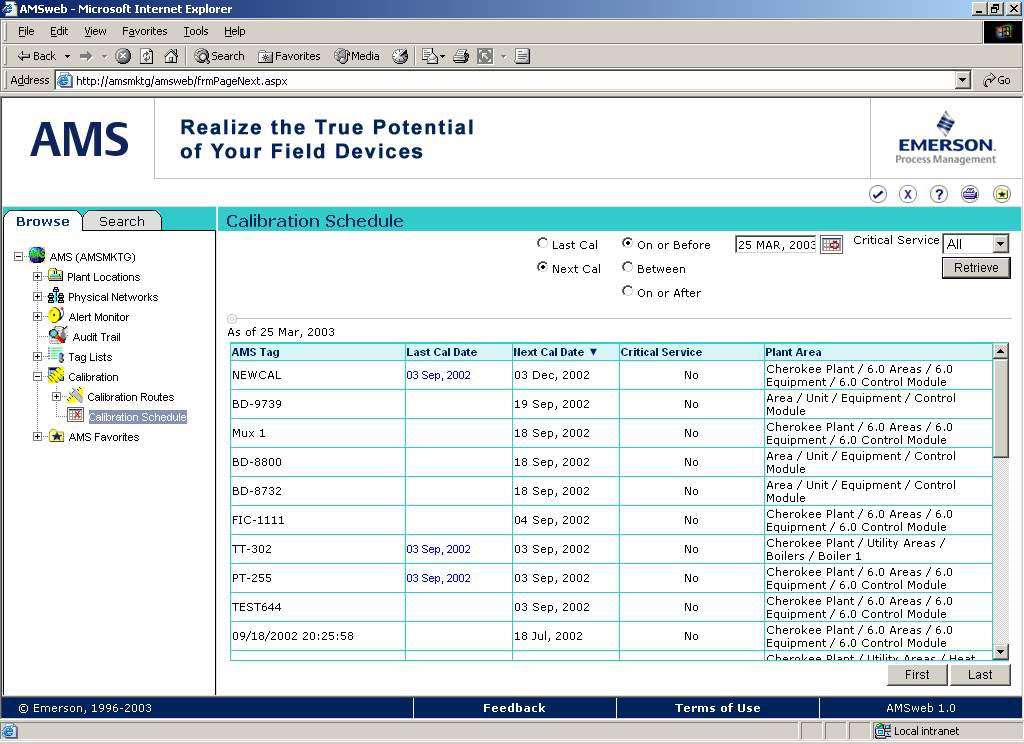

May 28, 2003 AMS v6.1 enables users to monitor field devices, view configuration and calibration information, and analyze history of plant's field device assets. Web option extends access to live and historical AMS data by making it available at any time from any PC in plant's intranet. FIELDVUE® Performance Diagnostics identify faults, list possible causes, and recommend corrective actions. AMS helps users meet requirements of FDA 21 CFR part 11.

Performance Motion Devices, Inc.    Lexington, MA 02421

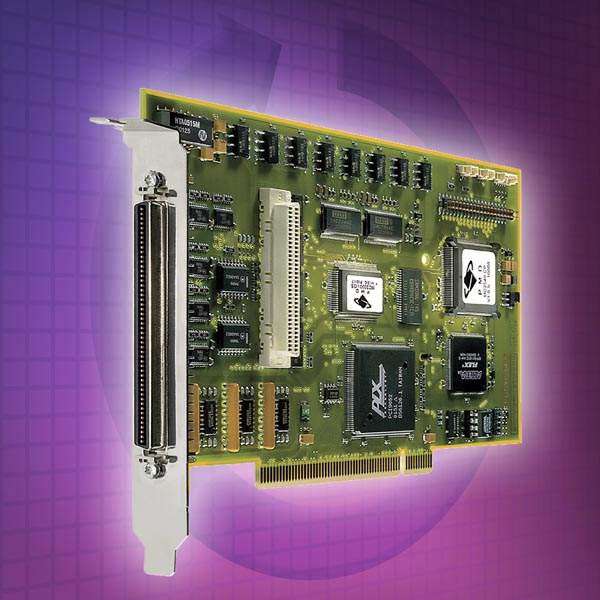

May 28, 2003 Navigator-PCIâ„¢ is a 1–4 axis PCI-bus card for DC brushed, brushless DC, and step motors. Designed in surface mount CMOS technology, it delivers trajectory generation, servo loop closure, quadrature signal input, motor output signal generation, trace, and on the fly changes. It provides servo loop rate of 100 µSec/axis, with 5.0 Mcount/sec quadrature encoder input rate. Total of 16 general-purpose digital I/O signals and 8 general-purpose analog inputs are provided.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 28, 2003 DB2® Information Integrator v8.1 provides foundation for strategic information integration framework that helps customers access, manipulate, and integrate diverse and distributed information in real time. It enables businesses to abstract common data model across data and content sources, and to access and manipulate them as though they were single source. Businesses can quickly correlate information across value chain as well as enterprise.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 28, 2003 WebSphere Business Integration Event Broker leverages varying applications and devices across heterogeneous platforms. It offers protocols such as real-time Internet and intranet and multicast endpoints. WebSphere Business Integration Message Broker transforms and enriches in-flight information to provide level of intermediation between applications that use different message structures and formats. It also performs message logging, data merge, and database updates.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 28, 2003 DB2 Universal Database Express Edition v8.1, for Linux and Windows, suits small and medium businesses positioning themselves for e-business. Silent install capability allows application provider to incorporate DB2 UDB Express as transparent part of solution. Suite of advanced management and autonomic computing capabilities support simplification and automation of administration tasks. Scalable features allow seamless transition to other DB2 editions as businesses grow.

National Instruments Corp.    Austin, TX 78759-3504
May 28, 2003 LabVIEW 7 Express reduces development time via 40+ Express VIs that encapsulate measurement functionality for common measurement and automation applications. Software employs NI-DAQ driver framework and 2 interactive assistants for data acquisition and instrument control. Real-Time Module develops deterministic, real-time, and embedded control applications, while Datalogging and Supervisory Control Module develops distributed monitoring and control applications.
