B & K Precision Corp.    Placentia, CA 92870

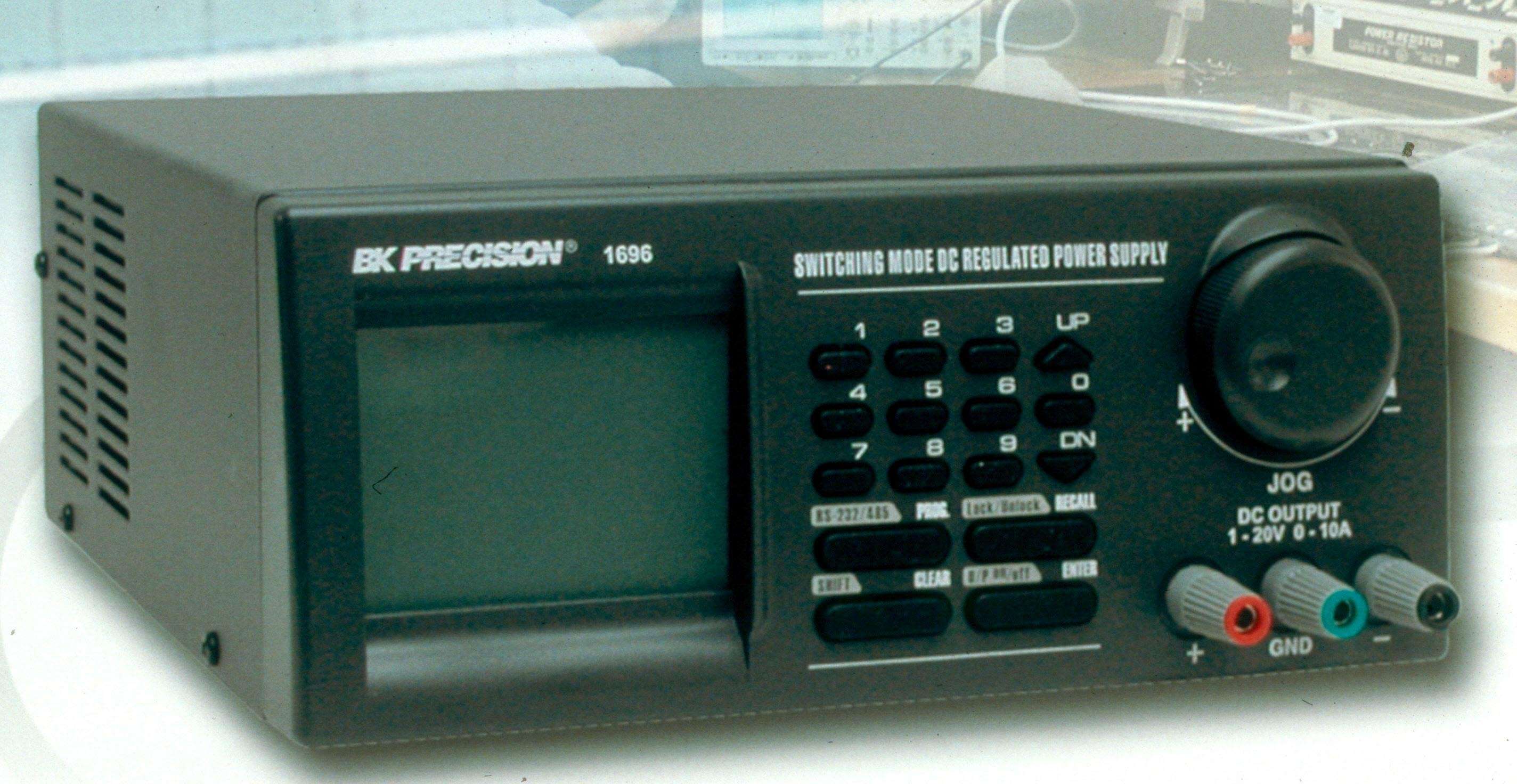

May 28, 2003 Models 1696, 1697, and 1698 provide DC outputs of 1–20 Vdc, 10 A, 1–40 Vdc, 5 A, and 1–60 Vdc, 3.3 A, respectively. They include 9 user-programmable preset memory recall, 10-step user-programmable output routine, RS-232 communications to Windows™-based software, and backlit 4-digit LCD ammeter, voltmeter, and power meter. Operating voltage is 120 V, 60 Hz. Data analysis can be achieved using data logging with color graphic display.

Meriam Instrument    Cleveland, OH 44102
May 28, 2003 With typical RTD measurement accuracy of 50 ppm + 10 ppm/°C, model RIO4000 measures or simulates resistance for RTD sensor types with resistances up to 4,000 ohms. In measure mode, product converts measured resistance from RTD to corresponding temperature values in user-selected unit of °F, °C, °R, or °K; ohms can also be displayed. In simulation mode, unit provides resistance value to simulate RTD input to temperature transmitter or other receiving device.

Flexco    Downers Grove, IL 60515-4200
May 28, 2003 With 6 steel top-plate fastener segments under vulcanized-on rubber top cover, 190V Flexco® Bolt Solid Plates install as single pieces over 6 Quick-Fitâ„¢ bottom plates. Plates are pre-assembled with Piloted Bolts and clip for one-hand insertion. Splice cover is equipped with 1/8 in. thick layer of natural rubber, with 65-durometer hardness. Working temperature is -40 to +180°F. Flexibility between plates allows splice to conform to belt troughing angles.

GEI International, Inc.    Syracuse, NY 13217 6849
May 28, 2003 Model ONS-0383 Telecentric Collimating Measuring Magnifier features optical system with small opening at focal point of lens, enabling not only flat, but also 3D objects to be viewed and measured without errors due to parallax. The 7x lens system features adjustable focus and provides sharp and distortion free images. Clear acrylic base allows for light entry, enabling magnifier to be used in ambient room light. Portable unit measures 1.4 x 3.3 in.

Armstrong International, Inc.    Three Rivers, MI 49093
May 28, 2003 Electronic Mixing Center (EMC) combines integrated circuit board technology with precision hydraulics for water temperature control within institutional re-circulating hot water systems. Unit also employs building management system, PC interface capability, and site-programmable, high-temperature system flush for Legionella abatement. With overnight, low-temperature, energy-efficient mode options, product offers ±1°F control from 1-75 gpm.

C & H Distributors, Inc.    Milwaukee, WI 53214

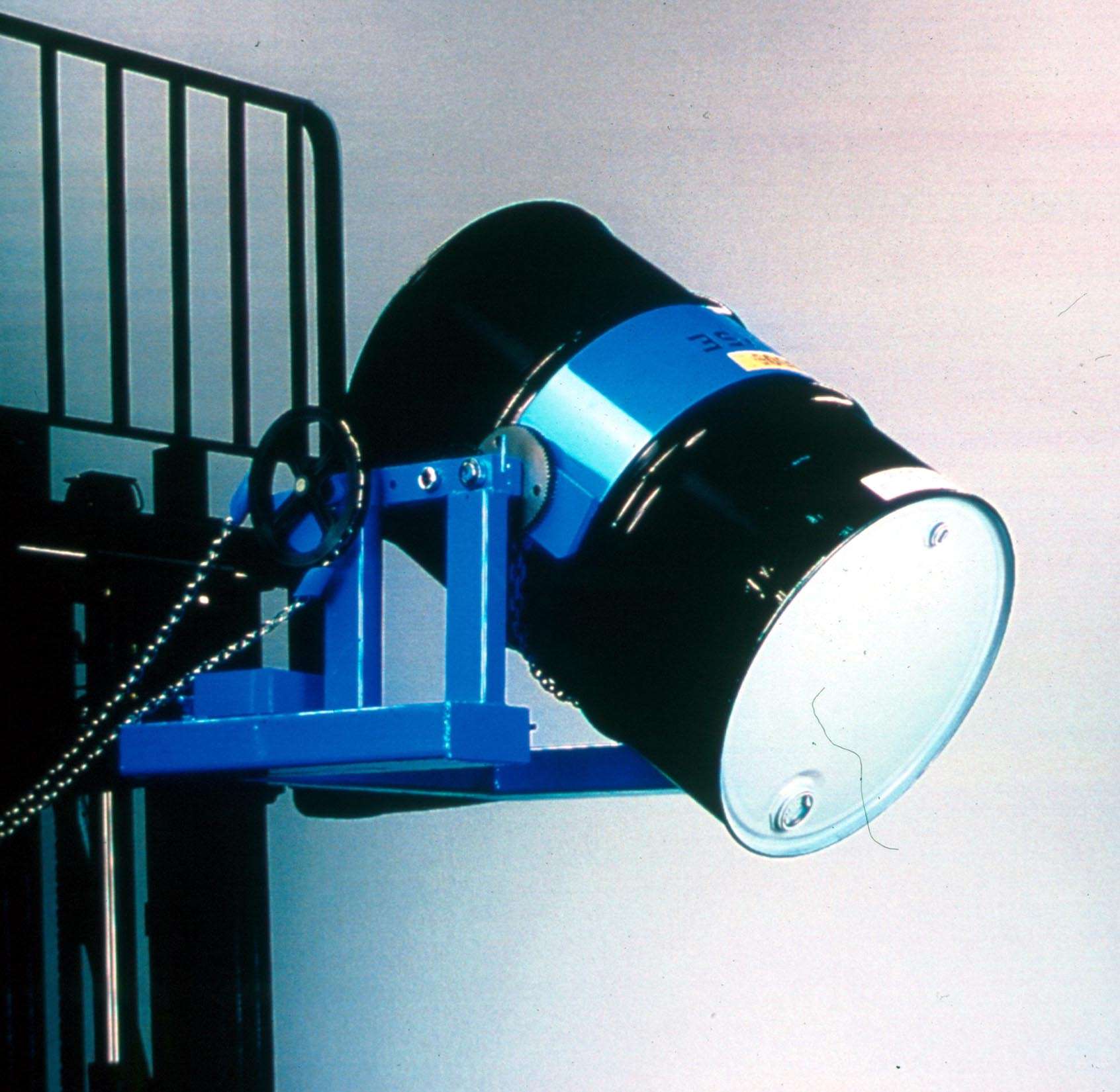

May 28, 2003 Morse Forklift Carrier enables fork-truck operators to transport, tilt, and drain fully loaded drums from operator's seat. With 800 lb capacity, manually operated carrier incorporates alloy chain tightener with positive-engaging dual safety feature that shields pawl from impact. Product's 20 ft long chain, with 10 ft drop, manipulates 55 gal steel drums up to 22½ in. in diameter. Spaced 24 in. apart, fork pockets measure 6½ x 26½ x 2½ in.

Mahr Federal Inc.    Providence, RI 02940
May 28, 2003 Utilizing proprietary MarForm Metrology Software, MarFormâ„¢ MMQ 6200 multi-parameter system measures parts weighing up to 132 lbs and measuring up to 15.5 in. in diameter and 13.5 in. high. Product incorporates motor-driven gage head stand, touch screen, and variable-speed joy stick controls. Additional offerings include heavy-duty base; precision, 8.6 in. mechanical bearing spindle; and tilt/centering table. Precision spindle offers radial accuracy of ±1.38 µin.

Rockwell Automation, Dodge & Reliance Electric Headquarters In The Americas    Greenville, SC 29615-4617
May 28, 2003 Model MD65 delivers 60:1 constant torque speed range and output frequency range up to 400 Hz. Overload protection is provided at 150% for 1 min and at 200% for 3 sec. Available from .25–10 hp, drive delivers ±1% speed regulation through sensorless vector speed control. Ratings are available in 115, 230, and 460 Vac inputs. For setup and operation, onboard keypad features out-of-the-box settings, auto tuning, and diagnostic capabilities for troubleshooting and fault detection.

AEMC Instruments    Foxborough, MA 02035

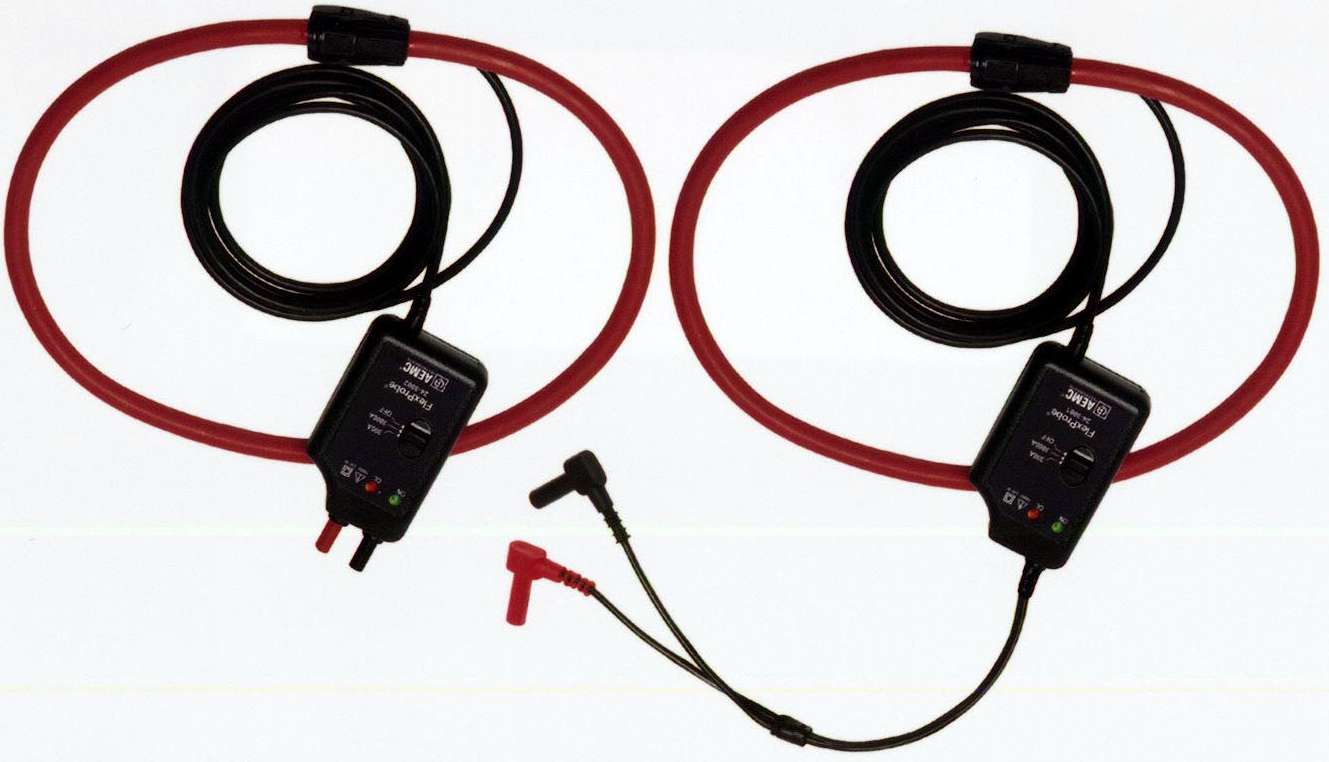

May 28, 2003 FlexProbe® Models 24-3001 and 24-3002 consist of AC current-measurement probes that plug into digital multimeters, oscilloscopes, and power recorders. Model 24-3001 is composed of flexible sensor and electronic module with 14 in., double-insulated cable, while Model 24-3002 has flexible sensor and electronic module with 4 mm safety banana jacks with ¾ in. spacing. Measuring 24 in. long, sensors fit around conductors with up to 7.6 in. dia.

Aromat Corp.    New Providence, NJ 07974 1507
May 28, 2003 Model AX30 MICRO-IMAGECHECKER consists of dual-camera, image-processing device that offers 512 x 480 pixel resolution and RGB color-scale extraction. Product offers contour algorithms for 360° object tracking, built-in Ethernet communications, and VGA outputs. Color inspection tools such as Color Scale Registration, Object Counter, and Area Measurement aid in applications that require color inspections and maximum defect containment.

Mitsubishi Heavy Industries America - Machine Tool Div.    Addison, IL 60101-1065
May 28, 2003 Table of M-V50-FM vertical machining center moves in Y-axis only, to minimize required floor space. Headstock construction and ballscrew with 50 mm dia and 12 mm lead increases machine's rigidity. Travels are X-31.5, Y-20.1, and Z-17.7 in., with 15-position ATC. Features include low vibration 30 hp integral spindle, and spindle speed of 14,000 rpm, with 30,000 rpm option.

Dynatrol Div., Automation Products, Inc.    Houston, TX 77008
May 28, 2003 Viscosity System uses vibratory principles to provide measurement at on-line process conditions for plastics, chemicals, inks, paper, foods, etc. System consists of in-line or stand-alone viscosity probe and analog converter that converts signal into 4-2O mA output. Stainless steel probe uses vibrating rod immersed in process media and operates in ranges to 100,000 cp. Features include pressure rating of 1000 psi and temperature range to 300°F.

HBControls, Inc.    Fall River, MA 02720
May 28, 2003 Intelligent Control Solid State Relay Assemblies are rated for loads up to 100 A at 40°C. Assemblies consist of Solid State Relays attached to anodized aluminum heat sinks. DIP switch on each unit allows selection of control inputs. Cycle times of 200 msec, 1, 10, and 100 sec are available. Line voltage options include 24–280 Vdc, 48–530 Vac, and 48–530 Vdc. Units have transient overvoltage protection at 600 or 1,200 Vpk.

Lumileds Lighting LLC    San Jose, CA 95131
May 28, 2003 Suited for indoor lighting applications, warm white Luxeon LEDs offer correlated color temperature (CCT) of 3200 K, typical color rendering index (CRI) of 85+, and average light output of 22 lumens. Solid-state light source replicates glow of incandescent bulbs and retains 70% of its initial power through 50,000 hr of operation under typical conditions. Product also provides beam that is cool to touch and contains no UV.

Interpolymer Corp.    Canton, MA 02021
May 28, 2003 Megatran® 233 features high gloss characteristics with scuff and scratch resistance. Due to high solids content, formulations based on Megatran 233 polymer require fewer coats than are needed with conventional lower-solids formulations. Use of sulfate and sulfonate groups attached to polymer backbone stabilize polymer emulsion particles during drying process. Finishes respond well to low-speed spray buffing and occasional ultra-high-speed maintenance.

Gateway Safety, Inc.    Cleveland, OH 44131 1045
May 28, 2003 Able to be worn with or without head protection, SoundSeriesâ„¢ Earmuffs consist of 3 styles of fully adjustable sound protection devices with rotating headband that lets products be worn in 3 positions. SoundOut products offer attenuation at 28 NRR and feature di-electric protection, and soft foam cushions. SoundDecision units include 25 NRR attenuation, padded headband, and soft foam cushions. SoundChoice, rated at 22 NRR, offers fully adjustable, padded headband.

Spence Engineering Co., Inc.    Walden, NY 12586-0230
May 28, 2003 Sanitizer NTD230L Sanitary Thermodynamic Steam Trap offers 316L stainless steel construction and internal/external surface finishes of 32 Ra or better. Built with one moving part, product features heat numbers permanently stamped into its body. Self-draining unit resists freezing, puddling, and bacteria growth, while audible discharge simplifies testing. Product fits ½ and ¾ in. sanitary clamps and is rated to 150 psig at 850°F.

Spectronics Corp.    Westbury, NY 11590
May 28, 2003 Spectroline® AP-400 UltraWandâ„¢ features 4 W UV probe measuring 1 in. in diameter and 6 in. long. It delivers typical peak 365 nm UV intensity of 5,500 µW/cm² at light source and over 1,500 µW/cm² at 1 in. Probe is useful in tight places, such as small-diameter pipes and turbine engines. It provides more than 40 hours of inspection time on 8 D-cell alkaline batteries. Kit includes 10 ft power cord, 10 ft extension cord, adjustable mirror, and spare 4 W tube.

Baumer Ltd.    Southington, CT 06489 1534
May 28, 2003 Flat-Pack 8 mm Inductive Sensor mounts using single, front-accessible, through-bore screw, and requires only 4 mm of mounting depth. Using ASIC technology, it features anodized-aluminum, IP67-protected housing, measuring 8 x 16 x 4.7 mm. Sensor offers 10-30 Vdc voltage supply range, integrated reverse-polarity and short-circuit protection, and sensing distances up to 2 mm. M8x1 pigtail connector is available.

ADMET    Norwood, MA 02062
May 28, 2003 Precise Digital Controller measures load, load rate, crosshead position, position rate, strain, and strain rate. It stores 3 test procedures and up to 350 test results per procedure. Closed loop servo capabilities facilitate repeatable testing. Unit uses WinCom Plus data communications program to share XY data and results with Windows-based spreadsheet and database programs. It is suitable for manually operated and servo-equipped, electromechanical and hydraulic testing machines.
