Adhesives Research, Inc.    Glen Rock, PA 17327
Jun 20, 2003 Supported by polyester release liner, ARclad® 90038 2.4-mil tape features electrically-conductive, acrylic-based, pressure-sensitive adhesive and 1 oz tin-plated, copper-foil backing that can be soldered and is resistant to corrosion and oxidation. Shielding effectiveness is from 95-80 dB in 1-18 GHz frequency range, making it suitable for cell phones, computers and peripherals, ground stations, PDAs, disk drives, medical equipment, and automotive electronics.

Moeller Electric Corp.    Houston, TX 77032

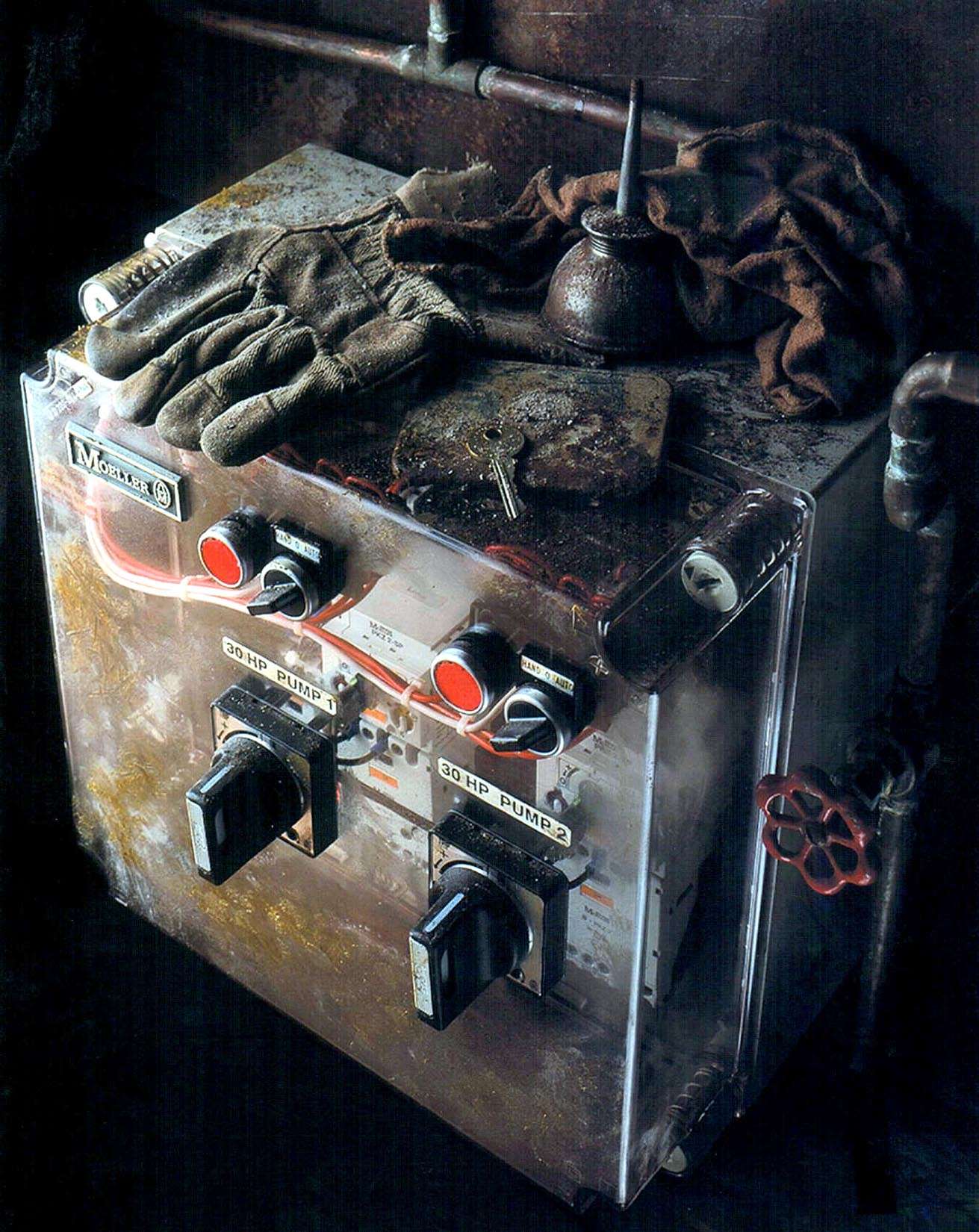

Jun 20, 2003 Pump Control Panels use full range of power and control components made in modular blocks for both fuse and fuse-less designs. They include automation system integration controls, wiring harnesses, and metallic or non-metallic enclosures. Suitable for single and multiple pump control functions, panels can incorporate supervisory control and monitoring through Web and software, which can be adapted to virtually any application requirement.

AliMed, Inc.    Dedham, MA 02026
Jun 20, 2003 Available with or without arms, VersaTechâ„¢ Comfort Chair is designed for workstations that are continually shared by several different-sized people. Seat cushions are constructed of heat- and pressure-sensitive T-Foamâ„¢ to conform to body shape, while fully padded backrest provides upper and lower lumbar support. Seat may be slid in or out to accommodate user's legs. Single-paddle adjustment changes seat and backrest angle.

APCON, Inc.    Wilsonville, OR 97070
Jun 20, 2003 IntellaPatch 16 Physical Layer Switch is based on modular, single-slot design that allows use of various protocol and data-rate specific blades. It supports 1, 2, and 10 Gbps Fibre Channel; 10/100/1000/10 Gig Ethernet; and SONET OC-3, OC-12, and OC-48 by using either SFP or XFP transceivers. Layer-1 switch is suitable for system integrators and test engineers who need to manage configurations between servers, storage systems, peripherals, and operating systems.

Macro Sensors, Div. of Howard A. Schaevitz Technologies, Inc.    Pennsauken, NJ 08110 1334
Jun 20, 2003 Series DC 750 dc-operated LVDT Sensors, with ¾ in. diameter, feature +15 Vdc input, pre-calibrated 0–10 Vdc output, and full scale measurement ranges from ±0.050 to ±10 in. Glass-filled polymer coil forms provide thermal stability and magnetically shielded stainless steel housings reduce effects of external ac magnetic field. Units operate in conjunction with PLCs, digital indicators, A/D converters, computer-based data processors, and QC data collection systems.

Yokogawa Corp. Of America, Meter & Instrument Div.    Newnan, GA 30265
Jun 19, 2003 Analog Series MLA and digital Series MLD loop-powered indicators, housed in NEMA 4x case, mount on 2 in. horizontal or vertical pipe. Wall mounting is optional. They monitor 4-20 mA process inputs from 2-wire transmitters and provide real-time indication of parameters such as flow, pressure, temperature, or liquid-level. Units are explosion-proof for Class I, Division 1, Groups A, B, C, D: dust-ignition proof Class II/III, Division 1, Groups E, F, G.

Lumitex, Inc.    Strongsville, OH 44136
Jun 19, 2003 Optical-grade, acrylic-plastic, rod-shaped light guides are offered in machined, extruded, or molded versions. Lengths range from 1–36 in., with diameters from 0.100–1.000 in. Units consume 20–25 mA and offer 20,000–100,000 hr to half life. They include LED light source and wiring harness for plug-and-play operation. Applications include illumination, backlighting, or accent lighting for audio/visual products, handheld remote controls, and portable test equipment.

Palintest USA    Erlanger, KY 41018 0733

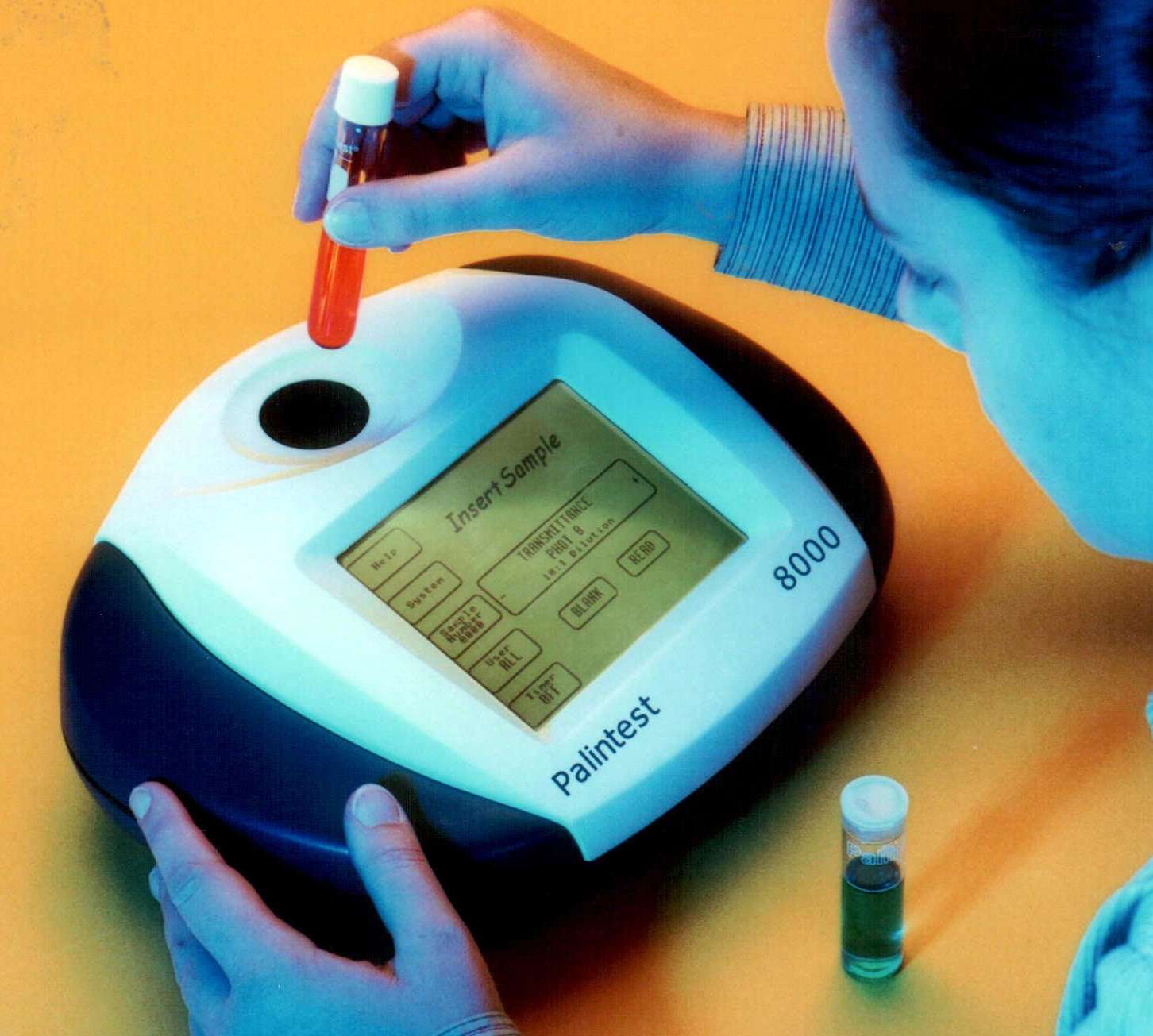

Jun 19, 2003 Photometer 8000 offers rapid start up, fast blanking and reading, and optics system with automatic wavelength selection and test recognition. Backlit touch-screen display provides menu-driven user interface, while on-screen prompts guide users through measurement and test procedures, eliminating need to use handbook. Up to 1,000 test results can be logged with record of time, date, and sample number, which can then be downloaded to computer database or printer.

DIRAK    Chantilly, VA 20151-1220

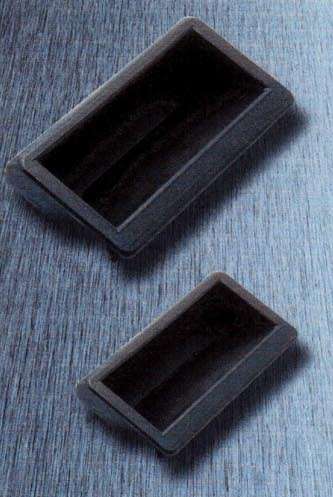

Jun 19, 2003 Dish Handles provide 1-piece, snap-fit installation from front of door or panel. Deep recess offers up to 1.024 in. of interior protrusion, allowing for comfortable lifting and pulling. Smaller version measures 0.0295–0.087 in., while larger version measures 0.059–0.126 in. Glass-filled, nylon polyamide handles withstand harsh environments and are available with VO flammability rating. They can be customized to meet EMI/RFI shielding requirements.

Leoni Tailer-Made Cable    Troy, MI 48084

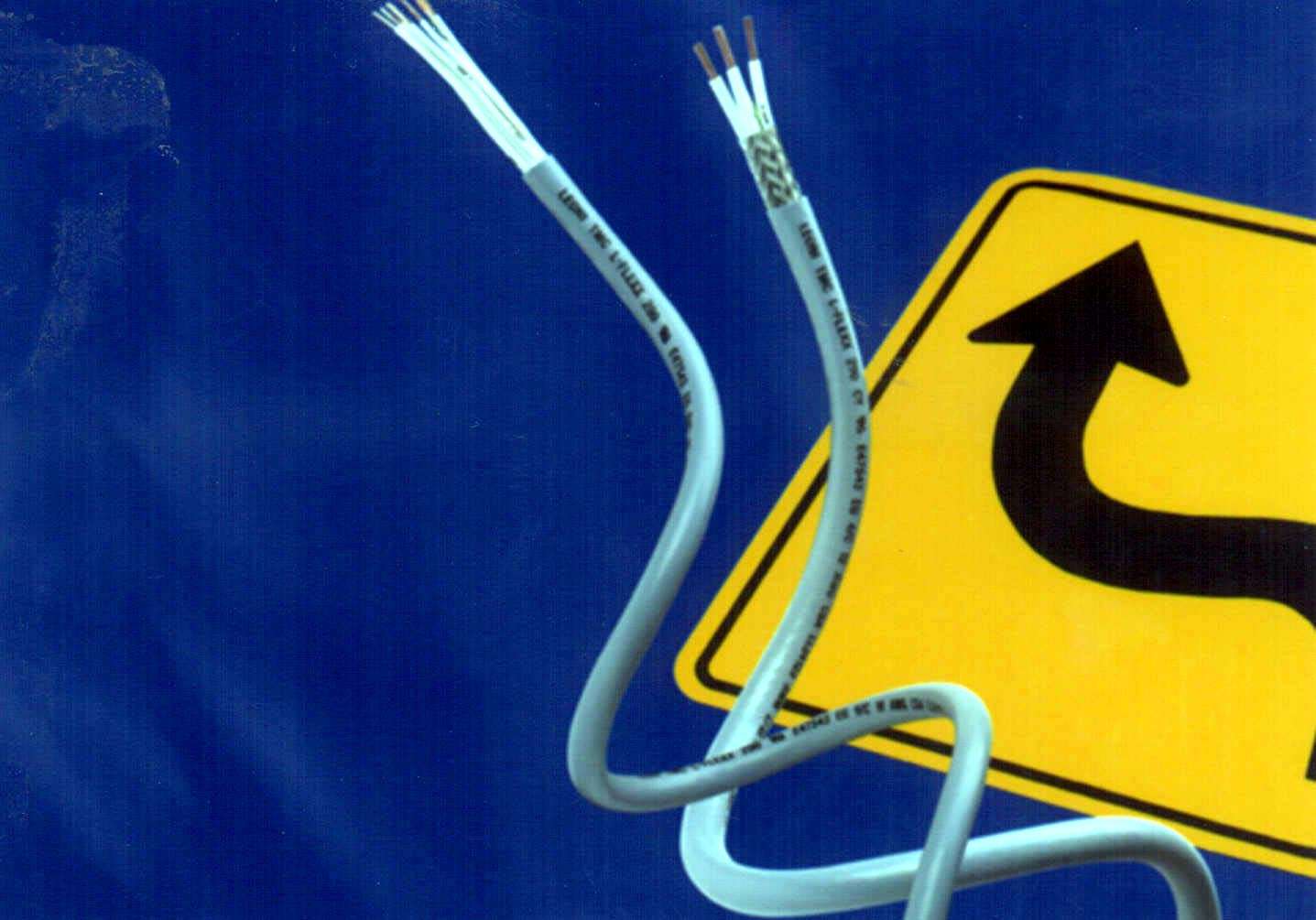

Jun 19, 2003 L-FLEXX 290 Cables snake through tight curves during installation. Finely stranded bare copper conductors, combined with talc lubricant dispersed between conductors, allow for tight bend radius. Rated for 600 V/90°C, cables are protected by PVC jackets. They contain no silicone, mercury, chromium, lead, or cadmium making them resistant against mineral and/or synthetic oils, and water-based coolants and cleaning solvents. Unshielded and shielded versions are available.

WRH Industries, Ltd.    Fall River, MA 02720

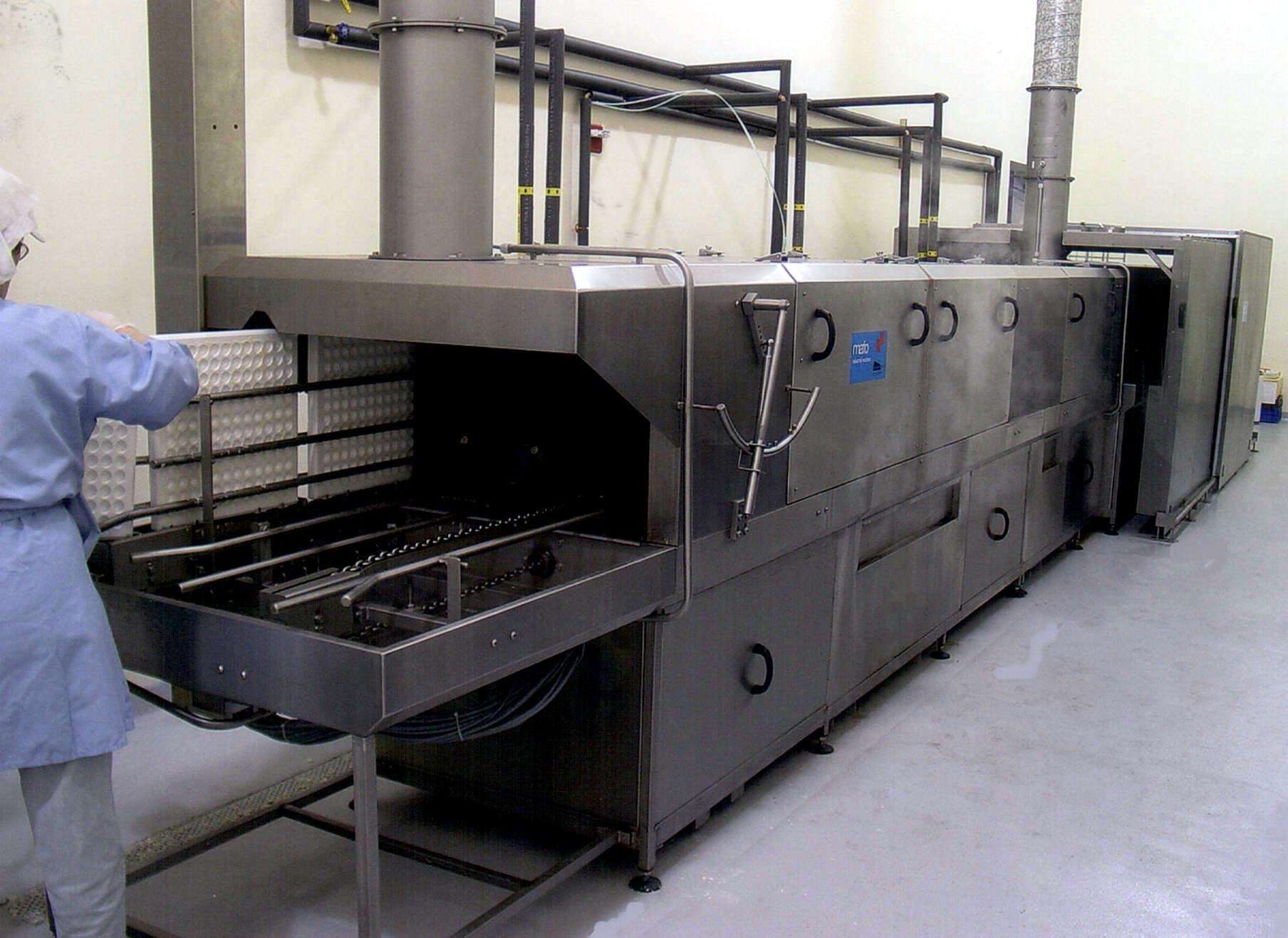

Jun 19, 2003 WRH/Mafo Modular Tunnel Washers feature polymer guidance system with dual chain drive mechanism to assure proper alignment of items being washed. They are based upon large volume of water contacting product rather than high water pressure. Air knife system can achieve 95% dryness without heat. Washers incorporate 304 stainless steel tunnels and can be designed to meet 3-A sanitary standards. They handle trays, tote boxes, pallets, and pallet containers.

Salvagnini America Inc.    Hamilton, OH 45015

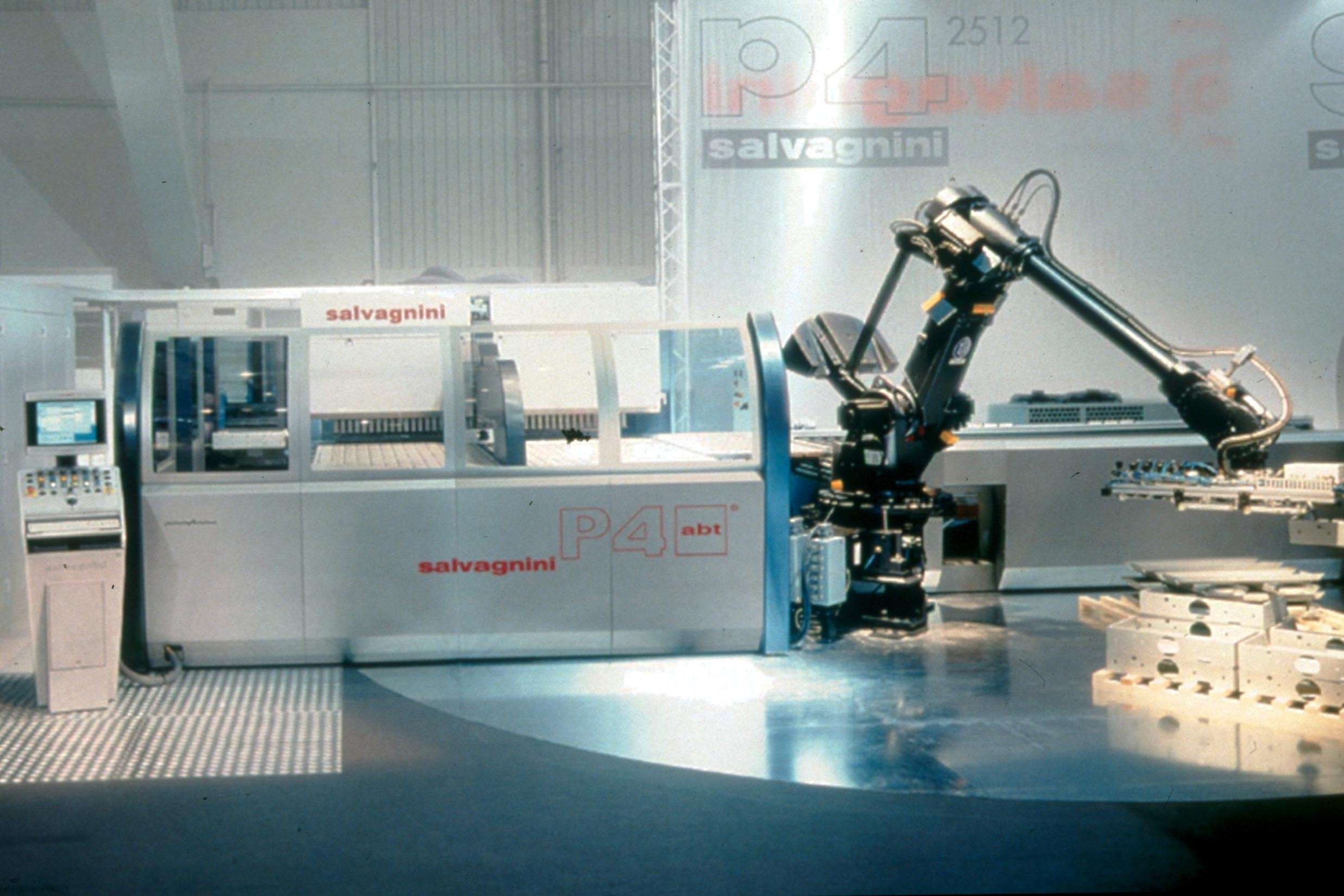

Jun 19, 2003 Flexible P4 panel processing system integrates universal tooling, proprietary production software, and automated material handling capability into one unit. Capable of producing components of different geometric shapes, machine is guided by Advanced Bending Technology, which enables forming of pre-painted and unpainted sheet metal panels. Universal bending tool eliminates need to change tools to achieve different bends.

Schmersal Inc.    Elmsford, NY 10523
Jun 19, 2003 Industrial-strength, CE-compliant, Category 3 SMS Series features 100% active area, actuation force of less than 10 lb, and riveted cable strain relief. Product also incorporates non-skid surface, IP67 submersible rating, and an 4-wire termination. Accessories include selection of 3 compatible safety controllers, multi-mat junction boxes, and matched trim kits for installation in compliance with ANSI and OSHA requirements.

Seco Tools Inc    Troy, MI 48083
Jun 19, 2003 MDT(TM) Threading Inserts, available in CP500 grade, feature 55° whitworth threads, and partial profiles of 60° for UN and ISO threads. They can produce right- and left-handed threads both toward and away from chuck. Grooving inserts include CP500 grade, and in 13 mm style, are suited for small bore and face machining. Grade TK150 works with cast irons and hardened steel. MDT system uses single toolholder and insert for turning, profiling, and grooving in axial and radial directions.

HellermannTyton    Milwaukee, WI 53224

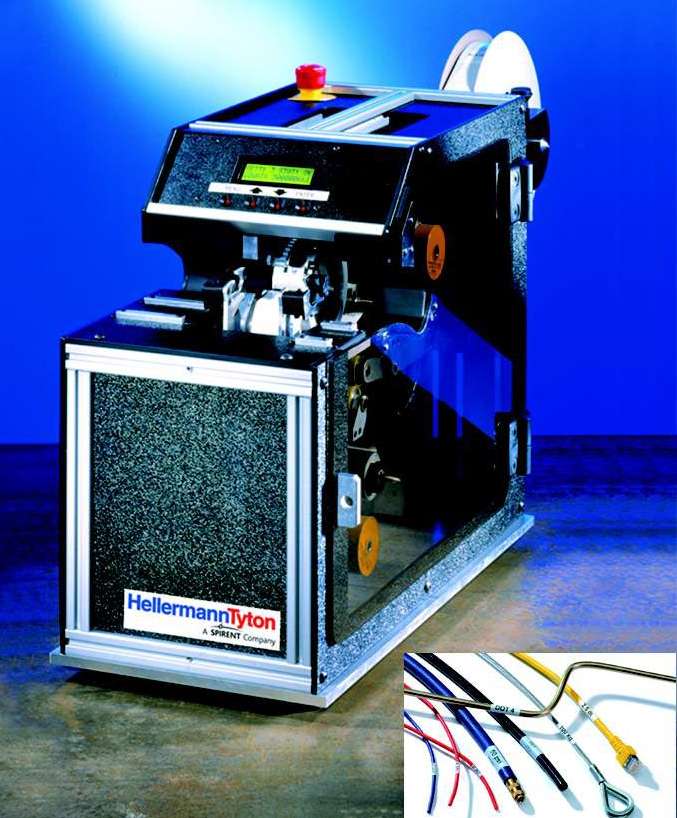

Jun 19, 2003 Utilizing HellermannTyton's self-laminating vinyl labels, Automatic Label Applicator applies pre-printed labels to wire and cable. Unit eliminates oil and dirt contamination associated with manual label applications and can be used with wire ranges from .112-.50 in. in diameter. Changing label sizes takes less than 1 min, no tooling, gearbox, or hardware changes are required. Powered on standard AC current, unit can easily be moved to different workstations.

Men Micro Inc.    Lago Vista, TX 78645-4160

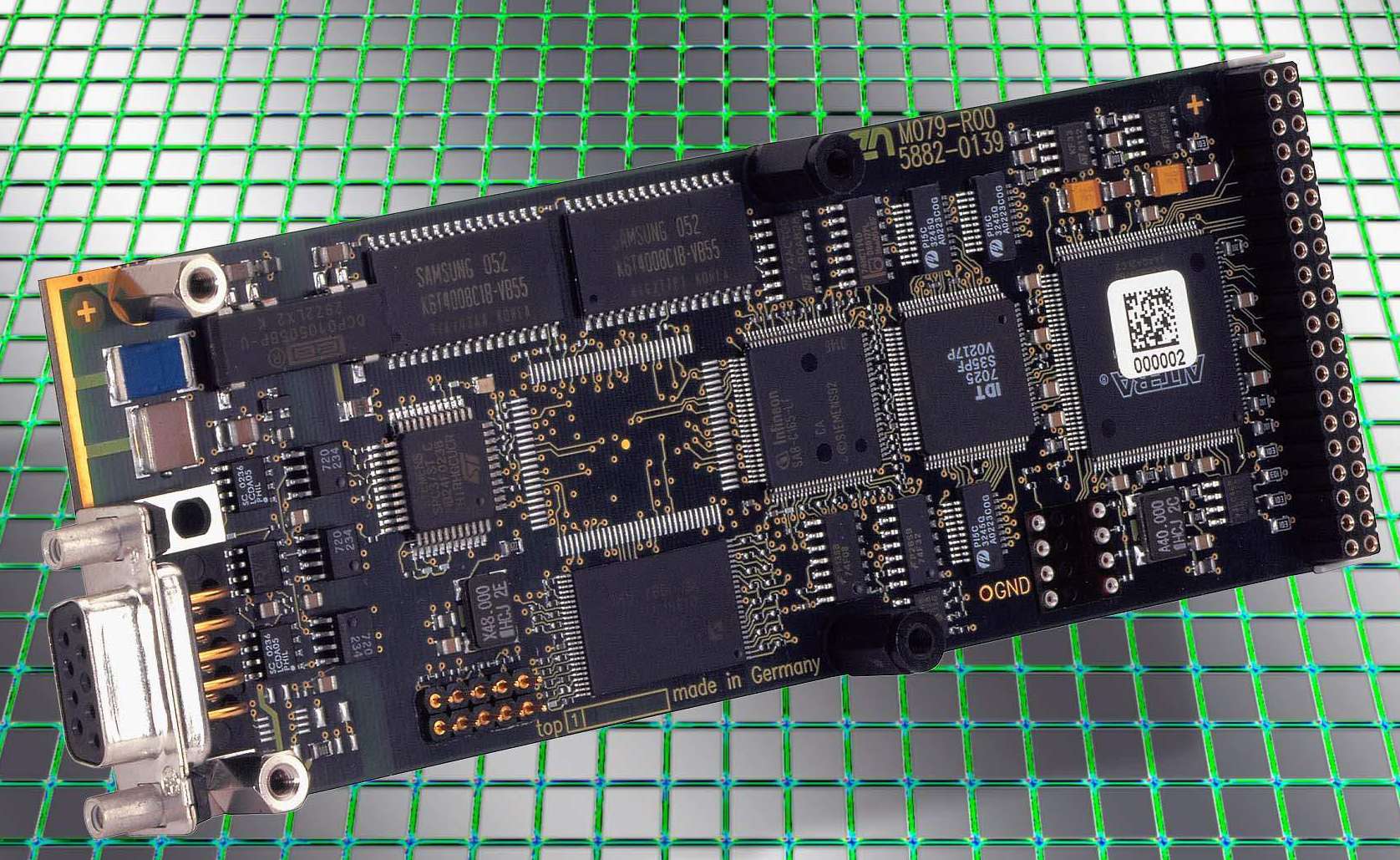

Jun 19, 2003 With 16-bit processing unit, M79 M-Module can be used as flexible solution for intelligent remote I/O in automation and instrumentation applications. Product features intelligent Profibus DP Slave Interface that conforms to Profibus DIN19245 standard. Offered with short-circuit protection on output, with optically isolated RS485 interface, unit supports transmission rates from 9.6 kbps to 12 Mbps. Processing unit has 512 KB of flash memory and 1 MB SRAM.

SAMSys Technologies, Inc.    Richmond Hill, ON L4B 1G8  Canada

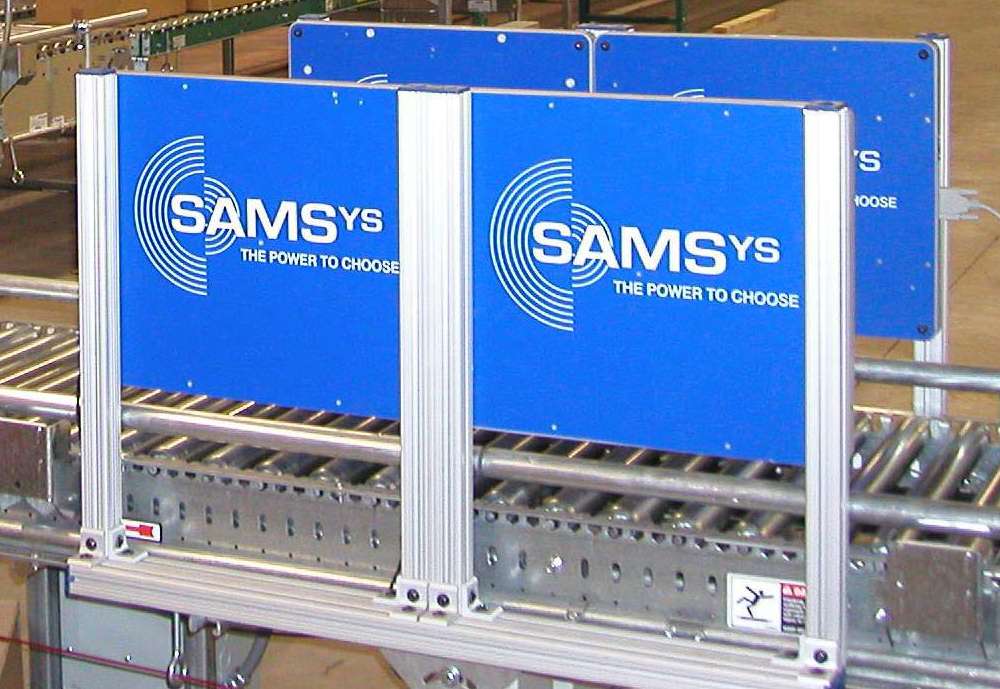

Jun 19, 2003 Model MP9210 short-range, high-frequency (HF) reader supports draft Electronic Product Code (EPC) Class 1 protocol at 13.56 MHz. Product enables retailers and producers to utilize tags in inventory management and smart-shelf applications. EPC Class 1 protocol implements EPC architecture in magnetically coupled tag. Numbering scheme of HF EPC is consistent with UHF EPC data structures, which enables users to use data from HF and UHF tag types interchangeably.

Quicksilver Controls, Inc.    Covina, CA 91722

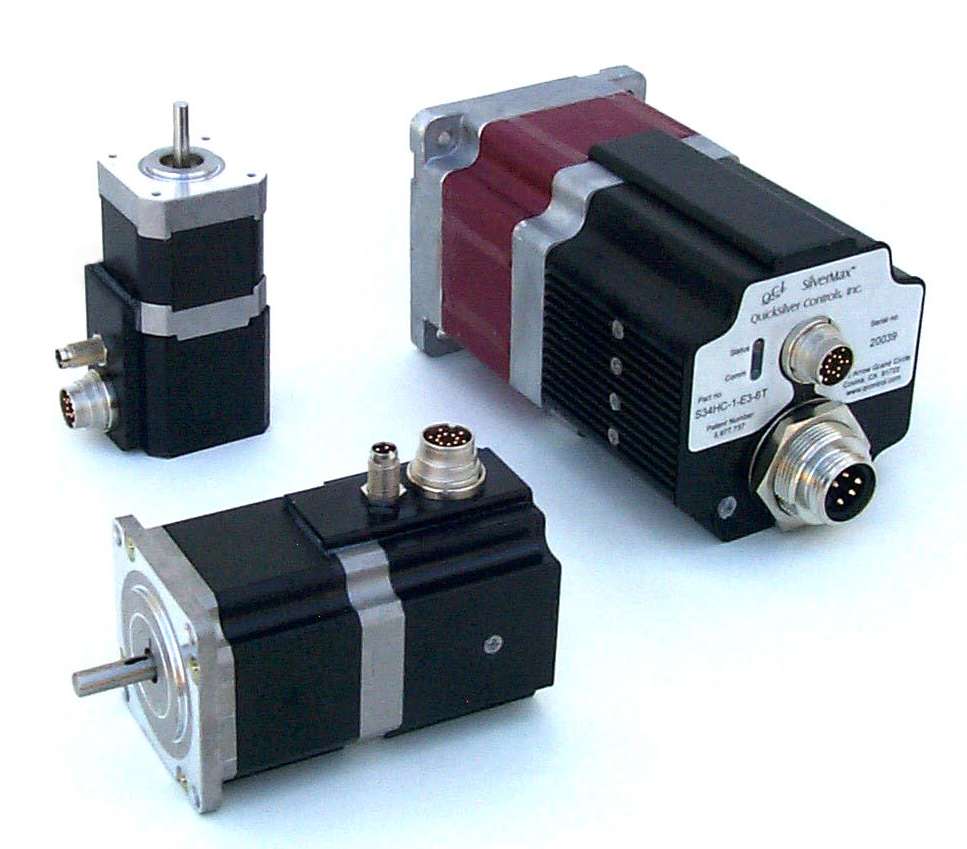

Jun 19, 2003 Available in NEMA frame sizes 17, 23, and 34, servos are equipped with power connectors and signal/communications connectors. Offered with straight and right angle cord-sets, units employ SilverMax® motion system, which combines motor, controller, driver, and encoder to create integrated servomotor. Users can program applications requiring electronic clutch, electronic gearing/caming, registration moves, serial communications, and 7 configurable I/O.

Bosch Rexroth Corp., Linear Motion & Assembly Technologies Div.    Buchanan, MI 49107 1801
Jun 19, 2003 VarioFlowâ„¢ lets manufacturers link assembly operations with functions such as parts feeding and packaging on either side of assembly process. Product consists 65 and 90 mm profile widths with 62 and 87 mm chains, respectively. Integrated variable speed drive option provides transport speeds up to 60 m/min, while chain withstands tensile force of up to 1250 N. Product, offered with 3 drive types and 8 chain types, conveys products up 15° inclined slopes via cohesive friction chains.

BEI Kimco Magnetics    Vista, CA 92081

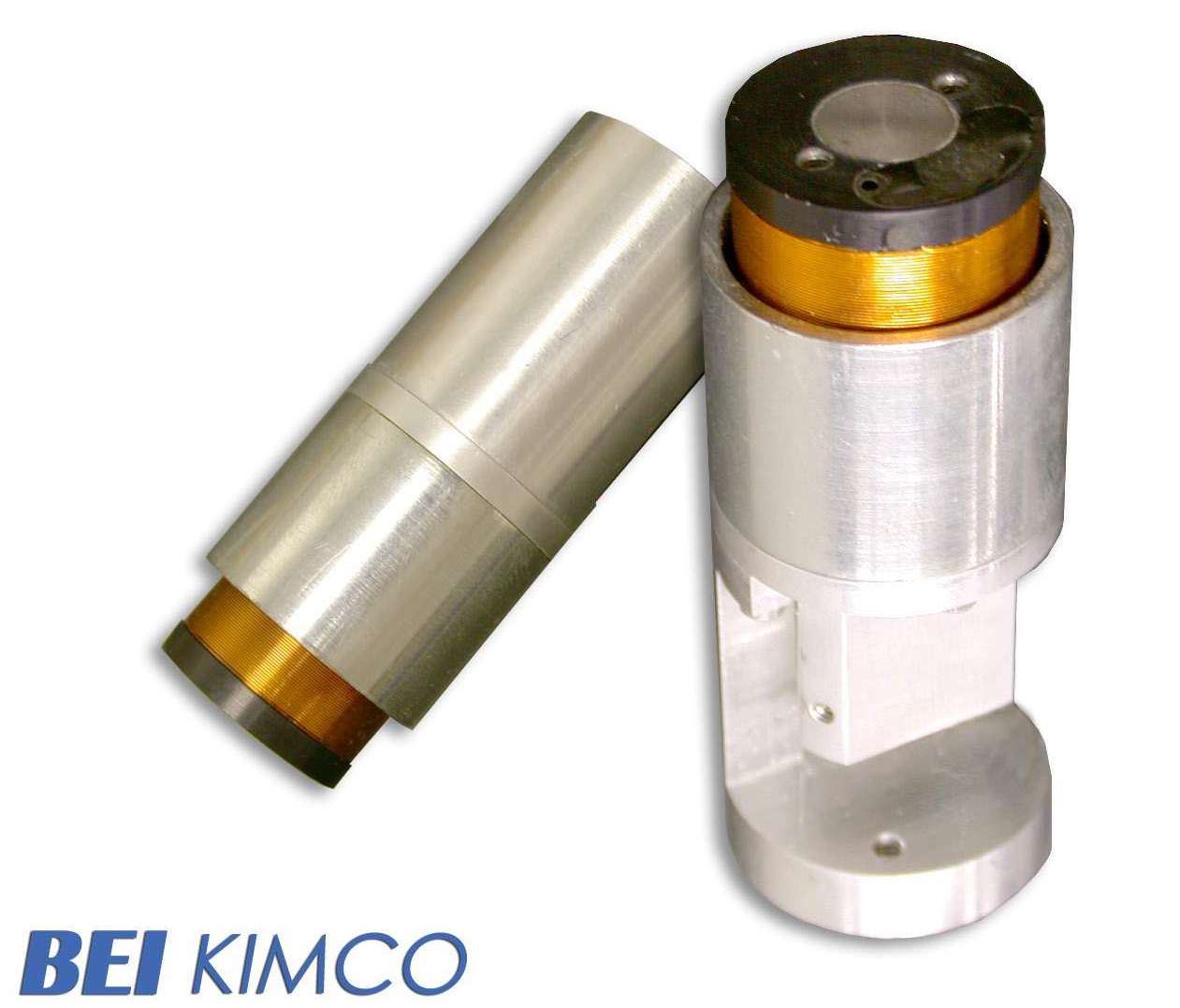

Jun 19, 2003 Model LAS10-20-001 can be mounted into hand-held wands and used in reciprocal medical applications. Actuator has stroke of 0.2 in. and exerts 17 oz of force. It offers direct drive, zero cogging, zero hysteresis, and infinite set-ability. User can control velocity, position, force, reciprocation, and acceleration in applications such as valve control, beam steering, clamping, and servo-control of X, Y, and Z axes.
