Day-Brite Lighting    Tupelo, MS 38802-1687
Jun 24, 2003 LightWingâ„¢ high bay luminaires include specular aluminum reflectors for maximum efficiency in open industrial areas and warehouses. Steel housing holds 6 linear fluorescent lamps to provide illumination in all directions. Each unit comes with heavy-duty mounting chain and hook assembly. Optional cord and plug assembly provides easy electrical disconnect. LightWing is UL 1598 listed for use in 40°C ambient temperature and damp locations.

Migatron Corp.    Woodstock, IL 60098

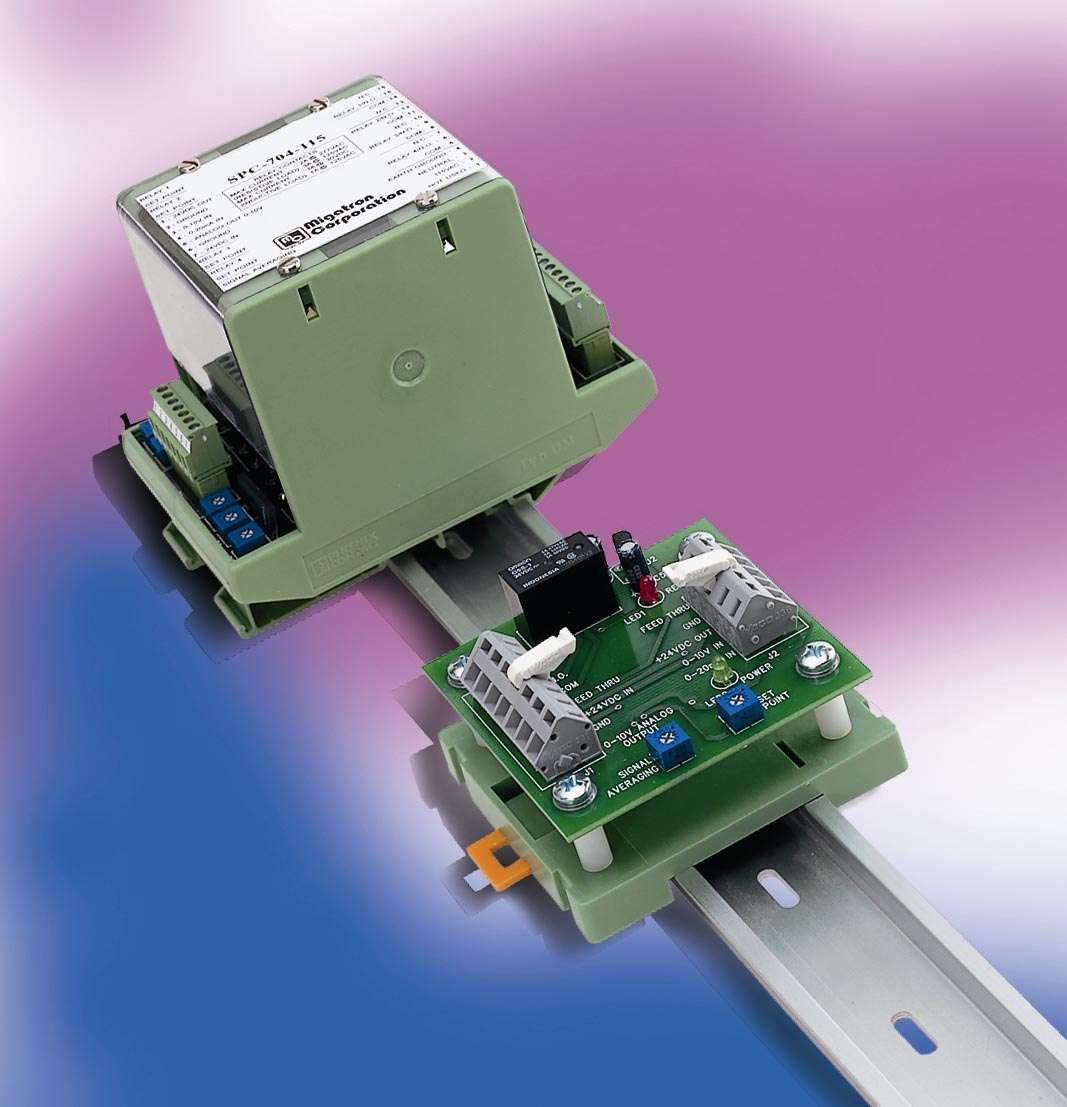

Jun 24, 2003 Model SPC-704 offering 4 set points, and Model SPC-701 offering 1 set point, can be used with any sensor or device that produces 0–20 mA, 4–20 mA, 0–10 V, or 2–10 V analog output. Set points are independently adjustable, each having form C relay output. To drive sensor inputs, 24 Vdc excitation power at 150 mA is provided. Signal averaging potentiometer helps alleviate false detects during sudden signal changes. Controllers are DIN rail mountable.

Fiber Systems International    Allen, TX 75002

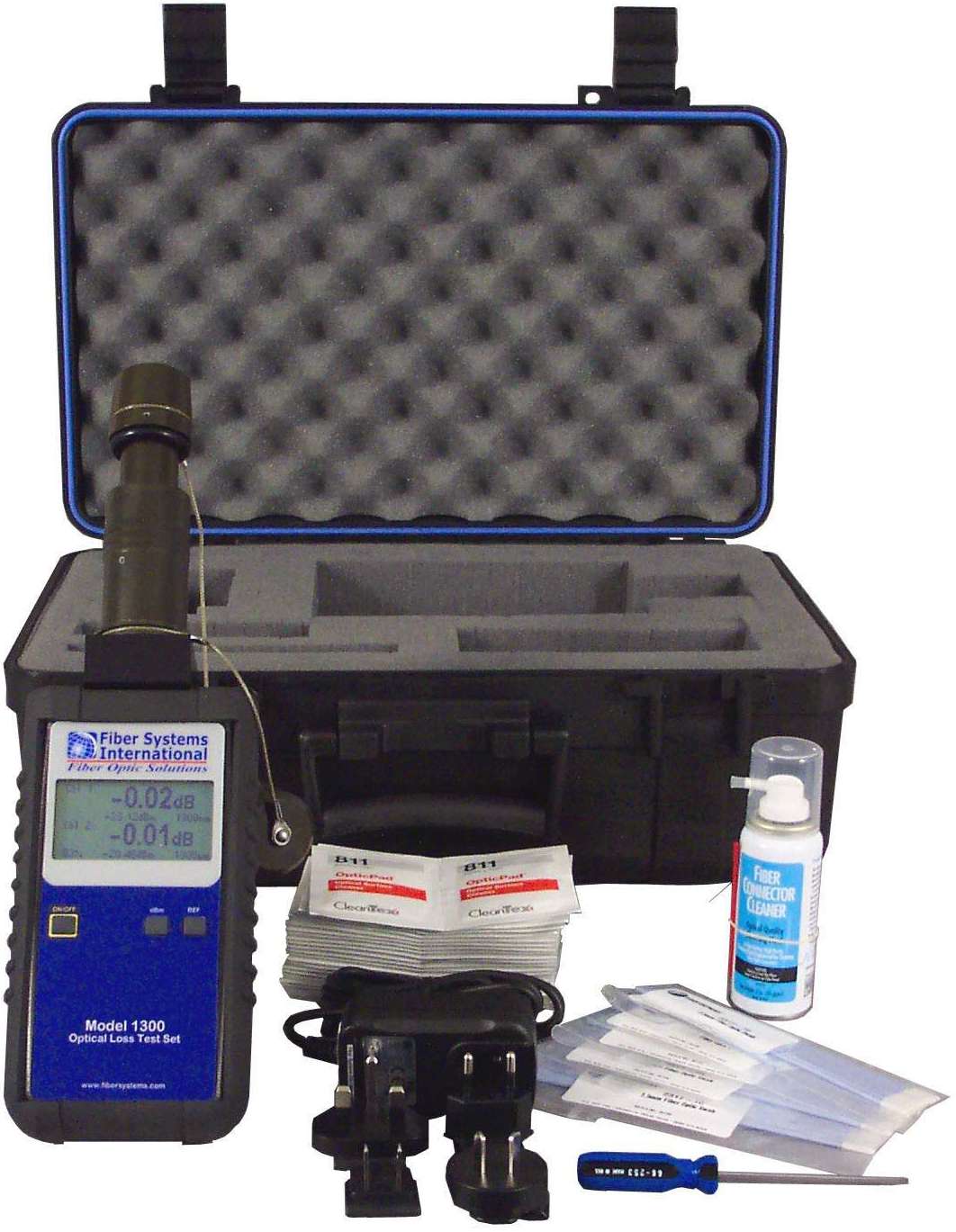

Jun 24, 2003 Model 1300 Optical Loss Test Set is available for TFOCA (Tactical Optic Fiber Connector Assembly), TFOCA-II®, MIL-C-28876, and standard hermaphroditic fiber optic connectors. Set includes 2 optical sources and 2 power meters in one unit with integral interface connector. LCD graphic display shows loss through entire cable assembly. Set comes with universal AC power adapter/recharger and 4 interchangeable AC adapters.

Bicknell & Fuller Paper Box Co.    Peabody, MA 01960
Jun 24, 2003 Certified to ASTM standards, SureStackerâ„¢ is custom-made and bug-resistant. Corrugated paper pallet uses runner from Packaging Unlimited and is individually designed to meet customers' specifications for size and weight. Pallet is 100% recyclable and available with 2- or 4-way fork entry.

Artesyn Technologies, Inc    Boca Raton, FL 33434
Jun 24, 2003 E-class non-isolated, point-of-load converters feature power density of 247 W/in³. They are offered with 5, 10, or 15 A outputs and have no minimum load requirement. Used with 12 V nominal on-board bus source, units will operate from input voltage of 10-14 V. Open-frame, single-board converters employ synchronous buck topology, using fixed-frequency 300 kHz switching and ultra low on-resistance MOSFETs. Surface-mount packages have heights of only 0.32 in.

Rite-Hite Aftermarket Corp.    Milwaukee, WI 53223

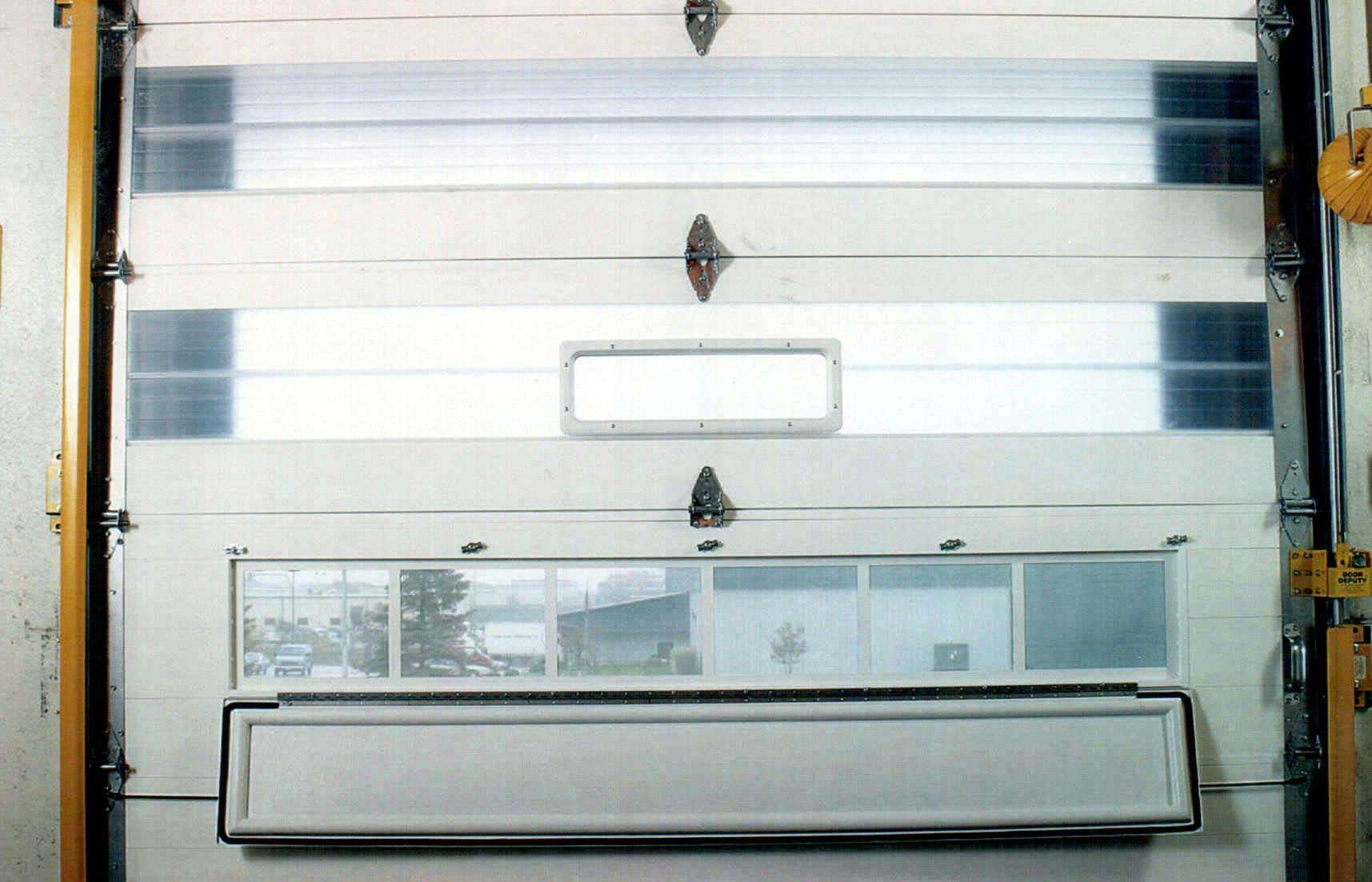

Jun 24, 2003 Universal(TM) GX-4000 panel, with Day-Lite(TM) Translucent slats, allows natural light into dock area and plant. Slats let light pass through, but diffuse it so that objects on other side are not clearly distinguishable. Made from extruded acrylic material, full-width 6 in. high slats can be retrofitted to standard vinyl Universal GX-4000 slat or panel. On standard 24 in. high door panel, single slat or 2 double-stacked slats would occupy center positions.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Jun 24, 2003 Frekote® EFR, formulated to seal porous flange surfaces on composite molds, provides multiple releases per application. Semi-permanent, polymeric release agent is also suited for abrasive processes such as polymer concrete molding. High slip coating is capable of releasing highly filled and abrasive compounds and may be applied at temperatures ranging from 55 to 110°F.

National Instruments Corp.    Austin, TX 78759-3504
Jun 23, 2003 NI-Device v1.4 helps instrument developers to create USB firmware in addition to GPIB and Ethernet firmware for ANSI/IEEE Standard 488.2 devices. NI-VISA v3.0 bus I/O software configures, programs, and troubleshoots USB, GPIB, Serial, VXI, PXI, and Ethernet systems. It includes set of routines for industry-standard programming environments and intuitive debugging tools. It works with NI LabVIEW, LabWindows/CVI, Measurement Studio, and TestStand as well as NI GPIB, VXI, and PXI hardware.

Rice Lake Weighing Systems    Rice Lake, WI 54868

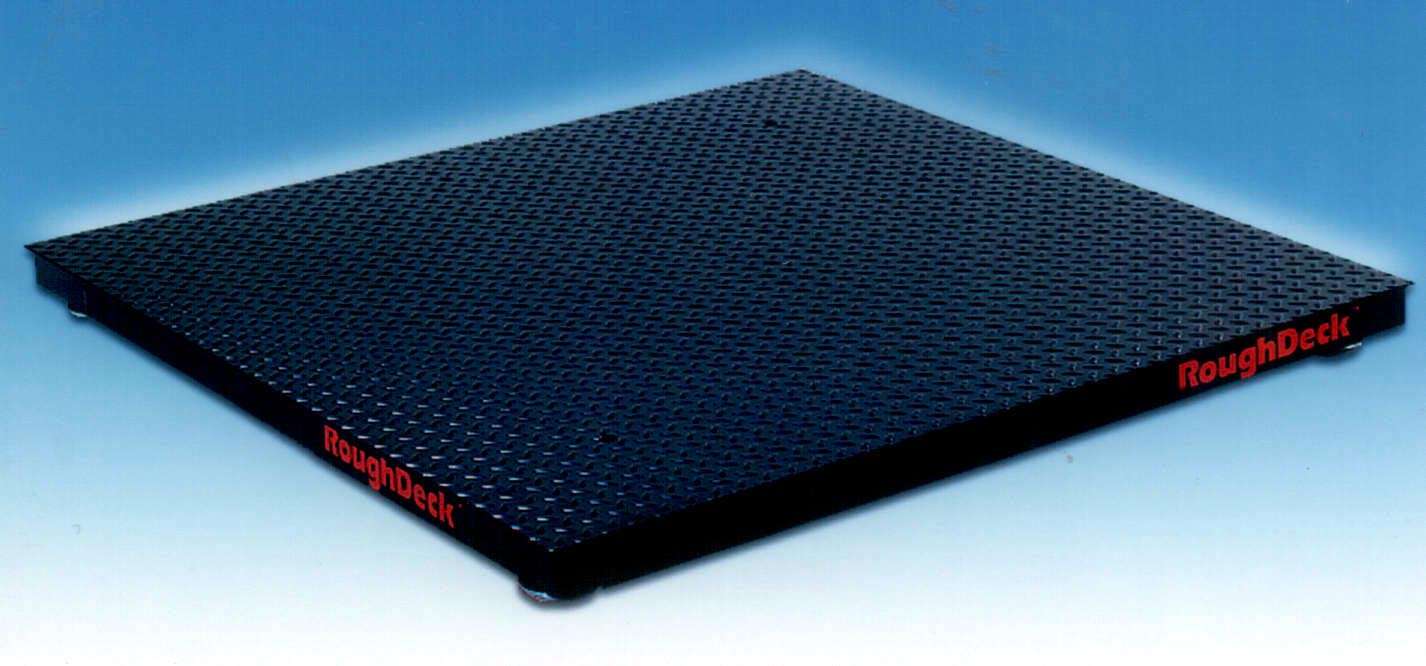

Jun 23, 2003 RoughDeck® NTEP-certified scales feature aluminum junction box that is mounted as slide-out tray. Box is surrounded by 6 in. steel channel frame welded to steel deck for rigidity under severe loading conditions. Quick-disconnect cables plug into pre-wired junction box. Connection is hidden inside deck so it can't be stepped on or driven over. Alloy steel load cell includes welded seal and strain relief on cable entry for protection from environmental damage.

ADMET    Norwood, MA 02062
Jun 23, 2003 Suited for measuring peak load during tension, compression, and flexure tests, pi Peak Load Indicator offers live load, peak load, and optional load rate display. Product exceeds ASTM E4 accuracy requirements and offers password protected, software programmable calibration, which is stored in permanent nonvolatile memory. Auto-Test-Reset function enables remote onsite testing. Pre-wired pressure transducers and LVDT conditioning modules are also available.

EGS Electrical Group    Skokie, IL 60077
Jun 23, 2003 UL Listed and CSA Certified, Model AGUB is made of copper-free cast aluminum with corrosion-resistant finish. Precision-threaded flame path is provided between box and cover. Large cover opening allows access to electrical devices and permits fast wire splicing and pulling. O-ring gasket seals out moisture, dust, oil, and dirt for interior and exterior locations. Cover is offered with sight glass to permit viewing of instrument dial or setting.

PennEngineering® (Penn Engineering)    Danboro, PA 18916

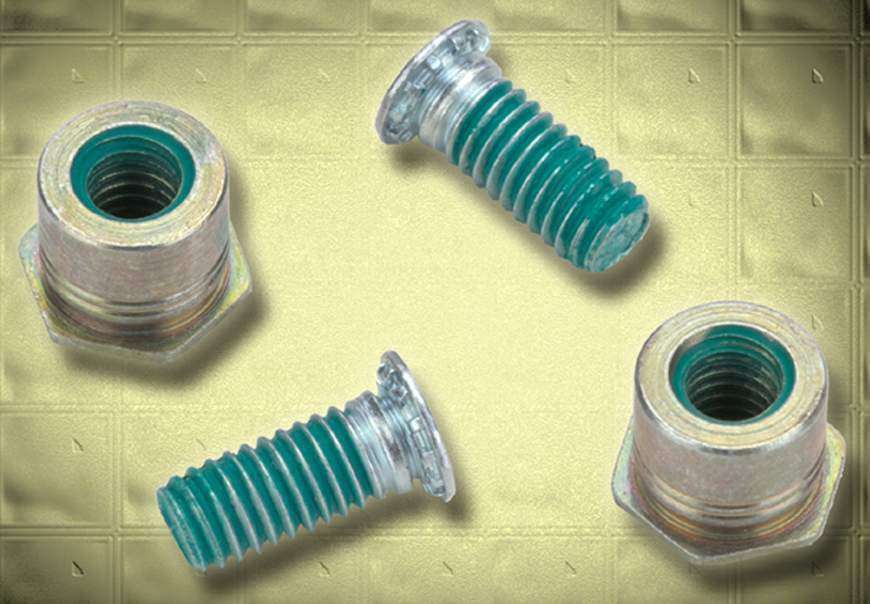

Jun 23, 2003 PEM® self-clinching fasteners are suited for applications where hardware is installed prior to painting. During assembly, threads of mating hardware will remove masking material and paint, allowing clean joining of parts. Coating preserves integrity of fastener threads and will not adversely affect fastener plating. Teflon-based coating's lubricity enables coated fasteners to be used where galling may be of concern.

Bosch Rexroth Corp., Linear Motion & Assembly Technologies Div.    Buchanan, MI 49107 1801
Jun 23, 2003 Offering preset project templates, code editor, and monitoring and debugging tools, easyrobot programming software enables users to complete automation tasks. Product also offers integrated, on-screen, 3-D robot movement visualization, wherein virtual operating panels and virtual teach pendant make real-time simulation possible on computer desktop without physical presence of robot. Users can check cycle times, try out various movement sequences, or debug existing programs.

Nelco Products, Inc.    Pembroke, MA 02359

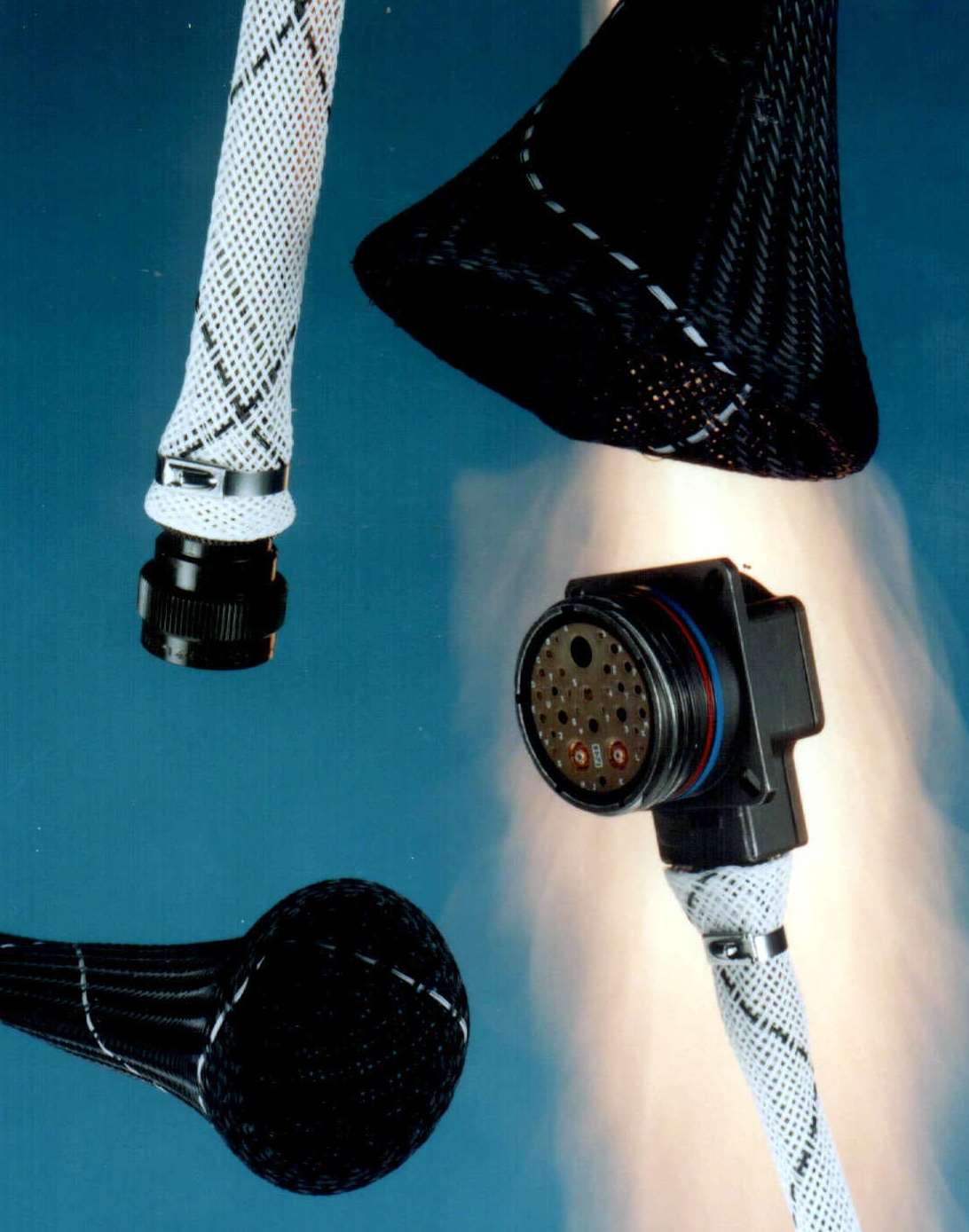

Jun 23, 2003 Protectoâ„¢ FPE Expandable Sleeve consists of flexible, flame-retardant woven polyester that protects wire and cable bundles up to 4½ in. OD. Able to expand up to 3 times its normal size, self-fitting sleeve operates at 125°C, has tensile strength of 55,000 psi, and meets UL 224 VW-1/FR-1 flammability requirements. It is available in black or white and is identified by criss-cross tracer strand of opposite color.

New England Machinery, Inc.    Bradenton, FL 34203 5304

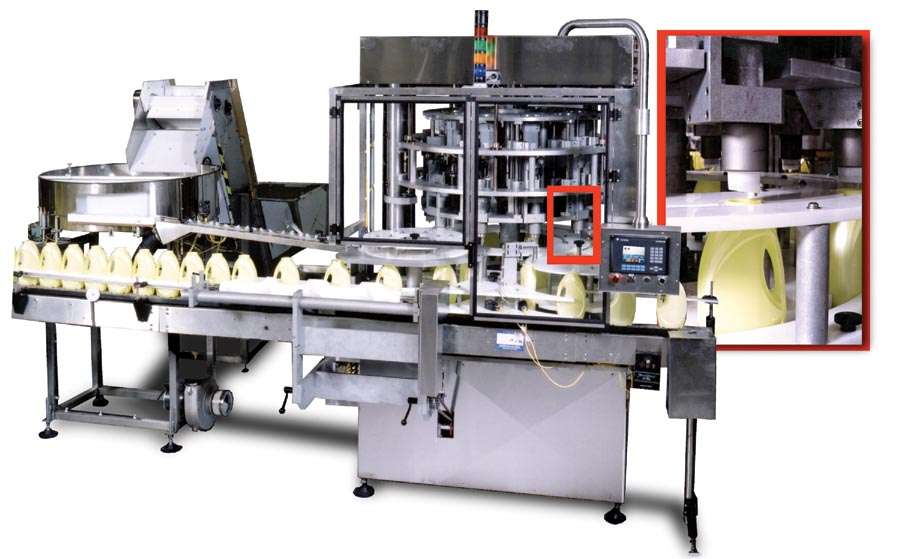

Jun 23, 2003 With an accuracy of ±3°, NERSI aligns and places pour spouts inside of containers such as liquid laundry detergent and liquid fabric softener. Machine works on filled or empty containers and is capable of running at speeds from 30/min to over 300/min. Unit accepts containers from constant speed, non-stopping, and continuous motion conveyors and releases them back, with spouts correctly inserted, to user's conveyor for transport to capper, filler, or labeler.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214

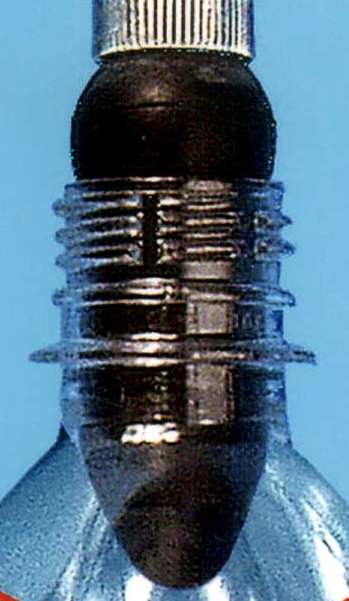

Jun 23, 2003 Rubber Air Picker End-Effectors inflate up to 140% of their size to gently lift open mouth containers without excessive pressure. Capable of conforming to any shape, rubber bladder grippers are non-marring, provide instant attach and release, and are unaffected by dusty environments. Units require ~15 psi with no loss of flow to operate. Sealed to create closed-loop system, they come in 4 sizes from 0.67–1.85 in. resting insertion dia.

BinMaster    Lincoln, NE 68507

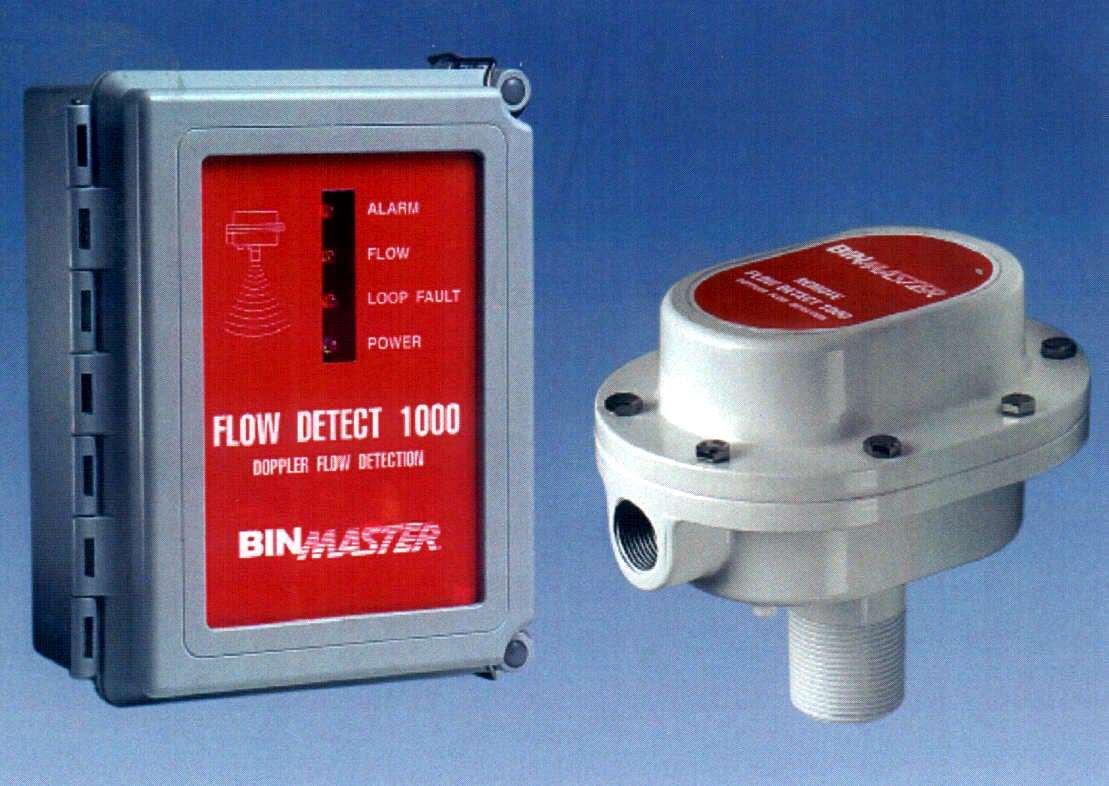

Jun 23, 2003 Flow Detect 1000 non-contact flow sensor provides signal indicating flow/no-flow condition of solids or powders in pipelines, air-slides, chutes, bucket elevators, transfer points, and conveyor belts. Microwave Doppler technology is virtually unaffected by noise, light, pressure, heat, humidity, or dust. Used for automation purposes, Flow Detect 1000 optimizes efficient use of machinery and energy by switching process equipment on or off as required.

FlexLink Systems, Inc.    Bethlehem, PA 18017 2266

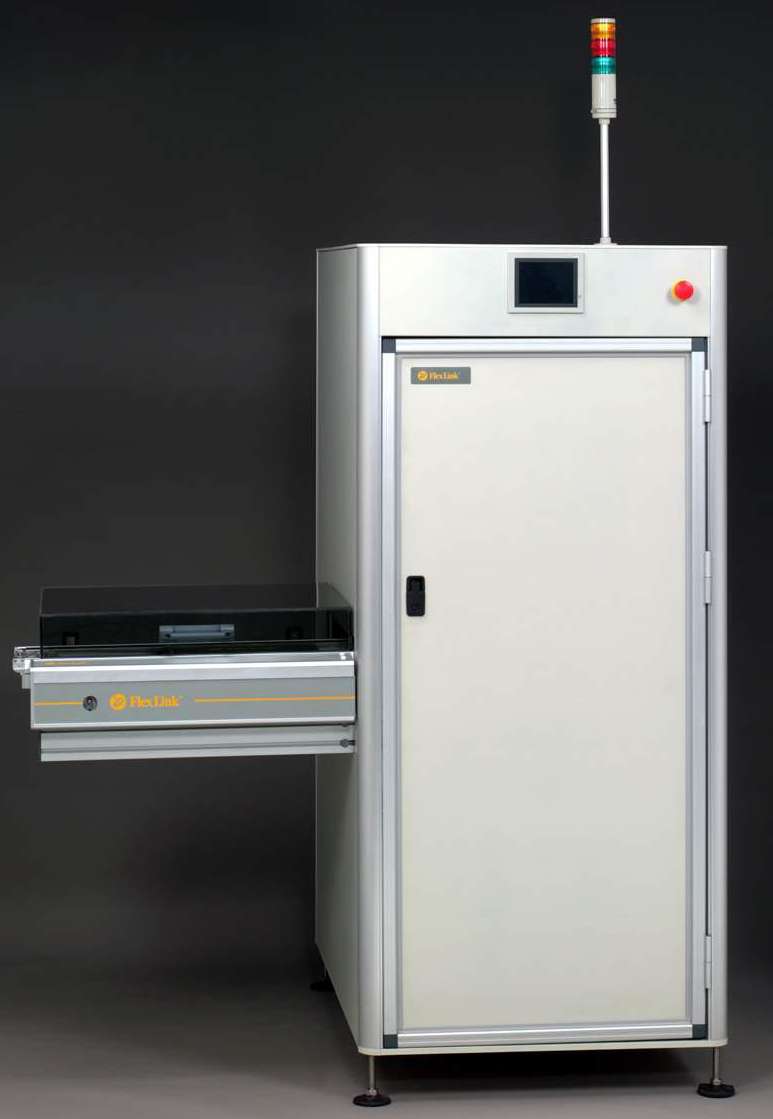

Jun 23, 2003 Model F1300 unloads one magazine of circuit boards (which can be accessed from back of unit) into production line. Product buffers 50 boards at 0.394 in. pitch, is fully programmable, and has independent motor controlled belt section with open transfer technology. Magnetically coupled break-away pusher assembly eliminates board damage. Unit accommodates boards with lengths and widths from 2–20 in., thicknesses from 0.004–0.16 in., and weight to 5.5 lb.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482

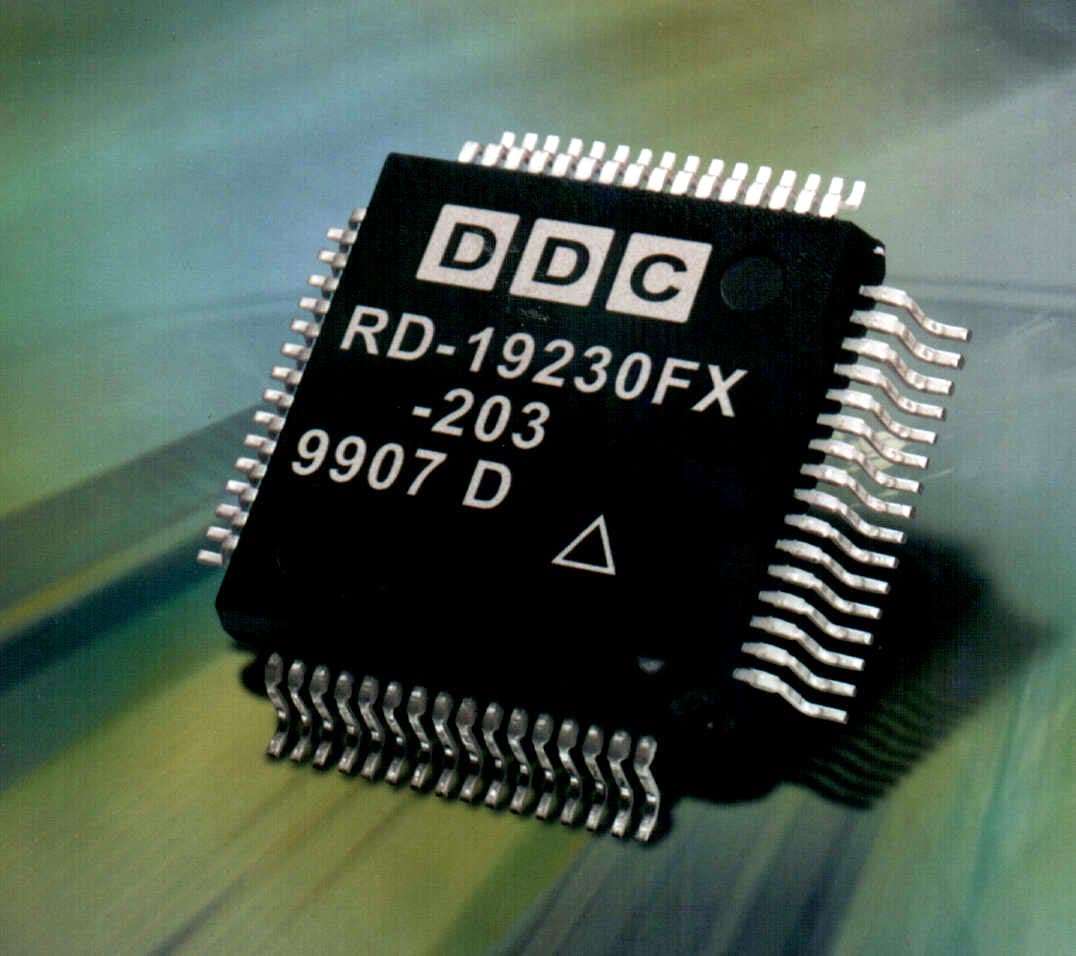

Jun 23, 2003 Model RD19230FX resolver-to-digital converter provides programmable 10, 12, 14, and 16-bit resolution, dual bandwidth and tracking rates, +5 V only input power, synthesized reference, and A quad B encoder emulation. It utilizes 10 x 10 mm, 64-pin plastic quad flat pack. Operating temperature is -40 to +85°C. Typical applications include motor control, radar antenna position, machine tool control, robotics, and process control.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965

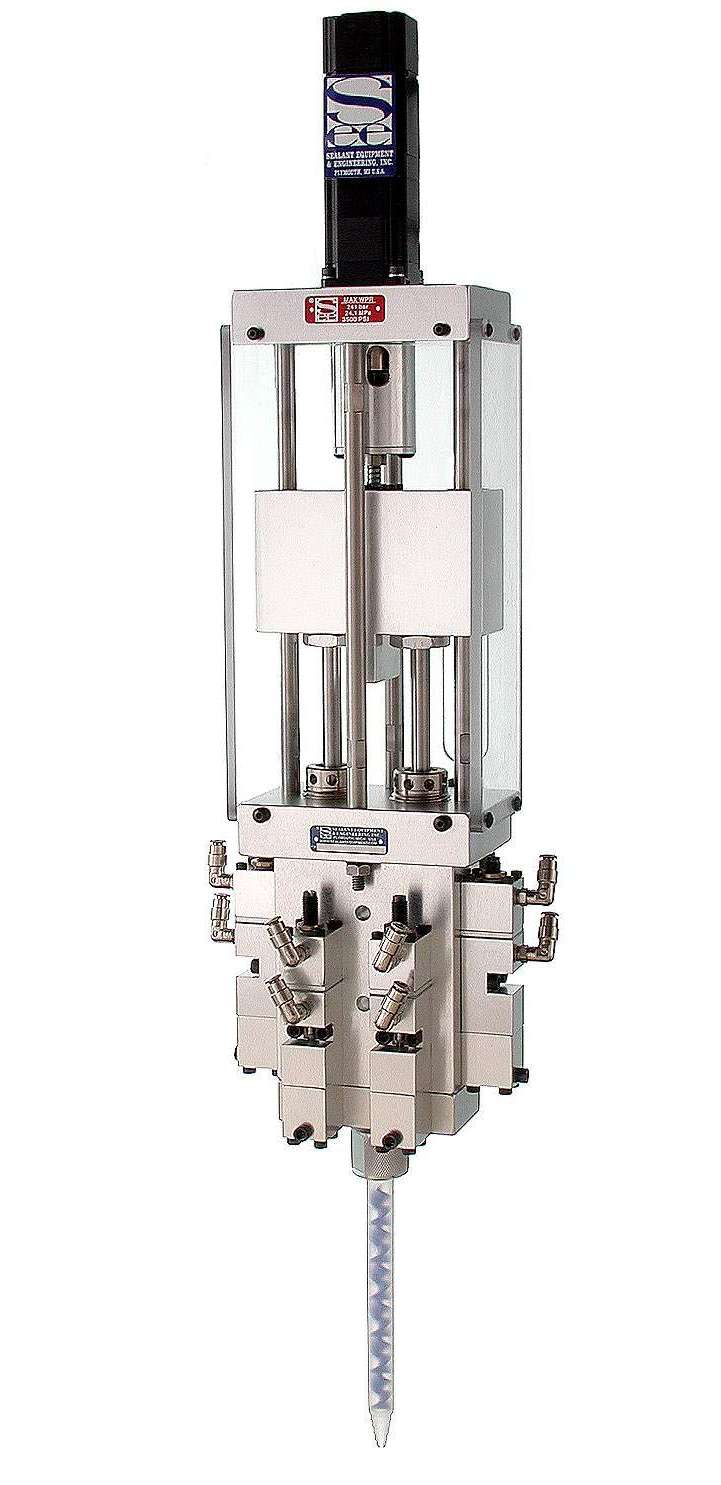

Jun 23, 2003 Servo-driven MicroMeter™ III dispenses micro-beads of 2-component reactive resins ranging from .02–3 cc's depending upon ratio. User can vary dispense flow rate with 0–10 Vdc signal to servo controller, which is interfaced with automation. System components are remote mounted since many applications use small XYZ table. Only dispense valve is fixtured over part.
