PCB Piezotronics Inc.    Depew, NY 14043 2495

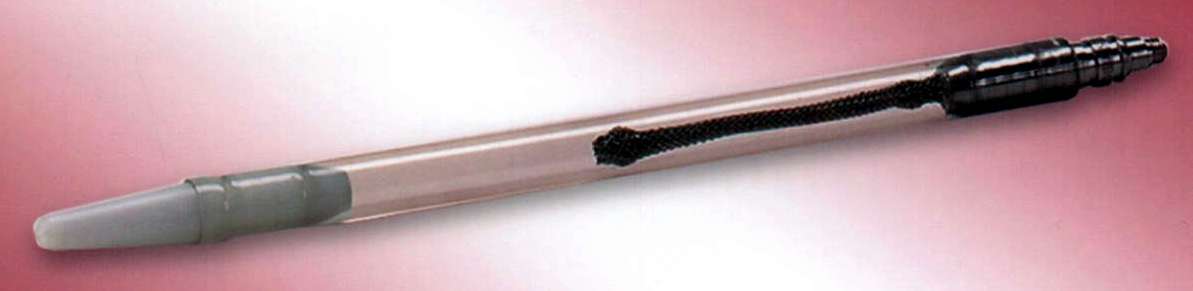

Jul 25, 2003 Series 138 ICP® Underwater Blast Sensors provide clean, non-resonant output through cables in adverse underwater environments. Structured with volumetrically-sensitive tourmaline crystal suspended and sealed in insulating, oil-filled vinyl tube, sensors measure shock wave pressures associated with underwater explosion testing. Products, offered in 5 ranges from 1,000–50,000 psi, offer integral microelectronics that provide low impedance voltage output.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jul 25, 2003 Models 478A16 and 478A17 offer operation of 16 simultaneous channels in one 19 in., rack-mountable chassis. Building block architecture permits addition of features such as gain, filtering, output channel switching, keypad adjustment and control, DC voltage operation, RS-232, and IEEE-488 computer interface. Available in 100–240 Vac power, products support daisy linking of multiple chassis and include DC offset null adjustment and overload indicators.

Larson Davis Inc.    Provo, UT 84601
Jul 25, 2003 Compact, portable NOMAD Squeak and Rattle Measurement System conducts objective NVH and Squeak and Rattle measurements on auto components and vehicles. Hardware consists of precision measurement microphone connected to laptop computer that is equipped with high-quality sound card. Software couples subjective assessments with objective data for identifying root causes of NVH and Squeak and Rattle.

Love Controls    Michigan City, IN 46361

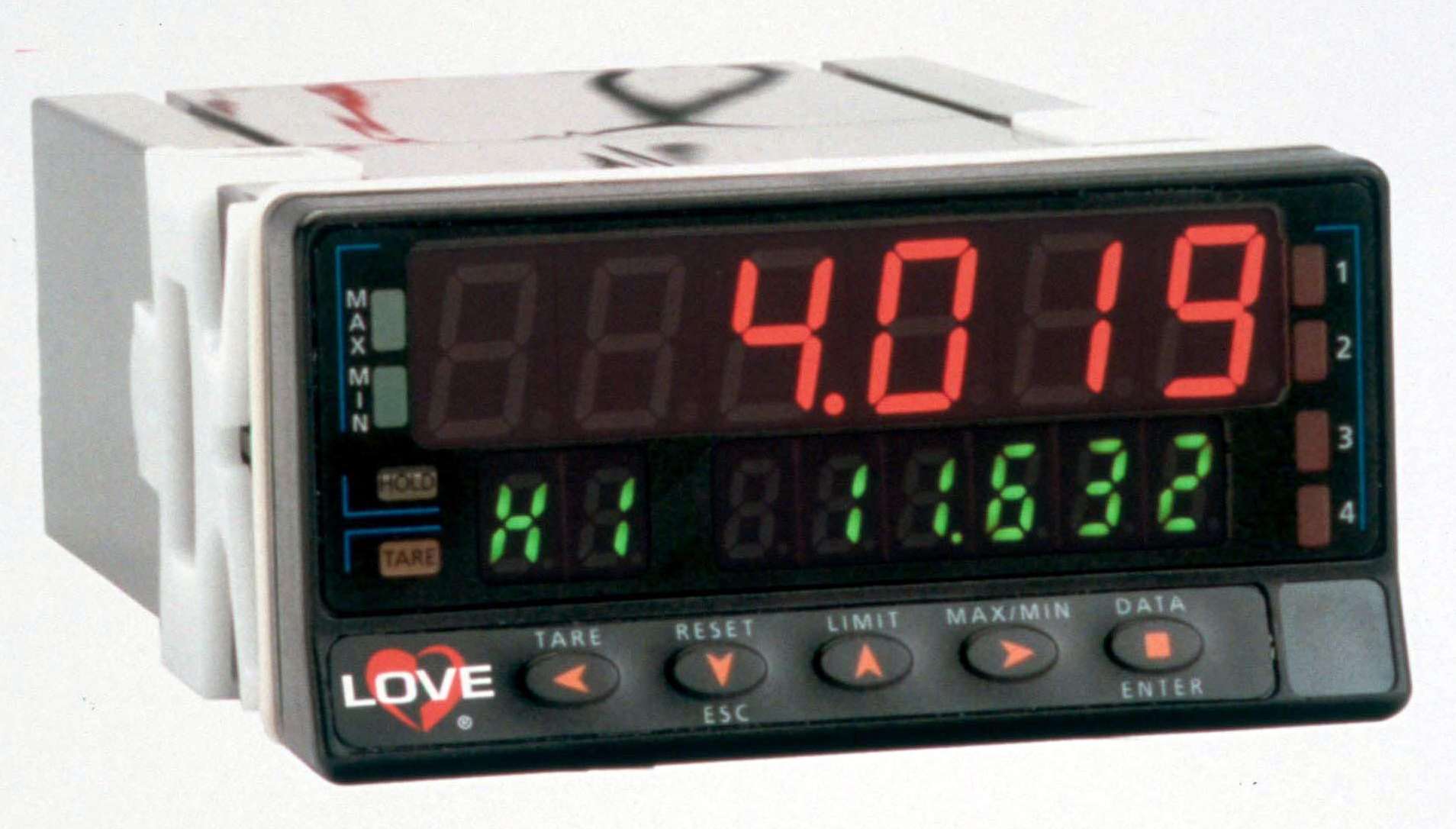

Jul 25, 2003 Suited for flow and totalization applications, 1/8 DIN LCI608 accepts up to 2 inputs and simultaneously displays readings. Unit offers 26 programmable parameters, 15 linearization points on every input, and square root, hold, tare, and peak and valley functions. Unit offers NEMA 4X front panel with LEDs that indicate switch status, mounting clips, sealing gasket, and plug-in terminal block connectors.

A.P.E.    Key Largo, FL 33037 2945
Jul 25, 2003 INTRUDER split vision rework unit incorporates Sony notebook computer that works in conjunction with P-300 profile storage control module, offering unlimited storage for ramp/soak thermal profiles. Control system employs Windows® GUI, and split vision alignment system provides absolute control in positioning ultra fine pitch and BGA packaging technologies. Unit accommodates 16 x 18 in. boards and is offered with 1,800 or 2,400 W heater capability.

Schmersal Inc.    Elmsford, NY 10523

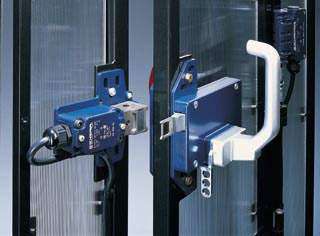

Jul 25, 2003 Available for right- or left-hand operation, B30 series safety guard handle employs metal-housed, tamper-resistant safety interlock switch and steel actuator key operated by handle assembly. Assembly is available with red internal emergency-release handle, which enables operators to shut-down robot/equipment and open guard/door from inside manufacturing cell. Product comes with pre-drilled, slotted mounting plates for installation on inside or outside of guard/access door.

Seco Tools Inc    Troy, MI 48083
Jul 25, 2003 Minimaster System, for machine diameters from .250 to .750 in, includes replaceable carbide inserts for slotting, square-shoulder milling, drilling, center drilling, chamfering, and copying. Clamping system, where indexable carbide insert is mounted in shank, allows quick and easy changing of inserts. Three-flute ballnose for copy milling provides 5 times metal removal rate of conventional steel cutters.

Mitsubishi Electric Automation, Div.    Vernon Hills, IL 60061

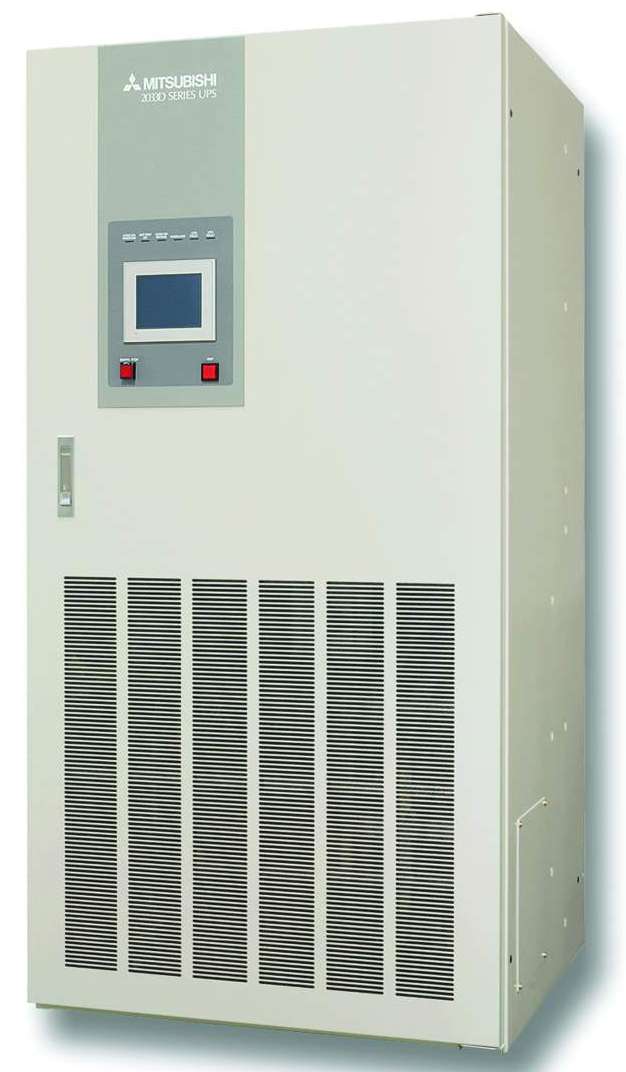

Jul 25, 2003 Series 2033D, with Insulated Gate Bipolar Transistors, offers true on-line double conversion UPS module with 480 V input and 480 or 208 V output specification. Equipped with internal wrap-around zero energy bypass system, series includes modules with 30, 50, and 80 kVA capacity ratings that offer ability of parallel operation of 2 UPS modules of same capacity. Features include dual inputs, ripple-free DC output, and line drop compensation.

Newport Corp.    Irvine, CA 92606

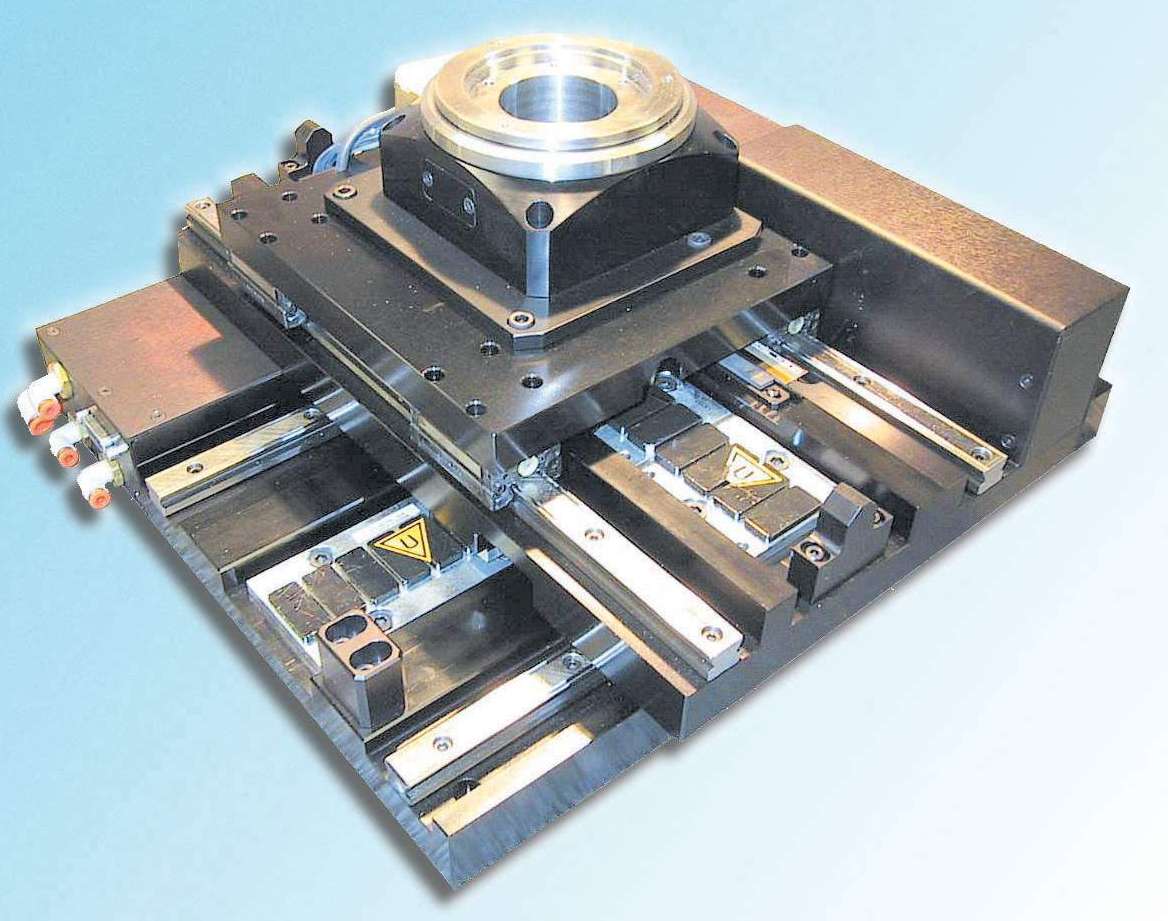

Jul 25, 2003 Featuring 3-plate design and direct-drive rotation, ISM300 low-profile, integrated XY-Theta positioning platform achieves total surface access on 300 mm wafers. Maintaining constant orientation of patterned elements on wafer relative to measurement optics, integrated metrology platform achieves linear speeds to 300 mm/sec and combined XY-Theta repeatability of less than ±0.5 microns. Features include up to 150 x 150 mm XY travel range and rotation speeds up to 720°/sec.

Linear Technology Corp.    Milpitas, CA 95035
Jul 25, 2003 With integrated 400 mV reference available in 6-lead ThinSOT(TM), LT6700 is suited for monitoring supply voltages in portable devices. It employs 40 mA outputs, operates over 1.4-18 V supply range, and draws 6.5 µA. Unit offers 2 external comparator inputs with other 2 inputs connected internally to on-chip reference. Versions include: LT6700-1, with one inverting input and one noninverting input; LT6700-2, with 2 inverting inputs; and LT6700-3, with 2 noninverting inputs.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 25, 2003 ThinkVisionâ„¢ L150 15 in. monitor provides 1024 x 768 resolution, 250 cd/m² brightness, 350:1 contrast ratio, and viewing angles of 115° vertical and 150° horizontal. ThinkVantage design offers tilt stand and direct access for automatic image setup and brightness. Monitor supports wide range of display modes, including selection of VESA timings of incoming video signals at up to 75 Hz, non-interlaced, for 640 x 480, 800 x 600, and 1024 x 768 resolutions.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 25, 2003 Utilizing ThinkVantage® design, ThinkVisionâ„¢ L150p 15 in. monitor has height-adjustable ergonomic stand that swivels and tilts. Product allows for direct access for automatic image setup, brightness, and input select as well as monitor adjustments using on-screen display. Technical characteristics include 1024 x 768 resolution, 250 cd/m² brightness, and 400:1 contrast ratio. Additional offerings include dual inputs and lockable digital controls.

Mokon Div., Protective Closures LLC    Buffalo, NY 14207

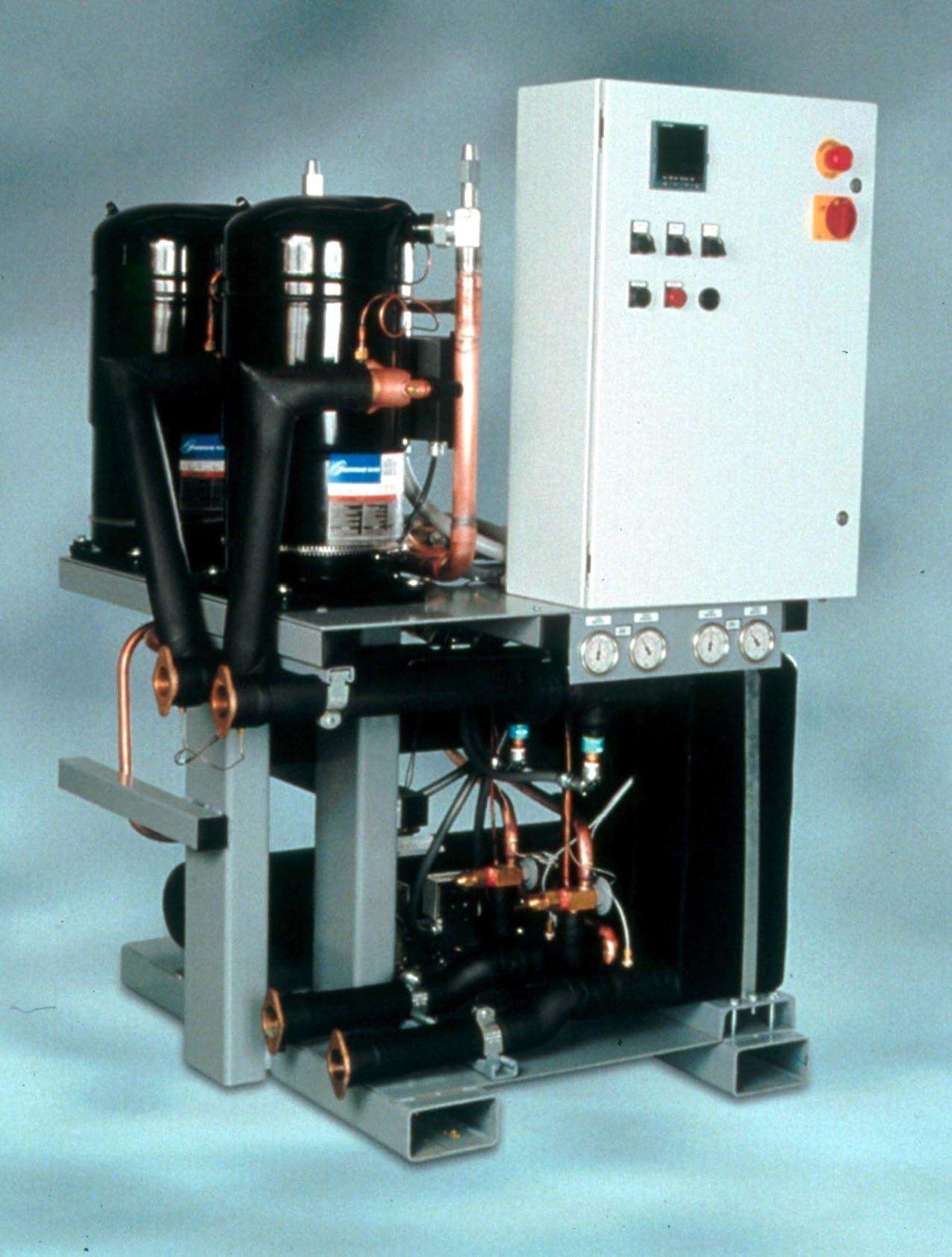

Jul 25, 2003 Iceman Central Chillers, available in air-cooled or water-cooled models, feature both single- and multiple-circuit designs. They provide continuous centralized process cooling from 20–65°F to keep machinery working at peak performance. Options include scroll or semi-hermetic discus compressors, as well as microprocessor or Allen-Bradley PLC control system.

Valtra, Inc./Good Hand, Inc.    Pico Rivera, CA 90660
Jul 25, 2003 The 1/2-Clampâ„¢ aligns material ranging from large pipes to flat stock with memories. User tack welds front side of 1½ x 2 in. pipe to lower side of 2 surfaces to be aligned. Clamp slides onto pipe and screw is turned until material comes into alignment. Pipe can be broken off easily, and weld spot can be ground off after weld is completed. For big jobs, welder can remove, rotate, and reuse same piece of pipe at least 20 times, moving it down material as needed.

Kitzel, E.C., & Sons    Cleveland, OH 44135-2677
Jul 25, 2003 Suited for 2D, pin, and peen marking systems, DiaMarkâ„¢ diamond-tipped stylus is available in all diameters and lengths for any marking machine, and provides 100 times the service life of carbide tools. Standard diameters are up to 5/8 in. and standard lengths are up to 6 in. Applications include aerospace and defense, automotive, and medical industries, or anywhere permanent marking is utilized.

Vestil Manufacturing Co.    Angola, IN 46703-0507
Jul 25, 2003 Fork Mounted Trash/Refuse Dumper Model FM-T-DUMP allows fork-truck driver to lift and dump refuse containers weighing up to 1,000 lb without leaving seat of truck. Unit includes release cable to dump trash can, safety chains to secure unit to fork truck, and durable powder coat finish. Dumper is for use with 64 gal trashcan Model TH-64 or approved equal.

Emerson Process Management, Micro Motion Div.    Boulder, CO 80301
Jul 25, 2003 Model 2500 MVDâ„¢ DIN-rail Transmitter, utilizing multivariable digital-signal processing technology, provides output for mass flow, volume flow, density, temperature, and flow totals. It is powered by 24 Vdc and uses standard shielded 4-wire cable. Online monitoring and diagnostics data delivered by Model 2500 provides predictive process and flowmeter health information that PlantWeb® digital plant architecture delivers to those running plant.

Union Process, Inc.    Akron, OH 44313
Jul 25, 2003 Model QC-150 features QC-Mill™ high-circulation design. Rotor creates strong centrifugal and shearing forces inside mill, and combined with fast circulation of slurry, forces result in efficient grinding with narrow particle size distribution. Holding tank has capacity of 3–15 gal. Mill runs to max speed of 2,200 rpm with motor capacity of 7.5 hp. Simple design makes mill easy to clean and maintain. Circulation mode allows large batch of material to be processed with minimal labor.

Spectronics Corp.    Westbury, NY 11590
Jul 25, 2003 Eliminating need to match unique dye with specific refrigerants or lubricants, solvent-free AR-GLO/E® can be used with any refrigerant as well as with mineral oil, polyol ester, and alkyl benzene lubricants. After injection into system, dye and refrigerant escape wherever leaks occur. Refrigerant evaporates, but dye remains at site of leak. When scanned with Spectroline® ultraviolet or UV/blue light lamp, dye glows to pinpoint location.

LA-CO Industries, Inc.    Elk Grove Village, IL 60007
Jul 25, 2003 With broad tip nib measuring more than ½ in., Markal® PRO-MAXâ„¢ paint marker uses Xylene-free formula to produce heavy, weather-resistant lines that dry in minutes. Odor-free product has Valve Action® construction and is capable of permanently marking most surfaces in temperatures from 0 to 150 °F. Marker is offered in 6 bright colors with self-storing cap. Applications include raw material and shipping/receiving identification.
