Amplifier Research Corp.    Souderton, PA 18964 2412
Jul 03, 2003 Equipped with discharge module, unit meets discharge current specifications of IEC 61000-4-2 draft 2. Mechanical construction limits radiated fields to similar values as measured for real human body discharges, and position of discharge unit, in relation to DUT, has minimal influence on test results.

New Pig Corp.    Tipton, PA 16684 0304

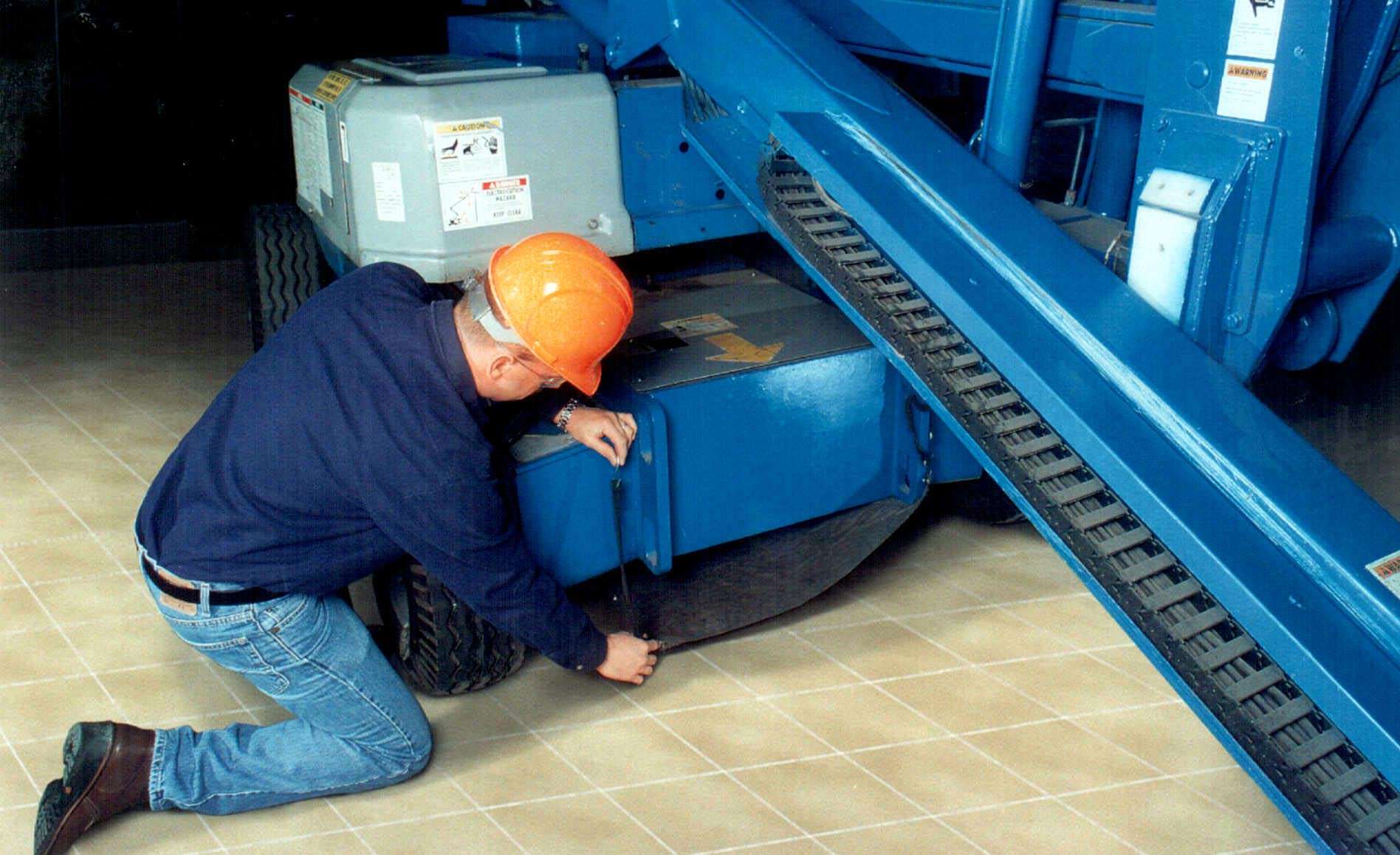

Jul 03, 2003 PIG® Diaper Mat features poly-backing to prevent leaks and drips of almost any fluid including oil, hydraulic fluids, anti-freeze and water, from leaking through and creating dangerous slipping hazards, stains, or other damage. Brass-plated grommets every 12 in. make it easy to hang under fork lifts, high lifts, construction vehicles, and conveyor systems. Sizes include 8 ft x 31 in. wide pre-cut and 50 ft x 31 in. wide rolls that can be cut to any size.

Dwyer Instruments, Inc.    Michigan City, IN 46361

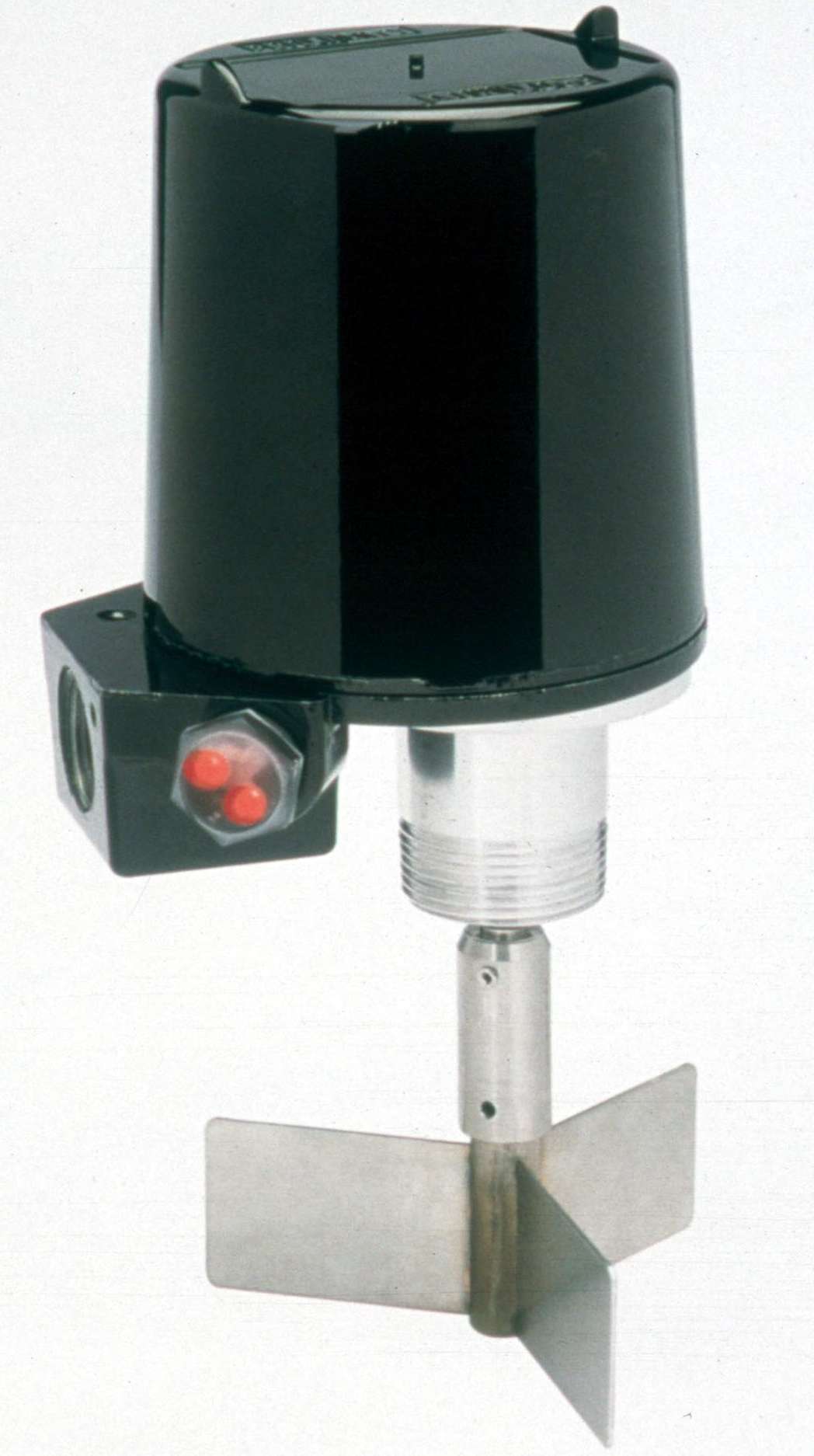

Jul 03, 2003 Series PLS Paddle Level Switch monitors levels of bulk material in pneumatic conveying and dust collection systems. Incorporating magnetic drive technology, control head is completely sealed from process to prevent material or dust from entering. Weatherproof switch has motor shut-off when paddle stalls to prevent motor burnout. Slip clutch design prevents damage to motor and drive mechanism from sudden or excessive loading on paddle.

CONCOA    Virginia Beach, VA 23454
Jul 03, 2003 AUTOBLEND™ Series non-electric blender enables users to create precise custom-blended gas mixtures on site for GTAW (TIG) and GMAW (MIG) industrial welding applications. Eliminating time-consuming cylinder handling, product provides 7 preset, 2-component gas blends and maintains blend accuracy under all flow conditions. Product offers automatic cycling technology and pressure equalization system and provides up to 450 scfh at delivery pressures of 10–45 psig.

LEDtronics, Inc.    Torrance, CA 90505

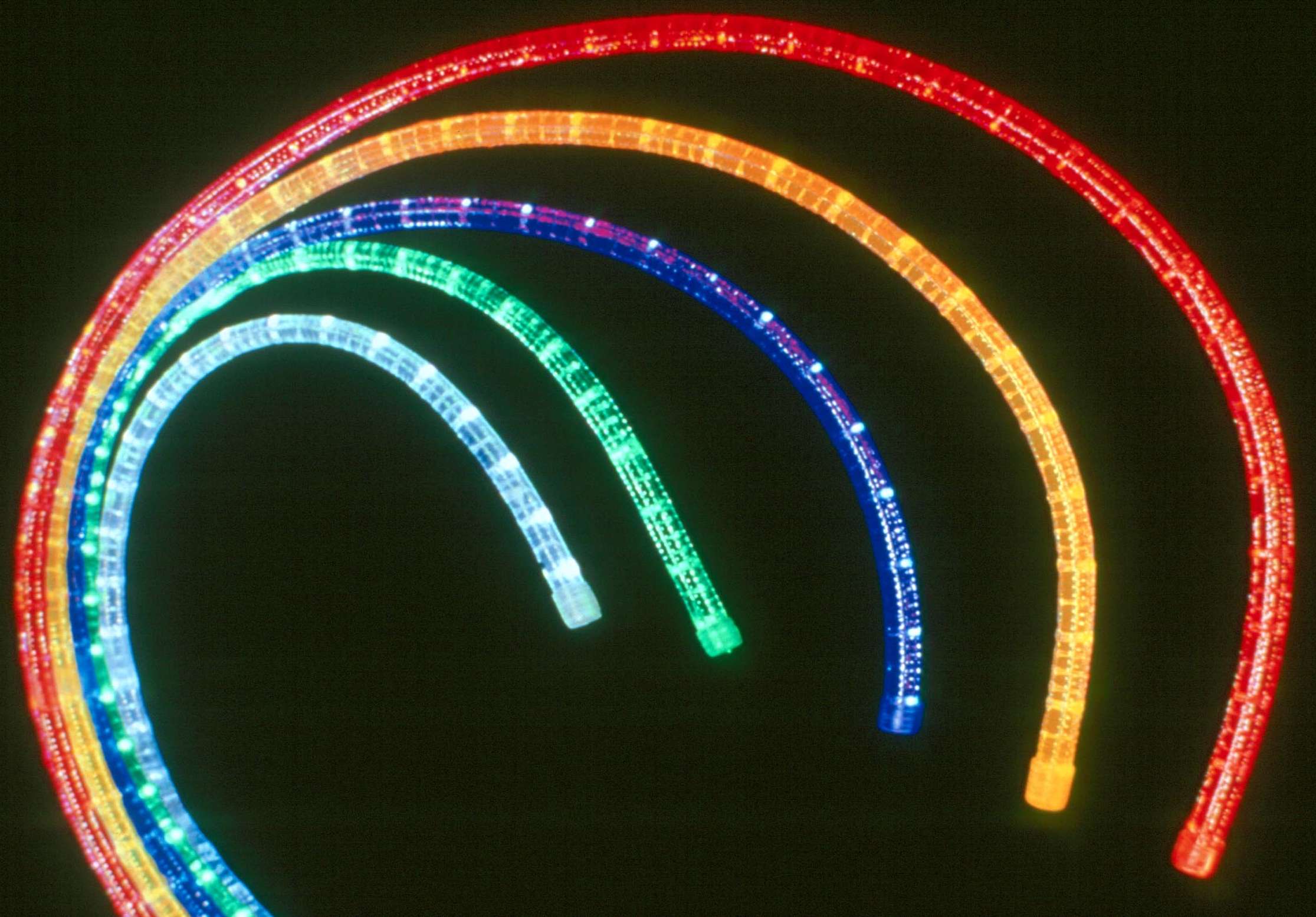

Jul 03, 2003 Round RopeLED, housed within 0.5 in. dia, flexible PVC tube, measures 6.5 ft long (min) and employs 10 LEDs per foot spaced 1.10 in. apart. Product has weather-resistant construction suited for both outdoor and indoor use, and comes in red, blue, green, yellow, and white LED colors. Solid-state design is impervious to electrical and mechanical shock, vibration, frequent switching, and environmental extremes.

Carbis Inc.    Florence, SC 29502 6229
Jul 03, 2003 Redi-Rack Platforms and TC6 Mobile Platforms enable safety managers to perform inspections required by heightened security concerns. Platforms feature slip-resistant walking surfaces and may be customized for specific applications. Redi-Rack Platforms have 4 x 6 ft work surface that can be outfitted with various gangways and SAF-T Cages. Suited for lighter-volume inspection schedules, TC6 Mobile Platforms measure 60 x 24 in. with 5 x 5 ft SAF-T Cage.

Methods Machine Tools, Inc.    Sudbury, MA 01776

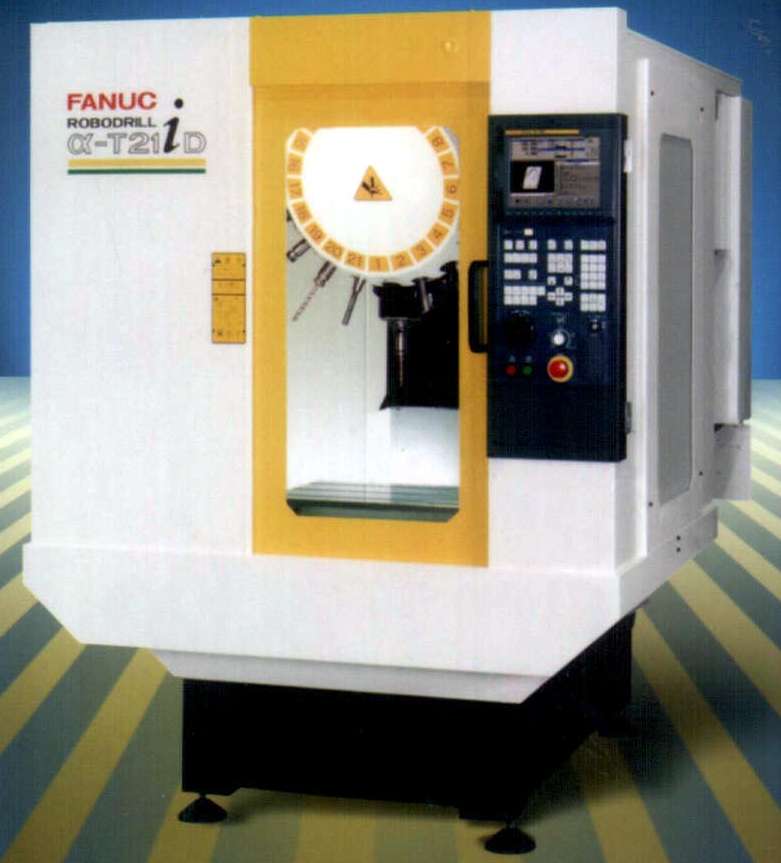

Jul 03, 2003 Heavy-duty, 30-taper D Series RoboDrill performs drilling, milling, precision boring, and deburring applications. It is also capable of tapping to 6000 rpm, peck tapping for blind holes, and high-speed reverse tapping. Unit comes with 14- or 21-station tool changer and is available with 5/7.5 hp, 10,000 rpm or 2/5 hp, 20,000 rpm 30-taper spindles. Unit offers feed rates to 590 ipm, rapid traverse rates to 2125 ipm, and 0.9 sec tool changes.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988
Jul 03, 2003 Capable of operating over distances up to 114.8 ft on supply voltages as low as 2.7 V, TSOP3xxxx multi-function IR receiver modules combine PIN diode and preamplifier in one epoxy package measuring 6.95 x 6 x 5.6 mm. Integrated Automatic Gain Control circuitry suppresses light-source disturbances, internal metal shielding protects against electrical field disturbances, and internal band filter allows PCM frequency operation. Maximum data rate is 4,000 bit/s.

GE Industrial Systems    Fort Wayne, IN 46802

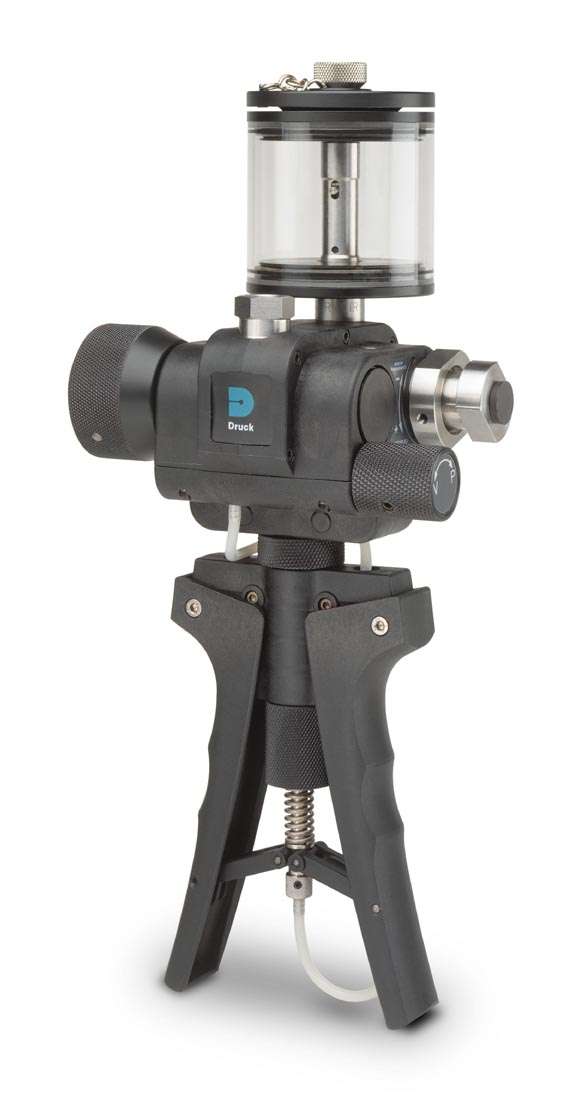

Jul 03, 2003 Model PV411A multi-function hand pump offers pressure control, ability to operate with high viscosity fluids, large volume reservoir option, and tamper-proof, field selectable pressure relief valve. Hydraulic pressures can be generated to 10,000 psi as well as pneumatic pressures to 600 psi, vacuum to 28.5 in. Hg, and draft range pressures. Vacuum priming function removes trapped air from within system.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Jul 03, 2003 Model FOD2742 Optically Isolated Error Amplifier features tolerance as low as 0.5%. It incorporates optocoupler, precision reference, and error amplifier into 8-pin SOIC package. Unit provides isolated voltage feedback between secondary and primary sides of power conversion circuits for control and regulation purposes. Reference voltage tolerances include 0.5, 1, and 2%. Model FOD2742 has UL, CSA, VDE, and BSI safety agency certification.

Nextel Communications, Inc.    Reston, VA 20191-3421

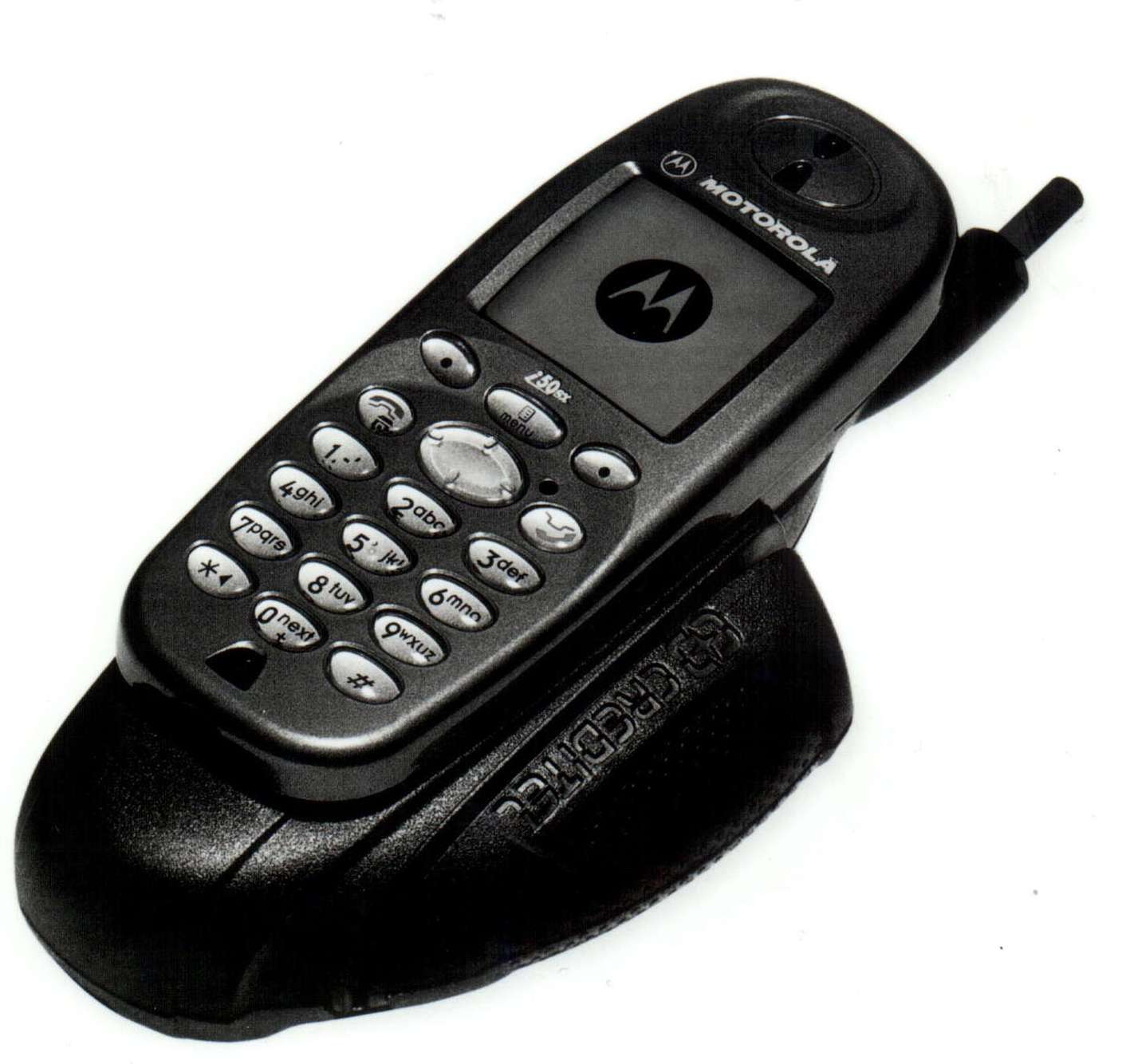

Jul 03, 2003 PowerSwipe(TM) device and secure end-to-end payment processing solution enables mobile businesses to securely process credit cards directly from Java(TM) technology-enabled Motorola handsets for Nextel. Utilizing digital secure-at-the-swipe encryption technology and PowerPay(TM) J2ME(TM) application software, transactions are authorized and verified in seconds and software can support fax or email transaction record or print standard receipt to wireless printer.

Applied Plastics Co.    Norwood, MA 02062
Jul 03, 2003 Made from stainless steel or nitinol wire, APC PTFE Naturalâ„¢ Fluoropolymer Mandrels feature uniform, non-flaking coating that provides smooth, anti-stick surface that withstands continuous temperatures to 550°F with excursions to 700°F. Exhibiting 0.05 coefficient of friction per ASTM-1894, mandrels are offered with release coatings in thicknesses from 0.00127–0.020 mm on stainless steel or from 0.127–1.52mm dia nitinol wire with ±0.00254 mm final dia tolerances.

Viking Corp., The    Hastings, MI 49058 9706

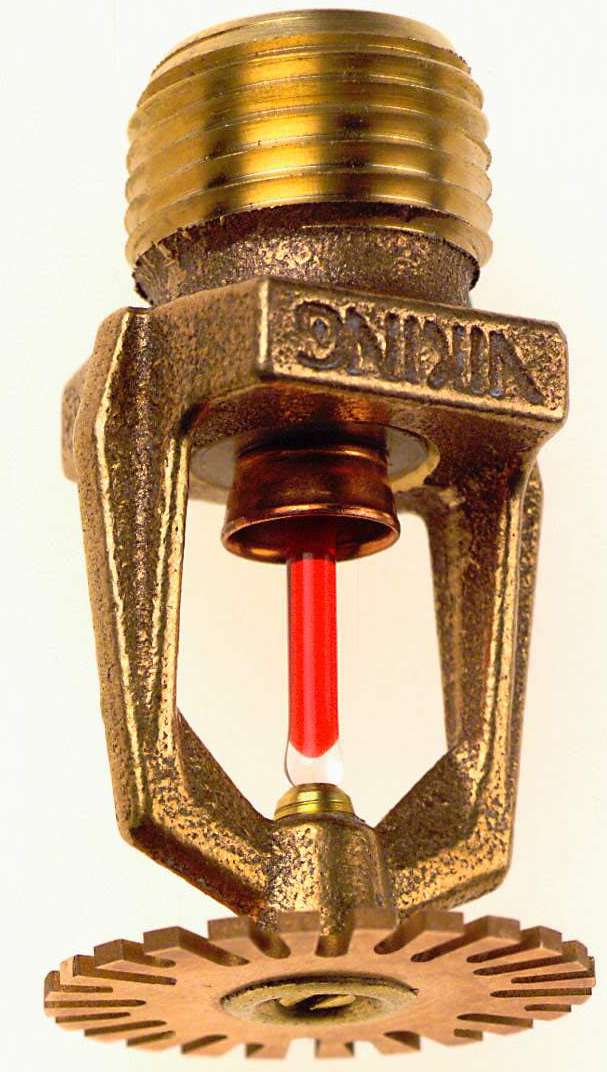

Jul 03, 2003 Installed below smooth, flat, horizontal ceilings and horizontal ceilings with beams up to 14 in. deep, 4.9 K-Factor Frame-Style Residential Pendent Sprinkler provides coverage areas of up to 18 x 18 ft. Product is approved for temperatures up to 175 °F. With domed cover providing ½ in. adjustment, 4.9 K-Factor Concealed Residential Sprinkler provides 12 x 12 through 18 x 18 ft coverage areas and is approved for temperatures to 155 °F.

PITTMAN    Harleysville, PA 19438 0003

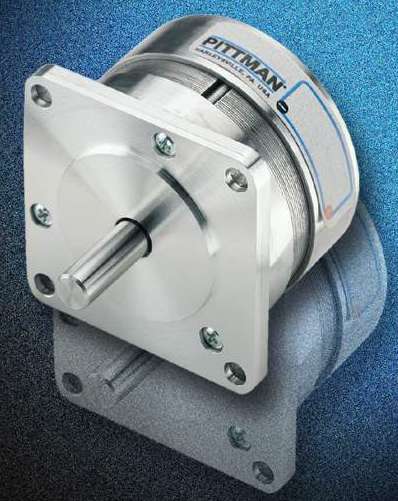

Jul 03, 2003 With 2.3 in. dia and 6-slot lamination design, ELCOM ST® motors feature internal Hall sensor feedback and variable speed control. Products are available in ½, 1, 1½, and 2 in stack lengths and utilize neodymium-iron-boron magnets. Motors achieve speeds up to 8,000 rpm and continuous torque output up to 49 oz-in or 75 oz-in. with heat sink. Mounting configuration is consistent with NEMA 23 standards, and modular design facilitates motor customization.

Thales Computers Corp.    Raleigh, NC 27610
Jul 03, 2003 Based on Asiliant Technologies’ 69030 HiQVideo™ Accelerator, PMC-DGX multi-featured graphics acceleration PCI Mezzanine Card drives SXGA displays in harsh environment console applications. Product has dual independent display capability that accommodates legacy analog CRT and DVI compliant digital video input, flat-panel displays. Unit provides graphics performance of 1600 x 1200 64 K color at 60 Hz. With 4 MB embedded SDRAM, unit supports 83 MHz operation.

Eclipse, Inc.    Rockford, IL 61103 1299

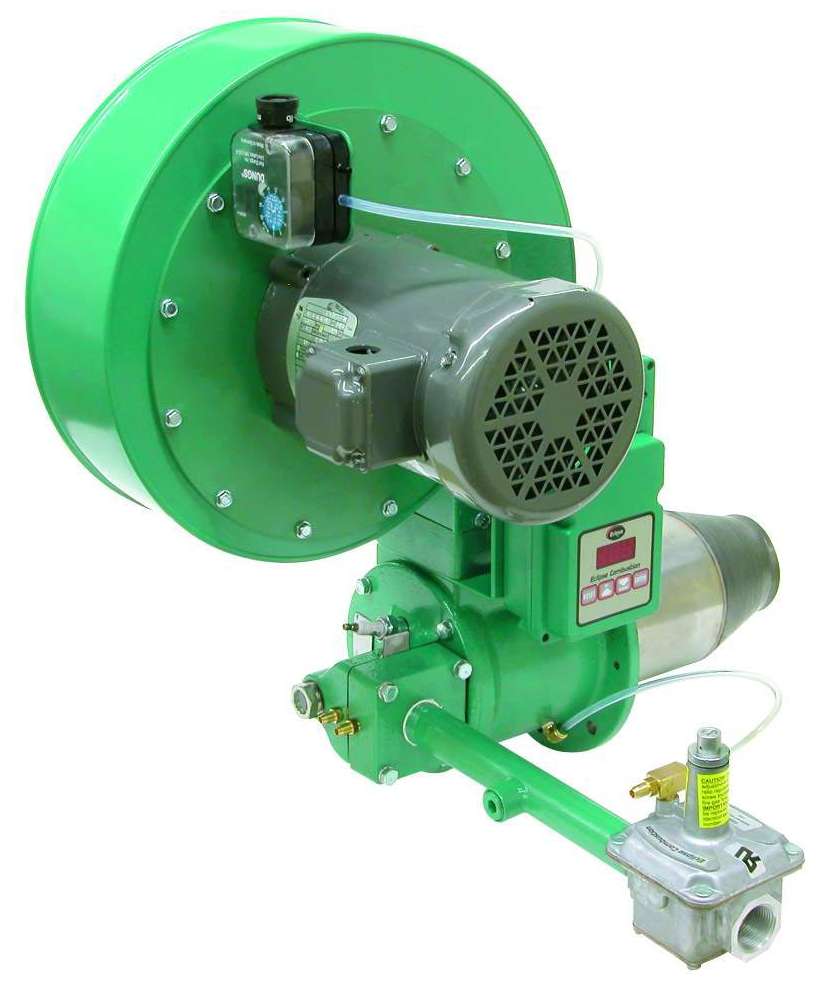

Jul 03, 2003 RatioAir velocity burner has integral packaged blower that is available in 4 different models with capacities from 1–5 mm BTU/hr. Ratio regulator automatically compensates for changes in operating conditions and ensures ratio-controlled operation over turndown range of more than 50:1. Direct drive air butterfly eliminates linkages, and burner achieves gas velocities of up to 500 ft/sec. It suits applications that require use of unusual fuels and confined firing chambers.

Zetec, Inc.    Issaquah, WA 98027 0140
Jul 03, 2003 When combined with MIZ-27CT Component Test Instrument and Z100 Probe, SU-100 Magnetic Saturation System can detect through-wall defects to 0.028 in. Air-cooled system allows integration into existing manufacturing lines. Saturation System and Z100 Dual Differential Encircling Probe accommodate tubes and pipes from 10–100 mm diameter OD. Driven by multi-frequency, multichannel, MIZ-27CT eddy current tester, Z100's outer coils detect gradual flaws, laminations, and wall thinning.

AKCP Inc.    Pathumtanee, CA 12000
Jul 03, 2003 SensorProbe8-X20 comes in 1 U rackmount box with 8 full autoSense RJ45 ports for connecting intelligent sensors. Twenty additional, 2-wire dry contact ports are provided for total of 28 dry contact ports. Completely embedded host includes Linux-like OS, TCP/IP stack, internal web server, e-mail, SMS and full SNMP functionality. Optional high-speed, TI DSP and 16-bit A/D Converter are available for special projects, such as integrating power monitoring.

SICK, Inc.    Minneapolis, MN 55438
Jul 03, 2003 Model S 3000 features 190° scanning range and 4 different levels of integrated functionality, for up to 16 user-definable protection scenarios. Integrated functionality enables simultaneous, stationary or dynamic protection within work cell wherein operator moves from one area to another. Maximum safety zone radius is 18 or 23 ft. Corresponding warning zone radius is up to 160 ft. Safety and warning zones can be defined via Configuration and Diagnostic Software tool.

Aladdin Systems, Inc.    Watsonville, CA 95076 4159
Jul 03, 2003 Ten for Xâ„¢, Utilities Volume 2 includes 11 fully-registered titles. Carbon Copy Clonerâ„¢ backs up drives, volumes and files. DragStrip® allows 1-click desktop access to anything on computer. iCanâ„¢ provides skinable Trash Can, and iClock SEâ„¢ displays world clock, weather, and calendar. Spamfireâ„¢ eliminates unwanted spam. Other programs include iPulseâ„¢ graphical system monitor, Path Finderâ„¢ file browser, Quick Voiceâ„¢ voice recorder, X Overloadâ„¢ extension manager, Labels Xâ„¢, and MacReporterâ„¢ news agent.
