The David Round Co., Inc.    Streetsboro, OH 44241

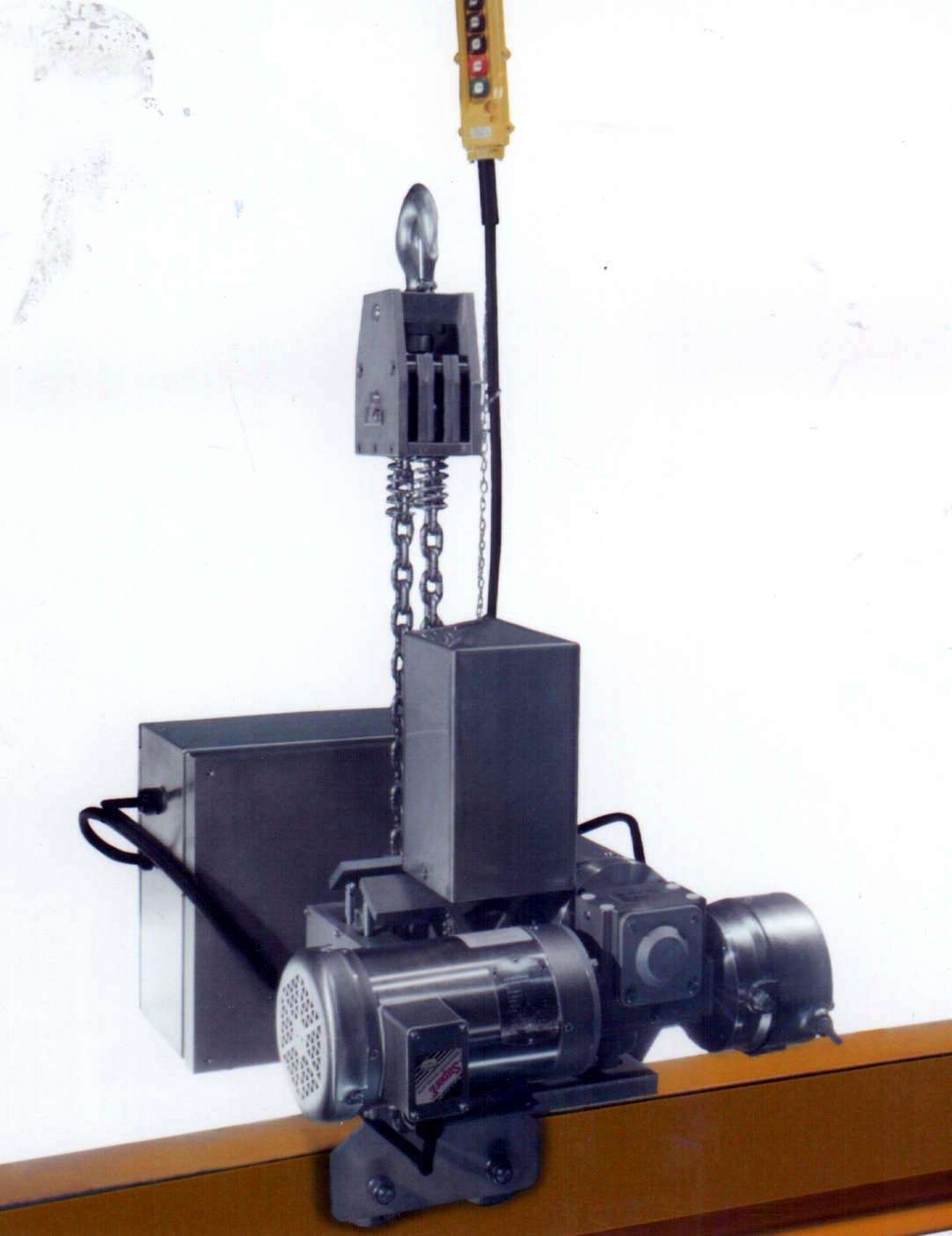

Jul 31, 2003 Series SSC chain hoists are built entirely from 304 and 316 stainless steel and are suited for overhead lifting. Electric and manual models are available, and all units feature fully-sealed gearing with oil bath lubrication. Standard hoists are furnished unpainted with sand blasted matte finish. Hoists come in capacities up to 2 metric tons and are suited for lifting applications in wash-down, environmentally controlled, and corrosive processing environments.

Love Controls    Michigan City, IN 46361

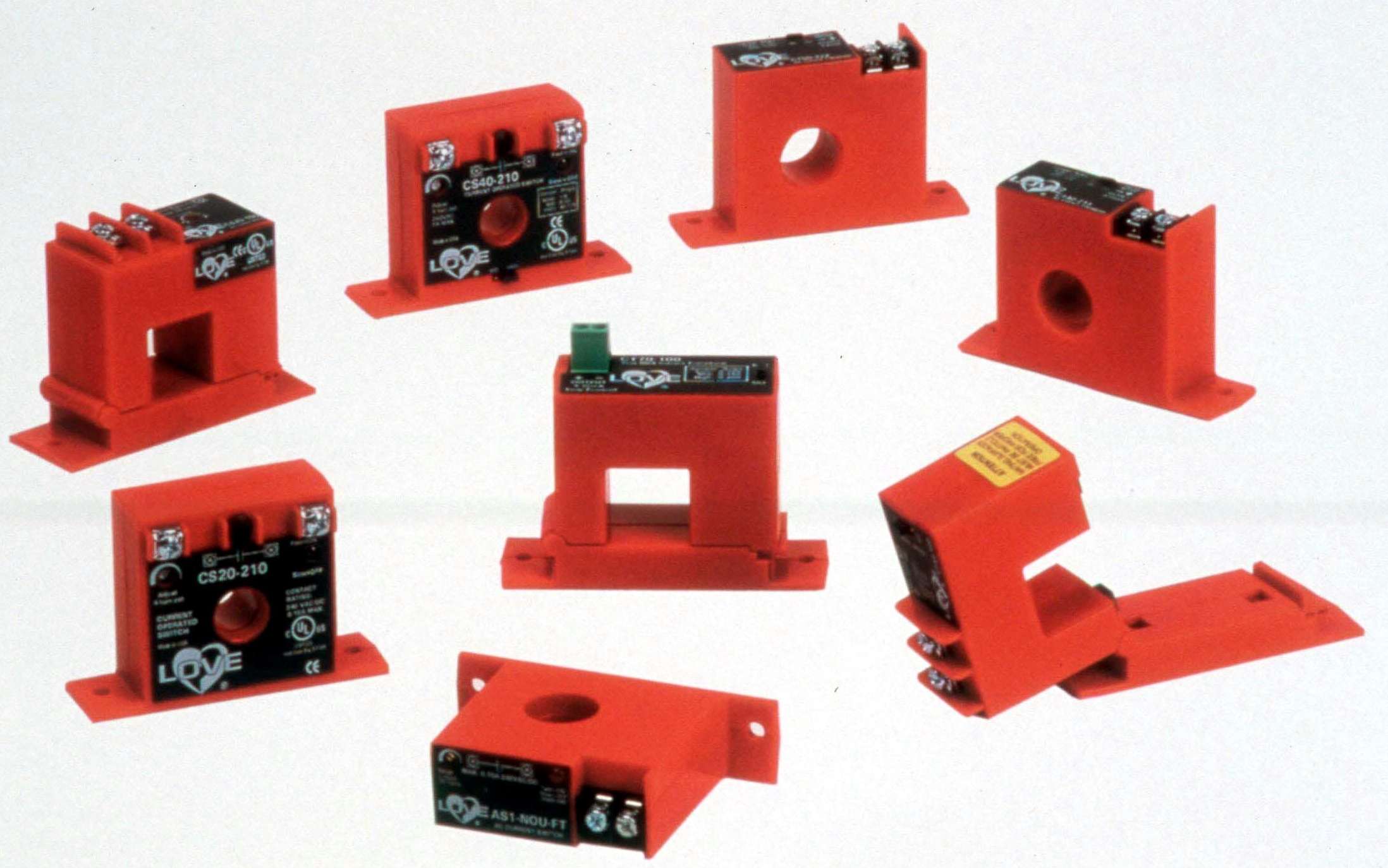

Jul 31, 2003 CS Series switches combine current transformer, signal conditioner, and limit alarm into one package. Units offer selectable current input range, universal solid-state outputs, and LED indication for local display of switch status. Products are available in split core or solid core case.

Leica Microsystems, Inc.    Buffalo Grove, IL 60089
Jul 31, 2003 Optimized for confocal microscopy and depth imaging of glycerol-embedded specimens, PL APO 63x 1.3 Glycerol HCX CS (Confocal Scanning) offers imaging performance on and below surface of specimens matching closely to refractive index of glycerol. Product minimizes spherical aberrations and offers working distance of 280 µm. Apochromatic confocal scanning correction assures precise registration of focal planes and fluorescence emissions across visible spectrum.

Linear Technology Corp.    Milpitas, CA 95035
Jul 31, 2003 Single, dual, and quad rail-to-rail input and output models (LT1803, LT1804, and LT1805, respectively) offer 85 MHz gain-bandwidth product and 100 V/µs slew rate. Voltage feedback op amps draw 3 mA supply current and offer minimum open loop gain of 86 dB and CMRR of over 78 dB. Products operate from supplies from 2.3-12.6 V. Model LT1803 is offered in 5-pin SOT23 and 8-pin SOIC packages, LT1804 comes in 8-pin SOIC and 3 x 3 DFN packages, and LT1805 comes in 14-pin SOIC package.

National Starch & Chemical Co.    Bridgewater, NJ 08807-0500
Jul 31, 2003 PURFECT GLAZE(TM) 34-880A one-part, polyurethane-based sealant allows handling of windows or doors immediately after glass is bedded. It offers resistance to weathering and does not creep or cold-flow during long periods. Application temperature range is 160-225°F and shelf life is 6 months at 77°F. Low viscosity application reduces equipment wear, and controlled squeeze-out improves final window appearance. PURFECT GLAZE sealants are AAMA 802.3-92 verified.

Greenheck Fan Corp.    Schofield, WI 54476 0410
Jul 31, 2003 Gravity Ventilator, Model PEV-400 is comprised of 3 sides of standard, stationary, non-drainable louver Model ESJ-401, along with one side of 1/8 in. thick plate glass that can be broken with pressure of fire hose. Fire smoke damper is located in throat of curb and wired into fire control panel.

ARINC, Inc.    Annapolis, MD 21401 7465
Jul 31, 2003 Digital Automatic Terminal Information Service offers pilots digital weather and airfield information. It broadcasts voice radio messages containing weather, runway conditions, and other notices and includes natural-sounding text-to-voice translator. For controllers, system offers pull-down menus and templates for entering text information on runway and airfield conditions, Notices to Airmen, and local weather data from Systems Atlanta IDS-5 service.

Rockwell Automation    Milwaukee, WI 53204
Jul 31, 2003 Bulletin 1606 series accepts ac and dc input voltages and has global approvals to meet single- and 3-phase application requirements. Features include start-up and overload response capabilities. Standard 1606-XL unit incorporates power boost that provides additional power reserves of up to 15% without reduction in output voltage, and compact 1606-XLP unit is DIN-rail-mounted and features spring-clamp terminations that require no tools to install.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103

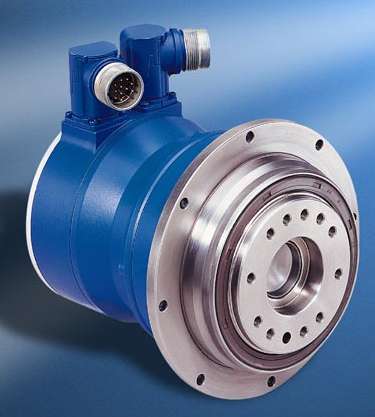

Jul 31, 2003 TPMA AC Servo Actuator consists of one brushless ac servomotor with TP-High Torque planetary gearhead, resolver or absolute encoder, and optional holding brake. Available in various frame sizes, product comes in gear ratios of 110:1 and 220:1. Unit incorporates tapered roller bearings in output stage, driving flange, and integrates pinion gear in motor, allowing positioning accuracy of less than 1 arc minute of backlash.

Linear Technology Corp.    Milpitas, CA 95035
Jul 31, 2003 Model LTC3407 1.5 MHz synchronous-buck regulator operates from input voltage of 2.5-5.5 V, using constant-frequency, current-mode architecture. It generates 2 independent output voltages as low as 0.6 V, enabling it to power low-voltage DSPs and microcontrollers. Switching frequency of 1.5 MHz allows utilization of tiny ceramic capacitors and inductors less than 1.2 mm in height. Unit delivers low dropout, 100% duty cycle operation and efficiencies up to 96%.

Syware, Inc.    Cambridge, MA 02142
Jul 31, 2003 Report CE® v4.0 supports over 20 alphanumeric and numeric bar code formats, and can display and print pictures associated with record. Reports can be saved or e-mailed as Rich Text Format or text. Software can extract longitude, latitude, and altitude from previously captured GPS data. Filters based on constants or embedded Visual CE variables control what data gets reported. Command line switches can be applied when launching report from eMbedded Visual Basic or eMbedded C++.

ATI Technologies, Inc.    Thornhill, ON L3T7N6  Canada
Jul 31, 2003 FireGLâ„¢ X2-256 offers 256 MB unified graphics memory and dual DVI-I interfaces. Based on FGLâ„¢ 9800 Visual Processing Unit, it features 4 geometry engines and 8 parallel rendering pipelines. Accelerator is suited for CAD, solid modeling, DCC, and visual simulation applications. Entry-level FireGL T2-128 features 128 MB of unified graphics memory and dual display support through DVI-I and VGA connectors. Based on FGLâ„¢ 9600 VPU, it offers 2 geometry engines and 4 parallel rendering pipelines.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Jul 31, 2003 Multicore® LF320 lead-free solder paste is optimized for reflow in air on wide range of PCB assembly applications. It requires minimum peak reflow temperature of 229°C. With print speed range of 25-100 mms^-1, and abandon time up to 2 hr, paste provides high resistance to slump and solder balling. LF320 is classified as ROMO and meets or exceeds Bellcore GR-78-CORE tests for electromigration.

LeapPoint Technologies    Ann Arbor, MI 48105
Jul 31, 2003 AiroPoint 3600 product release 3.1 offers authentication, authorization, and accounting functionality; certificate handling capabilities; and preinstalled server-side certificate for use with PEAP, TLS, and TTLS. Configured with browser-based interface, product acts as complete wireless LAN access control and security solution based on 802.1x security standard. It offers support for all EAP types, Wi-Fi Protected Access Specification, and certificate revocation lists for EAP-TLS.

Paslode, An Illinois Tool Works Co.    Vernon Hills, IL 60061
Jul 30, 2003 Hot Dip Galvanized Nails meet or exceed building code requirements for corrosion resistance, including ASTM A-153-Class D. They feature 22° full head and are offered in smooth, ring, and screw shank. Sizes range from 2½â€“3¼ in. in length and .120–.131 in. dia. Weather-resistant, plastic collation reduces broken strips and enables year-round production. Nails are suited for coastal framing, pier construction, and other exterior applications.

Viking Corporation, Blast & Wash Systems    Wichita, KS 67226
Jul 30, 2003 Model CBW 3232 pass through parts washer employs various HP pumps and variable speed belts to produce 360° cleaning coverage. Options include sludge drag, oil skimmer, powered exhaust, rinse and blow off, and filtration. Natural gas, propane, or electric heating options provide temperatures to 185°.

ID Technology Corp.    Fort Worth, TX 76106
Jul 30, 2003 Ranger Inkjet Printer can print razor-sharp graphics, small characters, and scannable barcodes at speeds up to 125 fpm with 200 dpi horizontal resolution. Component modularity allows printheads and components to be replaced in less than 5 min. Several ink formulations are available as well as optional drying system for quick drying of solvent-based inks.

Scapa North America    Windsor, CT 06095
Jul 30, 2003 SoundGard(TM) 3510 non-woven polyester tape is coated with rubber-based adhesive to minimize unwanted rattle and noise in automotive applications. Zero-halogen product may be torn by hand and provides fluid and abrasion resistance. Available in 9, 15, 19 and 25 mm widths, SoundGard 3510 is 0.55 mm thick and dampens sound in vehicles by up to 12.5 dB. Providing temperature resistance up to 125°C, thermal class 3 tape is also suited for electrical cable insulation.

A-B-C Packaging Machine Corp.    Tarpon Springs, FL 34689
Jul 30, 2003 Operating at speeds to 35 cases/min, Model 340 automatically erects and tape seals oversized corrugated cases with blank sizes up to 45 x 42 in. Machine measures 5 ft 2 in. wide x 18 ft 7 in. long and replaces manual case set up labor. Low-level kd case magazine permits line personnel to load cases without lifting heavy stacks. Cases may be added to magazine at any time and machine automatically indexes next stack when previous stack is depleted.

SKF Motion Technologies    Lansdale, PA 19446
Jul 30, 2003 IWIS chains are available for warehouse and material-flow systems where pallets, containers, or workpieces must be conveyed, accumulated, accelerated, and singled out. Designed with light-running transport rollers made of hardened steel, plastic, or anti-static, products offer offset roller arrangements and minimal radius to accommodate system curves. Chains deliver optimized load distribution and may be specified in various shapes and configurations.
