Arcom Control Systems    Kansas City, MO 64145
Jul 09, 2003 VIPER PC/104 form factor embedded processor board uses 400 MHz PXA255 XScale application processor, which is fully compliant with ARM v.5TE instruction set. At 3.6 x 3.8 in., with typical power consumption of 1.4 W from one 5 V input and less than 200 mW in standby mode, product includes flat panel display controller, 10/100baseTx Ethernet, 5 serial ports, I/O expansion using PC/104 bus, CompactFlash socket, and wireless cards.

DP Technology Corp.    Camarillo, CA 93012
Jul 09, 2003 KnowledgeBaseâ„¢, featured in ESPIRIT 2003, utilizes work piece materials, machining operations, cutting depths, and cutter materials to select best-known spindle speed and feedrate for given cutting situation. Working within KnowledgeBaseâ„¢, CUTDATA offers over 100,000 recommended cutting speeds and feederates for 22 machining operations, 12 cutter materials, and over 3,700 work piece materials. Shops can extend list to include favorite cutter and workpiece materials.

Zetec, Inc.    Issaquah, WA 98027 0140
Jul 09, 2003 Using eddy current technology, ZS-4 High-Speed Scanner detects cracks and flaws in small diameter holes. Two push buttons remotely control Hold and Balance functions on connected instrument. Red LED lamps, located on both sides of scanner, inform operator of alarm condition and internal YT trigger output allows synchronized YT display of flaw responses. Unit's 3-position toggle switch sets rotational speed to 1,000 rpm, 2,000 rpm, or OFF.

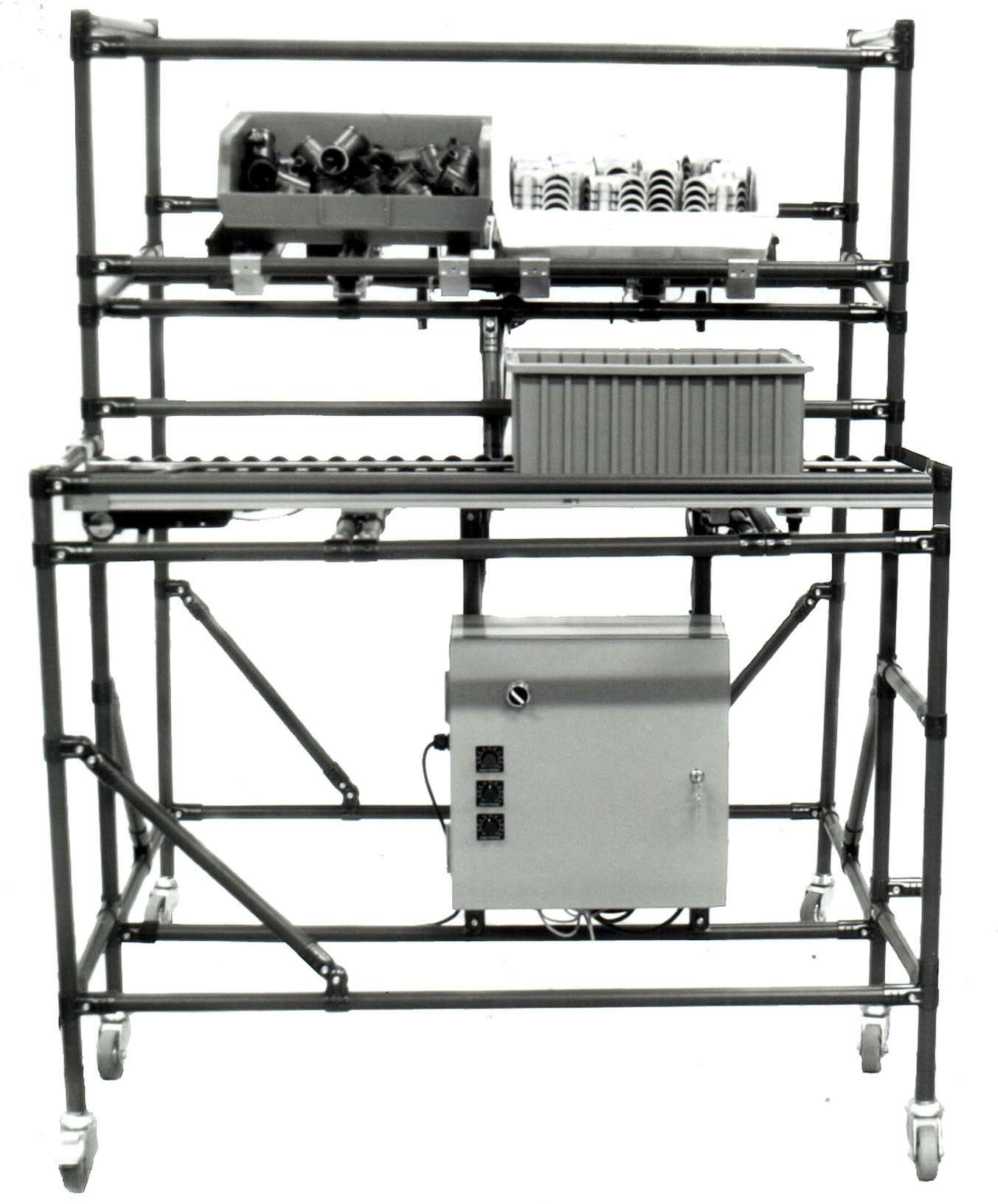

Quixxsmart Structures Inc.    Peabody, MA 01960
Jul 09, 2003 Constructed from heavy gauge 28 X 1 mm thick steel tubing and bonded plastic-coated jacket, modular Power Drive System provides operator-determined, variable speed automated workflow control. Tubing is joined with steel fittings, and system is powered by 24 Vdc fractional HP motor. Containers and bins are driven along center track, guided by circular urethane friction belt and 2 semi-circular grooves of rollers positioned in aluminum roller tracks.

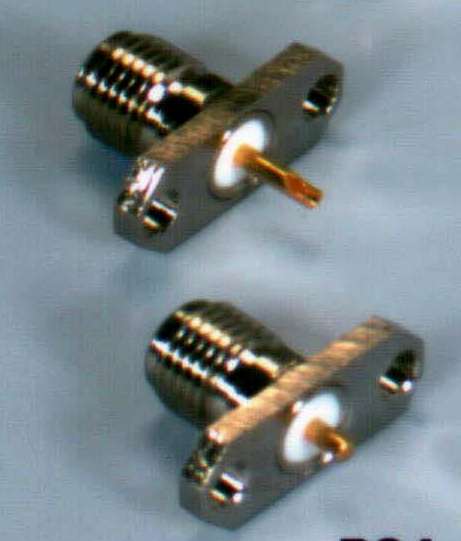

RF Connector Operations    Danbury, CT 06810
Jul 09, 2003 Two-hole, SMA connectors are fabricated to MIL-STD-348A, Section 310 with nickel- or gold-plated brass bodies, Teflon insulation, and gold-plated contacts. Model RSA-3261 SMA jack and Model RSA-3221 SMA plug have solder cups, while Models RSA-3262, RSA-3268, and RSA-3269 have solder posts with flush and extended dielectric terminations. Connectors are suitable for microwave applications where small size is required.

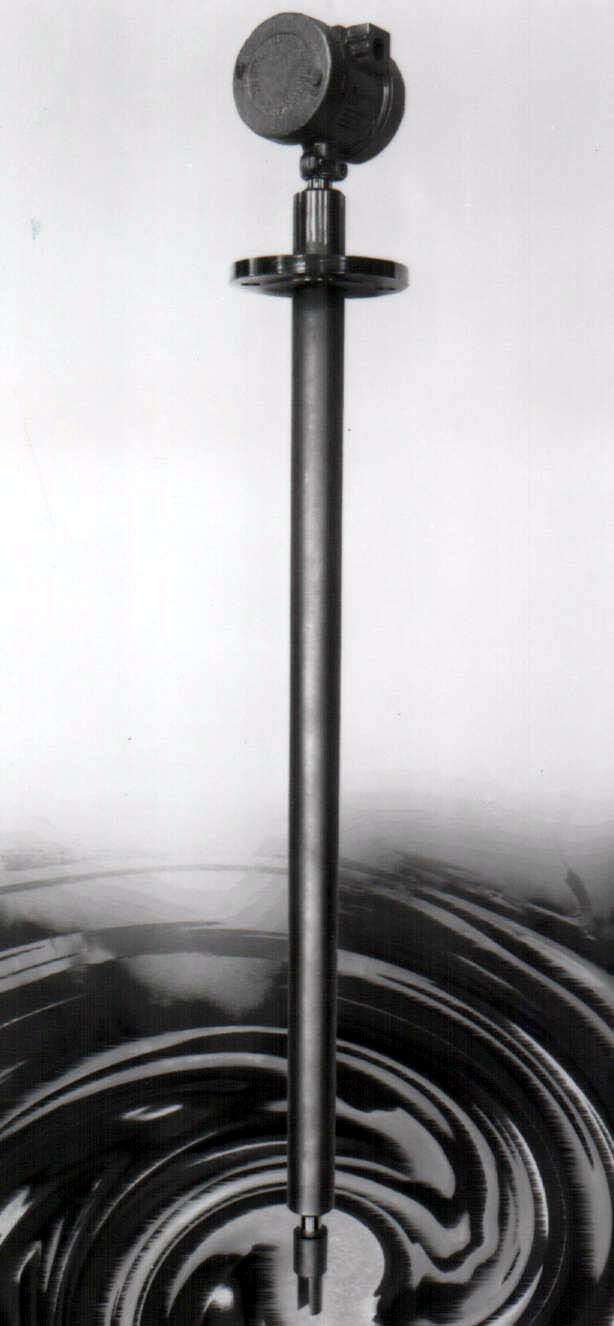

Solartron Mobrey    Houston, TX 77084
Jul 09, 2003 Suited for process applications, Visconic long-stemmed, in-line, vibrating-fork viscosity meter is available in lengths of 20, 40, 80, 120, and 134 in. and installs directly into large-bore pipes and tanks with vibrating fork element in center of flow. Output is 4-20 mA signal via RS232/485 Modbus interface for continuous monitoring of multiple parameters. Product is suited for measurement of dynamic viscosity, kinematic viscosity, and density.

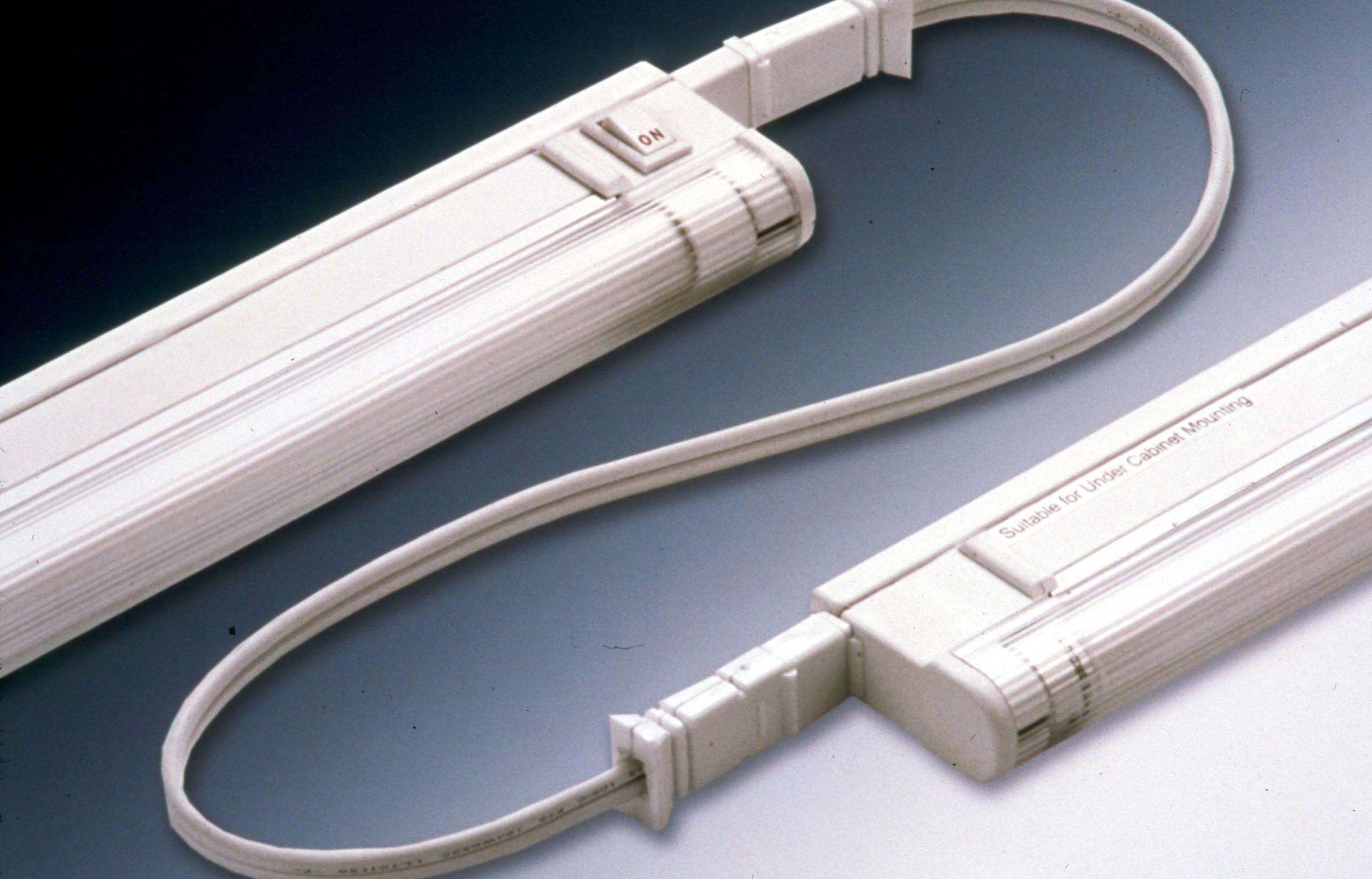

Specialty Lighting Inc.    Shelby, NC 28151 1680
Jul 09, 2003 SlimLink flicker-free fluorescent lighting system features ¾ in. high x 1 ¾ in. deep profile, allowing fixtures to be concealed under curved or flat surfaces. Housing lengths range from 10–23 in. Lights can be used alone, end-linked, or cord-linked to form continuous rows of up to 10 units per run. T4 linear fluorescent lamps provide illumination from 6–20 W per SlimLink unit. Prismatic acrylic diffuser shields lamp from viewer's eyes, while providing 120° light distribution.

Georgia-Pacific Corp.    Atlanta, GA 30303-1801
Jul 09, 2003 Measuring 5/8 in. thick, DensArmorâ„¢ Abuse Guardâ„¢ Fireguard® incorporates coated glass mat surface on back of panel that provides protection from incidental moisture in wall cavity. Panel face consists of heavy-duty, abrasion-resistant paper. Product meets criteria for Type X and may be used in any assembly where Type X wallboard is specified. Product provides durability and fire protection and is suited for schools, hospitals, and high-traffic areas.

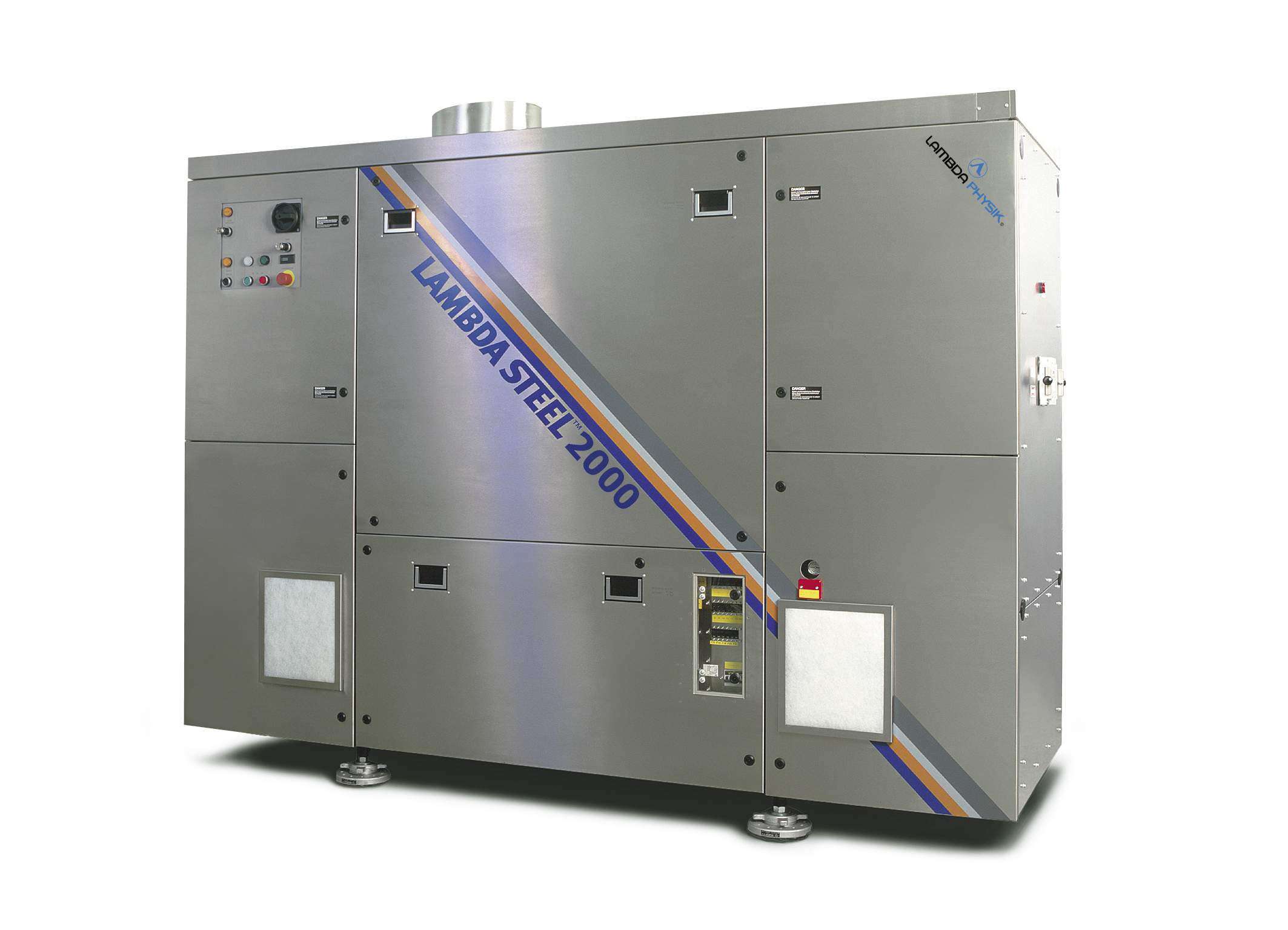

Lambda Physik, Inc.    Fort Lauderdale, FL 33309
Jul 09, 2003 STEEL® 2000 delivers 310 W stabilized output power at 300 Hz pulse repetition rate. Particle precipitator eliminates previously employed cryogenic gas purification and extends gas and tube lifetime. Laser includes cleanroom-compatible stainless steel cabinet, single-side access for more space, and remote control operation. It is suitable for TFT annealing of flat panel displays, drilling of PCB boards or inkjet nozzles, and hardening of car engine cylinders.

Lambda Physik, Inc.    Fort Lauderdale, FL 33309
Jul 09, 2003 NOVATEXâ„¢, available in 248 or 193 nm wavelengths, provides stabilized average power of 12 W for ArF and 32 W for KrF. Bi-modular design separates laser head from external supply unit. Integrated HV switch matches multi-billion-pulse lifetime of Fluorine-optimized NovaTube®. PowerLock® control enables tens of millions of pulses in burst or continuous operation mode with critical energy stability staying below 2%. Laser is suitable for photo mask writing applications.

North Safety Products    Cranston, RI 02920
Jul 09, 2003 Hood-style escape respirator ER1000 provides 30 min (minimum) of respiratory and face protection from nuclear, chemical, and toxic industrial materials as well as biological agents. Able to be donned and functioning within seconds, unit includes translucent hood and half-mask design that limits re-breathing of exhaled air. Anti-fog and scratch-resistant lens provides wide field of vision, while front-mounted exhalation valve enables users to speak normally.

Cooper Crouse-Hinds    Syracuse, NY 13221
Jul 09, 2003 Chico® SpeedSealâ„¢ Compound enables users to install complete explosion-proof seal in less than 5 min via use of 3-step process that involves pumping (to mix), injecting compound, and replacing plug to seal fitting. Compound expands after injection to fill entire fitting, automatically separating conductors. Hardened mass is suitable for use in Class I, Division 1, Groups C and D as well as Class II, Division 1, Groups E, F, and G applications.

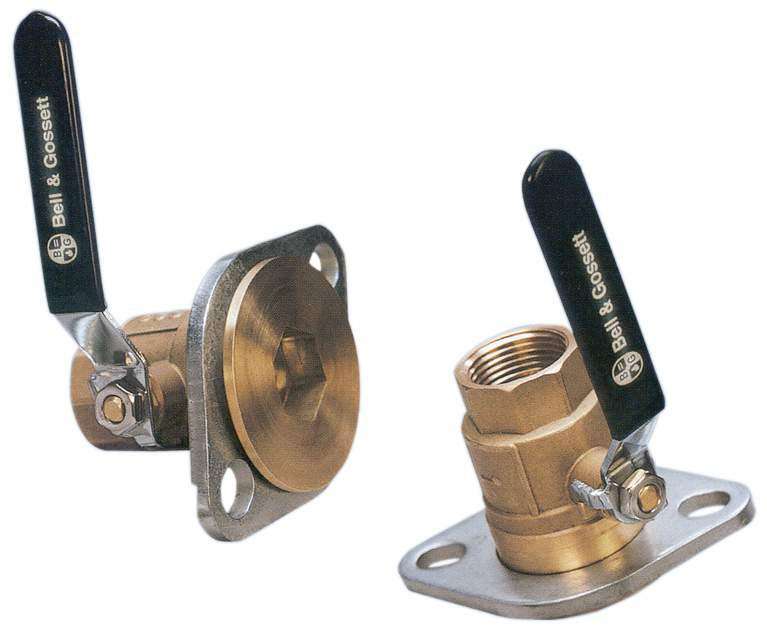

Bell & Gossett    Morton Grove, IL 60053
Jul 09, 2003 Isolation Flanges combine full-port, 90°-turn, isolation ball valve and circulator flange to allow circulators to be isolated from rest of system. Free-floating flanges rotate to eliminate need to align bolt holes when installing to system piping. Available in ¾, 1, and 1¼ in. NPT and sweat, flanges feature non-ferrous wetted internal components making them suitable for hydronic heating systems.

SPSS Science, Inc.    Chicago, IL 60606
Jul 09, 2003 With drag and drop functionality, Amosâ„¢ v5.0 structural equation modeling software package allows researchers to propose theories of how and why variables might affect each other and verify whether data supports proposed models. Using structural equation modeling (SEM), software provides insight into underlying, complex relationships between variables and offers access to sophisticated linear modeling techniques.

Nilfisk Industrial Vacuums    Morgantown, PA 19543
Jul 09, 2003 When integrated with company's vacuum cleaners, power tools drill, grind, cut, scale, descale, and sand while simultaneously collecting dust and debris. Suited for where dust caused by power tools is harmful to workers, tools collect dust in single tool hook-ups or central systems with multiple operator drops. Tools include: Mini Die Grinder, Pneumatic Sander, Electric Sander, Roto Scaler, Drill Shield, Needle Descaler and Mini Needle Descaler, and Grinder.

FasTrak SoftWorks, Inc.    Milwaukee, WI 53218
Jul 09, 2003 PLC WorkShop v5.41 integrates server-based password security and audit trail as well as cross-reference that includes referencing user's TCOP and Configuration Extensions areas. Software bases its communications off of OPC compliant communications server and can capture benefits of operating systems such as Windows XP. Product supports all communication methods, including Applicom International Modbus + card.

MaxStream Inc.    Orem, UT 84058
Jul 09, 2003 Model 9XCite™ FCC-approved, embedded wireless module has power output of 1 mW and -108 dBm receive sensitivity providing extended transmission range. It communicates 300 ft indoors/urban environments and 1,000 ft line-of-sight with dipole antennas. Module accepts 2.85–5.50 Vdc and is optimized for low power applications. Data throughput is user selectable at 9,600 bps or 38,400 bps and provides interface data rates from 1,200–57,600 bps.

Allstar Supply, Inc.    Collinsville, CT 06022
Jul 09, 2003 Requiring changeover of anvil hooks to switch carton closing top staplers from one leg length to another, T tools accept multiple leg lengths, thereby reducing cost of switching. With reduced body contour that promotes maneuverability by user, design also incorporates ergonomically designed trigger cavity and trigger valve that eliminates wear.

Kontron    Poway, CA 92064
Jul 09, 2003 RocketPort® CompactPCI (cPCI) serial card employs Kontron CP302 Intel® Mobile Pentium III processor based CPU board and CP-ASM-4 cPCI chassis. Product provides up to 16 RS-232 or RS-422 connections from single cPCI expansion slot. It conforms to PICMG 2.0 Revision 3.0 specification for cPCI expansion cards within PCI industrial computers.

SMC Corporation Of America    Indianapolis, IN 46226
Jul 09, 2003 Model ITV1000 electro-pneumatic pressure regulator provides max flow rate of 250 L/min when set pressure of 0.5 MPa is applied. It offers step-free control of air pressure proportional to electrical signal. Internal circuitry pulses supply and release valves to maintain desired output air pressure. Compatible inputs include 4-20 mAdc, 0-20 mAdc, 0-5 Vdc, and 0-10 Vdc analog inputs; and 4-wire digital input. Regulator is CE and IP65 rated.
