Linear Technology Corp.    Milpitas, CA 95035
Jul 07, 2003 Model LTC4257 Power over Ethernet Interface Controller incorporates circuitry necessary to connect powered device to IEEE 802.3af powered Ethernet network. Offered in SO-8 package, -48V powered unit incorporates 25 k signature resistance, programmable classification, power switching, inrush current limiting, and fault protection. Integrated 100 V power MOSFET keeps PD circuitry disconnected from Ethernet cable until input voltage reaches valid level.

SKF USA, Inc.    Lansdale, PA 19446
Jul 07, 2003 Providing bearing stability and precise positioning, MB240 digital control system consists of one 2 A, 40 W system with Adaptive Vibration Control. Custom-built to meet user requirements, Hyperspin spindles are multi-component magnetic bearing assemblies that incorporate radial and thrust bearings, housings, shaft, motor, and controller. Synchronous spindles are offered in speeds to 60,000 rpm and power ratings to 900 W. Asynchronous spindles are available to 50,000 rpm and 55 kW.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 07, 2003 XSeries 360 Servers are high-throughput, 4-way, SMP-capable, Intel® Xeon-based network servers that deliver scalability for adding memory, adapter cards, or multiple processors. Total memory capacity is 16 GB with use of 2 GB DIMMs. Servers feature six 64-bit PCI-X slots, integrated Ultra160 SCSI and 10/100 Mbps Ethernet controllers, and 1 or 2 hot-swap power supplies. Three hot-swap bays enable installation of HDDs and support up to 220.2 GB internal data storage.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 07, 2003 Equipped with mainframe-inspired Enterprise X-Architectureâ„¢ features, xSeries 255 server provides hot-swappable redundant power supplies, redundant cooling fans, and HDD bays. Offered in tower or rack models, unit offers 512 MB or 1 GB of PC1600 100 MHz ECC DDR memory, integrated systems-management processor, and Gigabit Ethernet. System provides full-length hot-swap/hot-add PCI-X/PCI slots and ATI video controller in addition to 16 drive bays.

Amacoil Inc.    Aston, PA 19014

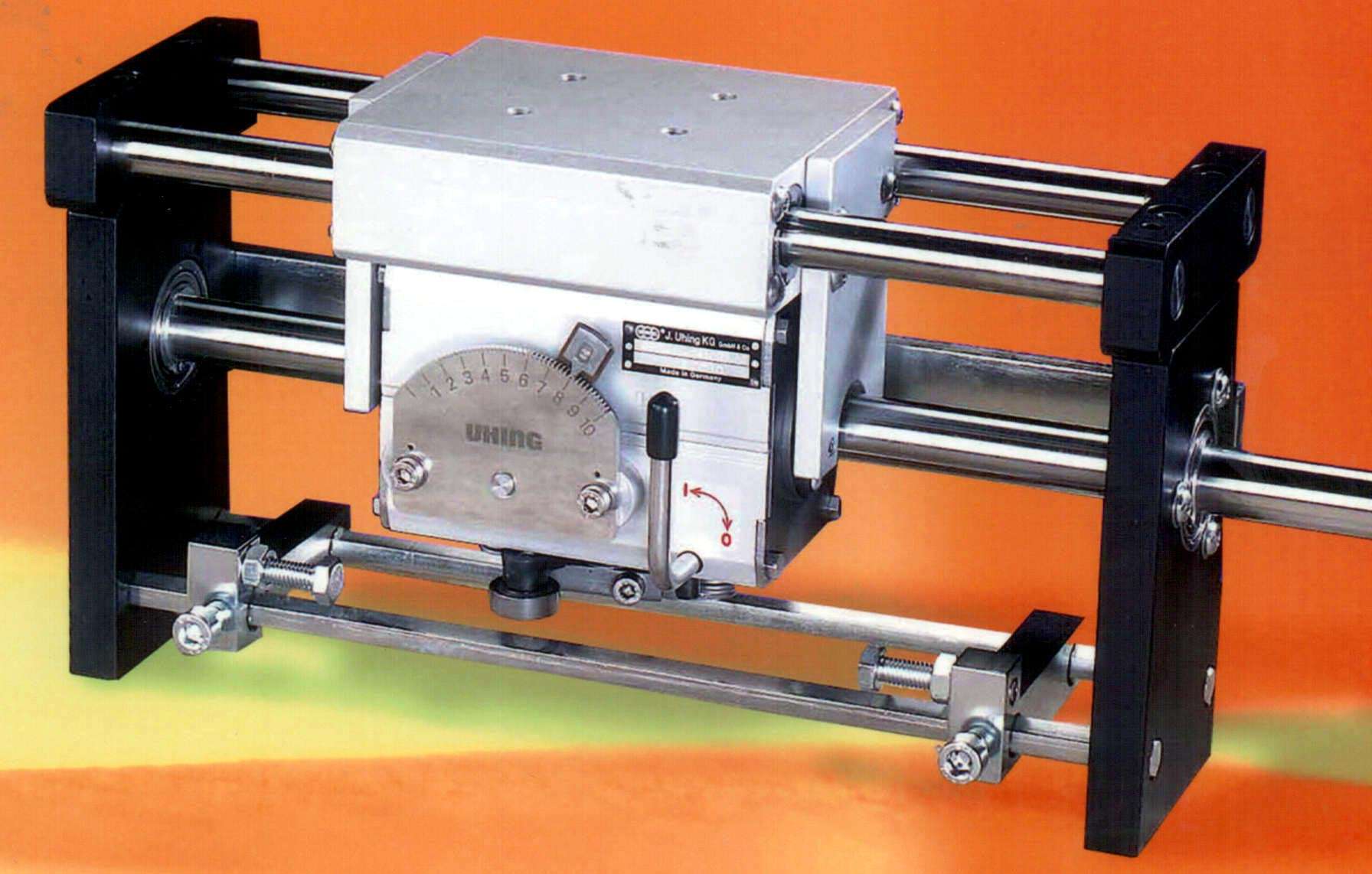

Jul 07, 2003 Linear Drive Assemblies use Linear Slides to remove twisting and bending forces from drive unit, guide rails, and supports. By lifting payload weight off drive unit, linear slide attachments assure that bearing assembly is not under undue pressure. Models SLS and L2 mount to top of drive head and handle medium- and heavy-duty loads, respectively. When vertical space above drive head is limited, rear-mounted Model L4 slide may be used.

Norgren    Littleton, CO 80120

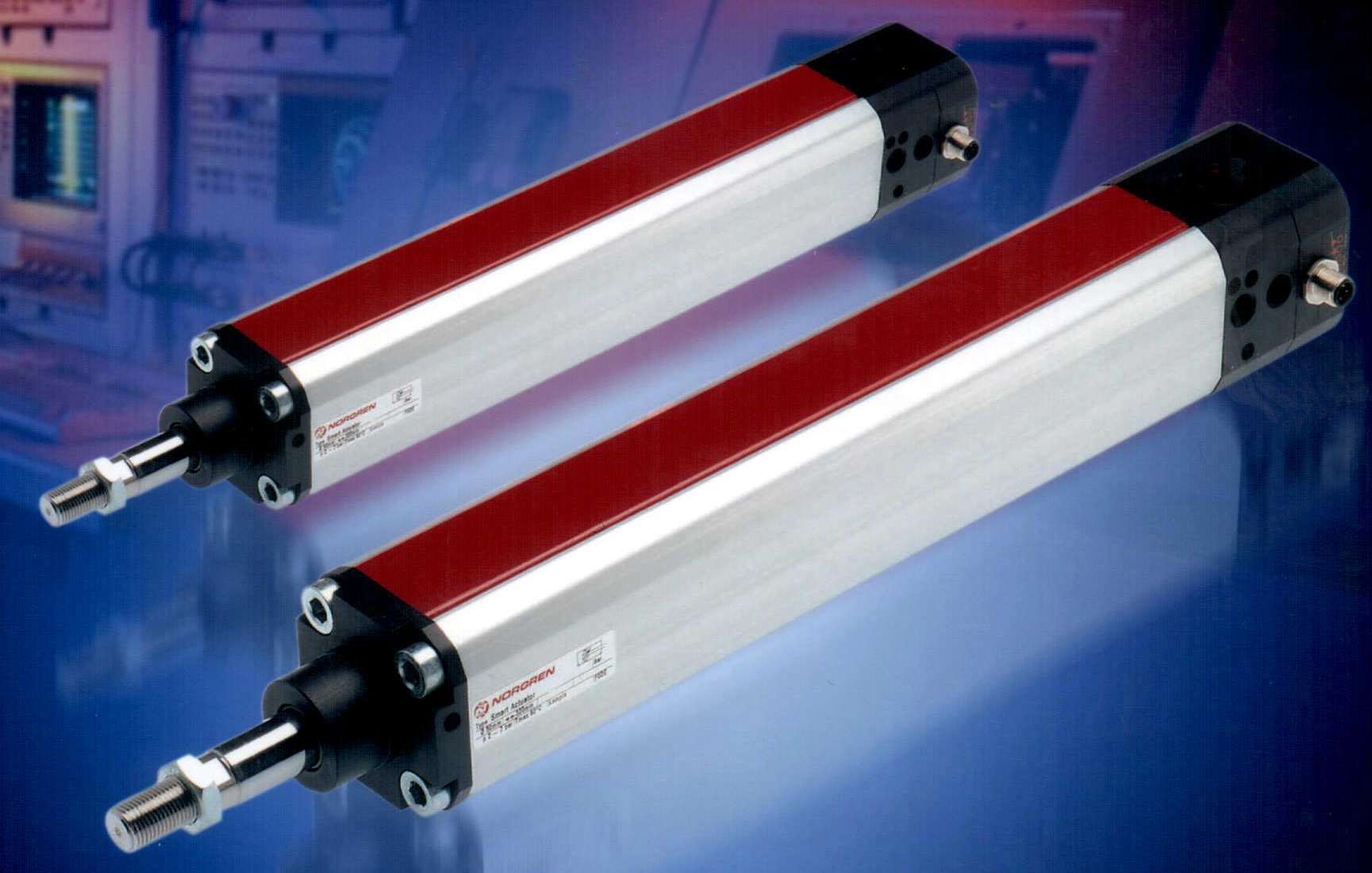

Jul 07, 2003 Compliant to ISO 6431 and VDMA 24562 standards within VDMA envelope, smart cylinder contains its own sensors, flow regulators, adjustable cushioning, integrated 5/2 or 5/3 valve, and ASI Bus or Mulitpole fieldbus connections inside the casing. With integrated valve, product achieves top speed of 1.5 m/sec and is available in stroke lengths of up to 1 m. Product requires one electrical and one pneumatic connection and offers diagnostics via fieldbus system.

Electronic Design & Research Inc.    Louisville, KY 40258

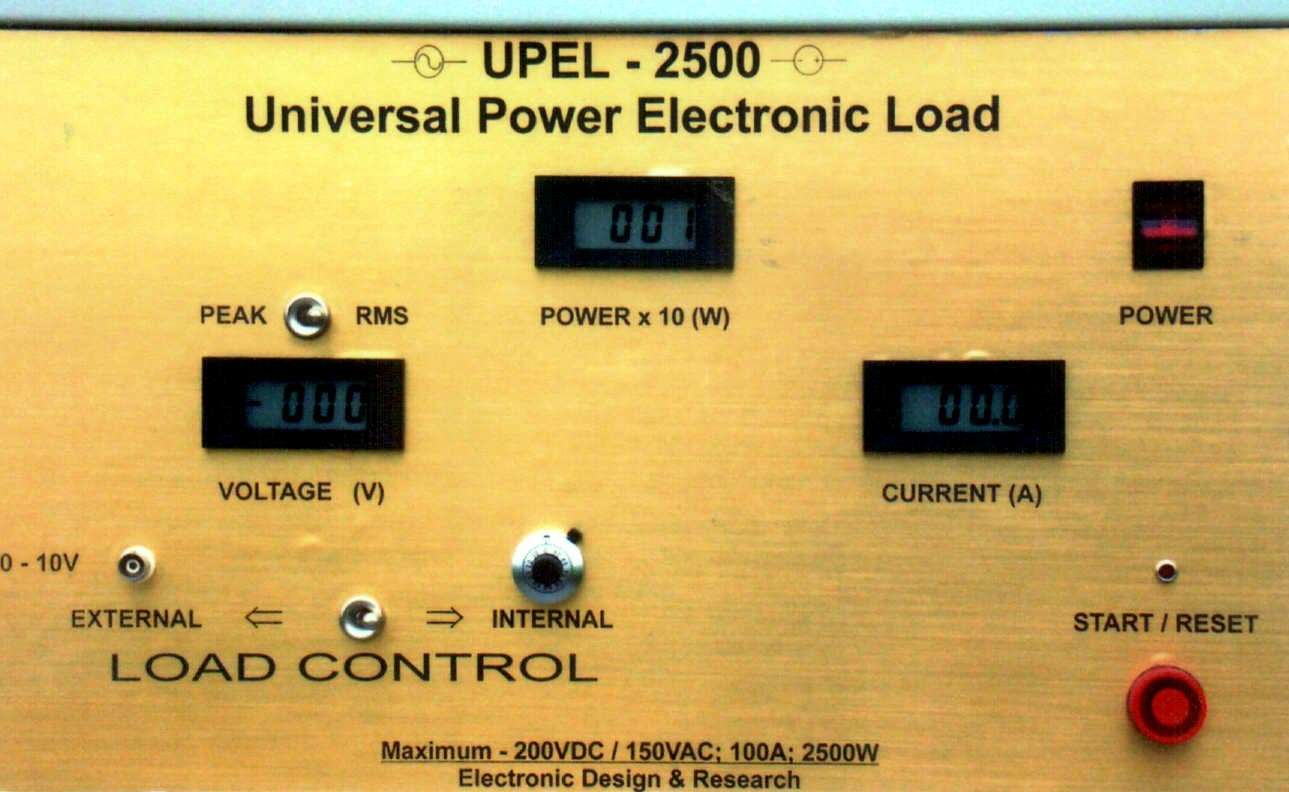

Jul 07, 2003 Bench top Model UPEL-2500 electronic load simulator is based on high-speed current transformer providing feedback to lateral MOSFETs. Average power rating is 2,500 W and maximum rating is 4,000 W. Unit features voltage range from 1-200 V peak to peak and current up to 100 A. Internal generator allows dynamic testing of many power sources. Dynamic loading capability is up to 1 KHz in ac/dc mode and up to 20 KHz in dc mode. Manual and remote control modes allow integration with ATE systems.

Southside Safety, Inc.    Chesapeake, VA 23322

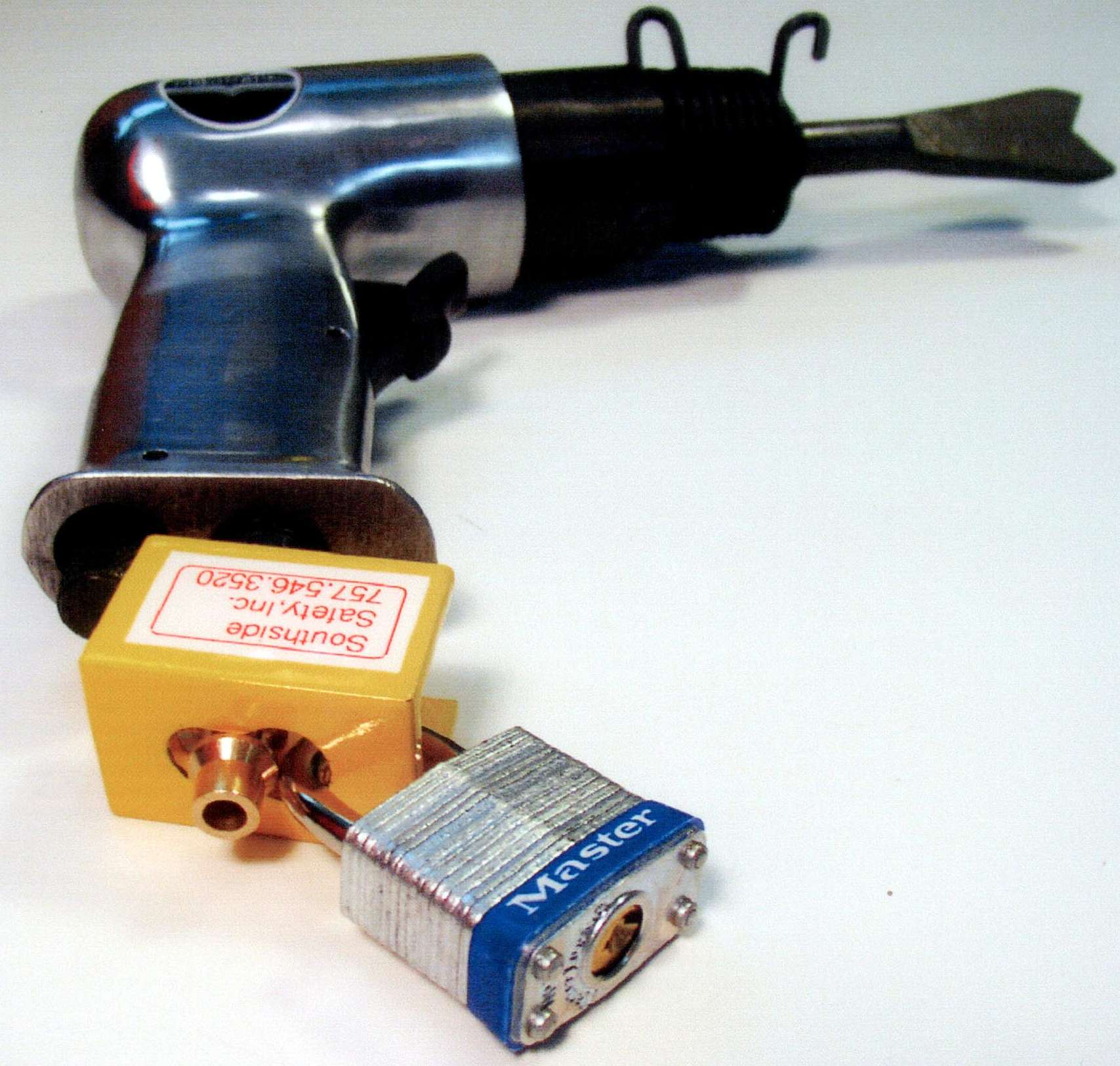

Jul 07, 2003 Pneumatic Tool Lockout secures pneumatic tools and equipment with quick connect fittings to deter unauthorized usage. Able to attach to air tools in residential, industrial, and technical fields, lockout assists production facilities in complying with OSHA 29 CFR 1910 Lockout requirements. Palm-sized, powder-coated, single-piece, extruded aluminum device accepts common padlocks and requires no tools to apply.

Zippertubing Co.    Los Angeles, CA 90061 0129
Jul 07, 2003 Constructed of 4-ply knitted tin copper-iron (SnCuFe) wire, Zipper-Mesh® enables users to add additional EMI protection to new or existing designs. Using heavy-duty mechanical zipper closure enables tool-less installation, allowing access to cable assembly for service, repairs, or redesign. Flexible, durable mesh is available in sizes from 1 in. and larger, with or without external protective jacket. Custom lengths to 100 ft long are available.

Sealevel Systems Inc.    Liberty, SC 29657

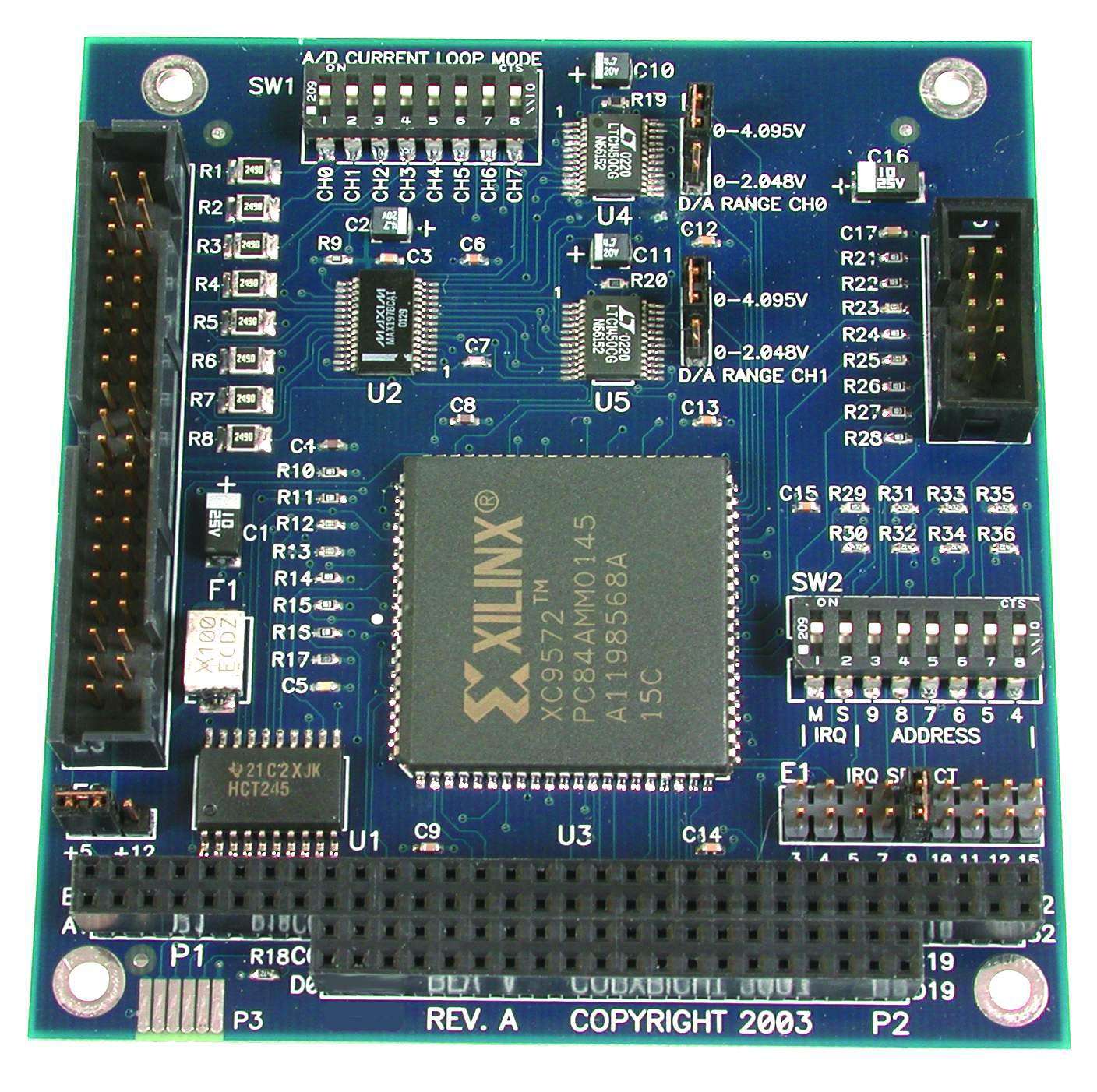

Jul 07, 2003 Designed with Maxim MAX197 successive approximation-type A/D chip, AIO-104+8 provides 8 single-ended, 12-bit inputs. Unit also includes two 12-bit D/A output channels and 16 TTL digital I/O bits, which can be individually programmed as input or output. Suited for PC/104-based data acquisition/control and test/measurement applications, unit's A/D inputs are software selectable for 0–5, 0–10, ±5, and ±10 V ranges. Inputs feature 5 MHz bandwidth track/hold and 100 Kbps throughput rate.

Parker Hannifin Corp., Instrumentation Valve Div.    Jacksonville, AL 36265-9681

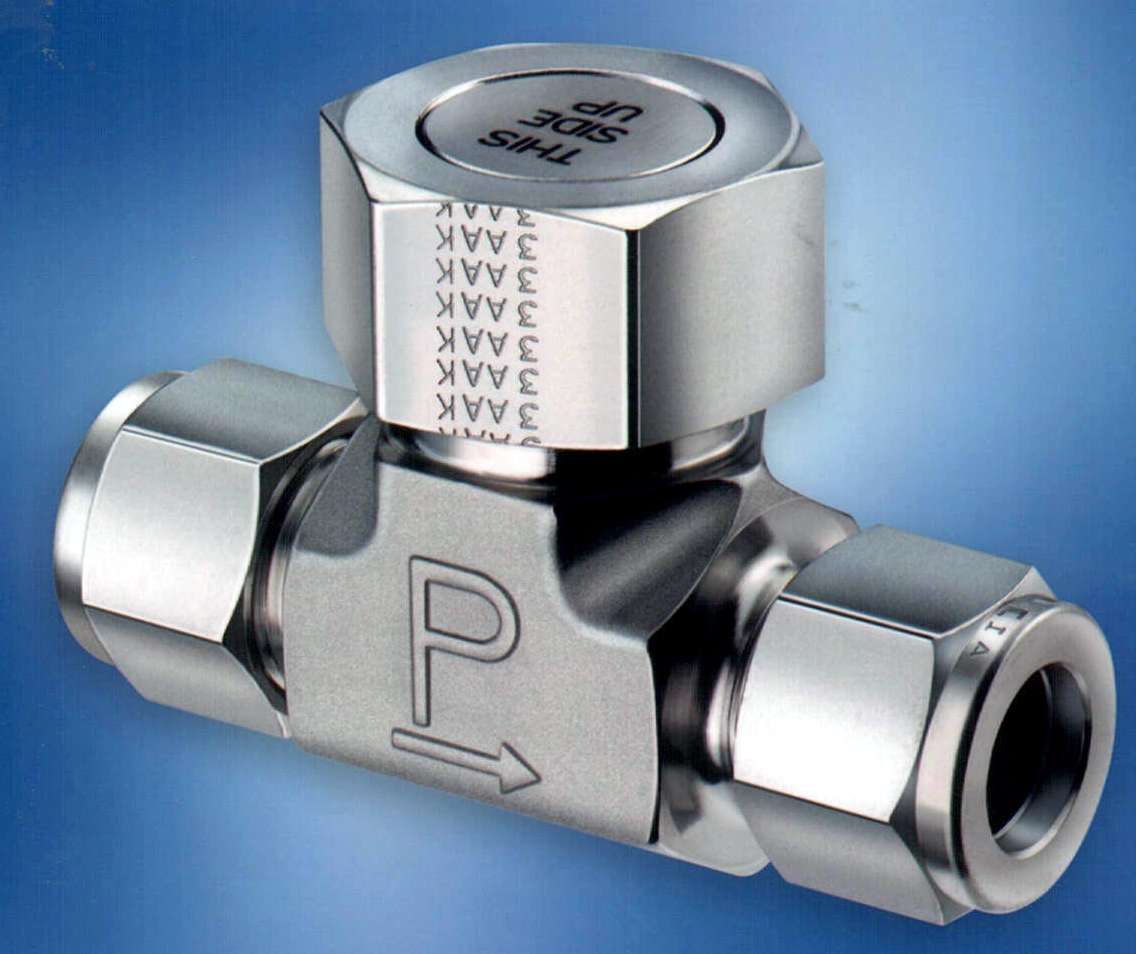

Jul 07, 2003 With stainless steel forged bodies, LC-Series valves withstand temperatures from -100 to +900 °F and are rated at 6,000 psig CWP. Products prevent flow in reverse direction to within 99.9% of forward flow and employ gravity-assisted poppet that uses back pressure to achieve seal. Suited for various power generation and laboratory applications, compact design saves space in tight areas.

Victor Equipment Co.    Denton, TX 76202

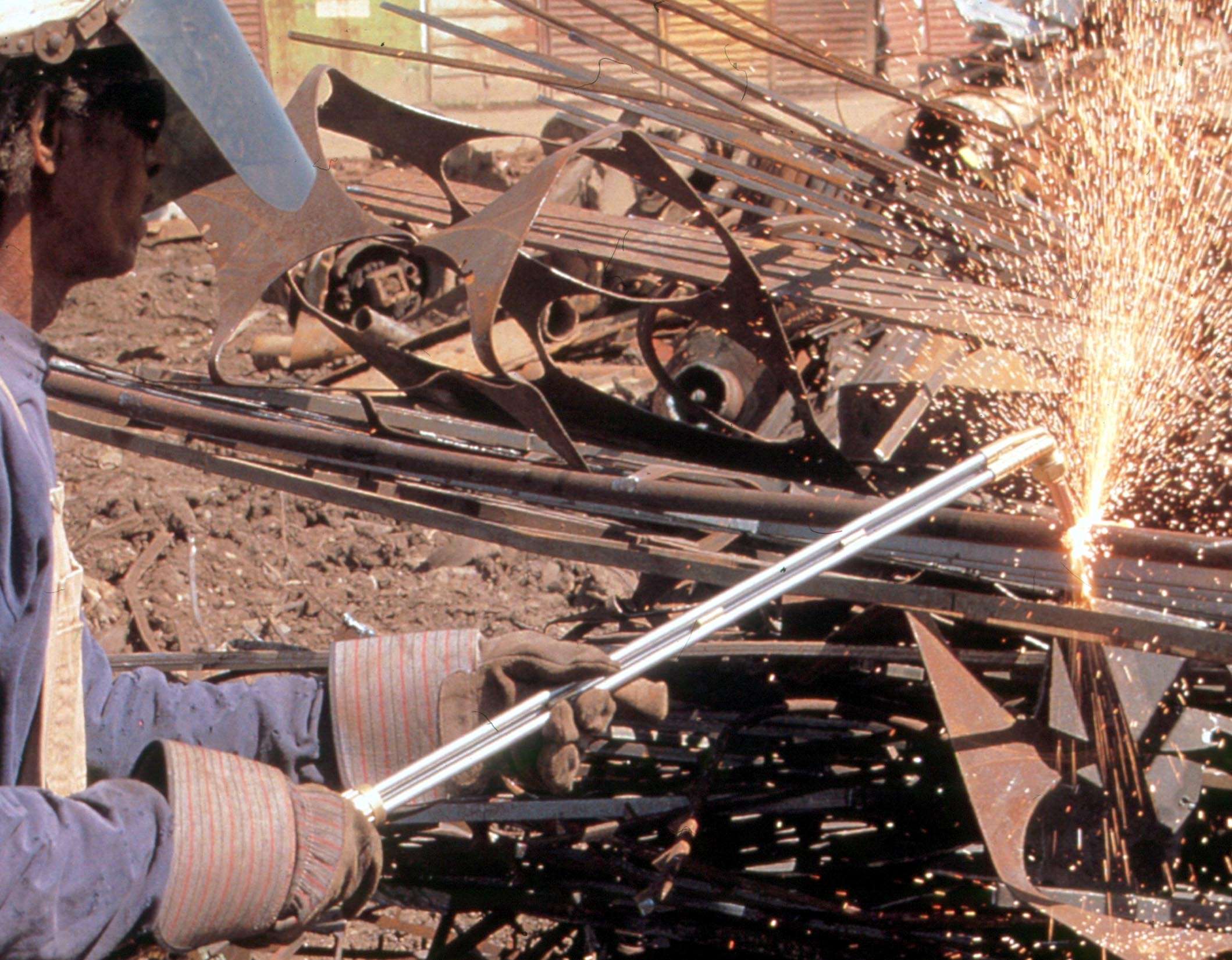

Jul 07, 2003 Bulldogâ„¢ HC 1100C Series Torches are LP propane/natural gas torches designed for scrap yard and demolition jobs that require lightweight, maneuverable design. Able to cut through material up to 14 in. thick, product employs low-profile head design with no protrusions and 3 strategically placed, heavy-duty brass tube supports. Available in 4 models, torches include 36 and 48 in. long models with 75° or 90° heads.

ABB Control Inc.    Wichita Falls, TX 76302

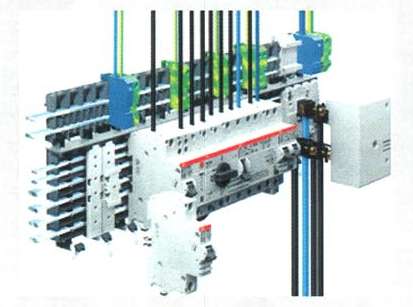

Jul 07, 2003 Smissline adds no height or width and eliminates 50% of power wiring. DIN rail components mount with click and base-mounted components mount with screws. Single-phase devices can be mounted adjacent to multi-phase devices on same system. Smissline system offers 6–100 poles and employs finger safe design. It is UL and IEC approved.

Control Technology Corp.    Hopkinton, MA 01748

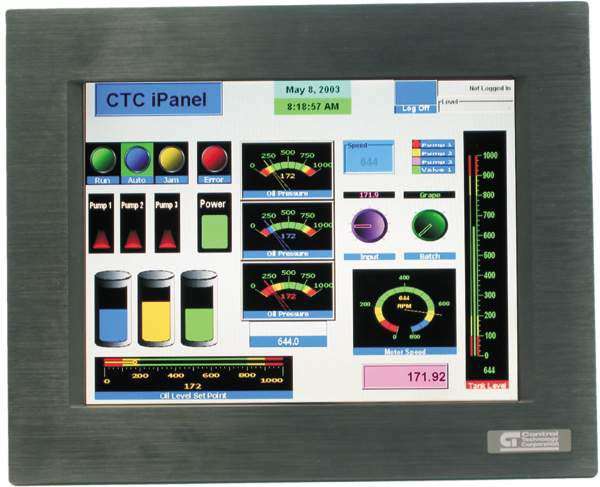

Jul 07, 2003 Series iPanelâ„¢ Web-Enabled Touchscreens with CT HMIâ„¢ software can graphically display process data over corporate Ethernet, Internet, or wireless networks, enabling users to manage plant floor devices from office, home, or field locations. NEMA 4/IP65 metal touchscreens automatically find and communicate with controllers on network. Java-based software enables users to build dynamic, informative displays with object-oriented, drag-and-drop configurator.

Protek Test & Measurement    Englewood, NJ 07631
Jul 07, 2003 Model C3100 features RMS-232 capability for PC communications such as time stamp, data logging, and file storage. Duty Cycle, RPM, Time Interval, Period, and optional GPIB interface functions extend unit's applications. Programmable counter plots trend graphs that are viewable on LCD display and generates comparison, relative error, and min/max functions. Operable on line voltages from 85-270 V, unit is supplied with software to run with Window 95, 98, 2000, and ME.

Intelligent Motion Systems, Inc.    Marlborough, CT 06447-1334
Jul 07, 2003 Utilizing hybrid design, IB462He bipolar half/full step driver delivers output current range of 0.1–2 A with +48 Vdc operating voltage. It measures 1.2 x 2.4 x 0.28 in. and is suited for space-restricted system designs. Optional INT-462 plug-on interface board facilitates testing and simplifies panel mounting, while optional OSC-462H analog speed control board provides intelligent velocity control.

AirLoc Products    Franklin, MA 02038
Jul 07, 2003 AirLoc Horizontal Wedgmount® Machine Supports offer integral damping and cushioning capabilities that dissipate up to 90% of horizontal load forces. Available with different mounting brackets, hardware, and vibration control pads, products can be adapted to customer requirements for machines and presses up to 3,000 tons or more. Installations include 4 individual supports offered in sizes that can withstand horizontal load forces from 5,000–250,000 lb.

American High Performance Seals    Oakdale, PA 15071
Jul 07, 2003 Duralast 4203 hydrolysis-resistant, hardwearing polyurethane overcomes conflicting requirements faced from fluids such as synthetic Ester, vegetable oil, or mineral-based fluids and fire-resistant and biodegradable fluids. Product exhibits stability in water up to 195°F, very low gas permeability, and ozone-, weather-, and temperature-resistance. It is offered in machined seal types, including Compact Piston seals, O-Rings, and machined valve seats.

Archibus Inc.    Boston, MA 02108
Jul 07, 2003 Korean ARCHIBUS/FM v12.2 Enterprise edition includes updates to ARCHIBUS/FM Work Wizard? maintenance tool, wider dialogue controls to accommodate language's characters, and updated translations to improve functionality. Database files will support Oracle? 8.1 and later, as well as Sybase? Adaptive Server Anywhere, and Microsoft? SQL Server.

Sipex Corp.    Miliptas, CA 95035-1701
Jul 07, 2003 Series SPX2950x features low dropout of 400 mV and fast transient response. Offered in TO-220 or TO-263 packages, units are available with fixed output voltages of 1.8, 2.5, 3.3, and 5 V, as well as adjustable output voltages of 1.24–15 V. Devices are highly stable with ceramic capacitors, provide 1% output accuracy, and offer load regulation of 1% with line regulation of 0.06%. They operate from voltages as high as 16 V and are fully fault protected.
