A-B-C Packaging Machine Corp.    Tarpon Springs, FL 34689
Jul 10, 2003 Model 49X automatically unloads and single files reverse tapered glass bottles from club store display cases at up to 50 cases/min. Single filing section with series of multiple tabletop chains separate bottles while maintaining bottle control and stability. As cases are lifted from bottles, they are transported by motorized belts backed by duro-soft rollers that adjust to variations in case and partition dimensions.

ROMER/CimCore    Farmington Hills, MI 48331
Jul 10, 2003 Designed for measuring, inspecting, and reverse engineering of large work-pieces, portable STINGER IIâ„¢ will measure to ±.0078 in. in single point articulation test. Volumetric length accuracy is ±0.011 in. with hard probe and ±0.013 in. with laser scanning probe. Unit is also offered with 6, 8, 10, or 12 ft measuring envelope and ships with HighRES reverse engineering software, which allows seamless migration of point data into CAD programs.

Meech Static Eliminators U.S.A.    Richfield, OH 44286 9772
Jul 10, 2003 Shockless Model 935 is comprised of one ionization head with integrated fan system that blows ionized air onto target substrate. Suited for various industrial applications, product incorporates removeable front grill, air filter housing, and user's choice of filter medium. Particular applications include film winding, vibratory bowl feeders, and injection moulding processes.

Lee Controls, Inc.    Piscataway, NJ 08854
Jul 10, 2003 Tubular Steel Shafts are produced from 60 Plus® 52100 material. Pre-drilled and tapped every 8 in., they are available in 1½ and 2 in. diameters in lengths up to 12 ft. Shafts can be supplied fully mounted to support rails as shaft assemblies. They are suitable as conduit for electrical control lines, pressurized air lines for pneumatic devices, or hydraulic lines.

Bivar, Inc.    Irvine, CA 92618 2593
Jul 10, 2003 Surface geometry of Gen II cPCI-E3™ Locking Ejectors eliminates potential for unintentional tripping of hot-swap switch associated with PICMG 2.0+ circuitry interfaces of peripherals engaged in cPCI enclosures. Units include positive audible and tactile click when ejector is engaged or locked. Secure engagement is assured by force rating of over 60 lb, while red Norel™ push-button facilitates insertion and extraction. Ejectors are compatible with 6U and 3U cards in 4–8 HP widths.

Selco Products Co.    Reno, NV 89521-5908
Jul 10, 2003 Series TL are factory-calibrated to user-specifications with fixed or adjustable settings. Three models offer operating temperature from room temperature to 518°F. Bi-metal thermostats, equipped with setscrew or adjustment shaft, allow drop-in installation. They are rated at 100,000 cycles with input voltage of 150 Vac, 10 A resistive and dielectric strength of 1500 Vac/1 min. Applications include heating control in food service equipment, and commercial and industrial heating devices.

TE Connectivity Ltd.    Berwyn, PA 19312
Jul 10, 2003 Magnet Wire Splicing System allows manufacturers of motors and magnetic coils to pigtail splice up to 8 magnet wires and 2 lead wires with Circular Mill Area (CMA) up to 38,000. Servomotor-driven, 5 ton press incorporates pneumatic-feed applicator and programmable control cabinet. Wire-entry guides allow accurate positioning of magnet and lead wires into splice before crimping. Programmable machine is capable of crimp height sequencing.

Graco Inc.    Minneapolis, MN 55440
Jul 10, 2003 Continuous flow, electronically controlled, PrecisionFloâ„¢ LT provides real-time, close-loop metering and dispensing of ambient and hot melt sealants and adhesives. It automatically maintains desired dispense rate by adjusting for changes in material viscosity, temperature, tip wear, and speed. Easy-Keyâ„¢ user interface offers easy navigation and multiple languages. System includes touch pad, help screens, one run screen, and bead adjustment controls.

French Technology Press Office, Inc.    Chicago, IL 60601
Jul 10, 2003 Series 46000 utilizes micro-machined silicon technology. Accelerometers offer ranges of ±2 and ±10 g. Inclinometers come in 4 types with angle-measurement ranges from ±5 to ±90°. Unregulated power supply and high-output signal allows use without external conditioners. With operating temperature from -40 to +257°F, Series 46000 is suitable for servo control, angular control, and measurement of pitch, roll, and acceleration in railway, aeronautical, and metal production environments.

Total Lubricants USA, Inc. (formerly Keystone Lubricants)    Linden, NJ 07063
Jul 10, 2003 Type SFG fully-synthetic, food-grade greases are NSF H-1 Registered and have high load carrying properties. They are formulated using synthetic PAO base oil with premium complex calcium sulfonate thickener. Both grades protect across temperature range of -51 to +200°C, while demonstrating thermal and mechanical stability. They contribute to extended machine life while reducing contamination as required by Hazard Analysis and Critical Control Point System.

Agie USA, Ltd.    Davidson, NC 28036
Jul 10, 2003 Agiecut Progress 2 features 120 in./min positioning speed and 15 sec wire threading time. V-guide permits threading of all wire sizes and types and allows taper cutting of ±30°. Wire bending control detects and corrects wire bending in real-time. eCut generator makes it possible to get surface finishes as good as 0.8 µm Ra with one precision cut. Dual measuring system continuously measures and corrects axis positions to achieve accuracy in µm range.

A & A Mfg. Co., Inc.    New Berlin, WI 53151
Jul 10, 2003 Expansion Bellows are used in applications where loader or collecting receptacle moves, providing way to load material with little or no mess. They can be made per user requirements with wide range of materials and designs.

Diversified Brands, A Sherwin-Williams Business Group    Solon, OH 44139

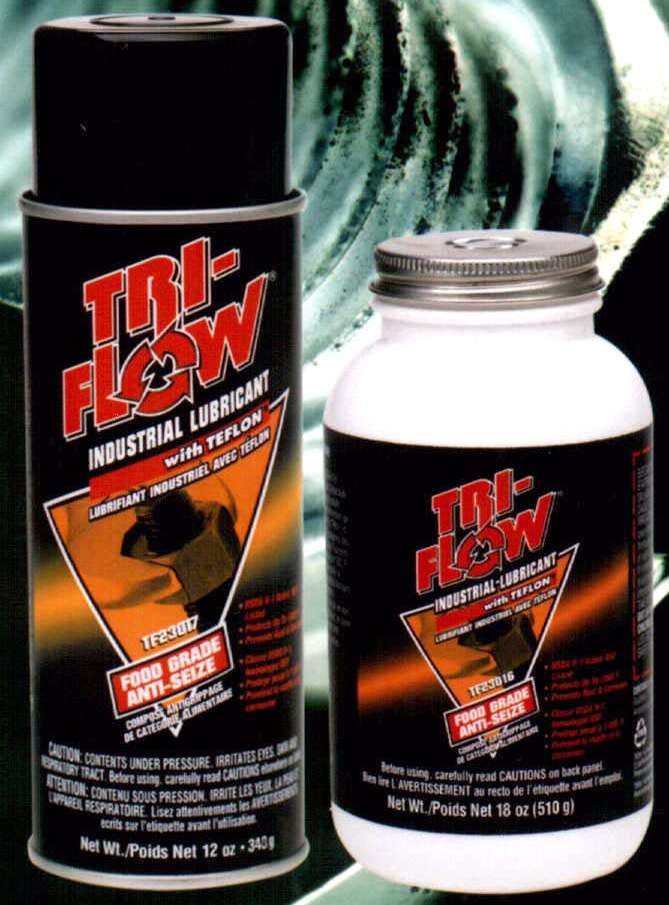

Jul 10, 2003 Able to withstand temperatures from -65 to +1,800°F, Tri-Flow® prevents seizing, galling, friction, and wear on stainless steel threaded parts and other metal-to-metal surfaces. USDA H1, NSF registered compound is formulated with Teflon® and other lubricating solids, blended into a non-melting grease carrier. Available in brush-top jars and aerosol cans, chemical- and stain-resistant product is suited for use on process equipment ranging from freezers to ovens.

Exacq Technologies, Inc.    Indianapolis, IN 46250
Jul 10, 2003 CH Series combines multi-input data acquisition with built-in memory and dedicated processor. Utilizing on-board, 143 MHz, 32-bit DSP, 16 MB local waveform memory, and PCI bus mastering, product provides glitch-free capture/playback of analog signals. Dual output analog channels offer simultaneous 20 million samples per second per output or 40 million samples per second on 1 output. It also offers Arb/Function generation and analog reconstruction filtering.

Main Line Engineering Associates    Malvern, PA 19355
Jul 10, 2003 PMCap provides code-compliant, non-intrusive, permanent repair of pressure boundaries. Metal Loss Evaluation Assessment (MLEA) charts, generated by Fitness for Service software program, provides for immediate field assessment of vessel to determine ASME Code compliance. Supplied as Code material or certified PART for vessel alteration, customized repair component is welded to outside surface using full penetration weld to encapsulate defect.

Interroll Corp.    Wilmington, NC 28405

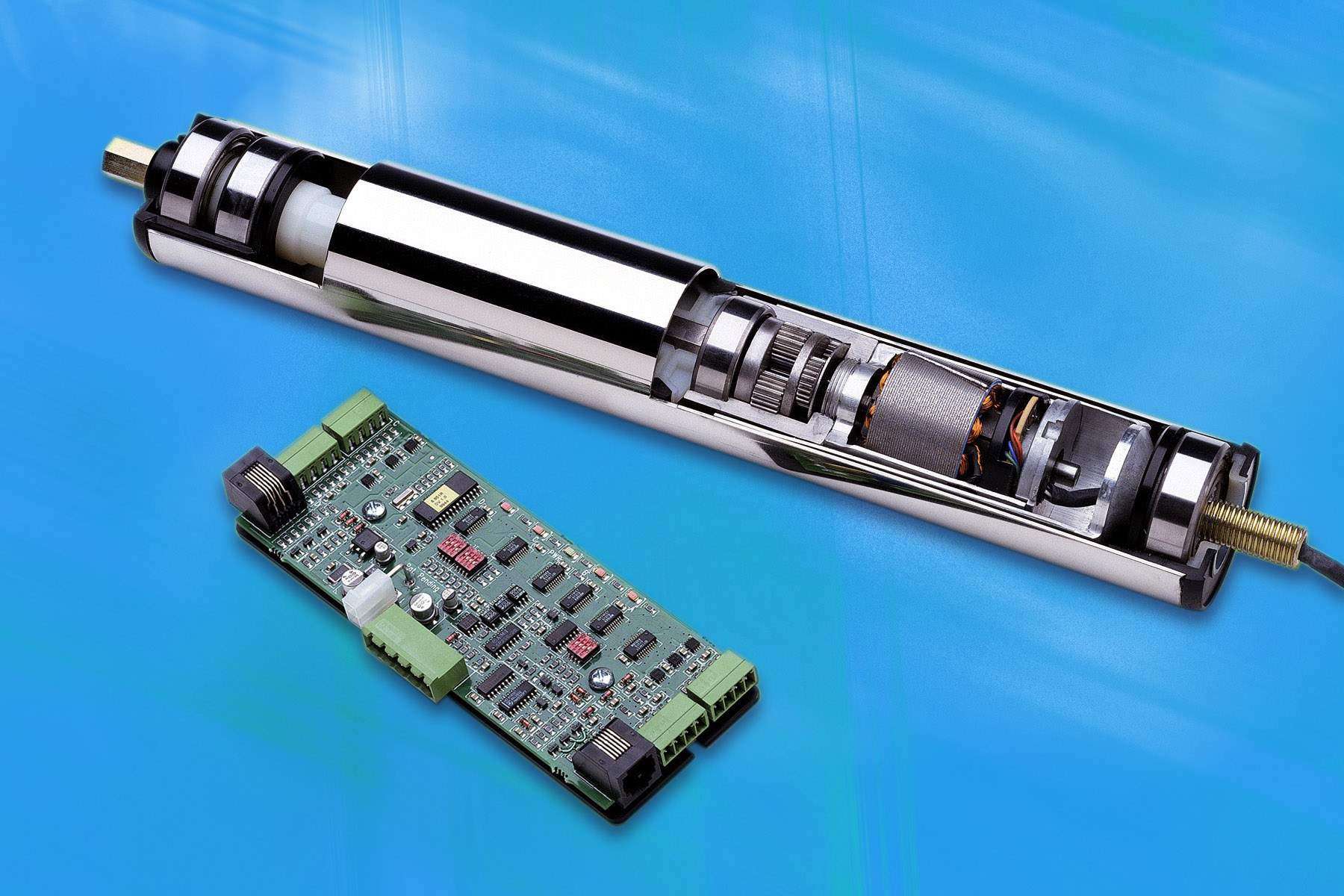

Jul 10, 2003 DriveControl Zero Pressure Accumulation control boards enable plant engineers to control RollerDrive brush type, brushless, or gearless motorized rollers according to application. Using sensors, relays, and plug-and-play interconnect cabling, one ZPA card can control up to 4 zones for optimized package conveying. Enhanced Singulation Mode simulates controlled train release to reduce mechanical stress. Cards are compatible with DeviceNet fieldbus networking protocol.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Jul 10, 2003 Suitable for logic switching in computers and peripherals, KG Series full profile, single pole single throw (SPST), DIP switch is available with 2–12 positions. Offered with extended actuator for ease of switching, series is available with top tape seal for solder washing.

Enpac Corp.    Eastlake, OH 44095
Jul 10, 2003 STORM SENTINEL™ Adjustable Catch Basin Insert eliminates non-point-source oil and other contamination of water supplies. Insert, with optional Non-Leaching Co-Polymer sock, traps oil, grease, sediment, litter, and debris carried in runoff. Self-supporting product, made of 8 oz, non-woven, geotextile fabric, has overflow rate of 300 gpm max. Rectangular type fits drains from 16 x 20 to 24 x 36 in, while round type fits drains with 27–29 in. diameter.

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112
Jul 10, 2003 DIAMONDâ„¢ K-300 is provided in single turnkey package that installs by connecting to water supply and electrical utilities. All controls are accessible from remote-control unit. Compact, hard-sealed, 10.6 µm, 300 W laser employs diffusion-cooled, slab technology. Product offers square pulse shapes and does not require gas recharging. Applications include non-metal cutting, thin-metal cutting, precision welding, and ceramics processing.

SICK, Inc.    Minneapolis, MN 55438
Jul 10, 2003 Vibration-resistant MZ T6 and RZ T6 sensors detect position of pistons in pneumatic cylinders by sensing ring magnet in piston through housing wall. Offered in 3-wire dc version that detects through cylinder housings of aluminum, brass, and stainless steel, MZ T6 sensors include LED functional indicator, PNP NO contact output function, and IP67 enclosure rating. RZ T6 sensors are available as ac/dc 3-wire version and 2-wire version with reed-switch output contact.
