Galil Motion Control    Rocklin, CA 95746

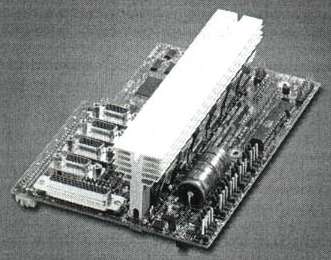

Jul 11, 2003 Designed for driving 4 brushless or brush-type motors, AMP-20540 attaches directly to 96-pin DIN connector of company's DMC-2143 controller without cable or wiring. Unit contains 4 transconductance, PWM amplifiers on one 6.92 x 4.85 in. board; each amplifier is capable of producing up to 500 W. It accepts 18-60 Vdc, produces 7 A continuous current, and has 60 kHz PWM switching frequency. When attached to DMC-21x3 controller, system offers programming and diagnostics capability.

Labelmate    Henderson, NV 89014-2002
Jul 11, 2003 Models LD-100T and LD-200T accept labels up to 4.5 or 6.5 in. wide, respectively. They peel label from backing and present it ready to pick. As soon as user picks label from dispenser, next label is automatically advanced. High-Low speed switch and adjustable sensor precisely match label length and handle label curling problems.

SWF Machinery    Sanger, CA 93657

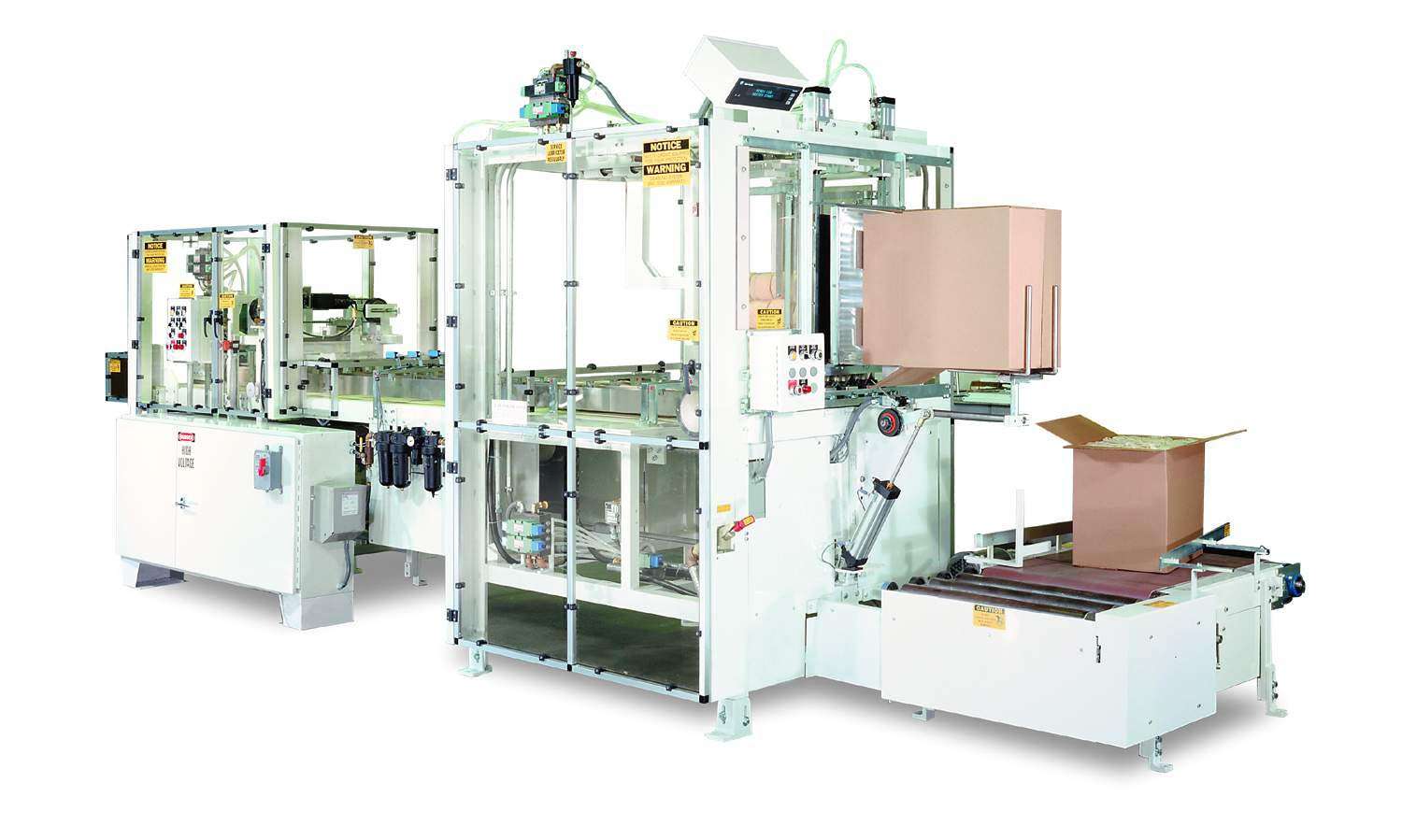

Jul 11, 2003 Series CL modular case loaders convey, position, accumulate, and load various packages into corrugated shipping cases at speeds up to 30 cases/min. Available in automatic and semi-automatic configurations, models will case pack virtually any product that is packaged in rigid or semi-rigid containers. Machines include Allen Bradley controls and full operator safety guarding. They can be integrated with case opener/sealer models to form fully automatic case packing system.

Lee Industries, Inc.    Philipsburg, PA 16866
Jul 11, 2003 Pharmaceutical Vessels can be designed for pressure/vacuum applications, including specialized agitation systems for up to 2,000,000 cps. They can be finished to less than 6 Ra and can include CE mark for European applications along with standard ASME design.

Schroff, Inc.    Warwick, RI 02886
Jul 11, 2003 Series 20,000 19 in. cabinet uses design-for-manufacturing methods to enable customer to select x-axis, y-axis, and z-axis dimensions according to application. It employs welded steel construction with interlocking components. Pre-tapped No. 10-32 holes within rack angles conform to EIA spacing. Rack angles are located in C channel mount that permits infinite positional, front-to-rear adjustment of equipment. Cabinet can be modified for electromagnetic compatibility.

Pactiv Corp.    Lake Forest, IL 60045
Jul 11, 2003 Tuff-Kraft® Mailers are recyclable and made from 50% post-consumer content. Self-Seal Natural Tuff-Kraft® mailers are offered in 2- and 3-dimensional options. Two-dimensional bag secures documents and soft goods, while 3-dimensional gusseted alternative is suitable for clothing, soft goods, durable articles, and non-breakable parts. SOS Self-Seal Tuff-Kraft® bags are stand-up bags made from 78 No. tan kraft paper with flat bottom for easy vertical filling.

Makino Machine Tool Co.    Mason, OH 45040 9695
Jul 11, 2003 Model S56 utilizes 40 taper, 13,000 rpm spindle and can maintain positioning accuracies to within ±0.0001 in. It includes 20-tool magazine and automatic tool changer with tool-to-tool exchange time of 1.2 sec. Table-working surface is 40 x 20 in. and axes travel area is 36 x 20 x 18 in. Linear motion guides on X-, Y, and Z-axes provide rapid traverse and cutting feed rates of 1,575 ipm. Super Geometric Intelligence servo control provides smooth machined surfaces.

Modal Shop, Inc., The    Cincinnati, OH 45212 3554

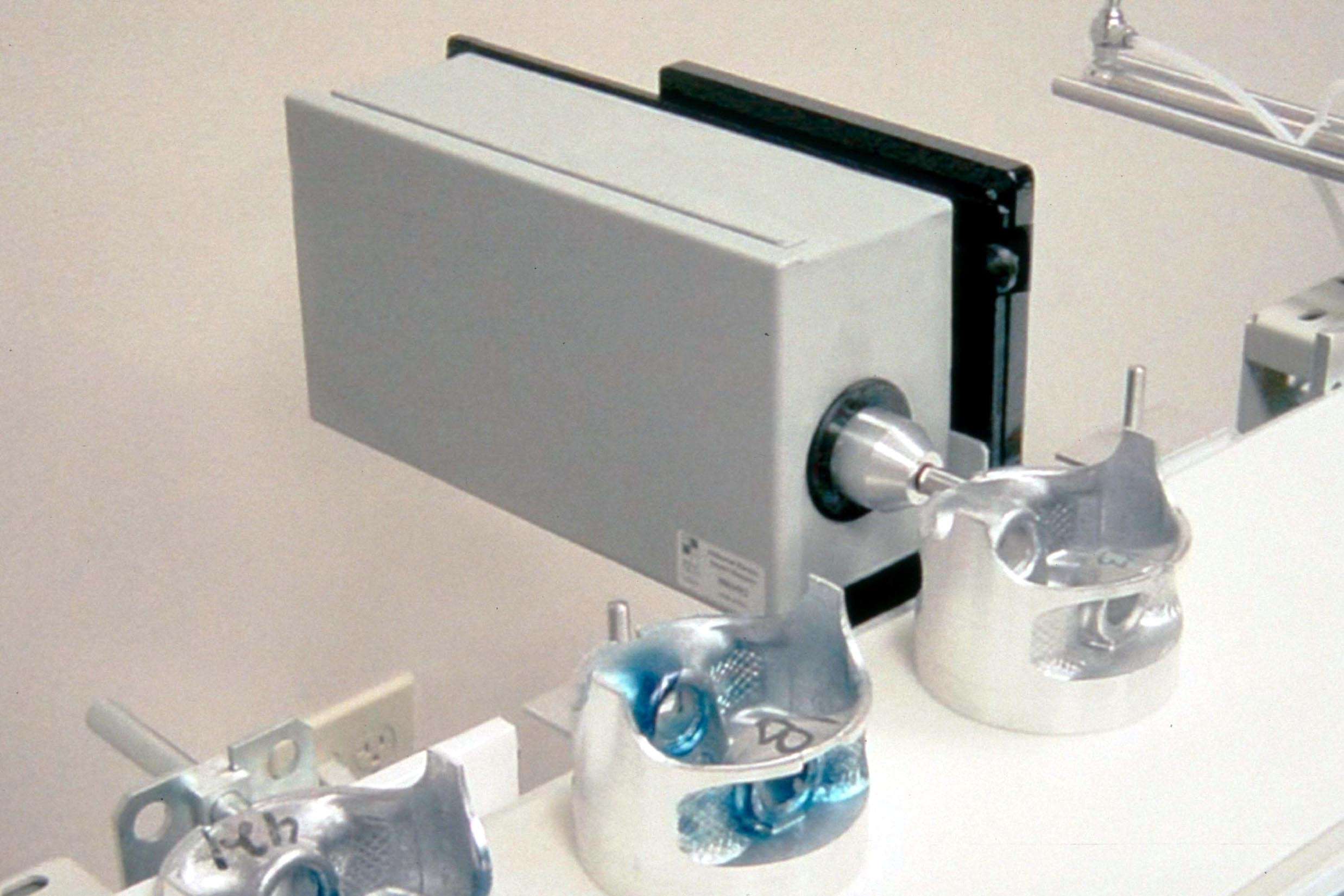

Jul 11, 2003 NDT-RAMâ„¢ Resonant Acoustic Method for Non-Destructive Testing system comes in kit configuration suited for integration with existing automated component handling systems. Product uses resonant inspection to test structural integrity of powder metal, cast or forged components. NDT-SEMI includes NDT-RAM software running LanSharc smart digital controller with NDT-MICI microphone sensor, electric impact hammer, touch panel computer with 15 in. LCD, and acoustic test chamber.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jul 11, 2003 Equipped with backlit, 16 mm high LCD display, EK-i and EW-i Series can be read at wide viewing angle in dark environments. Offered in 12 models from 30 g to 12 kg, both series provide control zero, mode selection, and data output with RS-232C. Additional features include 9 built-in weighing units plus counting and percentage, comparator function, and full digital calibration with optional user definable mass setting. Models in EW-i series offer triple range weighing.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jul 11, 2003 Series MP Mini-Photohelic combines Minihelic II® differential pressure gage with 2 SPDT switching setpoints. It measures and controls positive, negative, or differential pressures consisting of non-combustible and non-corrosive gases. Gage reading is independent of switch operation. Switching status is visible by LED indicators located on front and rear of gage. Compact size makes unit suitable for fume hoods, dust collection, and pneumatic conveying.

Mazak Corp.    Florence, KY 41042 3092
Jul 11, 2003 Model PFH-4800 features 2-pallet shuttle system that allows part loading to be performed while spindle is cutting. Standard pallet size is 15.7 x 15.7 in. with X, Y, Z axis strokes of 22.0, 24.8, and 23.6 in. Machine includes 40 hp spindle drive and 15,000 rpm spindle with 123 lb-ft of torque for heavy cutting of steel and aluminum. Tool change takes 2.2 sec chip-to-chip, and tool magazine capacity is 40 tools with No. 40 taper. Positioning accuracy is ± 0.00012 in.

Melcor Corp., A Unit Of Laird Technologies    Trenton, NJ 08648 4534
Jul 11, 2003 Model MRC600 is a 600 W, dual voltage 115/230 Vac, free-standing thermoelectric liquid chiller that uses water or coolant. It has no CFCs and offers high accuracy control to ±0.1°C at constant ambient temperature and heat load. Unit features RS232 or RS485 serial communication and settable alarms for low and high temperature limits. It can be supplied with optional heating capability of 500 W and is suitable for laser, medical, and laboratory applications.

Melcor Corp., A Unit Of Laird Technologies    Trenton, NJ 08648 4534
Jul 11, 2003 Included in closed-loop liquid chiller line, MRC150 is 150 W. dual voltage 115/230 ac, free standing thermoelectric liquid chiller. Designed to use water or coolant solution, product has no CFC's, offers high accuracy control to ±0.1°C, and provides RS232 or RS485 serial communication. Unit also has settable alarms for low/high temperature limits. Measuring 10.38 x 7.25 x 13.25 in., unit can be supplied with optional heating capability of 125 W.

Master Bond, Inc.    Hackensack, NJ 07601
Jul 11, 2003 Master Bond Polymer System Supreme 10HTFL one component, flexible, epoxy resin based adhesive/sealant cures to flexible thermoset polymer at temperatures of 250–300°F and above and does not require refrigeration for extended storage before use. It adheres to metallic and non-metallic substrates and exhibits tensile lap shear strengths of more than 2,000 psi and T-peels in excess of 60 pli. Product is resistant to thermal and mechanical shock and vibration and chemicals.

GE Intelligent Platforms    Charlottesville, VA 22911
Jul 11, 2003 CIMPLICITY® HMI v6.1 simplifies exchange of data between plant floor and enterprise by allowing users, worldwide, to seamlessly share information with other applications, systems, and services that require real-time production information. Compatible with Process Execution products such as CIMPLICITY Machine Edition and Plant Intelligence products such as iHistorian(TM), software provides ability to change language of screen and alarm text on the fly.

Z-World    Davis, CA 95616
Jul 11, 2003 Suited for use with company's SBCs (BL2500) and operator interfaces (OP7200), RN1100 RabbitNet I/O expansion mechanism is based on 3-wire, full duplex technology. Product utilizes off-the-shelf Ethernet cables, transmitting data at rates to 1 Mbit/sec over maximum recommended distance of 33 ft. Mounted on 100 mm DIN rail tray, unit features I/O set consisting of 24 inputs and 16 sink/source outputs. It also offers four 10-bit buffered analog input channels.

Supertex Inc.    Sunnyvale, CA 94619
Jul 11, 2003 Model HV111 high-voltage Inrush Limiter/Circuit Breaker/Hotswap IC suits externally powered network equipment and pluggable backplane applications with loads up to 1.65 A. Operating from -8.0 to -80 V, unit has 3 current control algorithms and incorporates on-board, 80 V, 2 A MOSFET combined with UVLO supervisor. Features include multi-level current control, junction isolated construction, and 1.2 A inrush current limiting with 75 msec timeout.

Supertex Inc.    Sunnyvale, CA 94619
Jul 11, 2003 With 13.2–100 V operating input voltage range, LR12 adjustable linear regulator provides circuit protection. Product also offers adjustable output voltage of 1.20–88 V and provides output current limiting (100 mA max) for fail-safe protection system design. It operates normally at 10 uA of quiescent current and can be put into low power shutdown state by back biasing output. Offered in TO-92, SO-8, and D-Pak packages, unit operates with 100 nF capacitor.

GEOCOM tms    Smyrna, GA 30080
Jul 11, 2003 Suited for complex environments, A.MAZE, with «Compatible Services» functionality, simplifies management of incompatible products/services that must be delivered through same truck fleet. Product suite allows users to model routing and scheduling constraints, simulate events to create sequences and schedules, and optimize fleet distribution activities. It also provides Real-Time Feedback and Response through wireless communication gateway.

Archibus Inc.    Boston, MA 02108
Jul 11, 2003 Traditional Chinese ARCHIBUS/FM v12.2 facilities and infrastructure management solution is fully integrated with industry-standard AutoCAD? and is Web-enabled. Open architecture satisfies need for multi-site information delivery, and scalability accommodates organizational growth. Software includes localized user interface, capability to integrate data from other ERP sources, Work Wizard? tool, and ability to distribute information via Internet or corporate intranet.
