Bradley Corp.    Menomonee Falls, WI 53051

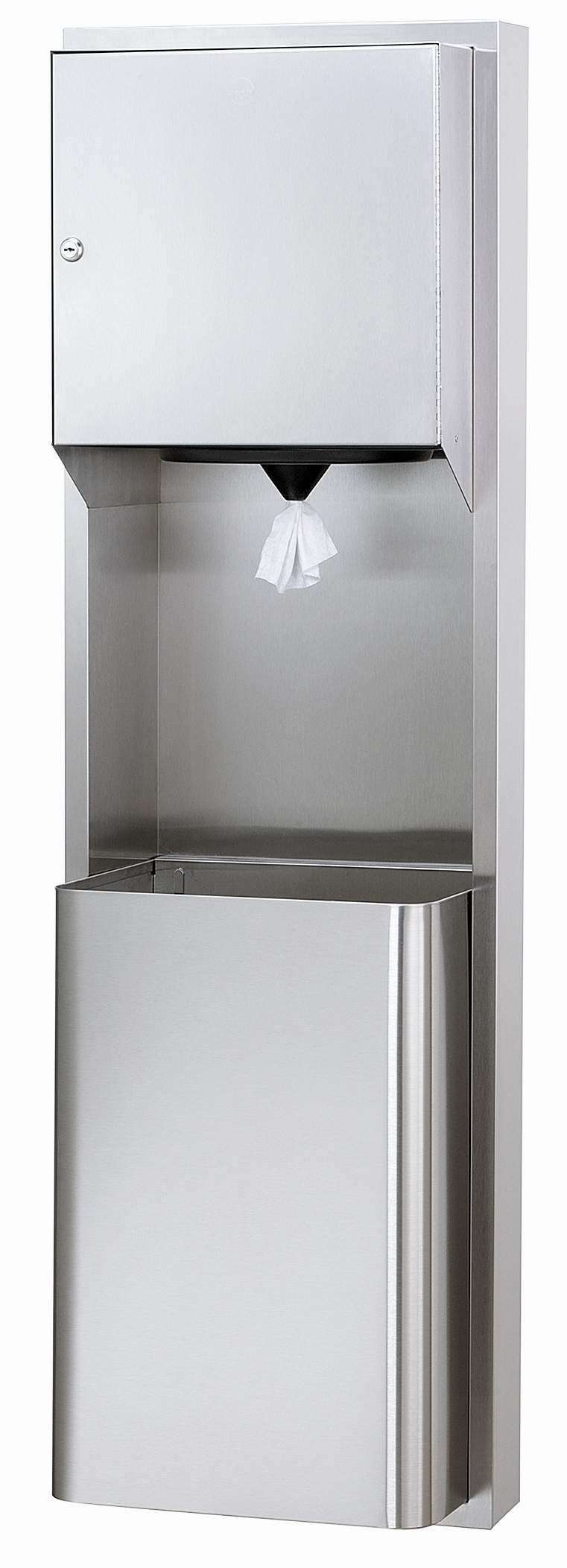

Jul 18, 2003 Model 236 Center Pull Towel Dispenser/Waste Receptacle eliminates need for users to touch handle, other dry towels, or any other part of dispenser to dry their hands. Heavy-duty stainless steel unit is available in recessed and semi-recessed models, as well as surface-mounted unit with 12 gal waste receptacle. Dispenser can accommodate up to 9 in. diameter center pull towel rolls.

PITTMAN    Harleysville, PA 19438 0003

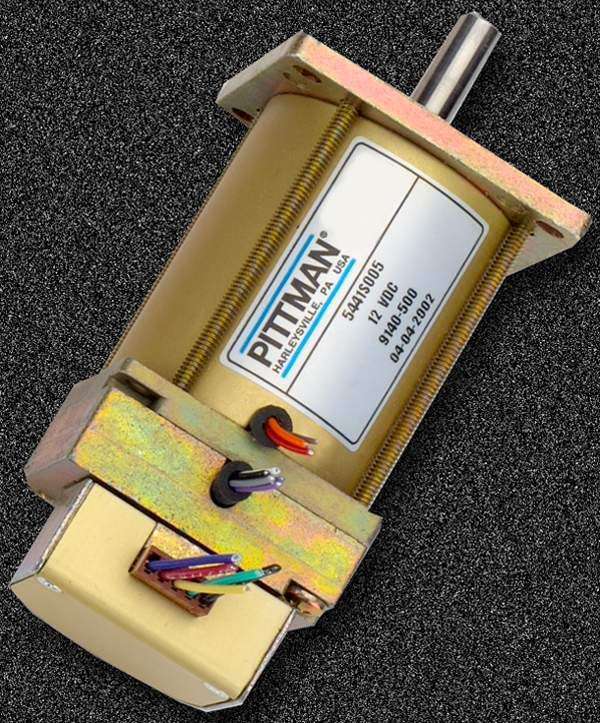

Jul 18, 2003 ELCOM SL® 3-phase, 4-pole brushless DC servo motors and gearmotors utilize design that eliminates magnetic cogging. Magnetic air gap minimizes viscous torque losses, while winding heat transfer is provided for thermal efficiency and transient load capacity. Products are available in 3 frame sizes with rotor construction that allows rotational standard speeds up to 8,000 rpm. Modular design promotes customization to satisfy unique application requirements.

Key Technology, Inc.    Walla Walla, WA 99362

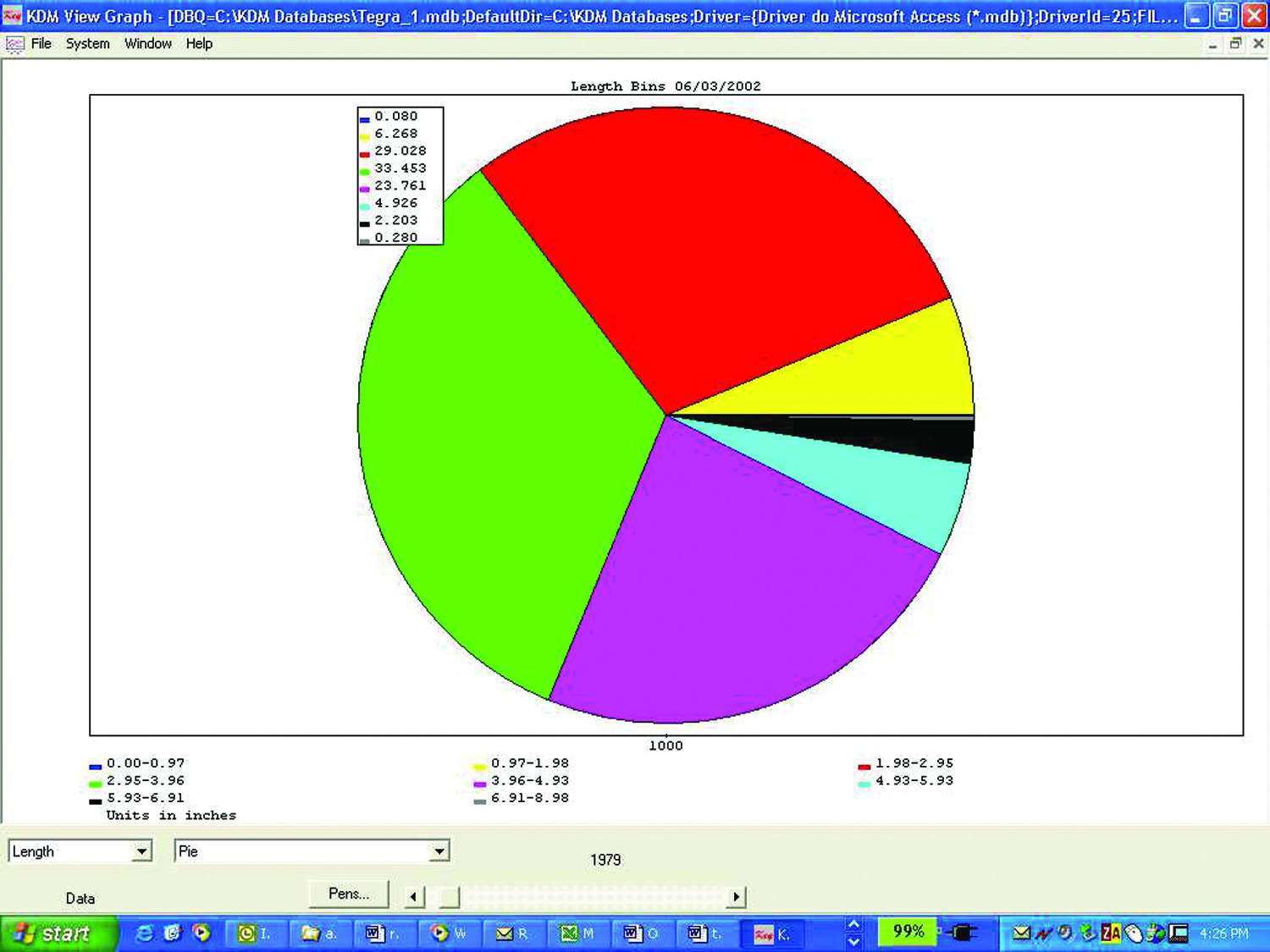

Jul 18, 2003 Key Data Manager helps food manufacturers improve profitability with real-time quality data, trend analysis, and network communications. Available for Tegra® and Optyx® optical inspection systems, and ADR®4 french fry defect removal system, KDM stores, monitors, and displays statistics on product length, defects, and throughput. Operators set length, categories, size thresholds, and product specifications on GUI so inspection and operations continue uninterrupted.

JP Sercel Associates, Inc.    Manchester, NH 03102

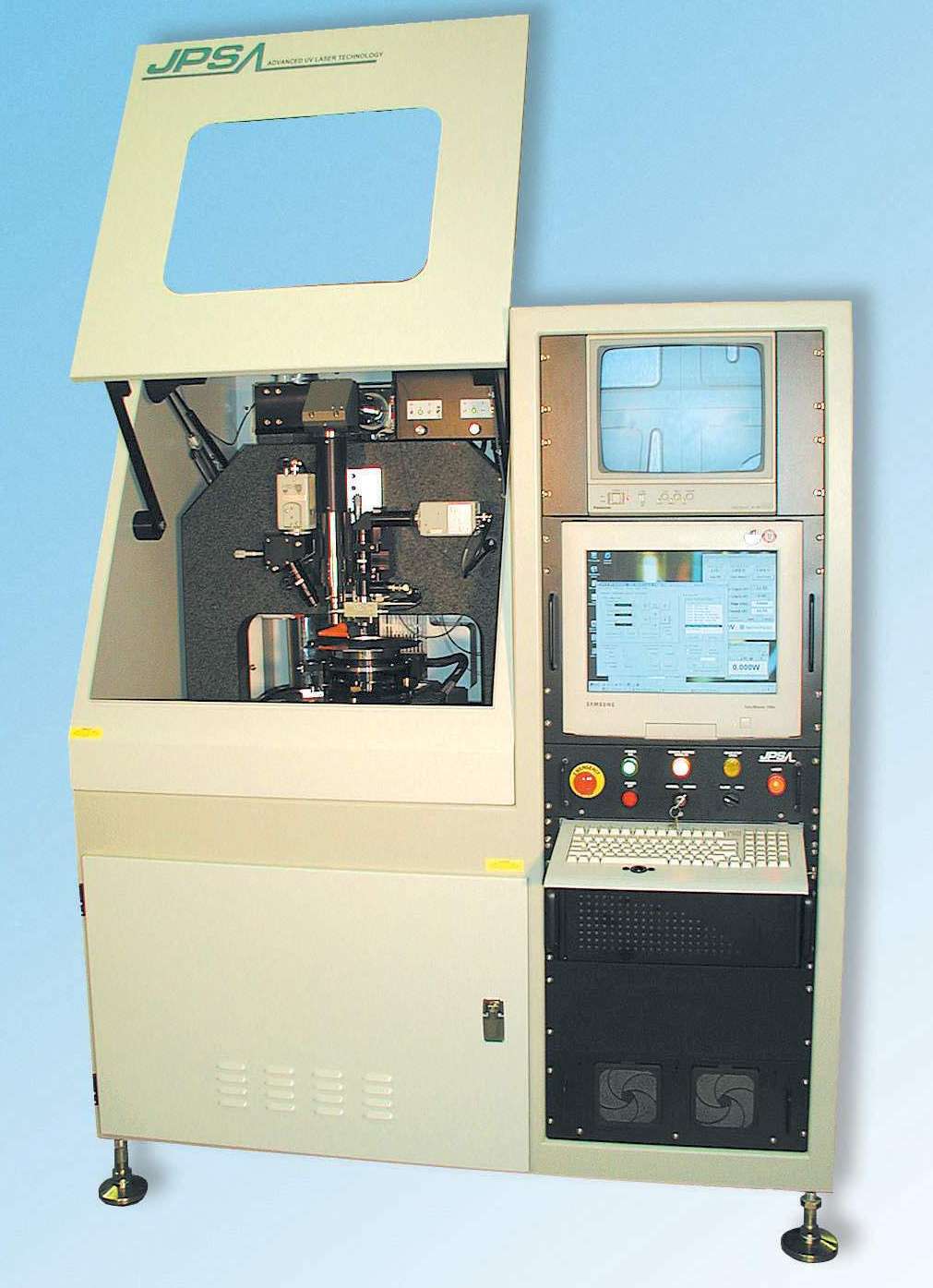

Jul 18, 2003 ChromaDice(TM) UV, diode-pumped, solid-state (DPSS) laser scriber delivers typical yields greater than 99%. System cuts well-defined, square chip with consistently narrow cuts as small as 5 microns. With throughput rating of up to 8 wafers/hr, unit utilizes process that is tolerant of wafer warp and bow. Automatic alignment takes less than 1 min to load and align with system's optical system. Operated by Windows® 2000 interface, unit performs 266 nm DPSS laser scribing.

Komatsu America International Company    Vernon Hills, IL 60061
Jul 18, 2003 Models D65EX/PXIWX-15 and D85EXIPX-15 are mid-sized crawler dozers equipped with Tier II compliant SA6125E-3 engine. D65 operates with 190 hp at 1,950 rpm, while D85 pushes with 240 hp at 9,000 rpm. Blade capacities range from 4.8–7.34 yd³ for D65 and 6.8–9.2 yd³ for D85. Powered by independent hydraulic pump with engine power transmitted to both tracks, outside track is allowed to move faster than inside track for smooth, continuous turns.

PennEngineering & Manufacturing Corporation / Atlas Engineer    Tallmadge, OH 44278

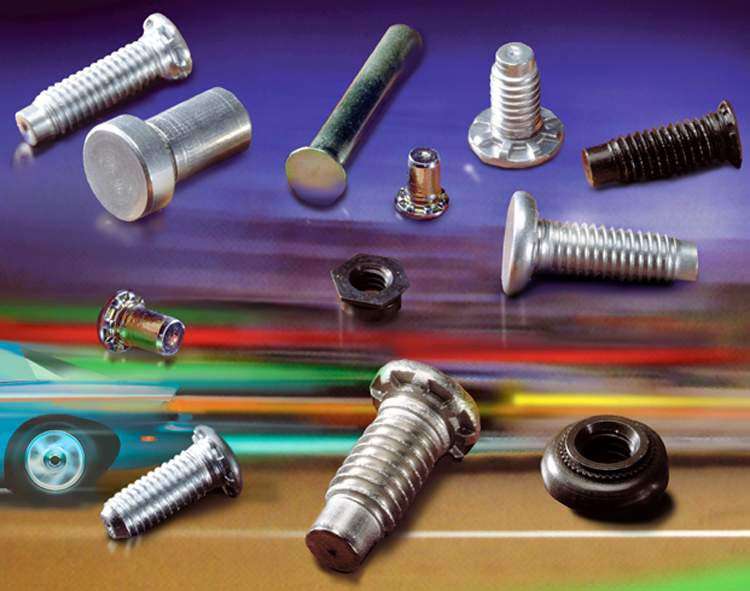

Jul 18, 2003 AUTOSPEC® studs, nuts, and standoffs attach or connect airbag and fuel rail assemblies, water pump covers, sun roofs, engine mounts, door strips, window controls, dashboards, and ignition coils. Type HFHD high-strength threaded studs are for thin metal sheets, and Type HFED high-strength threaded studs are for ultra-thin metal sheets. Both feature dog point designed to ensure quick nut positioning and assembly while protecting first threads from damage.

TE Connectivity Ltd.    Berwyn, PA 19312

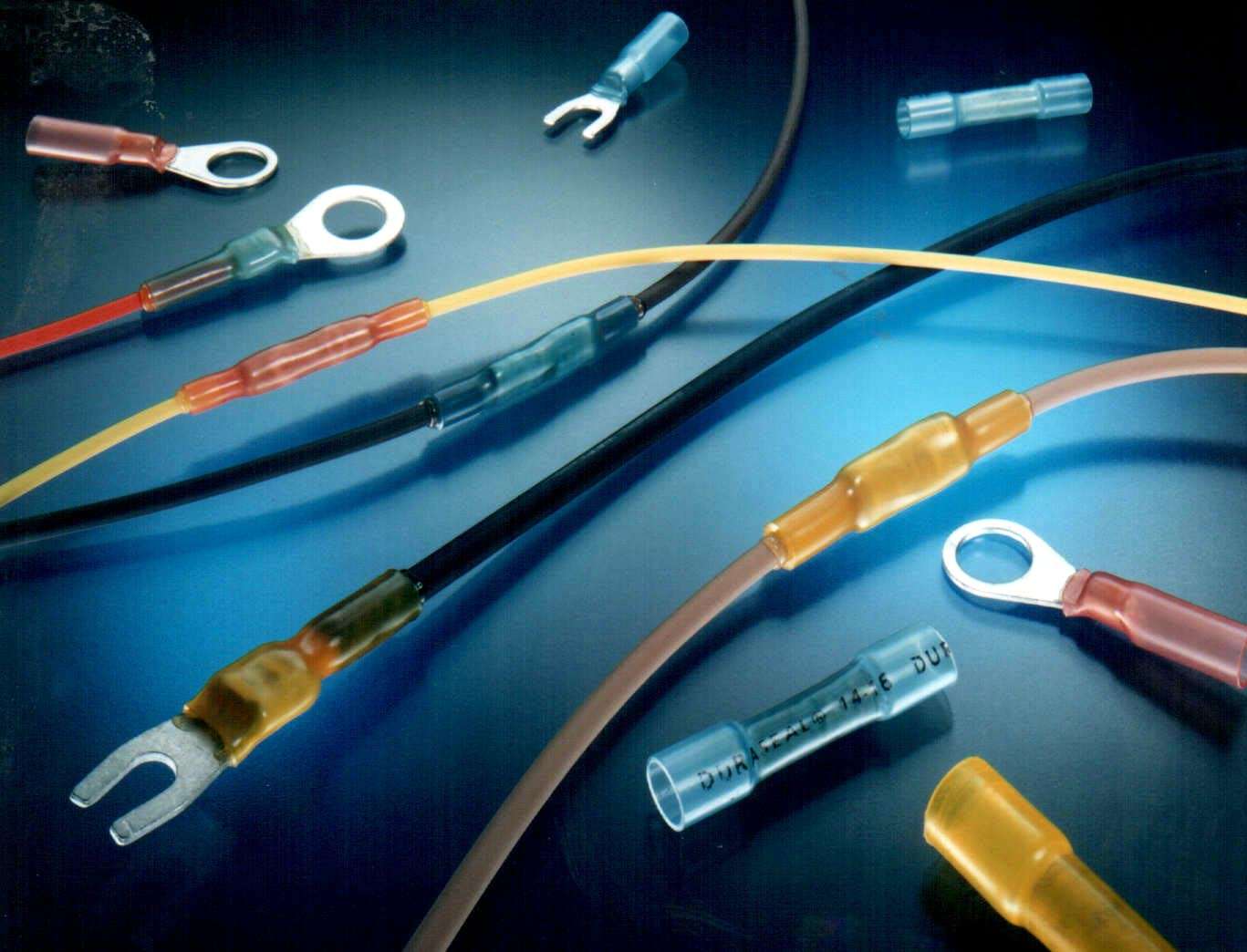

Jul 18, 2003 Raychem(TM) DuraSeal(TM) heat-shrinkable splices and terminals insulate and protect electrical connections from mechanical abuse, wire pull-out, and abrasion. Impact-resistant products also serve as wire strain relief and resist water, salt spray, and debris. Configurations include butt splices; fork, ring, push-on, and bullet terminals; tabs; and pins. Dual-wall, adhesive-lined nylon insulation shrinks at 2:1 ratio and is color coded to identify wire size.

Microwave Filter Co., Inc.    East Syracuse, NY 13057
Jul 18, 2003 Model 13961 low-profile, waveguide bandpass filter is installed between LNA or LNB and feedhorn to suppress strong out-of-band terrestrial interference. Since unit does filtering at C-band frequencies, LNA and LNB overload is prevented and overall picture quality is improved. Filter is fully compatible with digital systems, providing low differential group delay characteristics typically less than 8 nanoseconds.

Coreco Imaging    St. Laurent, QC H4T1V8  Canada
Jul 18, 2003 Hardware-independent, Windows-based, Sapera Processing v5 includes SEARCH geometric location tool, which recognizes multiple objects and patterns, regardless of orientation and scale. IMAGE PROCESSING tool incorporates filtering, geometry, measurement, morphology, point-to-point, segmentation, and transform operations. BLOB ANALYSIS TOOLSET separates foreground objects from background, and calculates more than 50 spatial and grayscale blob features.

Neuhaus, J. D., L.P.    Sparks, MD 21152

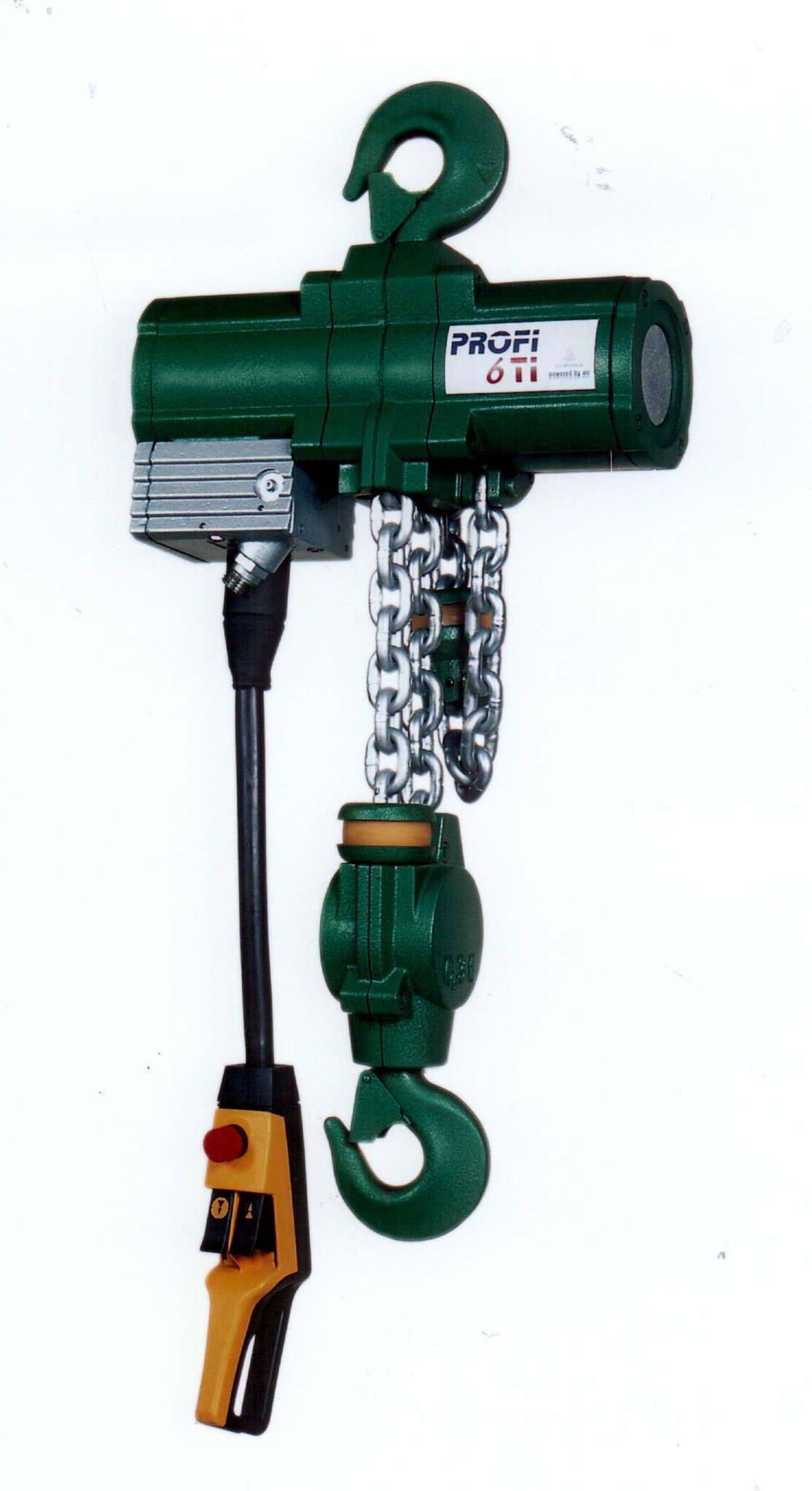

Jul 18, 2003 Profi Series Air Hoists offer carrying capacities of 3.2, 6.3, 10, and 16 tons with nominal air pressure of 4 or 6 bar. They are supplied with emergency valve in main air supply, which allows energy supply to be separately shut off in case of emergency. Rotor of vane motor has chambers filled with grease, which continuously lubricate motor during operation. Reduced sound pressure level means less noise stress for operator.

Scanivalve Corp.    Liberty Lake, WA 99019

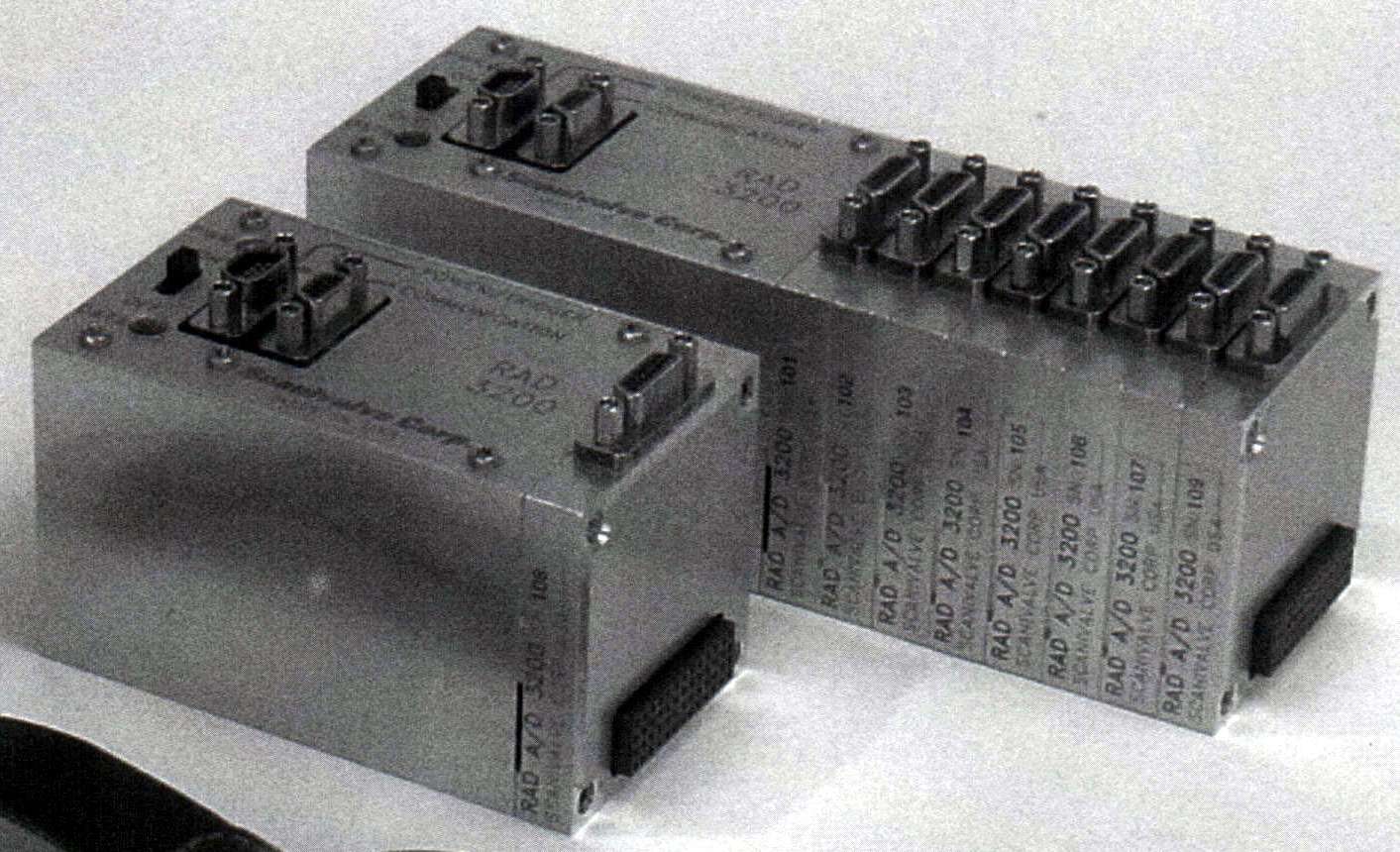

Jul 18, 2003 RAD3200 (Remote A/D) and ZOC pressure scanners output digital data that is converted into Engineering Units in PC. When high (512Px) channel count is required, modular unit can be expanded in field with up to 8 Remote A/Ds plugged into RADBASE. Each A/D supports one 16-, 32-, or 64-channel ZOC pressure scanner or one ZOC Electrical Input module. Available pressure ranges are from 10 in. H₂O FS up to 750 psi FS. Max sampling and throughput speeds are 250–500 Hz/channel/sec.

Samtec, Inc.    New Albany, IN 47151 1147

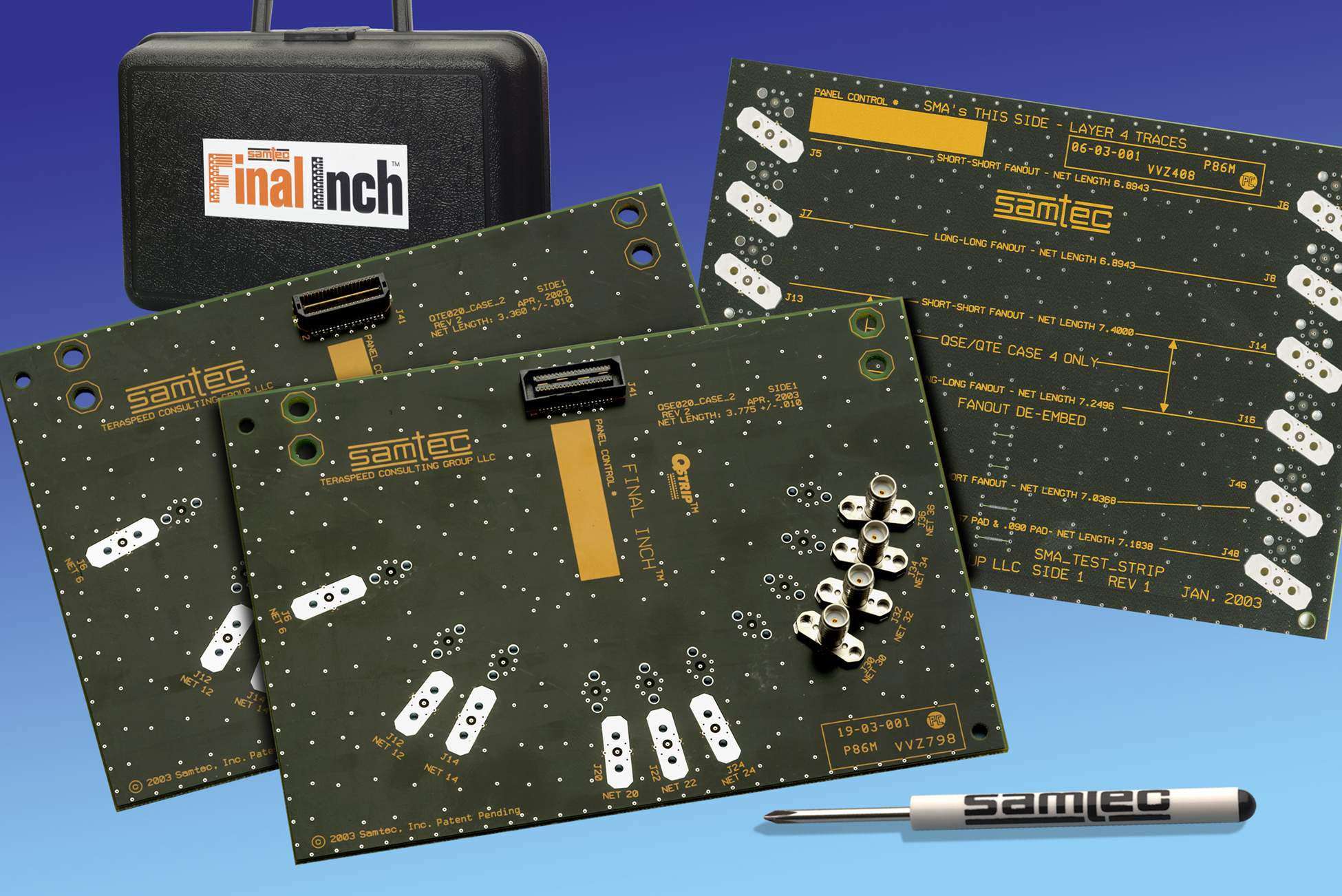

Jul 18, 2003 FINAL INCHâ„¢ extends concept of recommended PCB pad layouts and SPICE models beyond connector and board interface. Reference designs address design of trace breakout region around high speed connectors. FINAL INCHâ„¢ Information has 3 components: Physical Models, Electrical Models, and Test Evaluation Kits. Test boards are designed to study connector, footprint, breakout region, and traces in actual application environment using standard materials and manufacturing processes.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 18, 2003 External 7204 Model 573, suited for use as storage device for pSeries and RS/6000 family of workstations and servers, uses 68-pin, low voltage differential or single-ended (LVD/SE) interface. Product offers maximum media data transfer rate to 66.0 MB/sec, average read seek time of 4.7 msec, and write time of 5.3 msec. Equipped with magnetoresistive (MR) heads, unit also offers average latency of 3.0 msec and speeds to 10,000 rpm.

International Diversified Marketing, Inc.    Santa Ana, CA 92705
Jul 18, 2003 Breathe Easy Air Filtering System utilizes 2-ply, multi-density filter to collect pollutants, such as pollens, dust mites, and dirt, which is discharged from ductwork. Embedded into fibers is EPA registered anti-microbial agent that, on contact, destroys, bacteria, mold, mildew, and other microorganisms. System can trap and prevent spread of microorganisms as small as 1 micron. It is aimed at facilities, maintenance, plant and property managers.

Delta Machinery    Jackson, TN 38302-2468
Jul 18, 2003 Delta X⁵(TM) series consists of 16 industrial-quality tools designed for woodworkers and includes 5 Unisaws® and 2 Contractor's Saws®. Also included in product line: 14 in. band saw, drum sander, heavy-duty shaper, 16 in. steel-bed lathe, 15 in. planer, 12 in. radial arm saw, 8 in. precision jointer, 6 in. professional jointer, and 16 ½ in. variable speed drill press.

IXYS Corp.    Santa Clara, CA 95054 2704
Jul 18, 2003 Model CPC1978J optically-coupled SSR has load current handling capability up to 10 A and offers low on resistance of 2.3 Ohms. It is packaged in i4-PACâ„¢, which features silicon soft-soldered onto Direct Copper Bond substrate, providing 2,500 Vrms isolation from leads to backside of packages and enabling thermal resistance of 0.45 K/W from junction to heatsink. Applications include motor controls, robotics, test and measurement equipment, and I/O subsystems.

Tally Printer Corporation    Kent, WA 98064
Jul 18, 2003 Whisper quiet T3010 and T3110 printers, offered in narrow carriage (80-column) and wide carriage (136-column) models, feature piezo printhead technology for print quality of 360 dpi at speeds to 1220 characters/sec. Products provide consistent output density throughout life of ink cartridge and can load cut sheets or continuous forms. Units incorporate up to 3 input tractors, auto quick-tear, and fast-drying, permanent ink.

Honeywell Sensing and Control    Golden Valley, MN 55422
Jul 18, 2003 Suited for use on printed circuit assemblies, 26PC SMT supports gage, vacuum gage, differential, and wet/wet sensing applications. Able to be picked and placed with other circuit components, product withstands reflow temperatures and measures 0.43 x 0.24 x 0.31 in. Additional features include temperature compensated circuitry, Wheatstone bridge construction, silicon piezoresistive technology, and ratiometric output.

Peerless Industries, Inc.    Melrose Park, IL 60160
Jul 18, 2003 Vector Proâ„¢ Projector Wall Mount provides adjustability while maintaining low-profile design. Unit comes with Armor Lockâ„¢ security and can be removed for maintenance. Designed for situations that are not suited to ceiling projector mounts, wall mount may be used in any setting, including educational, corporate, home theater, auditorium, or stadium environments.

Reid Supply Co.    Muskegon, MI 49444
Jul 18, 2003 Available in threaded or unthreaded styles made from 304 or 316 stainless steel, fittings can be used for processing, transporting, or storing of fluids, gasses, and slurries. Stainless steel prevents contamination, withstands elevated temperatures, and resists corroding. Products are offered as elbows, tees, crosses, couplings, plugs, caps, cut pipe, valves, pipe nipples, and flanges.
