Ansoft Corp.    Pittsburgh, PA 15219
Jul 16, 2003 Service Pack 2, for electromagnetically-based Turbo Package Analyzer, offers user-selectable source/sink assignment for solder balls and option to assign solder balls as solder bumps. It includes ability to merge all sinks, ability to merge all sources and sinks, and alphabetized netlist for both ANF filter and analyzer. Software supports WinXP Pro.

Kaba Benzing America    Miami Lakes, FL 33014
Jul 16, 2003 B-COMM has flexible data collection architecture that supports PeopleSoft v8.8 and v8.3 data requirements. It enables users to capture employee time and labor information from remote time collection devices regardless of industry or geographical location. It also supports labor distribution and material movement tracking for exempt and non-exempt personnel.

Lloyd Industries Inc.    Montgomeryville, PA 18936

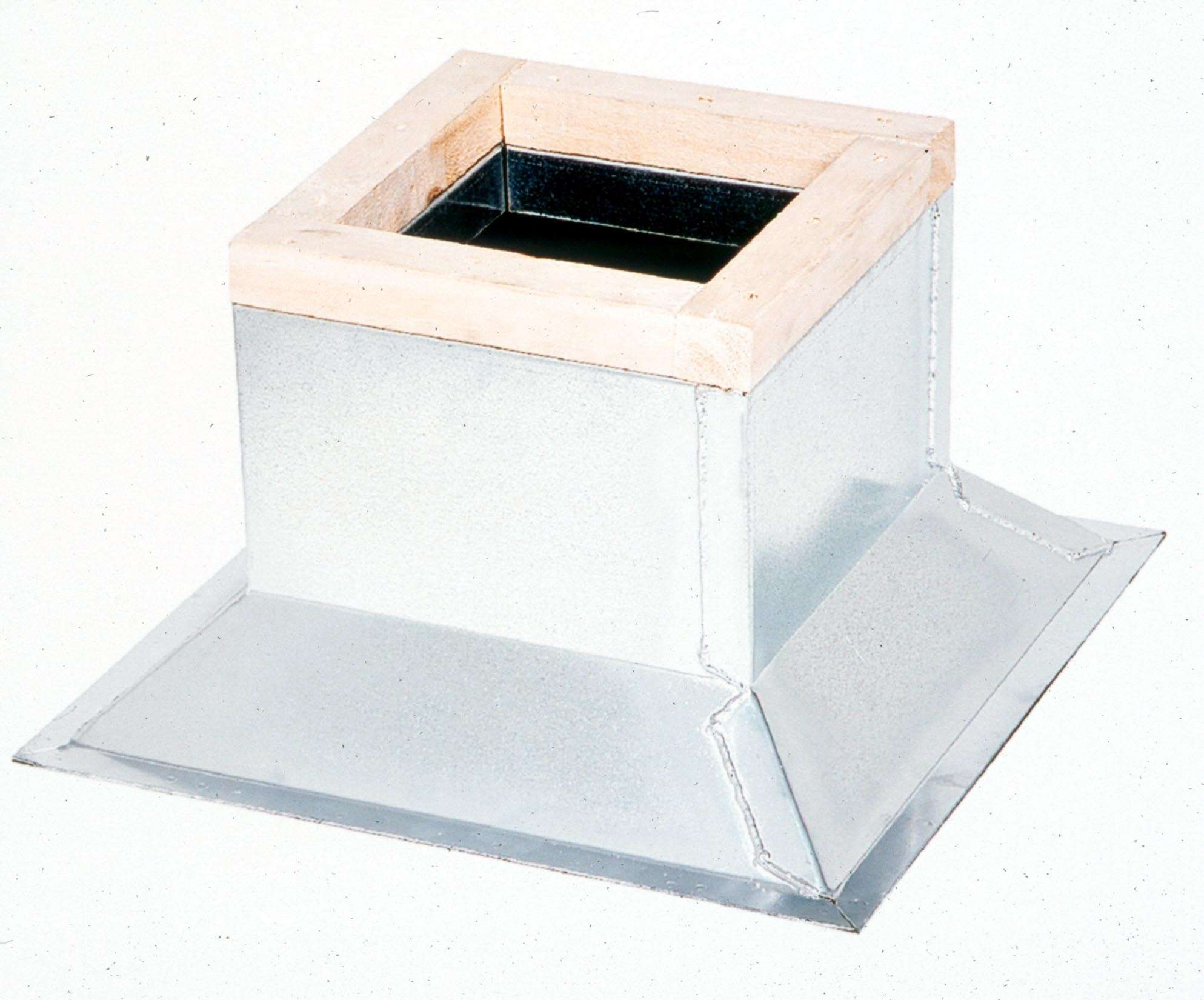

Jul 15, 2003 Roof curb products incorporate overlap-joint construction, which reduces ability of rain to penetrate vulnerable corner areas. Additional construction characteristics include fully welded, water-tight seams; minimum 16-gauge galvanized steel; and factory-installed fiberglass insulation. Products can be built to accommodate HVAC equipment, exhaust systems, and access panels.

Taylor Hobson, Inc.    West Chicago, IL 60185

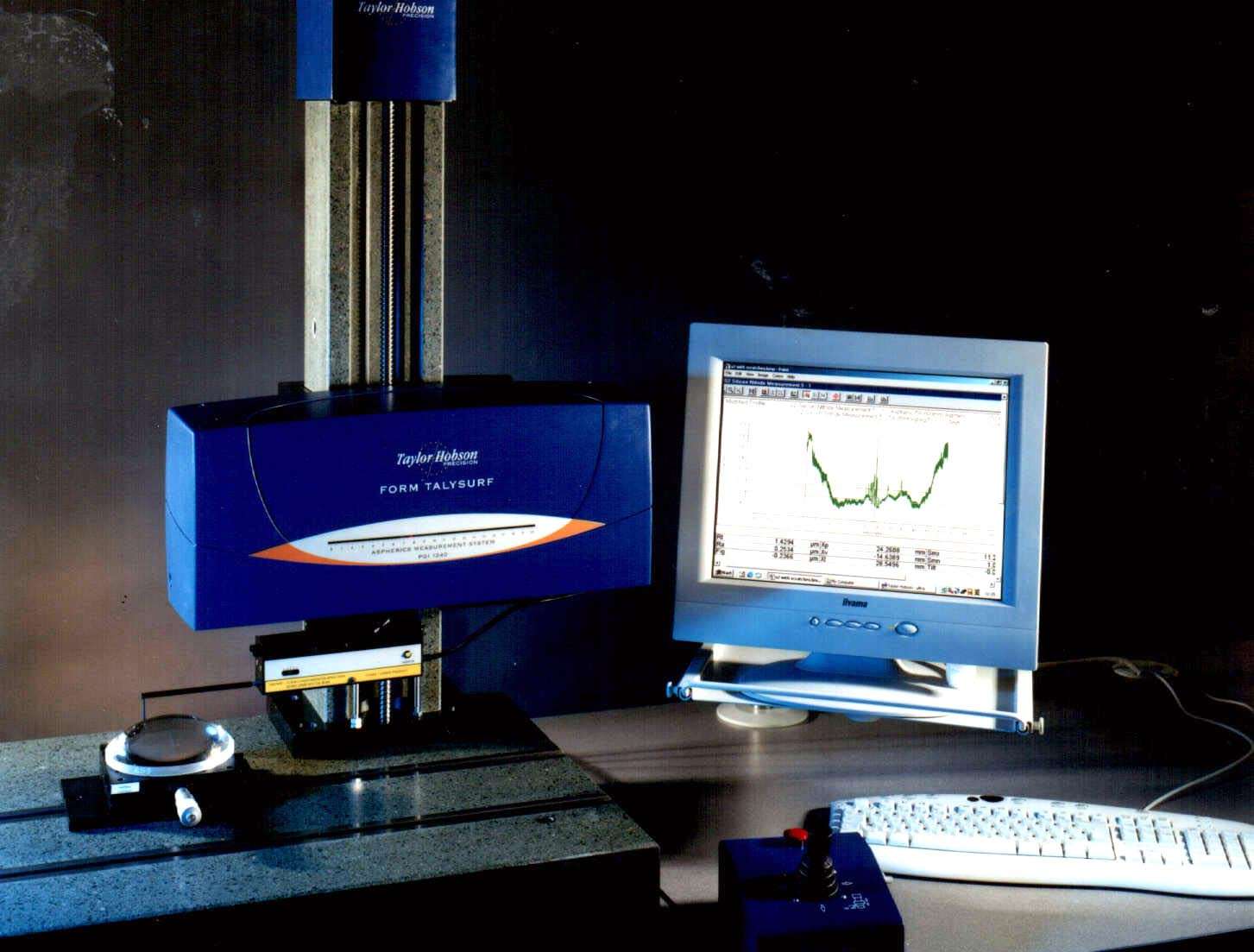

Jul 15, 2003 Form Talysurf PGI 1240 delivers 0.8 nm resolution over 12.5 mm seamless measuring range, delivering ability to measure form, roughness, radius, inclination, and contour in one traverse. System utilizes Phase Grating Interferometry and has 200 mm horizontal measuring traverse and 450 mm vertical positioning traverse. Additional offerings include 0.125 µm horizontal data spacing, selectable traverse speed down to 0.1 mm/sec, and dedicated aspherics analysis software.

Symmetric Research    Kirkland, WA 98033

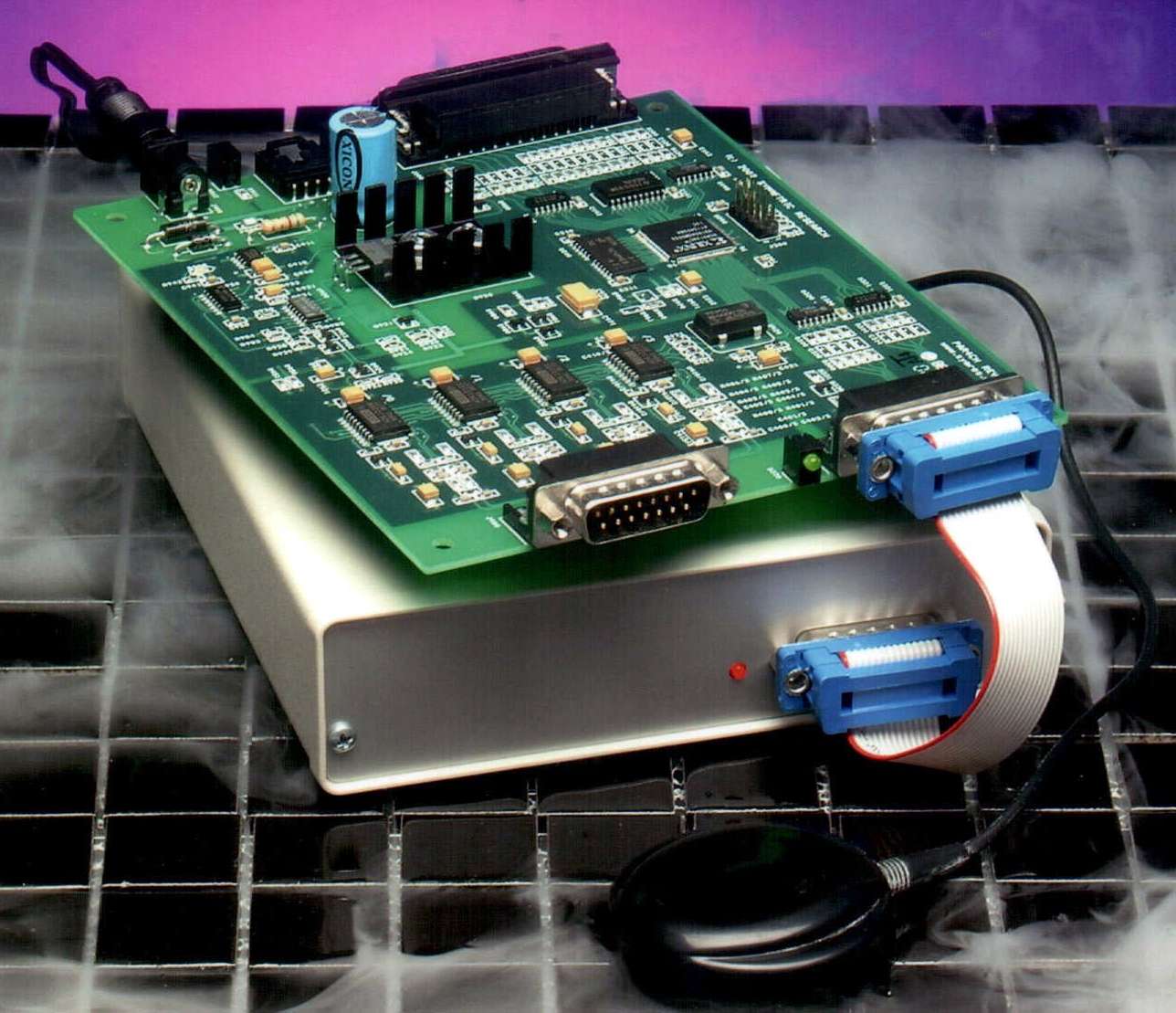

Jul 15, 2003 Model PAR4CH consists of one 4-channel, 24 bit, A/D system that employs converter per channel architecture. Dedicated A/D chip for each channel eliminates crosstalk and settling problems. Able to connect to PC parallel port, unit includes 2 MB memory buffer and offers continuous, user-programmable acquisition rates from 0.1–5,000 Hz. Timing module PARGPS connects to PAR4CH and PC, providing 10 µsec accuracy time stamping along with other GPS parameters.

Indigo Systems Corp.    Santa Barbara, CA 93111

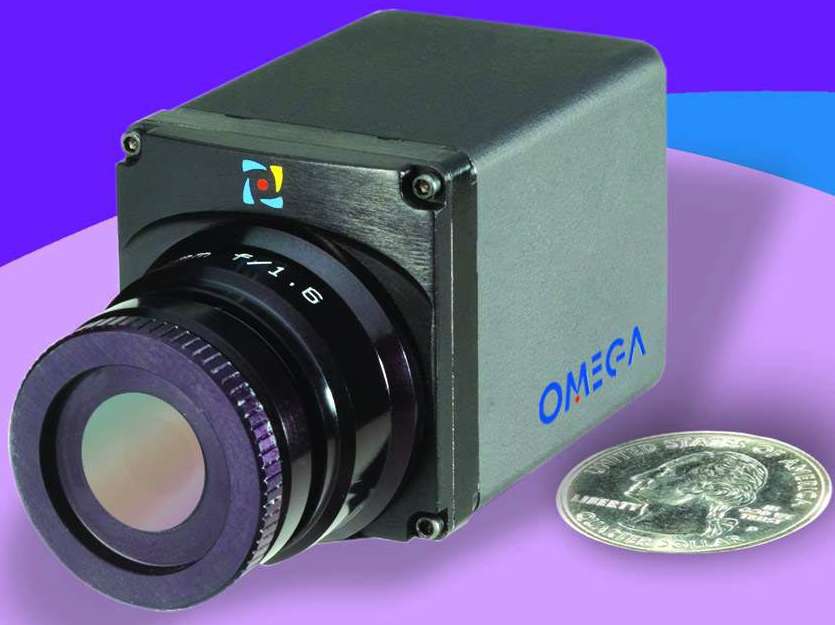

Jul 15, 2003 Measuring 1.35 x 1.45 x 1.90 in., Omegaâ„¢ camera weighs less than 120 grams, consumes less than 1.5 W, and has turn-on time of fewer than 2 sec to first image. Vanadium oxide microbolometer detectors output thermal resolution of less than 40 mK when normalized to f/1.0. Camera has analog RS-170A and 14-bit digital outputs as well as one automatic function to switch into extended temperature range mode, allowing scenes to be imaged in temperatures up to 400°C.

Moore Industries International, Inc.    North Hills, CA 91343
Jul 15, 2003 Universal, PC-Programmable Temperature Transmitters and Alarm Trips offer complete signal isolation, RFI/EMI protection, and stability of up to 5 years between calibrations. CPA Limit Alarm Trip provides 1 or 2 alarm relay outputs when monitored process variable falls outside of user-set high/low limits. CPT Temperature Transmitter and Signal Isolator/Converter provides isolated and linear current or voltage output proportional to input.

Eagle Group    Clayton, DE 19938

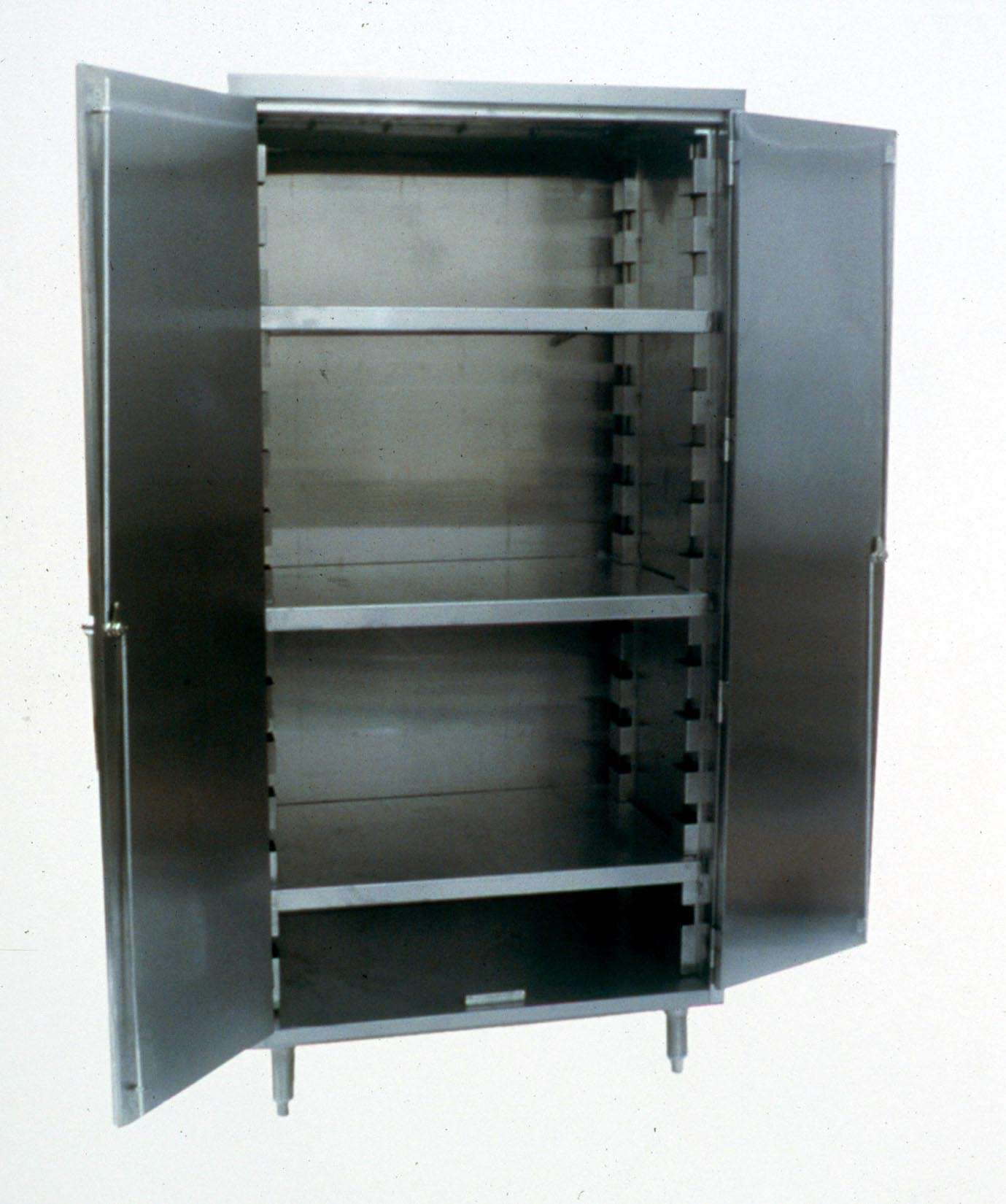

Jul 15, 2003 NSF-approved, Vertical Storage Cabinets are 72 in. high and come in 36 and 48 in. lengths. They feature 18 ga stainless steel body; 3 or 4 stainless steel shelves that are adjustable on 4 in. centers; double-pan, 20 ga stainless steel hinged doors; and transverse rod handles with keyed locks. Optional 5 in. plate casters with brake offer mobility. Cabinets are suitable for concentrated storage in environments where secure and sanitary conditions are important.

Coreco Imaging    St. Laurent, QC H4T1V8  Canada

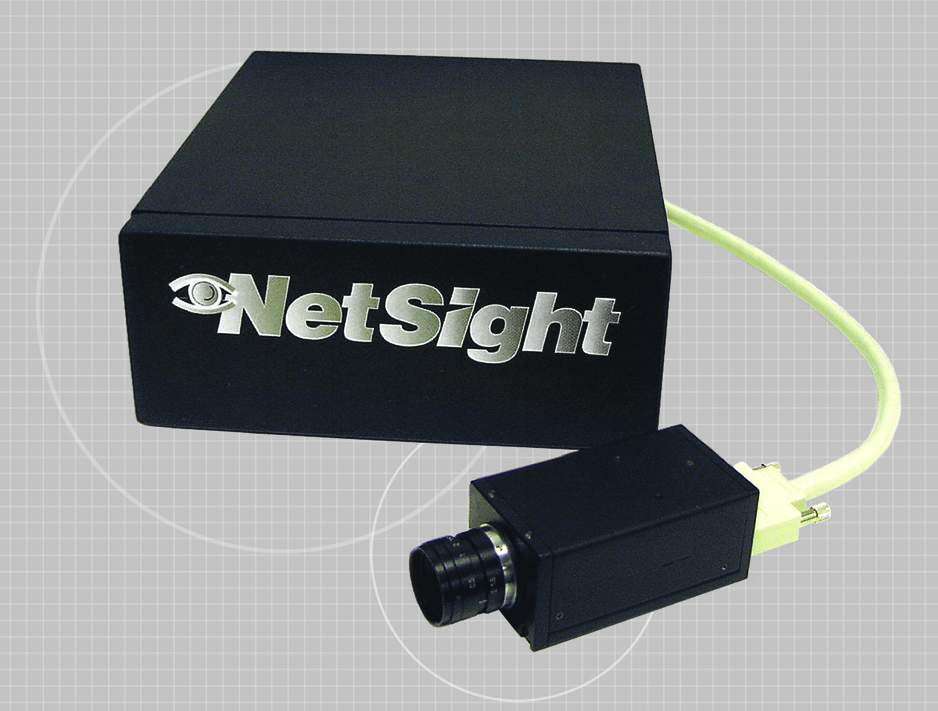

Jul 15, 2003 NetSight PCL supports all base cameras conforming to Camera Linkâ„¢ digital interface specification, which uses high-speed serial protocol for data transmission. NetSight PCP system supports up to 2 double-speed or megapixel analog cameras. Systems combine processing engine with camera interface, software tools, and industrial communications. They are wired with industrial interface controls, including I/Os, trigger, illumination control, Ethernet, and serial ports.

Transcat, Inc.    Rochester, NY 14624

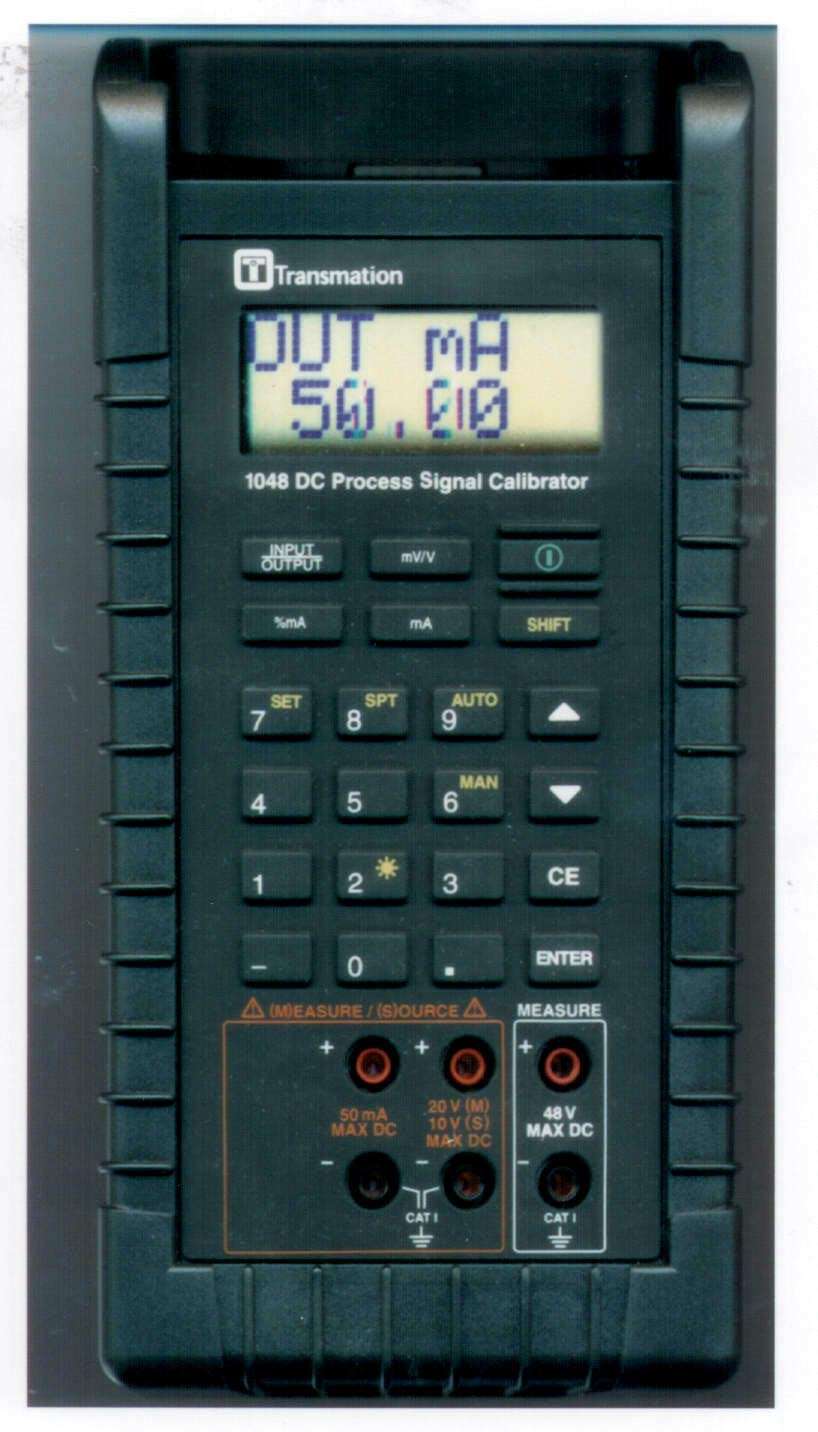

Jul 15, 2003 Transmation® 1048 Process Signal Calibrator is designed for calibration of 10-50 mA and and 4–20 mA instruments. It performs 2-wire simulations and automatically recalls up to 9 set points to run test sequences. Unit is primarily used in power plants and oil refinery applications.

GSI Lumonics    Northville, MI 48167

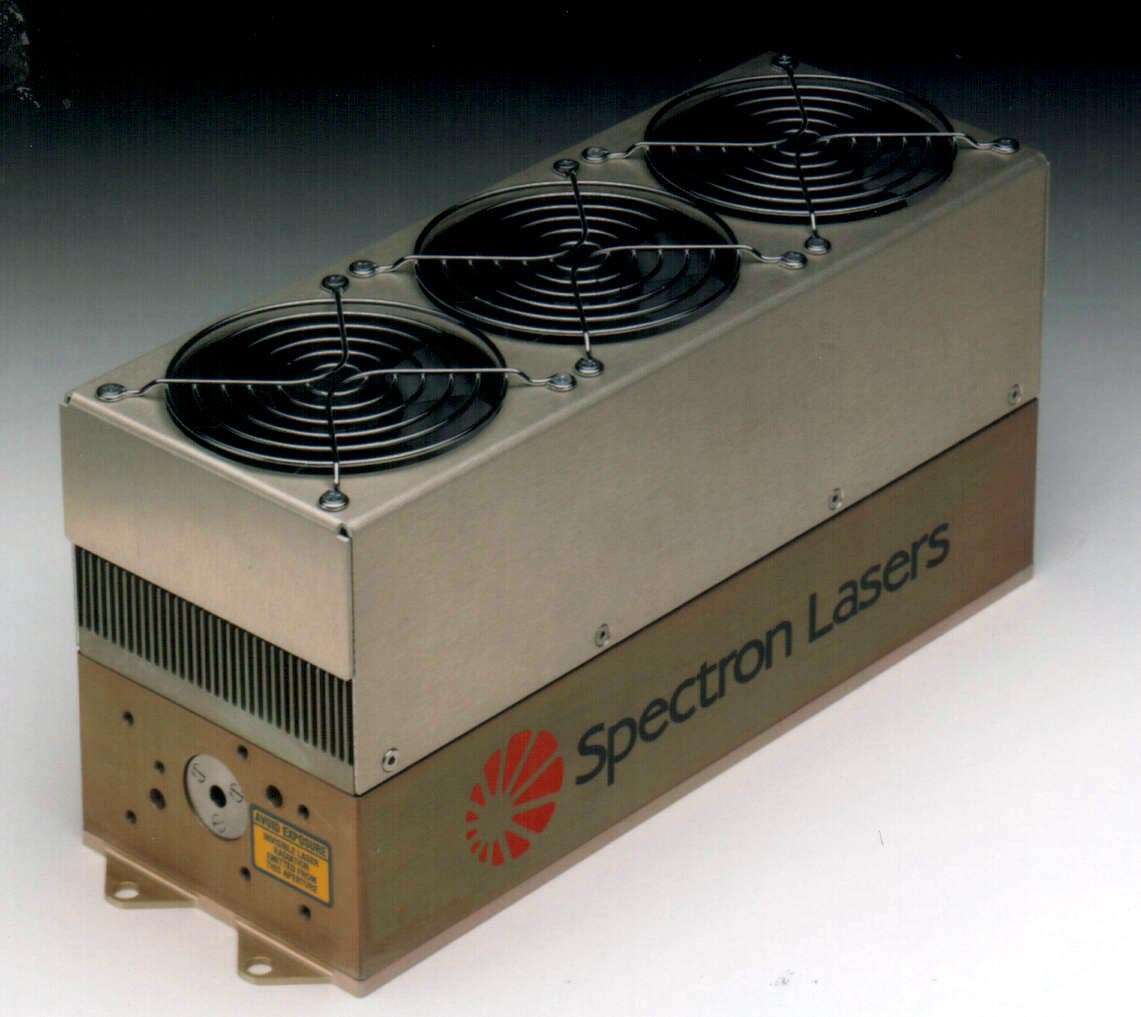

Jul 15, 2003 Series SLD6000 low-powered, end-pumped, solid-state lasers feature direct diode coupling to Nd:YAG lasing media, providing TEM₀₀ beam quality. Units include sealed laser head, field-replaceable diodes, as well as integral cooling, avoiding need for chillers. They offer high repetition rates, short pulses, and high peak powers for scribing, marking, inspection, and micromachining applications.

KSR Kuebler Of America, Inc.    Raleigh, NC 27613
Jul 15, 2003 Series F70 External Chamber-Float Level Switches feature low-mass design with stainless steel wetted parts, flanged top chamber, tamper-proof hermetically sealed SPDT switches, die-cast aluminum or stainless steel housing, and both high- and low-temperature capability. With ANSI flanges, NPT or socket-weld connections, units mount on outside of vessel, allowing inspection under operating conditions. Maximum process pressure is 580 psi.

American Baler Co., The    Bellevue, OH 44811

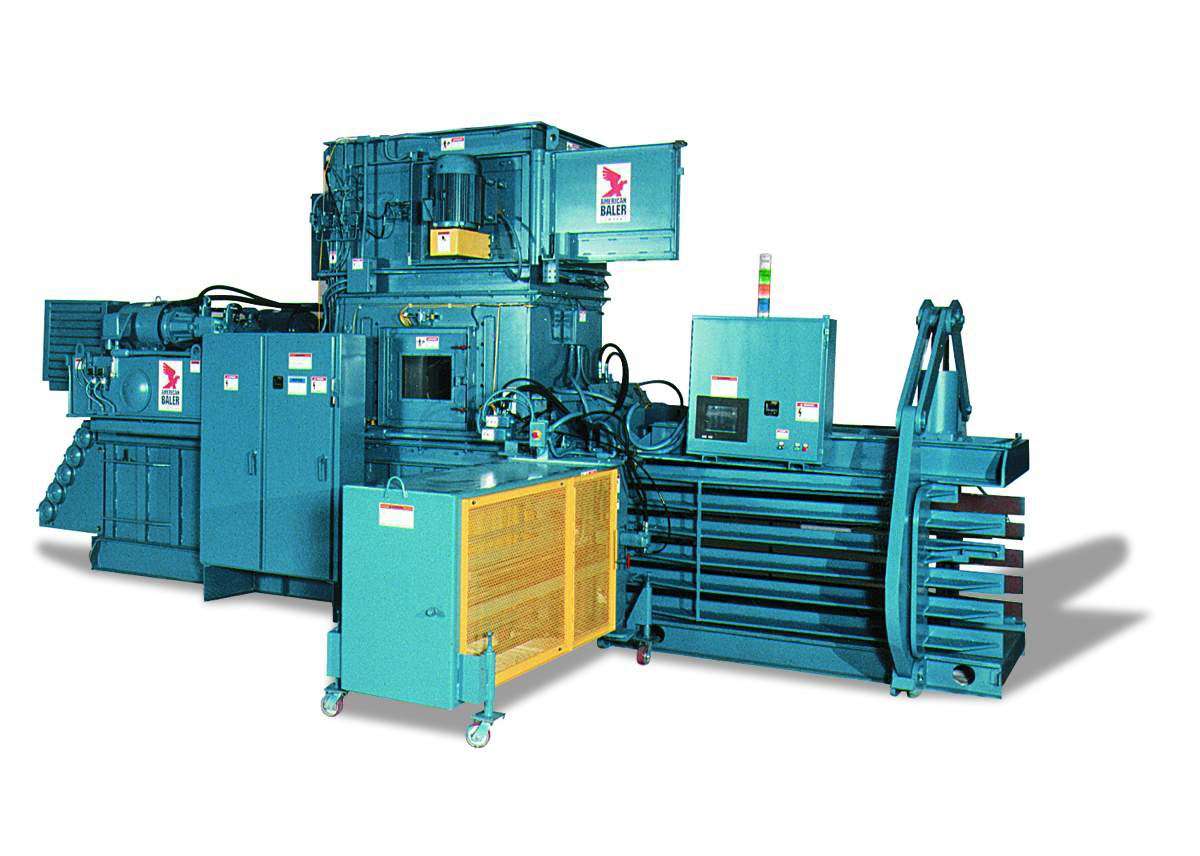

Jul 15, 2003 Wide-mouth Model 8043 utilizes pressure transducer, which allows operator to monitor and adjust tension pressure for each material grade using touchscreen operator interface. Transducer shuts down baler if system pressure reaches unsafe levels. Analog load sensors control conveyor feed and overload to fluffers. Baler produces bales weighing up to 2,500 lb with cycle times as fast as 9.6 sec. It features 41 x 80 in. feed opening and 5-wire auto-tier.

Andax Environmental    Rutherford, NJ 07070

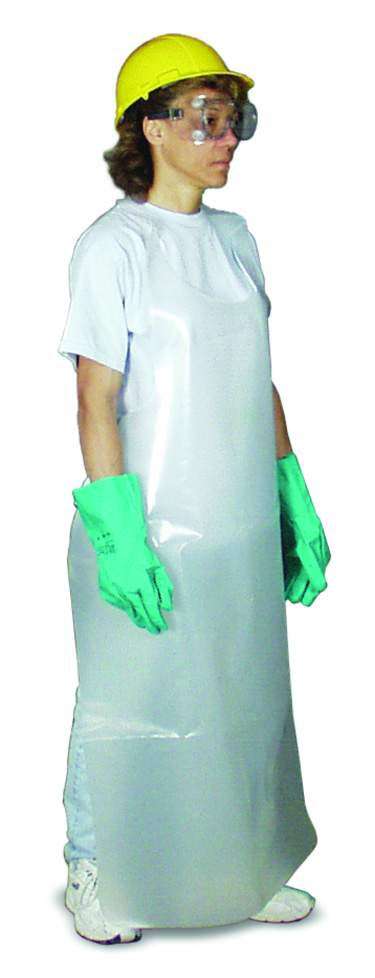

Jul 15, 2003 Poly Apronâ„¢ uses flexible-film technology to protect user from grease and grime. Lightweight, 10 mil apron is made from high-strength, FDA-approved resin, and comes in universal size of 30 x 60 in., while featuring adjustable closure.

Reed Manufacturing Co.    Erie, PA 16512
Jul 15, 2003 HOLE MASTERâ„¢ provides means of clamping onto pipe and using drill to cut hole in pipe. It comes with base, chain, and screw. Plate and drill holder allow mounting drill with hole saw, while handle and gear provide leverage for cutting holes in pipe. Pipe diameter mounting range is 1¼â€“10 in. Base fits up to 4¾ in. hole-saw diameter. HOLE MASTER works with Dewalt® DW131 Spade Handle Drill and Milwaukee® 1660-1/1660-6 Compact Drill.

Somex Corp.    Grand Blanc, MI 48439

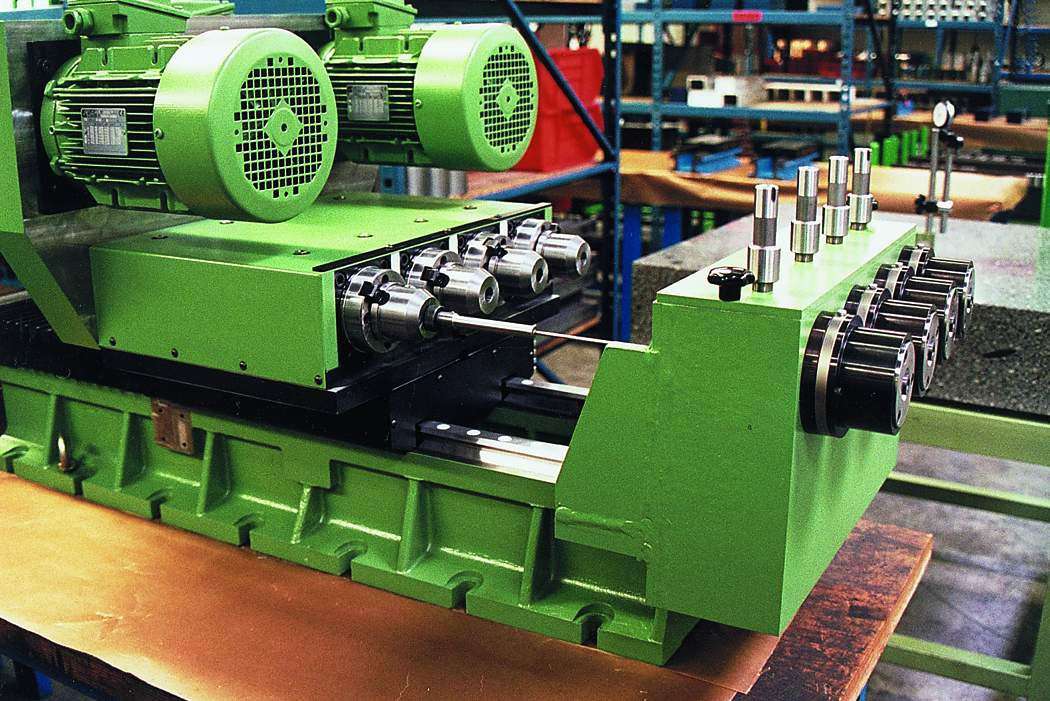

Jul 15, 2003 Model ECPP4 provides deep-hole drilling for mold-making industries. It combines spindles, slides, chip/coolant recovery box, drill bushing plate, high-pressure coolant union, gundrill adapter, and servo motor. Spindle has 40 taper opening with 3 hp ac motor and poly-V belt drive for smooth torque transmission. Slide consists of cast-iron base, linear ball guides, and ground, 25 mm ballscrew. Drilling diameters are 2-14 mm and speeds range from 400-8500 rpm.

MSA    Pittsburgh, PA 15230 0426

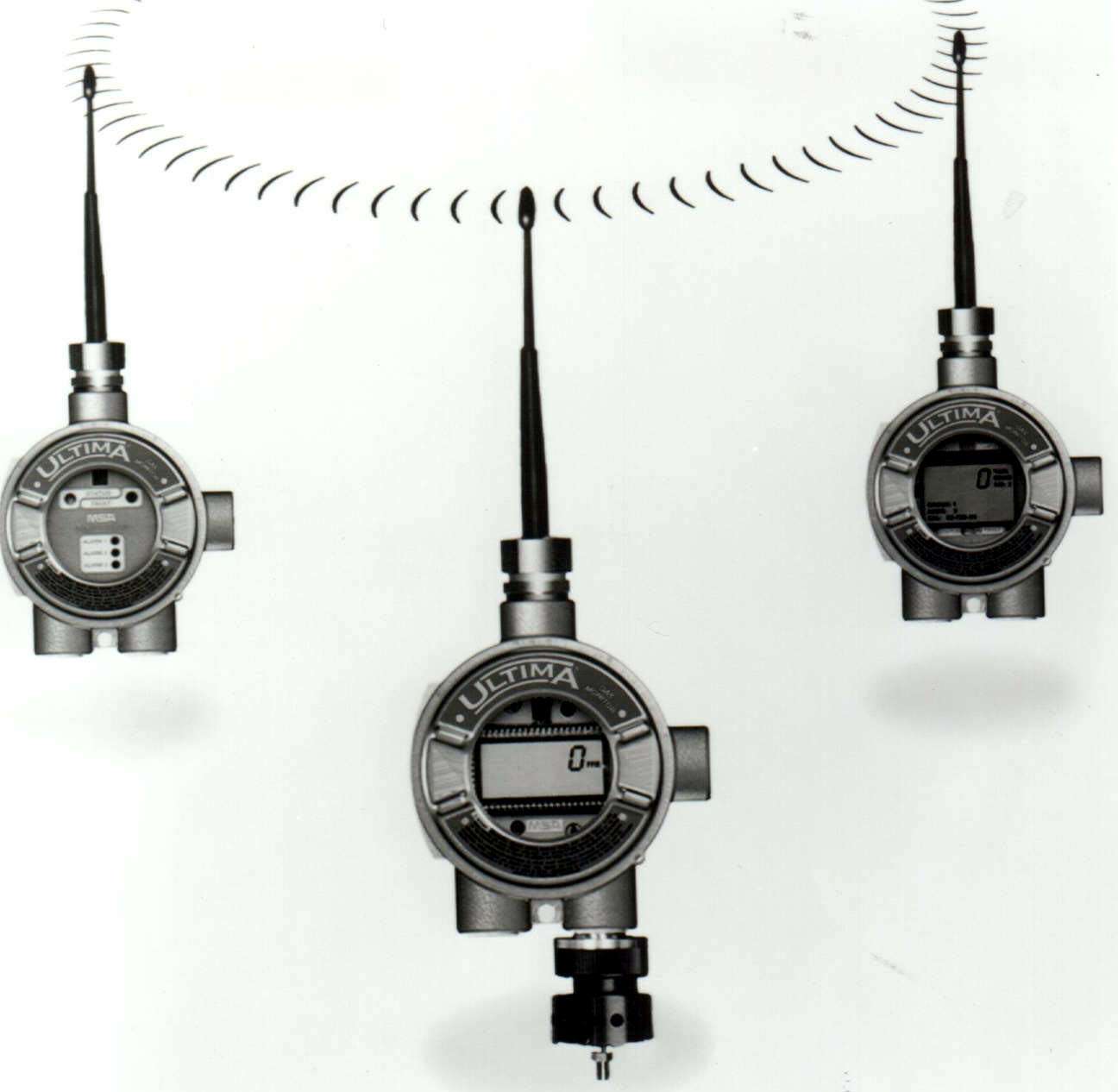

Jul 15, 2003 Ultima RF Wireless Network System combines peer-to-peer digital communication with wireless radio signal transmission. Unit features stainless steel housing with independent radio signal capabilities, and allows for up to 40 digital-output gas monitors, 5 network relays, and 5 digital display modules. Each system component operates over 902–928 MHz frequency hopping spread spectrum. Data is transferred at 19.2 k baud up to 1,500 ft (indoors) and 1-2 miles (outdoors).

Micro Air Clean Air Systems    Wichita, KS 67205
Jul 15, 2003 Roto-Pulse™ cleans entire length of dust collector cartridges by focusing incremental, controlled blasts of air into each section. Stainless steel rotating tube with pre-drilled holes rotates to distribute pulse of air. Number of increments per revolution, as well as time between pulses, is user-adjustable. Product is used on proprietary cartridge model air cleaners and dust collectors from 600–50,000 cfm.

Vantico Inc.    Los Angeles, CA 90039-1011

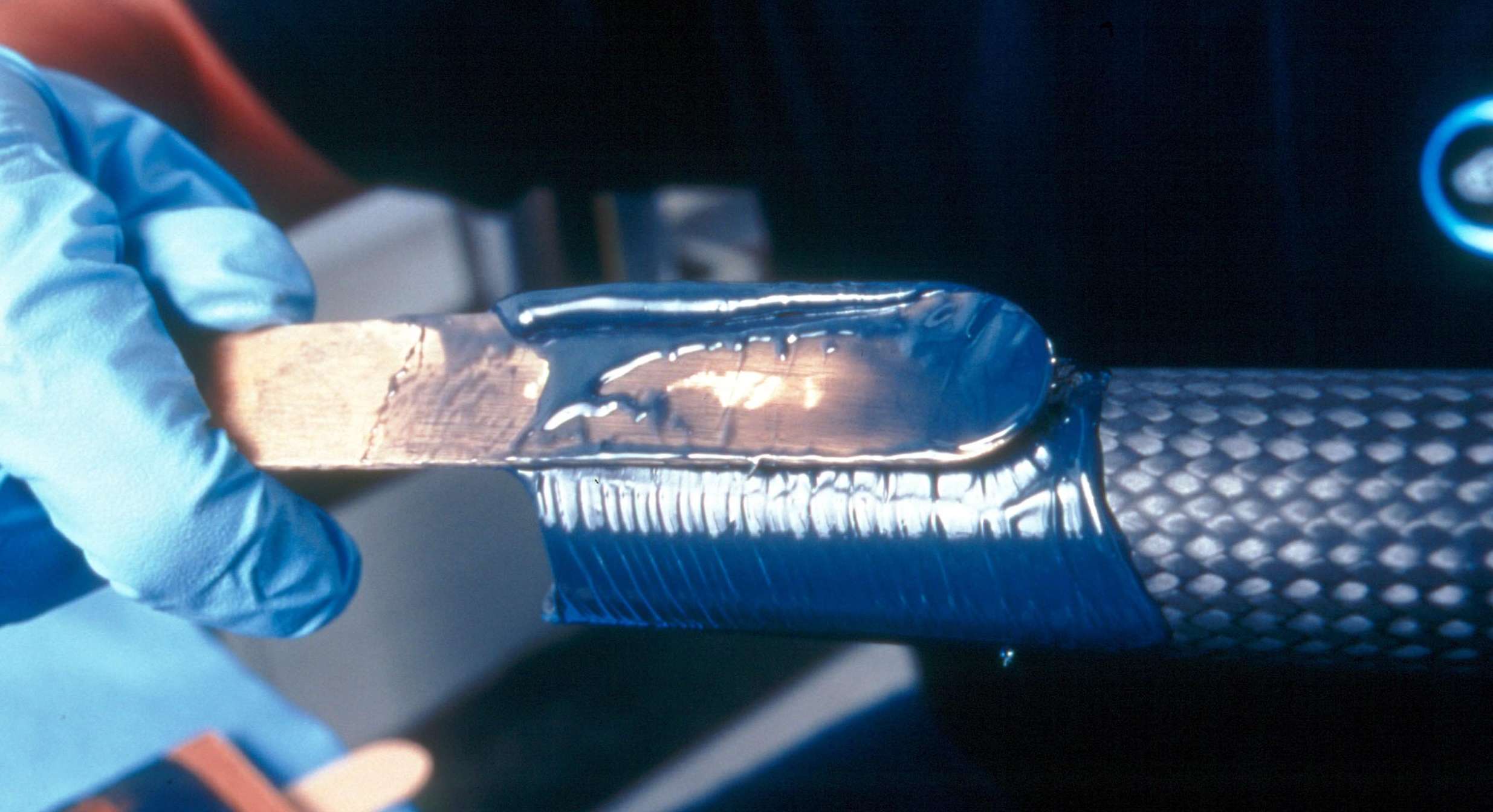

Jul 15, 2003 Gap filling, sag resistant Araldite 2015 epoxy securely joins dissimilar materials used in fabricating bike accessories. It attains handling strength after 4 hours at room temperature and produces joints with lap shear strength of 3,200 psi at room temperature. Epoxy dispenses, waste-free, from 50 ml, dual barrel cartridges and handles temperatures from -67 to 250°F. Adhesive produces durable joints on aluminum, titanium, and fiber composite substrates.

KIP Incorporated    Farmington, CT 06032 3140
Jul 15, 2003 Series 627 Miniature Multi-Point liquid level switches feature floats as small as .787 in. diameter for hard to reach areas, with up to 5 actuation levels on single tank entry. Units can reach up to 48 in. in overall length. They are UL recognized and CSA approved.
