Dorner Mfg. Corp.    Hartland, WI 53029 0020

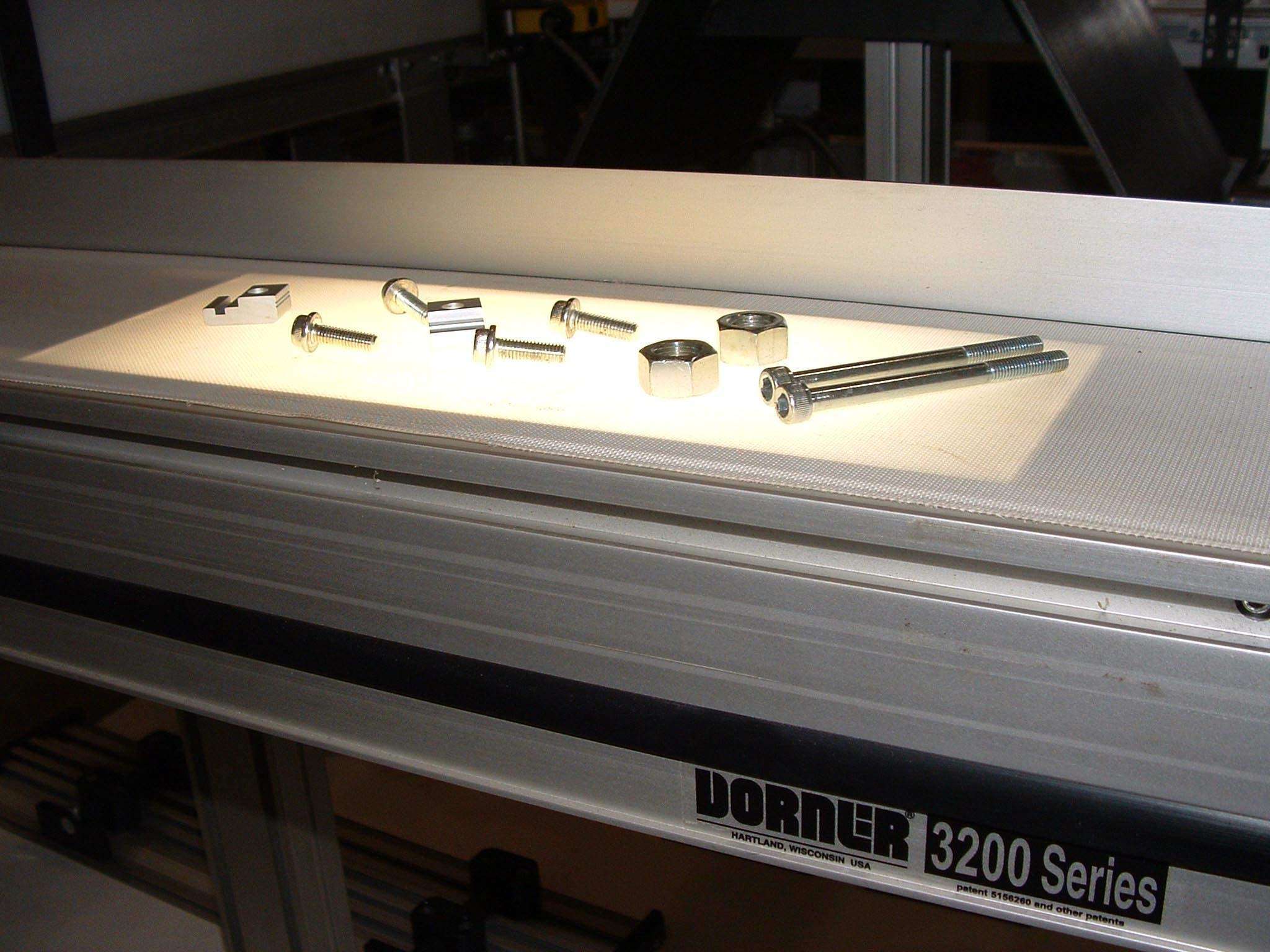

Jul 17, 2003 Series 2200 and 3200 Conveyors feature internal lighting system that brightly shines light through translucent belt. Series 2200 offers 80 lb load capacity, belt speeds up to 276 fpm and widths from 1.75 in. to 2 ft. Series 3200 is offered in flat belt, cleated belt, and center drive models with load capacity of 1,000 lb, and belt speeds up to 421 fpm. For inspection applications, backlit conveyors help illuminate part profile and appearance.

Carbis Inc.    Florence, SC 29502 6229

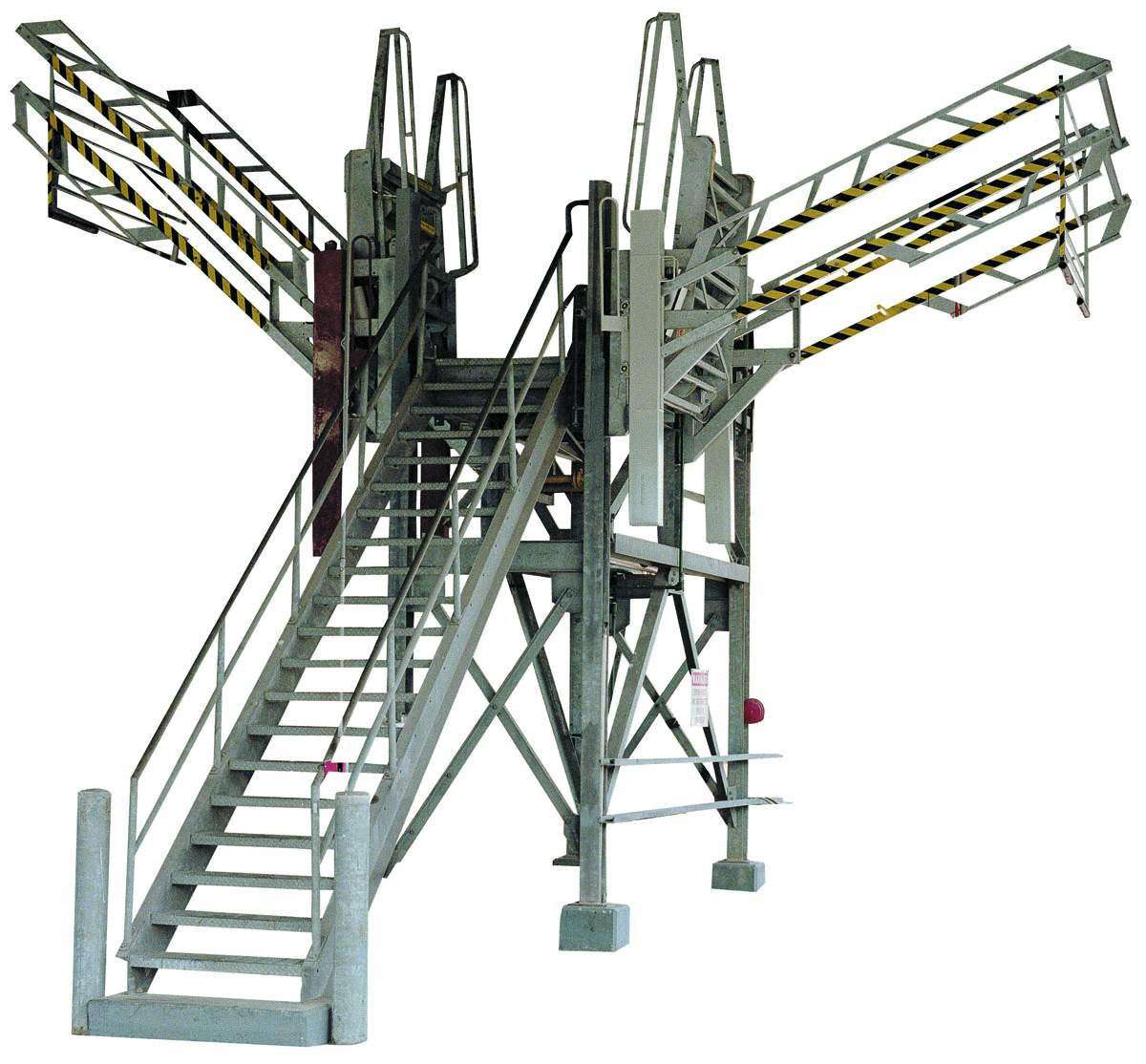

Jul 17, 2003 Models TCEN and TCEN II SAF-T feature gangways that permit vertical height adjustment to accommodate variations in vehicle type. Both contain 42 in. high handrail, integral top rail, mid rail, and toeboard to protect workers from inward and outward falls. Model TCEN comes in lengths up to 60 in. and includes expanded metal safety screens to fill gap between platform and vehicle. Model TCEN II features slip-resistant 19 in. inboard platform along length of enclosure.

Cromwell-Phoenix, Inc.    Alsip, IL 60803
Jul 17, 2003 With anticorrosion chemicals, Ferro-Pak® 40MPI (Multi-Purpose Inhibitor) inhibits corrosion in copper, brass, copper alloys, bronze, and aluminum as well as some ferrous metals. Able to protect metals from vapor and contact corrosive influences, it is available in rolls or sheets and is typically used as protective wrap. At 40 lb, product provides improved packaging strength for standard applications.

Absolute Process Instruments Inc.    Libertyville, IL 60048
Jul 17, 2003 IsoSplitterâ„¢ 4393 dc/dc transmitter accepts one dc voltage or current input and provides 2 optically isolated dc voltage or current outputs. Input and output ranges can be independently configured to requirements. Unit includes LoopTracker® LEDs for input/output monitoring and functional-test button for testing output, independent of input signal. It is suitable for systems with multiple devices on same process loop, including PLCs, DCS, BAS, panel meters, and recorders.

Carbtrol Corporation    Bridgeport, CT 06607

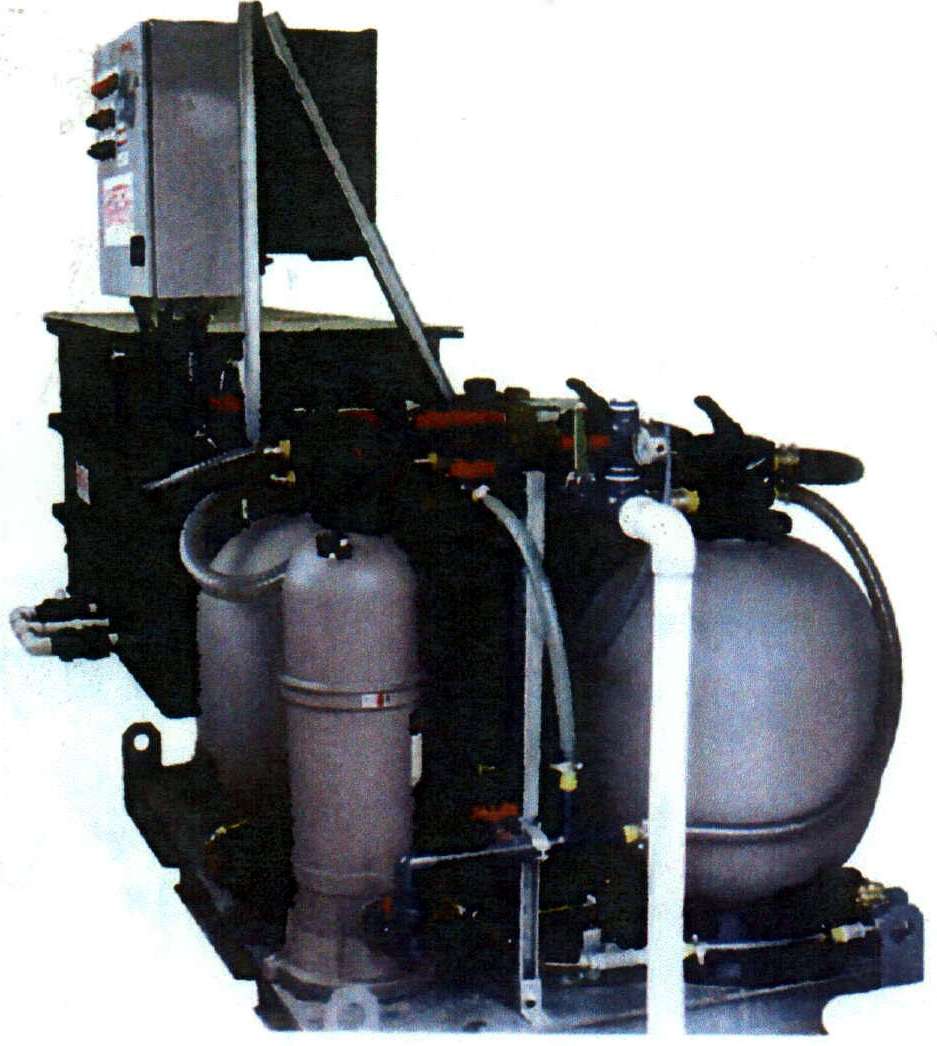

Jul 17, 2003 Capable of operating for extended periods without maintenance, Wash Water Treatment System provides high quality water for vehicle washing. It eliminates off-site discharges to sewers and removes pollutants such as grass and sand, trace fuels, pesticides, and odors.

Performance Motion Devices, Inc.    Lexington, MA 02421
Jul 17, 2003 Navigator®-ISA 1–4 axis ISA card provides dedicated motion control features such as trajectory generation, motor output generation, and on-the-fly changes. It offers servo loop rate of 100 µsec/axis, with 5.0 Mcount/sec quadrature encoder input rate. On-board trace capability of 256 KB provides ability to analyze system performance and tune servo filters. Total of 16 general-purpose digital I/O signals are provided, along with 8 general-purpose analog inputs.

Seco Tools Inc    Troy, MI 48083
Jul 17, 2003 Modular holding systems for drilling accommodate solid carbide drills, brazed drills, and proprietary CrownLoc system. Holders feature 6 coolant inducers with 2 maximum recommend revolutions (4,000 and 6,000 rpm) for manual and automatic tool change. Product has maximum pressure level of 290 psi and features Graflex® back end. Graflex arbors are available for coolant inducers and adjustable drill holders.

Spraymation, Inc.    Fort Lauderdale, FL 33309-6314
Jul 17, 2003 Upright, free-standing 3910 Series Thermopulse Hot Melt Unit includes 10 gal (80 lb) melt-on-demand reservoir and positive-displacement, dc-motor-driven gear pump. Suited for use with up to 4 automatic or handgun Electromatic Applicator Heads and hoses, unit holds constant pressure to within ±5%. System includes plug-in connections and MICROTEMP microprocessor-based temperature control with 10 zones. Melt rate is 32 lb/hr, and pump rate is 132 lb/hr.

STMicroelectronics    Lexington, MA 02421
Jul 17, 2003 Models TS486 and TS487 are 100 mW stereo headphone amplifiers with standby mode, which can be active low in TS486 or active high in TS487. Available with external gain configuration or fixed gain of 0, 8, or 12 dB, units include on/off click reduction circuitry. Signal to noise ratio is typically 103 dB with 5V supply, and cross-talk immunity is typically 83 dB at 1 kHz. Amplifers are suitable for portable audio players, high-end TVs, PDAs, and motherboards.

Acton Research Corp.    Acton, MA 01720

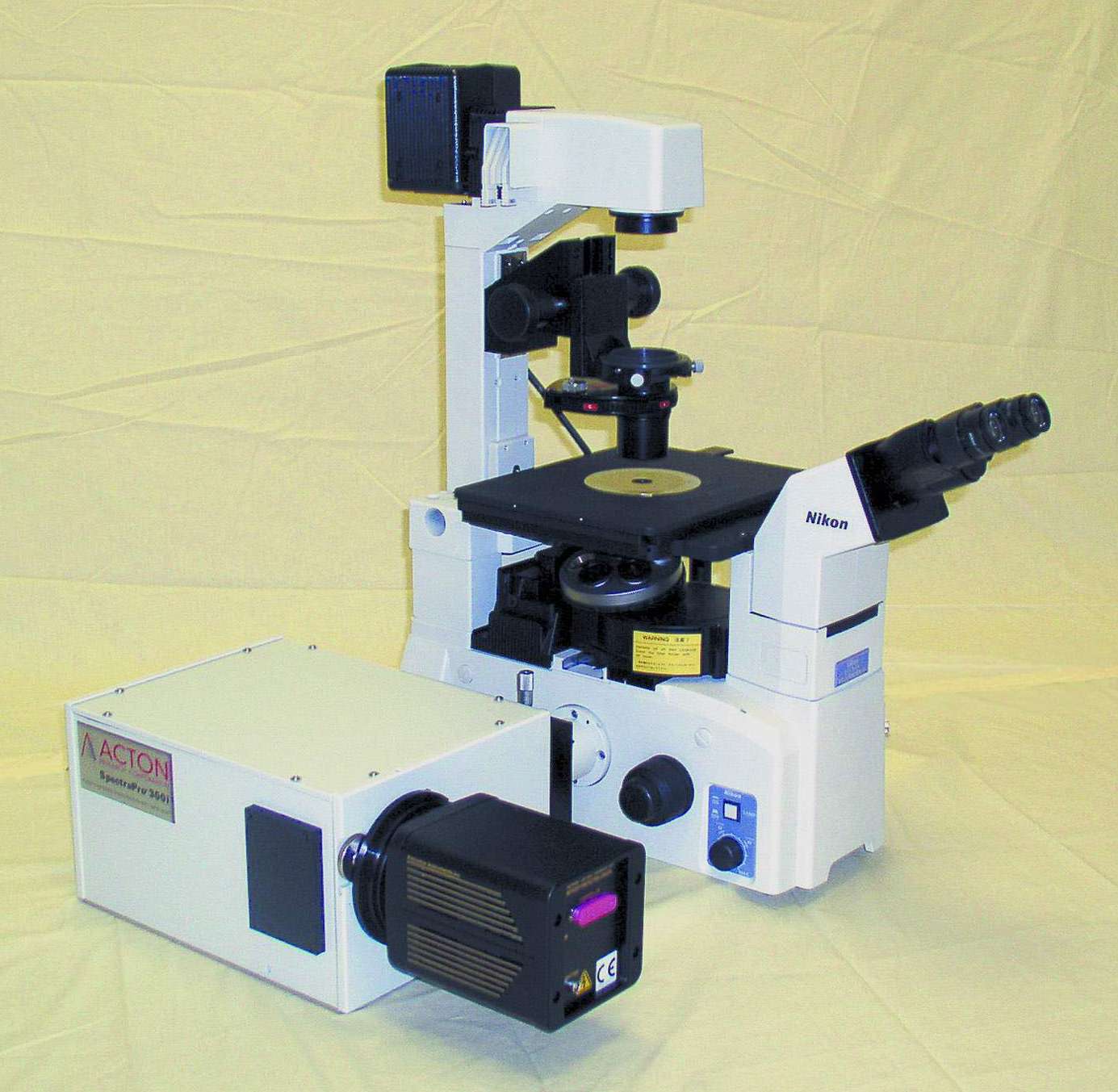

Jul 17, 2003 MicroSpecâ„¢ imaging spectrometers feature USB communication and choice of 150, 300, and 500 mm focal lengths. Manual or motorized entrance slits operate from 10 microns to 12 mm wide, and offer full 12 mm image height. Mirror position in grating turret allows for large aperture, direct imaging to Roper Scientific CCD cameras. Wide choice of gratings and accessories enable Single Cell, Micro-Raman, Dispersive Fluorescence, FRET and other micro-spectroscopy applications.

Precision Measurements ( Measuretech Inc )    Sun Valley, CA 91352

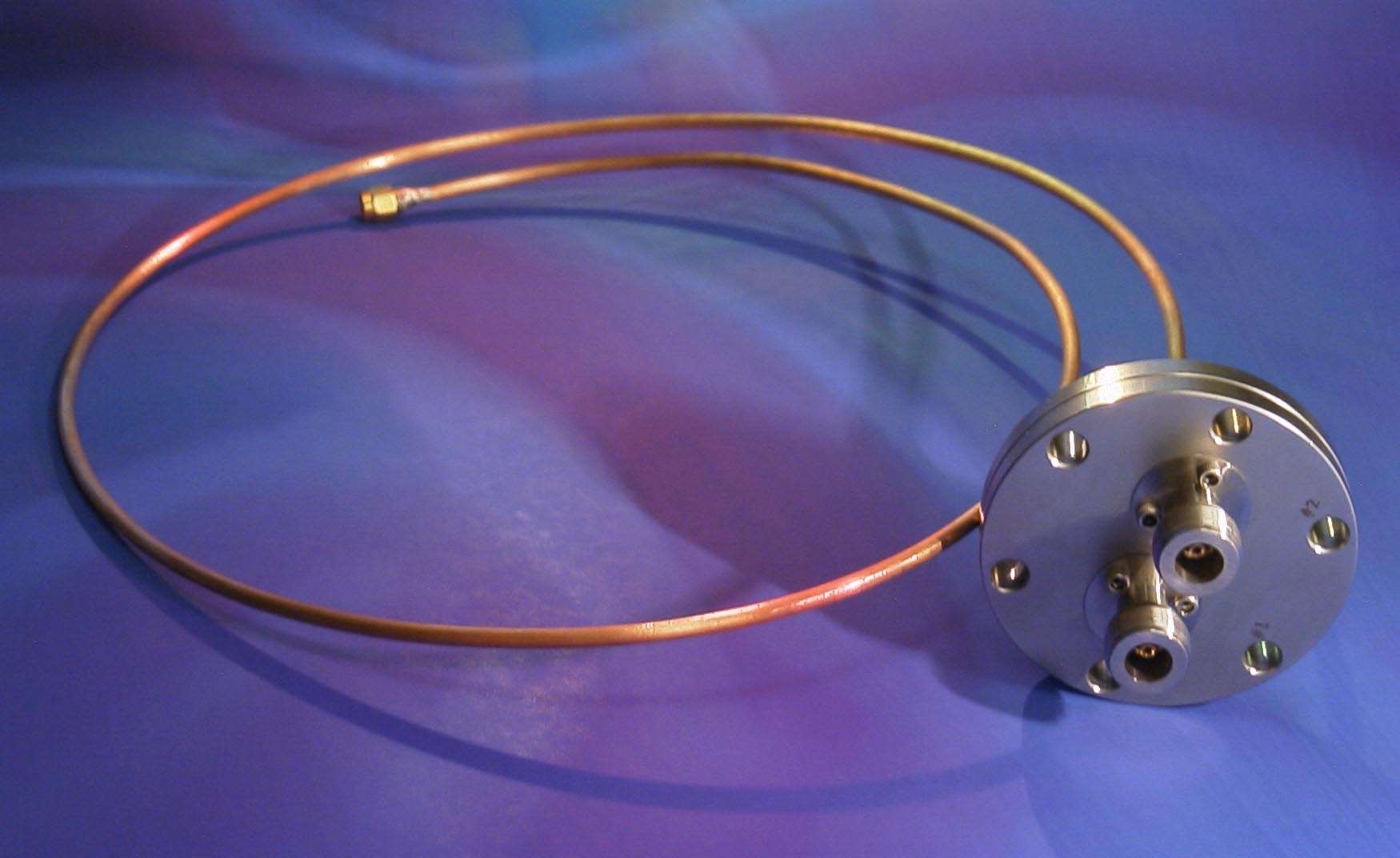

Jul 17, 2003 Metal-jacketed Microwave Cables use high purity silicon dioxide, which resists temperatures in excess of 900°C. They can be operated in excess of 20 GHz and provide low insertion loss and VSWR. Cables indicate insignificant change in insertion loss and very small change in phase as function of temperature. They are completely hermetic and suitable for hostile environments such as aircraft, radar, decoys, and electronic measure systems.

Arcom Control Systems    Kansas City, MO 64145

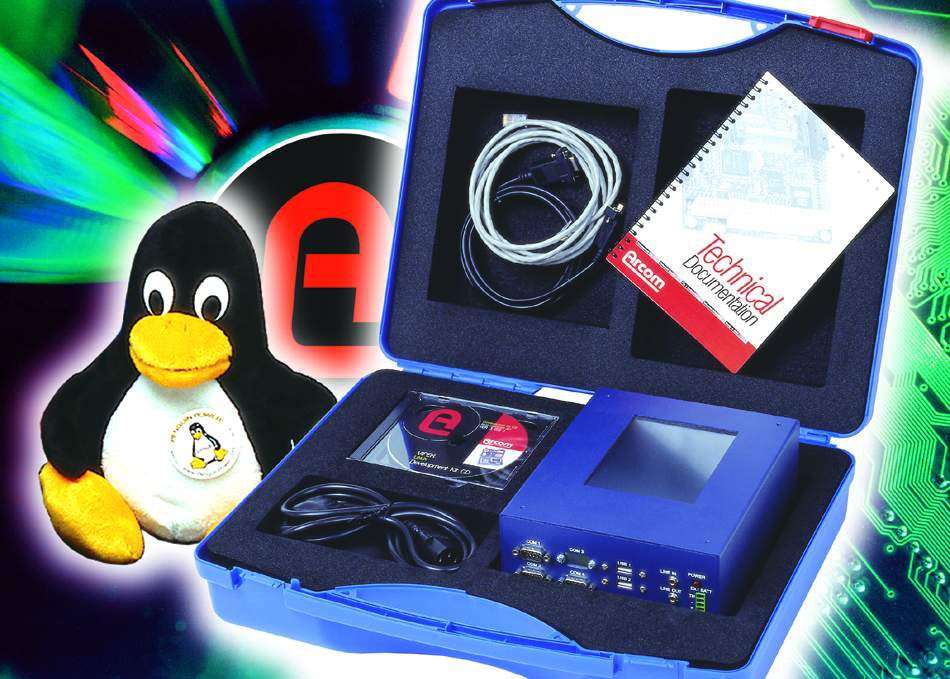

Jul 17, 2003 Embedded Linux Development Kit supports VIPER PC/104 single board computer powered by 400 MHz Intel PXA255 XScale processor, fitted with 64 Mbytes DRAM, 16 Mbytes of Flash, Industrial Compact Enclosure, UPS, and serial and Ethernet cable set. GNU/Linux distribution is based on 2.4 kernel and includes read/write and read only support for onboard Flash memory using compressed Journaling Flash File System. Support for PXA255 graphics controller and drivers for onboard peripherals are included.

Phoenix Contact    Harrisburg, PA 17111 0100
Jul 17, 2003 Available in 1 and 2 m lengths, product incorporates centered mounting slots and 1 in. dia cable routing holes on 6-in. centerline spacings. With industry-standard height of 2.26 in., product has overall width of 1.38 in. Center mounting slots are on 3-in. centerline spacing that can accommodate No. 10 slotted, Phillips, and hex head screws.

RFID, Inc.    Aurora, CO 80010

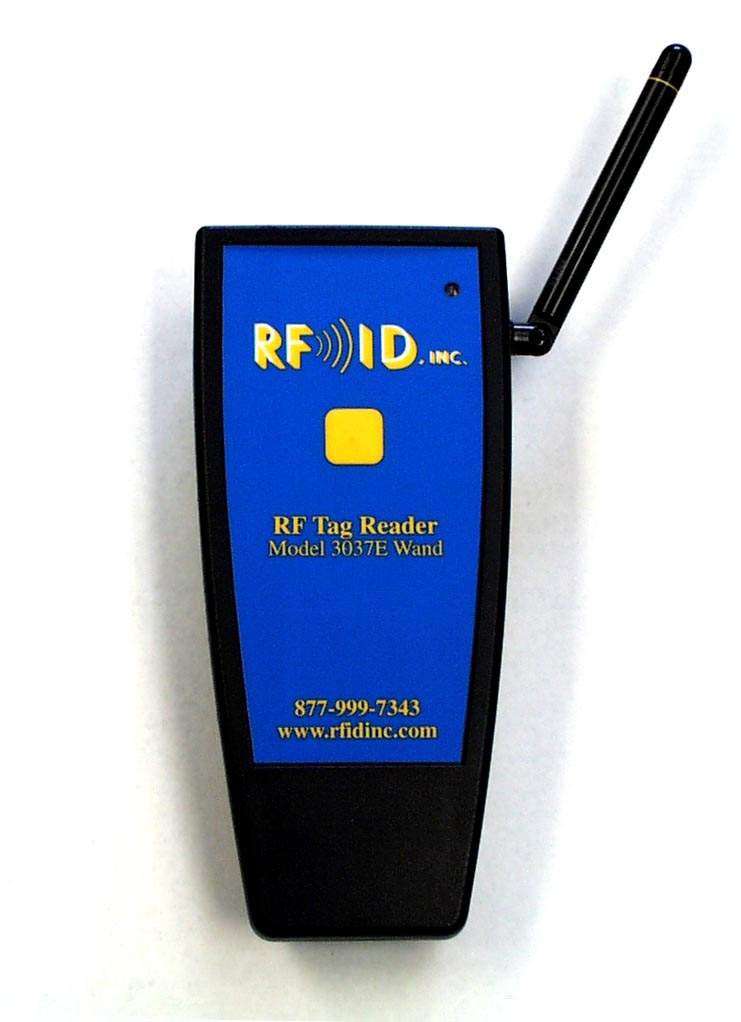

Jul 17, 2003 Model 3037E-WL is for use with 125 KHz tags, transmitting at 916 MHz. Used in conjunction with wireless base receiver, it can function with RFID chips from Sokymat, Atmel/Temic, EM, and Philips. Operating on 9 V battery lasting 3 days, reader wirelessly transmits data and receives confirmation of receipt from base station in form of blinking LED and vibration. Unit is splash and rain proof.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191
Jul 17, 2003 Equipped with high-speed generator, FA-V Series incorporates power supply system, reservoir, and power feeder shape design. Series adapts for special materials, from PCD to CBN, conductive ceramics, and low conductivity materials. Its 64-bit CNC interface provides automatic control for step shape machining and read-in of pre-programmed data from memory. Additional offerings include automatic fluid quantity control and inverter drive control.

Gyration, Inc.    Saratoga, CA 95070 4600
Jul 17, 2003 Designed for remote control of PCs running Microsoft® Windows XP Media Center Edition, Media Center Remote provides precise cursor control from any position. It communicates with PC using RF technology to avoid line-of-sight limitations. Point-and-click control allows users to maintain constant eye contact with visual medium. Product also comes bundled with GyroTools Media Center Edition software and optional compact wireless keyboard.

BW Technologies    Calgary T2A7X9  Canada

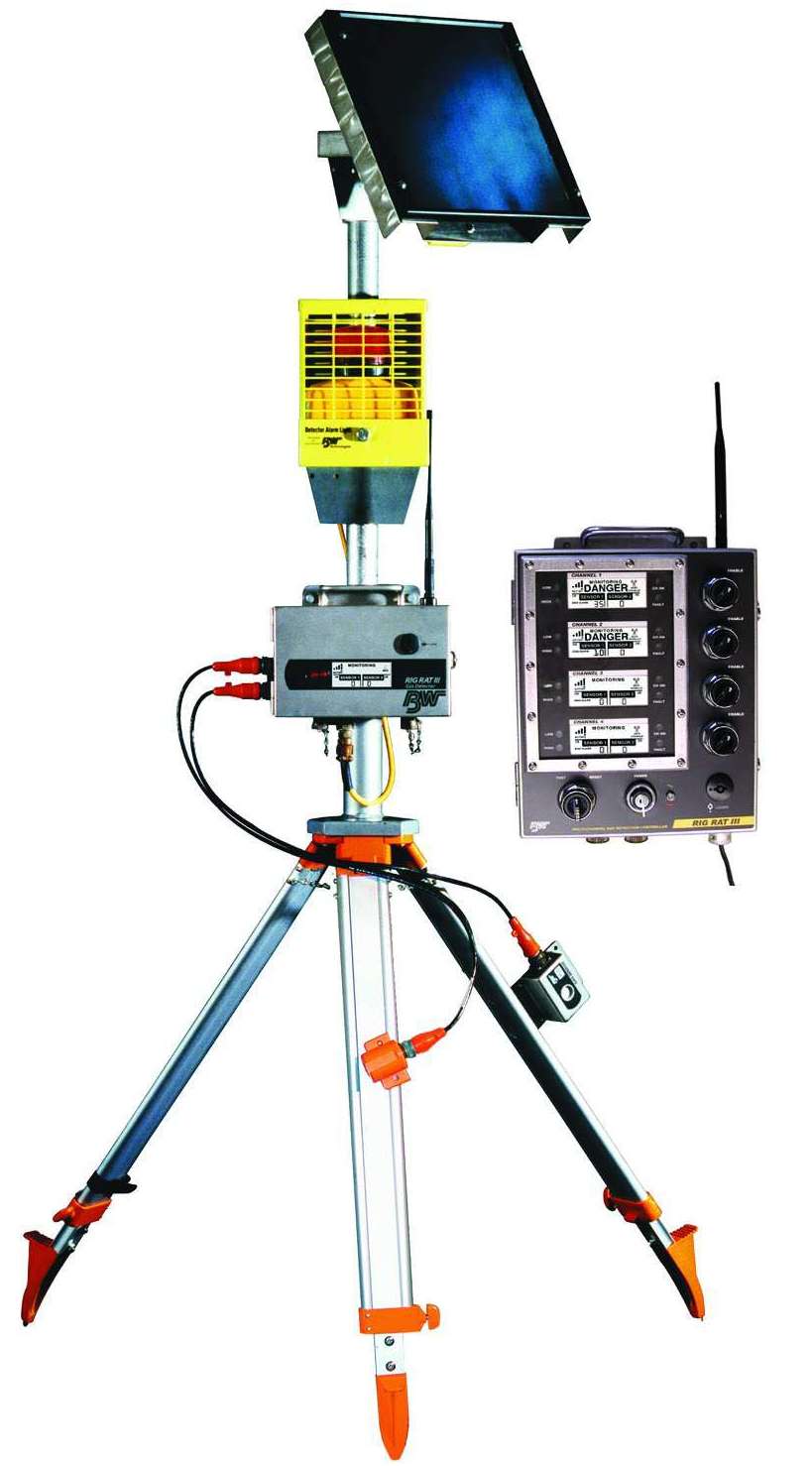

Jul 17, 2003 Self-powered and solar-capable, Rig Rat III stand-alone system provides wireless monitoring for toxic gases, combustibles, and oxygen hazards. Modular, plug-in ports allow for installation of all components and field interfaces, and remote sensors, alarms, and relays can be added at will. Additional offerings include audible/visual alarms, field-adjustable levels, and status-at-a-glance LCD. Unit transmits real-time, digital data as far as 1.8 miles.

Rockwell Automation / Allen-Bradley/Industrial Automation Sy    Mayfield Heights, OH 44124
Jul 17, 2003 Coupled with POINT I/Oâ„¢, 1734-ADNX DeviceNet network interface adapter, with subnet expansion, provides control, configuration, and data-collection capabilities for industrial devices. It increases reach of DeviceNet to 1,500 m and, depending on scanner capability, to more than 126 nodes per scanner. Top connector connects adapter to main DeviceNet network and to controller scanner module. Lower connector connects adapter to subnet link and ODVA-compliant products.

Omega Engineering, Inc.    Stamford, CT 06907
Jul 17, 2003 Able to connect directly to 3-wire RTD probe, SPRTX Series features hermetically sealed, miniature signal conditioner built into connector housing. Product conditions and linearizes across dedicated temperature range, providing 4-20 mA current output, which can be transmitted thousands of feet away from sensor. With ±0.5% FS accuracy, unit includes RTD lead wire compensation, open input wire warning signal, and 10 ft shielded output cable.

Invensys Systems, Inc.    Foxboro, MA 02035
Jul 17, 2003 Based on the ISA 95 Web service standards, Protean v4.1 Enterprise Resource Planning (ERP) software reduces time to compliance through FDA 21 CFR part 11 e-signature, audit control, and validation services. It also includes business intelligence B2B capabilities and shop floor integration. Implemented through cGMP-based methodologies, software grants users access to shop floor data and includes Business Intelligence Sales Template and real-time manufacturing.
