Viking Pump Inc., A Unit Of IDEX Corp.    Cedar Falls, IA 50613 0008

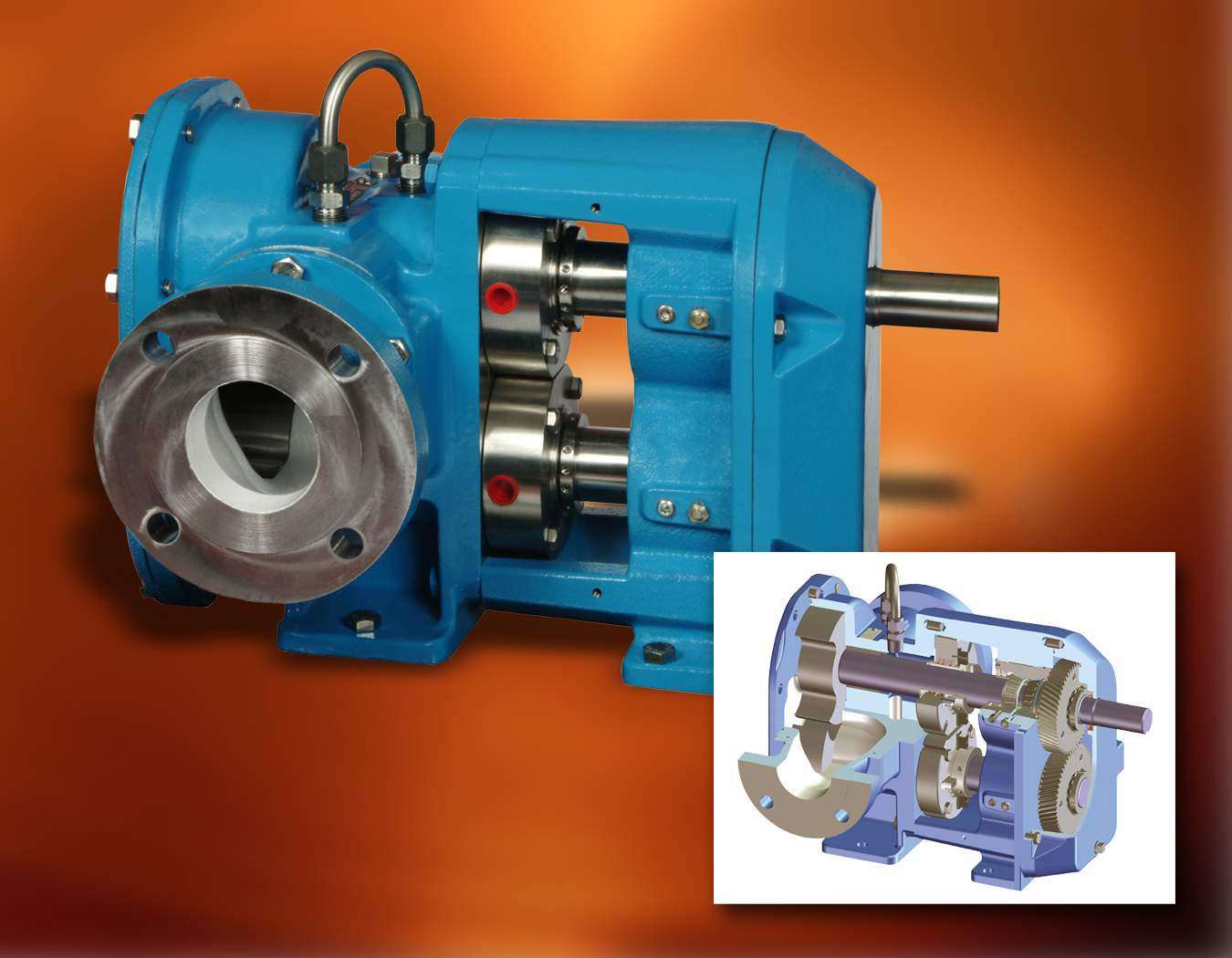

Jul 21, 2003 Industrial Lobe Pumps are offered in 2-bushing models with pressure up to 225 psi, and 4-bushing designs, which feature shaft support on both sides of rotors to provide up to 400 psi. Bi-wing rotor provides solids handling capability. Stainless steel pumps accept packing, component mechanical seals, cartridge-style single and double mechanical seals, and lip seals in 1.875 and 3 in. sizes.

ID Technology Corp.    Fort Worth, TX 76106

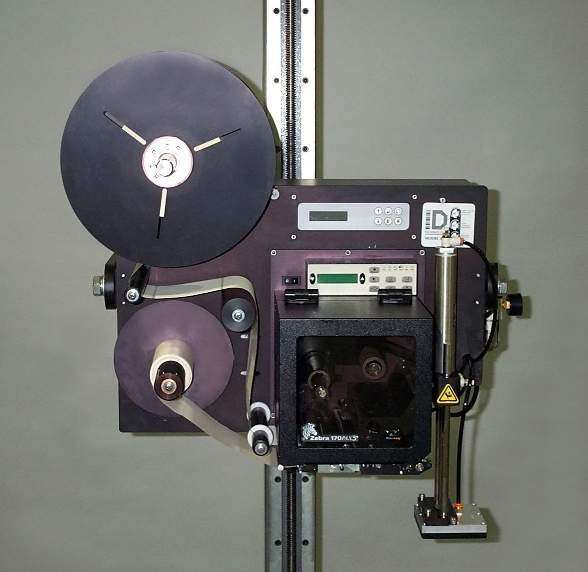

Jul 21, 2003 Model 250 Label Printer Applicator uses thermal transfer technology to print and apply variable information labels, on-line, without slowing production. With print speeds up to 12 ips and print resolution up to 300 dpi, bar codes, text, and graphics print crisply and clearly on wide variety of substrates. All key sub-assemblies are modular, facilitating uncomplicated parts replacement. Zebra, Datamax, or Sato print engines are available.

Kulicke & Soffa Industries, Inc.    Willow Grove, PA 19090
Jul 21, 2003 Novaâ„¢ Hub Blades incorporate formulations of diamond concentration and nickel bond to reduce chipping and peeling common in low-k wafer dicing. High yields are achieved even while advancing wafers through process at standard production feed rates. Product offered in different formulations to address requirements of various low-k wafer materials.

OSAI-USA    Bloomfield, CT 06002
Jul 21, 2003 Using FastWire digital protocol, 10/Series Numerical Controls connect and control remote modules. Synchronization between master (CNC) and FastWire devices is hardware-generated and utilizes a single high speed cable. With up to 64 FastWire devices being treated as memory locations, reading and writing of specific variables of any device does not influence data transfer speed. CNC also auto tunes machines without utilizing external sensors or instruments.

Metabo Corp.    West Chester, PA 19380 4243
Jul 21, 2003 Model Hs8365S 26 in. hedge trimmer, with hand guard, features dual safety switches and instant-stop blades that stop .05 sec after user releases either switch. S-automatic safety clutch protects motor and gearing from kick back when user encounters obstacles. Trimmer features 30° blade angle, operates at 3,200 rpm with max torque of 53 lb-in., and handles max twig size of ¾ in. Space between cutters is 1 1/8 in., allowing trimmer to be used for large and small jobs.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866

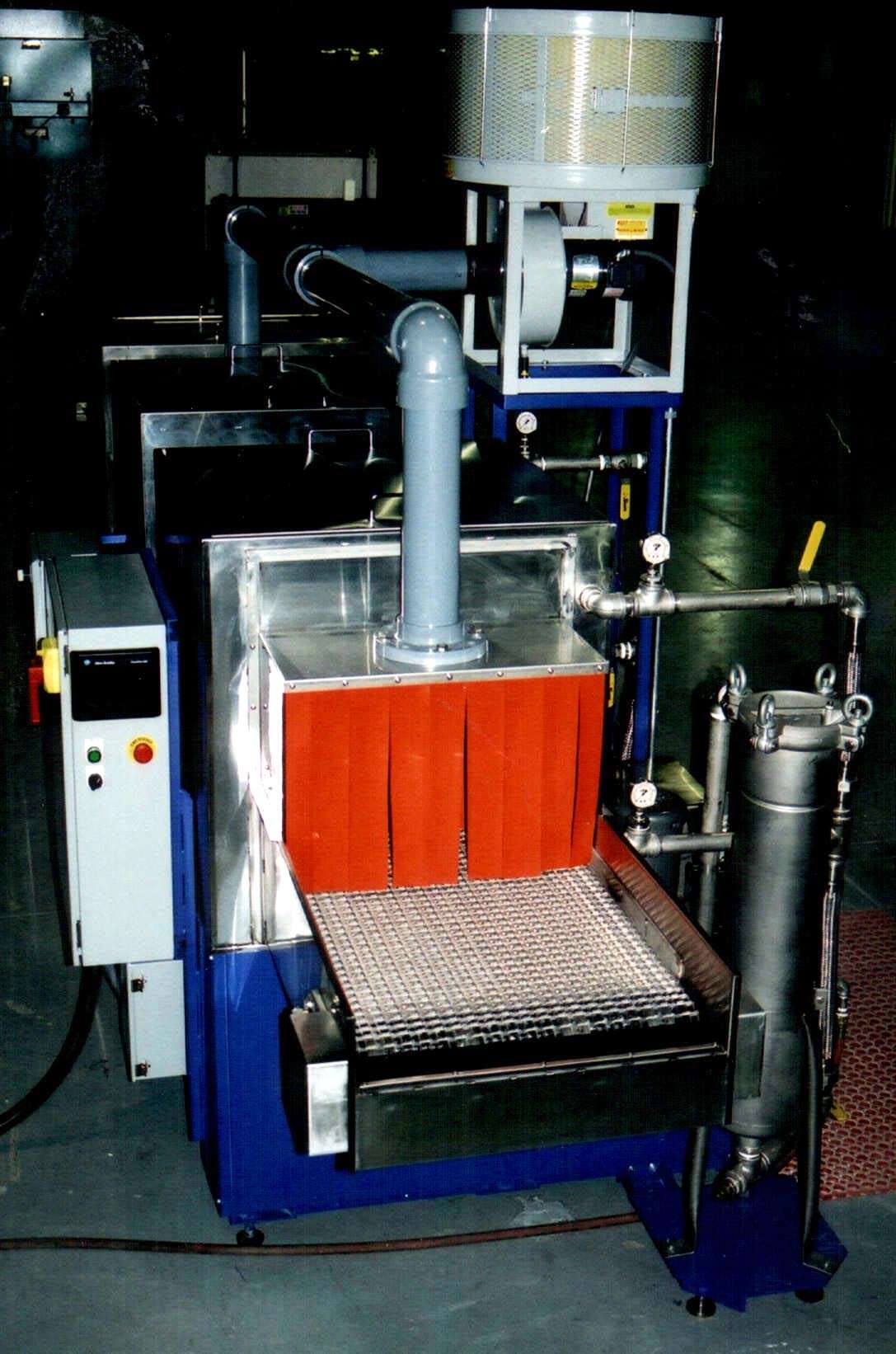

Jul 21, 2003 Conveyorized Model 600-WRB includes washing, rinsing, and blow-off drying modules in compact package. Filter accessory prevents discharge of vapors and mist from spray washing operations. Mist collector extracts and filters air at over 400 cfm. Non-corroding plastic ducts are attached to top of parts washer's entry and exit vestibules to collect vapor-laden air before it escapes to operator's work area. Condensate from filter is returned to solution tank.

Fairchild Semiconductor    South Portland, ME 04106
Jul 21, 2003 Model FDC6901L integrates P-Channel MOSFET with slew rate controller IC. With 3 programmable slew rates of 600, 41, and 24 V/ms, unit can be programmed to drive wide range of capacitive loads. It minimizes EMI and offers low RDS(on) of 180 milliohms max. Regulated turn-on is provided to reduce inrush current. Strong pull-up buffer quickly turns off internal MOSFET, since rise time is less than 7 µs and can be increased to 124 or 162 µs.

Videx, Inc.    Corvallis, OR 97330
Jul 21, 2003 CyberLock Electronic Padlocks consist of pickproof electronic cylinder in padlock, CyberKey® that cannot be duplicated, and CyberAudit® access control software. Access privileges and battery power are located in key, which can be programmed to restrict each authorized user’s access to specific padlocks on pre-selected days and times. Each time CyberKey opens padlock, record of user ID, date, and time is stored in both lock and key.

Linear Technology Corp.    Milpitas, CA 95035
Jul 21, 2003 SoftSpan(TM) 12-bit LTC1588 and 14-bit LTC1589 are current-output DACs, programmed with 3-wire serial interface to operate in any one of 6 output ranges. All output spans have specifications of ±1LSB INL and ±1LSB DNL. Units require 5 V reference, dual op amp, and feedback capacitor. They have 2 nV-s glitch impulse, ensuring low distortion in digital waveform generation. Asynchronous clear pin resets devices to 0 V output regardless of output range selected.

PPT Vision, Inc.    Eden Prairie, MN 55344
Jul 21, 2003 Leveraging Camera Linkâ„¢ open digital camera standard, IMPACT CLâ„¢ machine vision micro-system provides connectivity to digital cameras from all major camera suppliers. Product combines proprietary machine vision micro-system technology with Camera Link standard for industrial camera communications to eliminate closed architecture and limited camera selection associated with smart cameras and self-contained vision systems.

Georgia-Pacific Corp.    Atlanta, GA 30303-1801
Jul 21, 2003 Clutter Cutter® panels support shelves, bins, and individual tools and utensils, keeping frequently used items within reach and less often used tools out of the way and organized. Installed with glue nailing over ¾ in. furring strips, panels require solid framing on all edges; intermediate framing must be spaced 16 in. o.c. or less. They can be cut to size and shape with woodworking tools. Products come in white but may be sealed or painted.

Electro-Sensors, Inc.    Minnetonka, MN 55343 9108
Jul 21, 2003 In order to provide accurate control of gate position when loading/unloading or blending bulk materials, SG1000 provides feedback to external device such as PLC or Slide Gate Display. Monitor is available in 2 models: SG1000A, which provides 4–20 mA analog output, and SG1000DN, which interfaces with DeviceNet networks. Capable of measuring slide gate or valve position from 0–100%, unit helps guard against machine failure, product waste, and process downtime.

IKA Works, Inc.    Wilmington, NC 28405-7419
Jul 21, 2003 Turn-key systems provide continuous or batch mixing, dispersion, and dilution and can be used for combining multiple liquid streams, solids addition, or injection of gases into liquids. Products incorporate DISPAX Reactor high-shear mixer, which is available in 7 sizes with flow rates from 1–1,600 gpm and motors from 2–200 hp. CIP and SIP capable units are provided with vessels, pumps, flow meters, and complete production controls.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 21, 2003 ServeRAID-6Mâ„¢ Ultra320 provides RAID function at enterprise level. Equipped with 64-bit, 133 MHz PCI-X adapter, unit is architected with 600 MHz Intel® IOP321 I/O processor, 128 or 256 MB ECC DDR SDRAM battery-backed cache, and 2 channels with support for up to 28 HDDs. Product also offers clustering and failover support, and wide bandwidth for multi-drive, concurrent, streaming data transfers.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 21, 2003 Lotus® Sametime® v3.1 instant messaging and Web conferencing software for e-business supports individual presence awareness, real-time text- or audio/video-based conversation, and Web conferences with application sharing and team whiteboarding. Users are able to control their awareness state from within meeting room center. Software includes support for IBM Lotus Dominoâ„¢ 6.0.2, UNIX® Client, Sun JVM (JDK 1.4), and Netscape 7.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 21, 2003 Designed for traveling users, Lotus® Sametime® Everyplaceâ„¢ v3.0 lets users communicate, collaborate, and work from anywhere at any time. Built on platform for real-time collaboration, software provides presence awareness and instant messaging to wireless devices. Product offers end-to-end security with 128-bit encryption for new Sametime Connect clients, maximum log-in attempts, device ID checking, and IP blocking.

STMicroelectronics    Lexington, MA 02421
Jul 21, 2003 NOR Flash Memory Cell occupies silicon area of only 0.08 µm². Increased performance of on-chip peripheral CMOS circuitry enables data to be read from and written to memory array. Reduction in memory cell size corresponds to 40% reduction in die size for 128 Mbit devices, and more for larger memories. Applications include mobile phones, set-top boxes, personal computers, and automotive engine management.

Bahco North America A Sub. Of Snap-On Inc.    Scranton, PA 18501 2036
Jul 21, 2003 Screwdrivers suit heavy-duty work involving tough-to-budge slotted screws and bolts. Square shank provides grip for pliers and wrenches to safely deliver more torque. Square-shaped handle with molded-in thumb stop creates strong, comfortable grip for turning difficult screws by hand, and prevents roll-away when tool is laid down. Chrome blades resist corrosion and facilitate cleanup. Screwdrivers come in ¼, 3/16, 5/16, and 3/8 in. blades and variety of lengths.

MSC.Software Corporation / MSC.Mechanical Solutions    Costa Mesa, CA 92626
Jul 21, 2003 MSC.ADAMS 2003 motion simulation software allows engineers to simulate, understand, and quantify performance of mechanical systems before building hardware prototypes. Solution includes faceted geometry approach that solves 3-D contact problems, resulting in realistic part contact. Product also offers integration with MSC.Nastran and MSC.Fatigue, compatibility with MSC VPD Campus License system, and 3-D Plotting for ADAMS/Engine and ADAMS/Vibrations.

Dylon Industries, Inc.    Cleveland, OH 44144 1045
Jul 21, 2003 Heavy-duty, water-based Grade FW-3361 contains micro-fine graphite and EP additives to forge difficult, warm or hot, ferrous, non-ferrous, and super alloy metals. Also suited as back-extrusion lubricant, product can be used on dies with temperatures from 250 to 1000°F. Lubricant dilutes with water and is spray applied to dies for best results. Dilution ratios depend on job severity, and are usually 5:1 or greater.
