MHI Injection Molding Machinery, Inc.    Addison, IL 60101

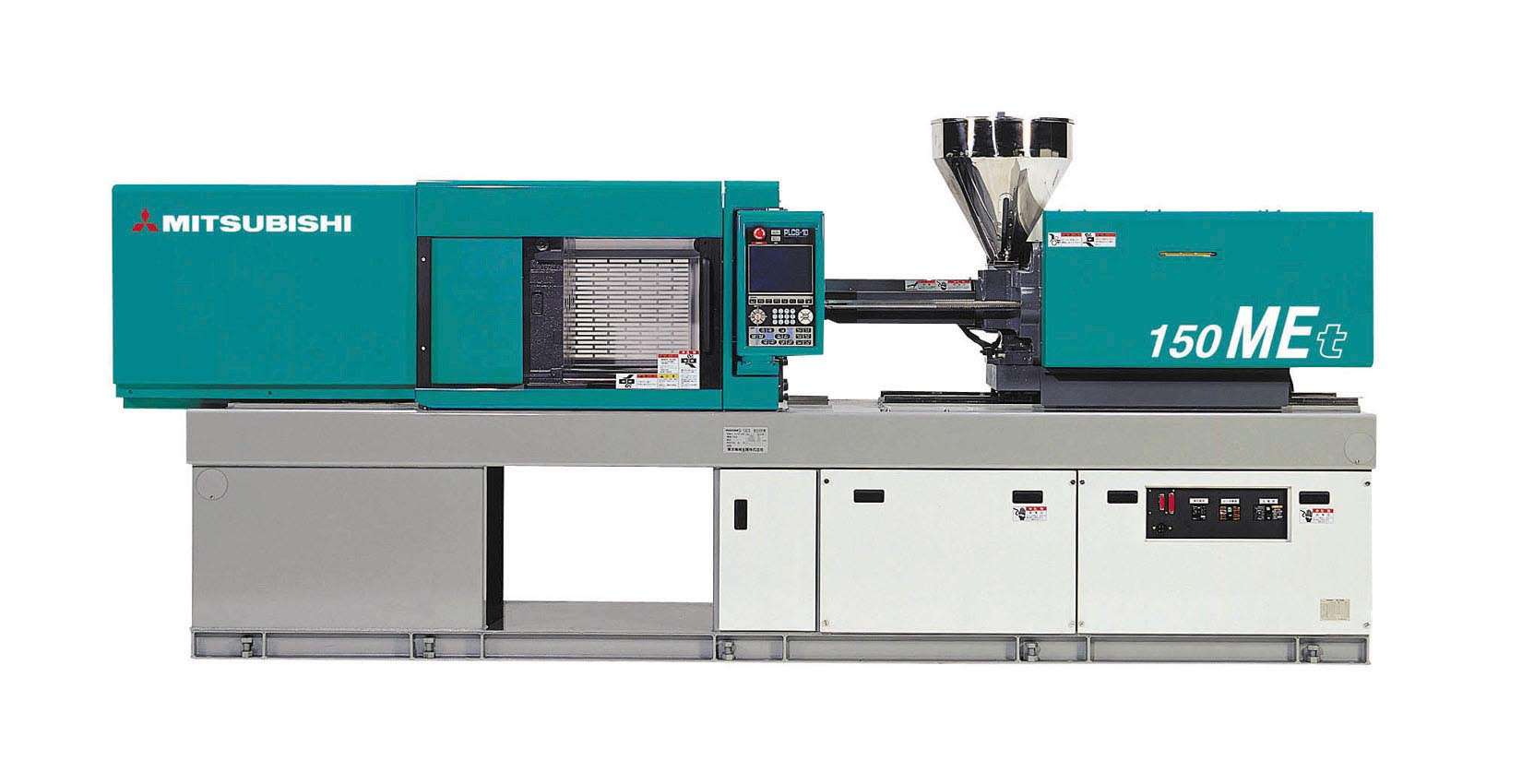

Jul 24, 2003 All-electric, Series MEt features RASMA-L frame, which suppresses vibration and holds accuracy to micron levels. Rigid clamping mechanism and double-roller supported, movable die plates promote precision. Super Resin Control-II ensures constant metering, while PLCS-10 control uses LAN for accurate communication between controller and servo motor amplifiers. Configurations range from 35–300 tons with max screw speed of 11.8 ips and max pressure of 34,128 psi.

Entertron Industries, Inc.    Gasport, NY 14067
Jul 24, 2003 By working with aliases, ePalm lets user restrict full access to ePLC-based systems while granting access to reduced set of parameters. With spreadsheet-style interface, it allows users to manage lists of aliases that are used to set control limits and generate alarms. Password protection ensures that authorized users are able to read/write to ePLC register, turn internal relay coil on/off, read status of internal relay coil, and read discrete input status.

Poly-Optical Products, Inc.    Irvine, CA 92614

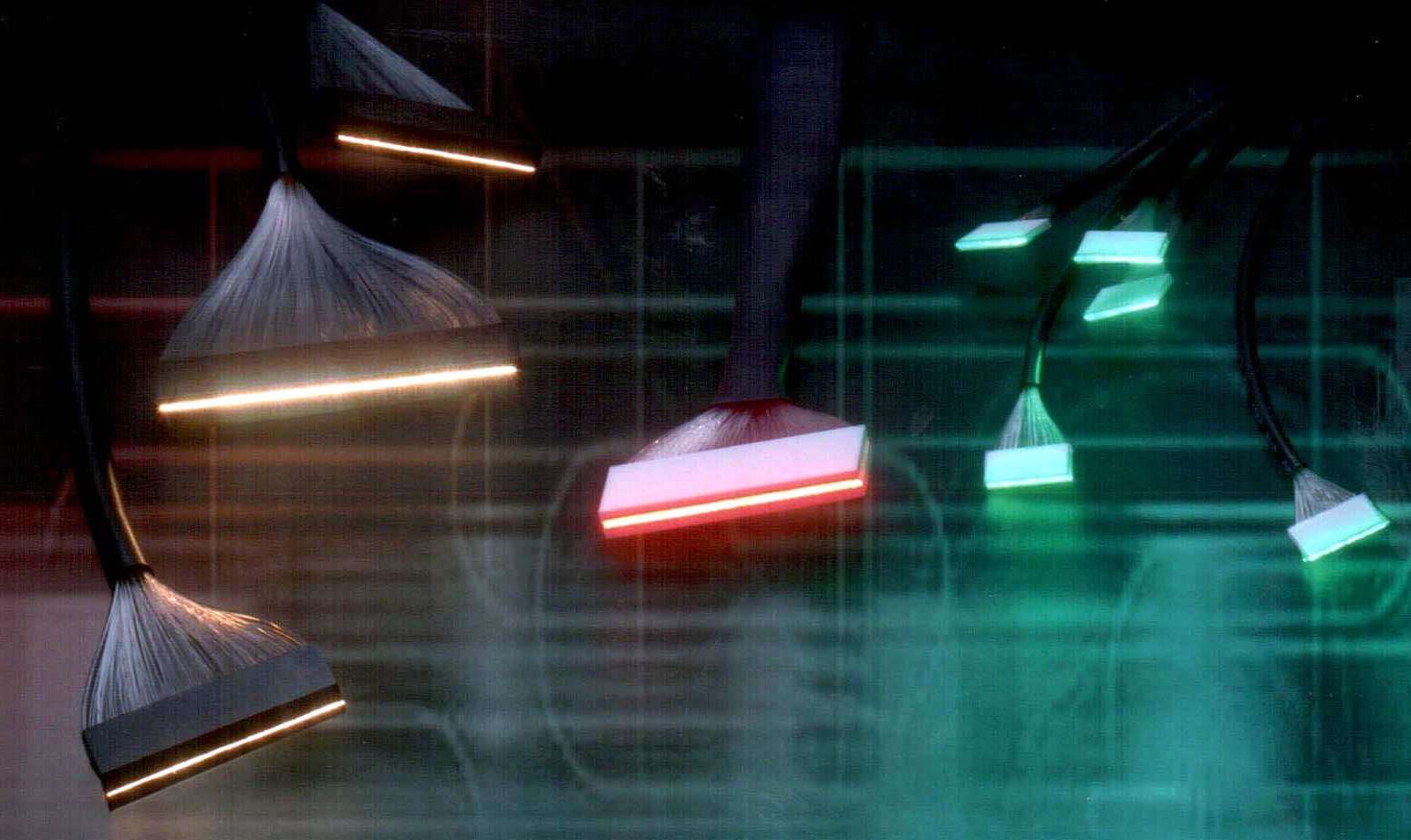

Jul 24, 2003 OptiLine® lights utilize a mixture of fiber optic layers to achieve multi-colored lighting effects and different degrees of brightness. Multi-tail design allows lines of light to be put into different areas while utilizing only a single light source. LED technology yields 50,000+ hrs of life and consumes 30 mA. Product suited for use in consumer electronics; medical and dental equipment; and automotive radio and HVAC controls.

B & K Precision Corp.    Placentia, CA 92870
Jul 24, 2003 Model 881 ESR and DCR Capacitor Tester measures equivalent series resistance of electrolytic capacitors in or out of circuit, and can also be used to measure low value non-inductive resistors. Tester, in DCR and ESR Mode, detects shorted capacitor in its DCR cycle and also determines its ESR value. Unit measures ESR and DSR from 0.1–30 ohms, automatically calibrates internal signal, and incorporates 3-color, front panel chart that shows ESR readings of Good, Fair, and Bad.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988

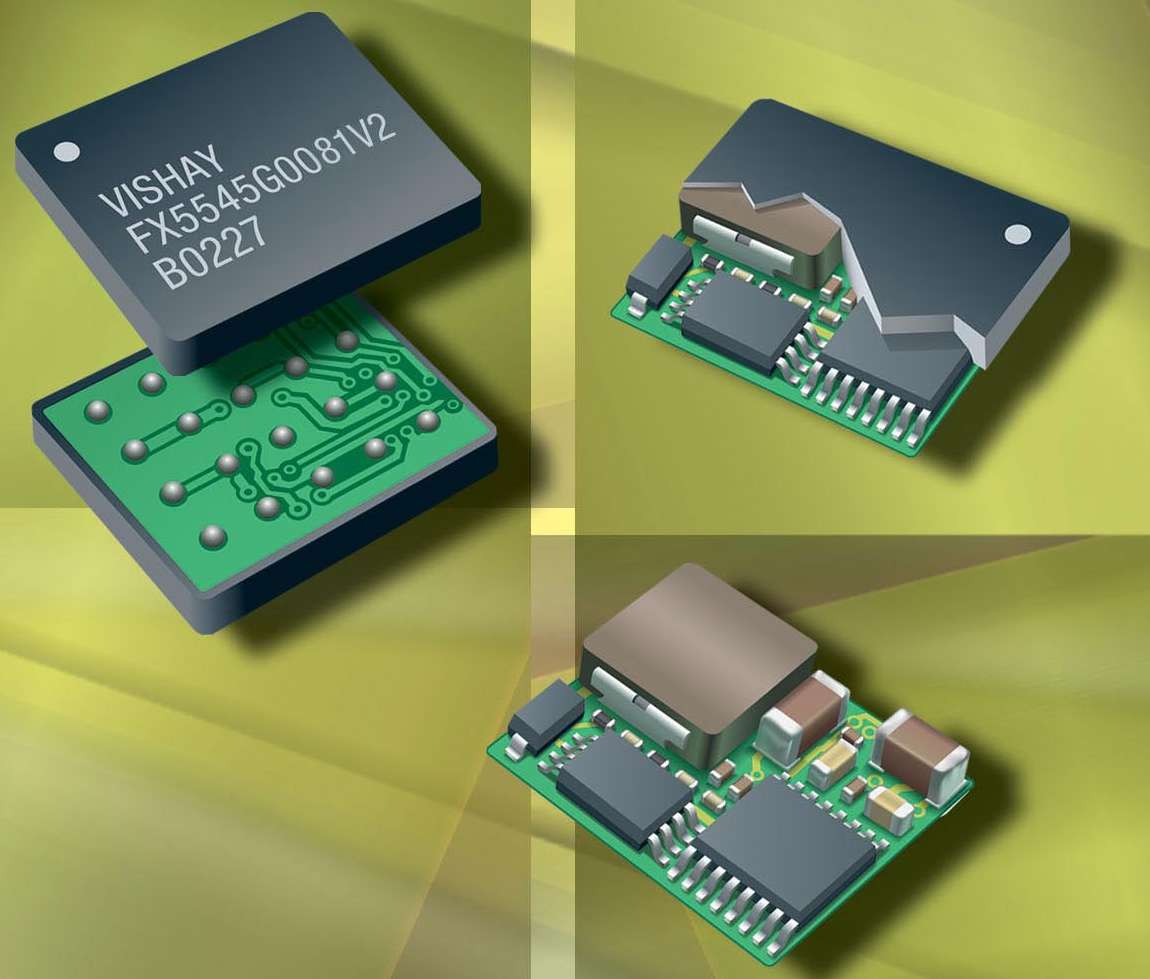

Jul 24, 2003 FunctionPAK® FX5545G008 consists of one single-package, DC/DC, synchronous buck converter rated for max output power of 3.6 W and max current of 3 A. It delivers power density of more than 380 W/in.³ and comes in 20-port, surface-mount, BGA package that measures 14.7 x 12.2 x 3 mm. Unit converts 2.5–6 V inputs to 0.8–1.2 V output voltage and can shift DC voltage levels while stabilizing battery outputs, filtering noise, and reducing ripple.

Linear Technology Corp.    Milpitas, CA 95035

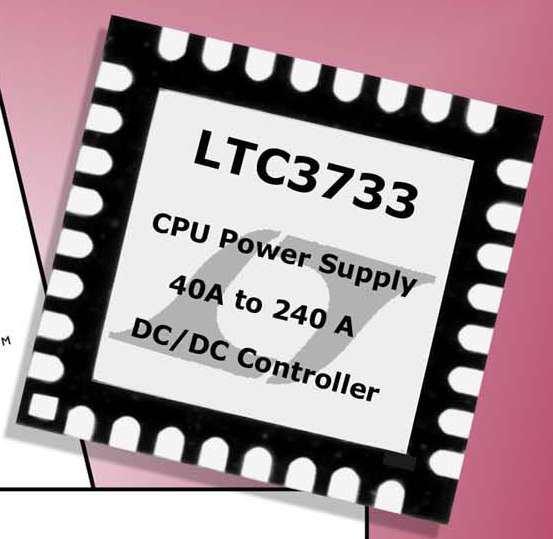

Jul 24, 2003 Model LTC3733 consists of one PolyPhase® DC/DC synchronous step-down controller with integrated MOSFET drivers for powering single or multiple AMD® Hammer CPU platforms. Capable of delivering up to 120 A load current, unit provides ±5% current matching among its output channels. Its 5-bit VID interface allows CPU to vary output voltage from 0.8-1.55 V. Unit also offers adjustable or synchronizable operating frequency from 250-600 kHz.

Fairchild Semiconductor Corp.    South Portland, ME 04106

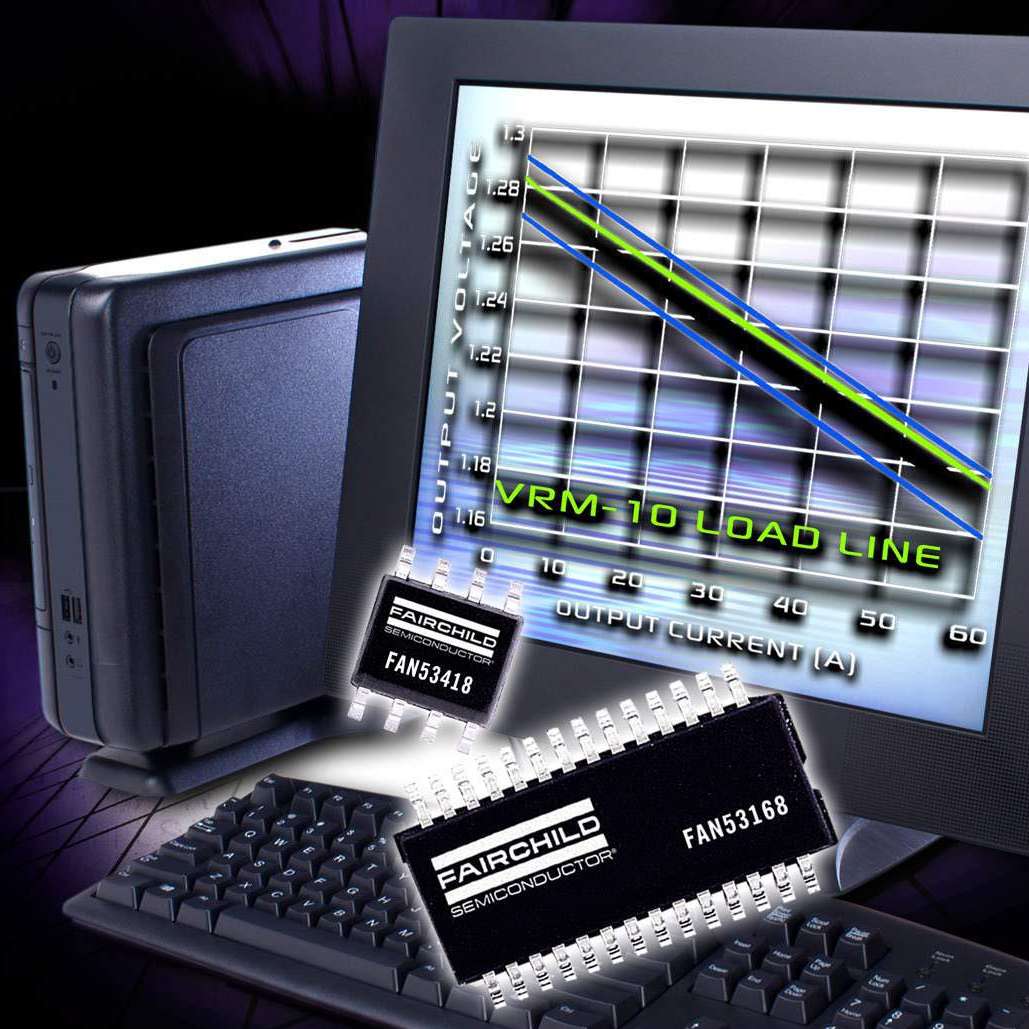

Jul 24, 2003 Model FAN53168 multi-phase, DC-to-DC PWM controller and Model FAN53418 synchronous, MOSFET driver work together to form multi-phase synchronous buck converter. To meet tight VRM/VRD10 loadline, FAN53168 uses temperature-compensated inductor current sensing. Unit combines high-speed control loop with active voltage positioning to meet CPU load transient requirements. FAN53168/FAN53418 chipset allows regulator to scale to 2, 3, or 4 phases and can provide over 120 A output.

Intelligent Quality Systems    Toledo, OH 43624

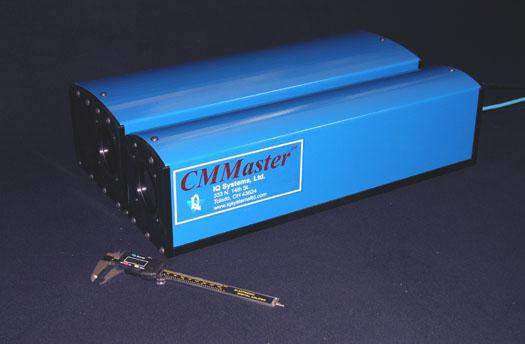

Jul 24, 2003 CMMaster™ Model SS offers Full Field technique that quickly verifies entire surface, not just a few points. It does work of multiple CMMs and eliminates need to manufacture and store precision fixtures. Unit images areas over 3 ft in diameter in single view with cycle times of 3–6 sec. Design facilitates integration on factory floor and is suitable for gauging large areas of critical surfaces such as airfoils, auto panels, and automotive glazings.

Pilz Automation Safety L.P.    Canton, MI 48187

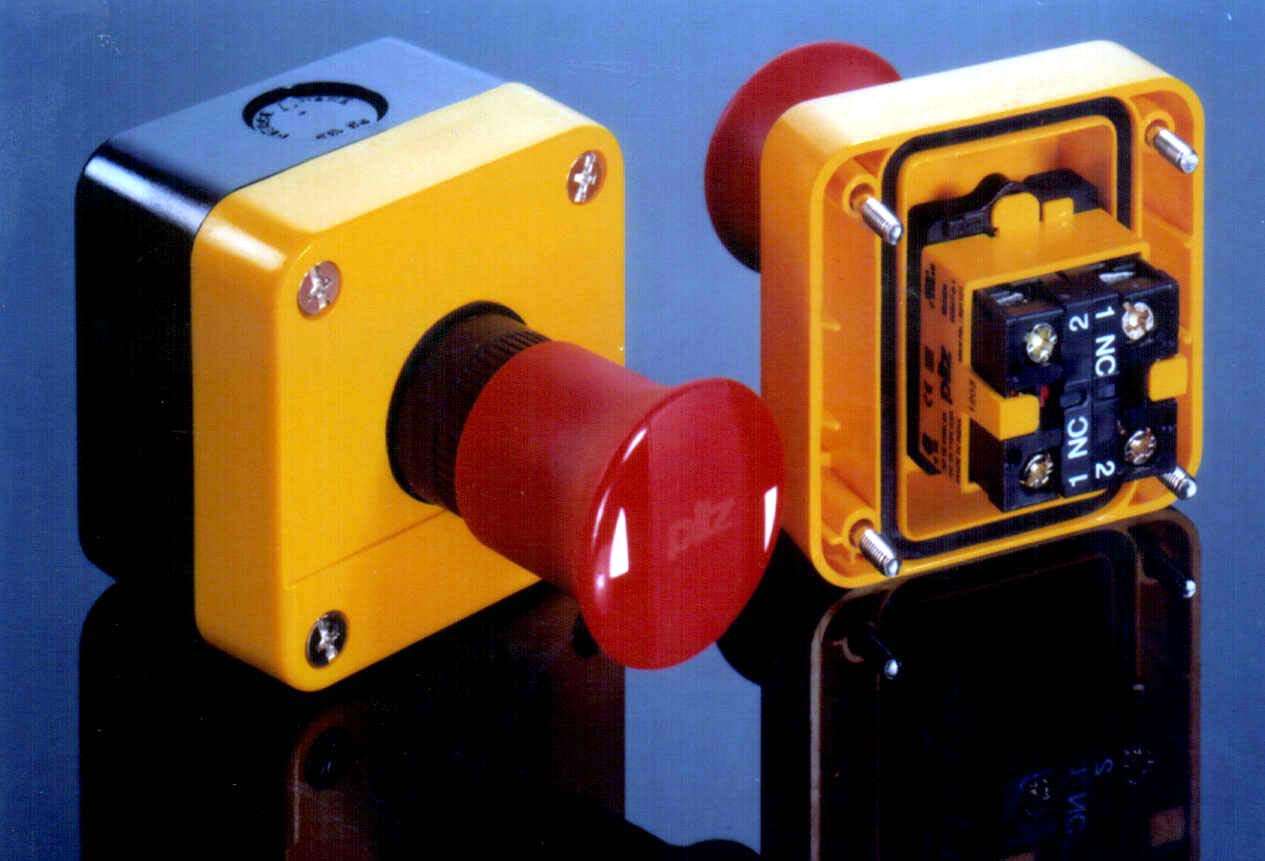

Jul 24, 2003 PIT Emergency Stop Pushbutton is suitable for applications up to category 4 in accordance with EN 954-1, and meets requirements of IEC/EN 60947-5-5 and EN 418. Safety contact block prevents contact elements from being released without detection. Contact elements are gold-coated, enabling them to control very low currents down to 1 mA within safety circuit. Available as turn-to-release or key-release unit, pushbutton is designed to IP65.

PHD, Inc.    Fort Wayne, IN 46899

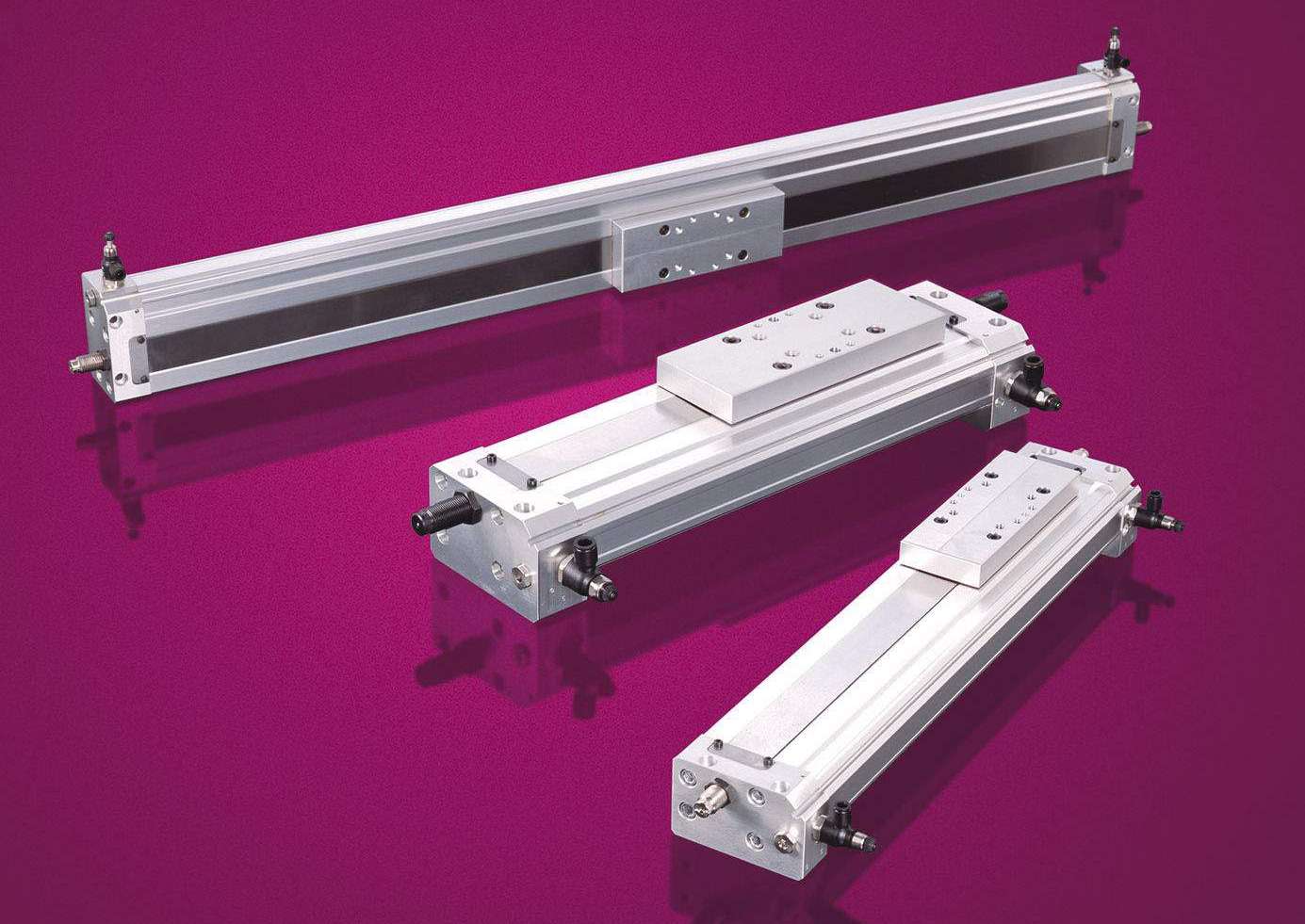

Jul 24, 2003 Series SFP is available in 27 and 40 mm bore sizes with linear travel lengths up to 3,400 mm in 25 mm increments. Stainless steel outer band and saddle scraper seal enclose bearing system and continuously protect internal mechanisms from contaminants. Body incorporates side slots for mounting of reed and solid state switches. Units include adjustable cushions for smooth deceleration at end of travel, 2 standard port locations, and 2 precision-fit dowel holes.

Nanomotion    Ronkonkoma, NY 11779
Jul 24, 2003 Model AB5 linearizes voltage to velocity profile at amplifier level, and completely eliminates need for custom servo algorithms. It allows user to turn motor static holding force on or off, providing benefit of manually moving linear or rotary mechanism, as teach mode, and then applying static holding force when desired. Applications include semiconductor, fiber optic, electronics, bio-medical/pharmaceutical, automotive, and general assembly.

Enduro Systems, Inc., Composite Products Div.    Houston, TX 77024-2112

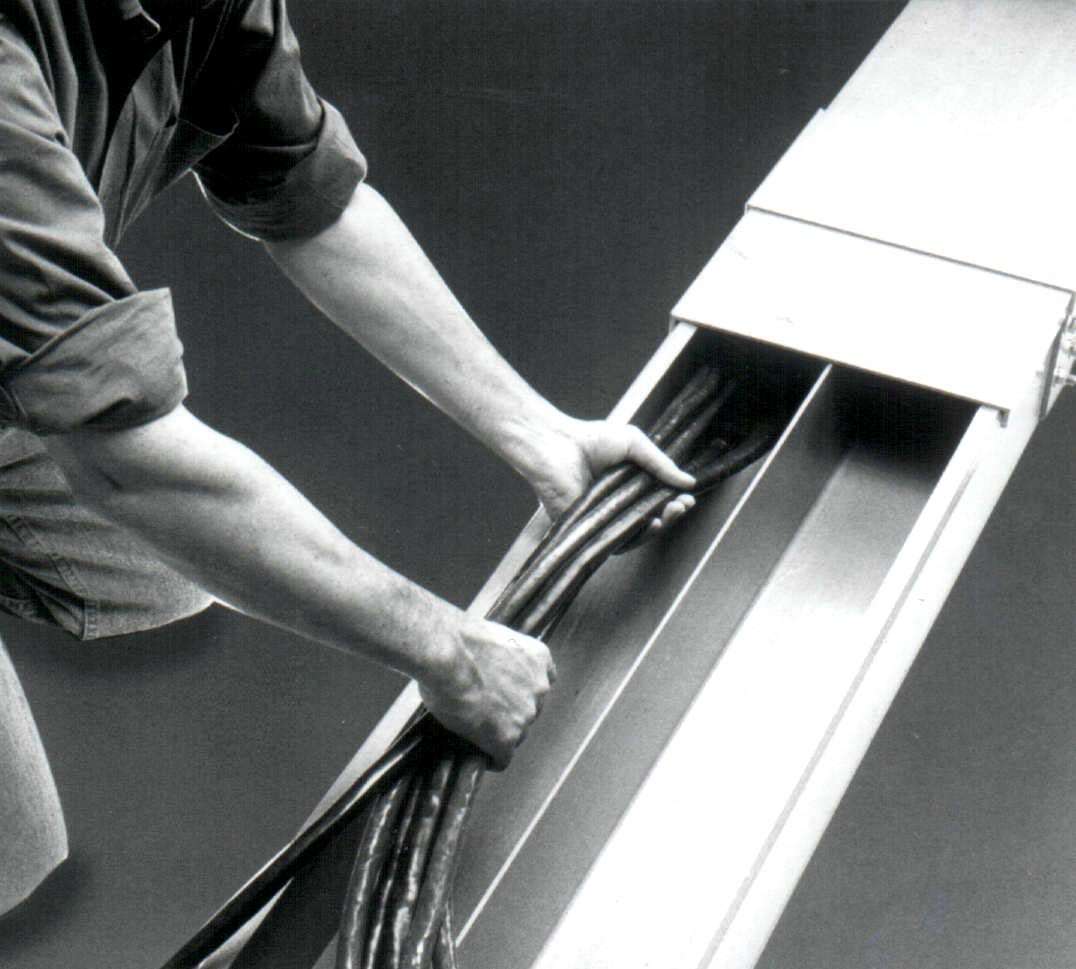

Jul 24, 2003 Comwayâ„¢ Lay-In Wireway uses fiberglass composite and fire-retardant resin formulations for corrosion resistance. Snap-on cover protects data control, communication, and power cables from adverse atmospheric conditions and unauthorized/accidental access. Wireway carries Class 1 fire rating, maintains UV resistance and low thermal conductivity, and can be used where metallic systems are unacceptable. It is non-interfering, non-magnetic, and non-conductive.

Grace Construction Products, A Unit Of W.R. Grace & Co.    Cambridge, MA 02140-1692

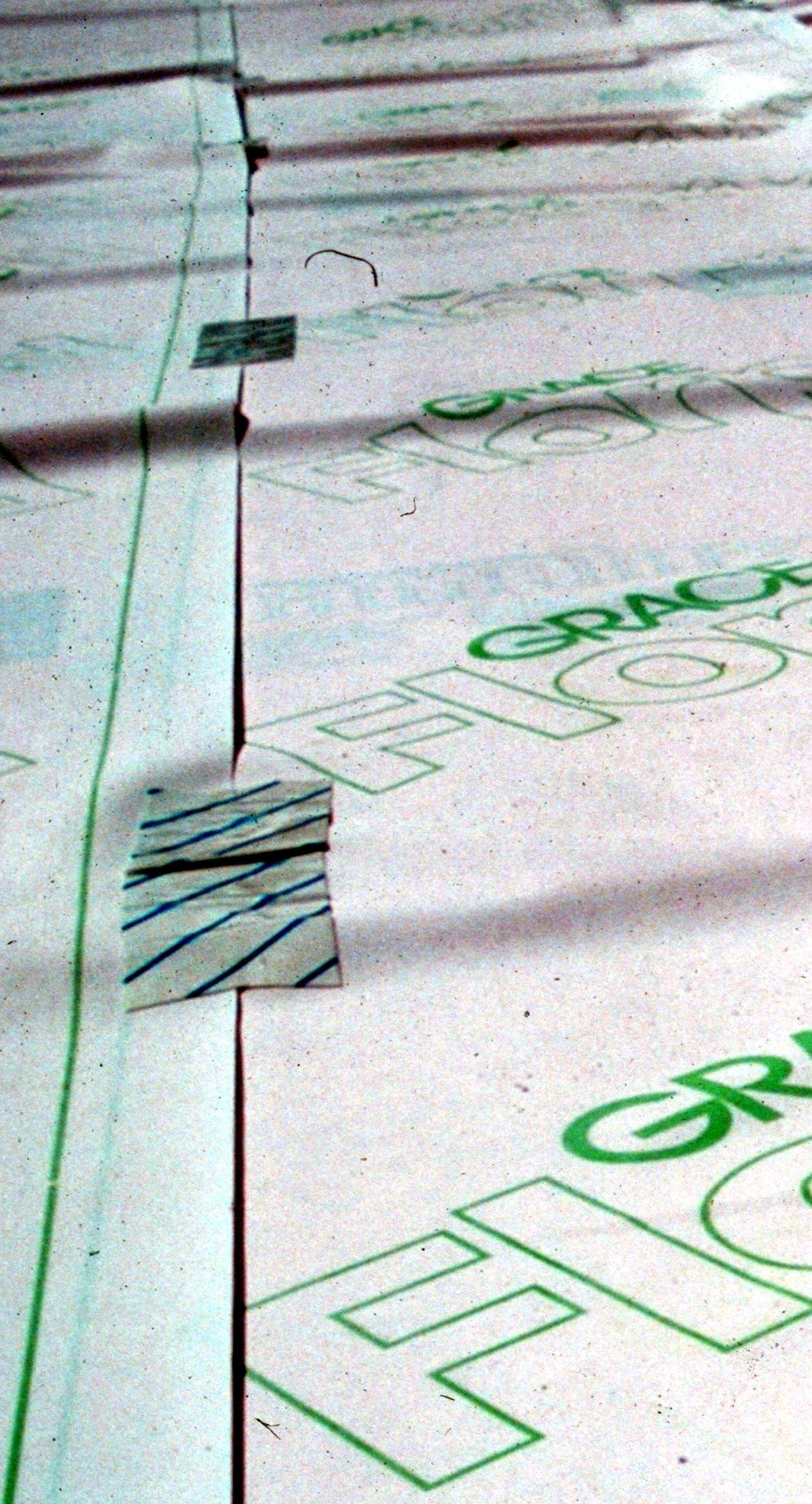

Jul 24, 2003 Incorporating Advanced Bond Technologyâ„¢, Florprufeâ„¢ is made of chemical-resistant polyolefin sheet, reinforced with non-tacky adhesive coating. It comes in 4 x 115 ft kick-out rolls, which are applied over leveled and compacted base. When liquid concrete is poured over membrane, pressure-sensitive adhesive forms continuous, integral bond to concrete. Florprufe maintains adhesion to slab, even in cases of ground settlement.

Hapman Conveyors    Kalamazoo, MI 49003

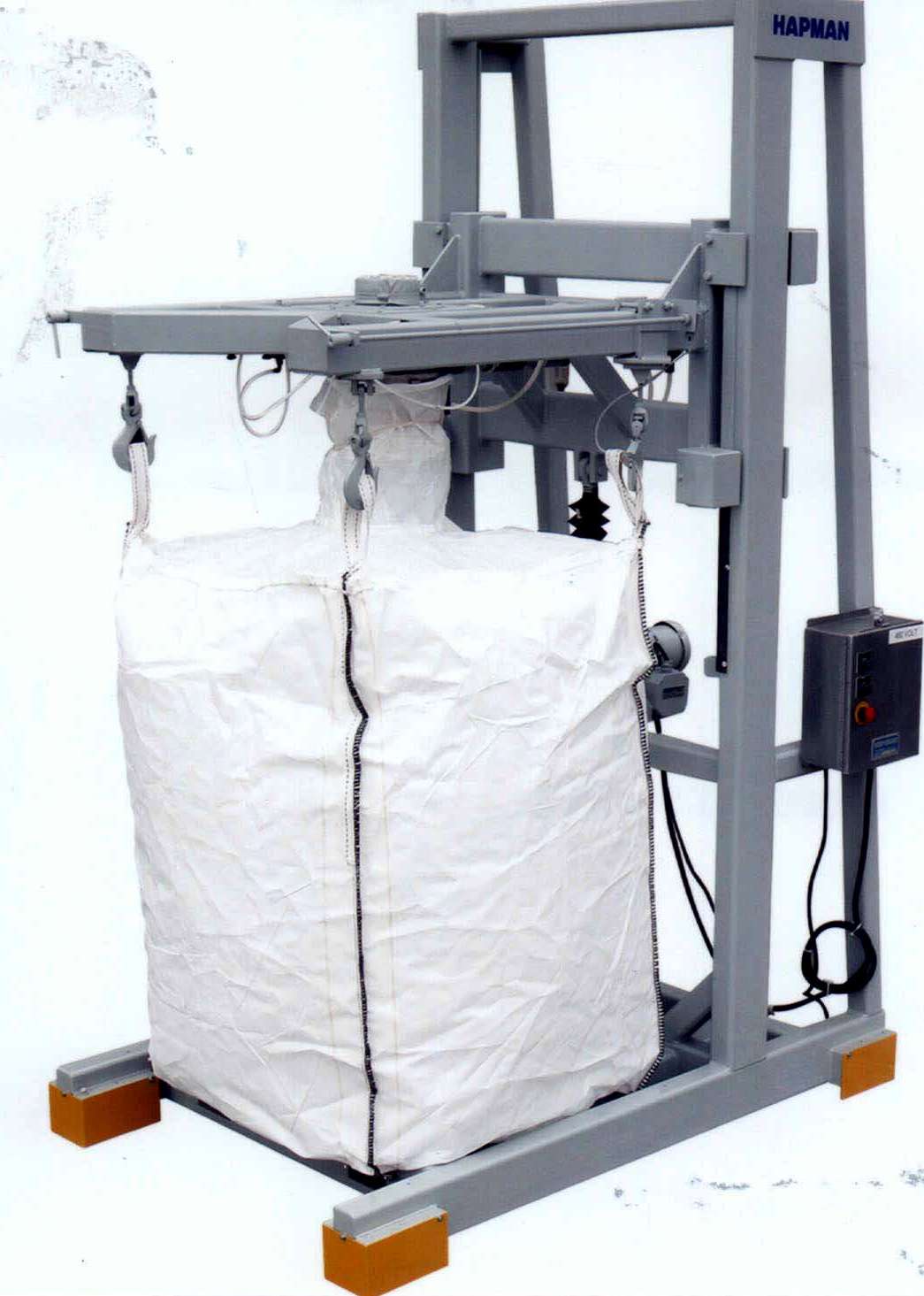

Jul 24, 2003 Utilizing cantilevered, heavy-gauge, carbon-steel tubing, Bulk Bag Filler allows safe 3-sided access to bulk bag filling operations. Remote bag release, desensification, de-aeration, batch weighing, and transport conveyors are available to facilitate handling of FIBCs. Mechanical-screw, adjustable-height option allows flexibility to handle various bag sizes and helps assure properly filled and stackable bags.

Caldwell Group, Inc., The    Rockford, IL 61109

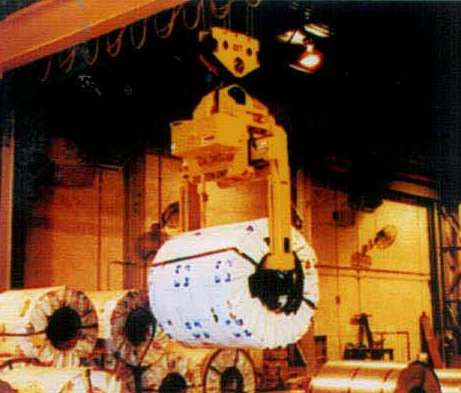

Jul 24, 2003 Strong-Bac® motorized coil grabs feature enclosed drive system that is protected yet easily accessible for inspection or maintenance. Standard safety features provide precise control of lifter and protect coil from damage. Options include ID sensors, urethane padding, and custom designed sizes.

GE Intelligent Platforms    Charlottesville, VA 22911
Jul 24, 2003 Reflective Memory Hub is a 2 Gbyte/s configurable managed device that can be controlled via Ethernet for LAN and WAN access or via RS-232 port for local access and control. It automatically bypasses port when it detects loss of signal or loss of valid synchronization patterns. Hub provides up to 8 Reflective Memory ports using SFP transceivers. Gang Select switch allows ports to be configured as single loop of 8 ports or 2 separate loops of 4 ports each.

PrioSoft    Baltimore, MD 21209
Jul 24, 2003 Construction Management software incorporates database for estimated time and costs for tasks that are used most often. For complex jobs, estimating module allows users to create item list and assemblies and assign phases to all parts of project. Software also permits sequencing of individual items within each assembly. Line items are assigned to categories that are carried into the integrated Accounting and Job Costing capability.

Kyocera Mita America Inc.    Fairfield, NJ 07004
Jul 24, 2003 ECOSYS FS-C5016N color and monochrome printer combines multi-bit, 600 dpi color images with networking using standard IB-21e 10/100BaseTX network interface. It includes 500-sheet paper drawer, 100-sheet multi-purpose tray, standard 96 MB RAM, optional 20 GB hard disk drive, and PowerPC750CXe-400 MHz CPU. System supports popular operating systems and print description languages including KPDL3, PCL6, and PRESCRIBE. PDF direct print is also supported.

Kontron    Poway, CA 92064
Jul 24, 2003 Model CP306, based on Intel® Pentium® M processor, offers 1.6 GHz clock rate, 1 MB L2 cache, 333 MHz memory clock rate, and 400 MHz processor side bus. On-board communication interfaces include 1 x Gigabit Ethernet, 1 x Fast Ethernet, 4 x USB 2.0, and up to 4 COM channels. Dual ATA100 interface and CompactFlash socket are standard. Available as single or dual slot, board is suitable for robotics, mobile data acquisition systems, and aircraft cockpits.

Emerson Process Management, Intellution Division    St. Louis, MO 63136 8506
Jul 24, 2003 Micro Motion ProLink® II configuration software communicates using HART® or Modbus protocols. Supporting maintenance efficiency advances of PlantWeb digital plant architecture, it enables customers to more easily diagnose process or flowmeter issues. Using ProLink II on Windows 98 or XP-based computer, users can configure transmitter parameters, trend process variables, and set advanced transmitter functions such as enhanced density curves.
