Wesco Industrial Products    Lansdale, PA 19446

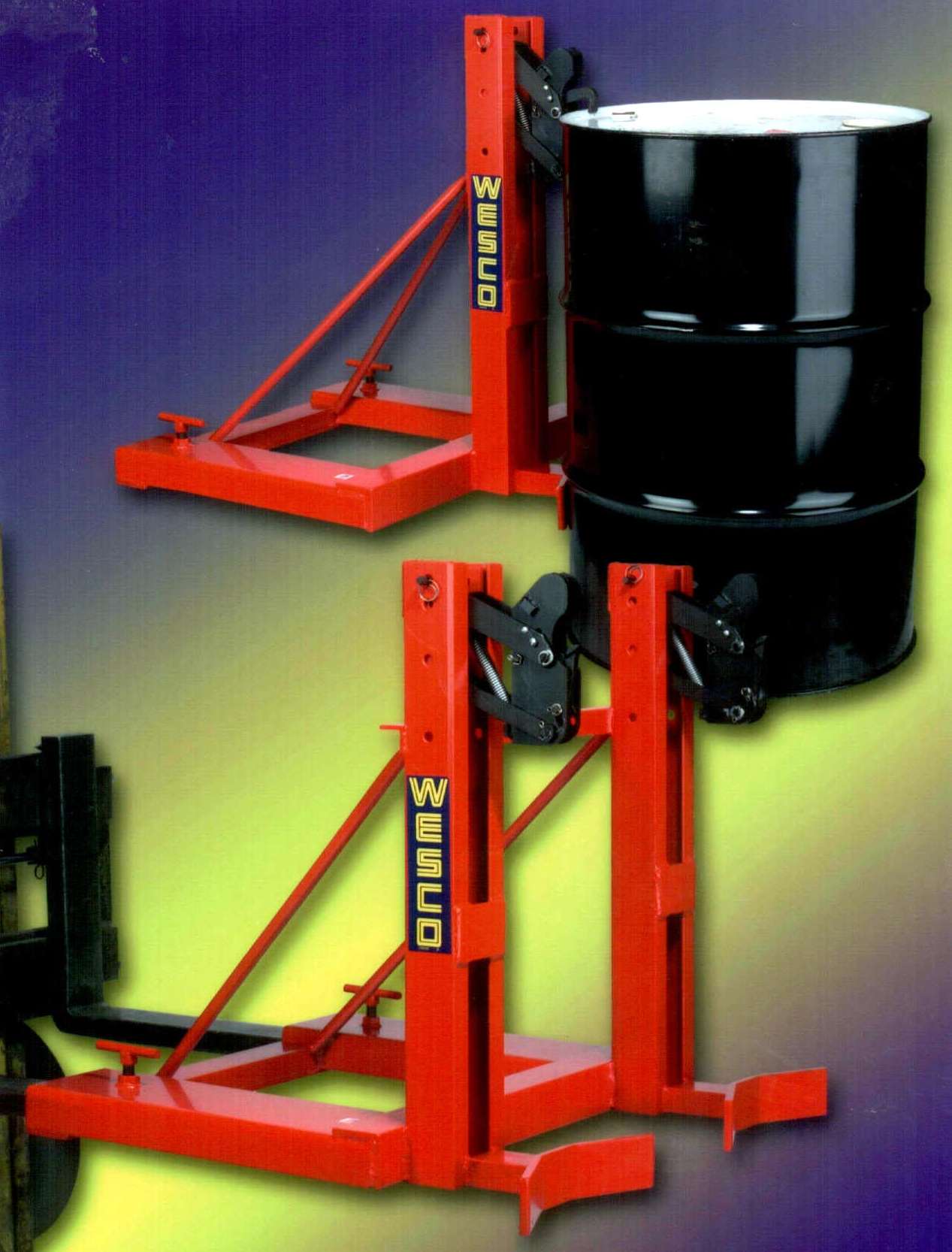

Jul 22, 2003 Economy Gator Grips, for steel, fiber, and poly drums with open or closed heads, utilize Auto Grip Lock feature that locks grip-jaws closed and maintains positive lock on drum rim throughout transport. Effective even over rough terrain, jaws do not unlock until drum is placed on ground. Units are offered in 2 models: Single Drum Fork Mount, with 1,000 lb capacity, and Dual Drum Fork Mount, with 2,000 lb capacity.

Telatemp Corp.    Fullerton, CA 92831

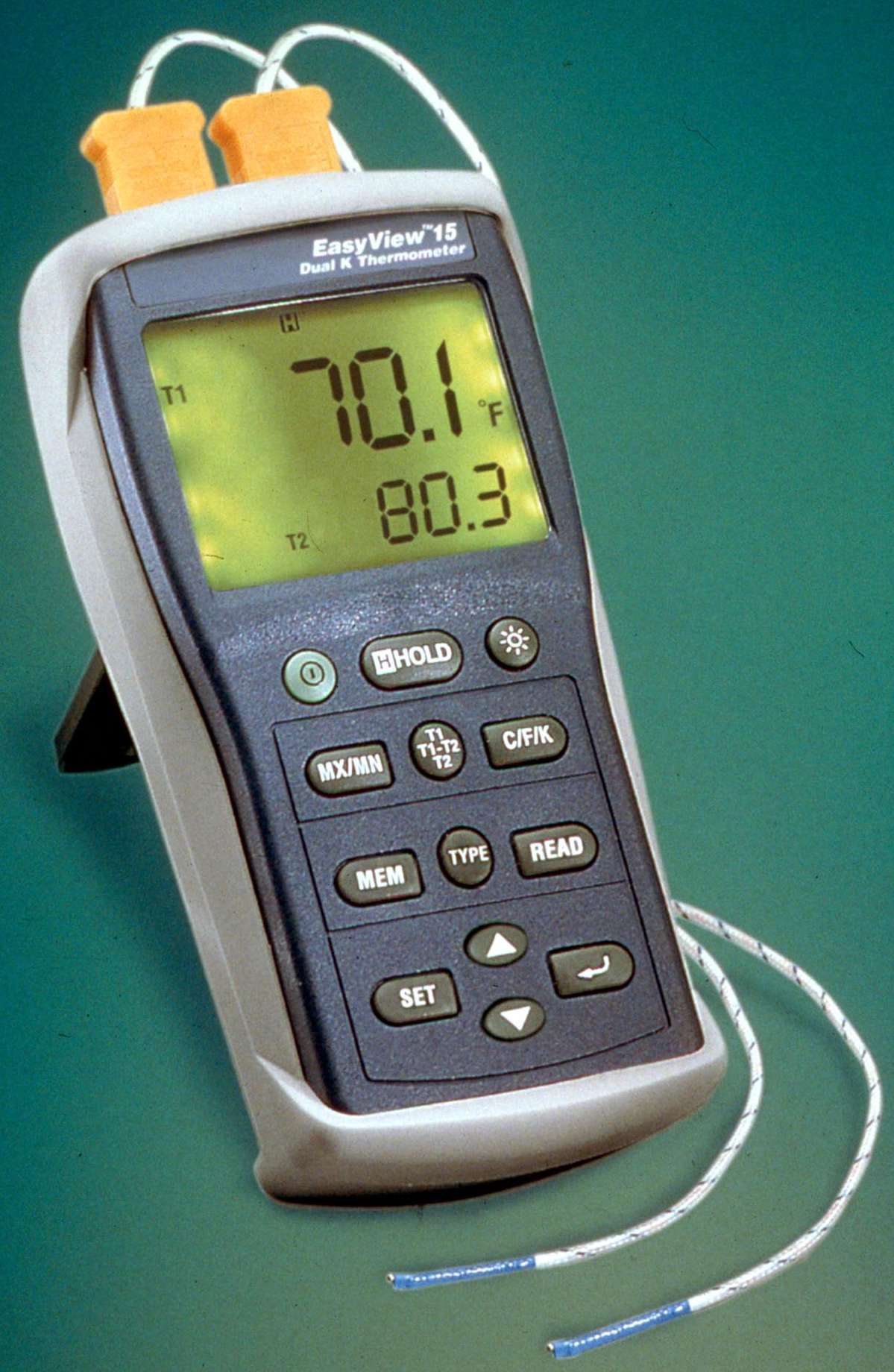

Jul 22, 2003 Model EA15 measures, stores, and displays temperature measurements from 2 different thermocouples, simultaneously, in user's choice of °F, °C, or Kelvin. Using supplied Windows®-compatible software, data can be transferred to PC for plotting and analysis. Type J, K, T, E, R, S and N Thermocouples with mini-connectors allow 0.1°/1° resolution. Unit comes with backlit display, 2 Type K bead-wire temperature probes, and RS232 cable.

Panduit Corp.    Tinley Park, IL 60477 3091
Jul 22, 2003 Suited for general-purpose bundling, TAK-TAPEâ„¢ hook and loop fastener is made of thin, flexible material that wraps around cable bundle to speed installation. Adjustable, releasable, and reusable product comes in continuous roll that can be cut to size with Telco snips or PANDUIT cutter, included with TTS-35RX0 (ten 35 ft rolls in plastic overwrap). Reusable plastic case, included with TTS-20R0 (one 20 ft roll), keeps material clean and at hand.

Porta-King Building Systems    Earth City, MO 63045 1211

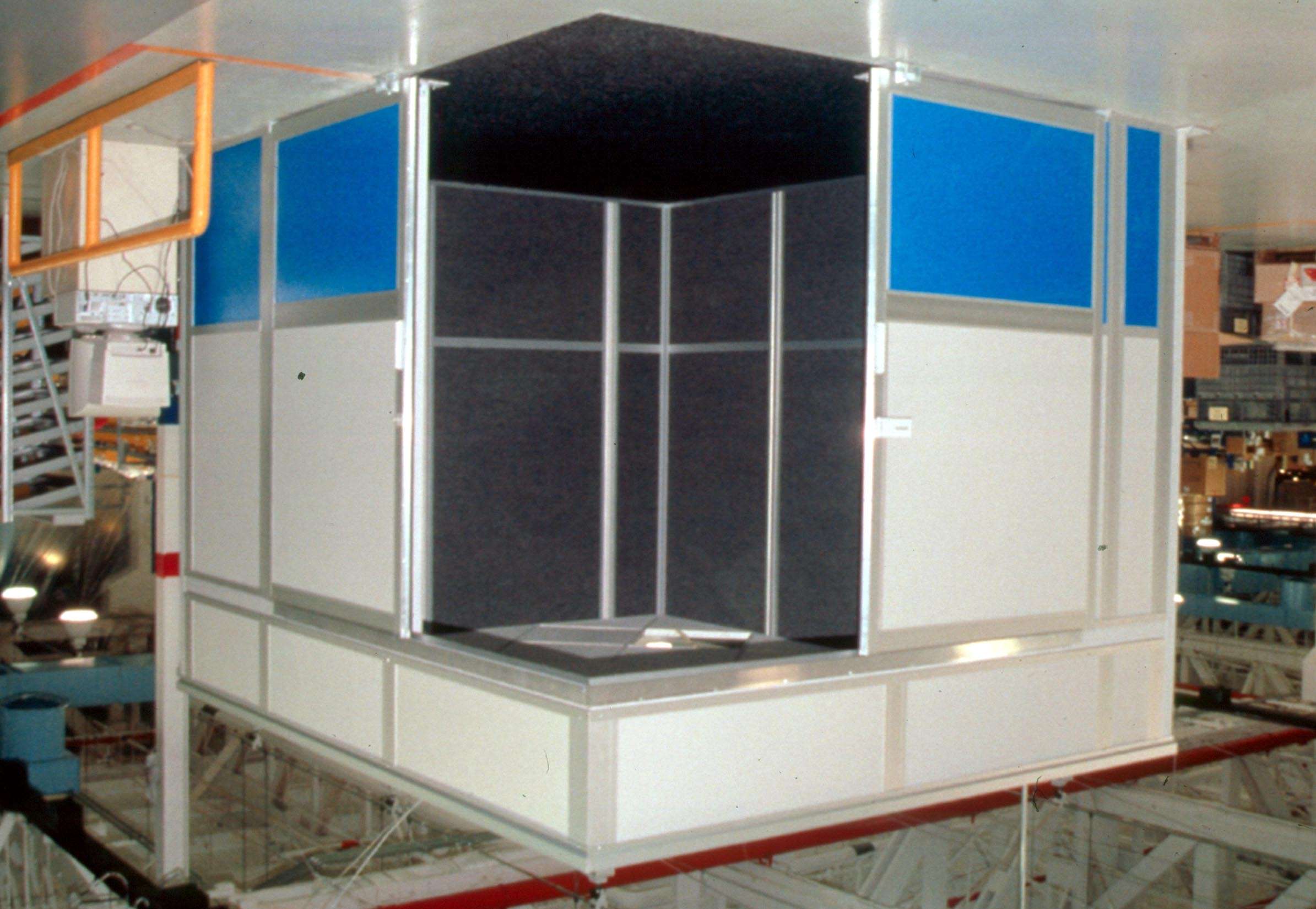

Jul 22, 2003 Suited for industrial applications, custom-designed equipment enclosures feature bi-parting door that opens in corner to facilitate moving of large equipment. Panel includes fiberglass reinforced plastic finish on lower panel sections which protects against damage and scratches from pallet jacks and other moving equipment. A solid core panelized roof improves insulation and sound control.

Eraser Co., Inc., The    Syracuse, NY 13221

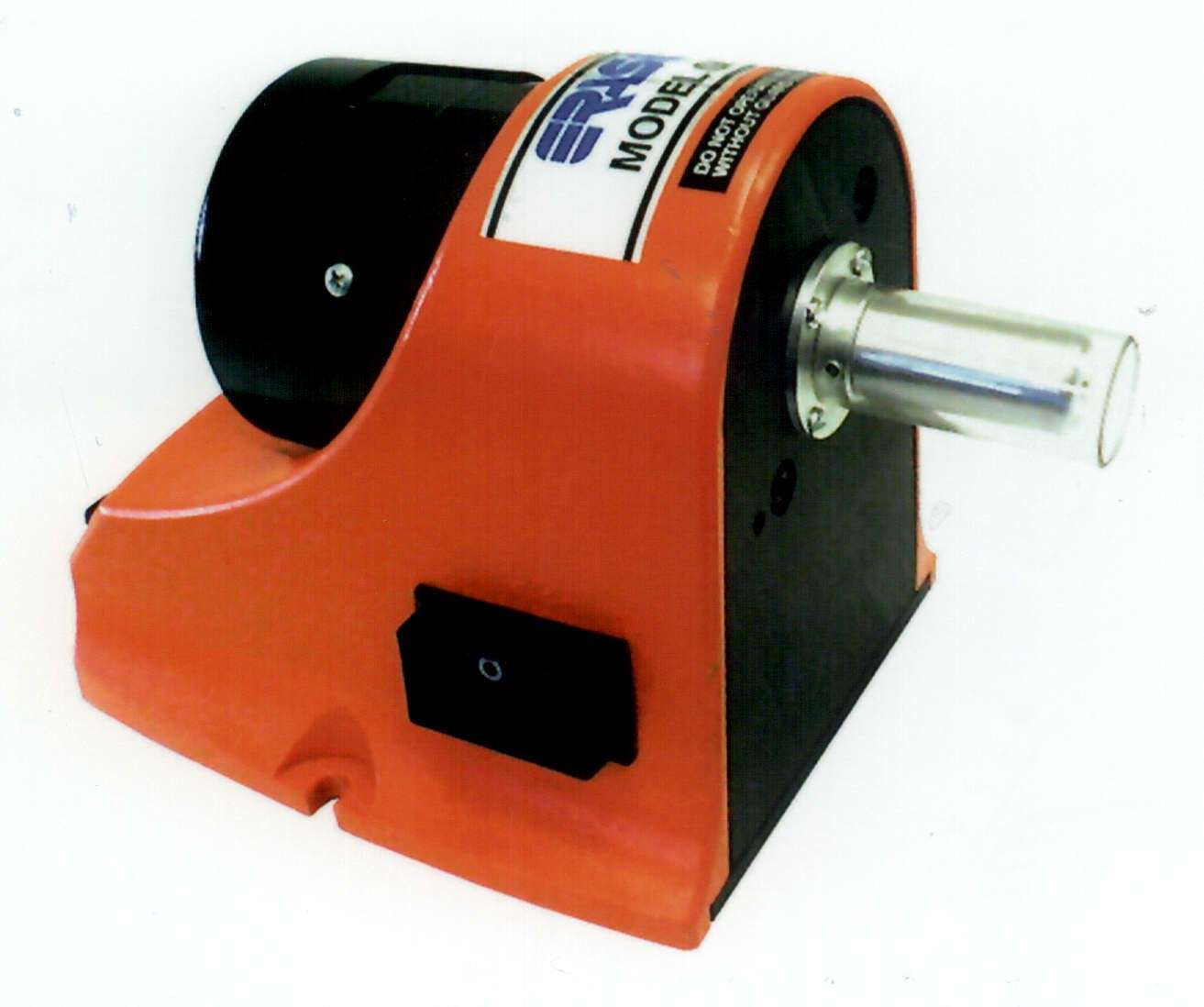

Jul 22, 2003 Model G10S twists strands of individual stripped wires or twist wrapped shields on coaxial cables from 12–26 AWG. It can also twist together strands of 2 or more wires for up to 2 wires of 18 AWG. Reversible motor allows twisting in either clockwise or counter-clockwise direction, depending on lay of wire strands. Model G10S is CE certified and meets EU safety standards.

Shure Manufacturing Corp.    Washington, MO 63090

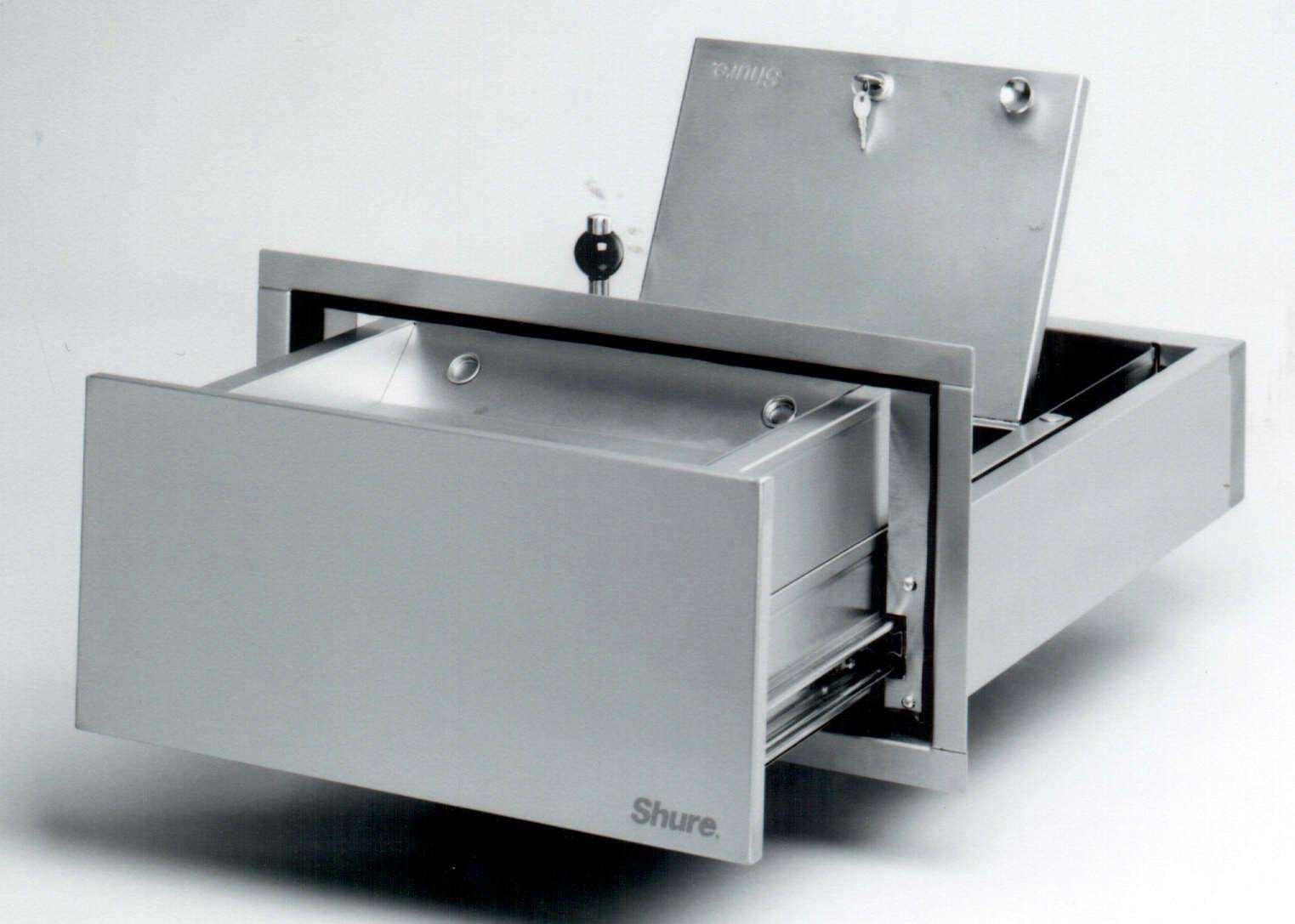

Jul 22, 2003 Shuresafe® Model 672319 Pass-Thru Drawer is a stainless steel security drawer for transferring items to and from operator. It can pass small transactions such as money or credit cards, or deal tray can be removed to pass large items such as gallon containers and 12-packs. Forward hinged cover conceals drawer's cash compartment, and when drawer is fully opened, center divider closes off wall opening.

Spraying Systems Co.    Wheaton, IL 60189 7900
Jul 22, 2003 WindJet® Air Knife features protruding leading edge that extends 1/8 in. beyond air slot along length of knife. Flow of air is directed out of knife in uniform, high-volume straight stream, ensuring no spotting or blotching. Air knife lengths include 6, 12, 18, 24, 30, and 36 in. with .040 or .060 in. air slots. Supplied air is generated by Gast® regenerative blower assemblies available in 5, 10, 15, and 30 hp.

Aaeon Electronics, Inc.    Hazlet, NJ 07730

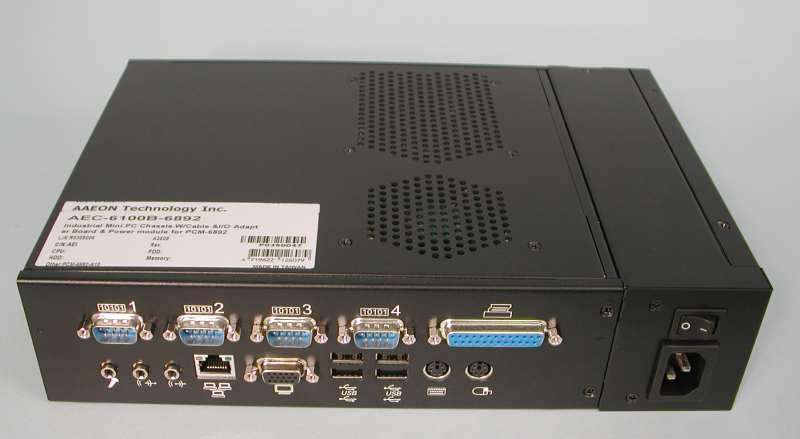

Jul 22, 2003 Utilizing VIA Eden 667 MHz CPU, Model PCM-6892-A10 includes AGP 4X graphics chip, two 10/100 Fast Ethernet LAN ports, two Type II PCMCIA slots, CompactFlash slot, and 4 USB 1.1 ports. L2 cache offers 64 KB of memory, along with front side bus running at 133 MHz. Enclosure comes with I/O ports, interior cabling, and 100 W modular ATX power supply. SBC is equipped with 128 MB of Kingston® memory and 256 MB Kingston® CompactFlash® module with Windows® XP-Embedded OS installed.

D-1 International, Inc.    Huntington, NY 11743

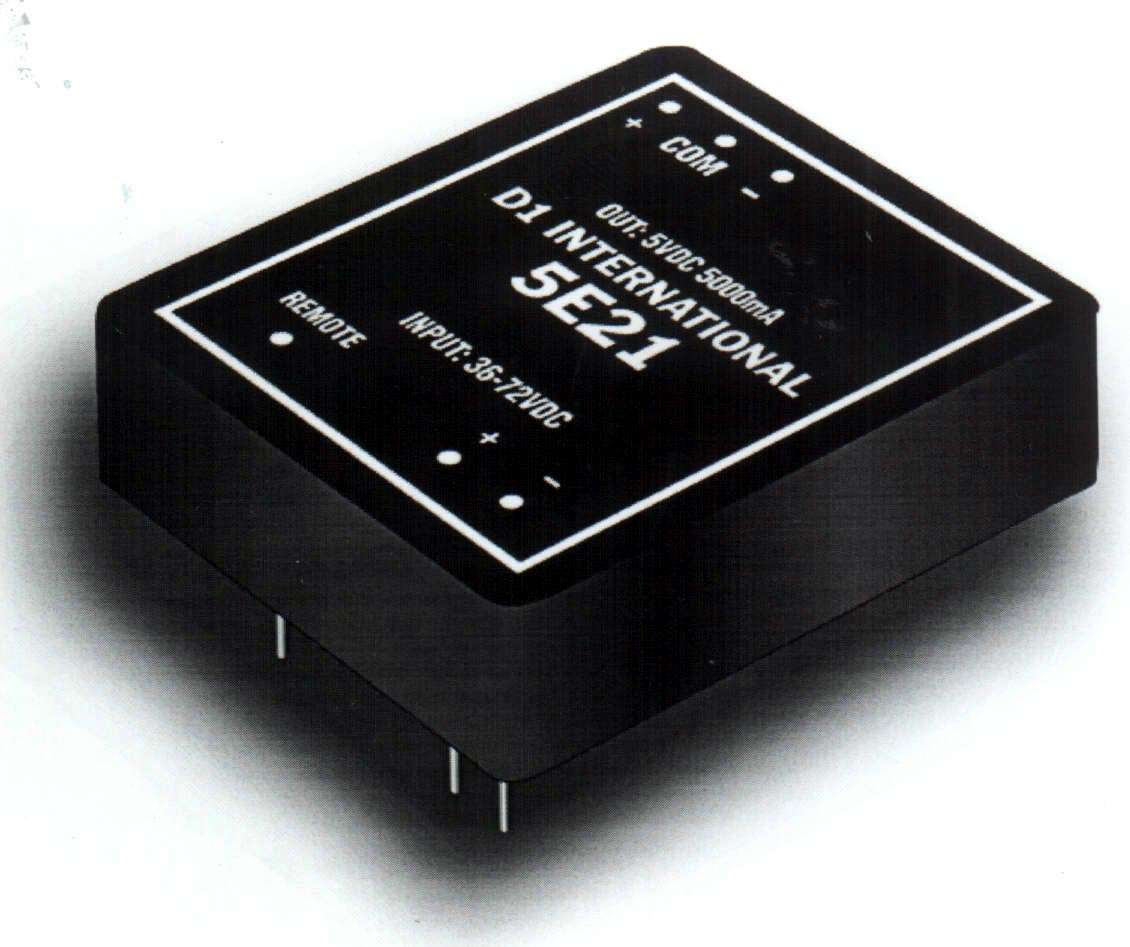

Jul 22, 2003 Series 5E 25/30 W DC/DC converters feature pi-input filter and 2:1 input voltage ranges of 9–18, 18–36, and 36–72 Vdc. Regulated, low ripple, single, dual, and triple outputs are available. CMOS/TTL-compatible, remote on/off control allows output to be put into powered down, stand-by mode. Single-output converters have external Output Trim that allows output voltage to be set within ±10% adjustment range. Efficiencies up to 84% are achieved due to 200 kHz switching frequencies.

Banner Engineering Corp.    Minneapolis, MN 55441
Jul 22, 2003 WORLD-BEAM® QS30 Series LLP models feature tightly collimated laser sensing beam of 4 mm or less, allowing for precise sensing at ranges up to 18 m. LLPC models offer small object detection where target can be smaller than sensing beam. Both microprocessor-based, 10-30 Vdc sensors feature visible Class 1 laser, 2 discrete outputs, pushbutton programming, and 8-segment LED bargraph display. Max output rating is 150 mA for each output.

Pactiv Corp.    Lake Forest, IL 60045
Jul 22, 2003 Panta-Pak® trays feature individual thermoformed cups, which cradle each pear and prevent it from spinning or jostling during transport. Fruit is buoyed in tray, off bottom of box, for minimal box contact. Offered in 5 cavity counts, product measures 14 3/4 x 22 11/16 in. Able to accommodate overlapping fruit sizes, tray dimensions enable layering either in twos or threes, depending on outer container type. Products also suit non-agricultural applications.

Kato Engineering, Inc.    Mankato, MN 56002 8447
Jul 22, 2003 HPD Turbine Generators, for steam and gas applications, offer vacuum-pressure impregnation of all rotor and stator windings, 100% epoxy solids, steel construction, and dynamic balancing of rotor and shaft. Products may be configured to meet unique needs. Available with power ratings from 3.5–8.5 MW and voltages up to 15 kV, generators weigh 36,000 lb (8.5 MW unit).

Xuron Corp.    Saco, ME 04072 1840
Jul 22, 2003 Suited for assembly and maintenance technicians, Xuron 2193F Hard Wire Shear features self-adjusting clamping fixtures that hold wire perpendicular to jaws. Full by-pass shearing action produces square cuts on both ends of hardened and tempered wire. Capable of cutting 0.064 in. (14 AWG) music wire, unit is ergonomically constructed with Xuro-Rubberâ„¢ hand grips and low-impact return spring.

Komatsu America International Company    Vernon Hills, IL 60061
Jul 22, 2003 Equipped with proprietary Automatic Power Control and HydrauMindâ„¢ hydraulics, 7,525 lb SK1020-5 incorporates 2-speed, shift-on-the-go transmission with working speed of 6.5 mph and travel speed of 10 mph. Available with choice of 2 diesel engines, product offers Closed Load Sensing System and rated tipping load of 4,000 lbs. Bucket width equals 74 in., and overall machine length is 139.5 in. Unit can effectively load trucks 10 ft and lower and features max reach of over 23 in.

Fairchild Semiconductor    South Portland, ME 04106

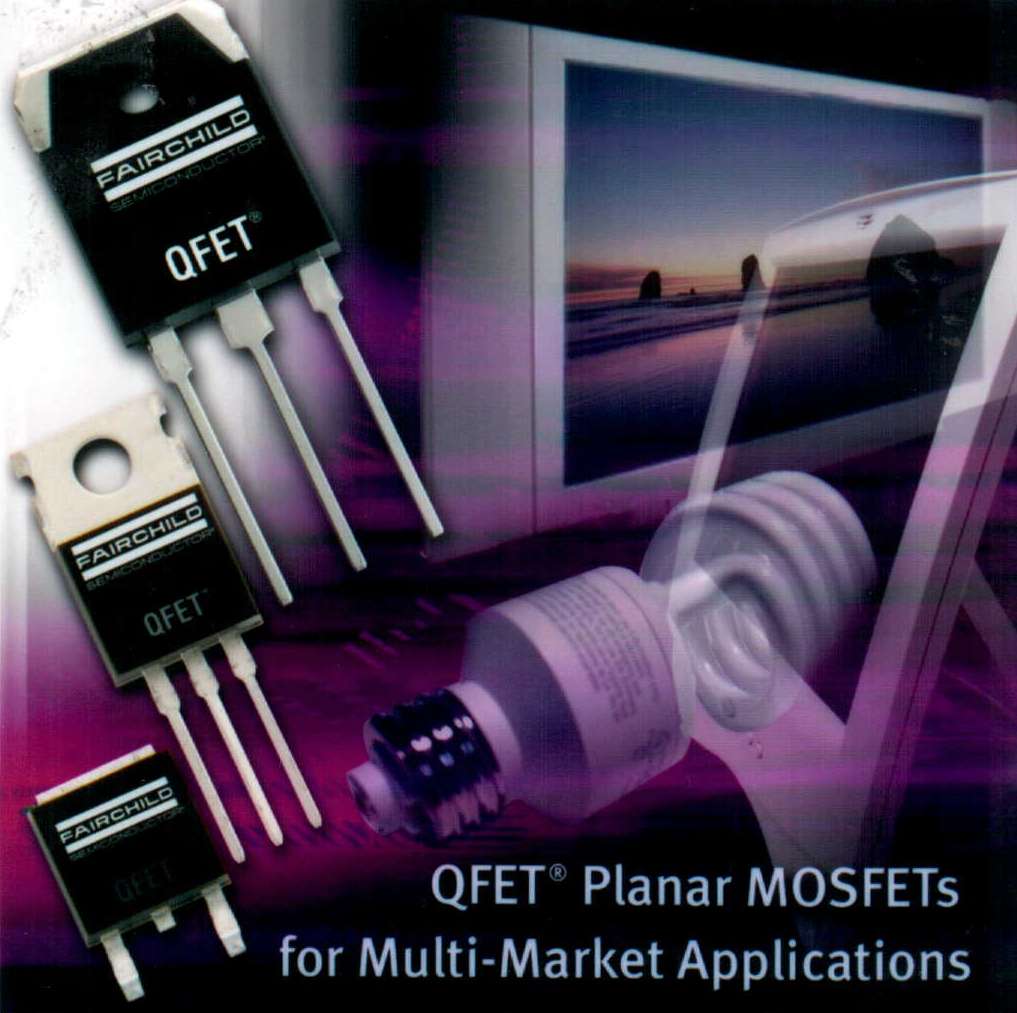

Jul 22, 2003 Series C and V2 QFET® planar MOSFETs combine DMOS and planar stripe structure technologies. They offer reduced on-state loss by lowering on-resistance and reduced switching loss by lowering gate charge and output capacitance. Products come in standard surface-mount and through-hole type packages and are suitable for power supplies, power factor correction, DC/DC converters, plasma display panels, lighting ballasts, and motion control.

Astrodyne Corp.    Mansfield, MA 02048

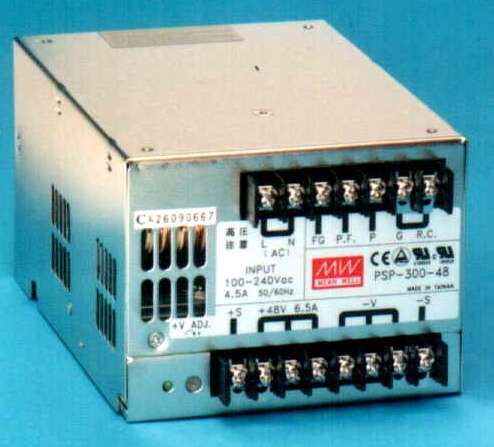

Jul 22, 2003 Equipped with power-good LED indicator and output adjustment potentiometer, PSP300 and PSP500 Series active power factor corrected enclosed switching power supplies provide output power over 300 and 500 W ranges, respectively. All models accept Universal Input from 85-265 Vac, and some models provide single outputs from 5-48 Vdc. Features include soft-start circuitry, integral EMI filtering, Parallel Capability, and 3,000 Vac I/O Isolation.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866

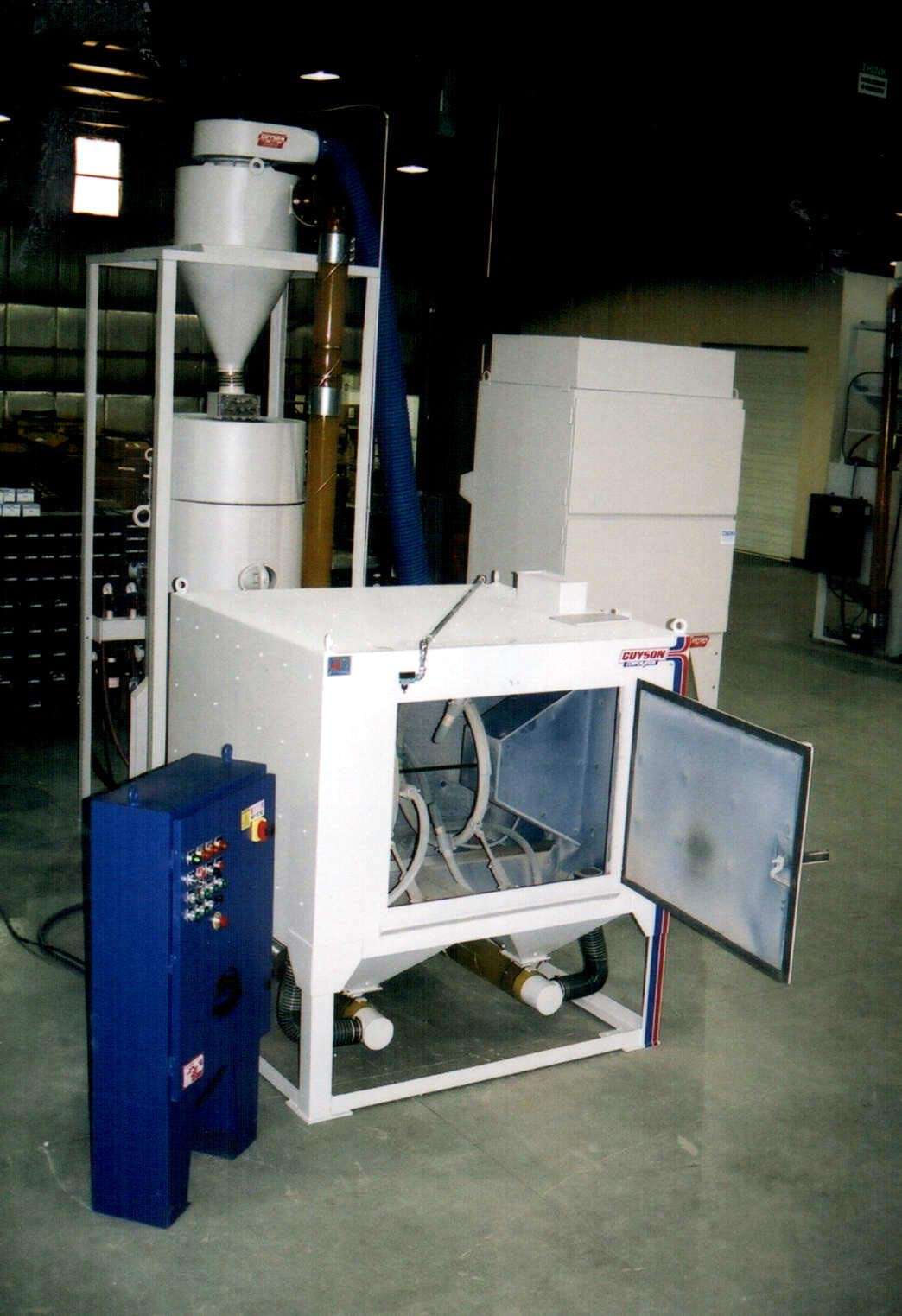

Jul 22, 2003 Model SP-900 through-feed blast system offers surface treatment of tube, pipe, and strip that is 1.5 in. in diameter or less. Six pressure-blast nozzles are fed by 12 ft³ capacity vessel that recharges itself automatically without interruption of grit flow. Interior of 60 x 72 x 48 in. cabinet is divided into 3 chambers to isolate noise and dust of blasting operation. Conveyance of work through blast cabinet is by external material handling equipment.

SSI Equipment Inc.    Buffalo, NY 14240 1594
Jul 22, 2003 Available with 1, 3, or 5 pipe diameters of flow straightening, products reduce turbulence and protect against particles. Units incorporate strainer, elbow, and pipe-reducer functionality along with quick-release cover and 1/8 in., stainless steel, perforated screen with 20-mesh liner. Diffusers are offered in cast iron, configured to replace 90° elbow, as well as in fabricated carbon steel or stainless steel to suit installation with end connections of 2 x 1¼ in. up to 36 x 36 in.

Aved Electronics, Inc.    Lowell, MA 01851-2729

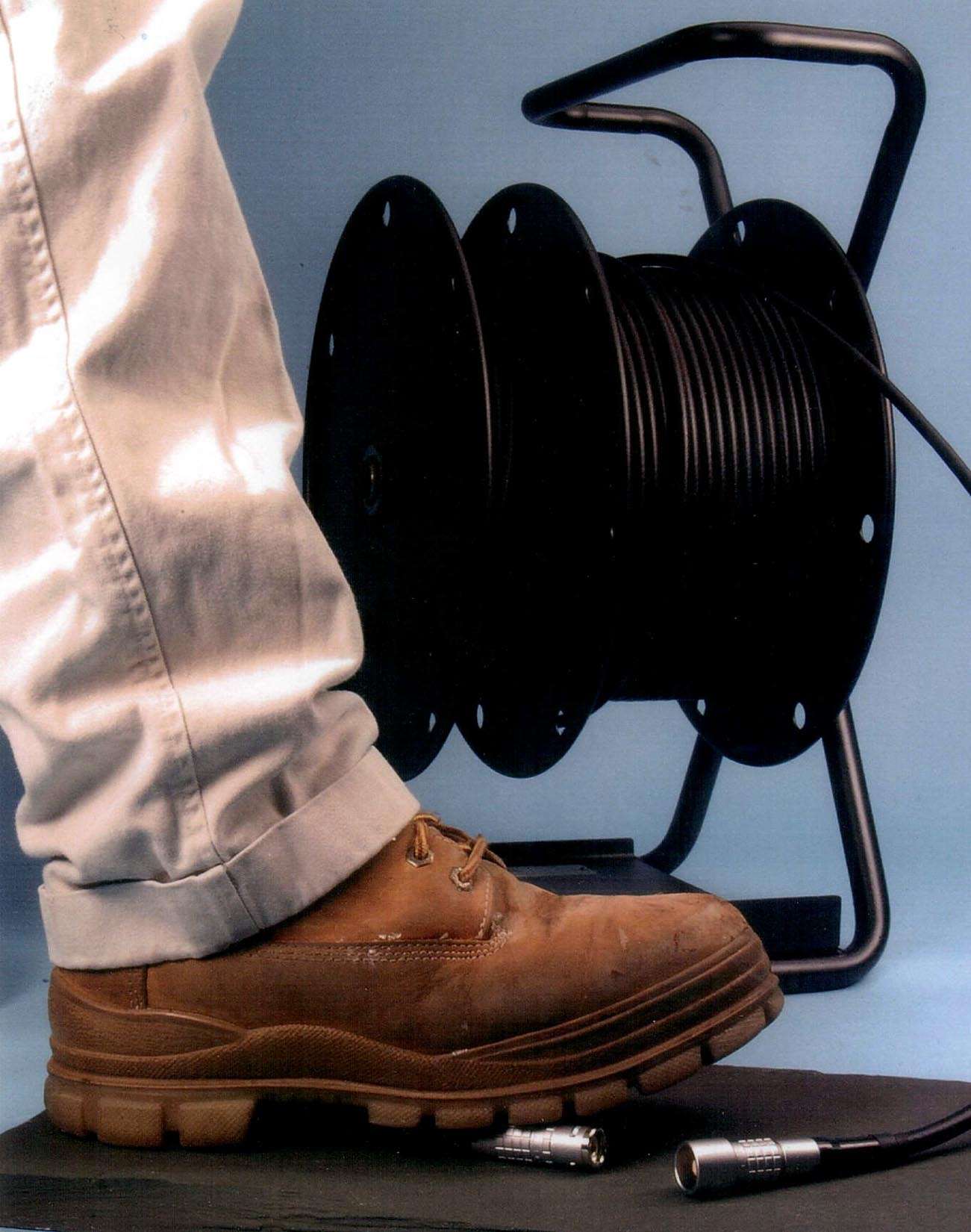

Jul 22, 2003 Electrical and microwave telecommunication cable assemblies are custom manufactured using RF connectors and coax/triax cables to meet specific design requirements. Featuring potted and encapsulated connectors, strain-relief boots, and other special related materials, UL/CSA approved assemblies can be built to withstand extreme conditions. For military use, they can be hand soldered and certified to MIL-S-45743, MIL-STD-1460, and MIL-STD-2000.

Gilway Technical Lamp    Woburn, MA 01801 1005

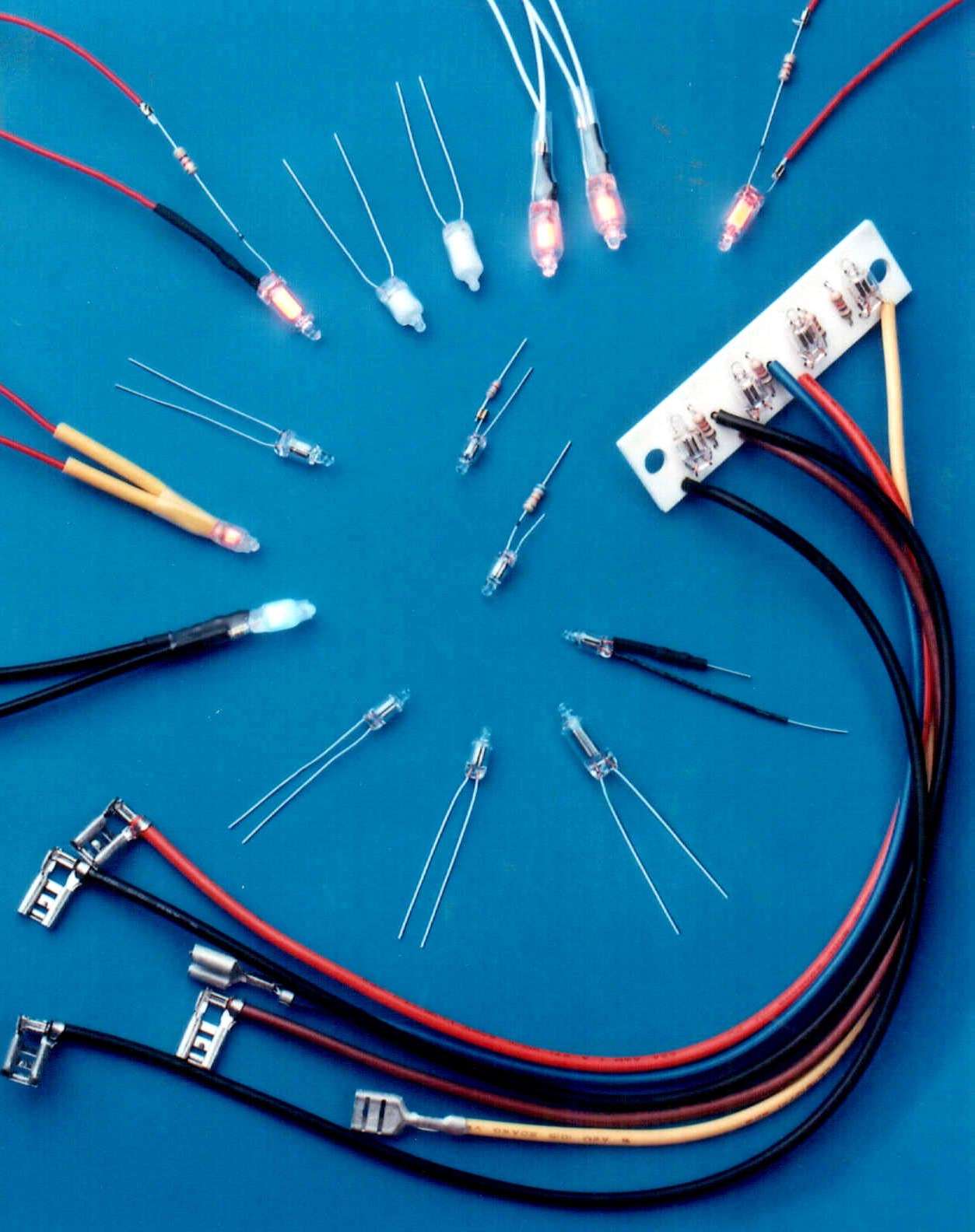

Jul 22, 2003 Able to operate directly from 110/220 Vac, shock- and vibration-resistant lamps provide brightness up to 5.0 mcd, measure 3.2–6.0 mm in diameter, and are rated for 15,000–50,000 hrs of operation. Available with various lead styles and terminations, products may be filled with pure neon gas or neon-argon gas mixture. They are made by mounting 2 electrodes within one glass envelope and have 2 tin plated Dumet metal electrical leads.
