Electronic Materials, Inc.    Breckenridge, CO 80424 8817
Aug 28, 2003 EMCAST V-150 and V-151 epoxy adhesive systems mate 2 UV-blocking substrates by pre-exposing epoxy adhesives to UV and visible light, then, after surfaces are mated, using room temperature or heat cure to solidify bond. EMCAST V-150 has 12,000 cps viscosity, 77 Rex D hardness, 4,400 psi tensile strength, and lap shear strength to 3,500 psi. EMCAST V-151 exhibits 15,000 cps viscosity, 82 Rex D hardness, 6,400 psi tensile strength, and lap shear strength to 3,800 psi.

ARPAC    Schiller Park, IL 60176
Aug 28, 2003 Arpac 108F compact, single-frame, stainless steel bundler has right angle infeed for simple collation of various product sizes and configurations. Machine includes servo drive, on-demand powered film feed system, product hold-down, and NEMA 4X electrical panels/controls. Double driven film cradles or spindle film rack ensure quick film roll changeovers. Applications include squares, rounds, scrounds, quarts, pints, and plastic bottles.

Magline, Inc.    Pinconning, MI 48650
Aug 28, 2003 Magliner Hand Trucks are made lighter due to magnesium wheel brackets, noses, stair climbers, and 815 wheels. Magnesium offers dent resistance and is tougher than die cast aluminum for deliveries into freezers or in cold-weather situations. Magnesium nose reduces friction, requiring less effort to slide under packages. Hand trucks with magnesium parts are suited for soft drink, food service, parcel, vending, and other route delivery applications.

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939

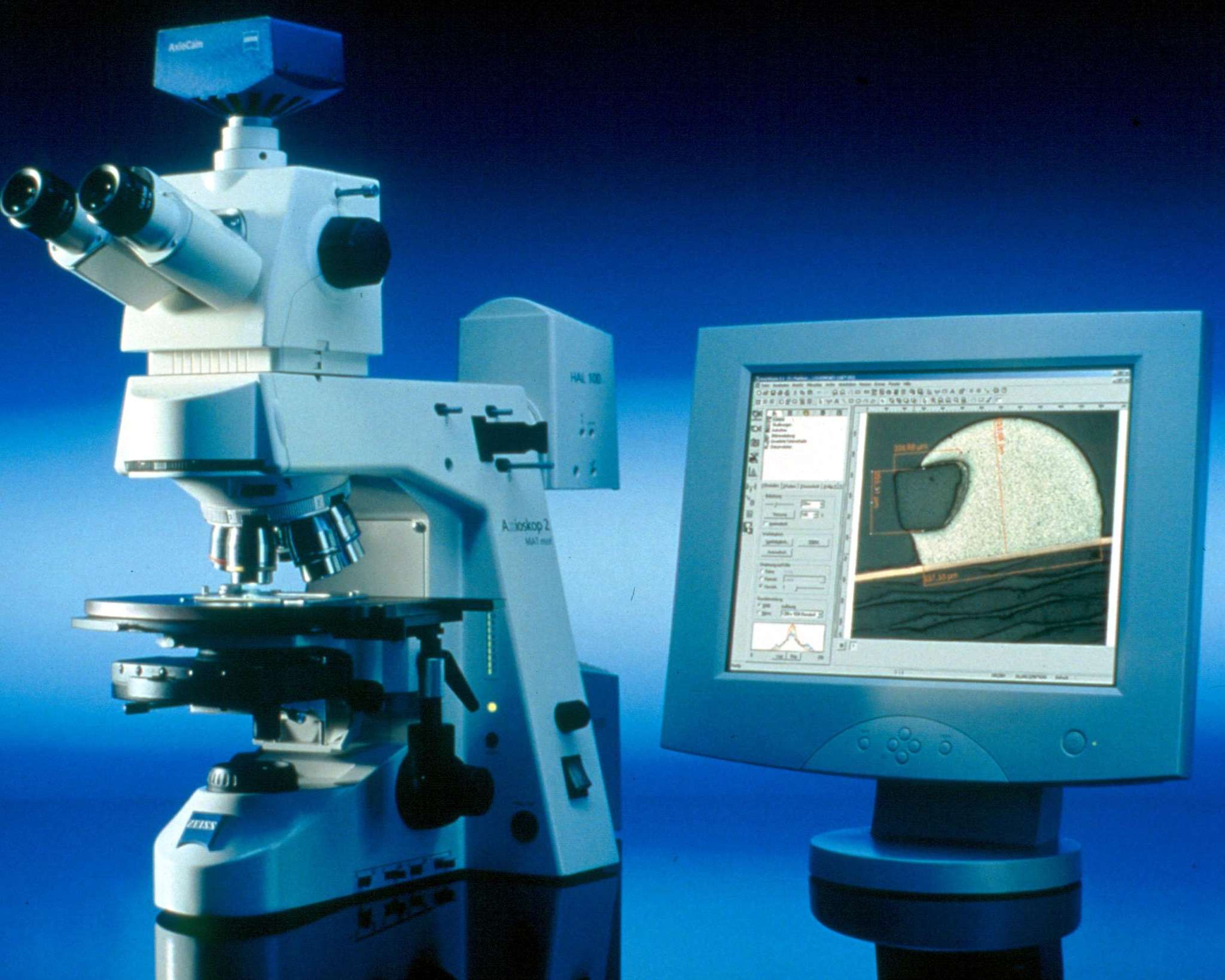

Aug 27, 2003 Axioskop 2 MAT microscope is offered in manual or motorized versions for reflected and transmitted light. Motorized version permits automated processes such as digital image acquisition and analysis using AxioVision software. Reflector turret, z-drive, brightness control, and switching mirror are automated, and nosepiece is coded. Trinocular Ergo TV-Tube, with viewing angle of 20°, permits viewing height to be varied by 50 mm.

Alpha Wire Corp.    Elizabeth, NJ 07207 0711
Aug 27, 2003 Industrial Series - Series V Cables incorporate thermoset insulation to help prevent meltdown during corona discharge and voltage spikes, tightly-fitted shields to reduce probability of corona discharge, and large insulation walls to reduce capacitance. Open Wiring Rated, cables feature tinned copper conductors that range from 16 to 2 AWG for motors in ½â€“100 hp range. Cables are sunlight resistant and direct burial rated without cable ducts.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Aug 27, 2003 Pro-Fit™ Series combines hydraulic lift pump, reservoir, and motor with lift cylinder into single assembly. Control station permits 1-handed control of proportional drive and lift functions. Platform decks are non-corrosive aluminum. Narrow models have 30 in. overall width with platform heights of 19–26 ft and capacities from 500–800 lb. Wider models have platform heights of 26 and 32 ft with capacities of 1,000 lb and dual 700/1,000 lb, respectively.

BASCO    University Park, IL 60466
Aug 27, 2003 Drum Chocks, molded from recycled polyethylene, have weight capacity of 550 lb. They allow drums to be stored on standard pallet racks or wooden pallets. Models are available to tilt drums forward for more drainage from spigots. Front stops on tilted models avert slide off. Mini Chock is 15 x 6 x 2 in.; Shelf Drum Chock is 15 x 29.5 x 2 in.; Inclined Shelf Drum Chock is 15 x 6 x 2 in.; and Inclined Shelf Drum Chock with Fork Openings is 15 x 6 x 2 in.

Radius Power, Inc.    Orange, CA 92867
Aug 27, 2003 General-purpose RP188 universal power line inlet filter and switch eliminate equipment and mains-borne electro-magnetic interference that can cause unstable operation of medical and office equipment. Designed as screw-mounted panel unit with fast-on power connectors on load side, they are approved for input voltages up to 250 Vac and currents up to 10 A. Power entry functions include fully shielded EMI filter, universal AC power inlet, switch, and fuse.

Scientific Technologies Inc. - Automation Sensors    Logan, UT 84321
Aug 27, 2003 Available in various materials and mounting configurations, FL Series liquid level sensors include FLR base model, which is available in lengths to 153 in., and FLE base model, which is available in lengths to 23 in. Products contain hermetically sealed reed switches in stem and permanent magnet in float. As float rises or falls with level of liquid, reed switch is activated by magnet in float. Product is suited for industrial, machinery, and process control applications.

Scientific Technologies Inc.    Fremont, CA 94555
Aug 27, 2003 Utilizing true 2-box design, MiniSafe MS4600 Series consists of transmitter and receiver with integrated control reliable circuitry. Configurable for point-of-operation guarding applications, it is available in segmented lengths from 10–55 in. Unit features in-line connector cables, MPCE monitoring, exact channel select, floating blanking, and 2 PNP safety outputs. DeviceNet interface or Machine Test Signal is also available.

Stonel Corp.    Fergus Falls, MN 56571
Aug 27, 2003 Made of Lexan Polycarbonate, FieldBlock bus network drop connection and I/O enclosure incorporates corrosion-proof design suited for general-purpose and nonincendive process networking applications with flexible wiring systems. Users may select from multi-drop or switched drop connectors, I/O or relay modules, and special module configurations. Enclosure is fully sealed for use in heavy wash-down environments.

Indigo Systems Corp.    Santa Barbara, CA 93111
Aug 27, 2003 Measuring 1.35 x 1.45 x 1.90 in., handheld Omega™ features SmartScene™ video output, uncooled VOx microbolometer sensor, and 14-bit digital output with spectral response of 7.5–13.5 microns. ThermoCorder integrates infrared camera with Sony™ camcorder via Intelligent Accessory Shoe; interface allows video signal to be input into camcorder for viewing on LCD display or viewfinder. Imagery can also be recorded directly onto tape.

Contech    Goddard, KS 67052
Aug 27, 2003 MagnaSlitter provides low volume slitting of vinyls, mylars, reflectives, application tapes, and nonwovens. Positive-locking chuck system and steel alloy blade ensure clean, accurate slit. End-loading design allows for easy change of rolls. Options include air-brake-on-blade assembly and auto-increment to eliminate manual measurement.

A-B-C Packaging Machine Corp.    Tarpon Springs, FL 34689
Aug 27, 2003 Model 108 ensures optimum container stability during high volume operation up to 200 layers/hr. Layer stabilizing mechanism squares both primary and secondary layer before sweep-off. Four-side tier sheet containment with friction plates and grippers eliminate tier sheet movement. Machine includes channel steel frame, 4 side container control, variable frequency motors, programmable logic control, and touchscreen panel.

Bioscience, Inc.    Bethlehem, PA 18017
Aug 27, 2003 Able to clarify water in slow-moving bodies of water, MICROCAT®-AL consists of microbes selected from nature and biodegradable aids. Microorganisms maintain water clarity and enhance settling of solids in shallow, slow-moving systems without use of hazardous chemicals or synthetic flocculating agents. Granular powder is suitable for cleaning murky water in farm ponds, golf course water hazards, or small lakes.

Hayward Industrial Products, Inc.    Elizabeth, NJ 07207
Aug 27, 2003 Duplex Filter is designed around two MAXILINE SE 12-bag filter housings linked with butterfly valve control assembly. System operator can switch flow from one filter housing to the other for filter changeout without shutting off flow. QIC-LOCK® cover with spring assist allows operator to open or close cover in 15 seconds with only finger tip effort. Duplex Filter is offered in carbon steel or stainless steel with 3–36 bags per filter.

ITT Goulds Pumps    Seneca Falls, NY 13148
Aug 27, 2003 Ceramic media liners for Model SRL Slurry pumps incorporate one layer of ceramic rods molded and compressed with natural rubber to provide wear performance. Hard wear face aids in extending impeller and casing liner life. Suited for severe slag and ball mill circuits, liners are available for 4 models of SRL-XT pumps and 6 SRL-C models.

American Lewa, Inc.    Holliston, MA 01746 1455
Aug 27, 2003 Safe from over-pressure, vacuum, and low suction conditions, LEWA Series M900 has PTFE sandwich diaphragm that handles pressures up to 5,800 psig, with 10 psi suction lift, and clean flow path. Diaphragm protection system keeps diaphragm in rear position at rest. Able to handle difficult fluids up to 100,000 CPS, product is suited for flows from 0.26–2,600 gph. Product includes diaphragm condition monitoring system that senses if one layer of PTFE sandwich diaphragm is damaged.

Yaskawa Electric America, Inc.    Waukegan, IL 60085
Aug 27, 2003 Providing V/f control, 110% overload capability, and various network communication and I/O options, P7 Drive comes factory-programmed and ready to use. It is operated via LCD operator display with 5 lines of 16 characters and includes keypad with copy function for moving chosen parameter sets from one drive to another. Available in ratings from 5–500 hp @ 208/230/240/480 Vac, drive offers open architecture, Local/Remote functionality, and internal PI controller.

Cooper-Atkins Corporation    Gainsville, FL 32641-6736
Aug 26, 2003 Model PM120 displays minimum and maximum temperatures and includes on/off and °F/°C switches located on front faceplate. Temperature range is -40 to +122°F. With mounting dimensions of 2.375 x 0.812 in., compact PMRH120 is capable of monitoring temperature and humidity. Suited for various applications, product features min/max button, clear button, and °F/°C switch. LCD display shows Dry/Comfort/Wet icon.
