Kollmorgen    Radford, VA 24141
Jul 29, 2003 Series F frameless, direct drive motors are offered in 4 frame sizes with continuous torque from 5–369 N.m, peak torque from 17–1,340 N.m, and diameters from 160–333 mm. They utilize neodymium-iron magnet rotor structure and skewed armature assembly to optimize machine torque/volume. Units include high magnetic poles, encapsulated armatures for high thermal transfer and mechanical protection, and low-cog technology for smooth low-speed operation.

TURCK, Inc.    Plymouth, MN 55441

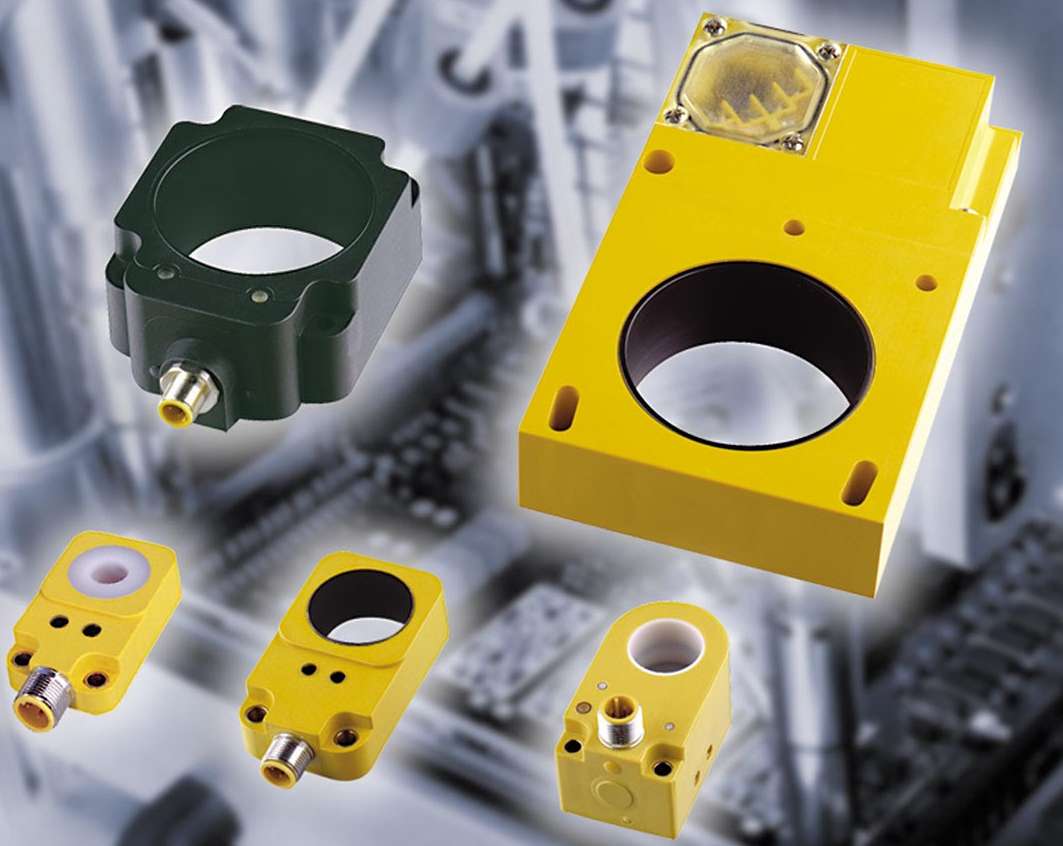

Jul 29, 2003 Available with 50 or 65 mm ring diameter, rectangular Q80 has 114 x 80 x 40 mm housing and is equipped with static output. Measuring 175 x 100 x 32 mm, S32 large ring sensors offer adjustable sensitivity and modular construction that enables combined and remote installation of ring and amplifier. Mid-size W30S sensor, measuring 70 x 35 x 30 mm, has quick disconnect that can be mounted on top of housing, allowing cable to be directly parallel to tube carrying sensing target.

Aremco Products, Inc.    Valley Cottage, NY 10989
Jul 29, 2003 Aremco-Bondâ„¢ 568 2-part, 1:1 mix, aluminum-filled epoxy system provides mechanical strength and thermal conductivity to 400°F, making it suitable for bonding aluminum and copper heaters and heat sinks. Thermal conductivity is 9.0 Btu-in./hr-ft²-°F, and flexural and tensile strength is 11,400 and 2,500 psi, respectively. Aremco-Bondâ„¢ 568 is resistant to wide range of acids, bases, salts, and organic fluids. It has passed NASA outgassing studies to ASTM E-595.

Linear Technology Corp.    Milpitas, CA 95035

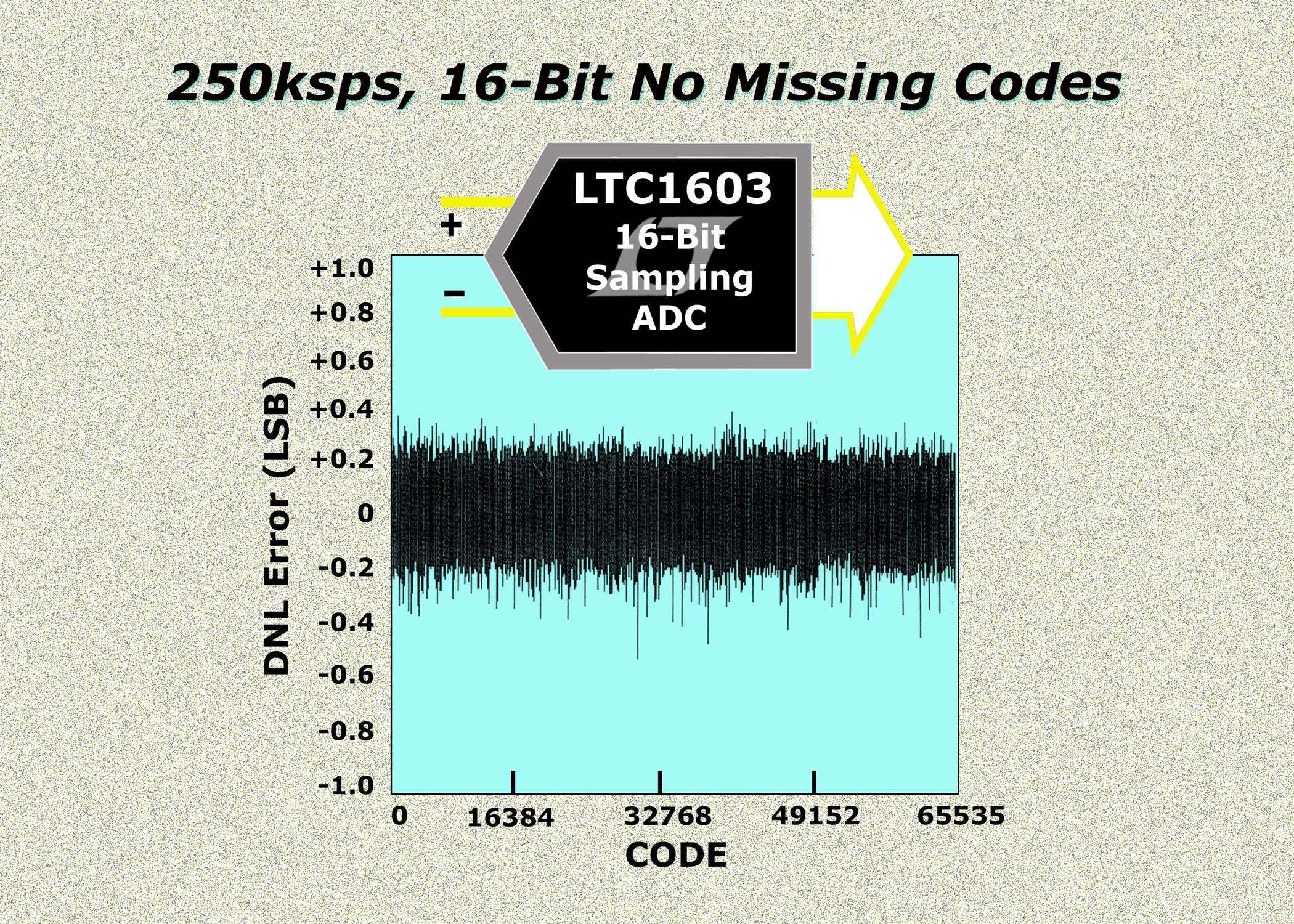

Jul 29, 2003 Model LTC1603 250 ksps, 16-bit ADC offers no missing codes over temperature. It features ±2.5 V input range, precision reference, and trimmed internal conversion clock. Unit accepts input signals between ±5 V and has flexible digital output supply pin that allows part to interface with 3 V logic. Specified for commercial and industrial temperature ranges, LTC1603 is available in 36-pin SSOP package and has pin-compatible upgrade path to 333 ksps and 500 ksps ADCs.

Deltran Pt A Danaher Motion Co.    Amherst, NY 14228
Jul 29, 2003 MovoZ Z2 can be installed vertically, horizontally, and upside down as lifting column. Based upon extruded, anodized aluminum profiles, it offers chemical resistance and non-corrosiveness. Unit includes adjustable end of stroke limit switches and choice of 3 different ball screw leads. It features max stroke up to 1,550 mm, max speed up to 1 m/s, max length of 4,000 mm, and max load torque up to 700 Nm. Repeatability is ±0.1 mm and resolution is 0.1 mm.

Deltran Pt A Danaher Motion Co.    Amherst, NY 14228

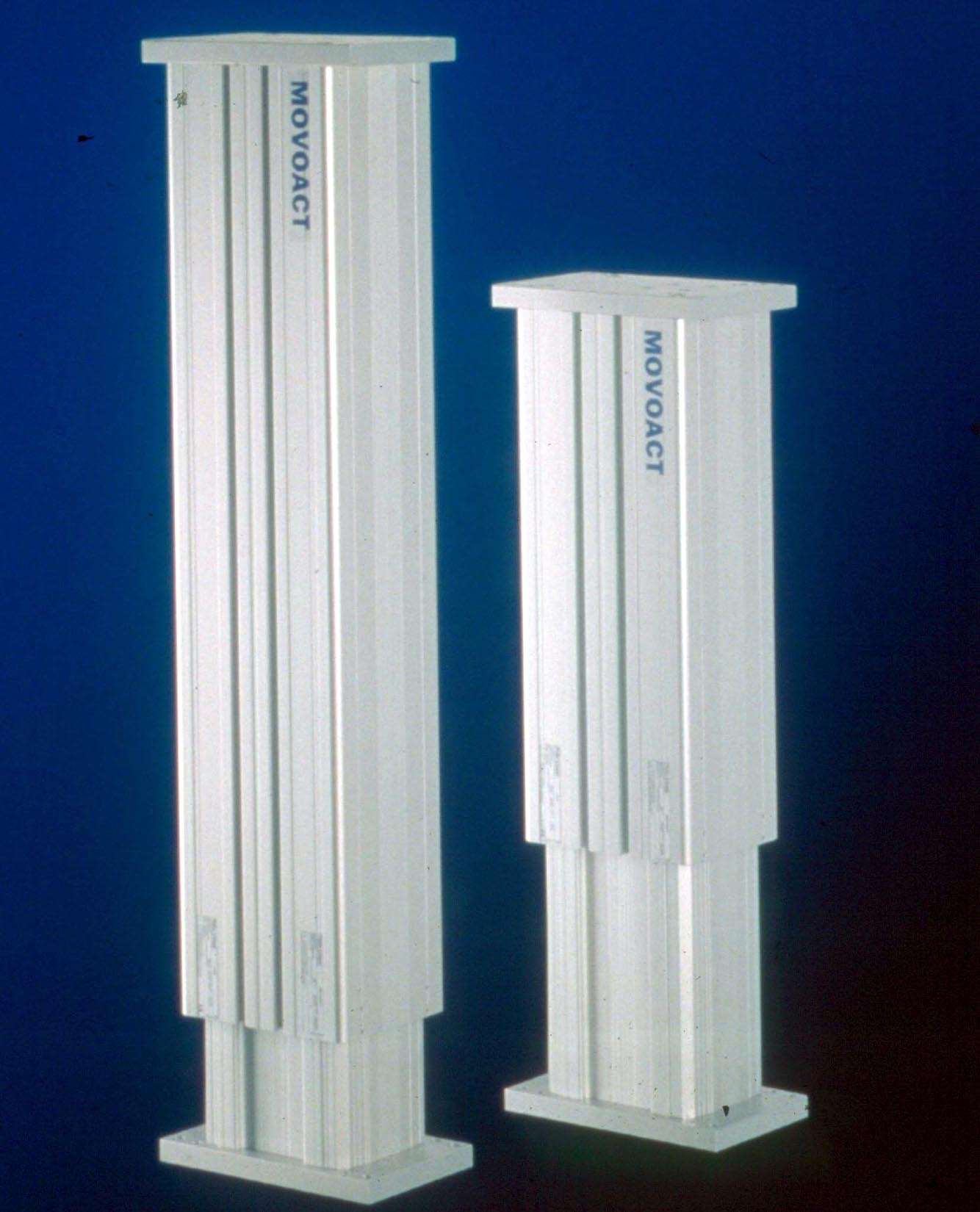

Jul 29, 2003 Movoact self-supporting column uses anodized extruded aluminum profiles, which slide into each other. Precise motion is achieved through built-in Thomson(TM) Electrak linear actuator. Column features max stroke up to 600 mm, max load up to 6,600 N, and max speed up to 60 mm/s. It provides height adjustment of worktables, conveyors, and loaders/unloaders, positioning work environment to dimensions of items being transported and physical requirements of operators.

Raymond Corporation, The    Greene, NY 13778 0130
Jul 29, 2003 Reach-Fork® and Deep-Reach® 36 V forklift trucks incorporate AC-powered traction as standard feature, which extends battery life and results in less reduction in truck performance as battery discharges. For operators, AC traction provides increased acceleration and precision to store and retrieve loads. Due to AC-powered traction, trucks require less time to ramp up speed when compared to DC-powered traction.

BIAS Power Technology Inc.    Palatine, IL 60067

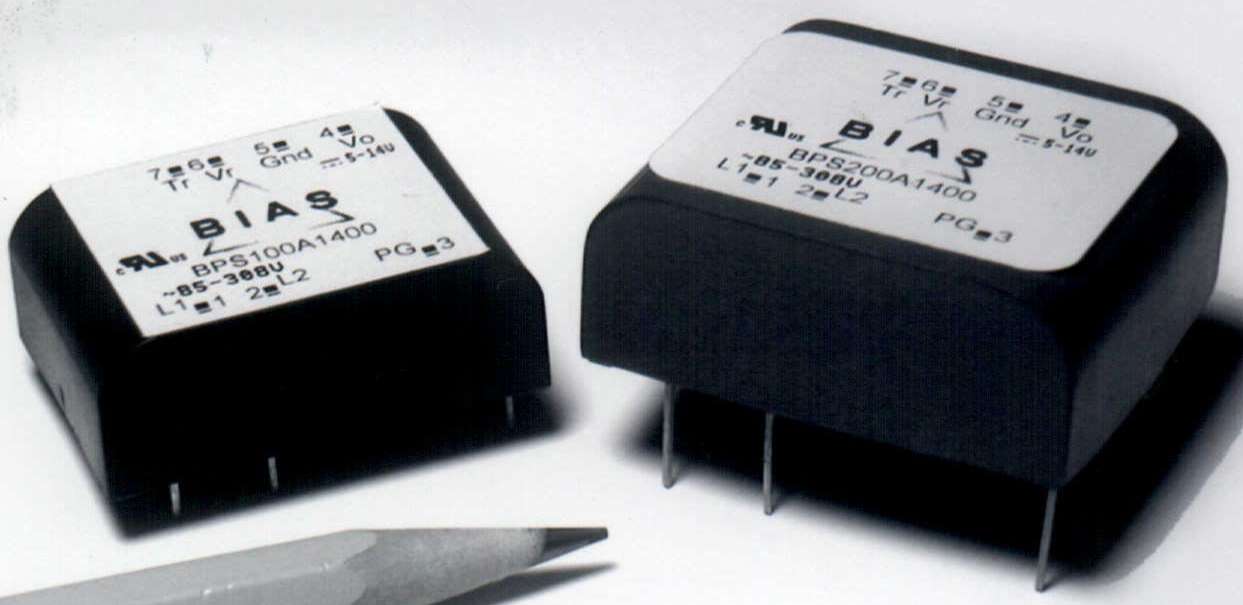

Jul 29, 2003 Series BPS100 and BPS200 modules provide 1 and 2 W of standby power, respectively, to household appliances and consumer electronics. Utilizing technology that eliminates line conducted EMI, board mountable modules can be used in PCBs on standard pin grid arrays. These UL, CSA, and TUV approved products incorporate custom integrated circuits within packages ranging from 0.6–1 in³. Nominal output voltage of 14 Vdc is adjustable from 5–14 Vdc.

Touch International Inc.    Round Rock, TX 78681
Jul 29, 2003 Capable of stylus, finger, and gloved-hand input with palm rejection, unbreakable Digital Ink form fitting, wear-resistant touch screen is available in sizes up to 5.7 in. diagonal. Available with glass or plastic sensor material, product offers pen tracking speed of up to 40 ips and anti-bacterial and anti-static properties. Touch Screen is suited for retail signature capture, web phones, PDAs, GPS, and handheld applications.

MK Automation Engineering Inc.    Bloomfield, CT 06002
Jul 29, 2003 With mk structural 40 x 80 mm profile frame suited for continuous duty operations, MBF-P conveyors employ positive sprocket drive, head or center drive motors, and variable- or constant-speed packages. Able to transport parts up to 1,500 lb, conveyors offer various hard, matt top plastic belts in widths of 210–1,010 mm and lengths from 400–10,000 mm. Belts are assembled in interlocked, bricklayered pattern with full-length hinge rods.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502
Jul 29, 2003 Model SB50 provides instantaneous stop, forward/reverse motion, electromagnetic brake control, and thermal protector open detection with alarm signal in 2.77 x 1.97 x 2.76 in. package. Suited for AC induction, reversible, watertight, and electromagnetic brake motors, it also works with Oriental Motor V Series, World K Series, and FPW watertight Series AC induction and reversible motors with output power requirements from 1-90 W.

TE Connectivity Ltd.    Berwyn, PA 19312
Jul 29, 2003 PC/104 small-form-factor connectors implement standard ISA bus (104 positions) with 2 dual rows of 0.1 in. pitch contacts. PC/104-Plus connectors offer 120, 2 mm pitch contacts in 4 rows. With 0.6 in. fixed stack height, both UL 94V-0 rated thermoplastic connectors are available with optional integral board spacers. Contacts are phosphor bronze and select gold plated on mating end and tin-lead on PCB tail.

Jenike & Johanson, Inc.    Westford, MA 01886

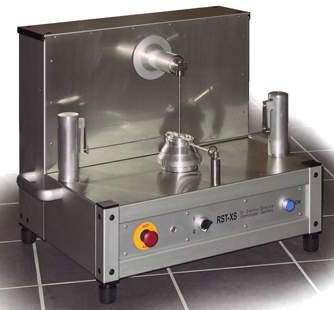

Jul 29, 2003 Utilizing 30 ml cell volume, bench-scale Model RST-XS Ring Shear Tester provides computer-controlled measurement of powder-flow properties. Small sample size makes unit suited for pharmaceutical industry or other applications where large sample quantities are difficult and/or expensive to produce. Bench-top unit measures approximately 2 x 2 x 2 ft and weighs 90 lb.

Orcus    Stilwell, KS 66085
Jul 29, 2003 ThermaSoft self-supporting, silicone-gel pads contain no fiberglass cloth or polyurethane foam, allowing them to be compressed more than other gap-filling materials. Material wraps around components to improve heat transfer. ThermaSoft pads are available as die-cut parts and in standard sheet size of 8 x 8 in. with thickness from 0.5–7 mm. Thermal conductivity is 1.0 W/m-k and thermal impedance is 0.98 C/W/in² (3mm thick at 20psi).

Steel King Industries, Inc.    Stevens Point, WI 54481

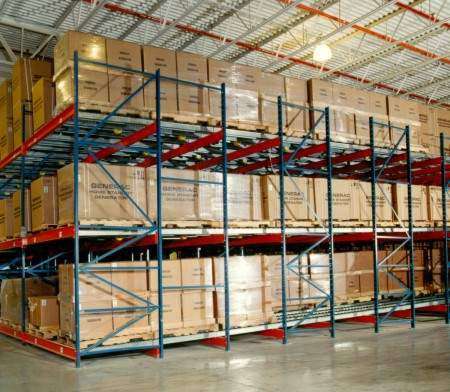

Jul 29, 2003 Model SK3400® pallet flow storage system is suitable for perishable and time-sensitive products. Product rotation is automatic, virtually eliminating double handling of loads. Flow storage maximizes warehouse space, and stores more product in less space with fewer aisles and fewer forklifts. System is useful for raw materials receiving and storage, work-in-process, buffer storage, finished goods, order picking, and cross docking.

FeinFocus USA, Inc.    Stamford, CT 06902

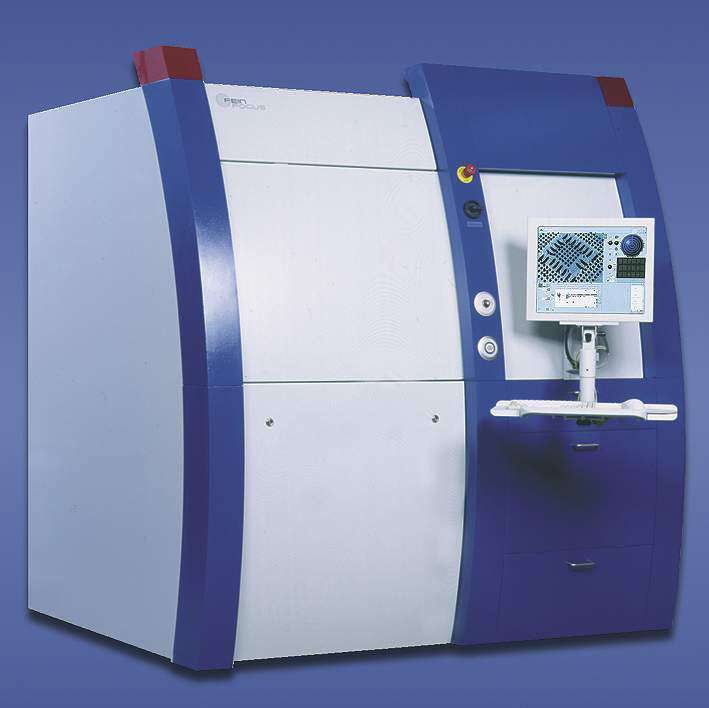

Jul 29, 2003 TIGER FXS-160.40 X-Ray System offers geometric magnification up to 636 times, total magnification up to 2800 times, and sample tray area of 24 x 24 in. to accommodate large boards and multi-up flip chip assemblies. True X-Ray Intensity Control assists operators in identifying production anomalies with 100% consistent x-ray images. Image intensifier manipulator rotates 360º and tilts up to 60º to view complex assemblies. Open-tube technology allows for feature recognition below 1 µm.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005

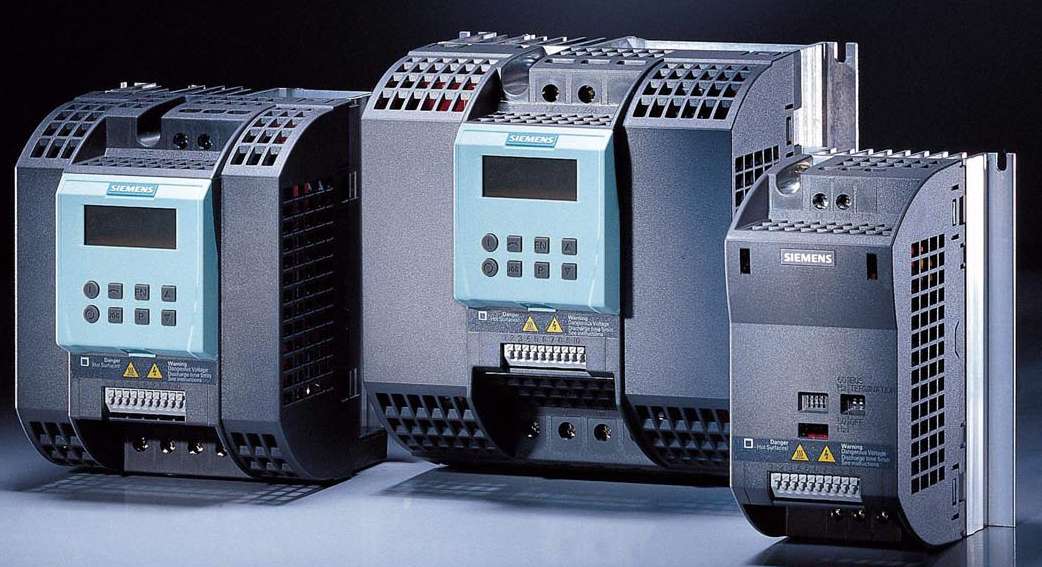

Jul 29, 2003 SINAMICS G110 operates 3-phase motors on single-phase line power supplies, delivering continuous speed control. Rated for 200–240 V input with 1/6–4 hp power range, product is available in 3 frame sizes. Mechanical/functional options include flat plate versions, serial set point controlled versions, and analog set point controlled versions. Fast-connection terminals allow installers to make connections without removing covers.

Ritron, Inc.    Carmel, IN 46032
Jul 29, 2003 Quick Talk vS sensor system provides 24/7 vehicle detection by sensing approaching vehicles and transmitting alert over 2-way radio system located up to one mile away. Available in VHF, UHF, and UHF LTR/PassPort Trunking models, system is comprised of integrated battery powered radio transmitter with voice storage capability and a magnetometer. Configuration options are field-programmable using a standard dial-pulse telephone.

Sealed Air Corp., Packaging Products Div.    Saddle Brook, NJ 07663
Jul 29, 2003 Cell-Aire® ST protects items from becoming scratched during handling and transportation. Foam is naturally tacky, which provides low-slip surface to hold items in place. Features include tear resistance and closed-cell foam construction that provides moisture barrier and thermal insulation. Offered in light blue, foam is available in 48, 60, and 72 in. widths, and each width is offered in 4 thicknesses from 1/32–1/8 in.

SWF Machinery    Sanger, CA 93657

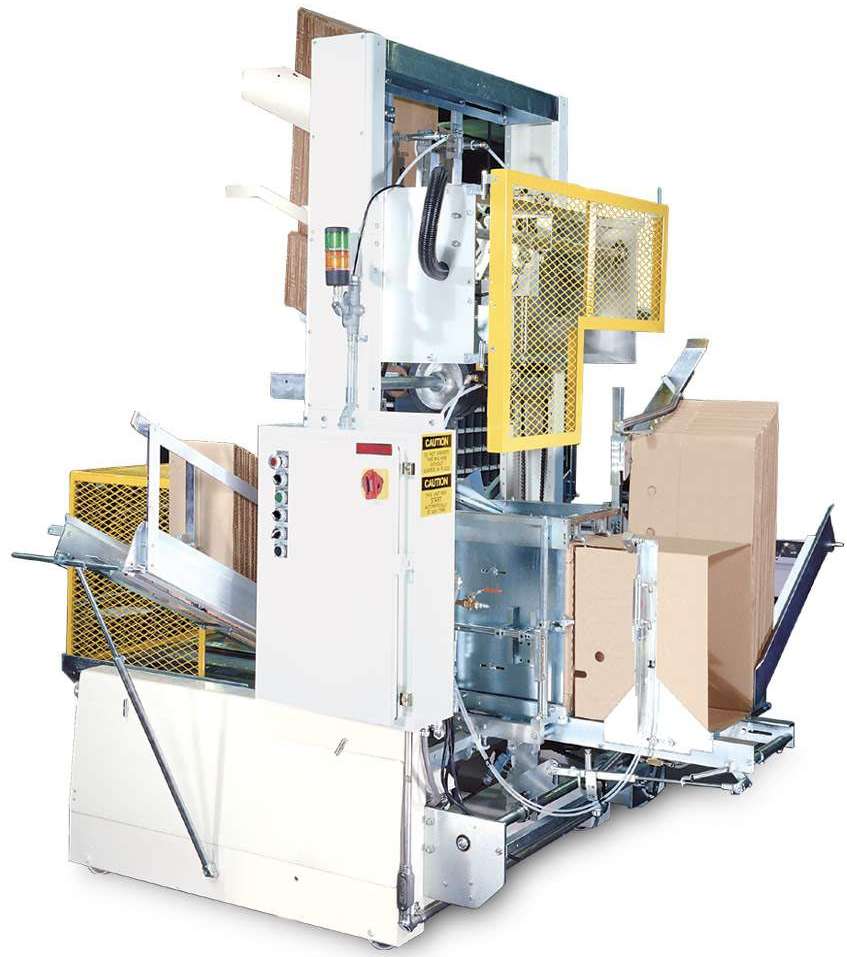

Jul 29, 2003 With all-mechanical design that does not require air, portable BF 400V Bliss-Matic forms 3-piece bliss-style cases and has no sensitive micro switches or valves. Body hopper accepts 85–100 blanks, and large-capacity hoppers are available to hold up to 600 blanks. Each end hopper accepts up to 250 side or end panels, and all hoppers adjust to accommodate different blank sizes. Unit requires 30 min for changeovers. Kwik-Change model BF 400VK can be changed over in less than 15 min.
