Deltran Pt A Danaher Motion Co.    Amherst, NY 14228

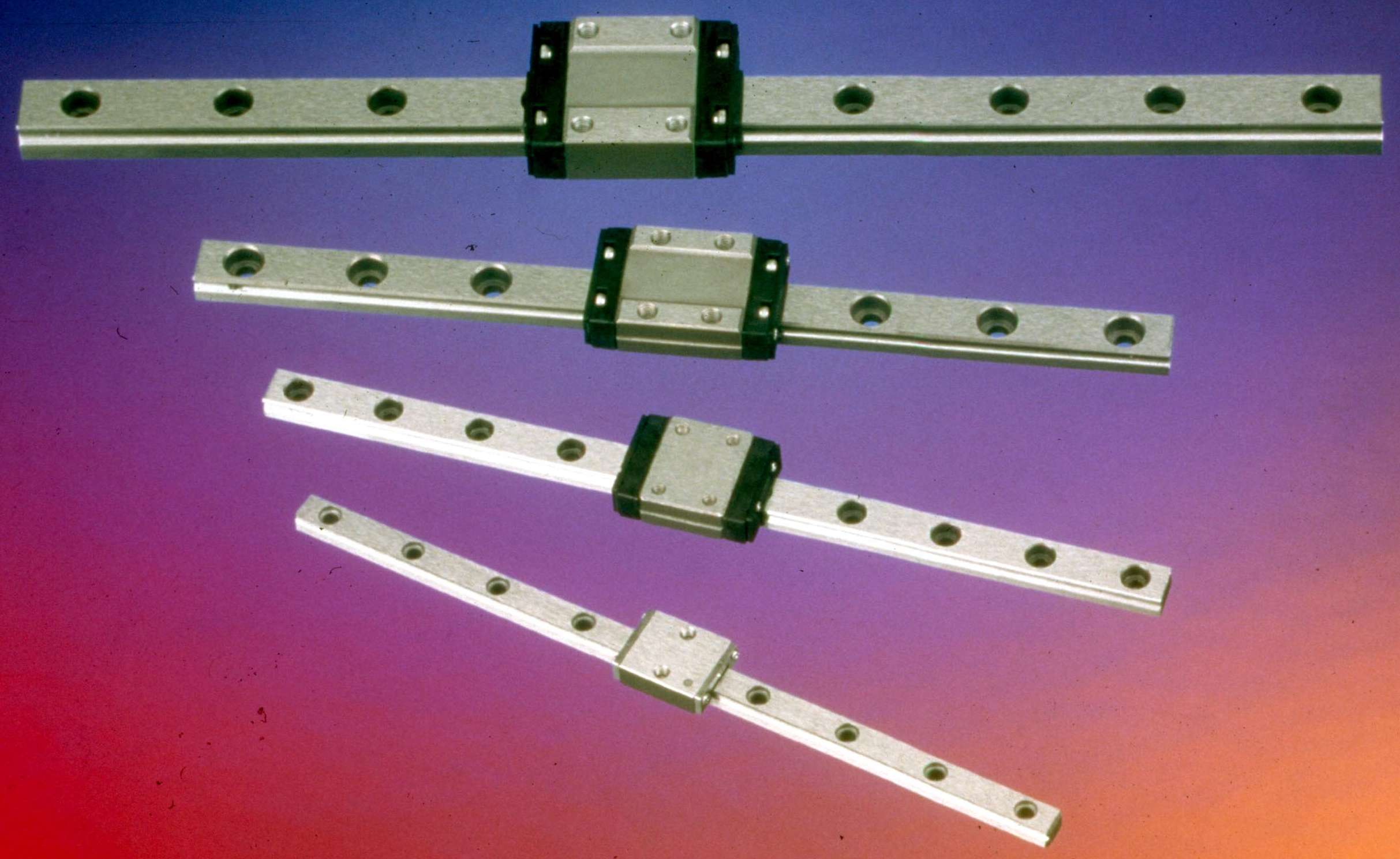

Sep 03, 2003 Suited for semiconductor, medical, and laboratory industries, Thomson MicroGuide(TM) products are constructed of 440 stainless steel and provide whisper quiet movement. Guides have dimensional tolerances within ±0.010 mm and utilize gothic arch ball groove geometry that enables single rail operation. Products are available in 5, 7, 9, 12, and 15 mm sizes. Smallest (5 mm) guide is cleanroom and vacuum compatible. Custom lengths and configurations can be accommodated.

PulseTech Products Corporation    Southlake, TX 76092

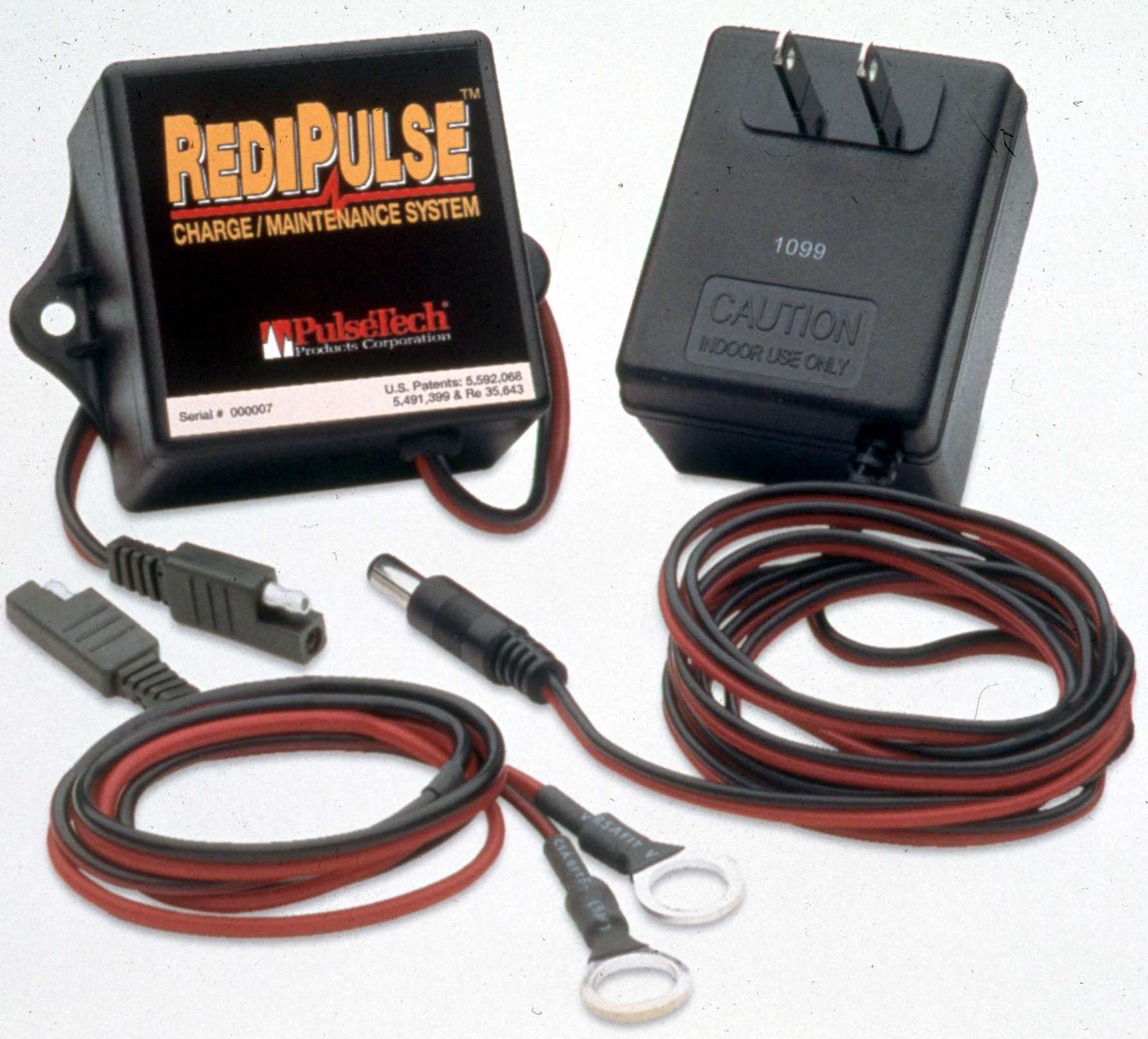

Sep 03, 2003 Powered by 110 Vac adapter, RediPulse Charge/Maintenance System works with all types of vehicles and equipment stored indoors or in areas without access to sunlight. It prevents dead batteries by keeping batteries in like-new condition at all times. By introducing slight trickle charge, product prevents loss of battery power on stored vehicles. When plugged in, weatherproof unit operates 24 hr/day and does not overcharge batteries.

Endress + Hauser Inc.    Greenwood, IN 46143

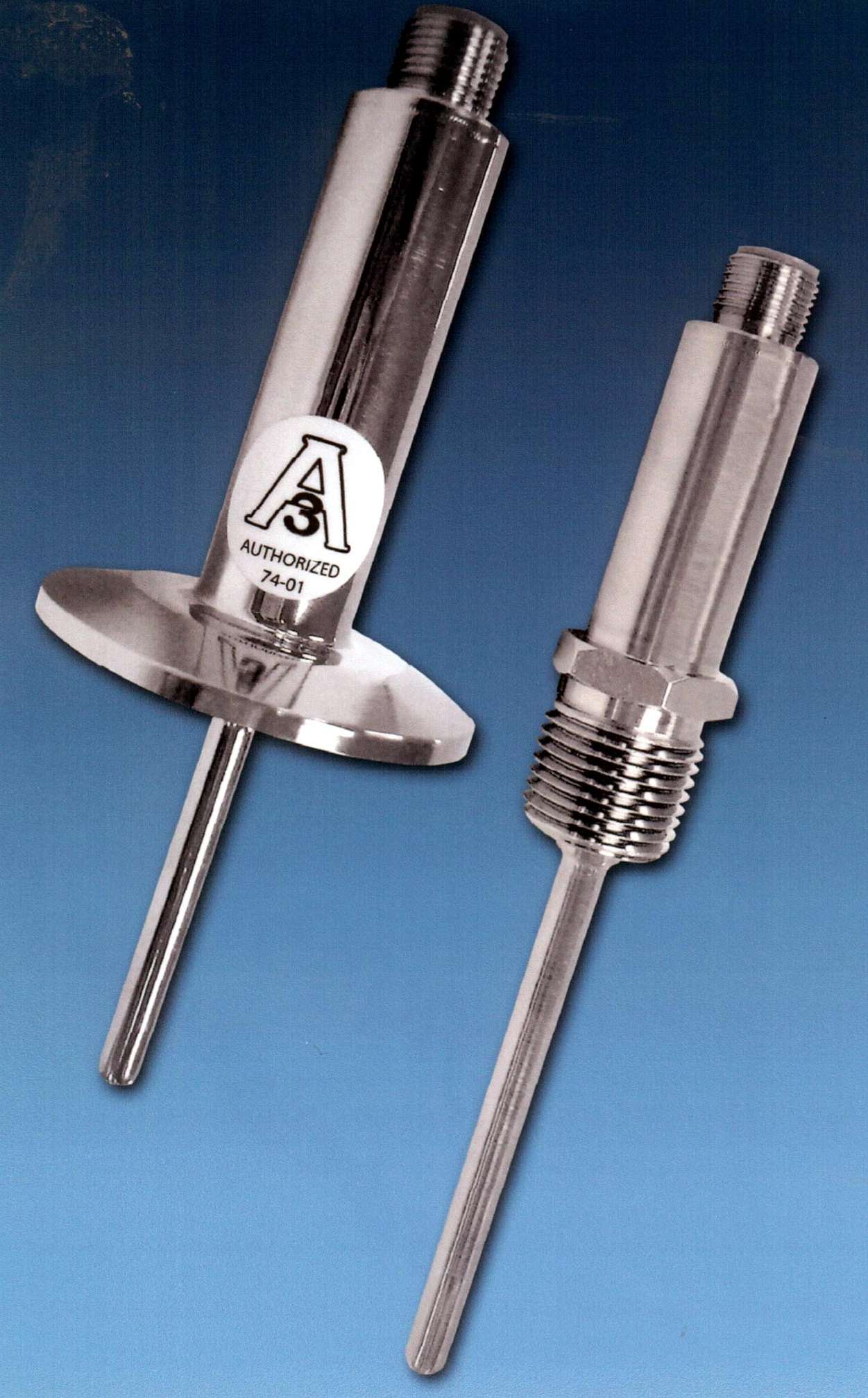

Sep 03, 2003 Watertight Easytemp® TSM 470 consists of 4-wire Pt 100 Class A sensor, available in several lengths, and built-in 4–20 mA transmitter. All process wetted parts are 316L stainless steel. Available with threaded or clean-in-place process connection, Easytemp is suited for monitoring temperature in small spaces that are not exposed to high pressures or temperature extremes. Measuring ranges are preset or configurable.

Bell & Gossett    Morton Grove, IL 60053
Sep 03, 2003 Triple Duty® Valve consists of calibrated balance valve, which provides precise flow with 8–9 turns; non-slam check valve, which assures positive shut-off without water hammer or valve chatter; and shut-off valve which includes memory button that allows entire valve to be returned to initial balanced position after shut-off. Triple Duty® Valve comes in straight pattern flange design, and resists harsh operating pressures, high temperatures, and aggressive liquids.

Paroscientific, Inc.    Redmond, WA 98052

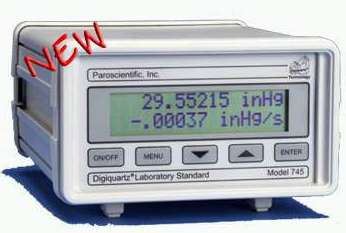

Sep 03, 2003 Digiquartz Model 745 provides 25 absolute and gauge full scale pressure ranges from 15–40,000 psi. It features intuitive front panel menu system and 2-line display, which includes taring, engineering units, pressure bar graph, sensor temperature, rate of pressure change, resolution, and sampling speed functions. Password protected unit allows user to adjust number of display digits. It can be rack or panel mounted and operates on 110 V or 220 Vac adapter power.

Spiroflow Systems, Inc.    Monroe, NC 28110
Sep 03, 2003 Powder Handling System consists of Type 3 bulk bag discharger, fitted with Hogan bin discharger and aero-mechanical conveyor. By using pneumatic massage paddles and bag tensioning device, Type 3 improves material flow out of bulk bag with no dramatic degradation. Aero-mechanical conveyor creates moving current of air in which powder flows, and Hogan bin discharger acts as flow promoter by using suspended series of blades controlled by vibrator.

Three-Five Systems, Inc.    Tempe, AZ 85281

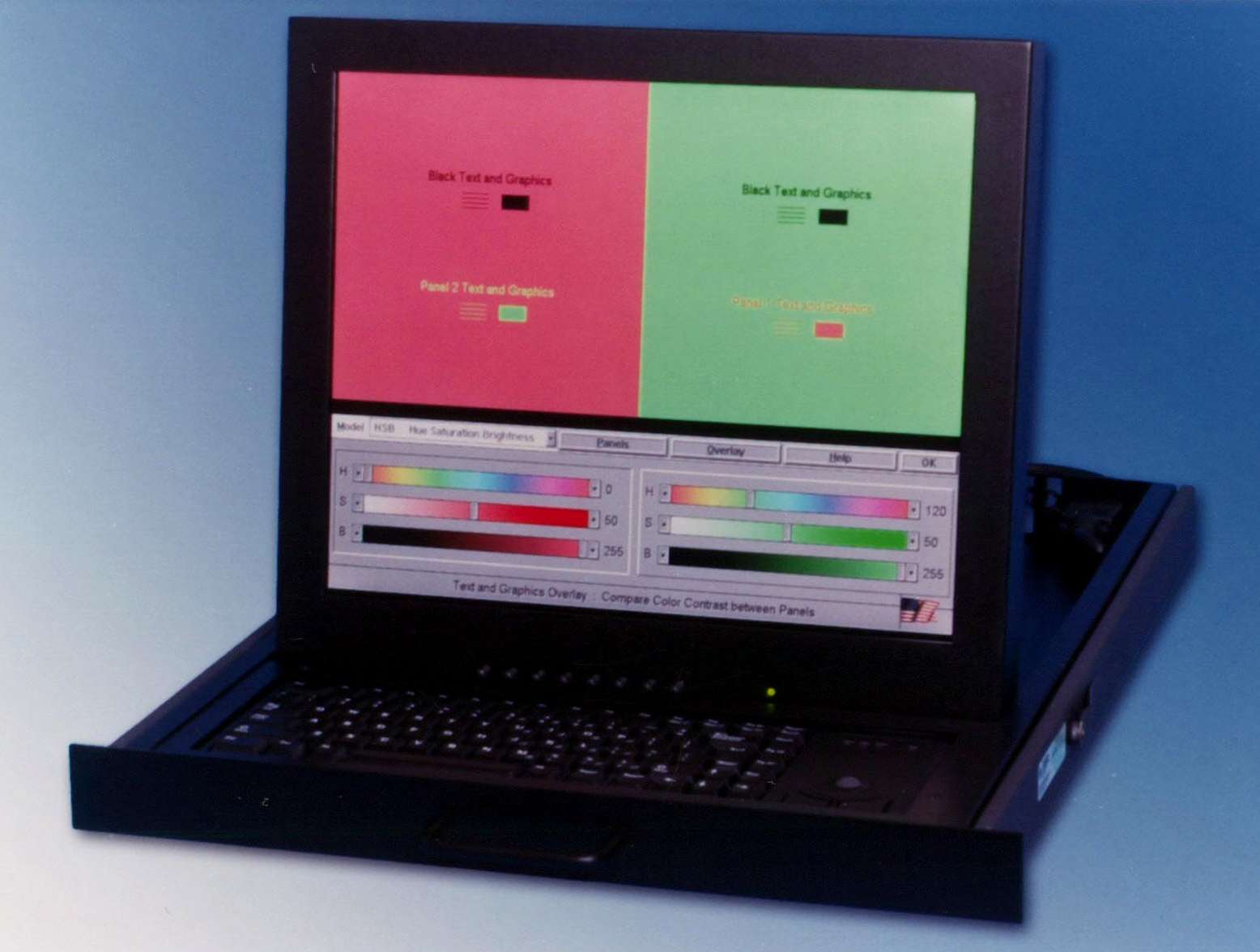

Sep 03, 2003 Offered in 1U drawer, integrated display platform provides low-profile, plug-and-play monitor solution for situations with minimal rack space. Product delivers image quality with .264 mm dot pitch, 250 nits luminance, and 500:1 contrast ratio. Monitor is available with or without full keyboard that includes integrated trackball and mouse. It also offers on-screen display for user adjustment and various interfaces, including DVI, NTSC/PAL, S-Video, SVHS, and D-Sub.

B & K Precision Corp.    Placentia, CA 92870

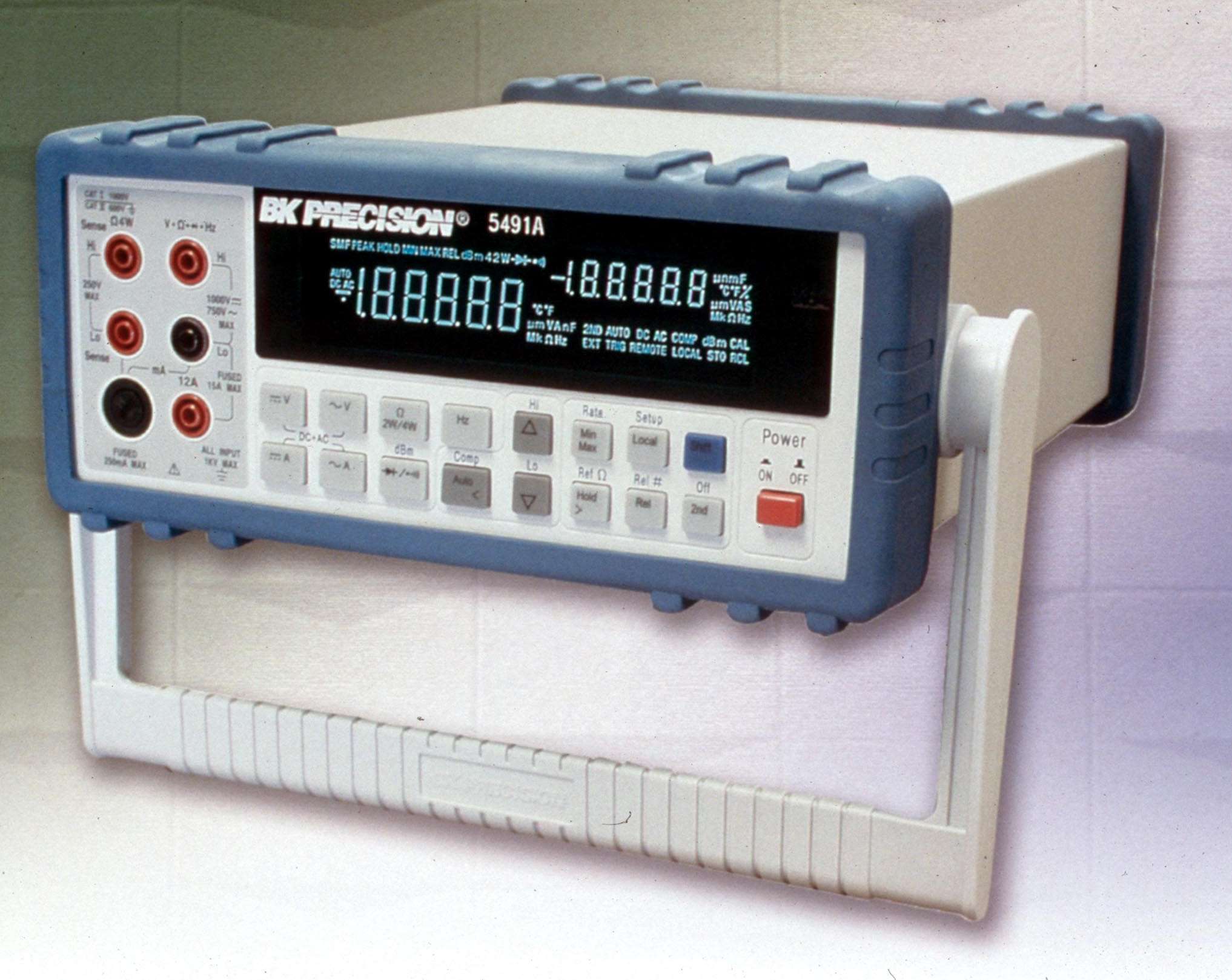

Sep 03, 2003 Utilizing standard 115 Vac outlet as power source, PC-compatible Model 5491A Bench DMM measures DCV, ACV, DCA, ACA, Frequency, and Diode Continuity. True RMS measurement bandwidth is 30 Hz to 100 KHz. Unit can measure resistance up to 50 Mohm with 10 Mohm resolution, frequency up to 500 KHz with 0.01 Hz resolution, and dBm with variable reference impedance from 2–8,000 ohms. It includes Display Hold, RS-232 interface, and Compare function for in-tolerance testing.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Sep 03, 2003 Model 104-AIM-32A Kit, consisting of signal conditioning mux and A/D board pair, offers 32 single-ended or 16 differential inputs with flexible gain for use with thermocouples, RTDs, load cells and strain gages, and 4-20mA inputs with fault detection. All sensor signals are conditioned, amplified, and calibrated, then digitized by 12-bit, 8-input A/D board. Up to 8 signal conditioning boards can be stacked together to realize 256 inputs, multiplexed into 8 channels of board.

Outwater Plastics Industries, Inc.    Wood-Ridge, NJ 07075
Sep 03, 2003 Ready-to-assemble drawers and drawer components are available in solid Beech, Birch plywood, and PVC wrapped particle board. All drawers come with ¼ in., color-matched, melamine drawer bottom. Able to be assembled without any woodworking skills, drawers are manufactured utilizing Chuck and Bore joinery with 12-step and 7-level polyester acrylic finish. Options include dovetail joinery and bottom prepared for concealed runners.

Aisle-Master    Memphis, TN 38122-0666
Sep 03, 2003 Aisle-Masterâ„¢ articulated, narrow aisle lift truck operates in aisles as narrow as 78 in. wide; negotiates rough, unpaved ground with 16 in. front wheels and 18 in. rear wheels; and handles grades or ramps to 15%. With 4,400 lb capacity and 24 in. load center distance, product is powered by LPG fueled, 67 hp engine with hydrostatic drive system. Triple and Quad masts with lift height options up to 30 ft are available, and side shift is fitted as standard.

Continental Fan Mfg. Inc.    Buffalo, NY 14215
Sep 03, 2003 With IRIS-M motorized damper, minimum and maximum airflows are measured within ±5% by using product's pressure port and altered by means of actuator adjustment screws. Unit varies airflow in response to 0–10 Vdc or 4–20 mA signal to control temperature, humidity, or ventilation rate. External switch fully retracts damper for duct cleaning. Made from galvanized steel with neoprene seals, 6 sizes are offered to fit ducts from 4–12 in. dia.

DeltaTRAK, Inc.    Pleasanton, CA 94566
Sep 03, 2003 ThermoTrace® Model 15031 provides non-contact temperature measurement with range of -8 to +230°F. Clock function displays time when not reading temperature, and internal magnet allows it to be attached to any metal surface. NIST traceable unit is 2.8 in. long and best used when measuring close to surface or for scanning temperatures on broad surfaces. Applications include salad bars, buffets, hot holding areas, and refrigerated display cases.

Sensor Electronics Corp.    Minneapolis, MN 55436

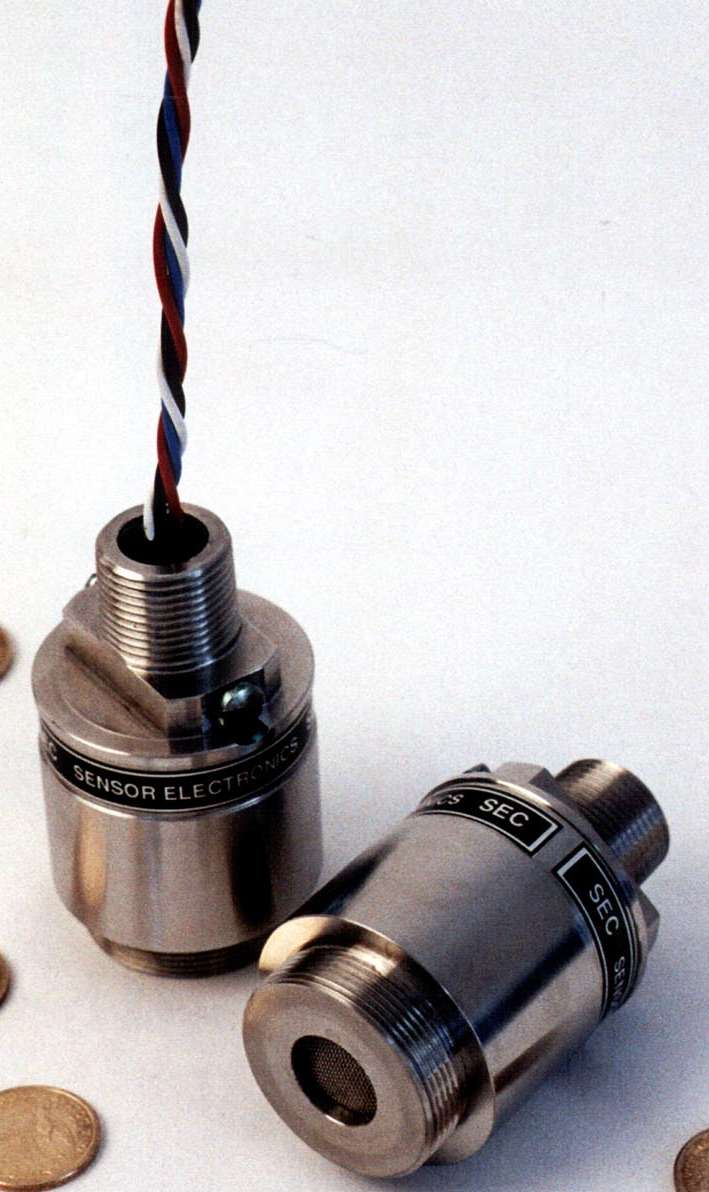

Sep 03, 2003 Intrinsically safe gas detector uses precision-tuned modules to detect 50+ toxic and explosive gases. Unit has stainless-steel, corrosion-resistant housing and is offered with optional internal heating element for use in subzero temperatures. Self-monitoring product warns of any internal problems. Detector measures 3.5 in. long x 2 in. in diameter. Its 4–20 mA output drives relays, meters, displays, computers, plotters, and alarms.

Dresser Instrument    Stratford, CT 06614-5145

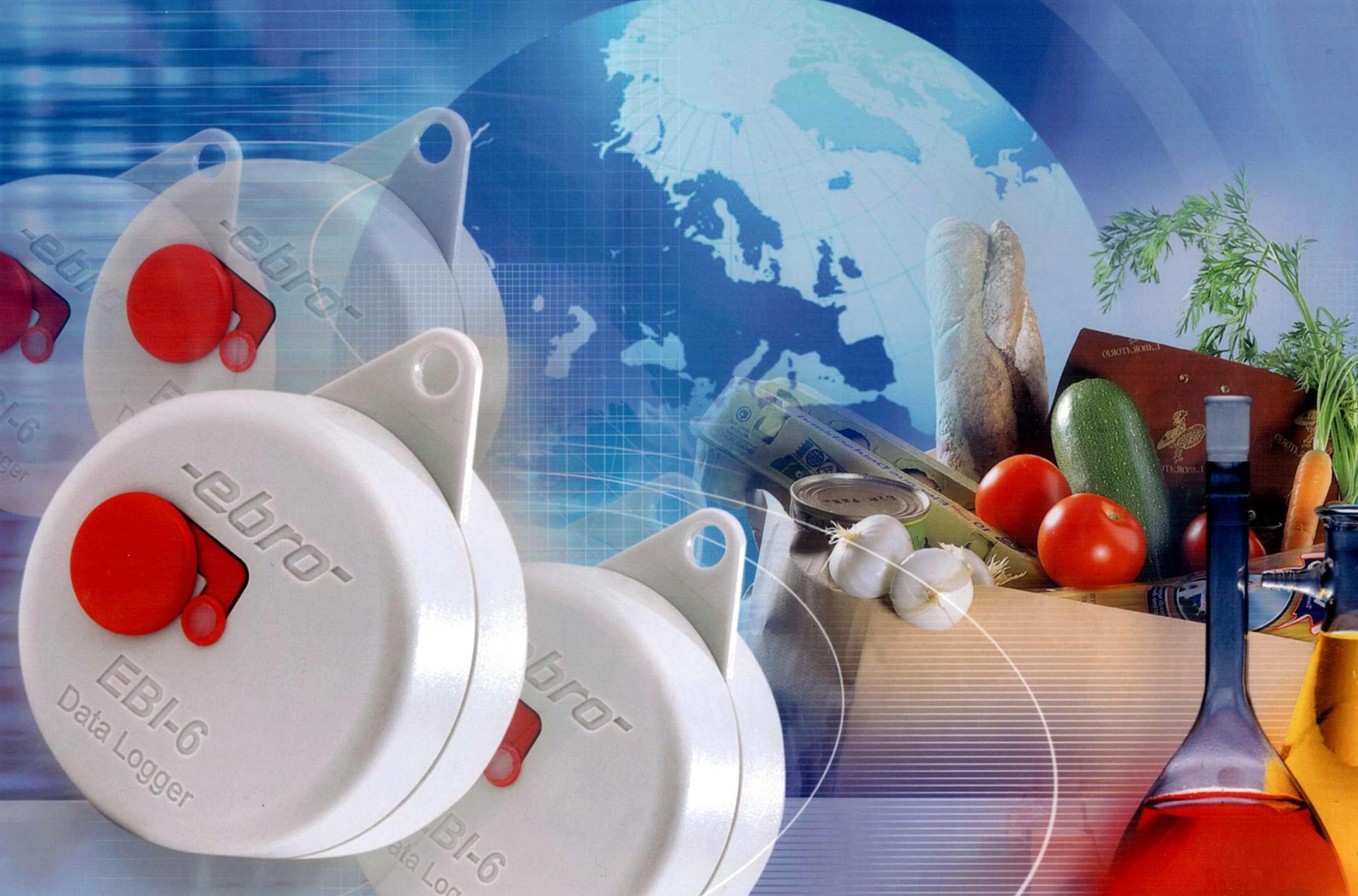

Sep 03, 2003 The ebroâ„¢ EBI 6 indicates quality for temperature-dependent shipments. Steady flashing LED indicates logging within programmed limits, while double flash indicates exceeded limits. Logger allows measurements from -25 to +40°C via internal platinum-type 1000 temperature sensor. Featuring memory capacity of 4,000 measurements, unit is accurate to ±0.8°C with 0.1°C resolution. User can choose standard measuring rates or can program logger from 10 sec to 24 hr.

Linear Technology Corp.    Milpitas, CA 95035

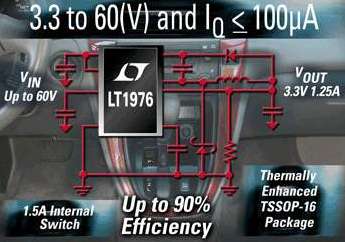

Sep 03, 2003 Model LT1976EFE step-down regulator operates within input voltage range of 3.3-60 V. Internal 1.5 A, 0.2 ohm switch delivers up to 1.25 A of continuous output current to voltages as low as 1.25 V. Combination of thermally enhanced TSSOP package and 200 kHz switching frequency keeps external inductors and capacitors small. Unit includes power good flag with programmable threshold and time-out. It is suited for load dump or cold-crank conditions in automotive applications.

YellowJacket LLP    Marion, IN 46952

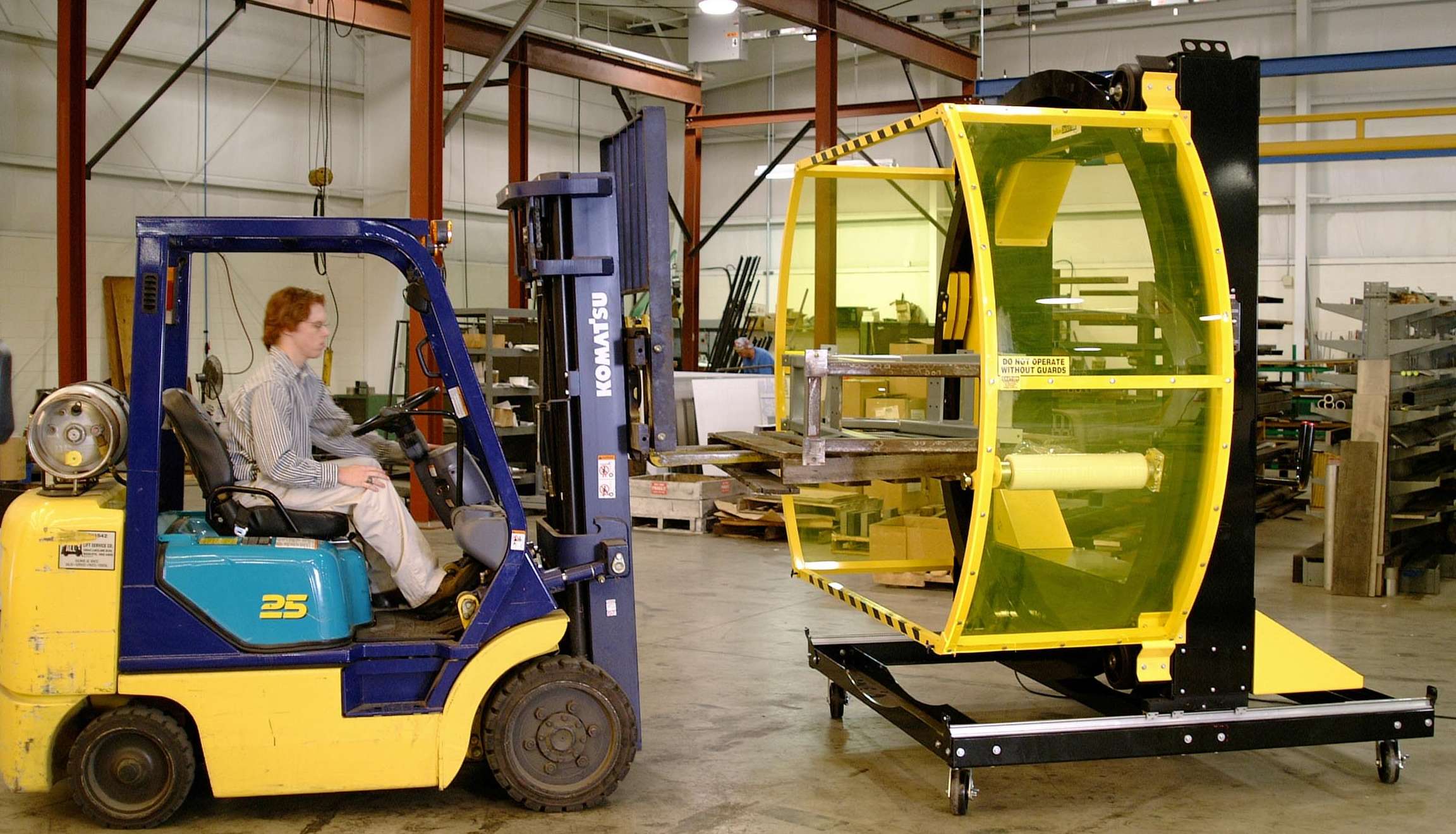

Sep 03, 2003 Model 87-SA, with Lock Down Technology, wraps around cargo and pallet to secure any load without bands. Wrap tension adjusts to provide range of 0–200% film stretch, which secures cargo of any dimension or weight as well as loads of standard, oversized, and irregular shapes. Machine, operated from forklift seat, handles pallet sizes up to 52 sq in. x 5 ft long. Base may be increased in 6 ft increments for longer pallets.

Elma Electronic Inc.    Fremont, CA 94538

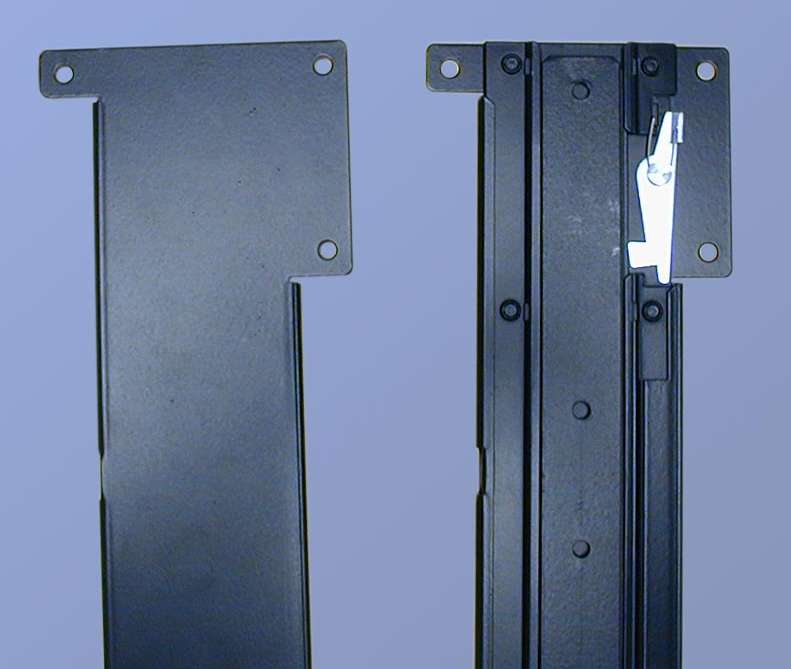

Sep 03, 2003 Chassis/cabinet-mounted slide rails are available in standard and rugged versions. They are offered with locking and non-locking options, withstand shock and vibration in harsh environments, are 10 mm thick, and handle up to 220 lb. Locking-versions include quick-release levers and self-release versions for unlocking. Slide rails come in 3 sections: outer-mounting bracket to cabinet, inner-mounting bracket to chassis, and center-sliding member.

Scott Specialty Gases    Plumsteadville, PA 18949 0310
Sep 03, 2003 Leak-free Model 57 controls gas pressure, purity, filtration, and distribution at single location when gas source is located in remote location. Unit can be wall or bench-mounted, or suspended from ceiling. Individual panels snap into prefabricated, expandable metal frame and are connected to primary gas supply with stainless steel tubing. Any combination of pressure regulators, purifiers, moisture traps, and outlet valves can be configured to meet laboratory requirements.

HARTING, Inc. Of North America    Elgin, IL 60123 5538

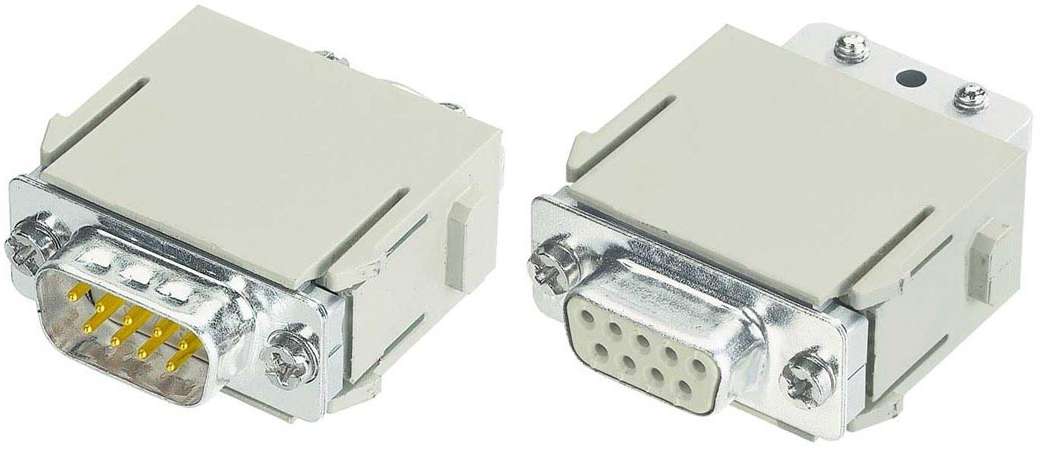

Sep 03, 2003 Han® D-Sub adapter module accommodates most 9-way D-Sub connectors with solder, crimp, or insulation displacement terminations. It is also suited for 15-way high density D-Sub products. When used in single module housing, IP 65 protection rating is achieved for making connections in mechanically and electrically hazardous industrial environment. Shielding is connected independently from housing, ensuring high screen attenuation.
