National Instruments Corp.    Austin, TX 78759-3504
Jul 30, 2003 SC Series boards, including PXI-4204 and PXI-4220 modules, seamlessly integrate with LabVIEW 7 Express for acquiring and analyzing high-voltage and high-speed strain with 16-bit measurement accuracy. Devices integrate measurement-specific signal conditioning onto 16-bit PXI data acquisition module based on cPCI bus and provide simultaneous sampling at rates up to 200 kS/s. Products allow users to synchronize timing and triggering signals between multiple devices.

National Instruments Corp.    Austin, TX 78759-3504
Jul 30, 2003 Vision 7 Development Module for LabVIEW 7 Express provides machine vision engineers with tools needed to prototype, benchmark, and create highly advanced applications. Menu-driven Vision Assistant allows engineers to experiment with more than 200 machine vision functions, including optical character recoginition and bar code reading. With single mouse click, Vision Assistant generates code for LabVIEW, LabVIEW Real-Time, C, and Visual Basic.

National Instruments Corp.    Austin, TX 78759-3504
Jul 30, 2003 Models PXI-2593 and SCXI-1193 are RF switch modules with 16 channels in PXI and 32 channels in SCXI. Using NI-SWITCH instrument driver software, design and test engineers can configure modules as unterminated multiplexer, terminated multiplexer, or dimensionally flexible sparse matrix. Models PXI-2566 and SCXI-1166 offer independent, high-current, SPDT relays with 16 relays in PXI and 32 relays in SCXI. All 4 modules track and store number of relay cycles used in system.

Zontec Inc.    Cincinnati, OH 45240
Jul 30, 2003 Synergy 2000(TM) SE Statistical Process Control Software creates closed security system environment where System Administrator grants user privileges, controls data access, applies password protection, and ensures that data cannot be compromised. It captures handwritten signatures, offers time and date stamping, and provides reporting, traceability and generation of audit trails for parts, batches, lots, manufacturing cells, assignable causes, and corrective actions.

Bahco North America, Inc. A Sub. Of Snap-On, Inc.    Scranton, PA 18501 2036
Jul 30, 2003 Construction-grade 850000 series Tape Rules are available with English or English/Metric measurements in sizes ranging from ¾ in. x 16 ft to 1 in. x 30 ft. Professional Long Tape measuring tools have Auto Rewind feature, open spool design and are available in English or English/Metric in sizes from 3/8 in. x 50 and 100 ft lengths. The 850050 Magnetic Belt Tape Holster stores 16-35 ft long measuring tapes, includes magnet contact between holster and tape rule, and is built with ABS plastic.

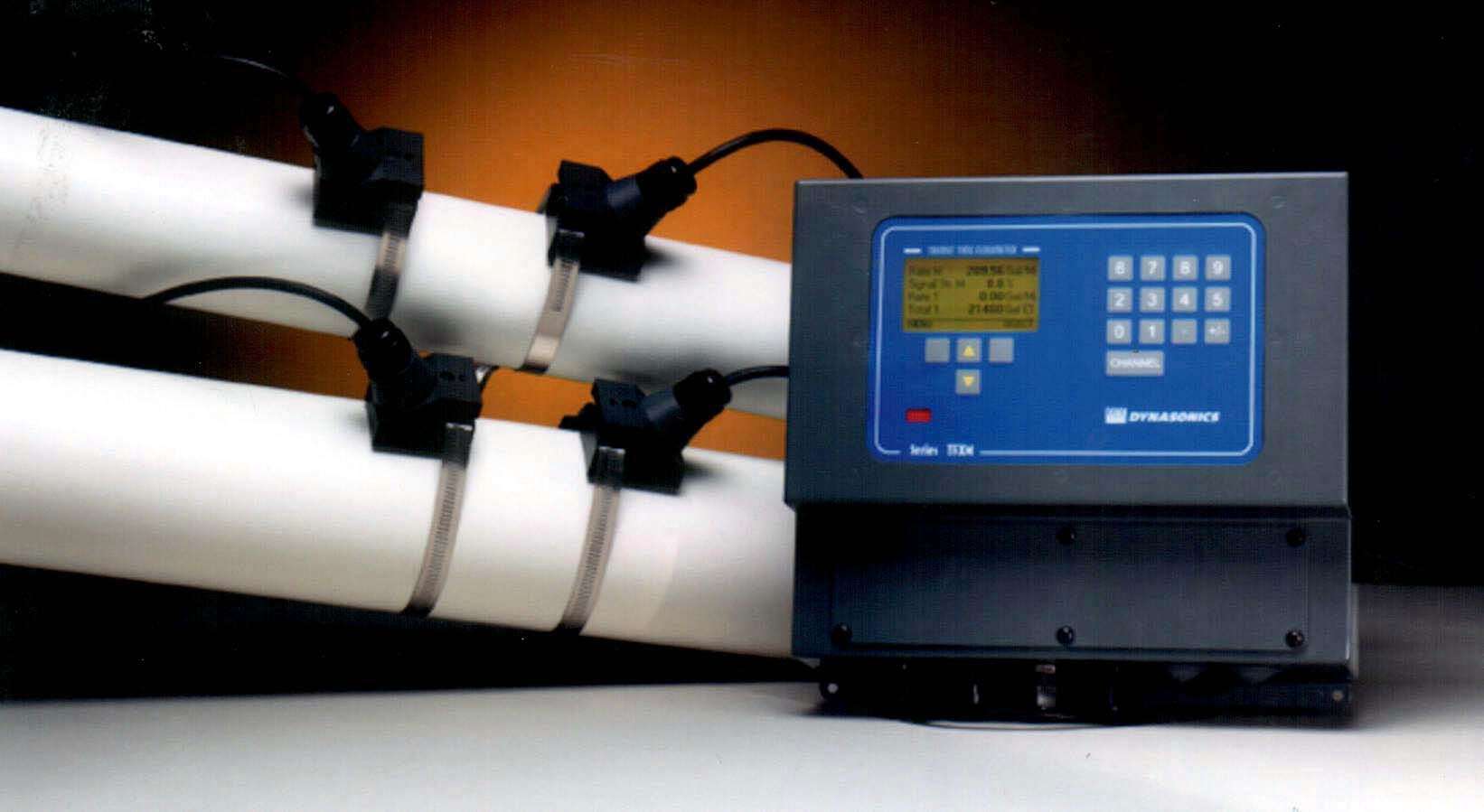

Dynasonics, Div. Of Racine Federated, Inc.    Racine, WI 53404
Jul 30, 2003 Series TFXM multi-pipe, multi-path, clamp-on flow meter uses time of flight ultrasonic technology. Non-invasive unit installs by clamping transducers to outside of pipes ranging from 2–100 in. Each measurement channel contains integral 4-20 mA, dual-relay, and RS485 communications. Optional Windows®-based UltraLinkâ„¢ software and infrared adapter allow complete programming and calibration via PC.

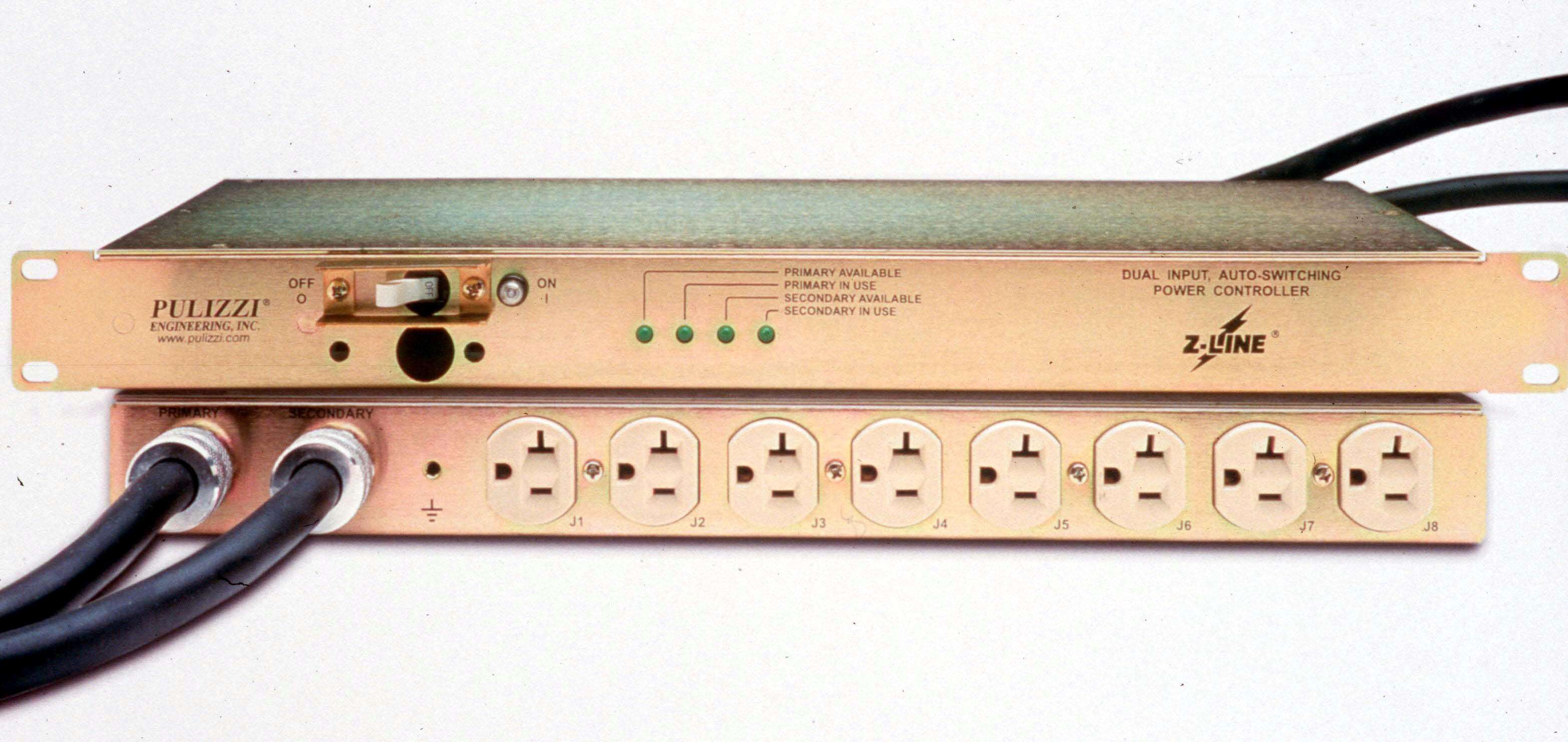

Eaton Corporation    Raleigh, NC 27615
Jul 30, 2003 Series T2235 19 in., 1U rack-mount unit combines redundant power switching, under-voltage sensing, and out-of-phase source switching. Intelligent circuitry monitors both inputs and will transfer power to secondary power source if primary power is lost. Both 15 and 20 A, 120 V versions are available with NEMA receptacles. IEC version operates at 100-240 V. Status LEDs on front panel indicate power available and which source is being output.

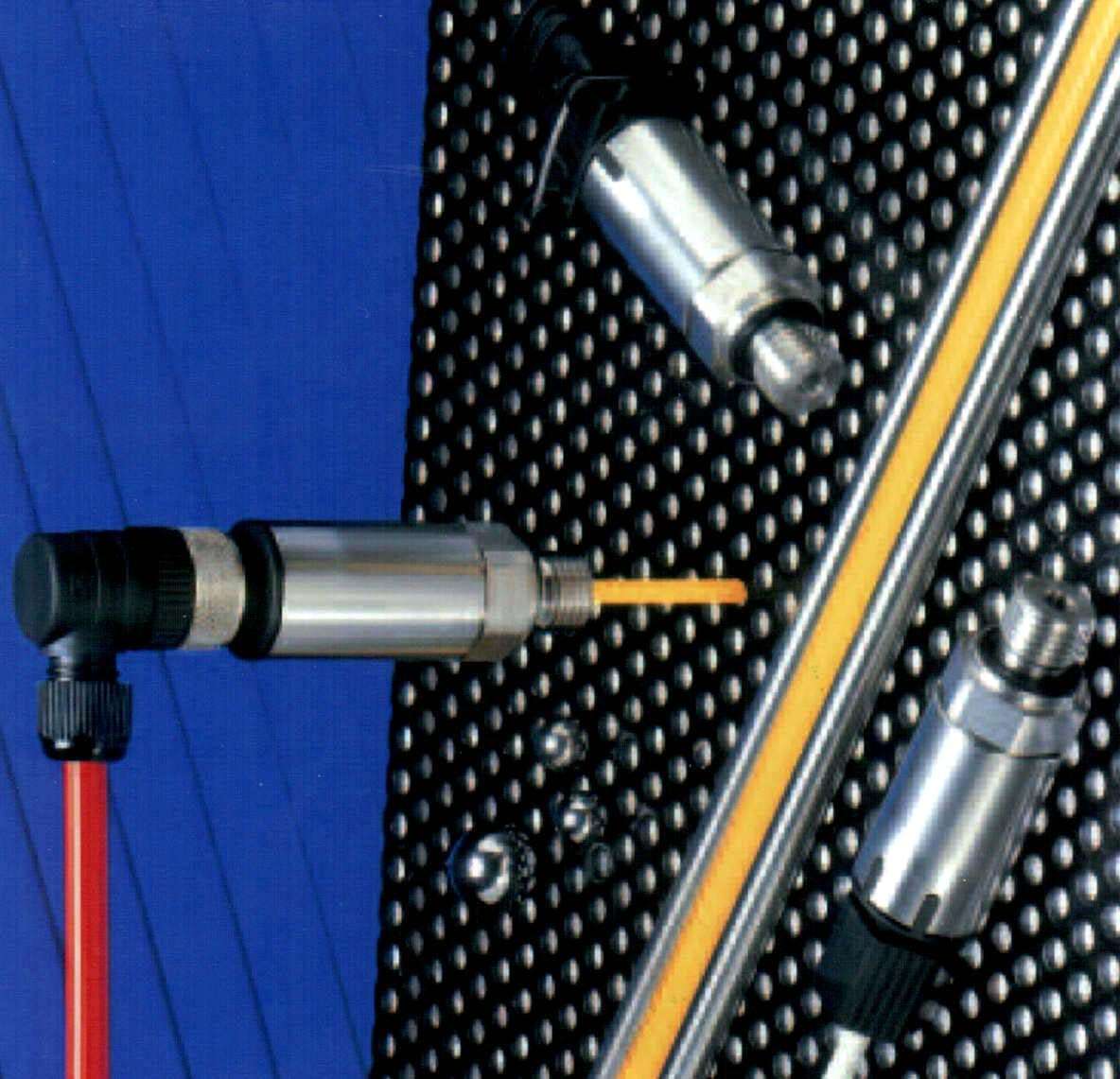

Clark Solutions    Clinton, MA 01510
Jul 30, 2003 Series 511 OEM Pressure Transmitters incorporate ceramic sensor and are resistant to extreme temperatures. Rupture sealing device in connector prevents leakage in event of sensor failure. Integrated sensor/electronics are extremely stable and accurate to ±3% full scale. Transmitters meet highest specifications for mechanical stress and EMC compatibility.

Servometer Corporation    Cedar Grove, NJ 07009-1239
Jul 30, 2003 Micro Miniature Electrodeposited Nickel Bellows are helium-tight and can bend, compress, and cycle. Diameters as small as 0.020 in. are available. Units are suitable as miniature flexible micro-couplings, micro-hermetic seals, pressure responsive devices, aneroids, electrical contacts, or precision micro springs.

Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046
Jul 30, 2003 Combining Static Headspace, Liquid Injection, and Solid Phase Micro Extraction modes in one instrument, AOC-5000 allows quick switching from one application to another on same system. Product is designed with syringe-only concept for transparent sample operation with no sample loops, transfer lines, or switching valves. Cycle Composer provides remote control through proprietary GCsolution and GCMSsolution software programs to enable operator to setup, edit, and run AOC-5000 methods.

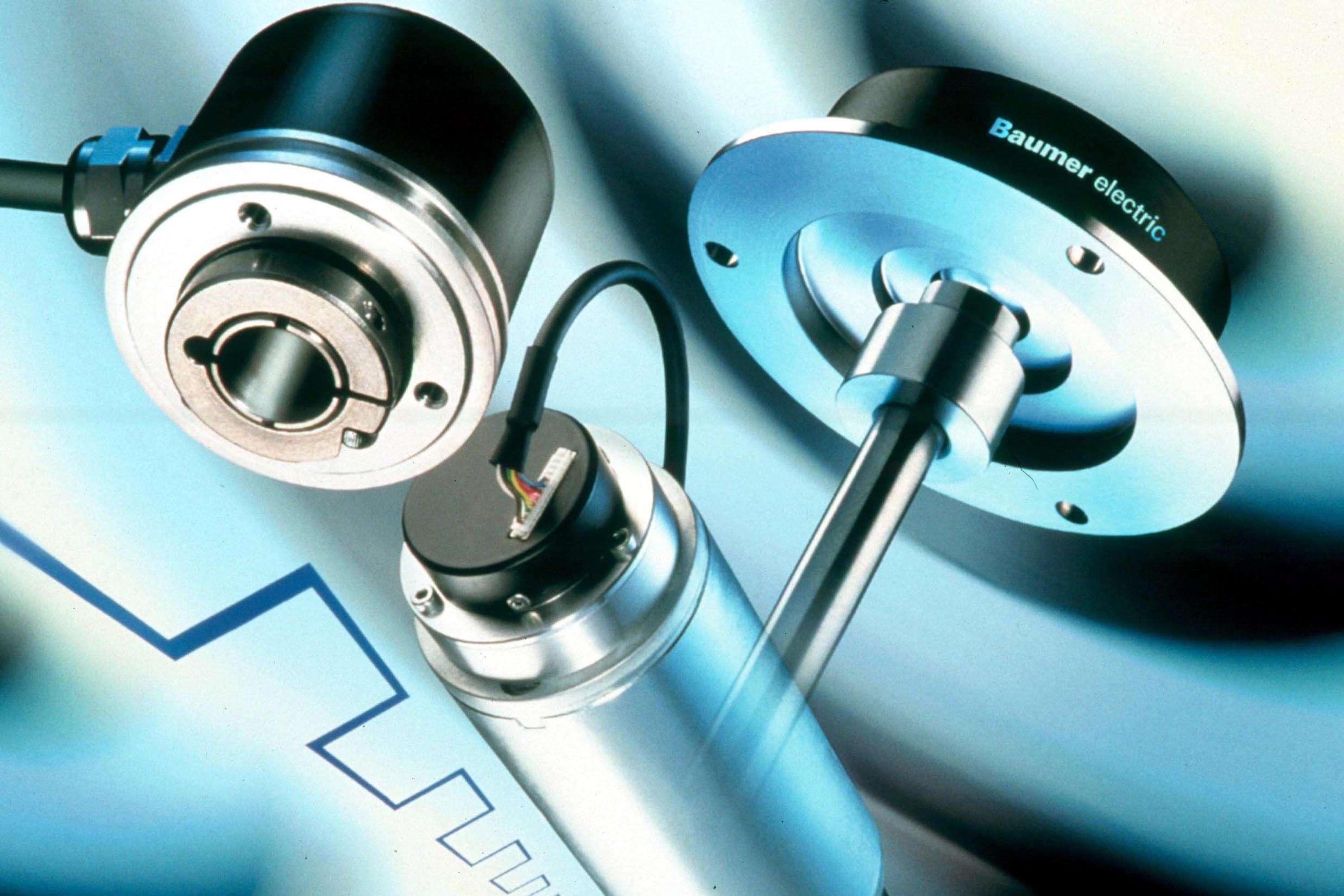

Baumer Ltd.    Southington, CT 06489 1534
Jul 30, 2003 Zero-point programmable MagRes absolute encoder is offered with modular bus cover option that allows sensor to be integrated into various bus systems using same base encoder unit. Suited for speed, direction, and position monitoring, product is available in 12-bit, non-contact kit version that measures 15.5 mm deep and offers IP68 sealing on its face. Encoder is also available in single turn and non-bus versions with parallel and SSI outputs.

Phoenix Mecano, Inc.    Frederick, MD 21704 8353
Jul 30, 2003 Modular drive unit can be assembled within bar-shaped cylinder (LZ 60) or parallel to it (LZ 60 P), and may be completed with additional parts such as integrated sensor system for position indicator or external sensor for stroke limitation. Version with ball screw spindle is available for higher speeds, and version with parallel drive unit is suited for demanding constructions. Connection system is compatible with traditional pneumatic and hydraulic cylinders.

Phoenix Mecano, Inc.    Frederick, MD 21704 8353
Jul 30, 2003 Suited for tough working environments, quad®-linear units EVT ensure fast, precise run in single- or multiple-axis systems. Products consist of anodized aluminum profiles with integrated guide table driven by protected drive mechanism. Internal prism guide ensures silent and maintenance-free run. Products are offered in 2 versions: spindle drive EVT-S with ball screw, and drive belt EVT-Z. Both versions feature chemical- and corrosion-resistance.

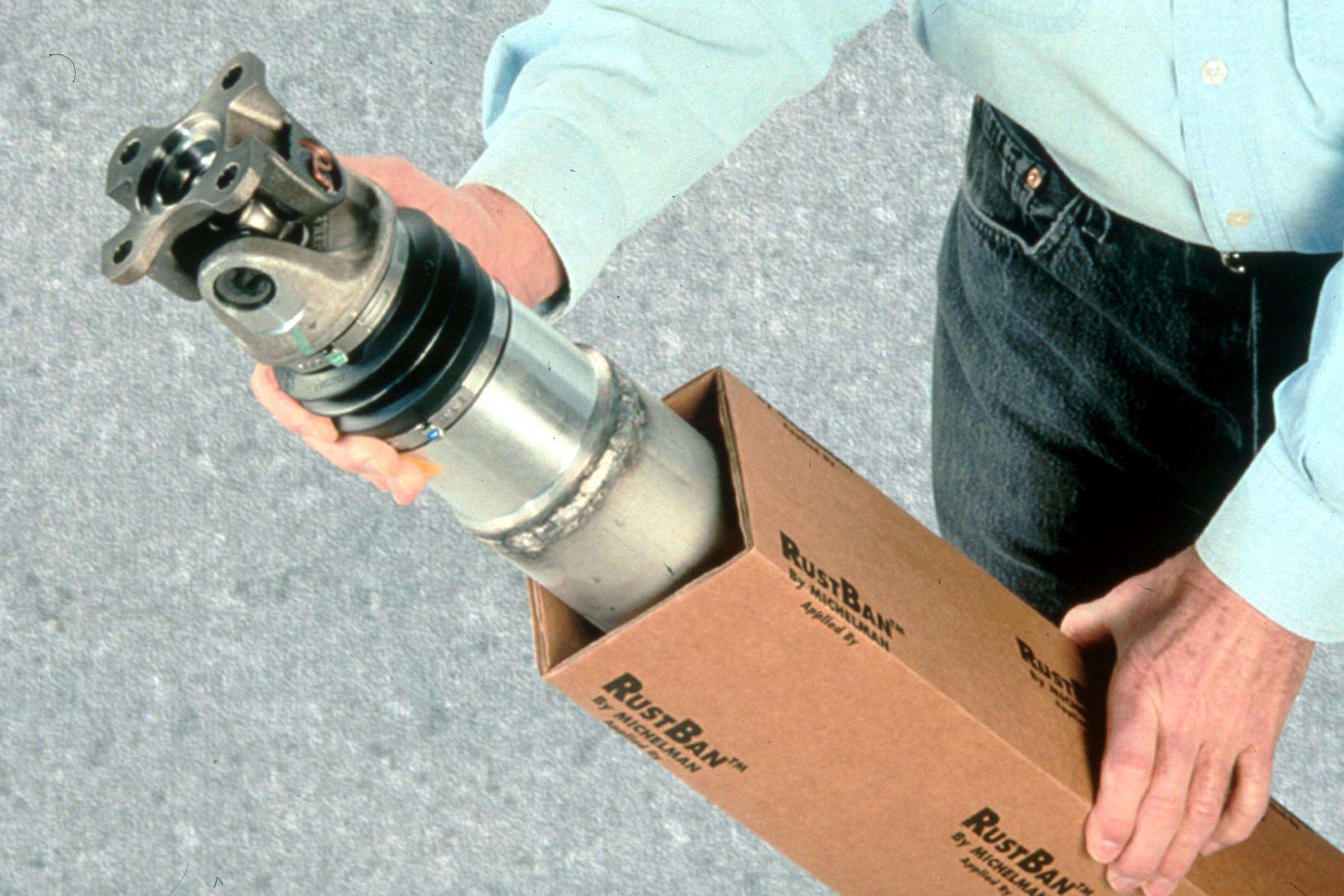

Michelman Inc.    Cincinnati, OH 45236
Jul 30, 2003 RustBan(TM) 105 is applied directly to corrugated, solid fiber, and other forms of paperboard packaging, allowing metal products to be placed into primary package for storage and shipment. Nitrite-free, repulpable/recyclable treatment offers service life up to 2 years. Partitions, slip sheets, and specialty paperboard products can be produced with RustBan applied to both sides. Treated materials are gluable with coldset and hotmelt adhesives.

Master Bond, Inc.    Hackensack, NJ 07601
Jul 30, 2003 Silver conductive epoxy film and preform system, FL901S bonds to both similar and dissimilar substrates. It offers moisture, chemical, vibration, and shock resistance. Product cures quickly at moderately elevated temperatures and can be stored in refrigerator for 6 months. Low level of total ionic impurities of less than 50 ppm makes it suitable for electronic assembly applications. FL901S is available in thicknesses of 2–8 mils and up to 16 in. sq.

Scapa North America    Windsor, CT 06095
Jul 30, 2003 Bioflex® 235 consists of breathable, medical-grade, thermoplastic, co-polyester extruded film for wound dressing, surgical drape, and gown fabrication. Product provides good barrier properties and can be laminated to various substrates. It is supplied on casting sheet and is available in thicknesses of 1-3 mils.

Ortronics, Inc.    New London, CT 06320
Jul 30, 2003 Clarity® 12-Port Mini Patch Panels are available in Clarity6 Category 6 and Clarity5E Category 5e, both with hinged or 89D bracket mounting. Jacks are grouped in 6-port modules and are center-tuned to Clarity patch cords for more transparent mated union. Easy-lace 110 termination minimizes installation time, and rear cable management supports best cabling practices. Mini patches have universal wiring for T568A/B.

B-K Lighting, Inc.    Madera, CA 93638
Jul 30, 2003 The L.O.C.K.â„¢ (Locking O-ring Compression Knuckle), offered as standard feature on various lighting fixtures, puts firm pressure-loading on threads of lock-screw to tightly lock knuckle in its position. Product incorporates high-temperature, silicone O-ring between 2 machined tapered parts for mechanical compression fit, and is watertight.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 29, 2003 WebSphere® Portal for Multiplatforms v5.0 offers singularized point of personalized interaction with applications, content, processes, and people. It provides flexible, open framework to build successful business-to-employee, business-to-business, and business-to-consumer portals. Unique e-business on demandâ„¢ portal requirements are addressed through integration of WebSphere Portal Enable and WebSphere Portal Extend.

Kollmorgen    Radford, VA 24141
Jul 29, 2003 Series F frameless, direct drive motors are offered in 4 frame sizes with continuous torque from 5–369 N.m, peak torque from 17–1,340 N.m, and diameters from 160–333 mm. They utilize neodymium-iron magnet rotor structure and skewed armature assembly to optimize machine torque/volume. Units include high magnetic poles, encapsulated armatures for high thermal transfer and mechanical protection, and low-cog technology for smooth low-speed operation.
