IDEAL Scanners & Systems, Inc.    Rockville, MD 20852
Jul 30, 2003 IDEAL/Contex Magnum XL 54 allows user to scan in color images up to 54 in. wide, store them on customized, browser-based IDEAL PlanRoom, and sell large format color graphics online. It offers real-time color correction and 2D-filter for color sharpening, softening, and blur. Color is captured at 42 bits, passing best 24 bits of color data to computer to enhance color fidelity. Scanner handles media up to 0.6 in. thick and scans color images at 3 ips. It supports FireWire and SCSI.

ProSoft Technology Inc.    Bakersfield, CA 93311
Jul 30, 2003 In-rack Model PC56, for Allen Bradley's ControlLogix platform, is driven by 266 MHz Pentium II processor and supports Windows applications. It features easy read and write direct connection to 555X data tables via ControlLogix back plane. PC56 supports off-the-shelf or user-created applications using Serial, Ethernet, ControlNet, and/or DeviceNet communications. It is suited for HMI and SCADA integration, eDiagnostics, and IT Server applications.

MRC Bearings    Lansdale, PA 19446
Jul 30, 2003 Marathon® stainless steel, single-row, deep groove ball bearings can be specified with solid lubricant packs, which prevent grease washout during washdowns. Optional packs contain USDA-approved food grade oil or standard mineral oil, and slowly meter lubricant to critical parts of bearing. Available in open, double sealed, or shielded versions, bearings perform over wide range of operating temperatures, loads, and speeds. Bore sizes range from .1250-1.3780 in.

Sorbothane, Inc.    Kent, OH 44240
Jul 30, 2003 Work/Sport Insoles absorb shock and relieve pain in feet, knees, and lower back. They are lightweight and provide arch support, heel control, and Sorbothane® protection.

Wagner Companies, The    Bulter, WI 53007
Jul 30, 2003 Ultra-Tec? Cable Railing System uses Type 316 stainless steel cable and hardware for resistance to atmospheric and general corrosive conditions. Machined pieces are visually unobtrusive. Framing components can be specified in carbon steel pipe, structural tubing, stainless steel and wood; and are available unfinished, galvanized, primed and painted, and powder coated. Invisiware? receiver provides installations with minimum of visible hardware.

Molded Materials, Inc.    Plymouth, MI 48170
Jul 30, 2003 Injection molded trays utilize design that accounts for dimensional accuracy, positioning accuracy, durability, secure part containment, and part protection from damage and contamination. Dimensional accuracy is ±.04 anywhere in tray. Molded from Noryl® EM6100, trays measure 43.5 x 23.187 x 3.08 in. and hold up to 75 individual main bearing caps positioned in pockets with spacing required to permit end effectors on robots to pick and place them.

Protek Test & Measurement    Englewood, NJ 07631

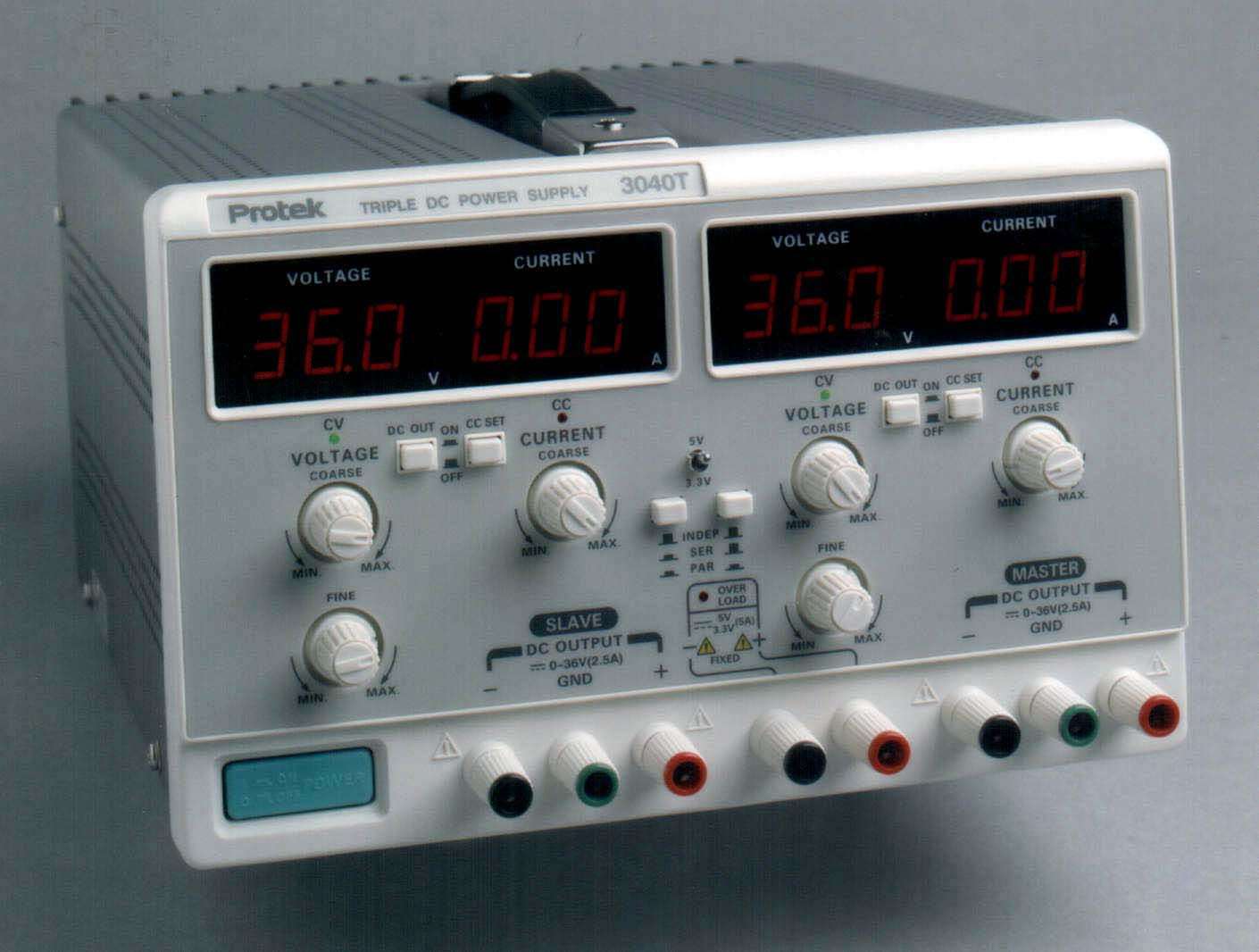

Jul 30, 2003 Model 3040T offers series, parallel, or independent tracking, selectable via front panel. It incorporates two 0 to ±36 V outputs at 0 to 2.5 A and one switchable 3.3/5.0 V fixed supply. Unit features constant voltage and constant current modes, master/slave tracking, and line/load regulation of <0.05%. It measures 9 x 6.3 x 13 in. and includes bright digital display.

Magnetic Analysis, Corp.    Mount Vernon, NY 10550-4403
Jul 30, 2003 Pocket-sized, hand-held Magnetism Detector displays degree and polarity of residual magnetism in iron and steel objects. It operates by placing base of indicating needle against object being tested. Full-scale deflection is equal to approximately 20 gauss. Typical applications include checking products such as bar, tubing, or metal parts where magnetism can interfere with subsequent machining and handling operation, or with end use of product.

Weinbrenner Shoe Co., Inc.    Merrill, WI 54452
Jul 30, 2003 DRI-DUCK features Thoro>dri waterproof barrier that lets feet breathe as it keeps them completely dry during use. Boot also features dual density, soft, flexible, oil- and slip-resistant TPU outsole and removable, polyurethane, Super Cushion footbed. Additional safety features include safety toes and insulated linings. Product comes with integrated brown duck cordura that matches most coveralls and work clothes.

Molex Inc.    Lisle, IL 60532-1682
Jul 30, 2003 Series 35, 3.5 mm Pluggable Beau® Eurostyle® Terminal Blocks are available in circuit sizes from 2–20 circuits, and can handle up to 10 A at 300 V. Headers are surface mount compatible, and blocks are available in both vertical and right angle configurations. Polarization and key coding prevent mis-mating. Rising cage clamp termination provides secure and reliable connection without strand damage or intermittence. Terminal blocks are UL recognized.

National Instruments Corp.    Austin, TX 78759-3504
Jul 30, 2003 SC Series boards, including PXI-4204 and PXI-4220 modules, seamlessly integrate with LabVIEW 7 Express for acquiring and analyzing high-voltage and high-speed strain with 16-bit measurement accuracy. Devices integrate measurement-specific signal conditioning onto 16-bit PXI data acquisition module based on cPCI bus and provide simultaneous sampling at rates up to 200 kS/s. Products allow users to synchronize timing and triggering signals between multiple devices.

National Instruments Corp.    Austin, TX 78759-3504
Jul 30, 2003 Vision 7 Development Module for LabVIEW 7 Express provides machine vision engineers with tools needed to prototype, benchmark, and create highly advanced applications. Menu-driven Vision Assistant allows engineers to experiment with more than 200 machine vision functions, including optical character recoginition and bar code reading. With single mouse click, Vision Assistant generates code for LabVIEW, LabVIEW Real-Time, C, and Visual Basic.

National Instruments Corp.    Austin, TX 78759-3504
Jul 30, 2003 Models PXI-2593 and SCXI-1193 are RF switch modules with 16 channels in PXI and 32 channels in SCXI. Using NI-SWITCH instrument driver software, design and test engineers can configure modules as unterminated multiplexer, terminated multiplexer, or dimensionally flexible sparse matrix. Models PXI-2566 and SCXI-1166 offer independent, high-current, SPDT relays with 16 relays in PXI and 32 relays in SCXI. All 4 modules track and store number of relay cycles used in system.

Zontec Inc.    Cincinnati, OH 45240
Jul 30, 2003 Synergy 2000(TM) SE Statistical Process Control Software creates closed security system environment where System Administrator grants user privileges, controls data access, applies password protection, and ensures that data cannot be compromised. It captures handwritten signatures, offers time and date stamping, and provides reporting, traceability and generation of audit trails for parts, batches, lots, manufacturing cells, assignable causes, and corrective actions.

Bahco North America, Inc. A Sub. Of Snap-On, Inc.    Scranton, PA 18501 2036
Jul 30, 2003 Construction-grade 850000 series Tape Rules are available with English or English/Metric measurements in sizes ranging from ¾ in. x 16 ft to 1 in. x 30 ft. Professional Long Tape measuring tools have Auto Rewind feature, open spool design and are available in English or English/Metric in sizes from 3/8 in. x 50 and 100 ft lengths. The 850050 Magnetic Belt Tape Holster stores 16-35 ft long measuring tapes, includes magnet contact between holster and tape rule, and is built with ABS plastic.

Dynasonics, Div. Of Racine Federated, Inc.    Racine, WI 53404
Jul 30, 2003 Series TFXM multi-pipe, multi-path, clamp-on flow meter uses time of flight ultrasonic technology. Non-invasive unit installs by clamping transducers to outside of pipes ranging from 2–100 in. Each measurement channel contains integral 4-20 mA, dual-relay, and RS485 communications. Optional Windows®-based UltraLinkâ„¢ software and infrared adapter allow complete programming and calibration via PC.

Eaton Corporation    Raleigh, NC 27615
Jul 30, 2003 Series T2235 19 in., 1U rack-mount unit combines redundant power switching, under-voltage sensing, and out-of-phase source switching. Intelligent circuitry monitors both inputs and will transfer power to secondary power source if primary power is lost. Both 15 and 20 A, 120 V versions are available with NEMA receptacles. IEC version operates at 100-240 V. Status LEDs on front panel indicate power available and which source is being output.

Clark Solutions    Clinton, MA 01510
Jul 30, 2003 Series 511 OEM Pressure Transmitters incorporate ceramic sensor and are resistant to extreme temperatures. Rupture sealing device in connector prevents leakage in event of sensor failure. Integrated sensor/electronics are extremely stable and accurate to ±3% full scale. Transmitters meet highest specifications for mechanical stress and EMC compatibility.

Servometer Corporation    Cedar Grove, NJ 07009-1239
Jul 30, 2003 Micro Miniature Electrodeposited Nickel Bellows are helium-tight and can bend, compress, and cycle. Diameters as small as 0.020 in. are available. Units are suitable as miniature flexible micro-couplings, micro-hermetic seals, pressure responsive devices, aneroids, electrical contacts, or precision micro springs.

Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046
Jul 30, 2003 Combining Static Headspace, Liquid Injection, and Solid Phase Micro Extraction modes in one instrument, AOC-5000 allows quick switching from one application to another on same system. Product is designed with syringe-only concept for transparent sample operation with no sample loops, transfer lines, or switching valves. Cycle Composer provides remote control through proprietary GCsolution and GCMSsolution software programs to enable operator to setup, edit, and run AOC-5000 methods.
