Ideal Industries, Inc.    Sycamore, IL 60178
Jul 29, 2003 Capable of measuring AC/DC voltage, MEGGER® 61-791 incorporates 3-digit, backlit, digital display and analog arc. It also includes choice of insulation test voltages, hands-free continuity testing, auto voltage sensing, and auto discharge of capacitive voltage. Compliant with CAT III 300V, it enables users to perform insulation resistance testing of motor windings, appliances, generators, transformers, power tools, and other wiring systems.

Kerk Motion Products, Inc.    Hollis, NH 03049
Jul 29, 2003 Surface-hardened steel spline shafts are treated with low-friction TFE coating. Graphite- and PTFE-filled thermoplastic bushing, manufactured with integral brass collar, facilitates mounting without nut distortion. Offered in standard lengths to 24 in., assemblies are available with basic or anti-backlash bushing; plain or thread mount bushing; and ¼, 3/8, ½, or ¾ in. dia shaft. Lengths to 96 in. are available on custom basis.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Jul 29, 2003 Able to be custom designed for unique applications, Lift and Sealâ„¢ unit provides dust-tight discharge of chemical powders in explosive environments. Features include intrinsically safe power unit and controls, stainless steel product contact surfaces, and interlocked safety cage for protection of employees. Control Linkâ„¢ Rotation System provides 165° drum rotation.

DTE Energy Technologies, Inc.    Detroit, MI 48226

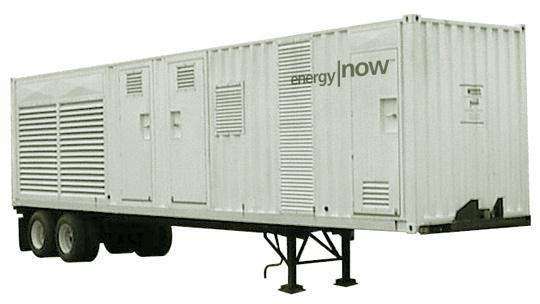

Jul 29, 2003 Model ENI 415 is a combined heat and power, on-site energy system with pre-engineered packaged design for indoor or outdoor installations. It can support peak and full load requirements, providing full power in event of utility outages. System is suited for base load and waste heat utilization applications. Waste heat applications can provide both chilled and hot water, enabling commercial and industrial customers to offset natural gas and electricity consumption.

CGTECH    Irvine, CA 92618
Jul 29, 2003 VERICUT v5.0 CNC machine simulation, verification, and optimization software supports G-codes or native CAM output to simulate milling, drilling, turning, wire EDM, and mill/turn machining operations. CATIA V5-to-VERICUT Interface provides smooth upgrade path for CATIA users who have transitioned to CATIA V5. All stock, fixture, and design geometry is automatically transferred to VERICUT in correct orientation, along with NC program, tooling, machine and control data.

Numerical Control Computer Sciences (NCCS)    Newport Beach, CA 92660
Jul 29, 2003 NCL v9.3 multi-axis machining software features waterline roughing, which quickly roughs complex models. User can specify bottom and top levels, or system will automatically calculate extent of area to machine. Roughing parameters can be saved as template to machine similar components. Selection of pocket and island boundaries gives user total control of what to machine. Software simplifies creation of opposite hand parts and includes verification, simulation, and inspection capabilities.

Dortronics Systems, Inc.    Sag Harbor, NY 11963
Jul 29, 2003 Series ML-1100 Mortise Lock and Pull System is available in 2 models offering 650 and 1,000 lb holding forces. All hardware is totally concealed with tamper-proof mounting. Pull handles can be supplied in dark bronze and satin black anodized finishes as well as polished brass, satin brass, polished chrome, or satin chrome plated finishes. Optional dual magnetic bond sensors detect improper armature mating or lack of sufficient power to provide rated holding force.

Watlow    St. Louis, MO 63146

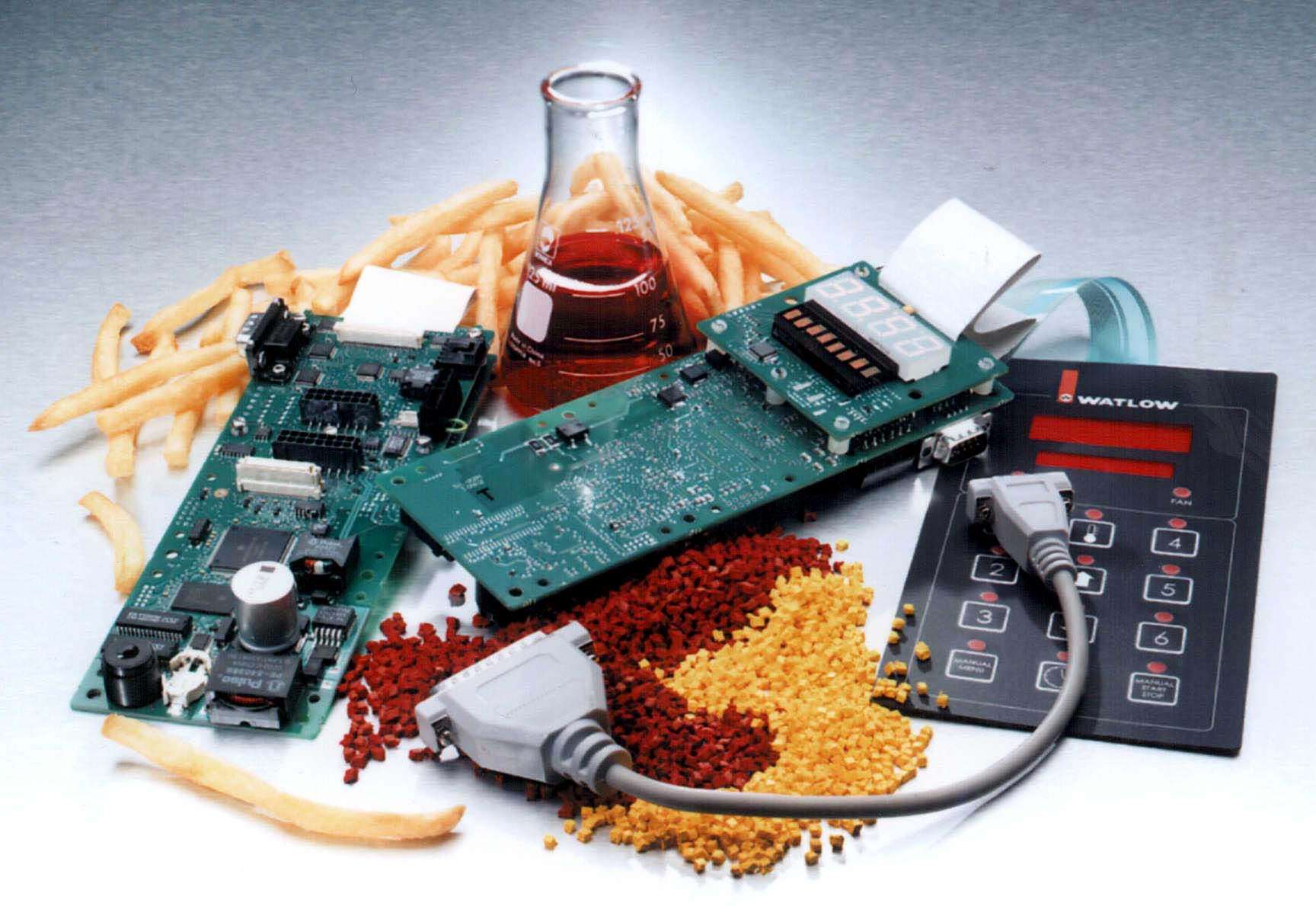

Jul 29, 2003 Series N7 can handle sophisticated control algorithms, as well as monitor and count various events. High voltage output module provides up to 6 high voltage relays, while custom firmware allows multiple applications in one controller. Up to 4 sensor inputs can be customized to include thermocouples, RTDs, or process inputs. Ethernet communications module enables NAFEM protocol options. Units include auto-tuning feature and have ambient temperature rating of 176°F.

AC Technology Corp.    Uxbridge, MA 01569 2001
Jul 29, 2003 Offering controlled start-up and overload protection, smd Series drives incorporate removable memory chips and desktop programming modules that reduce programming and service time. Controls on front are provided for speed adjustment and basic programming. Additional features include adjustable slip compensation, voltage boost, and DC injection braking.

ZF Industries Inc., Industrial Drives Div.    Vernon Hills, IL 60061 3182

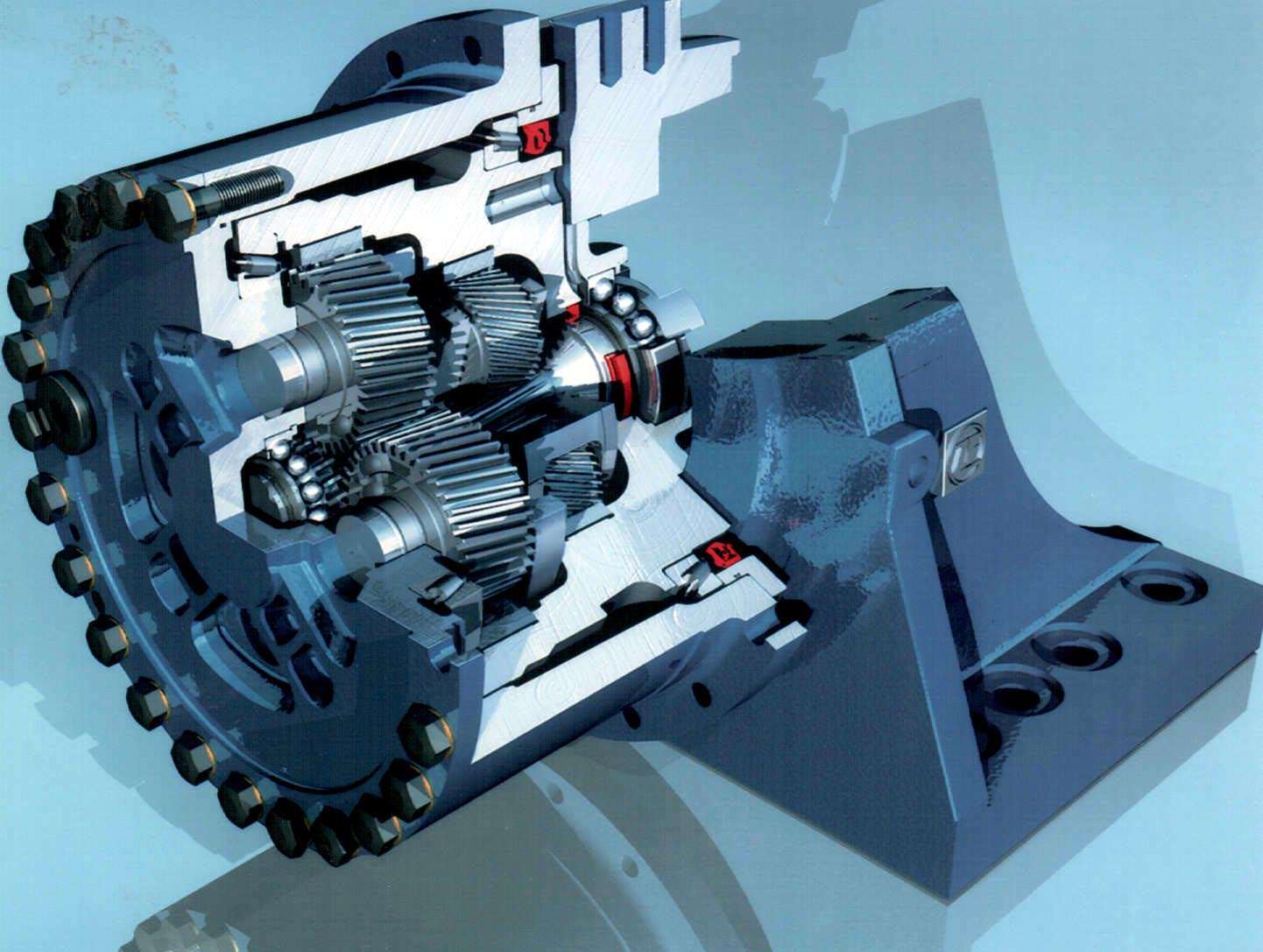

Jul 29, 2003 Constructed for passenger and service elevators, ZF-Ecolift models RME 310 and RME 410 use 2-stage planetary gear design to transmit power to sheave and fulfill elevator technical regulations TRA 200 and TRA 220-229. Suited for motor speeds of 1,000, 1,500, and 3,000 rpm, products may be used with motors up to 50 hp and offer load capacity of up to 5,500 lbs. Units emit low noise due to helical planetary gearing and offer cabin speeds to 13 ft/sec.

Rice Lake Weighing Systems    Rice Lake, WI 54868

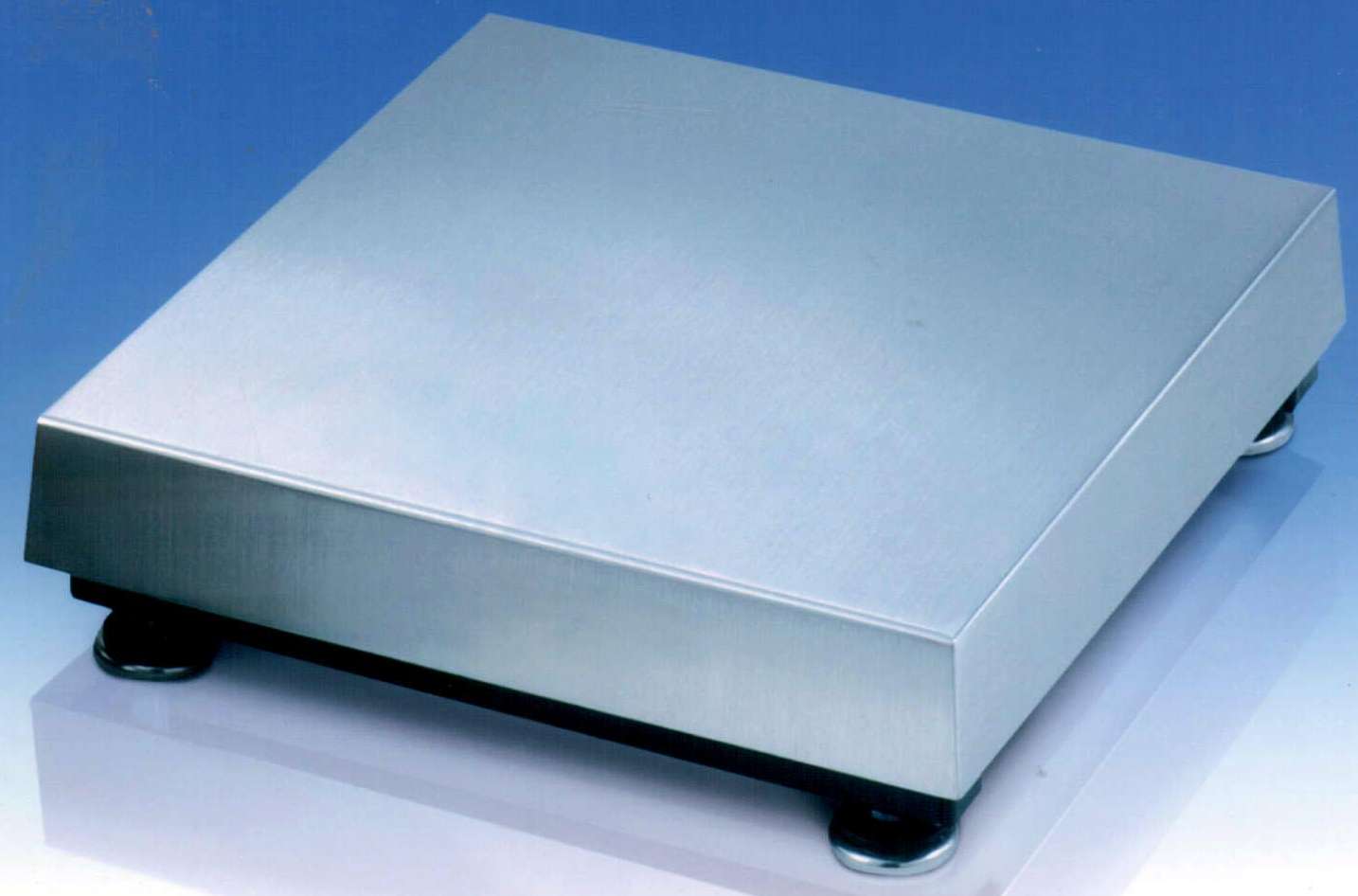

Jul 29, 2003 NTEP-certified BenchMarkâ„¢ Series, suited for medium- to high-capacity weighing applications, employs single-point design with sensitive load introduction. Offered in 304 stainless steel models, series is offered with optional stainless steel clamshell load cell shield for protection in washdown environments. Models SL and CW-80B are equipped with LifeGuardâ„¢ base design that protects load cells from mechanical and shock over-loads.

Rice Lake Weighing Systems    Rice Lake, WI 54868

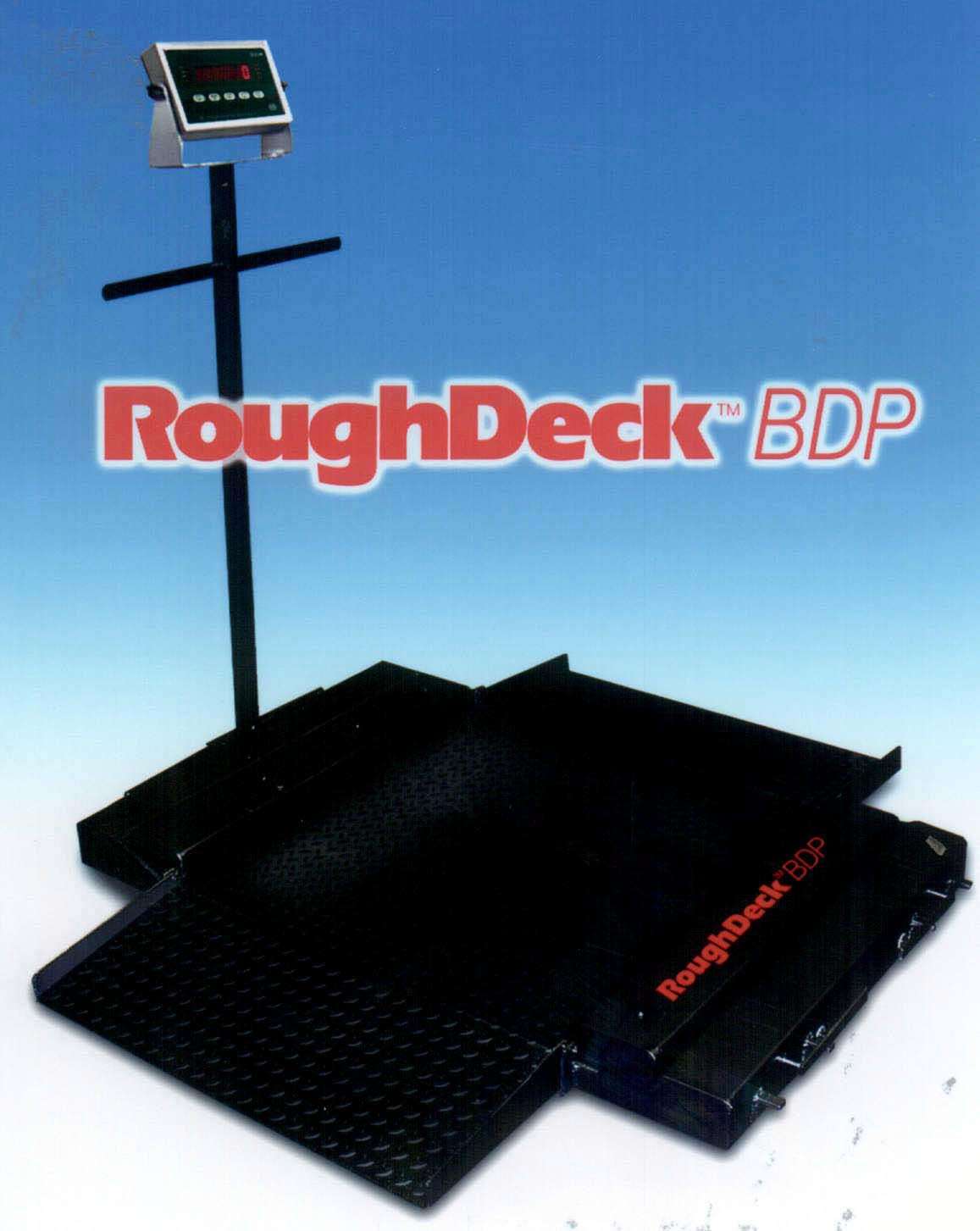

Jul 29, 2003 With ramps that sit flush with ground, RoughDeckâ„¢ accommodates barrels, drums, and pallets. Indicator stand is attached to portability frame so vibration does not interfere with zeroing. Portability frame and caster engaging mechanism are below scale's live rails, for unconfined weighing of large items. Load cells and cables are recessed into structural steel channels and fully enclosed junction box is accessible from top.

BASCO    University Park, IL 60466

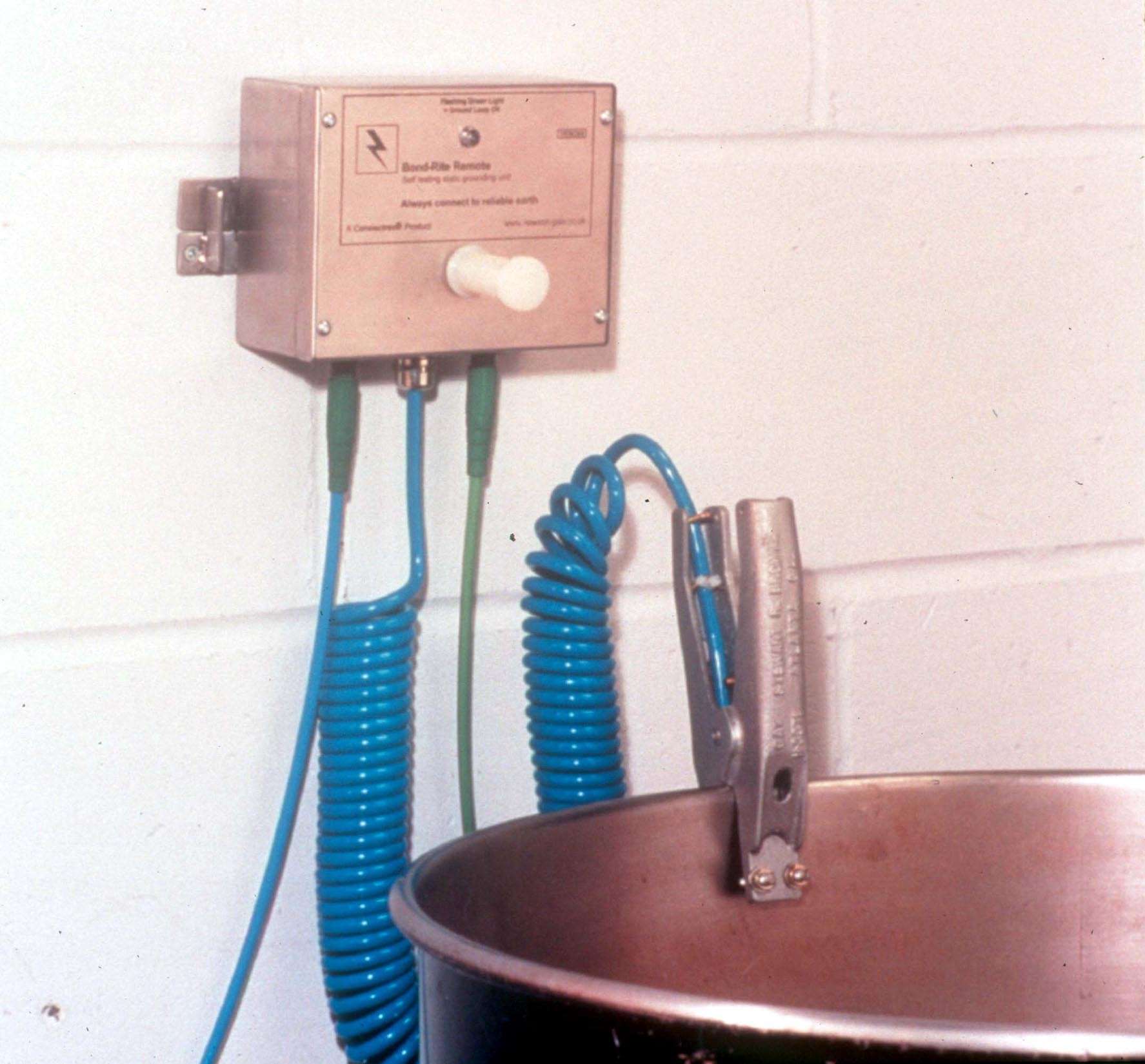

Jul 29, 2003 Bond-Rite and Bond-Rite Remote are 9 V battery-operated, self-contained, static ground verification systems. Each unit continuously monitors condition of static ground connection between object to be grounded and known high integrity ground. Flashing green LED verifies clamp connection and low resistance ground loop. Bond-Rite houses all electronics inside 316 SS clamp, while Bond-Rite Remote houses all electronics in stainless steel wall mountable box.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Jul 29, 2003 Available with epoxy sealing for wave soldering, WJ111 miniature, lightweight relay is available with 1A and 1C contact configurations. UL-recognized product includes DC coil voltage options of 5–100 Vdc. Produced with silver cadmium, 16 A contacts, unit can be used in power supplies and small appliances and is available with optional .20 W coil for high-sensitivity applications.

Snap-on Industrial    Kenosha, WI 53141 1410
Jul 29, 2003 With max free speed of 5,500 rpm, AT126 Blue-Point® Brand ¾ in. Square Drive Impact Wrench incorporates jumbo single hammer mechanism for loosening and tightening tasks. Tool delivers 1,000 blows/min and achieves max torque of 1,100 lbs-ft. Features include built-in grease lubrication system and handle defused exhaust that directs air away from job area. Unit accepts compressed air at pressures up to 90 psig and consumes 5.3 ft³ of air per minute under load.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Jul 29, 2003 Laser Programming and Nesting Software v3.6 can determine and select best size sheet for parts nest. It automatically performs sequencing, process optimization, and feature avoidance, and adjusts part programs and codes to each machine model's speed, acceleration/deceleration, and processing capabilities. Software allows nest file to be used by more than one model laser without rebuilding nest. Windows-style graphics allow part files and nests to be created offline.

Draeger Safety, Inc.    Pittsburgh, PA 15230
Jul 29, 2003 Equipped with LCD concentration display with audible, visual, and vibrating alarms, microPac Plus consists of one gas measuring and warning device for oxygen in 0–25.0% volume range. Lightweight, low-profile design enables users to wear product on lapel, shirt pocket, or belt. Unit employs RFI-protected housing to guard against environment and works for 2 years without need for calibration or battery replacement.

Air Quality Engineering, Inc.    Minneapolis, MN 55428

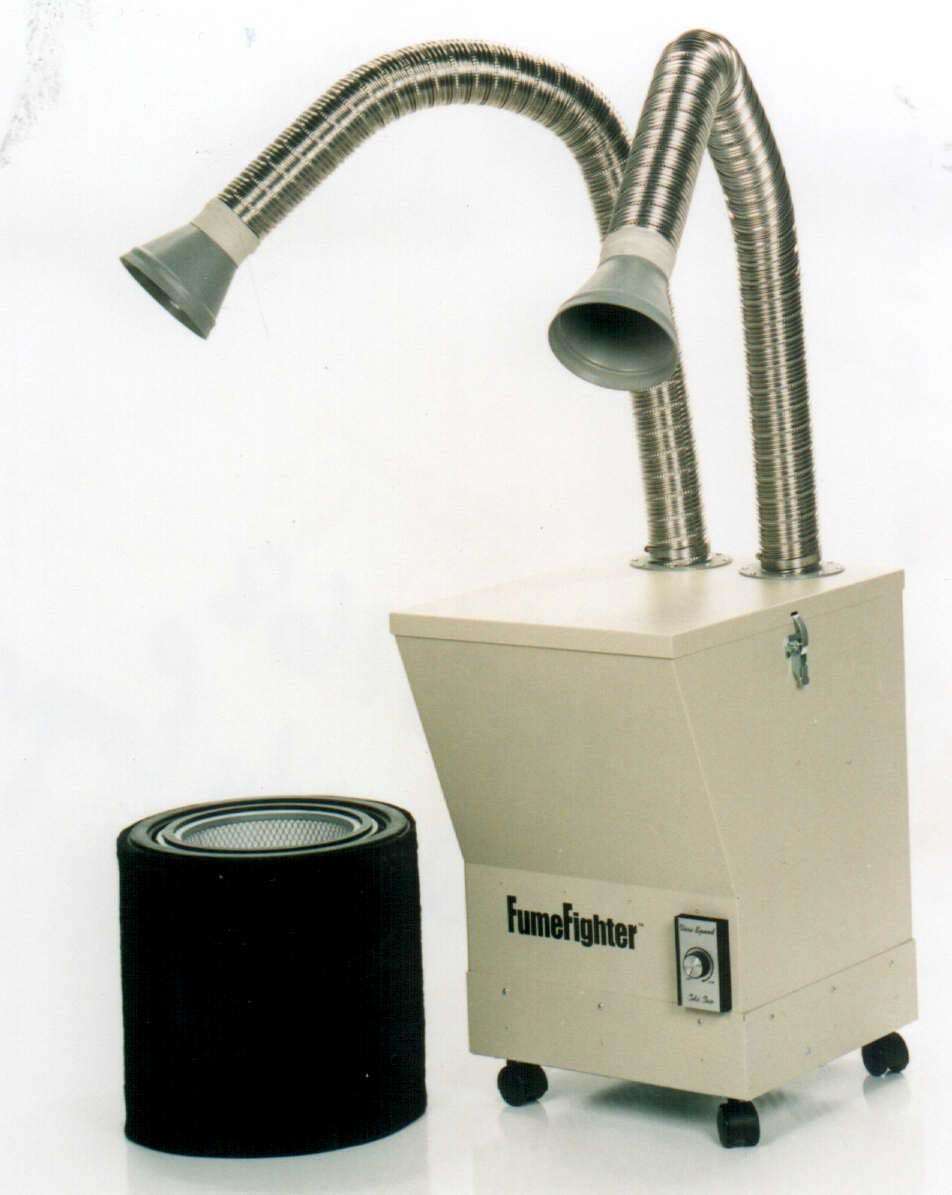

Jul 29, 2003 FumeFighter® removes harmful particulates and gases before they reach operator's breathing zone. Three-stage system incorporates 99.97% efficient HEPA filter and activated carbon. Dynamically balanced, infinitely variable, 115 V, 2 A motor/blower produces up to 225 cfm of air. FumeFighter wheels under most workbenches, eliminating need for additional floor space. Arms are ridged stainless steel, which once positioned will hold position without readjustment.

Nord Gear Corp.    Waunakee, WI 53597

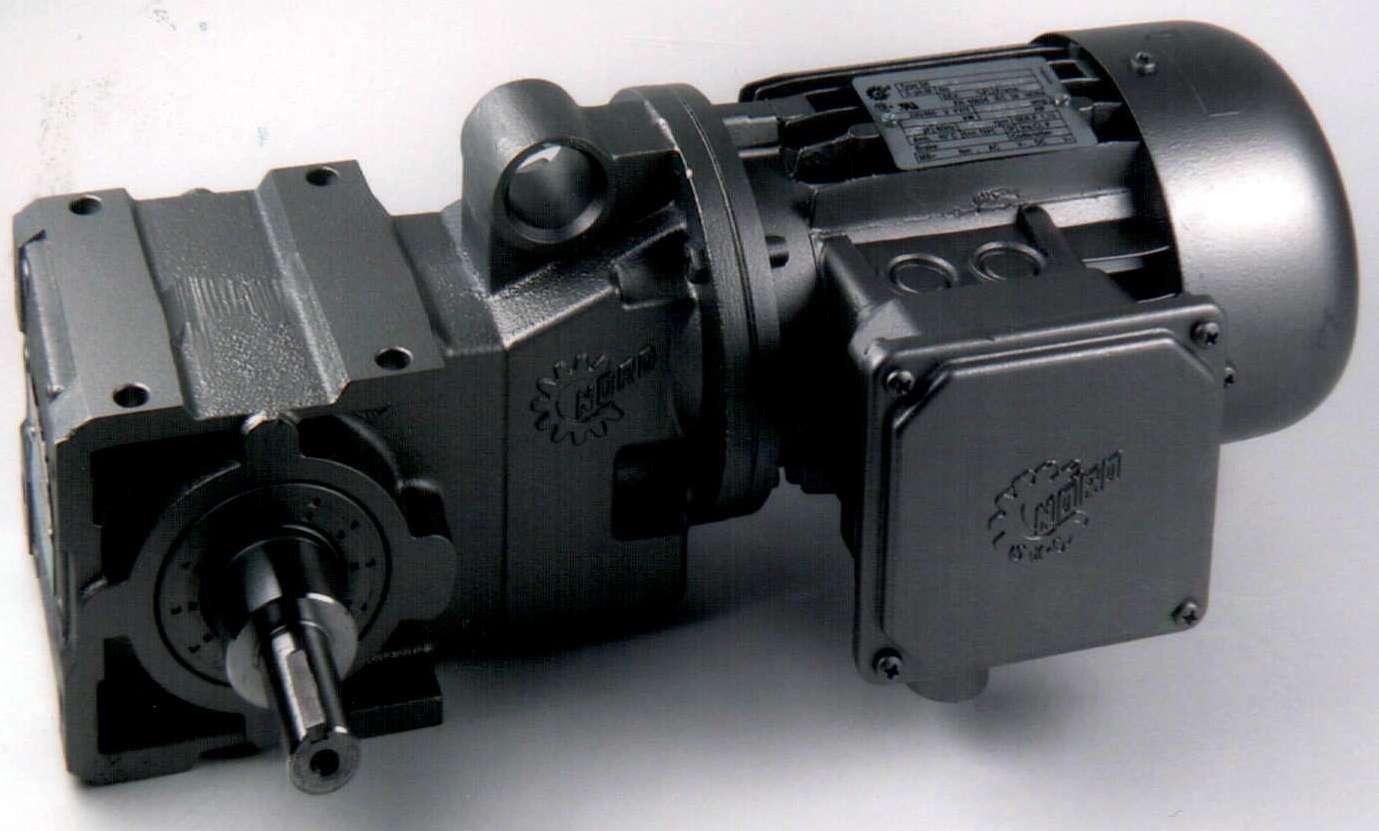

Jul 29, 2003 SK 92072 drives offer leak-free and maintenance-free operation for heavy-duty industrial applications. Construction elements include UNICASE™ one-piece housing, wear-free gearing designed to AGMA CLASS 13 standards, impact-resistant protective finish, and synthetic lubricating oil. Operating at up to 97% efficiency, products provide gear ratios from 3.85:1 to 54.65:1, output speeds from 32–455 rpm, and max output torque of 797 lb-in.

Columbia Marking Tools, Inc.    Chesterfield, MI 48047

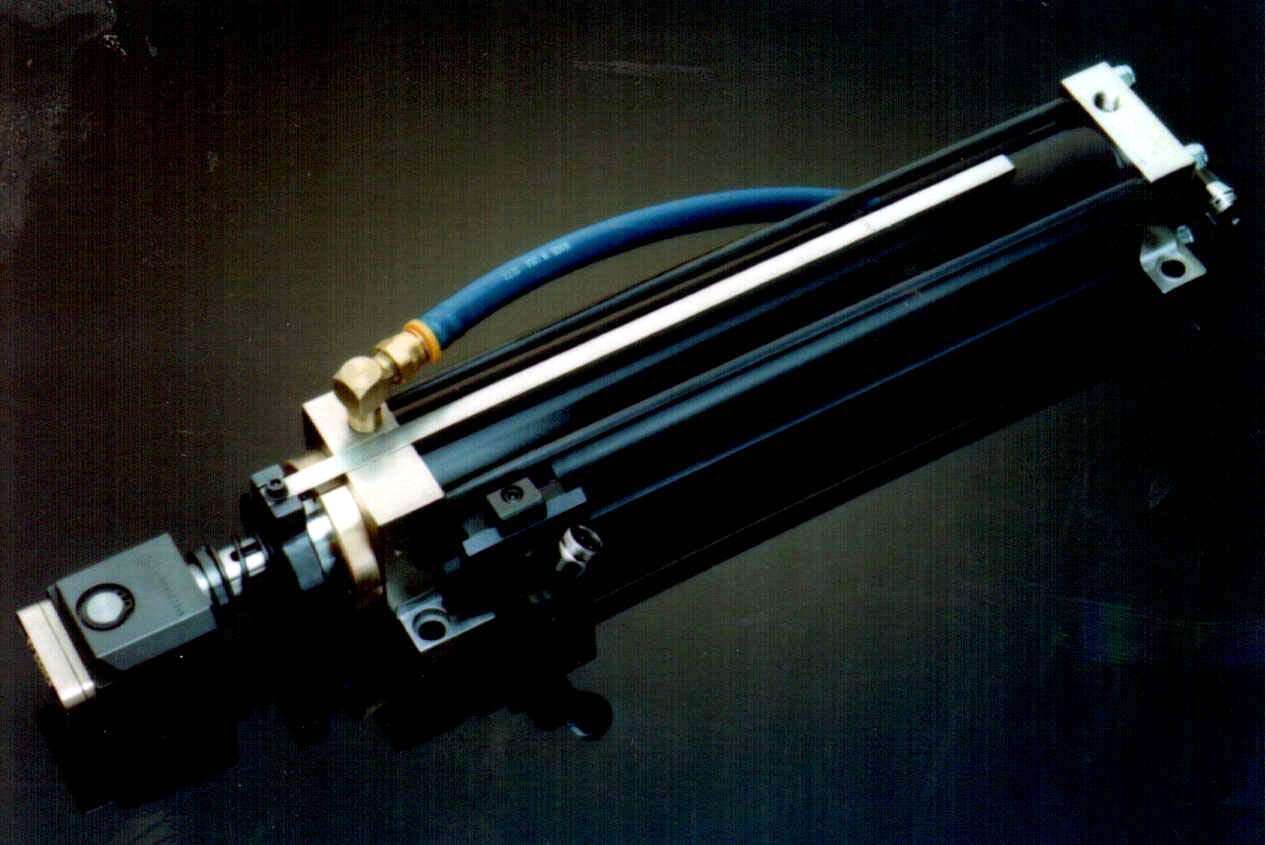

Jul 29, 2003 Double-acting, air-operated Slide-A-Mark models 651 and 851 utilize same cylinder body and bolt-mounting pattern and are offered with various keyed air-powered rod and stamp holder styles. Model 651 produces force range of ¼-6 tons, while Model 851 produces force range of 1½-12 tons. Markers utilize 2-stage impact marking sequence and fixed internal air passages that control speed. Strokes range from 2½-12 in., and marking pressure remains same anywhere within stroke.
