Balluff, Inc.    Florence, KY 41042-0937

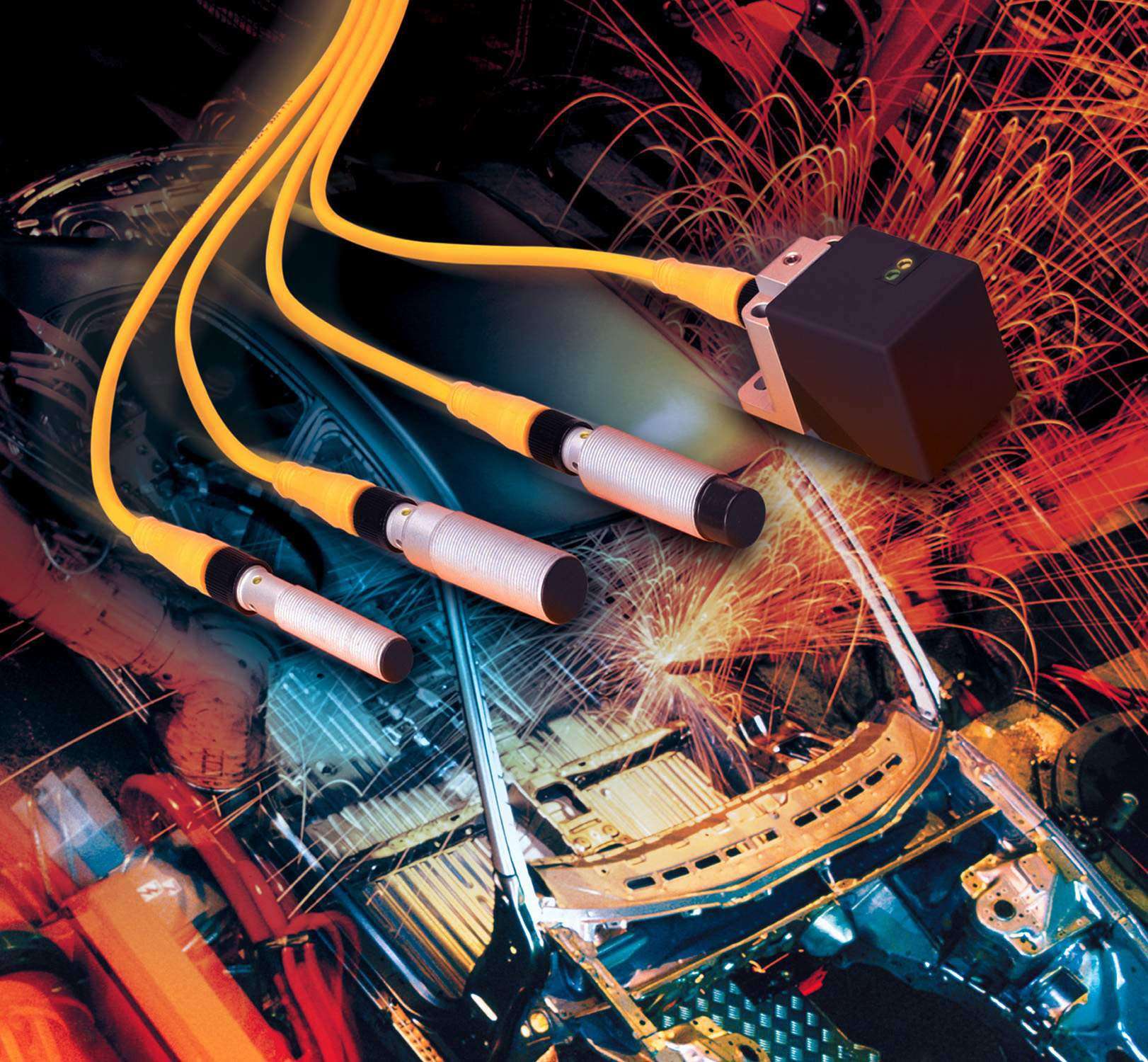

Aug 01, 2003 Weld Field Immune and Factor 1 sensors, in both flush and non-flush mount versions, are offered with SlagMasterâ„¢ coating. SlagMasterâ„¢ can be applied to inductive proximity sensors with virtually no sensor degradation, allowing sensors to resist weld slag buildup, high heat, and mechanical damage.

USG Corp.    Chicago, IL 60680-4678
Aug 01, 2003 READYROCKâ„¢ Liquid Gypsum and Liquid Composite are pre-mixed slurries that remain in liquid state indefinitely. When ready for use, READYROCK activator is added to slurry to begin setting process. Set times can be adjusted from 6 min to 2½ hrs by varying amount of activator. Both products offer dust-free solutions for statuary casting. Liquid Composite is for exterior, not-water-holding applications. Products are non-toxic, non-allergenic and odorless.

Ortronics, Inc.    New London, CT 06320

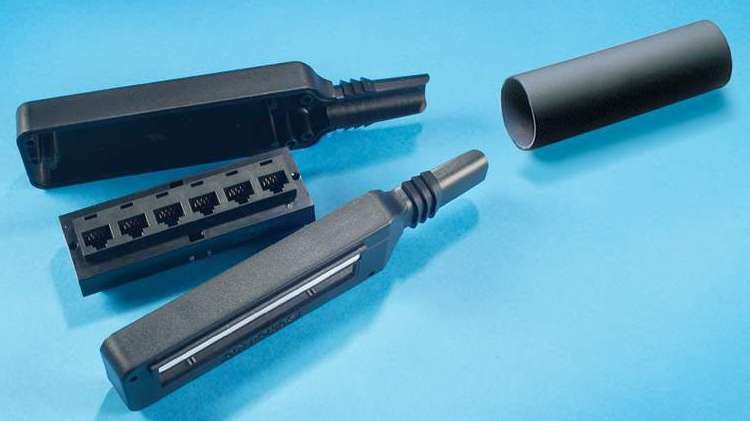

Aug 01, 2003 ClarityB. Jak-Paks, available in Clarity6 Category 6 or Clarity5E Category 5e, provide compact, flexible, multi-user solution that can be structurally mounted or used in temporary environments. Products offer field-termination option for delivering Clarity performance to workstation, MUTOA, or consolidation point. They are supplied with Clarity6 or Clarity5E modular/110 easy-lace connections for performance of Clarity connectivity with 6-port, field-installable cable termination.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Aug 01, 2003 SureMark TG8 and DG8 Printers read check MICR line both optically and magnetically, reducing misreads of account and routing information. They provide clear digital images of checks and other documents that can be used as records to support new and existing business processes. Printers store up to 100 15 Kb check images, enabling image storage while operating in terminal-offline mode. Check-flipping mechanism shortens transaction times.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Aug 01, 2003 IntelliStation® M Pro workstation delivers processing speeds of 2.8, 3.0, or 3.2 GHz using Intel® Pentium® 4 processors. Product offers users choice of 5 dual-head-capable graphics: NVIDIA Quadro4 280NVS (performance 2D), 580XGL (entry 3D), 980XGL or FX 1000 (advanced 3D), and FX 3000 (extreme 3D). Available with 36.4, 40, or 80 GB HDDs with S.M.A.R.T., unit offers integrated SATA, ATA-100 EIDE, and Ultra320. Product suits engineering, media creation, and scientific applications.

Pacific Bearing Co.    Roscoe, IL 61073
Aug 01, 2003 Mini-Rail® miniature linear guides provide smooth and quiet linear motion. Self-lubricating design requires no sealing, emits no particulates, and tolerates high temperature extremes. Frelon® liner embeds particulates and wipes away grime, allowing guides to tolerate harsh environmental conditions in steel processing, textiles, and automotive applications. Sizes include 7, 9, 12, 15, and 20 mm, and 3 design configurations are available.

Dormer Tools, Inc.    Asheville, NC 28803
Aug 01, 2003 Model A509 drill features 135º point angle with split point geometry to help position hole and produce small, manageable chips. Faster than standard helix allows for chip evacuation away from cutting edge. Dialub amorphous diamond coating is extremely hard, giving drill very low coefficient of friction. Hole depth capability is 4 x dia in 1 hit. Drill comes in jobber lengths, DIN 338, from 3.0–16 mm. Fractional sizes are also available.

Tapeswitch Corp.    Farmingdale, NY 11735

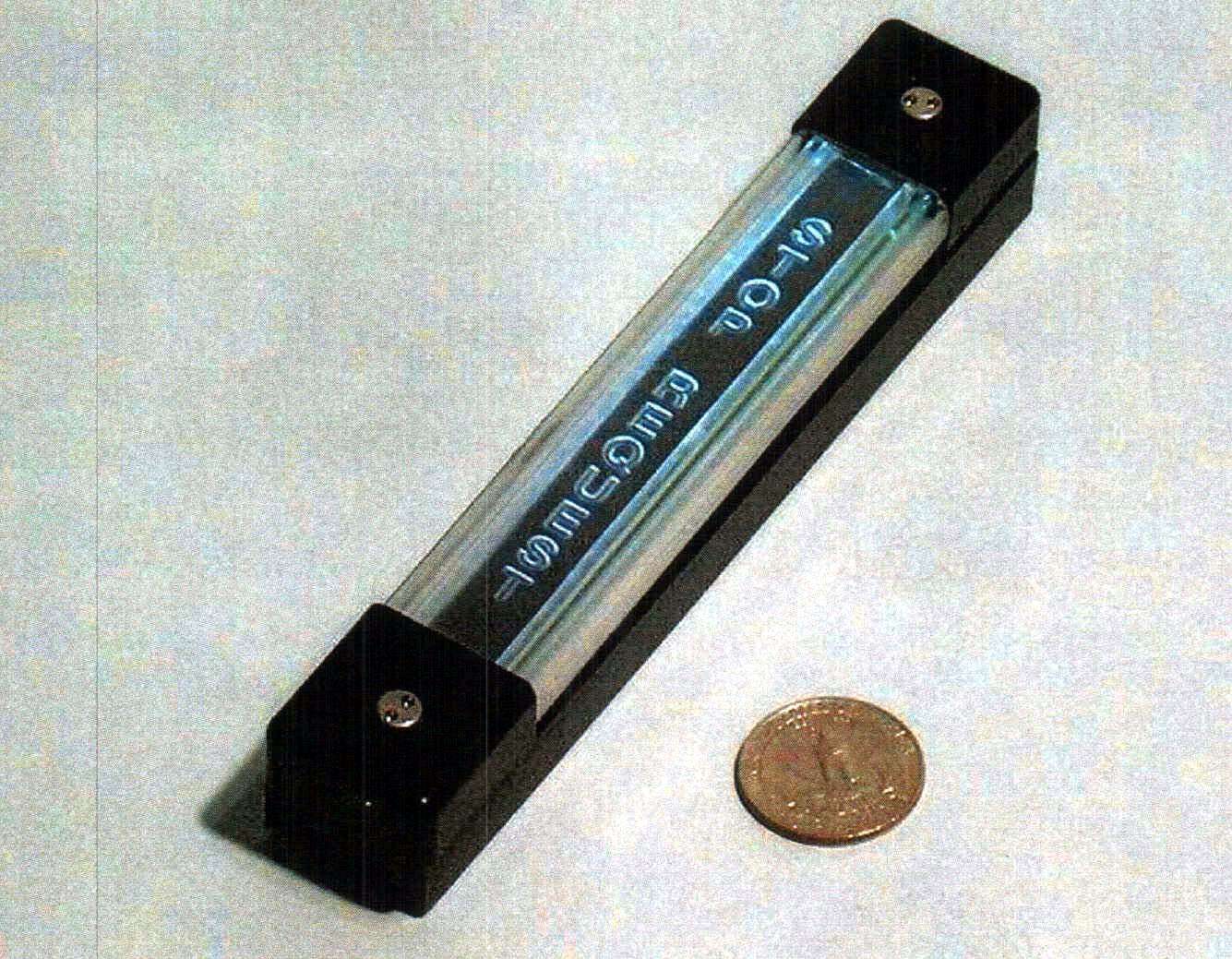

Aug 01, 2003 NexGen Signaling Switches provide press-at-any-point actuation and come in thin, rugged package from 3 in. to 6 ft long. Enclosed switching element is protected from physical abuse, vandalism, and harsh environmental conditions. Color inserts can be added under clear, impact-resistant cover to match equipment. Multi-zone versions are available. Switches are suited for applications where continuous visibility and large operating surface are required.

Liebert Corp.    Columbus, OH 43229

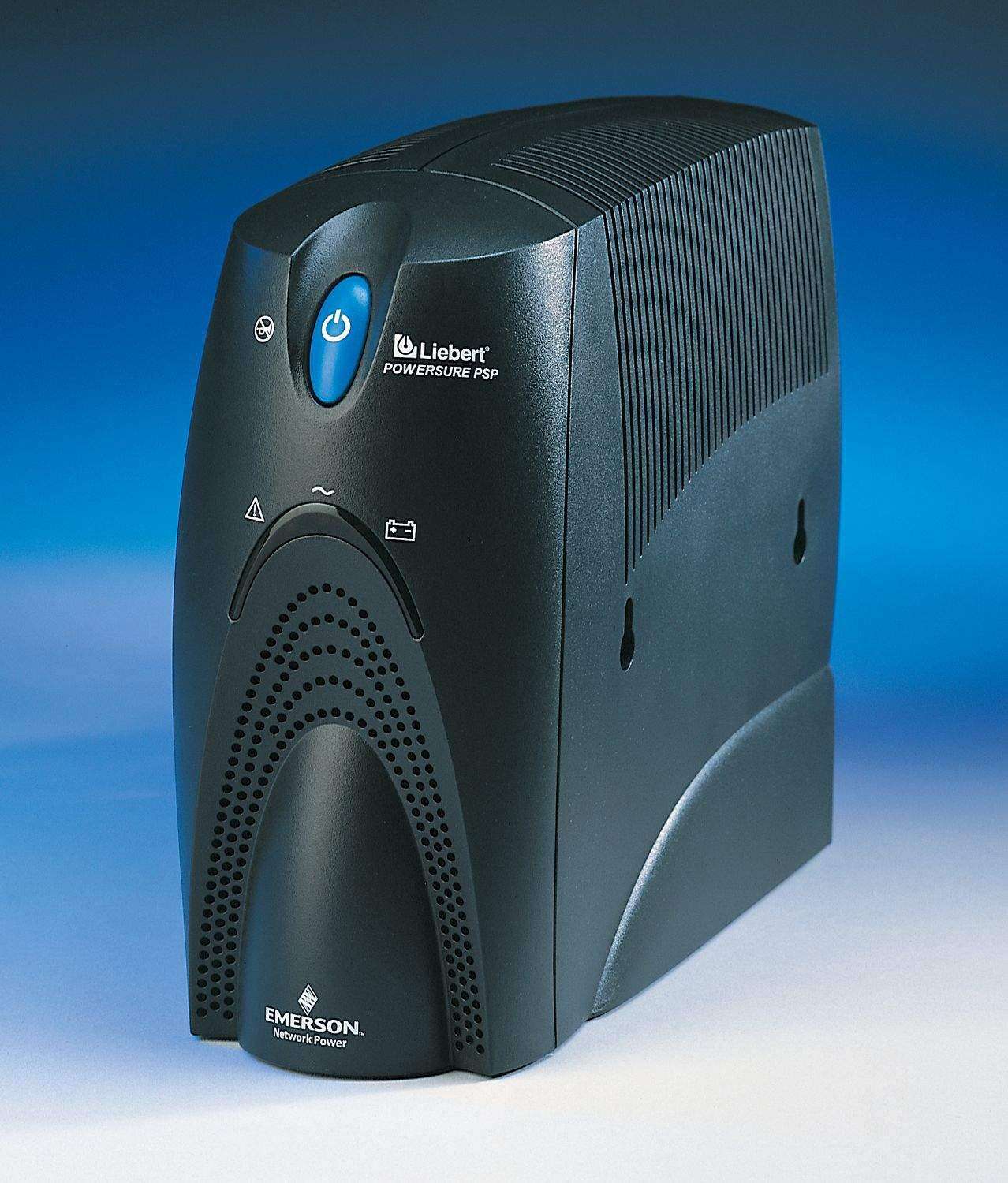

Aug 01, 2003 PowerSure PSP combines minimum of 4 min battery backup at full-load, with lightning and surge protection for up to 6 outlets and 1 data line. Units available in 350–650 Va and provide battery power for uninterrupted operation during short power outages. If outage exceeds battery capacity, PowerSure PSP utilizes USB or serial connection to provide controlled, orderly shutdown. Audible and visual alarms alert users to conditions that may lead to shutdown.

Zero-Max, Inc.    Plymouth, MN 55441 5509

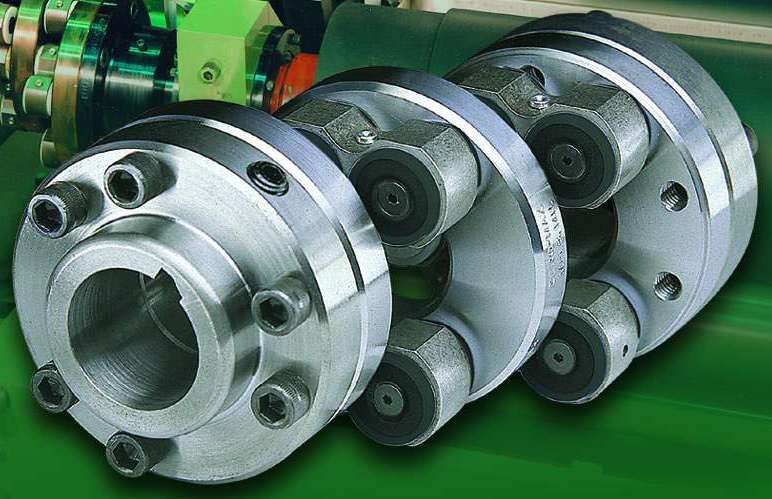

Aug 01, 2003 Schmidt Offset Couplings are suited for parallel offset shaft applications where misalignments may be encountered. Products impose no sideloads on shafts or bearings and eliminate radial shaft vibration. Increasing offset distance does not result in performance loss. Available for shaft displacements of 0.156–17.29 in. and torque capacities from 55–459,000 in.-lbs, couplings maintain undisturbed power transmission at constant angular velocity.

Stafford Mfg. Corp.    Woburn, MA 01888 0670

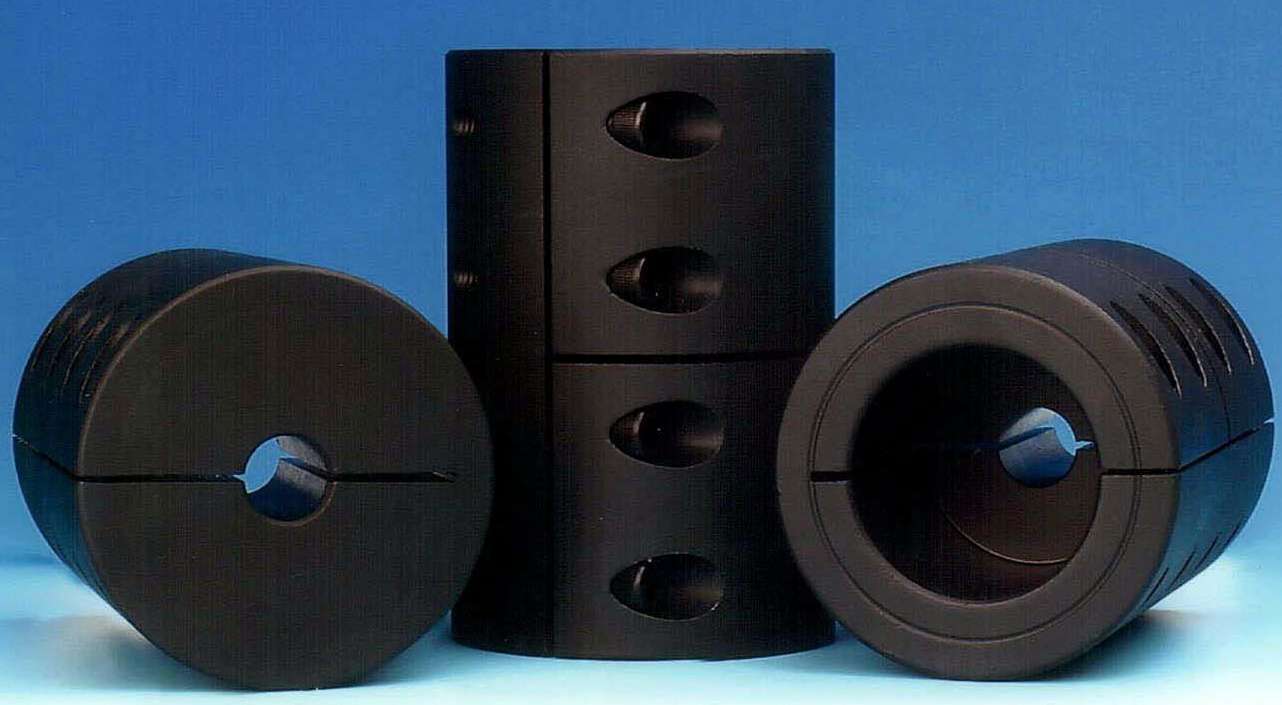

Aug 01, 2003 Designed to connect 2 dissimilar sized shafts in any combination, remachinable, one-piece steel couplings enable users to rebore and maintain concentricity between each half. Products are offered in 11 sizes with finished bore ends from ½â€“2 in. ID and pilot bores from 0.235–0.485 in. ID, respectively. Couplings have black oxide finish and are supplied with screws and rebore instructions.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191
Aug 01, 2003 Roku-Roku GR-658N Super Hybrid features 12-position tool changer, 5-position decimal input, 320 MB flashcard with Ethernet protocol, and 32,000 rpm spindle. Full enclosure confines dust to machining area, keeps it suspended via intermittent air blasts, then evacuates it. Dual way and steel ball screw covers protect against excessive machine tool wear. Pneumatic counter balancers provide smooth, accurate movement during high velocity contouring and drilling.

Reid Supply Co.    Muskegon, MI 49444

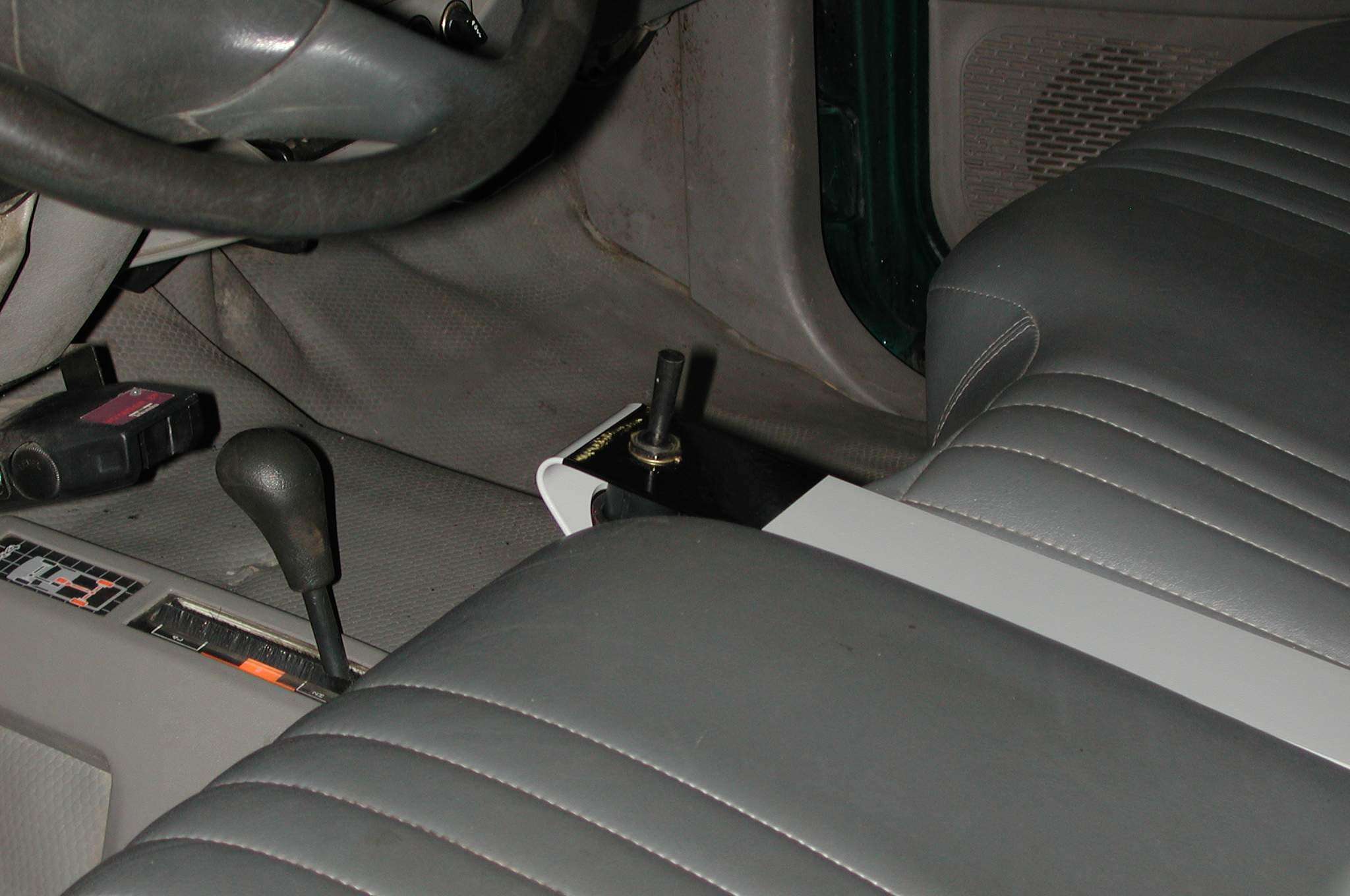

Aug 01, 2003 Control Holder provides means of adding controls to vehicles without drilling directly into truck console. It installs by fitting directly over seats of vehicle, and installation or removal of device takes approximately 30 seconds. Control holder will fit virtually all trucks with typical seats, although some truck models may require removal of cup holder.

Rockwell Automation, Dodge & Reliance Electric Headquarters In The Americas    Greenville, SC 29615-4617

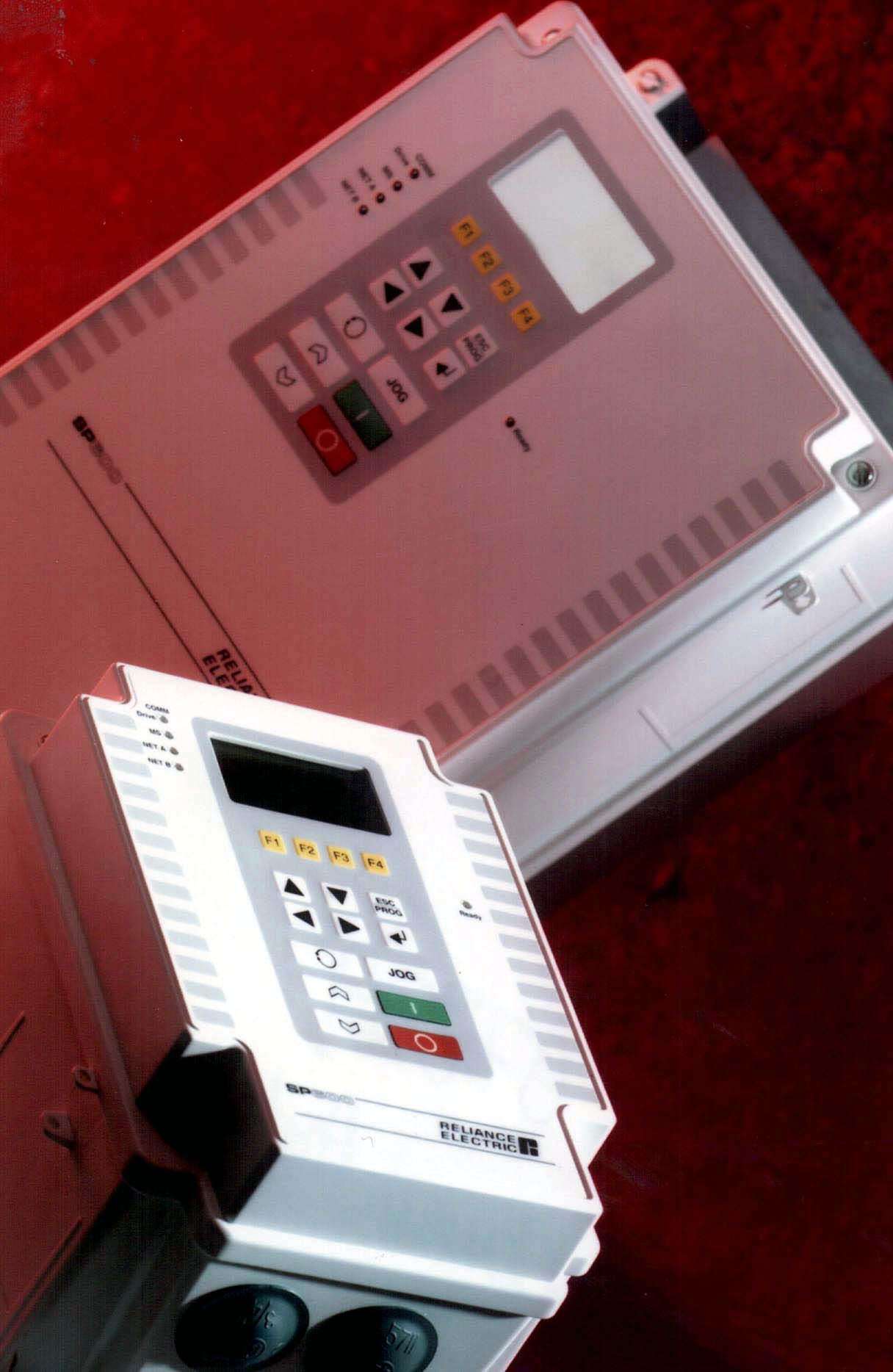

Aug 01, 2003 Reliance SP600 AC drive, offered in NEMA 4X/12 and IEC IP66 enclosure, is available in tamper-proof enclosure. Able to withstand direct spray of water at pressures up to 1,000 psi, it also protects against dust particles as small as 75 microns. Drives are offered with 240 Vac drive rating from 0.5–10 hp and 480 and 575 Vac ratings from 0.5–20 hp. With controllable speed range of up to 80:1, Drives are software selectable for volts/hertz or sensorless vector control.

Environmental Devices Corporation    Plaistow, NH 03865
Aug 01, 2003 Model HD-1100 Haz-Dust Respiratory Air Monitor is a real-time, light scattering monitor that tests for airborne respiratory particluates. Handheld survey tool can locate and identify hot spots or problem areas, so that further evaluation and suppression control can be implemented. Infrared technology provides accurate and instantaneous data on airborne particulate concentrations, in accordance with NIOSH #0600 method.

Clark Solutions    Clinton, MA 01510
Aug 01, 2003 Model DS25 variable area flowmeter handles flow ranges from 0.01 to 570 gpm for liquids and 0.44 to 1,100 scfm for gases. Stainless steel, AISI 316 Ti wetted parts allow use in aggressive media and food and drink handling applications. Flowmeter functions by magnetically coupling float positioned in flowing media to externally mounted indicator. Unit is rated for temperatures up to 400°C and pressure to 320 bar.

3M    St. Paul, MN 55144

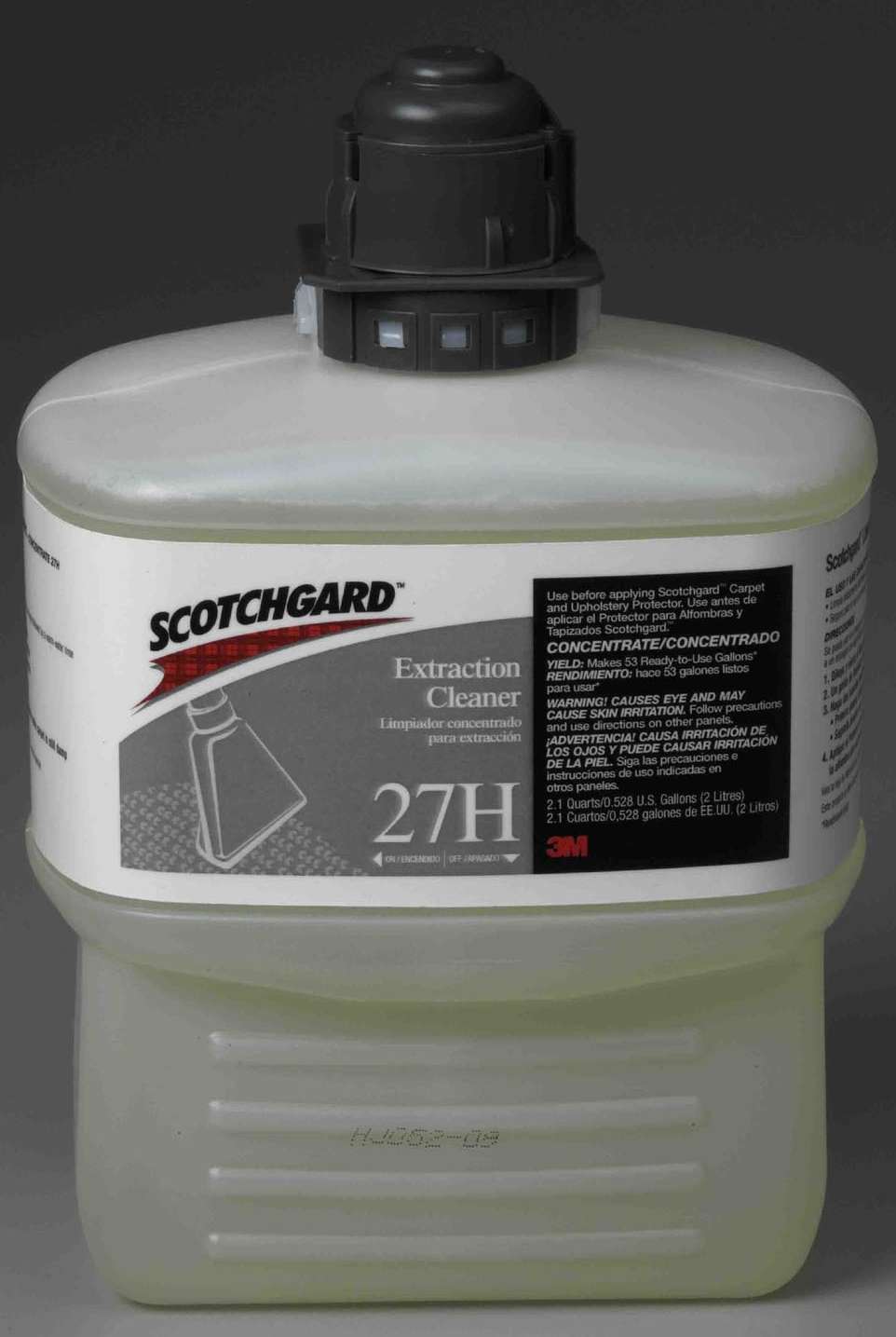

Aug 01, 2003 Carpet Care System focuses on preventative maintenance, daily care, interim maintenance, pretreatment and extraction, and protective maintenance. Products include Carpet Spot Remover and Upholstery Cleaner (aerosol), Liquid Stain Remover, Spray Cleaner, Bonnet Cleaner, Carpet Bonnet Pad, and All Purpose Sprayer. It also includes Heavy Duty Stain Remover, Extraction Cleaner, Pretreatment Cleaner, Extraction Cleaner, and Carpet and Upholstery Protector.

Motor Guard Corp.    Manteca, CA 95337 6141
Aug 01, 2003 Model RF-2011 Automatic Drain empties accumulated water in compressor tank, eliminating possibility of carryover of water into compressed air lines. It features electrically operated solenoid valve with adjustable drain time control. Positive shut-off, ¼ in. valve won't clog or leak, adapts to existing drain piping, and connects to 110 V power supply with cord and plug. Solid-state, adjustable drain control also features manual override.

ABB Metals Systems    New Berlin, WI 53151 2840
Aug 01, 2003 ACS Drive^IT Low Voltage 800-17 regenerative, 4-quadrant motor drive can run at full power in 80% brownout conditions. It regulates power factor to near unity, regardless of speed or load or AC line conditions. Direct Torque Control removes low-range frequencies up to 1 kHz and compensates for voltage variations, while LCL filtering handles medium and high frequencies. Available from 75–1,250 hp, drive comes in standard cabinet or as modules.

EGS Electrical Group    Skokie, IL 60077

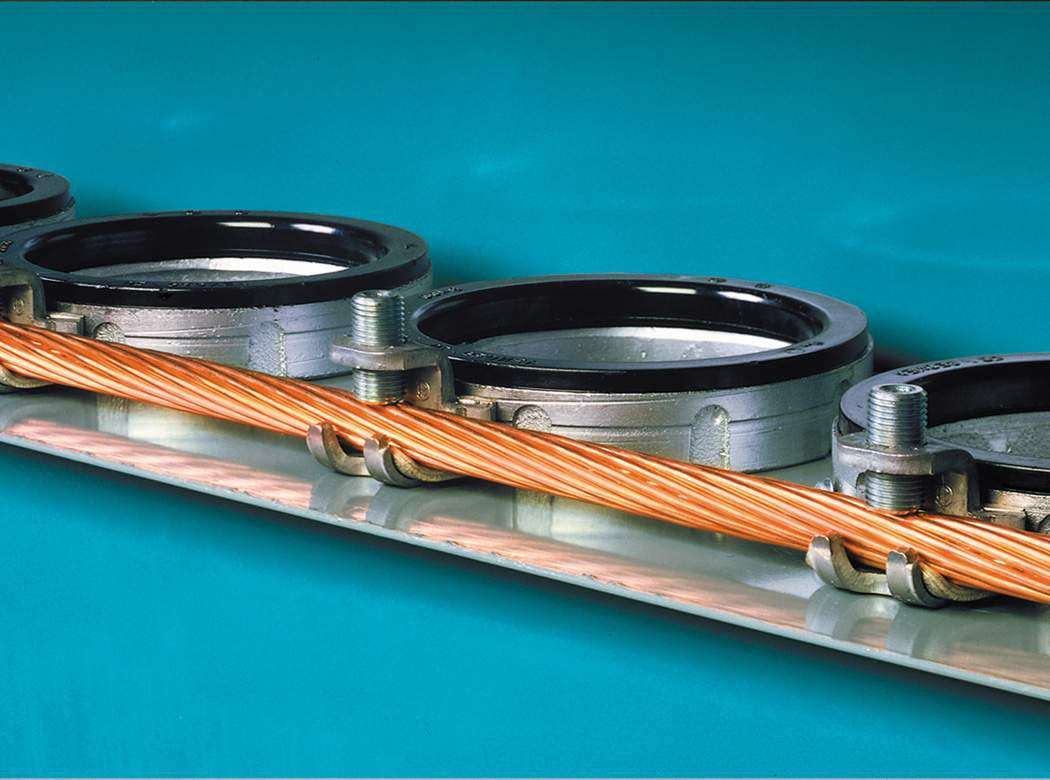

Aug 01, 2003 Series BLG Insulated Grounding Bushings provide means of grounding conduit and protect insulated conductors from abrasion during pulling and mechanical vibration. Thermosetting phenolic insulator is 150°C UL-rated. It will not soften, melt, burn, or dislodge during wire pulling, and will not shatter or shrink in sub-zero temperatures. Available in iron or steel with zinc plate or galvanized finish, and in aluminum or bronze, bushings range from ½â€“6 in.
