Chicago Pneumatic Co.    Rock Hill, SC 29730-7463
Aug 08, 2003 Series SX palm-type, random orbital sanders offer 3/32 in. orbit diameter for fine finishes and 3/16 in. diameter for general finishing. Lubrication-free pneumatic motor generates 0.3 hp with variable speed range from 0–12,000 rpm. Oversized, dual ball bearing sets are double sealed for long life. Two interchangeable grips are provided to suit operator hand size. Lock-off lever prevents accidental starts. Pad diameters include 3.5, 5, and 6 in.

Prab Conveyors    Kalamazoo, MI 49003

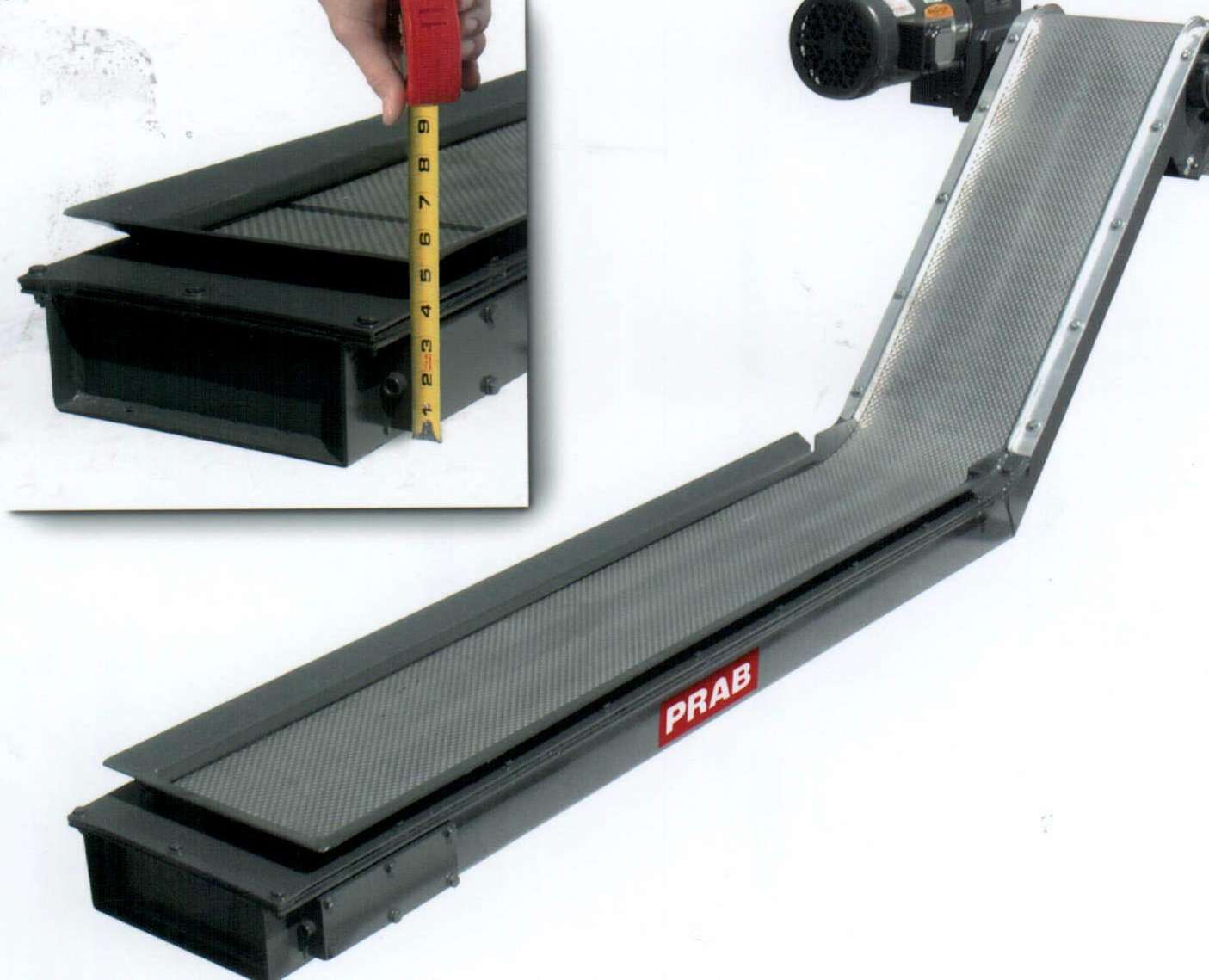

Aug 08, 2003 Measuring 3 3/8 in. high, standard-duty, low-profile, magnetic conveyors are completely sealed and self-lubricating. Applications include scrap removal and parts handling.

Makino Machine Tool Co.    Mason, OH 45040 9695
Aug 08, 2003 Model SP64 includes full-function hand box with LCD display, 78 ipm feed rate, and auto-threading system with V Guides. Additional offerings include 0.1 micron dual feedback system with digital generator and integrated dielectric chiller. Unit has X, Y, Z axis machining range of 25.6 x 15.74 x 16.2 in. and max work size of 44 x 32 x 16.5 in. It also incorporates Wire Wizardâ„¢ control, PVGâ„¢ Process Control Technology, and Quick Connectâ„¢ auto-threading technologies.

Clark Solutions    Clinton, MA 01510
Aug 08, 2003 Boxer Series 3000 DC-powered diaphragm pumps are flow rated for liquids to 5.0 Lpm and gases to 30 Lpm. Made of non-corrosive materials, they have metal-free wetted path and steel or stainless steel bearings on motor shafts and cranks. Diaphragms and valves are silicone or santoprene for operation in low temperatures. Oil-free pumps come in dual or quad-head models, and each pumping head can be run separately or combined with other heads.

Tra-Con, Inc.    Bedford, MA 01730

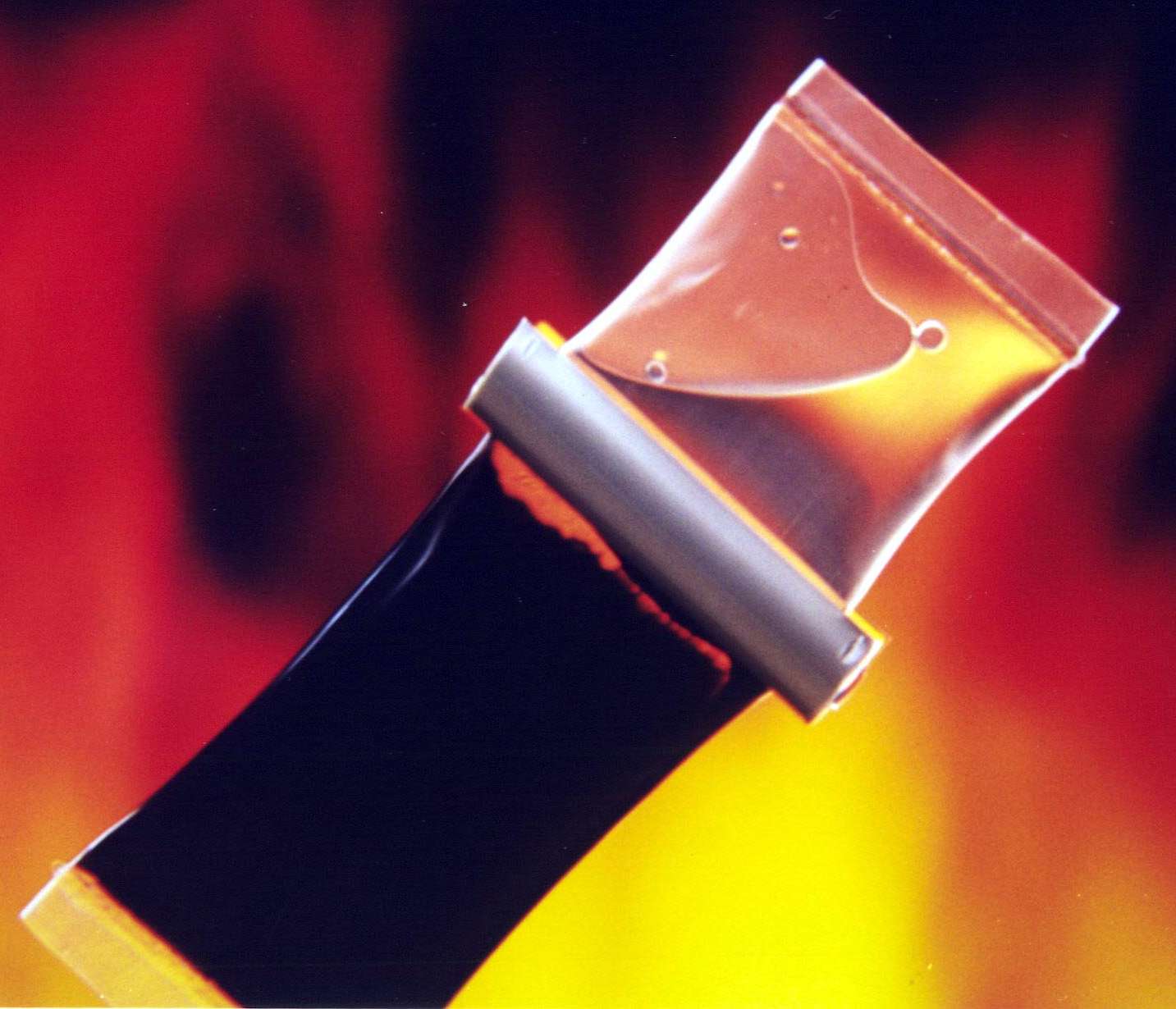

Aug 08, 2003 TRA-BOND 868-6N3 bonds to gold, silver, copper, brass, and solder with aluminum-to-aluminum lap shear of 4,600 psi. Thixotropic properties allow it to hold its shape once applied to substrate. Epoxy cures 15 min at 75°C and in 24 hr at 25°C.

Metabo Corp.    West Chester, PA 19380 4243

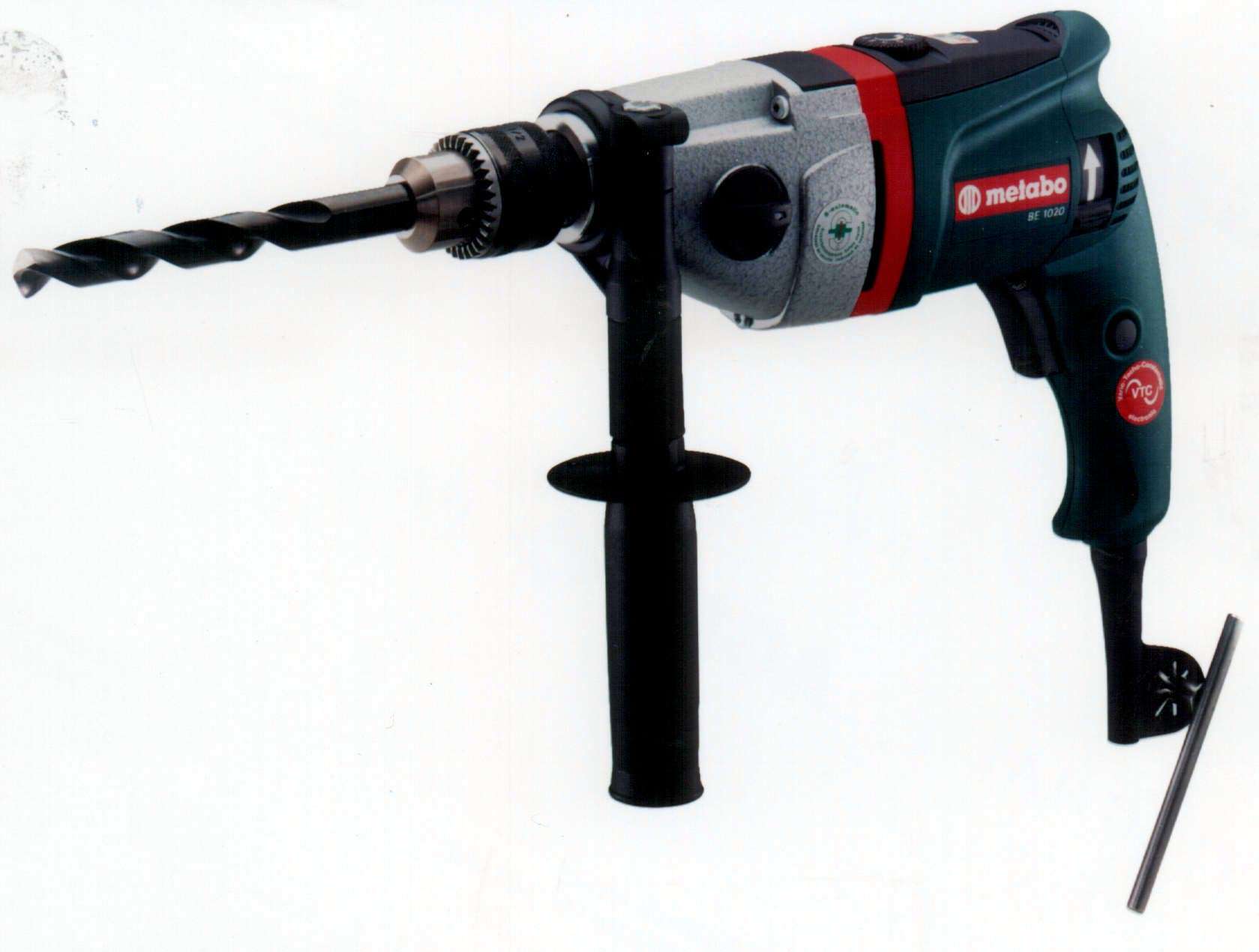

Aug 08, 2003 Housed in ergonomic package, BE1020 provides 248 lb-in. torque and incorporates 2-speed gearbox, S-automatic safety clutch, and winding protection grid. It also features electronic carbon brush wear indicator and Vario-Tacho-Constimatic full-wave electronic speed control. Drilling capacity is 5/8 in. (steel) and 1 9/16 in. (softwood). Utilizing 8.2 A motor, product has no-load speeds rated at 0–900/0–2,600 rpm and rated input of 1020 W.

Davis-Standard, Killion Specialty Systems    Pawcatuck, CT 06379
Aug 08, 2003 Suited for winding rolls up to 29 in. wide for narrow web production, Killion KXE winders are offered in single, dual, and multi-shaft versions with fixed or turret configurations. Options include cone or air shaft core location and collapsible mandrels. Supplied with cantilevered shaft, products operate as self-contained, compact units and may be used on any width line for line speeds up to 100 m/min.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217

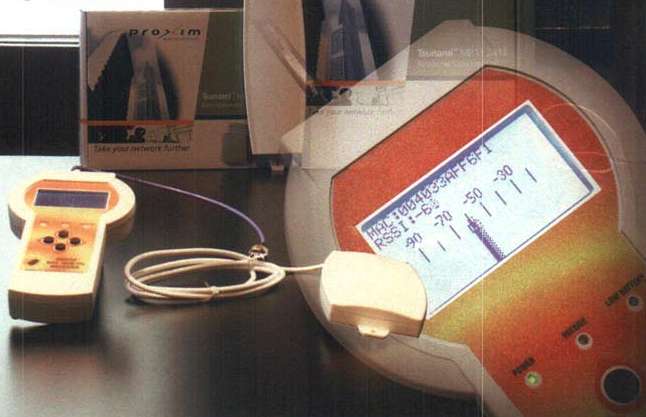

Aug 08, 2003 Beetleâ„¢ 802.11b Receiver with antenna alignment kit allows for antenna alignment of point to multi-point solutions. Product comes with hardware and software for surveying and optimizing STAs (Client Cards) as well as Access Points. Product measures correlated signal strength, Packet Error Rate, and power output from base stations with in-line attenuation. Unit also captures all MAC addresses on 14 channels.

EDAX, Inc.    Mahwah, NJ 07430

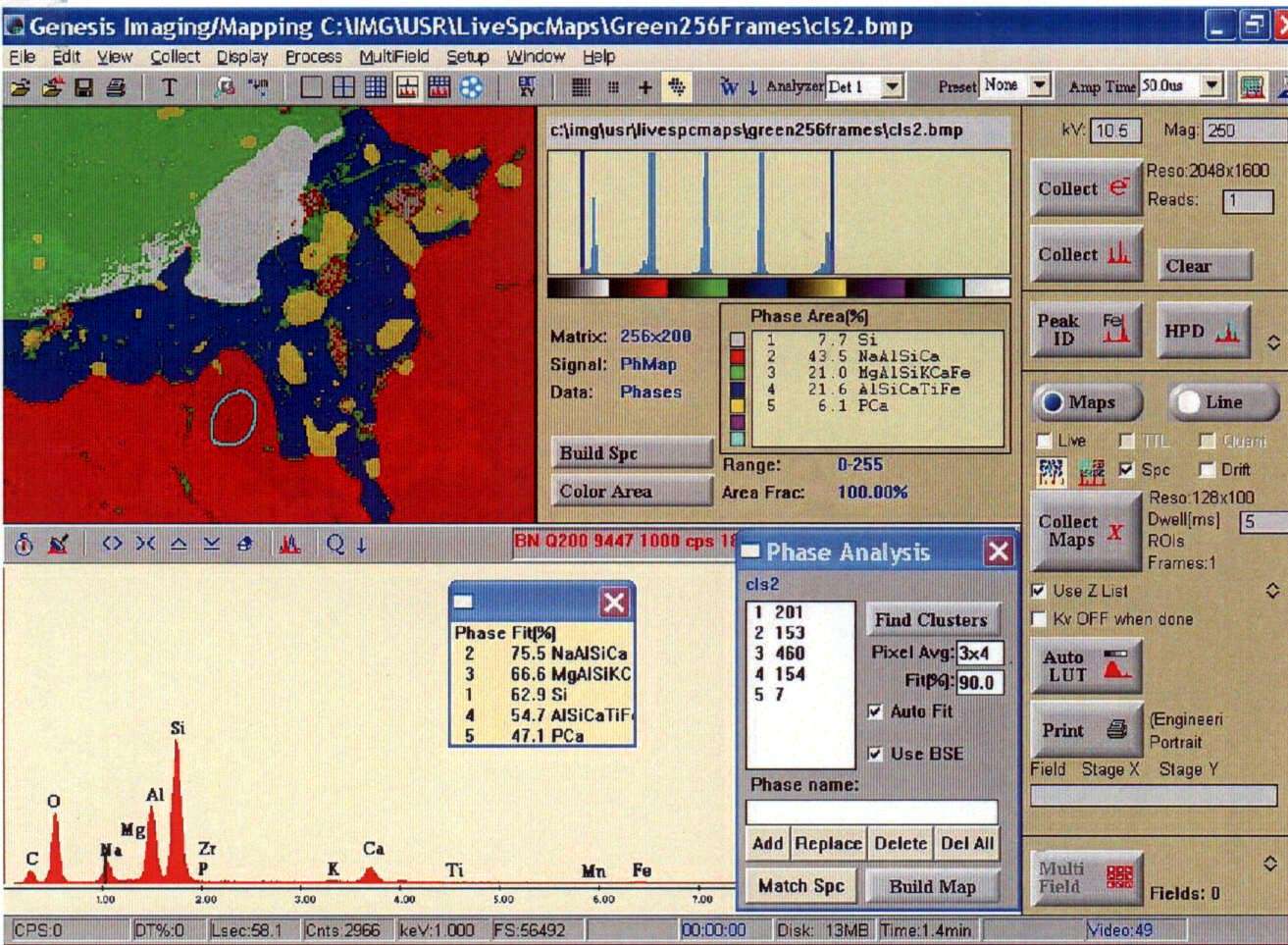

Aug 08, 2003 GENESIS v3.6 includes Phase Cluster Analysis (PCA) and Gun Shot Residue (GSR) features. PCA option provides statistical analysis for spectral mapping data and allows user to automatically find phases in recorded data. GSR option utilizes Phase Particle software capabilities with application specific functions and includes auto calibration of thresholds in back scattered signal. Free draw consists of free standing scanning defined by free hand drawing on image.

Danly IEM    Cleveland, OH 44130
Aug 08, 2003 Milfab® POS-Z-CAM positive return cams come in 4 models rated from 5–15 tons and can be mounted at any angle up to 15°. Suited for high volume production, cams include option of case hardened slide with self-lubricating graphite inserts and soft, large mounting face for punch retainer attachment.

Ortronics, Inc.    New London, CT 06320
Aug 08, 2003 Series IIB. angled faceplates allow angled positioning of Clarity6 and Clarity5E Series II modules as well as other 1-unit flat Series II modules. They aid in creating lower profile workstation solutions that minimize bend stress of installed patch cord. Plate design positions modules so they occupy minimal space of recessed wall box or pathway to provide space for cable management. Products offer recessed label fields and slotted screw holes.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Aug 08, 2003 Built on Eclipse V2 platform, WebSphere® Studio Application Developer for Linux and Windows v5.1 optimizes and simplifies J2EE application development with best practices, visual tools, templates, and code generation. It supports BEA WebLogic Server v6.1 and 7.0. Integrated Unified Model Language Visual Editing for Java allows user to create, edit, and print UML class diagrams. Hot Method Replace for Debugger allows code changes without restarting unit test server.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Aug 08, 2003 IBM eserver Integrated Platform for e-business on zSeries® v2.2 provides e-business environment and unites zSeries technology with flexibility of Linux and company's WebSphere® and DB2® products. Solution helps speed deployment of environment, upgrades software components to latest version levels, and enables inclusion of additional components. Optimized e-business on demandâ„¢ platform utilizes zSeries hardware, Linux distributed by SuSE, and core IBM e-business products.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Aug 08, 2003 WebSphere Development Studio for eserver iSeries includes ILE RPG, ILE COBOL, ILE C, ILE C++, and Applications Development ToolSet. iSeries extensions consist of Web and Javaâ„¢ extensions to access iSeries data and applications, WebFacing Tool for Web-enabling 5250 applications, and integrated file, project, edit, compile, and debug environment for iSeries development. Software provides CoOperative Development Environment, VisualAge® RPG, and distributed debugger.

RIDGID    Elyria, OH 44035
Aug 08, 2003 Model TS2400LS features Work-N-haul It(TM) 2-wheel cart, which folds completely for transport and storge. Ten inch saw has 15 A, 4,000 rpm, direct drive, universal motor with soft start and overload reset mechanisms. Self-aligning, front and rear locking fence maintains rip accuracy. Sliding table and rail allows for 25 in. of rip capacity to right of blade and 12 in. to left. A 'T' slot miter gauge provides support during crosscutting of wider stock.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Aug 08, 2003 Offered with over 80 standard reports, CICS® Performance Analyzer for z/OS® v1.3 produces reports and extracts that help tune and manage CICS systems. It offers WebSphere® MQ and CICS Monitoring Facility reports, including transaction resource usage and performance wait analysis. Software lets users evaluate CICS system tuning efforts and analyze CICS application performance. It also provides awareness of usage trends to assist in future growth estimates.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Aug 08, 2003 CICS Performance Monitor for z/OS® v1.2 offers real-time and historical performance monitoring and management facilities for CICS Transaction Server on OS/390® and z/OS. Based on standard API and proven CICS systems management technologies, it provides Single System Image access to resources in all CICS regions, and offers fast problem identification and exception management. Information is displayed at Windows workstation.

APEM Components    Haverhill, MA 01835

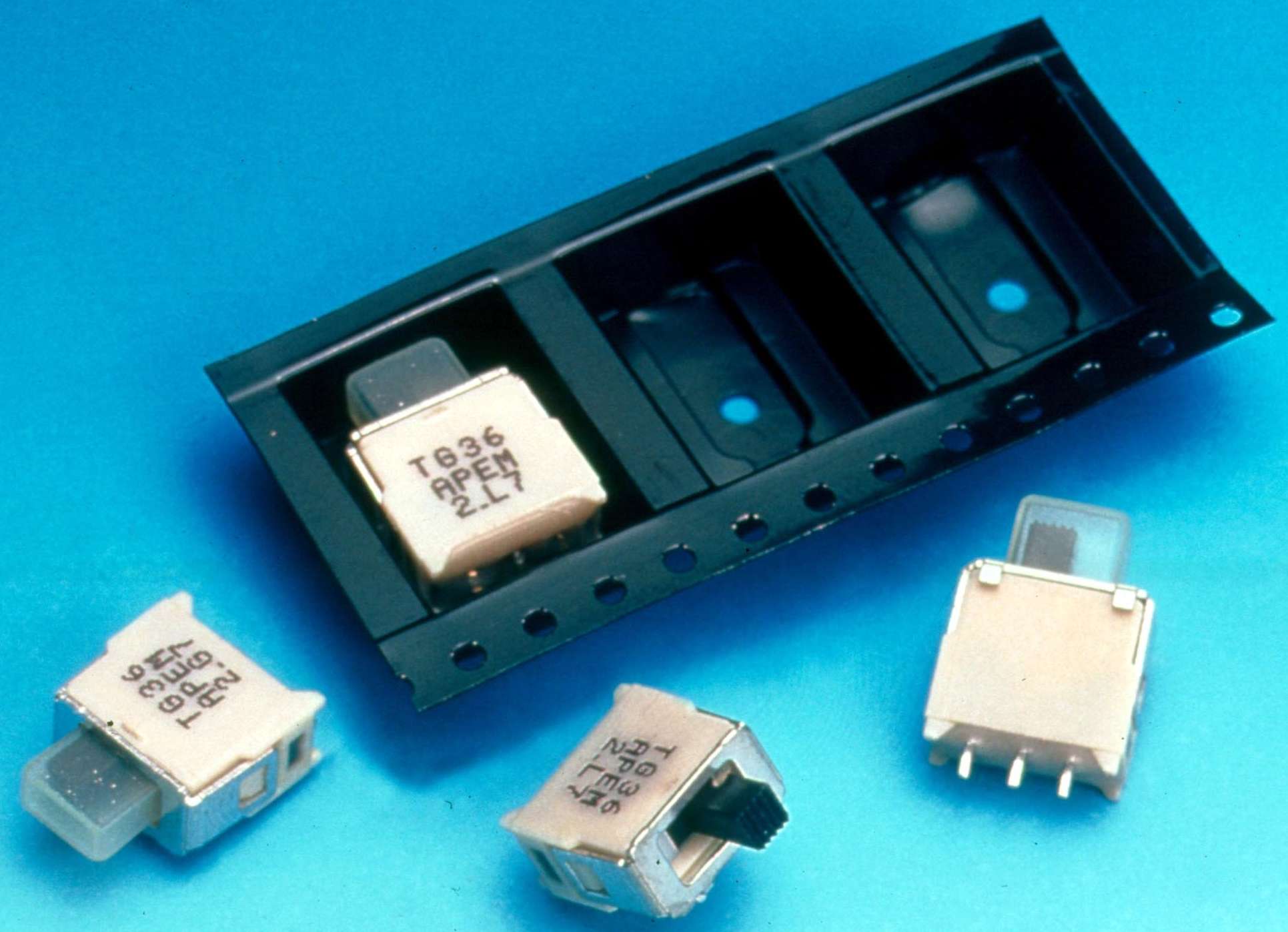

Aug 08, 2003 Miniature Series TG switches, offered in single-pole ON-ON or ON-OFF-ON models, measure .378 x 397 in. and project only .218 in. above pcb when mounted. Materials used in construction include UL94V-O plastics, gold-plated brass contacts, and brass with tin-lead alloy terminals. With contact rating of 0.4 VA at 20 V ac/dc max, products offer contact resistance of 20 milliohms max. Dielectric strength is 1,000 Vrms between terminals and frame, and static resistance is rated to 10 KV.

Z-World    Davis, CA 95616
Aug 08, 2003 Dynamic C® v8 integrated development software includes all capabilities of previous versions, acting as integrated C compiler, editor, loader, and debugger. While program runs on controller, user debugs from Dynamic C on PC without in-circuit emulators, logic analyzers, or software simulators. Product allows users to write, compile, and test C and assembly code without leaving development environment. Software includes various editorial and debugging tools.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Aug 08, 2003 IBM CICS® Interdependency Analyzer for z/OS®, for use with CICS Transaction Server for OS/390® or CICS Transaction Server for z/OS, identifies sets of CICS resources used by individual CICS transactions and their relationships to other CICS resources. Run-time tool enables users to understand make-up of their application set and includes support for CICS commands; EXEC calls to DB2, IMS, and WebSphere® MQ; and ability to hold information on multiple CICS regions in one VSAM file.
