IDEC Corporation    Sunnyvale, CA 94089-2209
Aug 05, 2003 With worldwide approvals, fused inputs, and overload protection, PS5R Slim Line power supplies are DIN Rail or direct surface mountable and have universal, 85–264 Vac voltage inputs. Products include 30 W models, available with 12 or 24 Vdc output, and Class 2 rated, 60 and 90 W models with 24 Vdc output. Products are UL508 and UL1604 listed for hazardous locations.

Shure Manufacturing Corp.    Washington, MO 63090

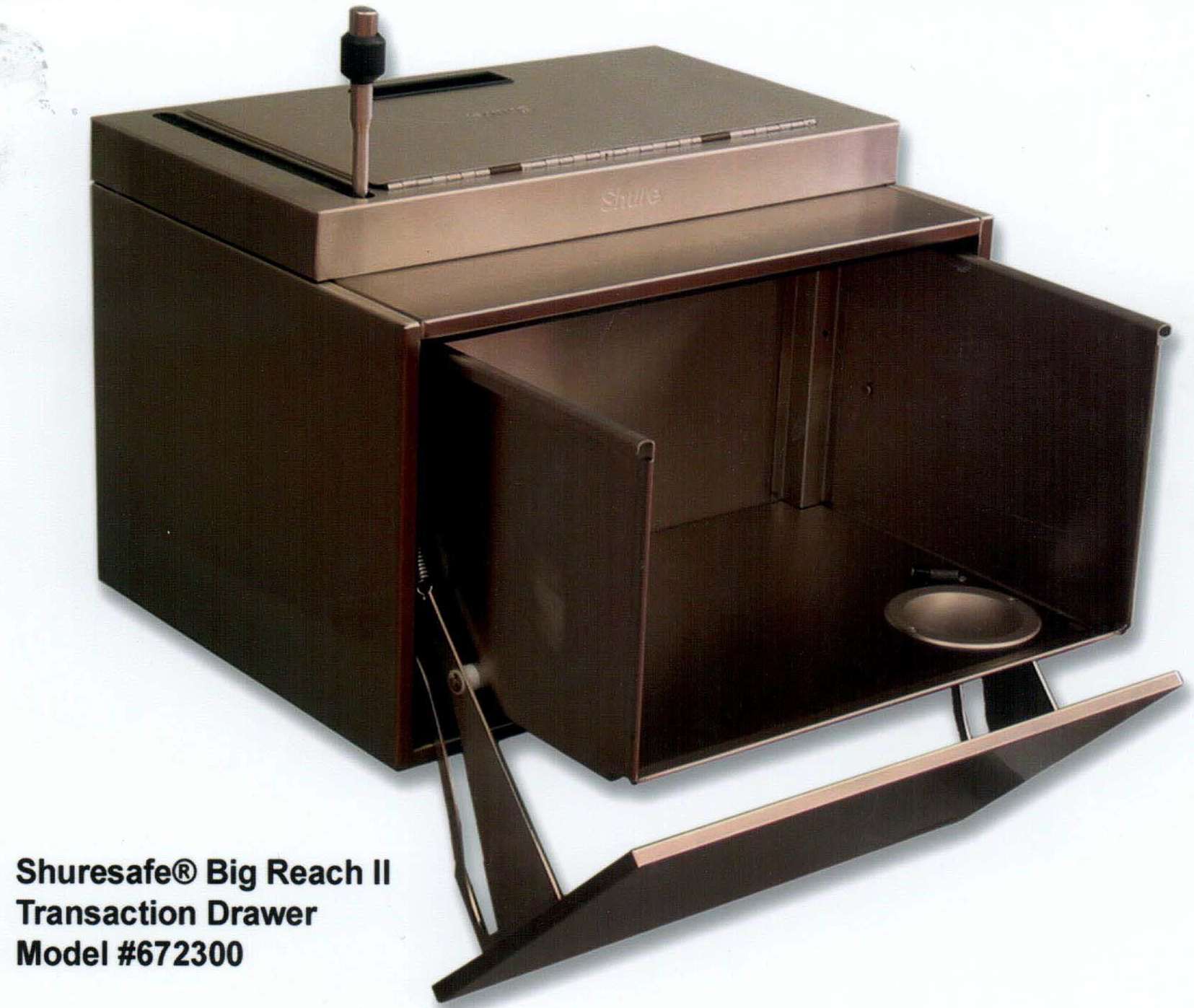

Aug 05, 2003 Suresafe® Big Reach II provides operator security in adverse environments such as access control kiosks, drive thru banking, and detention centers. Faceplate is constructed of 18-gauge brushed stainless steel and reinforced with bullet-resistant UL Level 3 Kevlar®. Manually controlled transaction-locking mechanism prevents unauthorized access, while drop door construction requires minimal space for access to transfer area.

GVISION USA Incorporated    Lake Forest, CA 92630
Aug 05, 2003 F Series multi-feature monitor, with integrated TV tuner and video input, allows users to view data, TV, video, and digital pictures on one display. Series includes 3 models: 15 in. F5AX, 17 in. F7AH, and 19 in. F9AH. Each display has enclosure and base that folds, mounts, or stands. Standard wall mount and VESA mount allow for versatility. Series offers analog interface and Digital Video Interface (DVI) as well as external headphone jack and built-in speakers.

TURCK, Inc.    Plymouth, MN 55441
Aug 05, 2003 Able to be used to route power and signals to factory automation equipment, M27 cordsets and receptacles are rated for 150 V and 8.0 A and handle up to 18 AWG wires. Cordsets, available with PVC or PUR cable jackets, are offered in male or female versions in standard or custom lengths with pigtail or extension cords. Encapsulated mating receptacles have pre-soldered leads, and connectors provide waterproof protection to IEC IP67.

Magtrol, Inc.    Buffalo, NY 14224

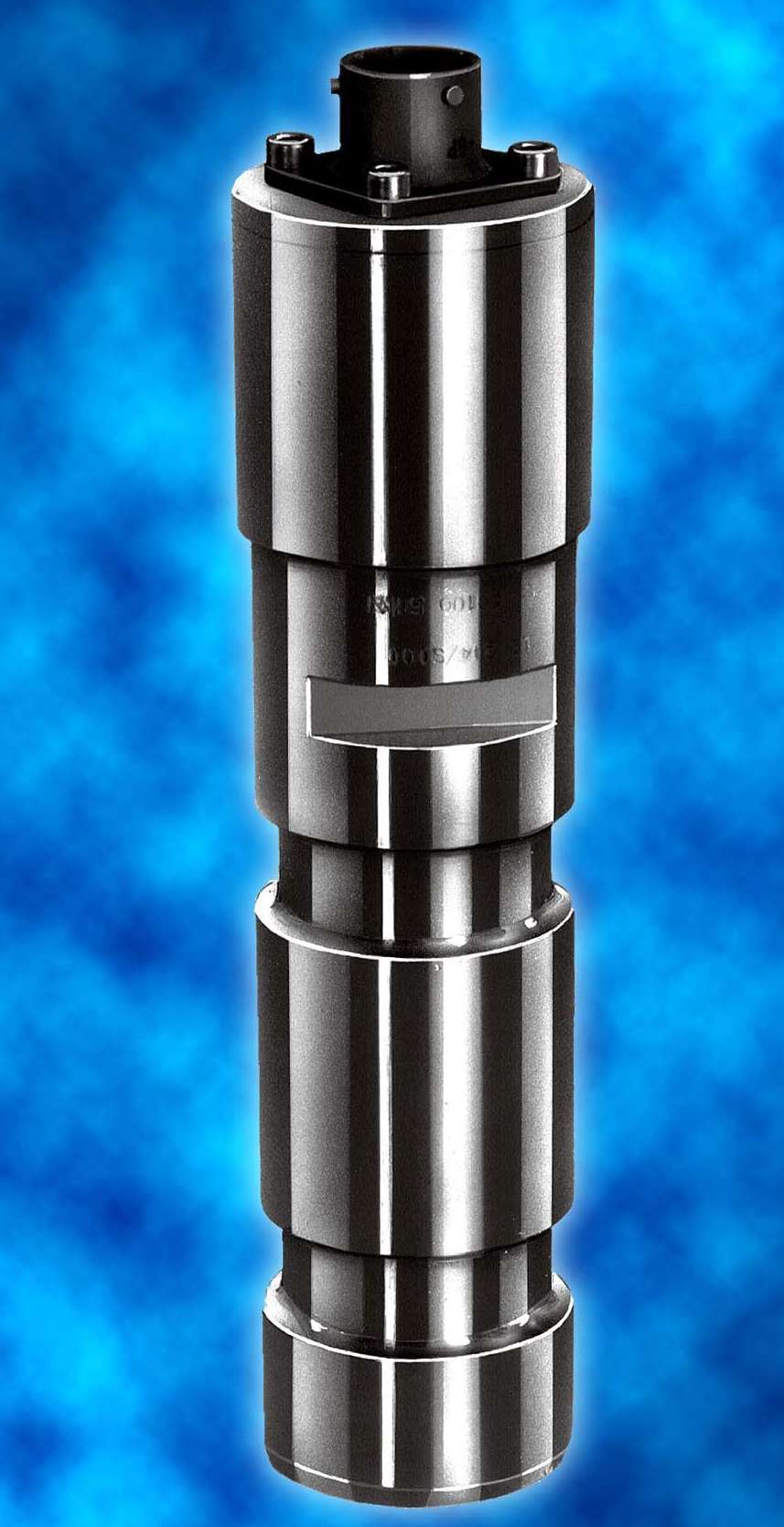

Aug 05, 2003 Based on strain gauge technology, Series LU Load Measuring Pins provide amplified 0–10 V signal output directly from sensor, proportional to load. Integrated electronic board meets EMC/EMI requirements. Ten capacities range from 2.5–1,250 kN with special versions available up to 2,500 kN. Made of high resistance stainless steel, pins are suited for outdoor applications. They provide load measurement and overload protection for lifts, cranes, hoisting gear, and winches.

Handling Specialty, Inc.    Niagara Falls, NY 14304 0279
Aug 05, 2003 Designed for use in replacing firebricks in arc furnaces, heavy-duty, 2-stage, hydraulic scissor lift can be placed by crane inside ladle. Ladle lift can be designed with capacity up to 11,000 lb, with top and base customized to suit dimensions of each ladle.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Aug 05, 2003 FieldBarrier(TM) field-mountable, 4-channel device interfaces with 16 intrinsically safe field instruments. Each channel supplies 40 mA of current to field devices while spurs can be as long as 394 ft. FieldBarrier provides true distributed architecture for hazardous area applications. It features short circuit and overload protection, galvanic isolation, and extreme environment operation in temperatures to 185°F.

Arcom Control Systems    Kansas City, MO 64145
Aug 05, 2003 Offered with .NET Framework and support for IPv6, XP Embedded Development Kit includes OLYMPUS SBC with 256 Mbytes SDRAM, PSU, serial and Ethernet cable sets, and DVI interface board. It also contains Intel 1 GHz Socket 370 Pentium III processor, 512 Mbyte CompactFlash card, and Windows XP Embedded Service Pack 1 (SP1). Product offers options for 6.5 in. NEC VGA TFT color display, analog touchscreen, and touchscreen controller.

ETCO Incorporated    Warwick, RI 02888 1501

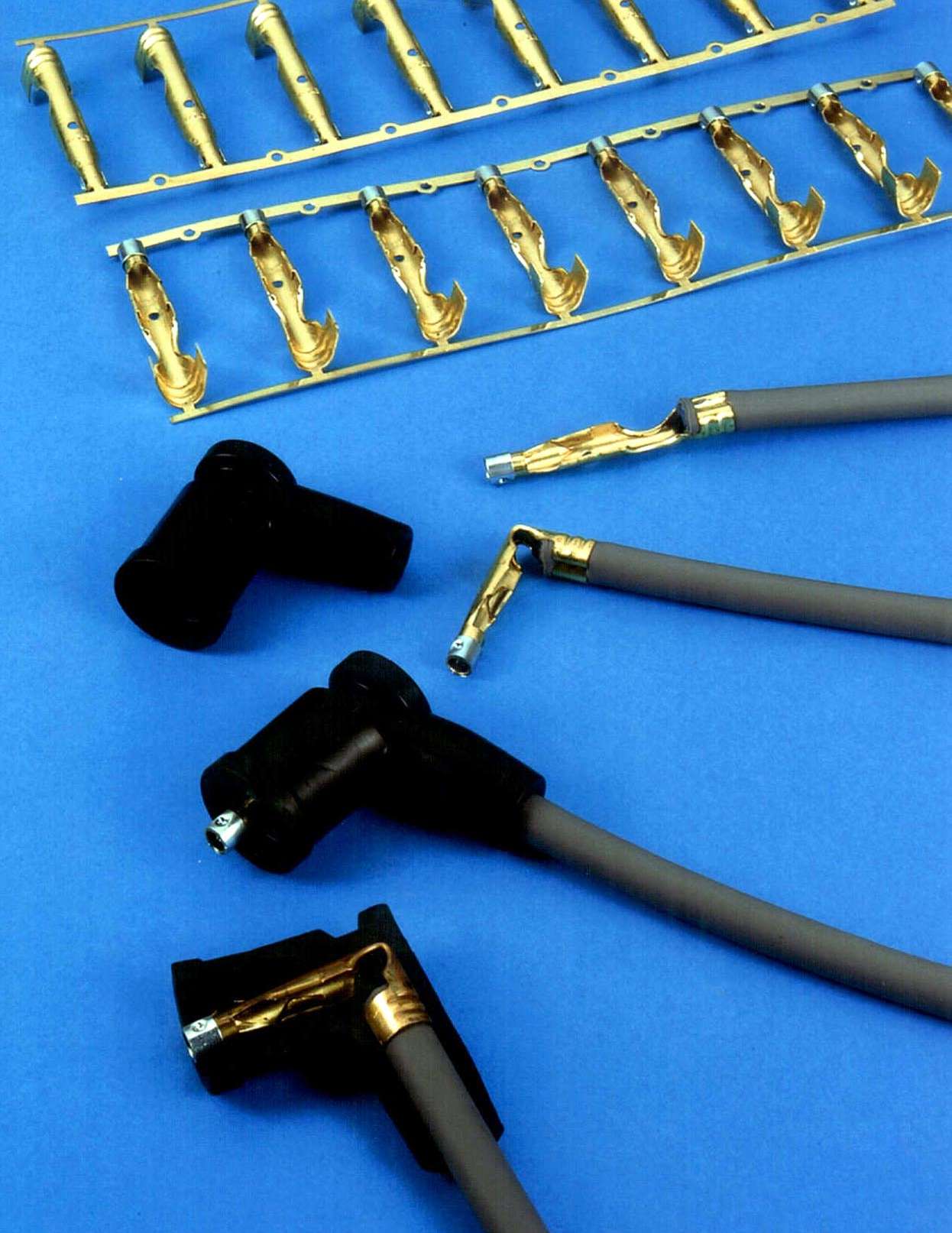

Aug 05, 2003 Able to replace Ford OEM 2^nd generation DIS terminal connection system, DT1000/CB66E Assembly incorporates one terminal strip and boot. After installation to vehicle, coil pack interface assembly mirrors appearance and function of original parts. Terminal strip is supplied on reels and can be terminated using proprietary applicators, and CB66BE boot can be applied using the bender/booter.

Schott-Fostec, LLC    Auburn, NY 13021 3120
Aug 05, 2003 Pro Ultra LED Controller consists of one regulated constant current with variable intensity controller. Product recognizes connected LED light head and requires no adjustments when changing heads. Trigger function extends LED head lifetime and provides dark periods during part inspection. Offerings include automatic over temperature protection, overdrive intensity mode, grounded metal industrial housing, and single-knob light intensity control (0–150%).

Waldmann Lighting Co.    Wheeling, IL 60090

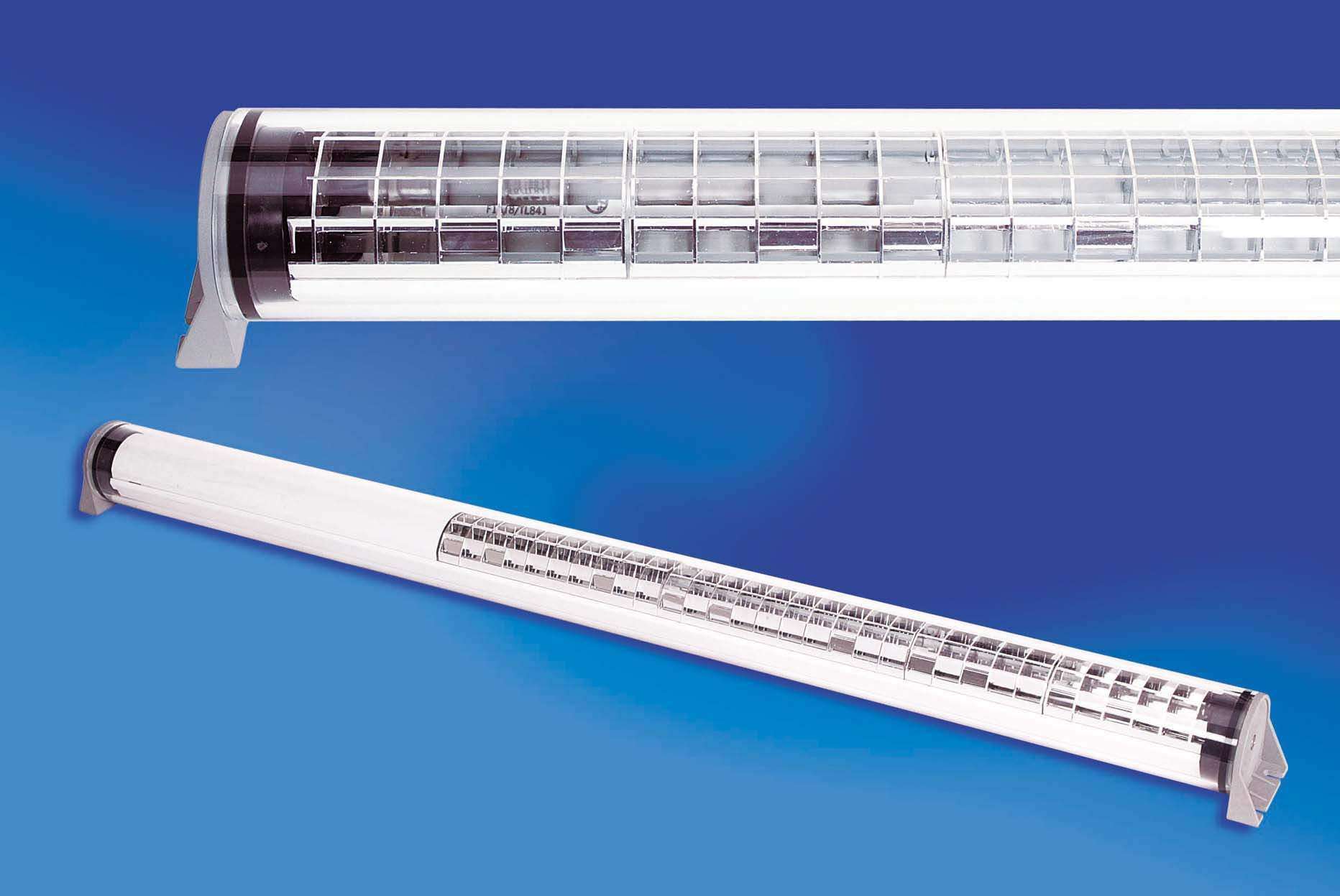

Aug 05, 2003 Series RL lamps vary in length from 10.8–64.6 in. and are contained in IP-67 waterproof enclosure. Tubes are 2.75 in. or 1.57 in. OD and house T8 or T5 fluorescent lamps. T8 lamps come in 17, 25, and 32 W, while T5 lamps are offered in 24, 39, 54, and 80 W. High impact borosilicate glass or acrylic tube material is available. Lights are offered with built-in magnetic, remote, or electronic ballasts, and all-in-one models that include brackets, ballast, and cord set.

Bird-X, Inc.    Chicago, IL 60607
Aug 05, 2003 Ultrason X eliminates need for enclosed area for sounds to reverberate; sounds move from speaker to speaker, giving constant, multi-bird defense. Sound attack forces birds to leave for good, yet is harmless to birds and environment. Unit covers up to 3,600 sq ft or 900 sq ft/speaker. It operates on 110 Vac and comes with control box, 4 speakers, 100 ft cords, and AC adapter. Ultrason X is suited for any partially-open area where birds congregate.

EADmotors/Eastern Air Devices, Inc.    Dover, NH 03820
Aug 05, 2003 NEMA size 23 BLDCmotor™, available in 3 stack lengths, is compatible with all 3-phase brushless DC amplifiers. It achieves speeds to 10,000 rpm with continuous torque rated up to 53 oz-in. and power output up to 150 W. Winding options include rated voltages from 12–160 Vdc. Features include permanently lubricated ball bearings, totally enclosed motor housing, and dynamically balanced rotors.

AMETEK Spectro Analytical Instruments Inc.    Mahwah, NJ 07430
Aug 05, 2003 MIDEX alloy analyzer features tightly focused, collimated x-ray beam that produces .7 mm dia measurement spot. Precise factory pre-configuration enables immediate analysis of all 80 elements. Typical measurement times are less than 2 min, and typical accuracy is ±0.15%. Instrument is suited for non-destructive alloy analysis tasks, including measurement of curved surfaces such as brake drums, wire and tubing, small samples, and high-value scrap.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Aug 05, 2003 Pallet Option 3200 Series conveyors are suited for applications requiring items to be separated from each other or applications needing additional manual or robotic assembling further down on conveyor line. Pallet option is also available on 2200 Series conveyors.

Flooring Adventures LLC    Richmond, VA 23237
Aug 05, 2003 Century Industrial Tiles can be installed over any flat, structurally sound surface, including contaminated, moisture-problem, or uncured concrete subfloors. Once in place, hidden Tuff-Seal® interlocking edges form straight seams and uniform watertight surface ready for immediate foot traffic. Made from premium-grade 100% post-industrial recycled PVC, tiles are 18 x 18 in. and ¼ in. thick. They are impact, fire, chemical, and stain-resistant.

Lin Engineering    Santa Clara, CA 95054

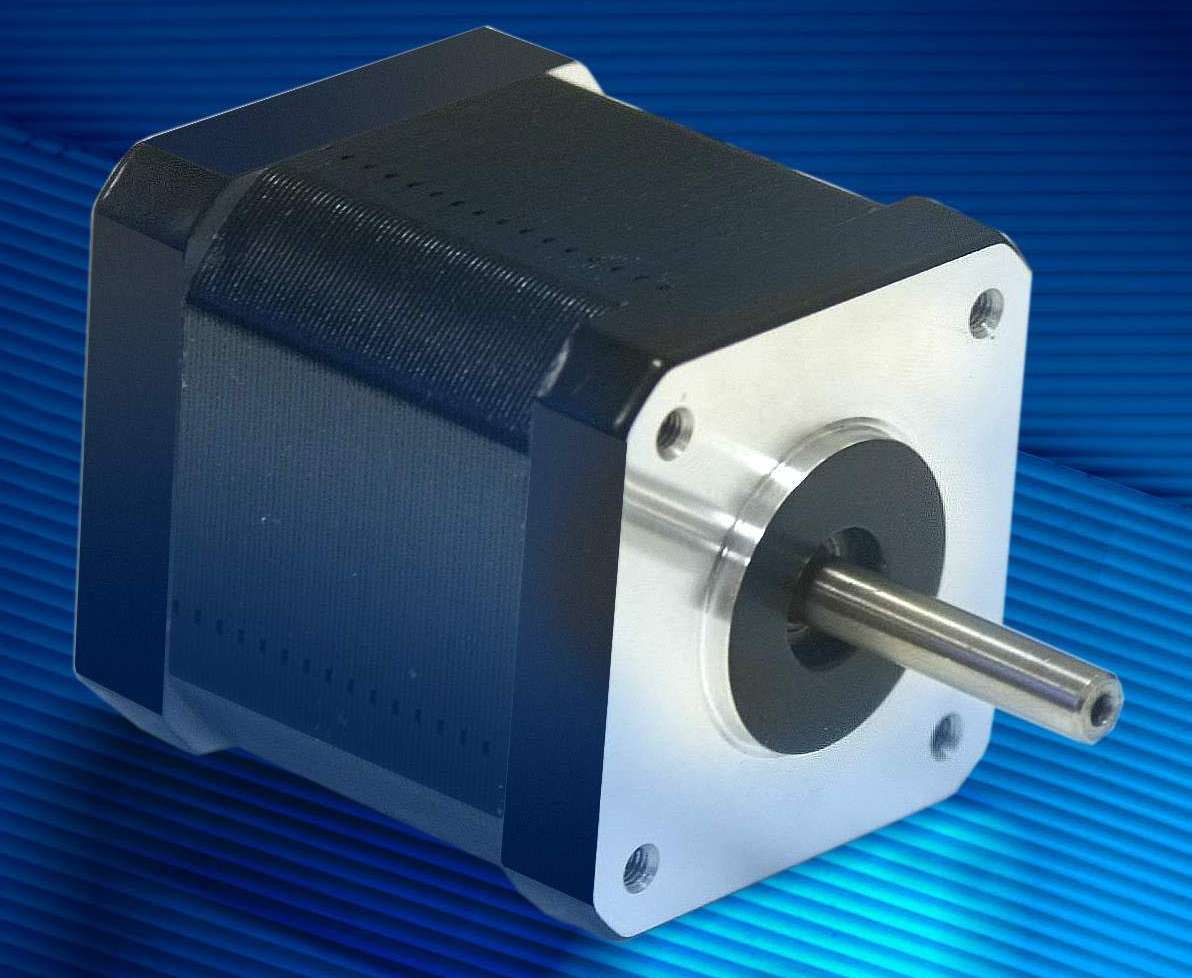

Aug 05, 2003 Super Torque Size 17 (1.66 in.²) hybrid step motor family is offered with 3 axial lengths. Shorter, 1.8° per step motor develops 45 oz-in. of holding torque in 1.34 in. long package, while longest model provides 83 oz-in. of holding torque in 1.89 in. long package. When used with half step driver bipolar model No. R208, step motor model 4118L achieves running torques of 56 oz-in. at 3,300 half-steps (21 W out) with input of 24 Vdc and 2 A per phase.

Chemineer, Inc., A Unit of Robbins & Myers, Inc.    Dayton, OH 45401

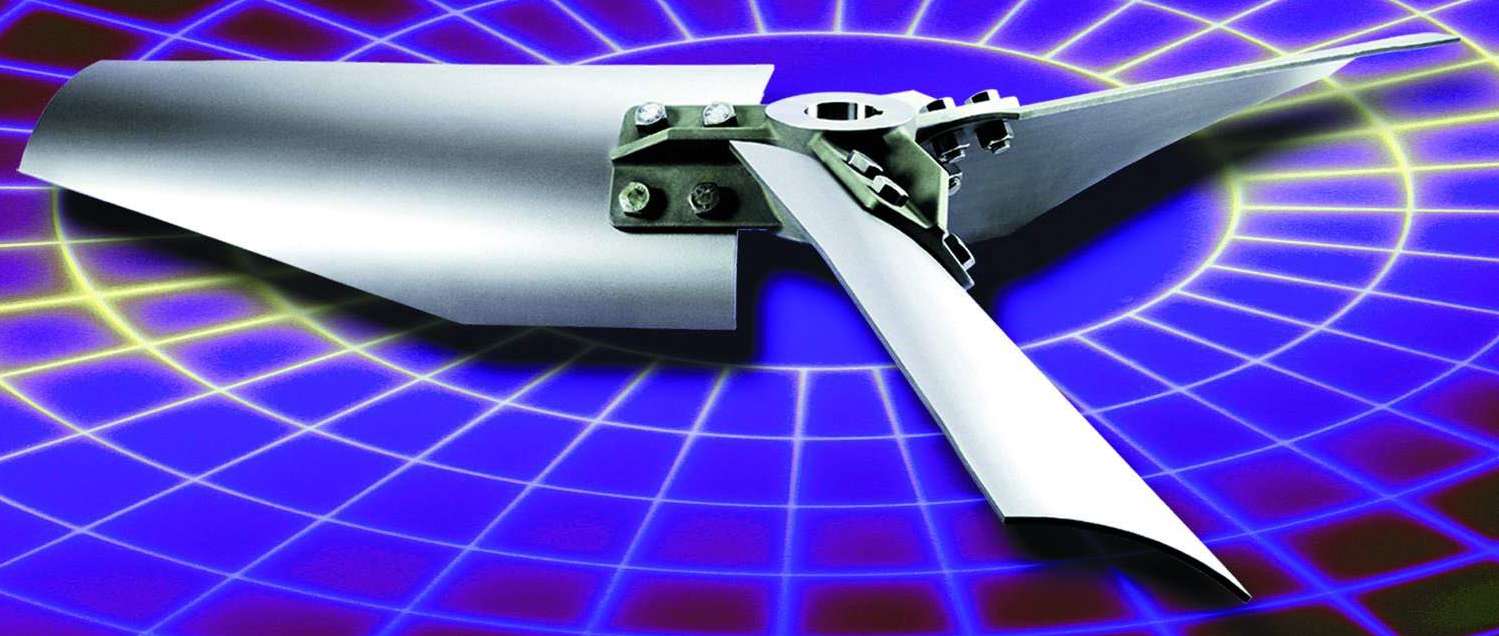

Aug 05, 2003 Suited for deep tank mixing, SC-3 is offered in one-piece or bolted, 3-blade designs, dependant upon minimum opening requirements. It has flat velocity profile that allows for blending and solids suspension and is constructed from carbon steel or 316 stainless steel. Rubber covering and coatings are also available for corrosive applications. Product allows use with longer shaft extensions for deeper tanks.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Aug 05, 2003 Series MSP430FE42x combines ultra-low-power Flash MCU with integrated analog front-end on single-chip with fully programmable communication capabilities. It includes 3 independent 16-bit sigma-delta ADC converters operating at oversampled rate of 1 MHz, 3 programmable gain amplifiers, temperature sensor, and precision voltage reference. Embedded Signal Processor provides 0.1% accurate energy measurement over dynamic current range of 1000:1.

Gregory-Adams, Inc.    Louisville, KY 40233 7326
Aug 05, 2003 Variable Frequency Drive fits new and existing Chainveyor® systems. It utilizes AC frequency controller with motor and gear reducer combination. Controller electronically controls speed and limits output torque to preprogrammed levels. Helical gear reducers with Inverter Duty TEFC motors allow full torque rating at broad range of speeds. Full function options include soft starting and overload protection.
