Bunting Magnetics Company    Newton, KS 67114 0468
Aug 11, 2003 Able to achieve ferrous metal separation in chutes, spouting, and suspended applications, magnets are constructed with stainless steel exteriors and are offered with sanitary hinge design. Self-cleaning models feature reinforced stripper plates and optional live 410 stainless steel tapered step poles. Products capture and retain tramp iron and ferrous fines in dense, high flow rate applications.

Peck Paint Products, LLC    Westfield, NY 14787
Aug 11, 2003 Paint Platter snaps on bottom of gallon or quart cans of paint to catch drips and prevent cans from tipping over. It holds brushes and other tools that can be carried along with the can. Kit also includes 3-in-1 Gallon Ring, which snaps onto top of gallon cans and provides built-in brush holder clip that allows brush bristles to stay wet at any level inside cans. Quart Ring provides same benefits as gallon ring, but without brush holder.

Label-Aire Inc.    Fullerton, CA 92833

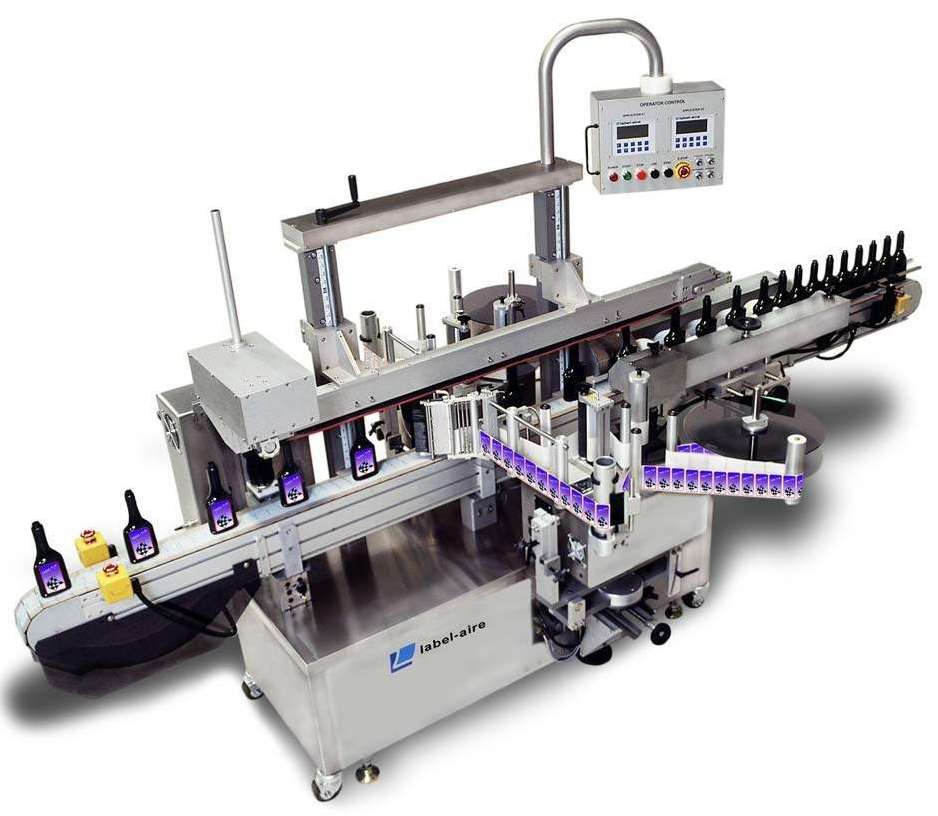

Aug 11, 2003 Pressure-sensitive Inline Series 9000 performs single- and multi-panel, front/back, and wrap labeling functions. With closed-frame construction, modular unit is available with single or dual New Generation Wipe-On labelers that allow automatic speed following and automatic setup. Its 12 ft long conveyor comes in widths of 4½ or 6 in. Labeling speeds are rated to 1,500 ipm using DC motor. Speeds to 2,000 ipm can be attained with optional inverter drive motor.

Electro Industries/Gaugetech    Westbury, NY 11590
Aug 11, 2003 Nexus 1252 performs flicker analysis, which can be damaging to equipment and humans. It provides interharmonic analysis, with logging and monitoring for short- and long-term evaluation. Incorporating DNP 3.0 protocol, unit maps up to 136 measurements to DNP Static points. Up to 16 relays and 8 resets are controlled through DNP. Meter offers high-speed transient recording, fault recording, and voltage surge and sag recording at up to 512 samples/cycle.

Elma Electronic Inc.    Fremont, CA 94538
Aug 11, 2003 Type 07 coded-output switches are available in all standard, 4-bit, 16 unique-code output formats for HMI applications. For solder reflow process, they can withstand temperatures up to 260°C. Tape and reel package quantity is 150 pieces and reel size is 330 x 61 mm with hub size of 100 mm. Switches are suited for 2-way radio, medical, industrial, and high-end consumer applications. Right angle horizontal and vertical styles are available.

LEDtronics, Inc.    Torrance, CA 90505
Aug 11, 2003 Single-Contact, 15 mm LED Lamps incorporate optical-grade epoxy, bayonet bases, and light optimizing designs. Sunlight-visible lamps come with 40, 30, or 18 LEDs. Light emitting angles include 12-15°, 20-30°, 40-50°, and 120-125°. Voltages range from 12-28 Vac or Vdc. Forty LED lamps draw between 1.4-2.7 W, 30-LED lamps draw 1.2-2.0 W, and 18-LED lamps use 1.0-1.7 W of power. They are suited for applications that are subjected to vibration and shock.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Aug 11, 2003 Model AZ2270 is rated at 30 A, 277 Vac, and up to 2 HP. Available with Form A, B, or C contacts, unit has Class F insulation and comes with AC or DC coils. Relay differs from AZ2100 relay in that QC connection to frame is moved to opposite side of relay, decreasing internal temperature rise.

Anderson Products    Worcester, MA 01610
Aug 11, 2003 Anderlex® Flap Wheels can be used on flat or contoured surfaces, and are practical for very fine finishes on aluminum, brass, and stainless steel. They can conform to irregular surfaces and create long-line brush finishes. Applications include applying satin finishes on soft metals, removing oxide from precious metals, removing fine burrs on threaded metals, producing fine finishes on aluminum extrusions, and for final sanding of wood moldings.

Columbia ParCar Corp.    Reedsburg, WI 53959
Aug 11, 2003 Narrow-aisle passenger vehicle, EX21 Expediter, is available with All Weather Cab Enclosure option. Manufactured in 14 gauge steel with polycarbonate windshield, cab enclosure provides passenger protection from outdoor elements. It is offered with either white steel or marine-grade yellow-colored vinyl enclosure doors with flush paddle handles. Product accommodates optional automotive style steering wheel.

Amada Cutting Technologies Inc.    La Mirada, CA 90638
Aug 11, 2003 Model CM150AN features CNC unit designed for metal sawing. Narrow kerf blades, accurate indexing, and short remnant assure maximum number of usable parts per bar and minimal material scrap. Mist system and precision ground carbide blades provide end finishes that may eliminate secondary facing operation. Machine includes vibration-free saw spindle, anti-backlash brake system, and inclined magazine table for automatic material loading.

Amada Cutting Technologies Inc.    La Mirada, CA 90638
Aug 11, 2003 Model SA-90 cuts tubes and pipe with max OD of 3.55 in. and max wall of 1.18 in. Holding collets virtually eliminate distortion, even on thin walled tubing. Cutter provides fully automatic operation, including loading, auto trim cut, production cutting, and unloading. Cutter head revolves around circumference of pipe or tube while cutters close toward center. Model SA-90 is suited for steel, stainless steel, titanium, aluminum, copper, and PVC.

Lowry Computer Products Inc.    Brighton, MI 48116
Aug 11, 2003 Mobile Print Station MPS II provides on-demand scanning, printing, and data collection. Work surface can accommodate bar code printer, scanner, PC or terminal, keyboard, and mouse. Print station helps to error-proof labeling process by staging on-demand printing and labeling in same area. It can be run as stand-alone workstation or connected to host application via wireless RF network. Station includes integrated handle and rubber-coated wheels for anti-static environments.

Unibar Inc.    Rochester Hills, MI 48309
Aug 11, 2003 E-BARZ Pro v3.0 features Common Gateway Interface and Command Line capability, enabling web designers to embed bar codes dynamically on any web page. Maximum length of Command Line or CGI Data String is 2,048 characters. Software requires no custom programming and is compatible with all scripting languages. Although default output format remains JPG file, user can select PNG or JPG output. UPC and EAN barcodes print with descender bars and human readable text.

Seco-Carboloy    Warren, MI 48089
Aug 11, 2003 U-Series Milling Chucks provide strong grip and rigidity through chucking mechanism that clamps cutting tool evenly up to 3 mm from chuck's nose. Thick wall and internal slots also create additional torque and rigidity. Chucks provide high accuracy with run-out of less than 5 µm at 100 mm from nose. Four sizes range from 0.750–2.000 in., however chucks can be converted for use with metric shank tools by inserting metric milling chuck collet.

Optika    Colorado Springs, CO 80920-6506
Aug 11, 2003 Acorde Compliance Suite enables organizations to manage regulatory, legislative, and corporate compliance responsibilities. Leveraging Microsoft® .NET(TM) technology platform, software suite consists of Acorde Records Management(TM) Standard and Enterprise Editions; Acorde Internal Control(TM), which enables the complete and closed-loop management of policies and procedures; and Acorde Application Link(TM) for extending, leveraging, and integrating with critical business applications.

Optika    Colorado Springs, CO 80920-6506
Aug 11, 2003 Available for enterprise resource planning systems, Acorde Payables(TM) for Oracle 11i Financials leverages Web Services to simplify implementation and reduce start-up time. It delivers process automation to streamline document retrieval and speed invoice approval and payment. Components include Acorde Capture(TM); Acorde Context(TM), which manages business transaction information; Acorde Process(TM), which automates accounting processes; Acorde Application Link(TM); and Acorde Services.

Coto Technology    Providence, RI 02907
Aug 08, 2003 Sensors, molded in thermoset plastic, are suited for automated pick-and-place applications. Based on 5 mm switch design, Model CT05 measures 0.252 in. long, is available in Gull or J lead configurations, and carries 5 W rating. Rated at 10 W, Model CT10 is available with G4 lead configuration with wide, flat lead to provide stability during component placement and solderability for surface-mount applications.

NKK Switches    Scottsdale, AZ 85260-3420
Aug 08, 2003 Series KB miniature switches feature snap-action contact mechanism and molded-in terminals to lock out flux, dust, and other contaminants. They are 12 mm dia to fit standard panel cutouts, and have 8 mm panel thickness mounting capability. Illuminated devices offer choice of LED, neon, or incandescent options. Switches are rated at 1 A at 125/250 V or 1 A at 30 Vdc for power models. Logic level devices are rated at 0.4 Va max at 28 Vac/dc max.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Aug 08, 2003 Rotary Tap Switches are offered in molded- and fabricated-base designs. Single-, 2-, or 3-phase models are available with dual ratings ranging from 100/150 to 1,600/2,400 A at 600 V. Switches include nonferrous parts, long-life contacts that withstand vibration, escutcheon, handle that accommodates 2 padlocks, and flame-retardant, nontracking insulation. All current-carrying parts rated for 200 A or more are heavily silver-plated.

Weber Marking Systems, Inc.    Arlington Heights, IL 60005 4457

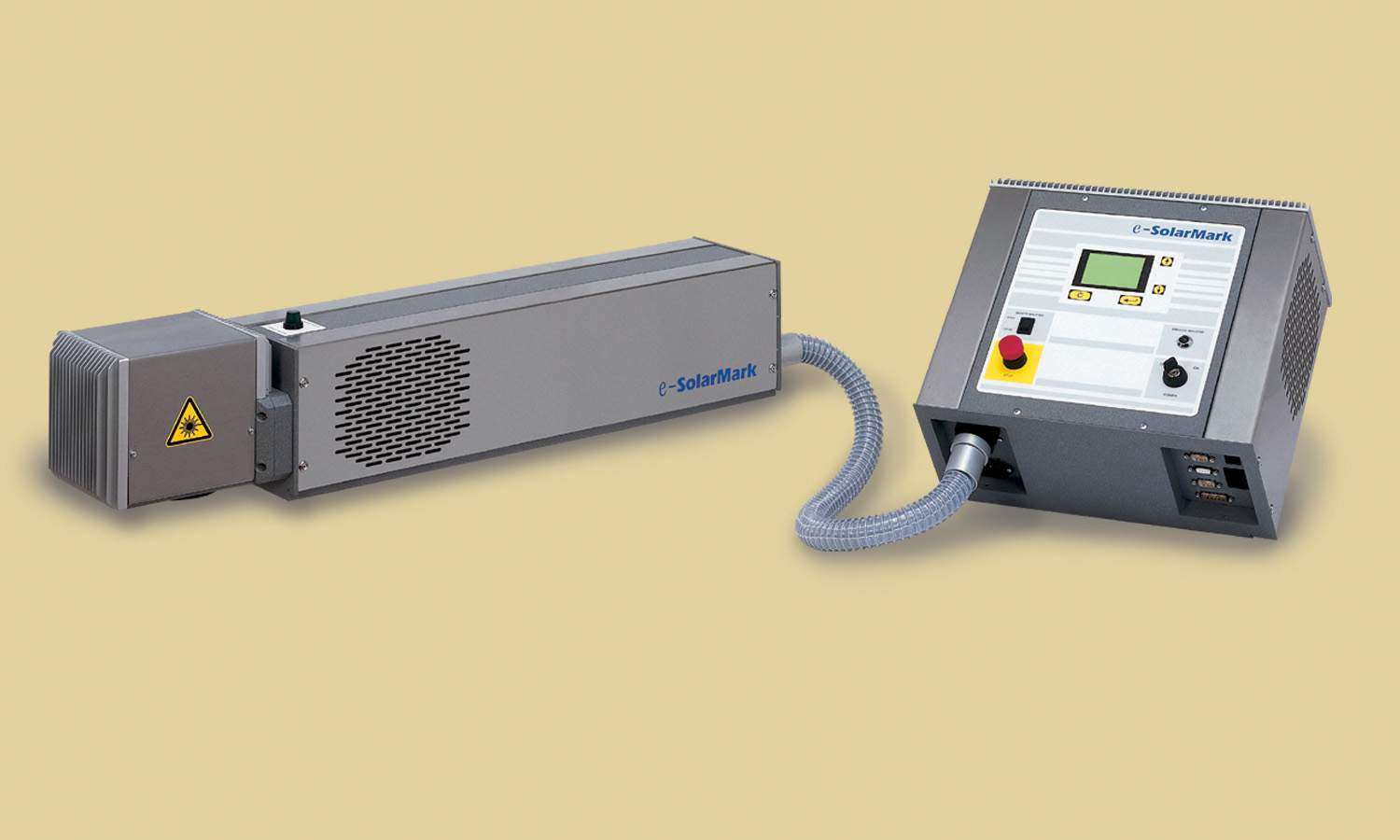

Aug 08, 2003 Vector laser coder, e-Solarmark, can mark up to 1,000 characters/sec at product delivery speeds up to 560 fpm. It provides text as small as 0.020 in. high, numerous bar code symbologies, and graphic images. Selection of lenses satisfies marking fields from 2.0–7.8 in². Coder comes with controller and PC-resident software. Hundreds of formats can be created, stored, and accessed. System can mark paper, paperboard, foils, plastics, wood, glass, and coated metal.
