Linear Technology Corp.    Milpitas, CA 95035
Aug 19, 2003 Models LTC2847/LTC2845 come in 5 x 7 mm QFN packages and provide multi-protocol serial port for LAN and WAN equipment with remote access ports. Two-chip solution includes configurable transceivers for data and clock signals with on-chip switchable termination resistor networks and transceivers for control signals. Units operate from single 5 V supply and support RS232, RS449, EIA-530, EIA-530-A, V.35. V.36, and X.21. DTE or DCE configurations can be selected.

F & R Gauges North America    Hingham, MA 02043
Aug 19, 2003 Threaded Ring Panel Mount System consists of lightweight pressure gauge in plastic housing that eliminates need for nuts, bolts, and metal brackets. Diameters range from 1½-2½ in. with scales from -30 in.Hg to 400 psi. Black or chromed triangular flange is available. Gauge is suited for use on compressors, vacuum pumps, regulators, and other pneumatic applications.

Linear Technology Corp.    Milpitas, CA 95035
Aug 19, 2003 Combining internal 42 V, 1.1 A VCESAT switch with soft-start capability, LT3467 uses constant frequency current mode architecture and operates from input voltage range of 2.4-16 V. Step-up DC/DC converter employs ceramic capacitors and inductors and 1.3 MHz constant switching frequency for low noise operation. Additional offerings include pin-to-pin compatibility with LT1930 and LT1613 and quiescent current of 1.2 mA during operation and less than 1 µA in shutdown.

Lee Industries, Inc.    Philipsburg, PA 16866
Aug 19, 2003 Blenders are available with single- or double-ribbon or paddle agitators, all of which are offered with scraped surface. With capacities of 25–5,000 gal, products include insulated heating/cooling jackets that utilize operating pressures up to 150 psig. Jacketed blenders are provided with 1½ in. of fiberglass insulation and T-304 stainless steel sheath. Product contact parts are available in T-304, T-316, and L-grade stainless steel as well as nickel alloys.

Fasnap Corp.    Elkhart, IN 46515
Aug 19, 2003 U.S. standard sheet metal grommets and neck washers are available in brass with nickel plating or plain in sizes No. 1 and No. 2. They can be automatically attached using company's grommeting equipment or similar machinery.

Migatron Corp.    Woodstock, IL 60098
Aug 19, 2003 Offered with ranges from 4 in. to 18 ft, depending on model, Series RPS-409A needs no setup adjustments or calibration and offers linear output of .125 volts per inch. Designed to utilize PLC and computer analog input cards, analog card chosen will determine resolution of system. Unit is encased in PVC and is rated up to IP-68 or NEMA-6P. Temperature range is –40 to +140 °F.

Pipeline Inspection Company Ltd    Houston, TX 77055
Aug 19, 2003 Offered in 3 models, detectors inspect pipe coatings on 2–60 in. pipe. SPY® Model 715 provides infinite voltage settings over 1,000–5,000 V range, while Model 725 inspects various coatings with its 1,000–15,000 V range. With its 15,000–35,000 V range, Model 735 is suited for use with extra thick and somastic coatings. All detectors feature infinite voltage settings to allow specific sensitivity adjustments on the fly.

Rice Lake Weighing Systems    Rice Lake, WI 54868
Aug 19, 2003 Able to be read in light and dark environments, 520 digital weight indicator features vacuum fluorescent primary weight display with .75 in. characters. Its 16-character prompting display can be programmed with up to 8 different messages to guide operators through weighing processes. Product also offers RATTLETRAP® 2-stage, digital filtering; peak hold function; counting mode; and accumulator for material management and inventory tracking.

GSI Lumonics    Northville, MI 48167
Aug 19, 2003 Compact-Q Lasers provide 800 mJ per 6–8 ns pulse at 1064 nm with pulse repetition frequency of 10 Hz. They are offered with stable multimode, gaussian-coupled, or TEM₀₀ resonator options. Mini-rail design allows them to be configured in oscillator, twin oscillator, and oscillator amplifier configurations with minimal change to laser head. Applications include PIV, LIF, LIBS, marking and drilling, and laser ablation, as well as mass spectroscopy and OPO pumping.

Nexen Group, Inc.    Vadnais Heights, MN 55127
Aug 19, 2003 Compact, single post, spring-actuated Air Champ® VC500 works with discs of various sizes and does not reduce brake torque over life of friction facings due to rear amplifier linkage design. Product ships completely assembled and ready to install. It operates at 60 psi and is suited for automotive conveyor systems, converting machines, conveyors and conveying equipment, heavy-duty machinery, and printing presses with e-stop applications.

PreCon National Sales Co.    Memphis, TN 38184
Aug 19, 2003 Series PL-PH utilizes corrosion-resistant brass or stainless steel housing with large wall thickness. In most applications, probe can be inserted directly into liquid being measured. Standard unit includes thermistor or RTD sensor elements and wide variety of resistance curves. Applications include pool and spa heaters, food and beverage equipment, surface transportation, analytical instruments, and building controls.

Electrolock, Inc.    Hiram, OH 44234
Aug 19, 2003 The E958-12A Epoxykits, pre-measured, 2-component epoxy coating system, allows for mixing of both components within provided package. Coating cures tack-free in 4–8 hr and obtains complete cure after 96 hr at room temperature. Product may also be fully cured in 5 min at temperatures of 212°F. Properties after cure include insulation resistance at 77°F at 1.1 x 1012 ohms and 82 Shore D hardness rating. Potlife is ~20 min, and shelf life is 1 year prior to mixing.

Swagelok Company    Solon, OH 44139 2764
Aug 19, 2003 Thermoplastic Pressure Gauges monitor vacuum and positive system pressures up to 15,000 psi. Featuring 4½ and 6 in. dial sizes in lower-back mount and lower mount configurations, gauges come with male NPT or tube adapter end connections. Tube adapter connections allow user to rotate gauge to desired position for viewing. Available unfilled or liquid-filled with glycerin or silicone, solid-front gauges feature turret-style case and blowout back.

Sensotec, Inc.    Columbus, OH 43228
Aug 19, 2003 Plug, Play, and Calibrate Systems are compliant to IEEE 1451.4 standard for connectivity of sensors and associated signal conditioning. Transducer electronic data sheet containing sensor specifications, calibration data, and user-defined location information is stored in sensor. When connected to SC2000 or any IEEE 1451.4 compliant signal conditioning, sensor is interrogated for TEDS information and automatically sets up and calibrates signal conditioning with sensor.

Revotech Industries International    Los Angeles, CA 90071
Aug 19, 2003 UltraJAX Connectors each provide up to 20 pins. Contact assemblies are housed in top and bottom of female connector. Existing, single-sided RJ11 and RJ45 connectors insert into connector in multiple directions supporting multiple functionality. UltraJAX double-sided male connectors utilize both sets of contacts, doubling capacity and functionality of single unit. Connectors are suited for networking and telephone equipment.

Acton Research Corp.    Acton, MA 01720

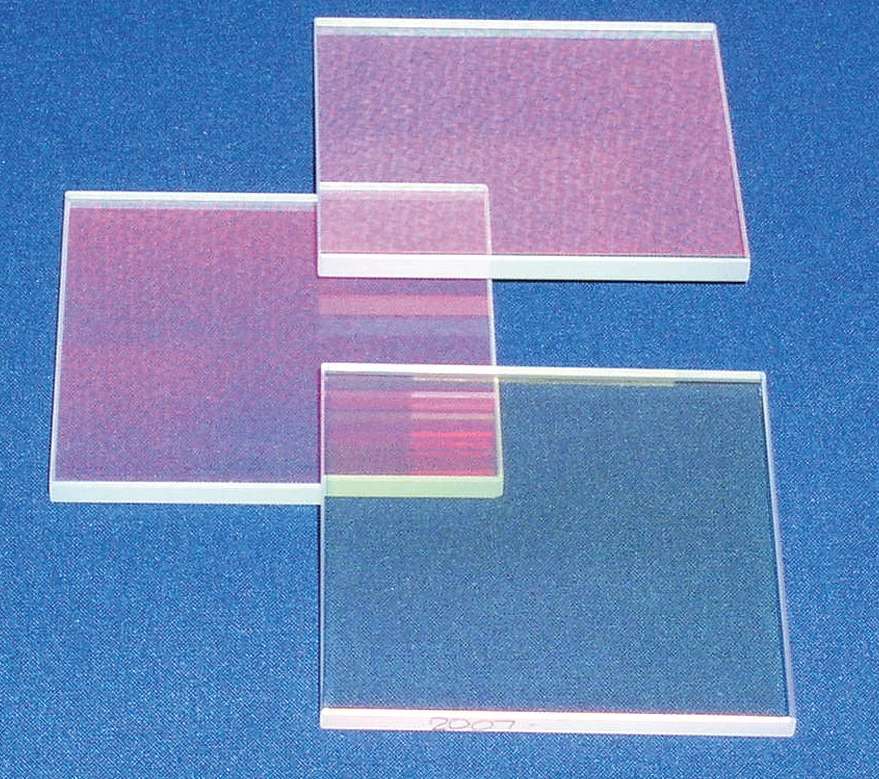

Aug 19, 2003 HTM-Series products block wavelength region from 750–1,000 nm and allow passage of visible wavelengths with 80% or greater average transmission. They can be optimized for 0° or 45° operation and are available in 1.0 and 2.0 in. dia as well as 2 x 2 in. square sizes. Applications include microscopy, color measurement, CCD imaging, and various life science applications.

Internet2    Ann Arbor, MI 48108
Aug 19, 2003 Standards-based, open-source Shibboleth v1.0 incorporates active privacy management while enabling inter-institutional sharing of Web resources subject to access controls. It emphasizes federated administration and access control based on attributes rather than identity to provide scalable and extensible framework. Shibboleth helps develop architectures, policy structures, practical technologies, and open source implementations.

Opto 22    Temecula, CA 92590 3614
Aug 19, 2003 Model SNAP-UP1-M64 SNAP Ultimate brain handles mix of up to 16 analog, digital, and serial modules. Together with SNAP-M64 rack, system allows SNAP Ultimate I/O users to combine up to 64 analog, digital, and serial I/O points on same rack.

Strippit Inc.    Akron, NY 14001-1321

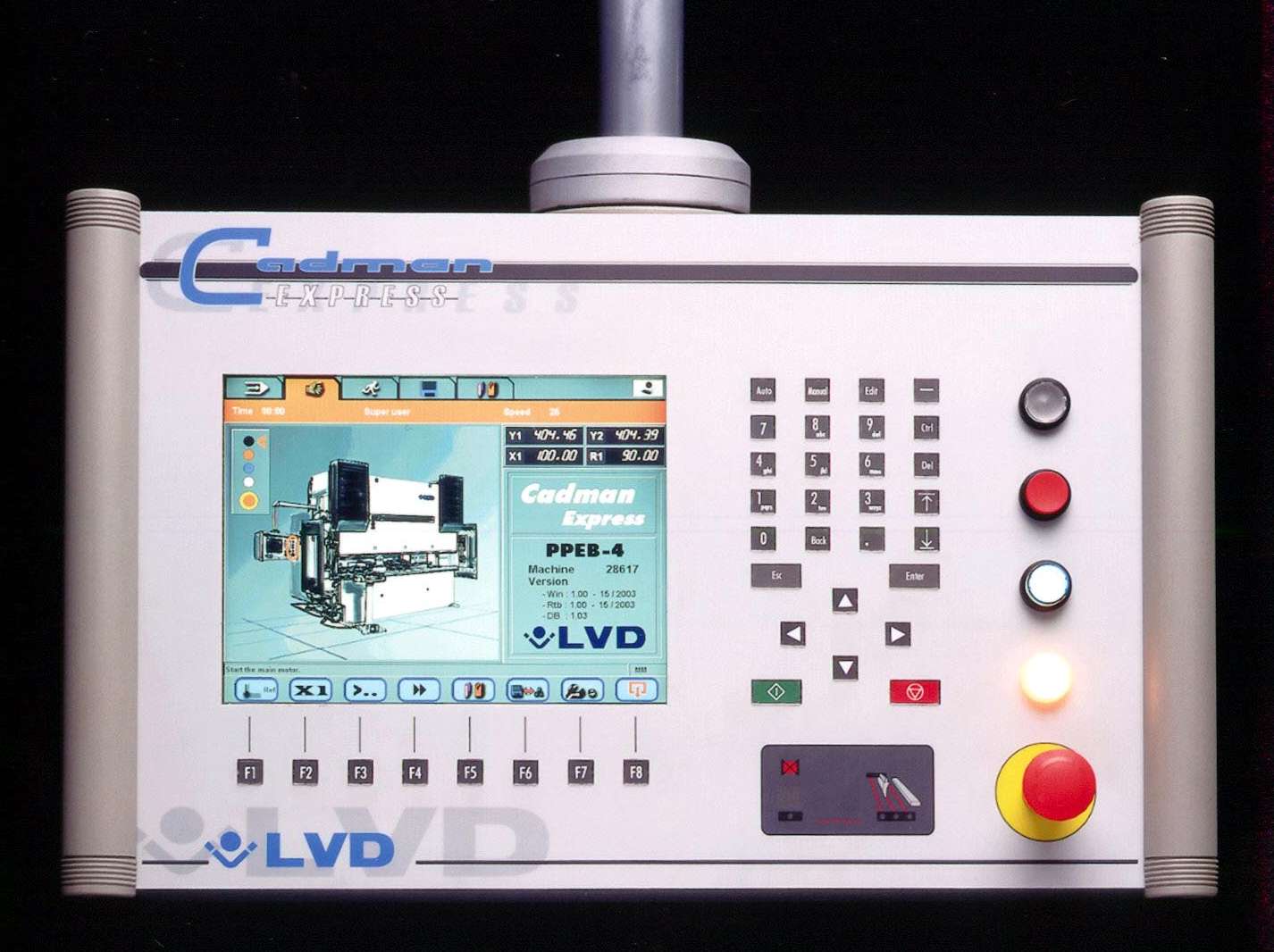

Aug 19, 2003 CADMAN® Express is a Windows® NT-based system for Series PPEB-4 hydraulic press brakes with max Y1-Y2, X, R configuration. It features Intel Pentium microprocessor, 20 GB hard disk drive, CD ROM, and 12 in. TFT screen. Unit simplifies programming process by requiring limited input of data. It provides automatic calculation of bend allowance, automatic selection of tools based on material thickness, and calculation of lower dead point. Several languages are supported.

Abresist Corp.    Urbana, IN 46990-0038
Aug 19, 2003 KALMETALL® W hard overlay, welded steel linings can be self-supporting or installed into existing steel structures. They combine steel base composed of ASTM A-36 carbon steel or alloy plates with hard overlay welded chromium carbide protective layer. Steel base ranges in thickness from 3/16–1/4 in. with other sizes available. Standard alloy plates measure 48 x 96 in. and 60 x 120 in. Linings are suited for bunkers, mills, chutes, dust pipes, and cyclones.
