HellermannTyton    Milwaukee, WI 53224
Aug 20, 2003 Home Network Sciences(TM) allows for telephone, video, and television distribution; whole-house audio; computer networking; internet networking; and customized multimedia wall plates. Modular, UL-Listed enclosure is designed with strategically located knockouts and employs grid spacing design that eliminates need for plastic push lock pins. Computer keystone data module allows up to 8 Category 6 or 5e jacks or keystone modules to be terminated outside enclosure.

Lathem Time Corporation    Atlanta, GA 30336 2801
Aug 20, 2003 Model 7000E calculates worked time between punches and prints accumulated totals directly on time card for up to 50 active employees or jobs. It also calculates actual or rounded time, and supports automatic break deduction. Unit prints in AM/PM, 24 hr, or 1/100th of an hour, and adjusts for short months, leap year, and daylight savings. Internal lithium battery maintains time, card totals, and program settings for up to 5 years without power.

Lathem Time Corporation    Atlanta, GA 30336 2801
Aug 20, 2003 ShiftPlanâ„¢ EZ, which integrates with PayClockâ„¢ EZ, and Intuit's QuickBooks® Pro and Premier, allows user to create staff schedules and avoid scheduling conflicts. Schedules can be made weeks, months, or years in advance. Software produces schedules for up to 25 individual daily shifts and up to 150 employees. It schedules by department or position, creates schedule-to-actual and tardy reports, analyzes employee punch trends, and eliminates redundant data entry.

Meggitt (Maryland), Inc.    Germantown, MD 20876
Aug 20, 2003 BlueLynx(TM) BLM Wireless Sensor Links feature Class 1 Bluetooth(TM) technology for industrial operation from -40 to +85°C. They utilize frequency hopping, spread spectrum technique within 2.4 GHz ISM band to ensure license-free and secure communication. BlueLynx BLM-T Transmitter collects analog signals from up to 4 standard 4-20 mA sensors and transmits data wirelessly to BlueLynx BLM-R receiver wired to PLC, DCS, or other instrumentation system.

RAE Systems    San Jose, CA 95134
Aug 20, 2003 MultiRAE Wing Tank Entry Kit improves safety of any aviation wing tank entry or service program. Fuel tanks of commercial and military aircraft contain many serviceable parts requiring confined space entry for repair and maintenance. Kit contains alarms, gas measurement scales, and calibration gases specifically for use in environments containing jet fuel vapors. MultiRAE Plus includes oxygen sensor and LEL sensor, providing backup reading for PID.

American Innovations    Austin, TX 78727
Aug 20, 2003 Bullhorn Monitors allow user to configure alarms, control equipment, and receive data through secure website. They use MicroBurst(TM) wireless network from Aeris.net to transfer information from remote equipment to central database. With voice notification feature, data packets travel from Bullhorn device to server, where system checks to see if alarm conditions are met. Alarm is then sent to up to 5 cell phone numbers until notification is acknowledged.

Steck Mfg. Co., Inc.    Dayton, OH 45408 1952
Aug 20, 2003 EngineOut Kit helps remove engine from front engine/rear wheel vans. It comes in choice of Chevy, Chrysler, or one of 3 Ford Engine Plates. Adapter Plate bolts to front of engine where water pump has been removed. Hoist Arm installs in engine hoist and Angle Adjuster controls engine tilt. With engine held by front instead of top, user can easily lift and tilt engine as necessary for removal and installation.

Omron Electronics, LLC    Schaumburg, IL 60173
Aug 20, 2003 The 2 x 2 and 1 x 8 Fiber Optic Switching Devices come in small MEMS-scale package and consume 100 mW. Variable optical attenuator with indicator incorporates ultra-miniature actuator technology, while 4-channel multiplexer/demultiplexer unifies optical elements into single unit. Twelve channel multimode interconnect is also available. Devices are suited for access area applications where fiber optic cables deliver communication access to homes and businesses.

Omron Electronics, LLC    Schaumburg, IL 60173
Aug 20, 2003 Model D6F features heater between 2 thermopiles that lets unit detect both gas flow velocity and direction. Silicon thermal sensor detects velocities as low as 0.005 m/s. Package styles are available for use in natural or LP gas flow measurement, HVAC system air flows, medical gas applications, and hydrogen. Sensor is suited for fuel cells, chemical test chambers, boilers, and respiration monitors in medical treatment applications.

Omron Electronics, LLC    Schaumburg, IL 60173
Aug 20, 2003 Equipped with power tuning function that enables unit to automatically adjust to sensing condition, E3X-MDA employs built-in and/or logic output that eliminates need for separate PLC or sensor controller. Function lock mode locks all sensor functions to protect sensor setting integrity. Product is suited for limited-space applications where positioning and detection need to be synchronized, such as material handling and packaging sorting operations.

Packaging Concepts, Inc.    Virginia Beach, VA 23462
Aug 19, 2003 Hygiene-certified UNSA FIBCs are 100% food-approved polypropylene and other materials. Inner liners, made of LDPE and LLDPE, comply with hygiene standards established by food and pharmaceutical industries. Extra-clean packaging is produced in contamination-free facility.

Bindicator    Spartanburg, SC 29306
Aug 19, 2003 Housed in NEMA 4X polyester coated, explosion proof enclosure, Roto-Bin-Dicator® point level switches consist of original model, Super-Safe-Plus Roto-Bin-Dicator®, and Mini Roto-Bin-Dicator®. Super-Safe-Plus model has external function test and 2 external LEDs that indicate power and operation status, while Compact Mini Roto-Bin-Dicator fits into tight places and has adjustable sensitivity. Custom pipe extensions are available so that paddles can be vertically extended into silos.

Computer Conversions Corp.    East Northport, NY 11731

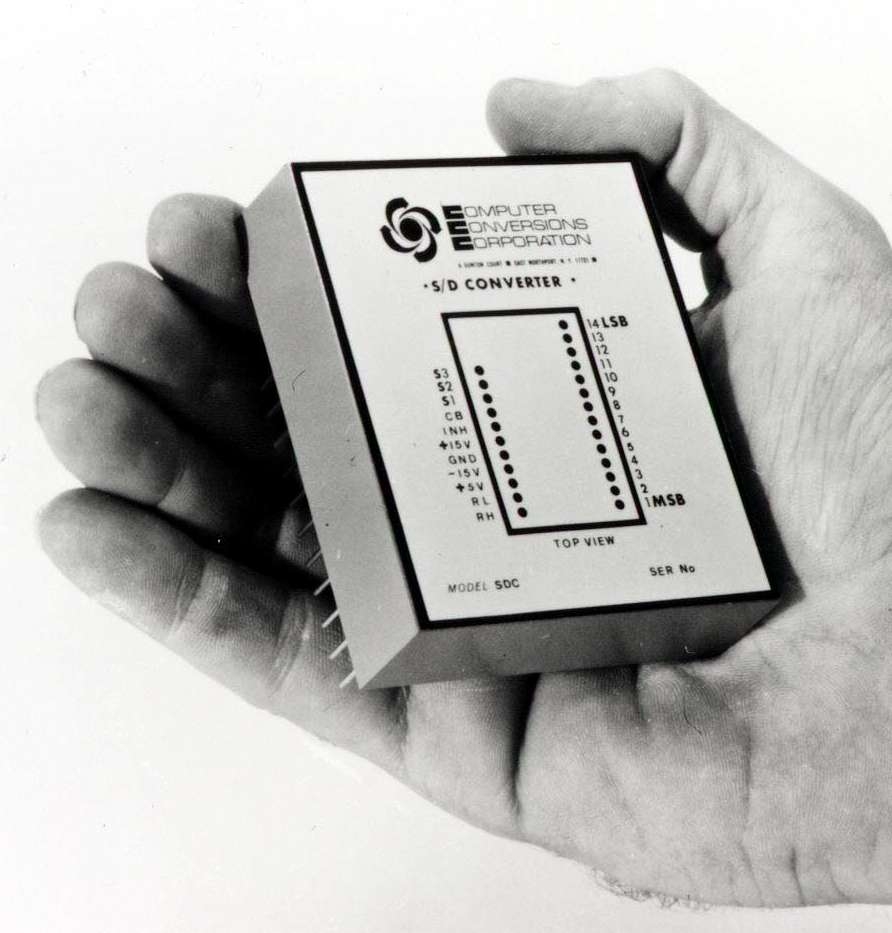

Aug 19, 2003 Measuring 2.6 x 3.1 x 0.82 in., PCB-mount product converts synchro or resolver inputs of 11.8 or 90 V, 400 Hz or 90 V, 60 Hz into parallel binary outputs representing angle with accuracy of up to ±4 arc minutes. Series provides DC voltage output proportional to velocity in addition to 10, 12, or 14 bit digital output. There is no accuracy degradation over 0 to +70°C or -55 to +85°C operating temperature range. Input rates up to 10,000°/sec can be tracked with no added error.

SSI Equipment Inc.    Buffalo, NY 14240 1594

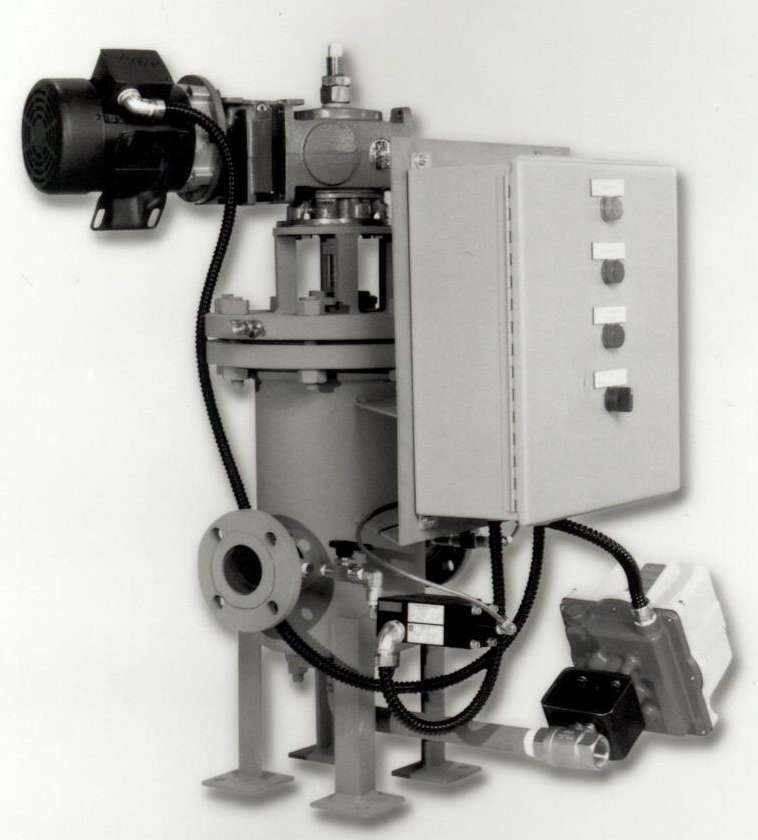

Aug 19, 2003 Automatic Backwash Strainers utilize rotating backwash assembly that isolates small portion of screen to provide uninterrupted strainer operation. Configurable with choice of scraper mechanisms and voltage requirements, products include inspection port for visual checking and standard NEMA 4X or optional NEMA 7,9 user-programmable control panel. Units are available in Carbon or Stainless Steel in ¼â€“36 in. sizes with filtration as fine as 15 microns.

Masterbond, Inc.    Lake In The Hills, IL 60102 9600
Aug 19, 2003 Type EP3RRLV cures in 30–35 min at 220°F and 10–15 min at 300°F. It offers electrical insulation, thermal shock and heat resistance, and protection against water and chemicals. Epoxy requires no mixing and has unlimited working life at room temperature. It bonds to metals, ceramics, glass, and most plastics. Suited for potting, encapsulation, and underfill applications, EP3RRLV has tensile strength of >5,000 psi, Shore D hardness of 80–85, and viscosity of 1,000–1,500 cps.

CyberResearch, Inc.    Branford, CT 06405 2932

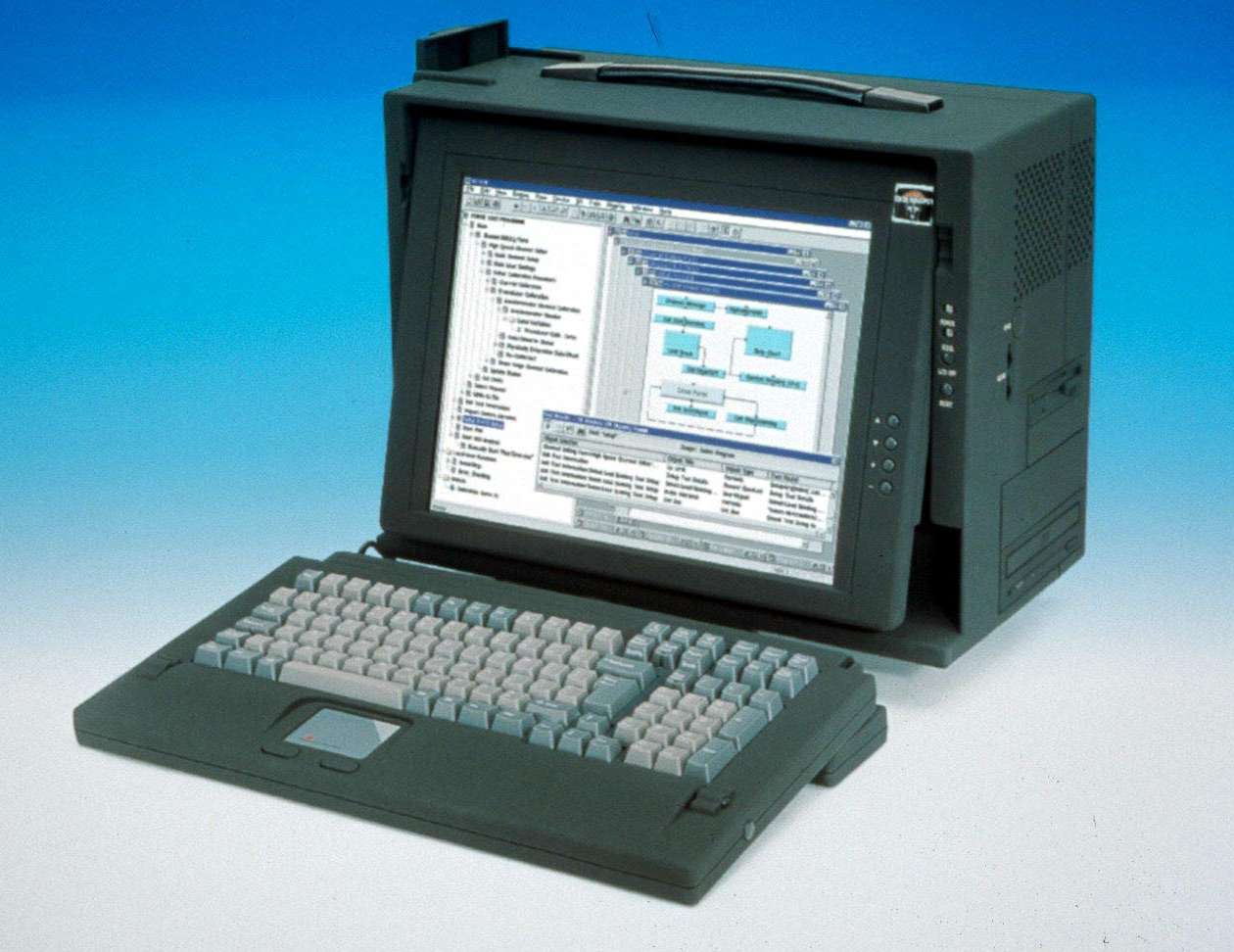

Aug 19, 2003 Series NBV features 2.4 GHz Pentium® 4 processor, with 3 full-length ISA slots and 3 PCI slots, which are easily accessible on side of case. Units have 4 vertically oriented drive bays: two 5.25 in. and two 3.5 in. Sliding door covers I/O ports when they are not in use. Impact-resistant, molded ABS case is reinforced with aluminum internal chassis. Four different TFT LCD displays are available ranging from 14.1 to 15.4 in.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502

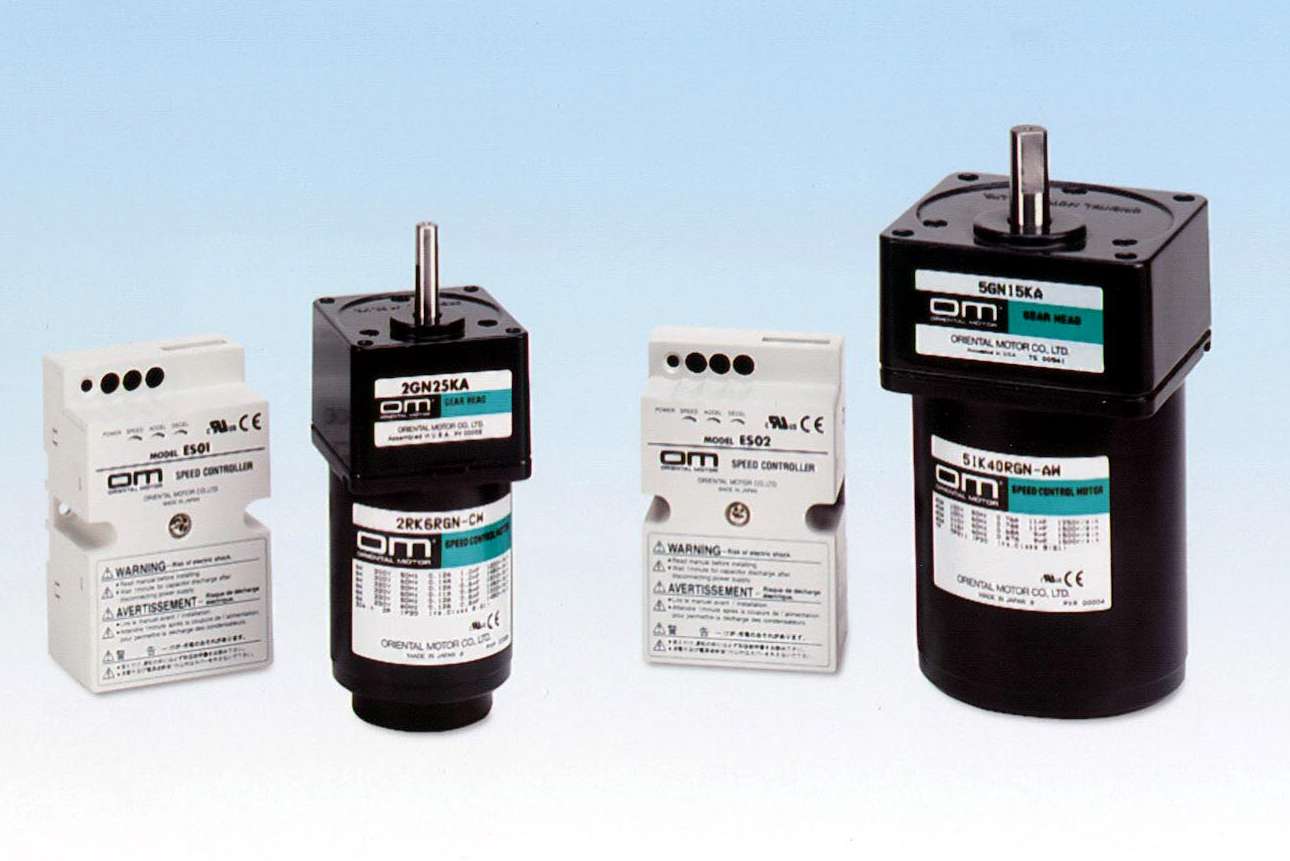

Aug 19, 2003 Series ES01 and ES02 accept input power of 110/115 V and 200/230 V, respectively. They control ac motors and gearmotors over speed range of 90-1,400 r/min at 50 Hz and 90-1,600 r/min at 60 Hz. Units provide controlled acceleration and deceleration, instantaneous stopping capability, and ability to set desired speed with built-in or external potentiometer. Configuration prevents operator from coming in contact with energized terminal block.

Cal Test Electronics    Yorba Linda, CA 92887-4604

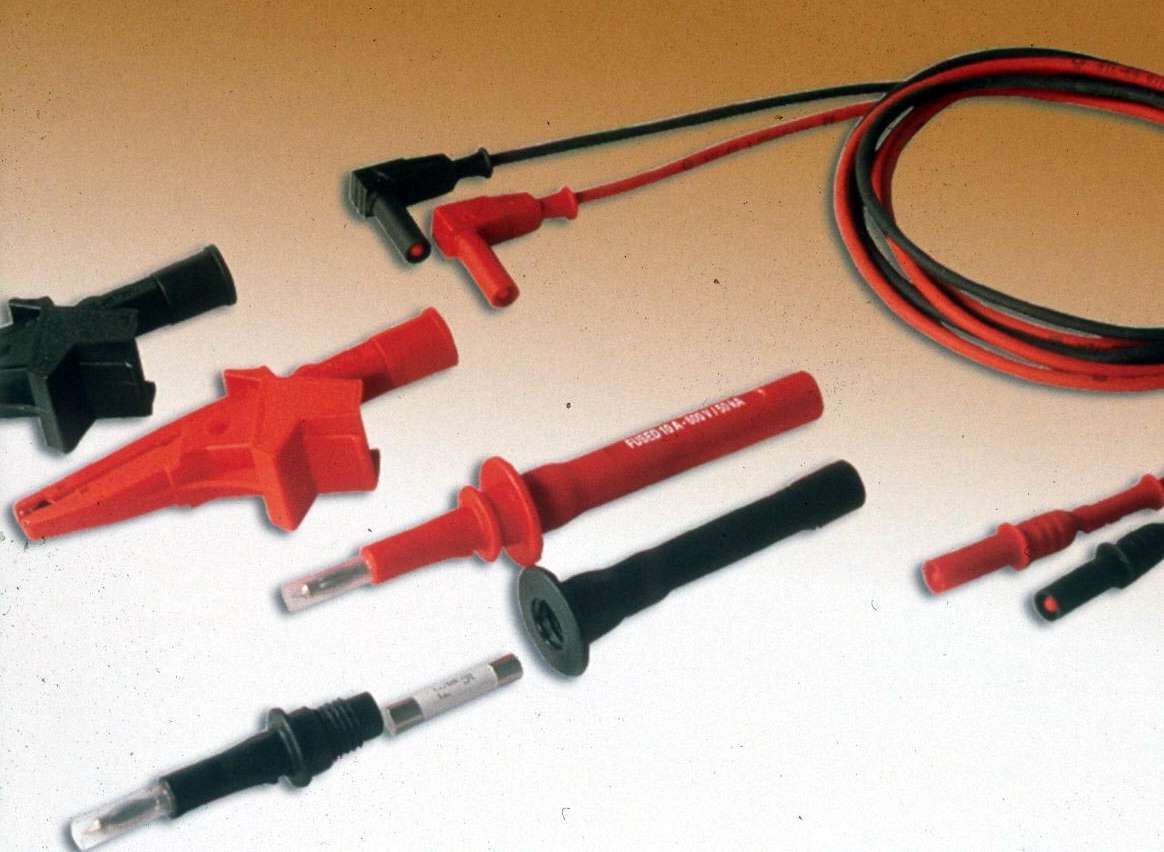

Aug 19, 2003 Model CT3116 DMM Kit includes 2 fused probe bodies, 2 highly-flexible silicone jacketed leads, and 2 fully-insulated alligator clips. Leads are not affected by cold weather or hot soldering iron. Probes feature 4 mm contact tip and utilize internal ceramic fuses rated at 10 A. Alligator clips have IP2X connection covers which, when plugged into fused probes, maintain overall safety. All components are compliant with IEC61010-031 International Safety Specification.

Intromark Inc.    Pittsburgh, PA 15222-3506

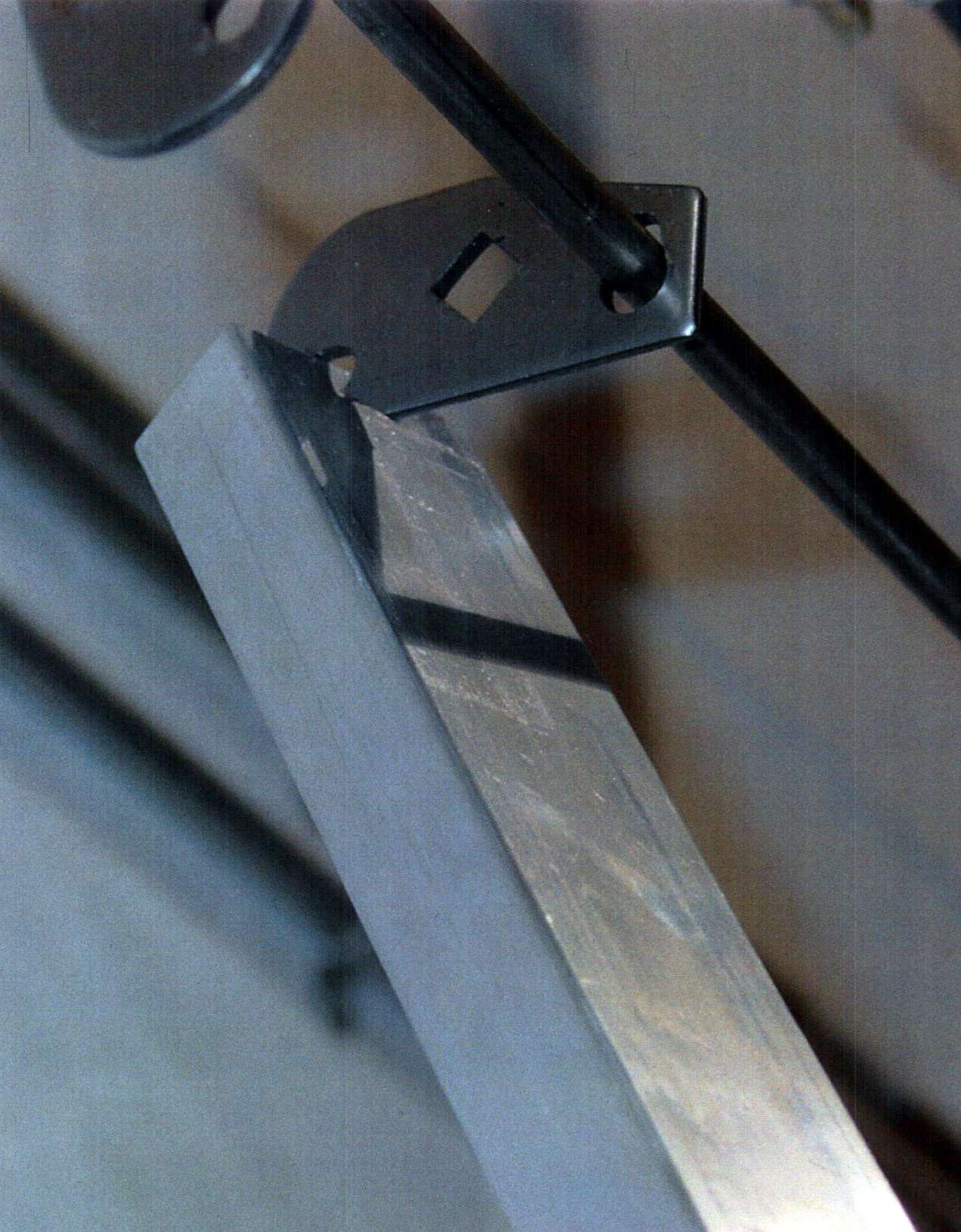

Aug 19, 2003 Gravity Hookâ„¢, made of heat-treated steel, measures 1.25 x 2.5 x .125 in. and is mounted onto horizontal, rod-based rack. Small, teardrop-shaped slot on bottom of hook holds parts in place. By holding part between 2 small points, Gravity Hookâ„¢ leaves only 2 unpainted areas. It can be used alone or with numerous hooks to support different sized pieces. It can also be used at different angles.

Oseco    Broken Arrow, OK 74012 1449

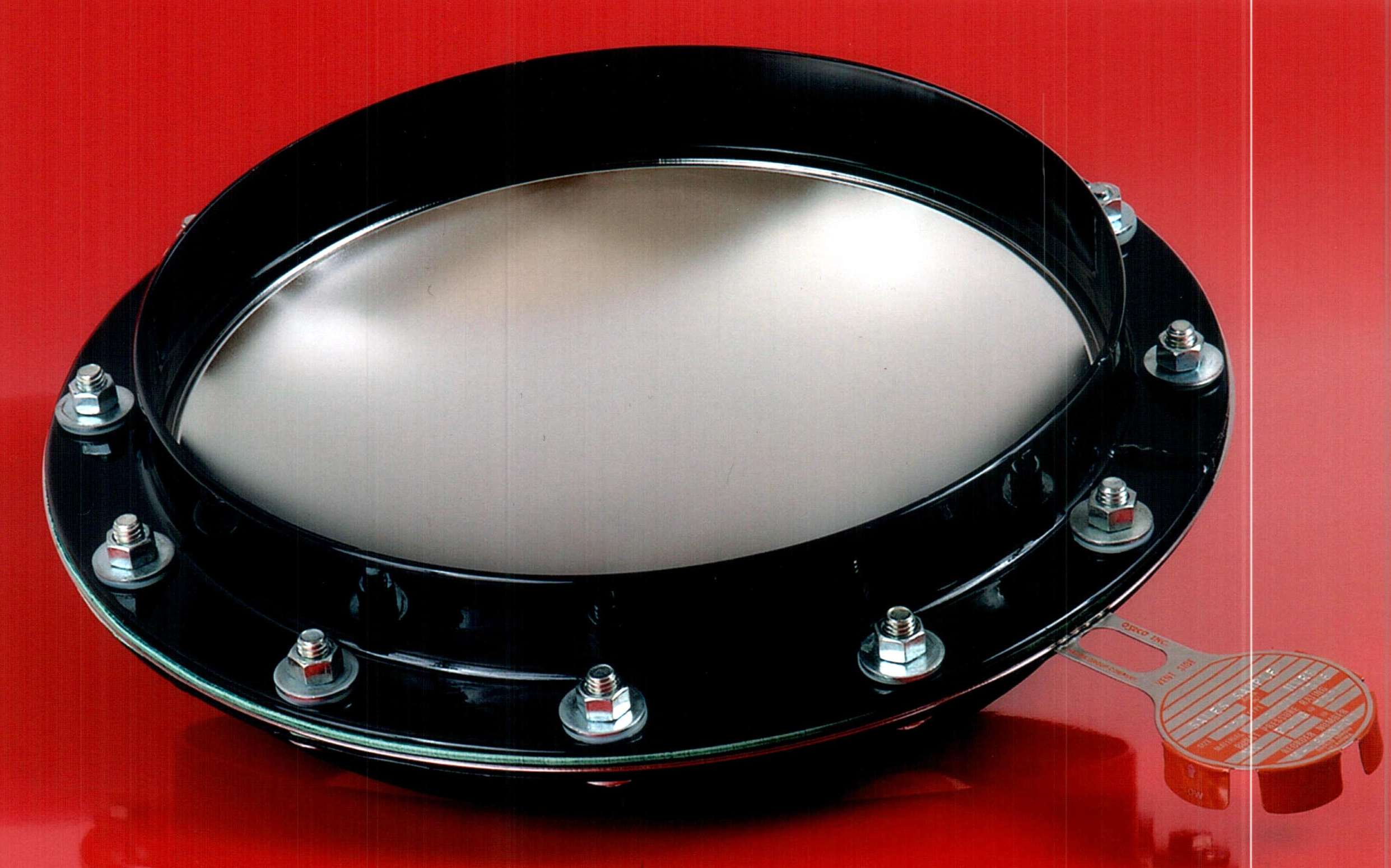

Aug 19, 2003 Series MVRB Metal Vent Reverse Buckling rupture panels can avert catastrophic explosions caused by overpressures in dust collectors, conveyor systems, and dryers. Smooth surface prevents product buildup and contamination, while non-fragmenting design increases process safety in event of panel rupture. Round panels range from 12–36 in. dia and come in SS, nickel, inconel, or monel. They feature 90% operating ratio and perform consistently in applications up to 700°F.
