Unitek Miyachi Lasers    Monrovia, CA 91017 7133
Aug 21, 2003 Pulsed Nd:YAG Laser, Model LW150A provides average output power of 150 W. It features real-time power feedback, 20-segment pulse shaping, power ramp-up and ramp-down, and removable touch-screen controlled pendant. Up to 6 built-in fiber outputs can be configured in Time Share and/or Energy Share modes so applications can be addressed utilizing one or more workstations located up to 30 m apart.

Microfluidics, Division MFIC Corp.    Newton, MA 02464 9101
Aug 21, 2003 Suited for use with stainless steel Microfluidizer® fluid processors, hermetically sealed containment isolator contains toxic submicron particles and droplets during high-pressure processing and helps companies comply with OSHA 1910.119 regulations. Isolator offers negative-pressure, HEPA filtration; 12 x 12 in. swing door; 2 flip up style windows; and glove ports with Hypalon® chemical-resistant gloves. Product also incorporates Microfluidizer processor's controls.

GE Industrial Systems    Fort Wayne, IN 46802
Aug 21, 2003 Record Plusâ„¢ global line of current limiting, molded case circuit breakers includes 100A frame size and provides high interruption capacity of 150 kA @ 480 V across all frames. Additional offerings include low let-through energy that results in less system stress; electrical and mechanical endurance; and trip units. Applications include distribution switchboard, panelboards, control panels and industrial electrical distribution products.

Scapa North America    Windsor, CT 06095
Aug 21, 2003 Medical grade Bioflex® Rx159S-001 consists of polyester film double-coated with permanent acrylic adhesive on one side and removable acrylic adhesive on opposite side. Heat-resistant, permanent acrylic adhesive offers high tack and peel and adheres to various surfaces. Removable adhesive, protected by 60 lb kraft liner, adheres to surfaces such as glass, stainless steel, and plastic and removes without leaving adhesive residue.

Genie, a Terex Company    Redmond, WA 98052

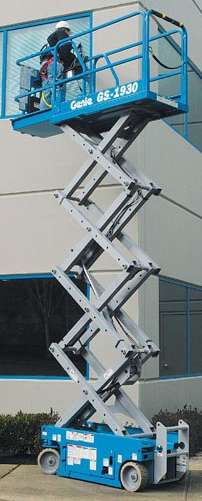

Aug 21, 2003 With zero inside turning radius, GS(TM)-1530 and GS(TM)-1930 self-propelled scissor lifts can maneuver in close or tight quarters. Model GS-1530 has max working height of 21 ft and 600 lb lift capacity, while GS-1930 has 25 ft max working height and 500 lb lift capacity. Both feature 36 in. extension deck for work requiring limited outreach. Measuring 30 in. wide, products include trays that swing out to provide full access to all working components.

Mazak Corp.    Florence, KY 41042 3092

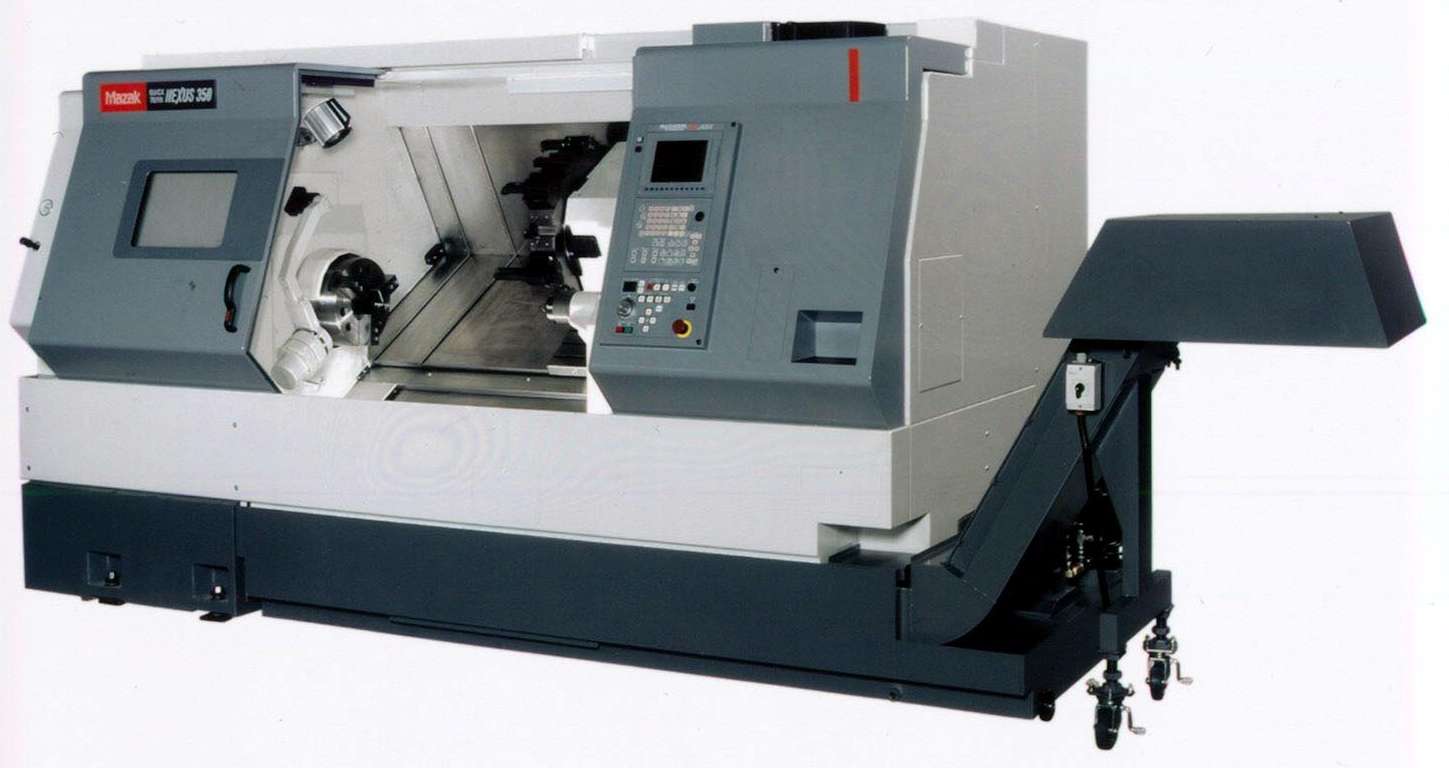

Aug 20, 2003 Quick Turn Nexus 350 has one 12 in. chuck, 680 mm max swing, 30 kW spindle output, and 3,300 rpm maximum spindle speed. With turret indexing time of 0.2 sec/position, product features servo-driven, programmable, NC electric tailstock and headstock with built-in spindle/motor. Tool Eye presetting arm automatically performs offset of tool nose position, tool measurement, and data registration. Tool Eye also updates and constantly monitors tool wear.

Parker Hannifin Corp., Tube Fittings Div.    Columbus, OH 43228

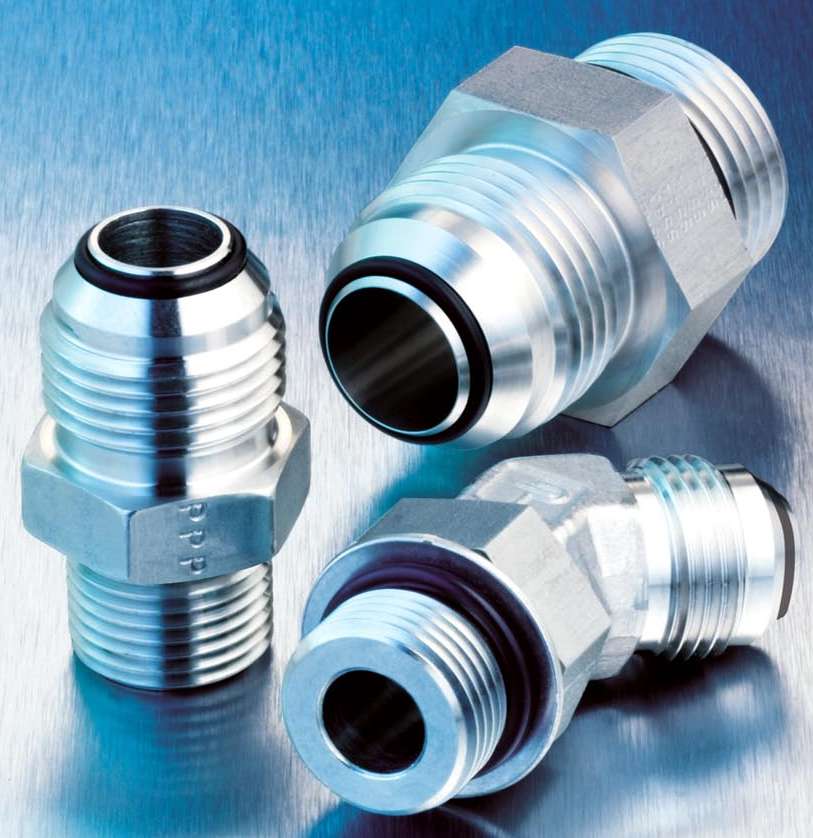

Aug 20, 2003 Triple-Lok 2 incorporates precision-engineered O-ring groove that provides maximum sealing performance without weakening or compromising fitting nose. Groove prevents O-ring overfill and pinching and accepts standard O-rings in most sizes. Soft-seal, stainless steel, 37° flare fitting is available in ¼-2 in. standard sizes, and is adaptable to metric tubing by changing the sleeve.

Scientifics, A Division of Edmund Scientific    Tonawanda, NY 14150-6711

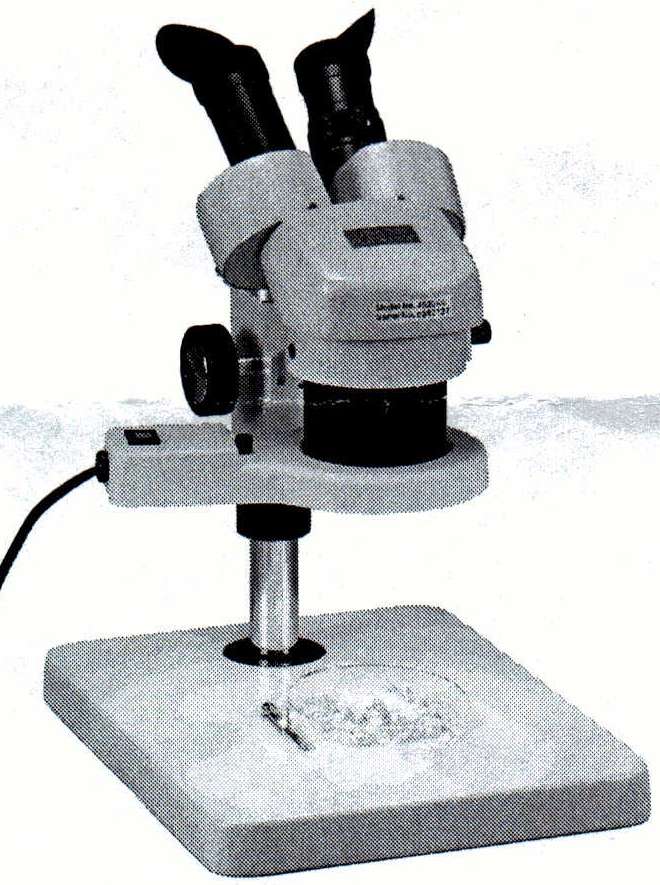

Aug 20, 2003 Stereomicroscope utilizes fluorescent illumination to illuminate every detail of irregular objects. Ring configuration produces circular ring of light directly down and around specimen, virtually eliminating visible shadows. Features include rotating nosepiece with 2x and 4x objectives and 10x eyepiece for switching from 20x to 40x magnification, inclined 360° rotating head, and rack and pinion focusing with slip clutch.

Komatsu America International Company    Vernon Hills, IL 60061
Aug 20, 2003 Rubber-tired Model WD600-3 pushes with 485 flywheel hp at 2,000 rpm and offers maximum rim-pull up to 94,300 lb. It features Tier 2 compliant SAA6D170E-3 engine and fully automatic shift transmission. Fully hydraulic, wet-disc braking system is completely sealed to lock out contaminants. A 10 cu yd straight blade is standard. Dozer is suited for mining, coal stockpile, woodchip, and general earthmoving applications.

Igus, Inc.    East Providence, RI 02914 0349

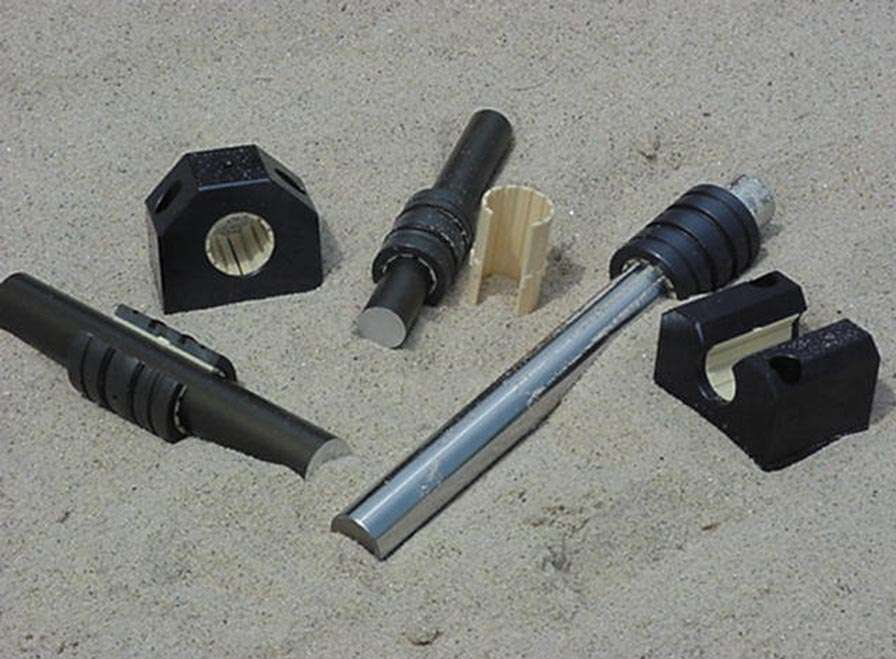

Aug 20, 2003 DryLin® R linear bearings are composed of self-lubricating polymer iglide® J. With channels that enable flow of dirt and dust, bearings do not need to be sealed. Flat glide pads reduce clearance between liner and shaft, and axial fastener secures bearing tighter to outside housing for added stability. Contact area is increased to 80%, improving overall load capacity. DryLin R bearings are suited for harsh, debris-infested or water-based environments.

Extech Instruments Corp.    Nashua, NH 03063

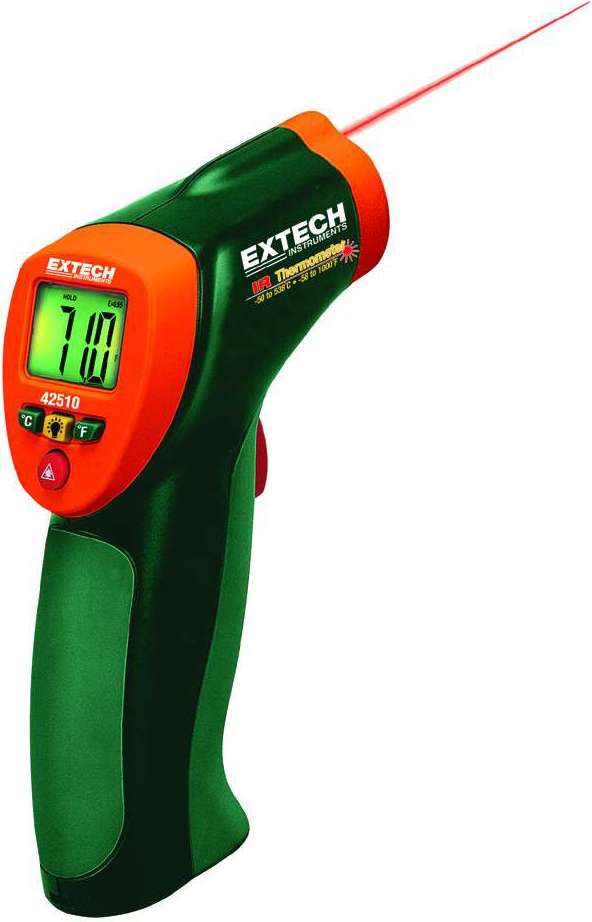

Aug 20, 2003 Portable model 42510 measures from -58 to +1,000°F with 0.1° resolution and distance to target ratio of 8:1. Built-in laser pointer pinpoints area to be measured. Large LCD is backlit so readings can be taken at night or in areas with low light levels. Unit includes overrange indicator and Automatic Data Hold that freezes display. Fixed emissivity of 0.95 covers 90% of surface temperature applications.

Linear Technology Corp.    Milpitas, CA 95035

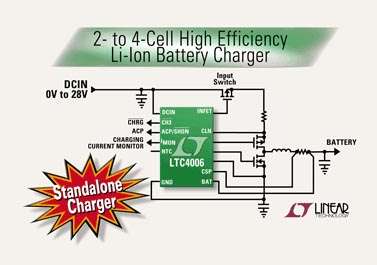

Aug 20, 2003 Model LTC4006 2- to 4-cell Li-Ion battery charger includes I/O status signals and is housed in narrow 16-pin SSOP package. It provides output signals for end-of-charge and wall adapter detection, as well as charge current value indicator for gas-gauging. Synchronous DC/DC step-down operation allows up to 96% operating efficiency from 6-28 V supplies. Product includes automatic recharge and trickle charging. Operating temperature is -40 to 85°C.

NKK Switches    Scottsdale, AZ 85260-3420

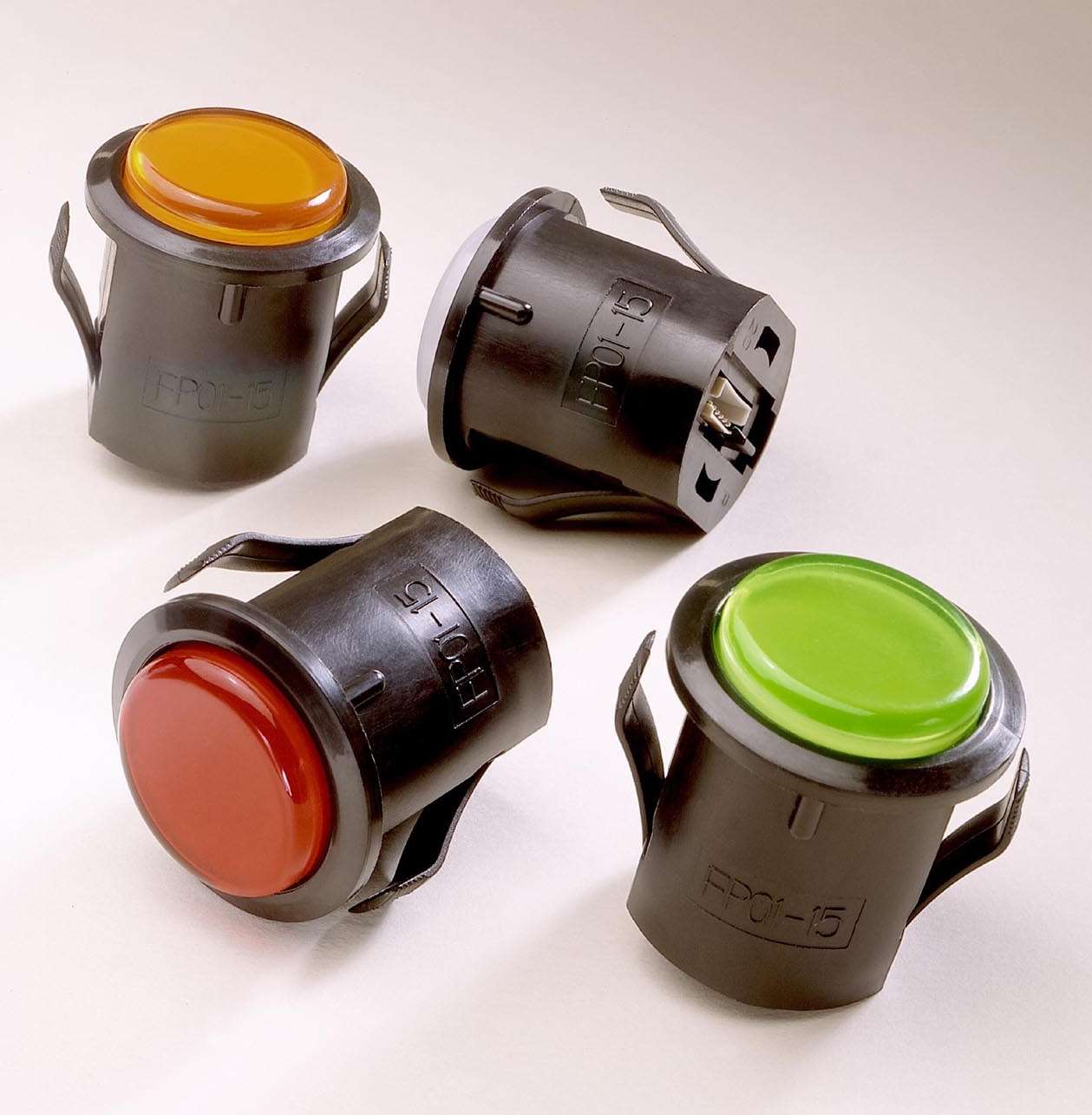

Aug 20, 2003 Series FP01 round, contactless pushbuttons come with single photo transistor that activates momentary ON position. They feature 6-pin socket and are snap-in mounted for easy installation. Smooth actuation allows repetitive and rapid actuation force. Pushbuttons include bright LEDs and colored actuators. They are suited for equipment exposed to corrosive gases and other harsh environments. Operating temperature range is -25 to +50°C.

Vishay Intertechnology, Inc.    Malvern, PA 19355 0988
Aug 20, 2003 Lead-free, multilayer varistor series MLV 2322 573 and series MLV2322 574 combine typical 0.5 ns response time with capacitance values down to 70 pF. They protect sensitive components from incoming overvoltage transients, voltage pulse interference, ESD, and RFI. Products also offer I/O port protection and can suppress electrostatic discharges reaching 15 kV in air and 8 kV in contact. Features include inherent bi-directional clamping and nickel/tin terminations.

ICON Industries, Inc.    Beloit, KS 67420

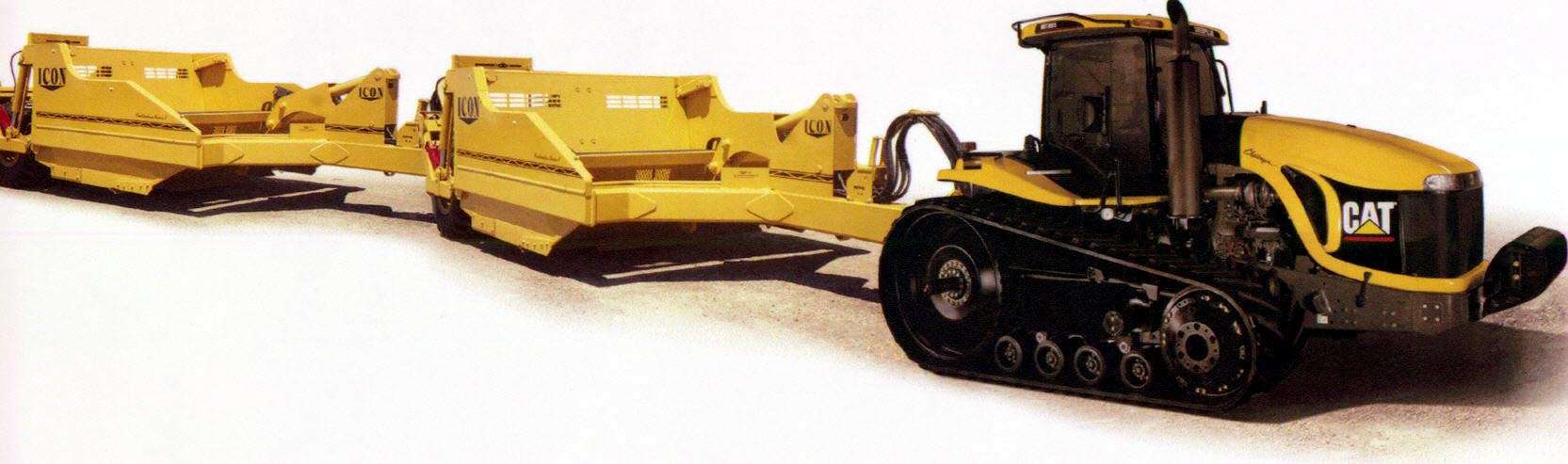

Aug 20, 2003 Designed for maximum capacity with less than 12 ft wide transport, E Series 18 and 20 yd Scrapers work with 500 hp tractors and are available with Swingwall Eject System. Operator controls Quickattach mount/dismount tractor 500 hp warranted 360° scraper hitch from cab. Products also offer CAT cutting bits and operator site gauge for bit control.

HellermannTyton    Milwaukee, WI 53224
Aug 20, 2003 Home Network Sciences(TM) allows for telephone, video, and television distribution; whole-house audio; computer networking; internet networking; and customized multimedia wall plates. Modular, UL-Listed enclosure is designed with strategically located knockouts and employs grid spacing design that eliminates need for plastic push lock pins. Computer keystone data module allows up to 8 Category 6 or 5e jacks or keystone modules to be terminated outside enclosure.

Lathem Time Corporation    Atlanta, GA 30336 2801
Aug 20, 2003 Model 7000E calculates worked time between punches and prints accumulated totals directly on time card for up to 50 active employees or jobs. It also calculates actual or rounded time, and supports automatic break deduction. Unit prints in AM/PM, 24 hr, or 1/100th of an hour, and adjusts for short months, leap year, and daylight savings. Internal lithium battery maintains time, card totals, and program settings for up to 5 years without power.

Lathem Time Corporation    Atlanta, GA 30336 2801
Aug 20, 2003 ShiftPlanâ„¢ EZ, which integrates with PayClockâ„¢ EZ, and Intuit's QuickBooks® Pro and Premier, allows user to create staff schedules and avoid scheduling conflicts. Schedules can be made weeks, months, or years in advance. Software produces schedules for up to 25 individual daily shifts and up to 150 employees. It schedules by department or position, creates schedule-to-actual and tardy reports, analyzes employee punch trends, and eliminates redundant data entry.

Meggitt (Maryland), Inc.    Germantown, MD 20876
Aug 20, 2003 BlueLynx(TM) BLM Wireless Sensor Links feature Class 1 Bluetooth(TM) technology for industrial operation from -40 to +85°C. They utilize frequency hopping, spread spectrum technique within 2.4 GHz ISM band to ensure license-free and secure communication. BlueLynx BLM-T Transmitter collects analog signals from up to 4 standard 4-20 mA sensors and transmits data wirelessly to BlueLynx BLM-R receiver wired to PLC, DCS, or other instrumentation system.

RAE Systems    San Jose, CA 95134
Aug 20, 2003 MultiRAE Wing Tank Entry Kit improves safety of any aviation wing tank entry or service program. Fuel tanks of commercial and military aircraft contain many serviceable parts requiring confined space entry for repair and maintenance. Kit contains alarms, gas measurement scales, and calibration gases specifically for use in environments containing jet fuel vapors. MultiRAE Plus includes oxygen sensor and LEL sensor, providing backup reading for PID.
