ID Technology Corp.    Fort Worth, TX 76106
Sep 29, 2003 Model 250 Printer Applicator is able to label boxes from 1–40+ in. in height. System receives data from height detection system positioned upstream, and relays case height to indexer. High-speed application can be accomplished using electric tamp assembly, which achieves throughput of 20 cases/min at approximately 150 fpm. Carton throughput may increase up to 45 cases/min when successive cartons are at or near max height.

Lee Industries, Inc.    Philipsburg, PA 16866
Sep 29, 2003 Incline Double-Motion Scrape-Surface Agitators, suited for gentle blending to high-viscosity processing, are custom-designed to meet processing requirements. Features include internal pressure/vacuum rating and trunnion tilt or piggyback motors. Products are offered in sizes from pilot lab to 1,000 gal production units. Applications include low-viscosity soups and sauces with particulates to heavy-duty ground beef, refried beans, and bacon bits.

Lee Industries, Inc.    Philipsburg, PA 16866
Sep 29, 2003 Suited for flush-bottom, in-line, and multi-port applications, Fluid-Flow valves are offered in standard configurations, aseptic, or jacketed. Designed for sanitary market, valves consist of 1½â€“4 in. flush-bottom, 2-way, 3-way, and multi-port valves. Features include fully-encapsulated seals, full-port design, and sanitary No. 4 finish I.D. Valves handle temperatures to 300°F and pressures to 450 psig.

VisiPak    St. Louis, MO 63122
Sep 29, 2003 Designed for both ends of company's clear, plastic tubing, Clear Caps help create completely visible plastic packages that alleviate security concerns by making identity of contents apparent. Caps fit on outside of tube and do not interfere with contents. Design allows stacking of tubes for maximum storage capabilities.

Norgren    Littleton, CO 80120
Sep 29, 2003 Available in various bore sizes, Lintra rodless cylinders feature magnetic pistons and custom stroke lengths up to 28 ft, per user requirements. Stroke of cylinder is contained within length of unit, and all components are made of anodized, corrosion-resistant aluminum. Products are suitable for incorporation into machines within electronics, packaging, printing, and medical industries.

ATMI, Inc.    Danbury, CT 06810
Sep 29, 2003 Using RFID technology with memory chip, NOWTrakâ„¢ Automatic Critical Materials Management System identifies, tracks, stores, and manages complete life cycle data of critical liquid materials used in fab. It prevents misconnects and provides advanced warning of expiration dates. Able to create electronic logs of material use and change-outs, system initiates chemical verification and monitoring functions and transfers product data from each container to the control system.

Wonderware Corp.    Irvine, CA 92618
Sep 29, 2003 FactorySuite A² Industrial Application Server v1.5, built on ArchestrA software architecture, provides real-time data acquisition, alarm and event management, data manipulation services, and collaborative engineering capabilities. It supports Stratus® ftServer® family, which provides continuous-availability options for supervisory control and plant intelligence systems. Scalable solution also offers object validation and reusable component templates.

Rogers Corporation    Rogers, CT 06263 0188
Sep 29, 2003 PORON® Series 4790-92 products are cast directly onto 0.002 in. polyester film for stability. Finished products exhibit less than 2% compression set, low outgassing, and low fogging. Slow rebound materials retain properties at constant temperatures up to 158°F and can survive intermittent temperatures up to 250°F. Available in 12 and 15 lb densities, they can fill gaps, provide seals, and protect components from environmental hazards and harmful vibrations.

Transducers Direct    Miamiville, OH 45147
Sep 29, 2003 Model PS02 digital ASIC supports 2 full bridges or 4 half bridges. It determines resistor ratio from precise time interval measurement, delivering up to 18-bit resolution of 1,000µ strain. Depending on application, total current of system can be reduced to 5 µA. Model PS02 offers programmable update rates to 20 kHz and includes serial SPI interface. It is suited for load cells, force sensors, pressure sensors, general strain gage amplifiers, and capacitive sensors.

Relevant Business Systems, Inc.    San Ramon, CA 94583
Sep 29, 2003 Aviation Value Pack all-inclusive software offers modules addressing SOM/Quoting and Estimating, Production Engineering, Inventory Control, Purchasing/Receiving, Manufacturing Resource Planning, Manufacturing Cost, Financials, RFQ Management and Control, and Upload Programs. Suited for aerospace firms, package also includes modules for Lot/Serial Control, Project Control, Design Engineering, and Engineering Change Control.

NetSuite, Inc.    San Mateo, CA 94403-2511
Sep 26, 2003 NetSuite v9.0 delivers intelligent and complete functionality that automates CRM, ERP, and Web operations for mid-sized companies. Designed with user-specific dashboard interface, software provides Xtreme List Editing, commission management and payment, and recurring billing features as well as matrix items. Additional offerings include complete UPS integration, integrated e-commerce, mail merge, activity tracking, searching, and report options.

Carman Industries Inc.    Jeffersonville, IN 47130

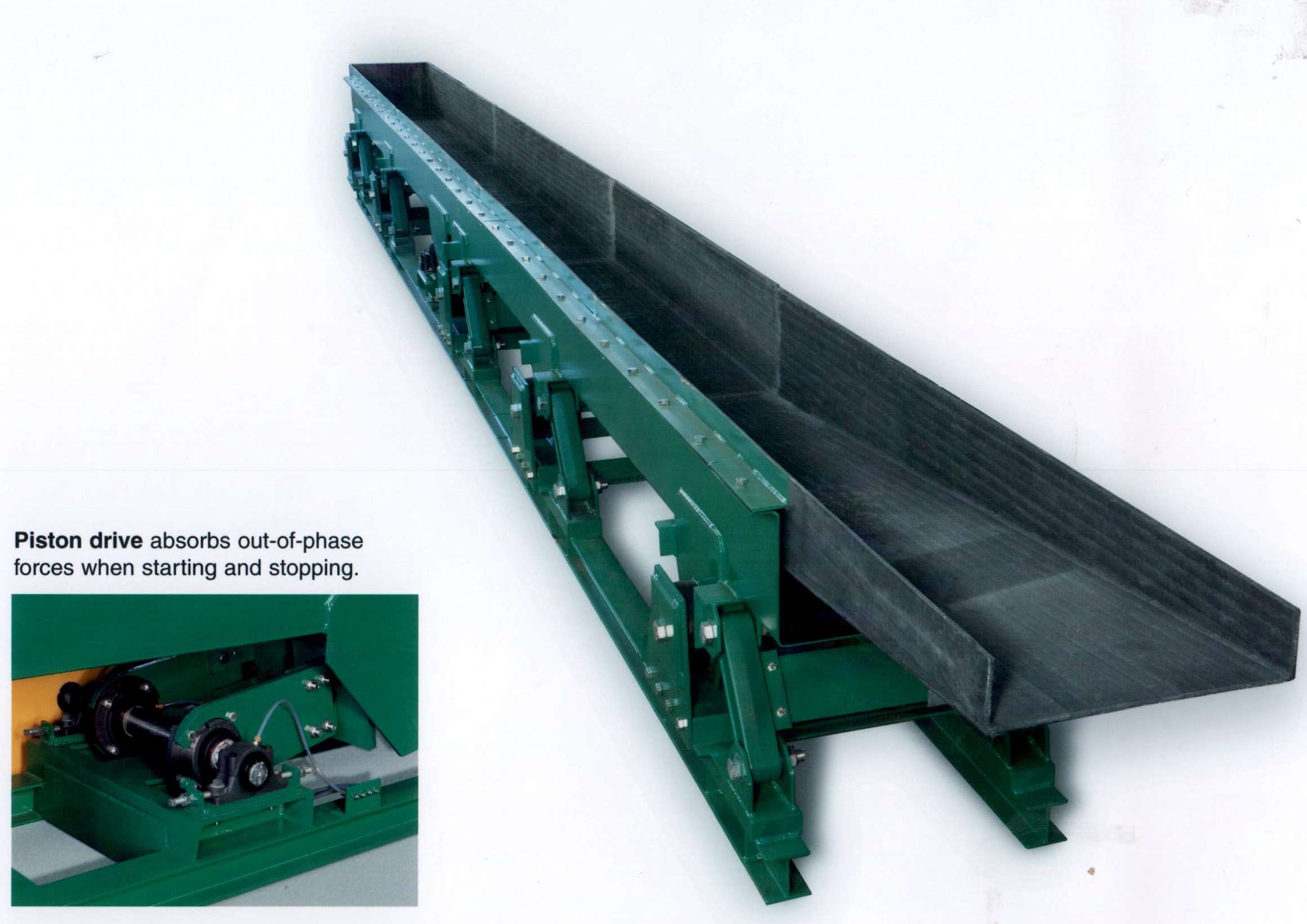

Sep 26, 2003 Vibrating Glass Quenching Conveyor features replaceable, abrasion-resistant, chrome-carbide conveying/quenching trough. Quench pool is maintained by integral inclined ramp and drain system. Conveyor includes rubber drive springs and piston drive with double-row bearings, single-point lubrication system, and drip shield for bearing protection. It is 24 in. wide x 31 ft long with corrosion-resistant epoxy paint system.

Neptune Chemical Pump Co., Div. Of R.A. Industries, Inc.    Lansdale, PA 19446 0247

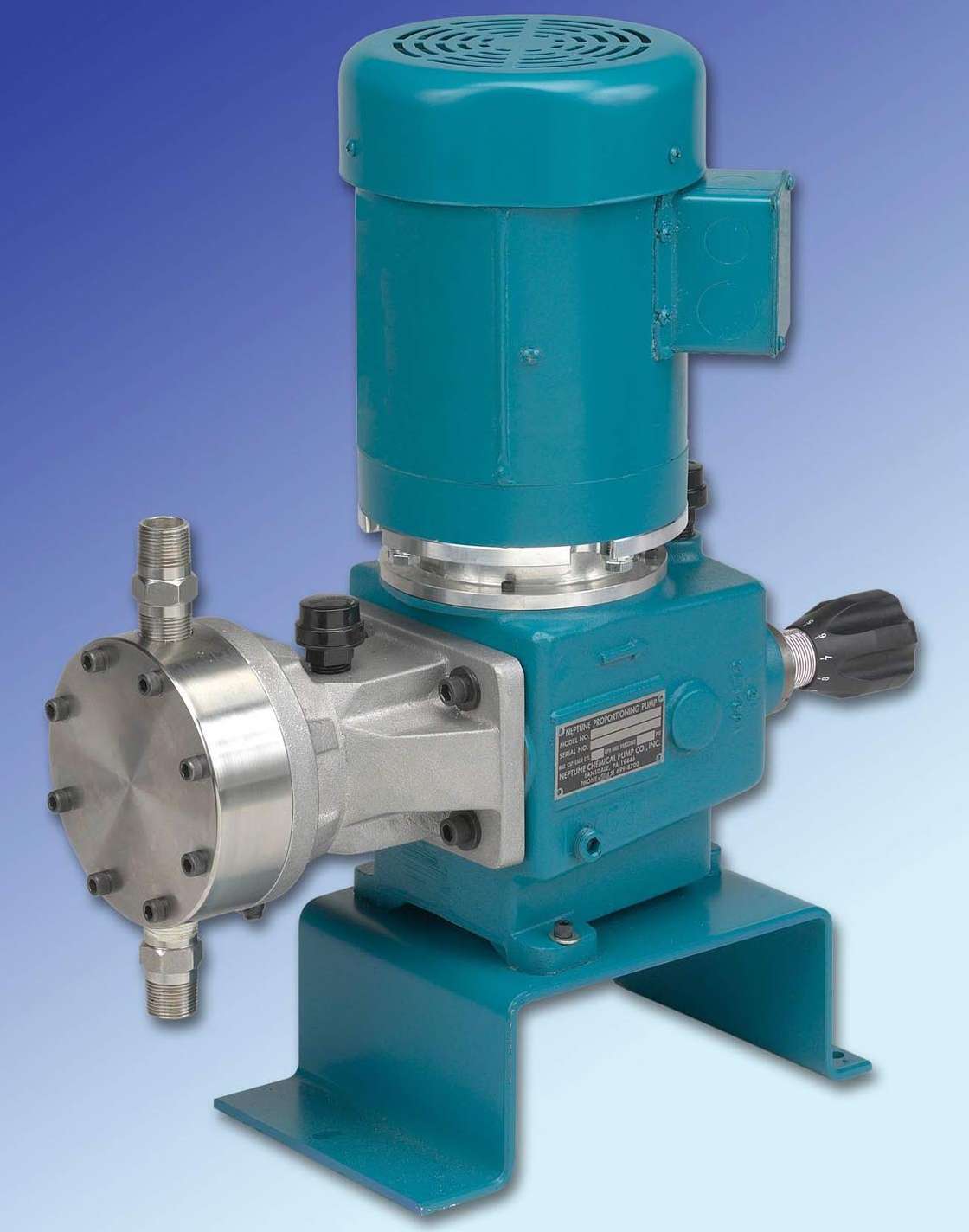

Sep 26, 2003 Available in 7 models, Series 7000 mechanically actuated pumps can pump chemicals that off-gas without binding. All models are self-priming and provide suction lift to 20 ft. Max capacities range from 15-300 gph at 150 psi. Products feature 10-1 turndown by micrometer dial and variable speed option. Offered with 100 or 200 mm liquid-end diaphragm diameters and 18, 37, 72, or 117 spm gear speeds, pumps' liquid ends are available in PVC, Kynar, and 316SS.

New Pig Corp.    Tipton, PA 16684 0304
Sep 26, 2003 PIG® Battery Acid Spill Pack provides means for quick response to spills of battery acids. Compact and able to be carried or hung, 16 x 20 in. Spill Pack contains enough absorbent PIG mats and socks to absorb up to 4 gal of battery acid. Visible package includes nitrile gloves, goggles, apron, and disposal bag with nylon ties.

Fairchild Semiconductor    South Portland, ME 04106

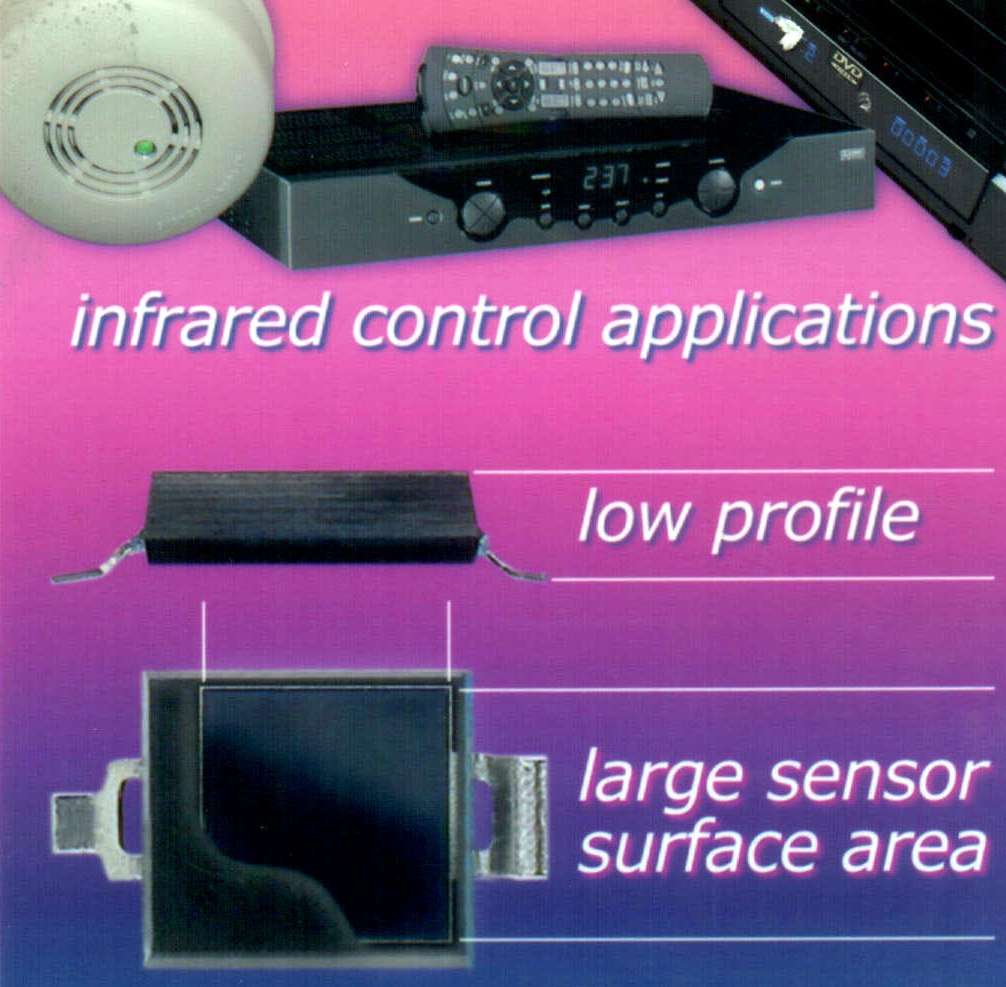

Sep 26, 2003 Surface mount Model QSB34 has surface area of 9 mm² and reception angle of 120°. Lead-free packaging creates integral, transparent daylight filter that is optimized for reception of 880–940 nm wavelength light. Low 25 pF capacitance and small series resistance typically delivers rise time and fall time of 20 ns. Gull wing configuration is available for top side mounting, while X-Bend configuration provides under board mounting.

Amphenol Corp., Amphenol Aerospace    Sidney, NY 13838
Sep 26, 2003 Offered as individual contacts or in strip form with solder or crimp contacts, with and without wire grips, RADSOK® series is available in sizes as small as No. 16 contact. Contacts are available with amperage ratings of 15–600+ A, and insertion forces vary from 2–10 lbs. Electrical terminal is based on hyperbolic grid configuration. Cylinder contains elongated contactor strips connected in spaced, parallel relationships, twisted into hyperbolic shape.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Sep 26, 2003 DMOS 1.5 A driver Model DRV104 operates from single 8–32 V supply range. It can provide strong initial solenoid closure and automatically switch to soft hold mode for power savings. Duty cycle can be controlled by resistor, analog voltage, or digital-to-analog converter. Status flag pin indicates thermal shutdown or over-current conditions. Separate supply pins for control circuitry and driver transistor allow device to operate on separate supplies.

Astec America Inc.    Carlsbad, CA 92008

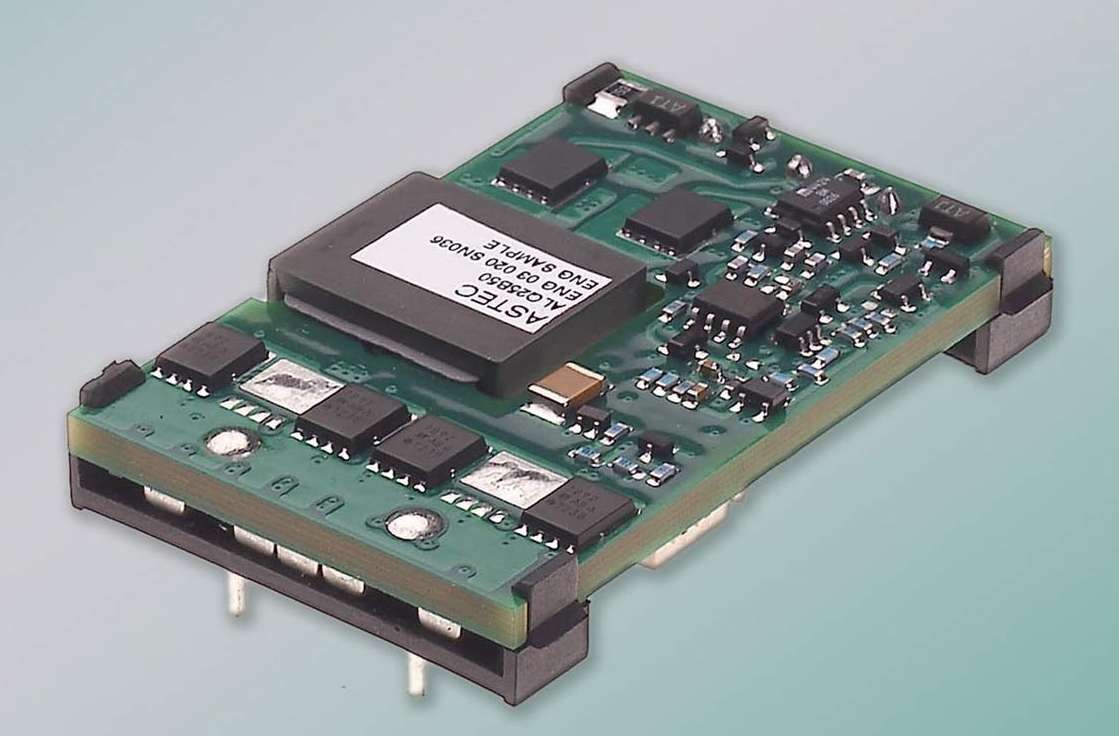

Sep 26, 2003 Packaged in open-frame quarter-brick, ALQ25B50 series bus converters deliver up to 300 W of output power at up to 96% efficiency, and accept input range of 42-53 V. Products utilize open loop DC conversion scheme, enabling them to exhibit resistive output characteristics to ease system stability management with multiple point of loads employed in distributed power architecture. Devices offer choice of positive or negative logic control for remote on/off pin.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Sep 26, 2003 Smart Torqâ„¢ Error-Proofer monitors entire fastening process and controls final torque of electric assembly tools. It learns fastener installation characteristics and compares learned characteristics to those being experienced while fastener is installed. Controller detects cross-threading, premature shut-off, re-hits, cam-outs, and missed fasteners as well as incorrect torque. Relay I/O is standard, providing good, bad, and batch complete signals.

Brentek International Inc.    York, PA 17406
Sep 26, 2003 Model IDC50-TB26 plugs into 50-pin header of 4, 8, 16, and 24 position I/O racks, eliminating need for mass termination connectors and ribbon cables. The 26-position terminal block accepts wire sizes from 24–16 AWG and provides wiring access to Vcc, Common, and up to 24 signal lines. Common applications requiring direct I/O module control include machine controls, control panels and systems, as well as I/O testing and troubleshooting applications.
