Loegering Manufacturing Inc.    Casselton, ND 58012
Oct 01, 2003 Loegering Z-Track provides aggressive traction and side-hill stability. Hammer-forged steel traction cleats are wear-resistant, self-cleaning, and provide skid-steer control. Tracks attach via customized installation tool, and reinstallation takes typically less than 30 min. Rebuildable tracks are fully adjustable due to their 3-hole link. Products utilize threaded Dura Pins with index feature to lock pins in place.

C & D Technologies    Mansfield, MA 02048-1151
Oct 01, 2003 Offered in 40-pin, ceramic TDIP package, ADSD-1402 includes 2 A/Ds that can be triggered simultaneously or independently. Each input channel has sample-hold amplifier, 2 MHz 14-bit A/D, and its own timing and control circuits. To ensure channel-to-channel matching, A/Ds operate from one precision reference, and there are 2 sets of offset and gain adjustments. Product offers 79 dB signal-to-noise ratio and -80 dB total harmonic distortion.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846

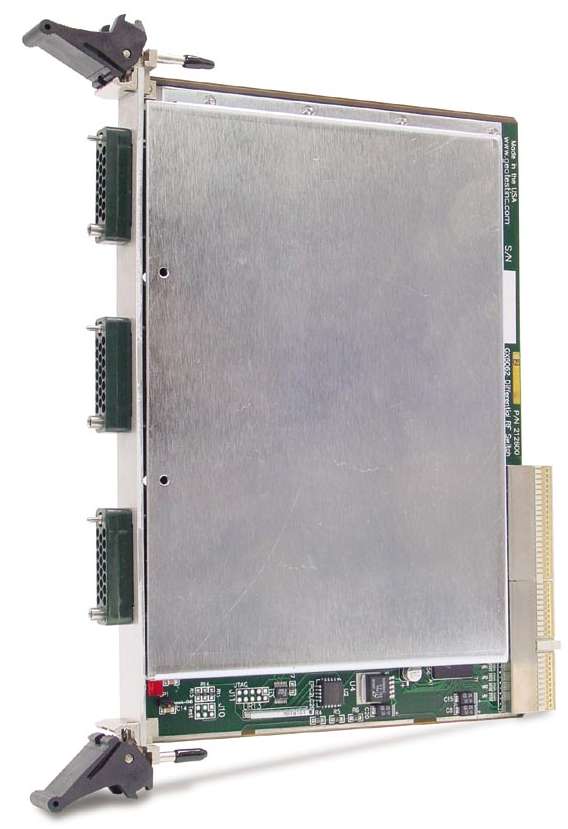

Oct 01, 2003 Model GX6062 PXI high-density RF multiplexer features 12 groups of 1:4 multiplexers that can be software-controlled to provide various multiplexer configurations, while maintaining full 200 MHz bandwidth. Measuring 6U, unit provides differential RF switching and may be configured as 12 x 1:4, 6 x 1:9, 2 x 1:29, 1 x 1:59, as well as other configurations. Applications include Automated Test Equipment, parametric measurements, and RF communications.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846

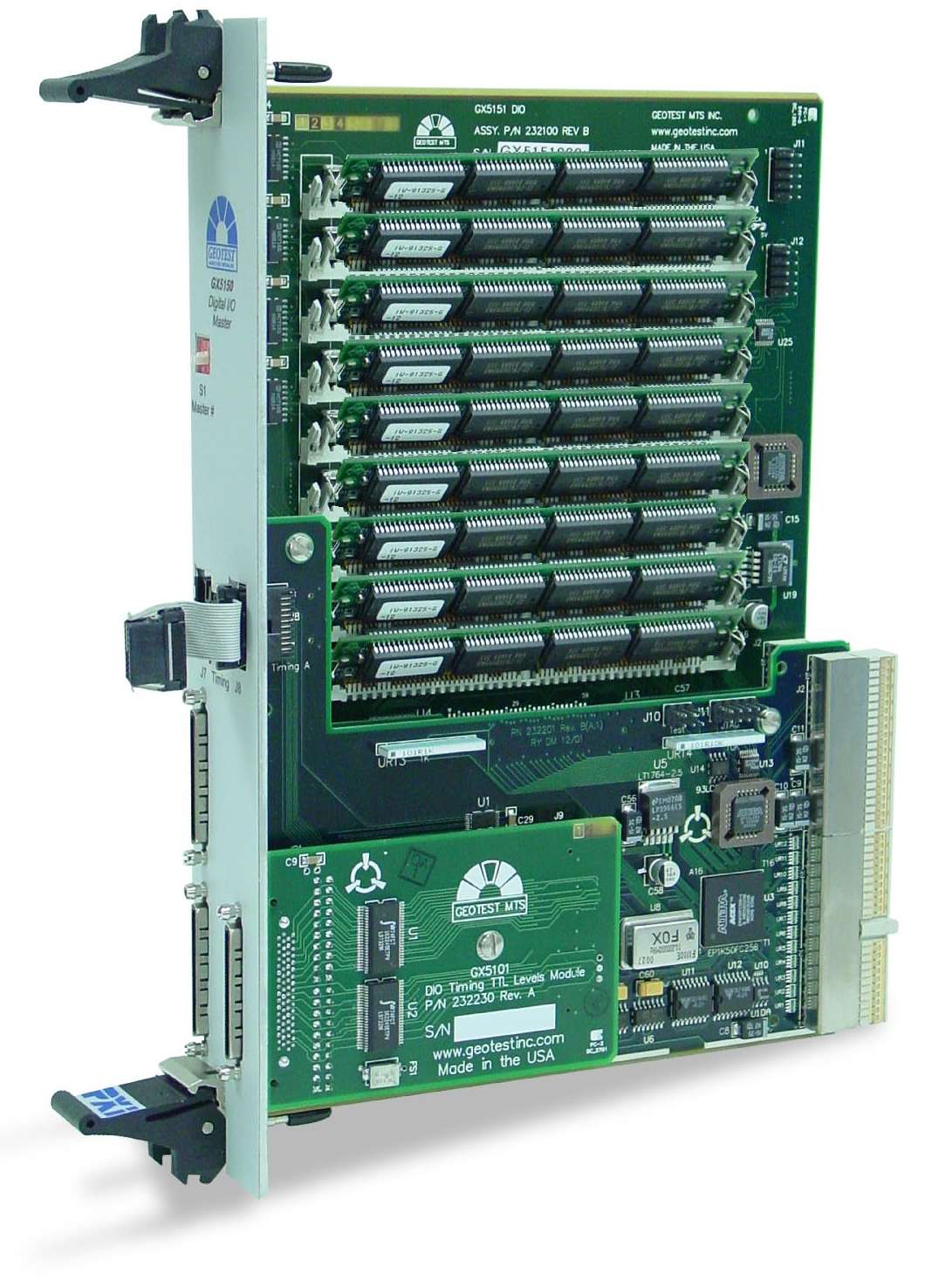

Oct 01, 2003 Series GX5152 PXI Digital Stimulus-Response Cards provide bus emulation and high-speed digital test. Model GX5152 6U Master includes DSR timing set and can control up to 15 GX5153 DSR slaves to expand dynamic digital I/O channels up to 512. Timing set within master card features Major Cycles running at 100 MHz and Minor Cycles running at 50 MHz. Model GX5152 includes trigger signal, 10 nS edge placement resolution, and 5 memory SIMMS for memory depth of 8 Mb.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Oct 01, 2003 Master Model GX7102 and Slave Model GX7112 include cable tray and mass-interconnect interfacing capabilities. They are both 6U in height, and can accommodate up to 14 PXI or cPCI instruments in 7 3U-only slots and 7 3U/6U slots. Cable tray allows wiring from PXI instruments to be routed to rear of chassis, as well as routing wires from external devices to front of PXI chassis. Hinged front door accommodates mass interconnect devices.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Oct 01, 2003 Model GTX2220 delivers frequency, period, totalize, and time interval functions in PXI form factor. Reciprocal counting provides fixed number of digits of resolution for all frequencies, rather than fixed resolution in Hz for same gate time. Counter provides 2,300 measurements/sec and features 10 digits/sec of resolution for frequencies from 1 Hz to 1.3 GHz. It can determine any frequency to 7 digits in 1 ms, and can resolve each time measurement to 100 ps.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Oct 01, 2003 Series GP1550H dual-channel, GPIB-programmable pulse generators are 100% form-fit-function replacements for obsolete HP8160A pulse generators. Output specifications and GPIB command set are fully compatible.

MTS Sensors Group    Cary, NC 27513
Oct 01, 2003 All-metal, IP67-rated CSPR magnetostrictive position sensor is manufactured with metal sensor tube and is shielded to prevent signal interruption. Custom length electrical pigtails enable sensor to be wired directly to controller, while metal tab plates ensure low-profile installation. Sensors measure lengths to 250 mm with no loss in performance, and standard stroke lengths range from 72.3–250.1 mm. Each sensor provides both analog and PWM outputs.

Advanced Fabricating Machinery    Kingston, NH 03848
Oct 01, 2003 Semi-automatic Model SOCO-50NC-MP includes bend former, clamp die, and mandrel. Touch screen control panel with large program storage facility can be upgraded to PC for unlimited storage capacities. Machine accommodates up to 2 in. OD mild steel and 1½ in. schedule 40 pipe.

Advanced Fabricating Machinery    Kingston, NH 03848
Oct 01, 2003 Model SOCO SB-10x3A-1S utilizes electro servo driven motor and can bend 300° per second. With option for multiple stacked tooling, quick change between radii or jobs allows operator to eliminate tooling change time. Featuring unlimited part storage, machine is suited for high production fabrication shops ranging from automotive to furniture industry.

Advanced Fabricating Machinery    Kingston, NH 03848
Oct 01, 2003 Model SOCO SB-38x2B-1S 3-axis CNC bender utilizes touch screen PLC with ability to store up to 330 programs. Standard machine features include one set of standard tooling, hydraulic mandrel extraction system, auto-lubrication system, and removable push-button operator stand.

Mitutoyo America Corporation    Aurora, IL 60504 9176
Oct 01, 2003 CNC CV/CS/SV formtester is capable of automated contour/surface roughness measurements with independent/simultaneous multi-axis CNC control. Machine may be configured to take surface roughness measurements, contour measurements, or both simultaneously by changing detector heads. Tilting drive unit has +45° to -10° range, and power incline feature allows for measuring slanted surfaces. Unit can also auto-level itself for flat surface roughness measurements.

Mitutoyo America Corporation    Aurora, IL 60504 9176
Oct 01, 2003 Quick Scope® is available as manual QS-E system and CNC/manual, motor-driven QS system. Suited for observation/measurement of one workpiece, QS-E offers 0.1 µm resolution, 6 in. Z-axis range, and variable magnification. It includes co-axial surface illumination and contour stage illumination. QSPAK software provides QS model with zoom, auto-focus, measurement playback, one-click edge detection, graphic display, 48 macros, and pattern matching functions.

Tesa Tape, Inc.    Charlotte, NC 28209
Oct 01, 2003 SteelMaster LT adhesive holds photopolymer plates .067 in. and thinner onto steel cylinders. Able to hold during print run, it removes with ease upon job completion. Non-building adhesive maintains initial level of holding power over time. Suited for combination printing, medium-density 52121 Softprint SteelMaster foam tape is coated with SteelMaster LT and allows for fine dot reproduction of less than 5% without sacrificing pin holing on solid areas.

Bacou-Dalloz    North Smithfield, RI 02917
Oct 01, 2003 Titan T-FLEXâ„¢ Harnesses feature soft, fully-adjustable webbing for maneuverability and comfort. Sub-pelvic strap and back strap add support and provide safety in event of fall. Non-slip, adjustable chest strap adapts to user's size for proper fit, while lanyard ring and sliding D-ring/pad assure correct positioning. Contrasting color webbing on leg straps aids workers in correctly donning harness. Titan T-FLEX Harnesses meet OSHA, ANSI and CSA requirements.

NLB Corporation    Wixom, MI 48393 2824
Oct 01, 2003 Series NLB 331 consists of plunger pump with hard-coated valves and plungers. Quick-change fluid end lets user choose any of 5 pressures from 8,000–20,000 psi. Flows range from 24–58 gpm. Utilizing 330 hp diesel engine, mobile pump unit is suited for range of product removal and surface preparation jobs.

Peritek Corp.    Oakland, CA 94619
Oct 01, 2003 Duros/PMC conduction-cooled, dual-head display controller board features 128-bit 2D/3D SM731 graphics accelerator, which is supported with 16 Mbytes of high-speed SDRAM display memory. It provides screen resolutions up to 1,600 x 1,200 at vertical scan rates up to 91 Hz. Suited for VMEbus and CompactPCI embedded systems, Duros/PMC supports single channel analog VGA, dual-channel LVDS outputs, or optional single channel DVI.

Peritek Corp.    Oakland, CA 94619
Oct 01, 2003 Dual-head graphics display controller and video capture PCI Mezzanine Card (PMC) works in VME and CompactPCI embedded systems. Display channels simultaneously deliver dual VGA or LVDS outputs or one DVI output. Based on 128-bit Silicon Motion SM731 graphics accelerator, Stratus/PMC supports single displays at screen resolutions up to 1600 x 1200 x 24 bpp with 16.7 million colors and dual displays at 1024 x 768 x 24 bpp.

Foxboro Measurement & Instruments Div.    Foxboro, MA 02035
Oct 01, 2003 Optionally redundant/fault-tolerant controllers are offered in 2 models. I/A Series ZCP270 controller fits existing I/A Series mounting structures in rack rooms and supports up to 120 remote-mounted Fieldbus I/O Modules. I/A Series FCP270 field-mounted controller fits in dedicated slots on field-mounted baseplates adjacent to Fieldbus I/O Modules and supports up to 32 Fieldbus Modules. Both units offer GPS time synchronization for SOE and TDA time stamping with up to 1 msec accuracy.

National Instruments Corp.    Austin, TX 78759-3504
Oct 01, 2003 Sound and Vibration Toolkit v3.0 and Order Analysis Toolset v2.0 offer 65+ application examples and 80+ measurement functions. Tools can be used as foundation to develop applications; custom requirements can be added using program and analysis algorithms of LabVIEW graphical development environment. Toolkits work with NI dynamic signal acquisition devices, SCXI signal conditioning, FieldPoint, LabVIEW Real-Time software, and distributed I/O and data acquisition products.
